Cushion/Cover-Cushion - Front: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

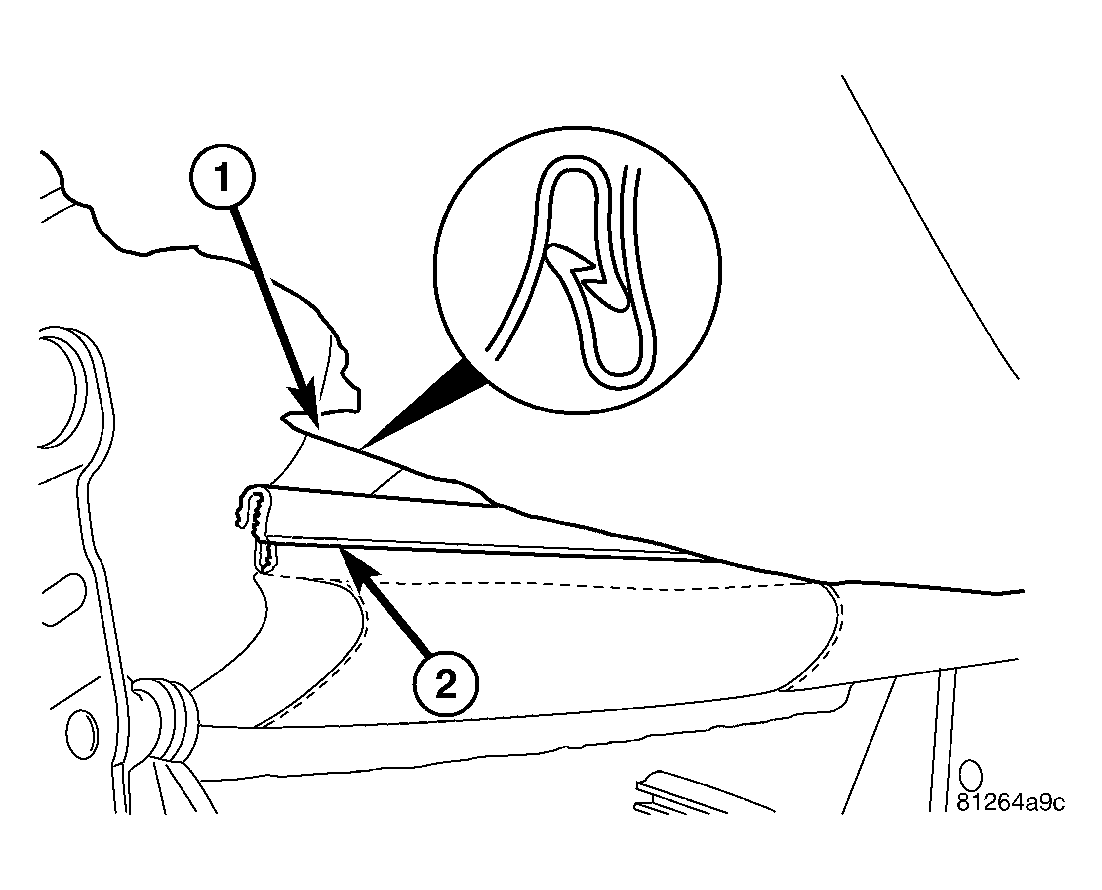

Fig 1: J-STRAPS
GC0027978Courtesy of DAIMLERCHRYSLER CORP.
  1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to BODY/SEATS - WARNING)
  2. Position the cushion cover and foam over the seat pan and connect the j-straps (1 & 2).

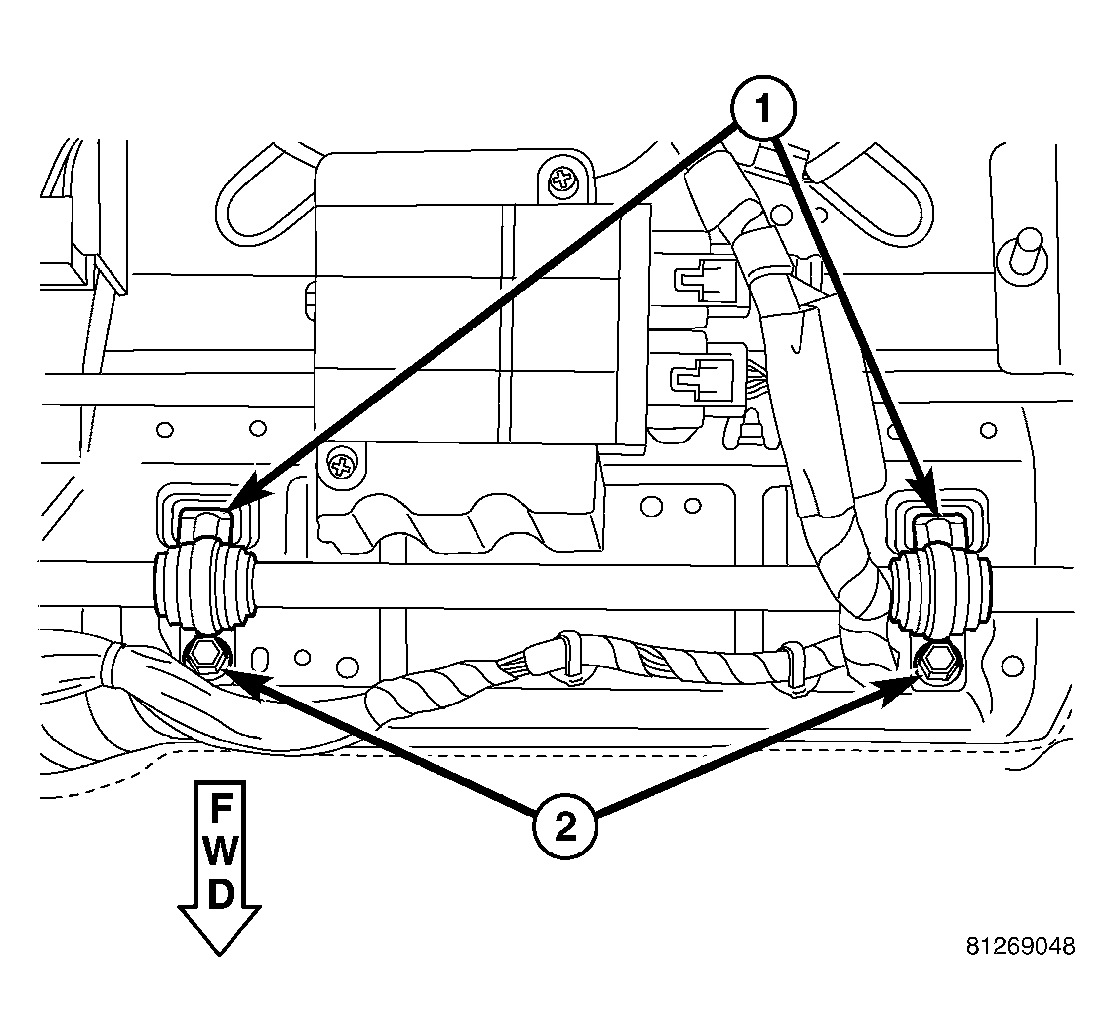

    Fig 2: Identifying Bolts & Clamps
    GC0027976Courtesy of DAIMLERCHRYSLER CORP.
  3. Position the seat cushion assembly onto the seat frame and install the clamps (1).
  4. Connect the wire harness to the seat cushion pan, if equipped.
  5. Install the bolts (2) and tighten to 10 N.m (90 in. lbs.).
  6. Connect battery negative cable.
