Section 540 (Body - Interior & Exterior): Liftgate: Panel-Trim: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

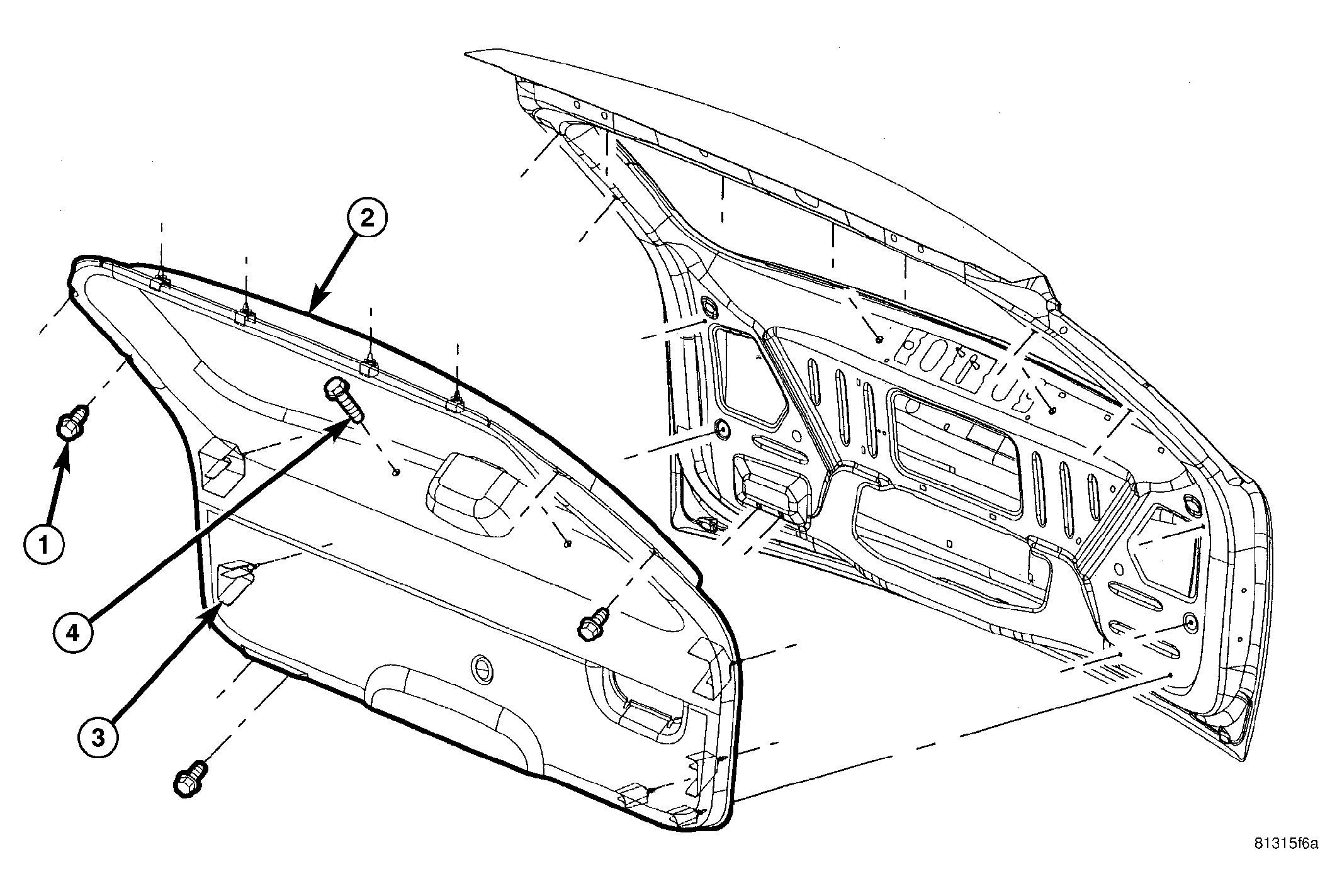

Fig 1: TRIM PANEL

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect and isolate the battery negative cable.
Remove the screws (1 and 4) from lower trim panel (2).
Using a trim stick or another suitable wide flat-bladed tool, carefully pry the trim panel away from the inside of the liftgate to release the push-in plastic fasteners (3) that secure the panel (2) to the liftgate.

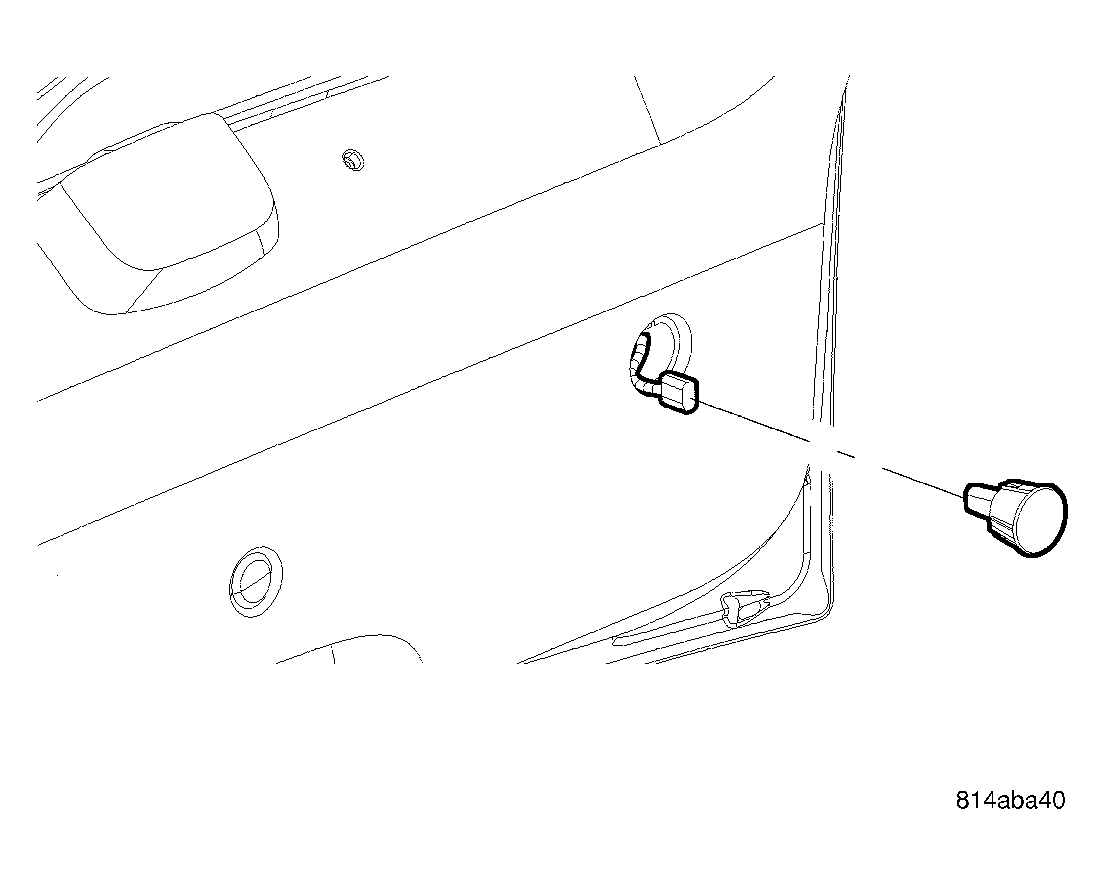

Fig 2: Removing/Installing Lower Liftgate Trim Panel Lamp
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect and remove the lamp (2) from the lower liftgate trim panel.
Remove the liftgate lower trim panel (2) from the vehicle.
