Release-Hood Latch: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

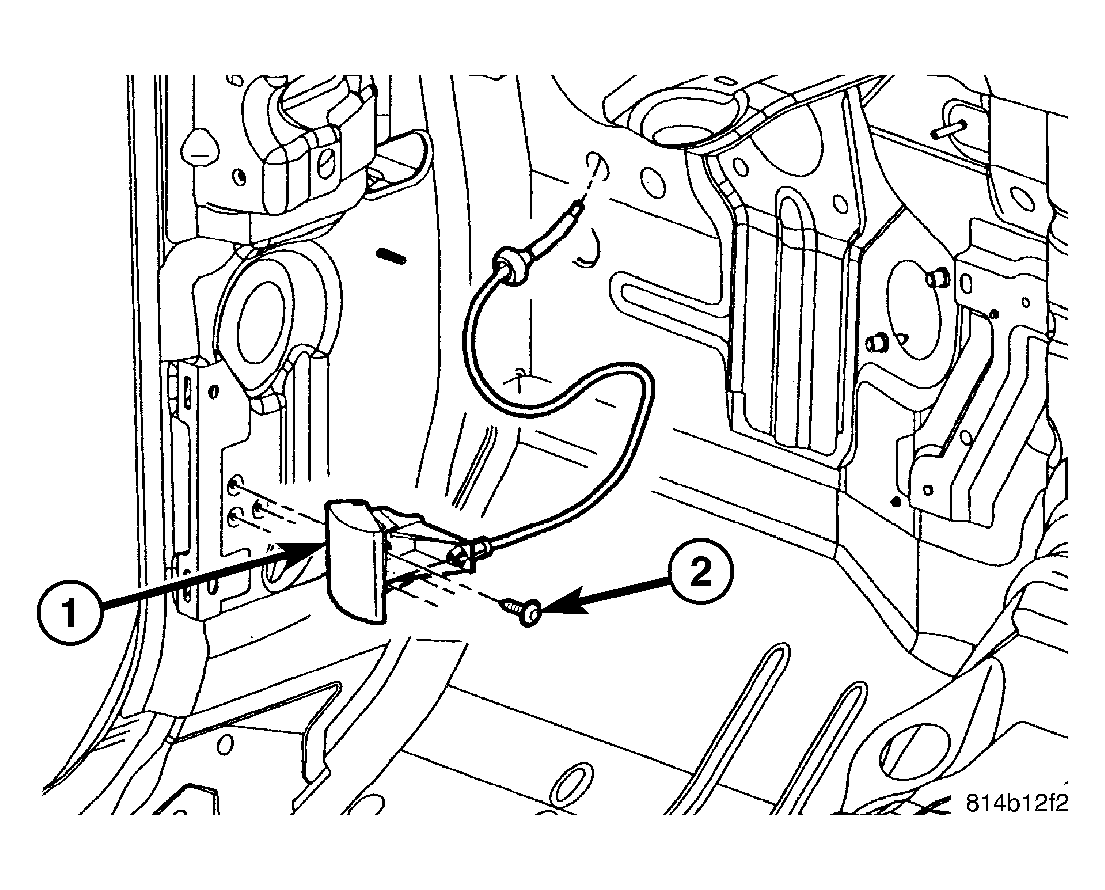

Fig 1: Identifying Hood Release Handle

Courtesy of DAIMLERCHRYSLER CORP.

Route the hood release cable through the cowl panel and install the grommet.
Position the hood release handle (2) onto the cowl trim panel.
Install the two bolts (2) that secure the hood release handle (1) to the instrument panel bracket. Tighten the bolts to 9 N.m (80 in. lbs.).

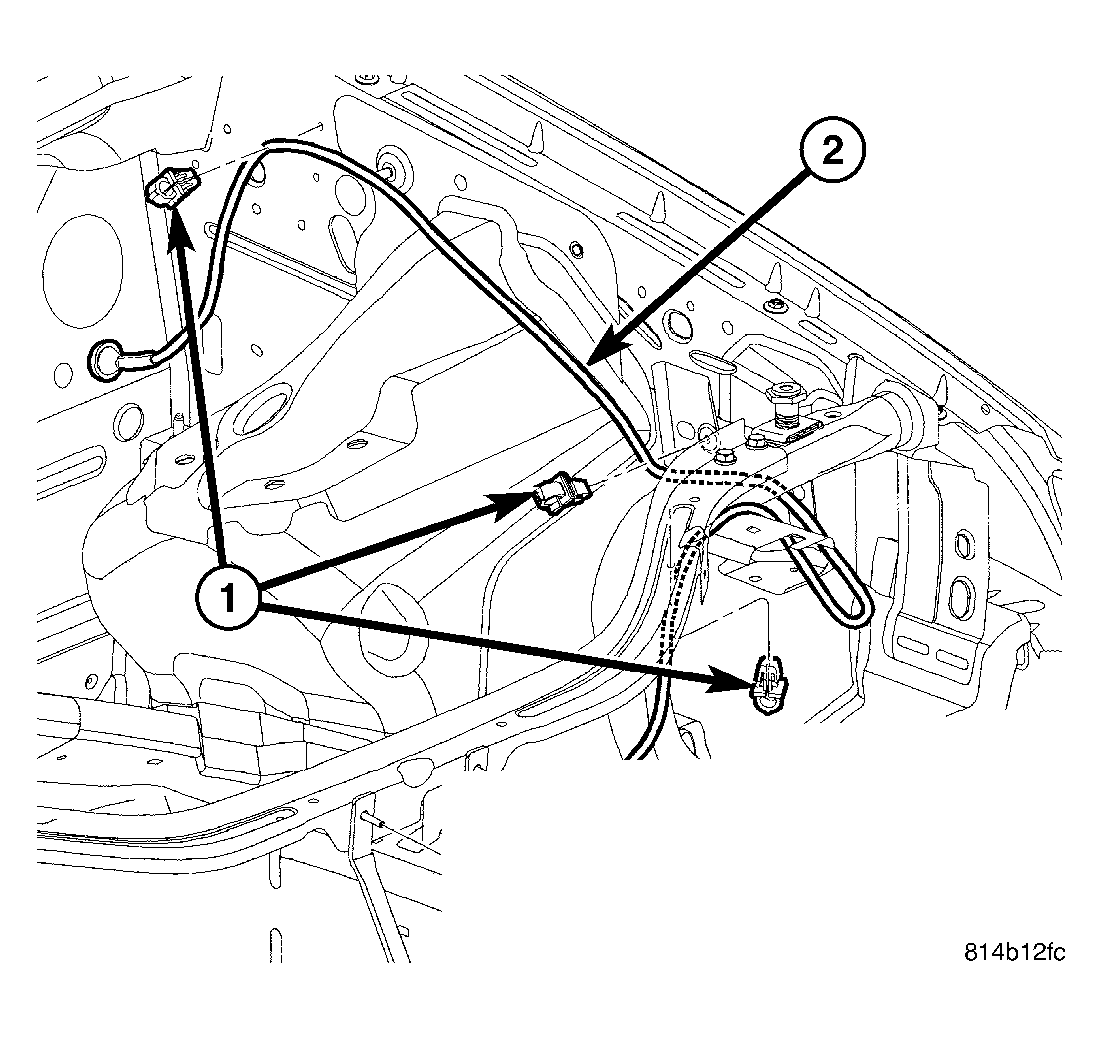

Fig 2: Identifying Hood Latch Release Cable
Courtesy of DAIMLERCHRYSLER CORP.
Route the hood release cable (2) along the left inner fender and the upper radiator crossmember and install the three hood release cable retainers (1).
Install the hood latch (Refer to BODY/HOOD/LATCH - INSTALLATION) .
