Cylinder-Hood Support: Removal
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

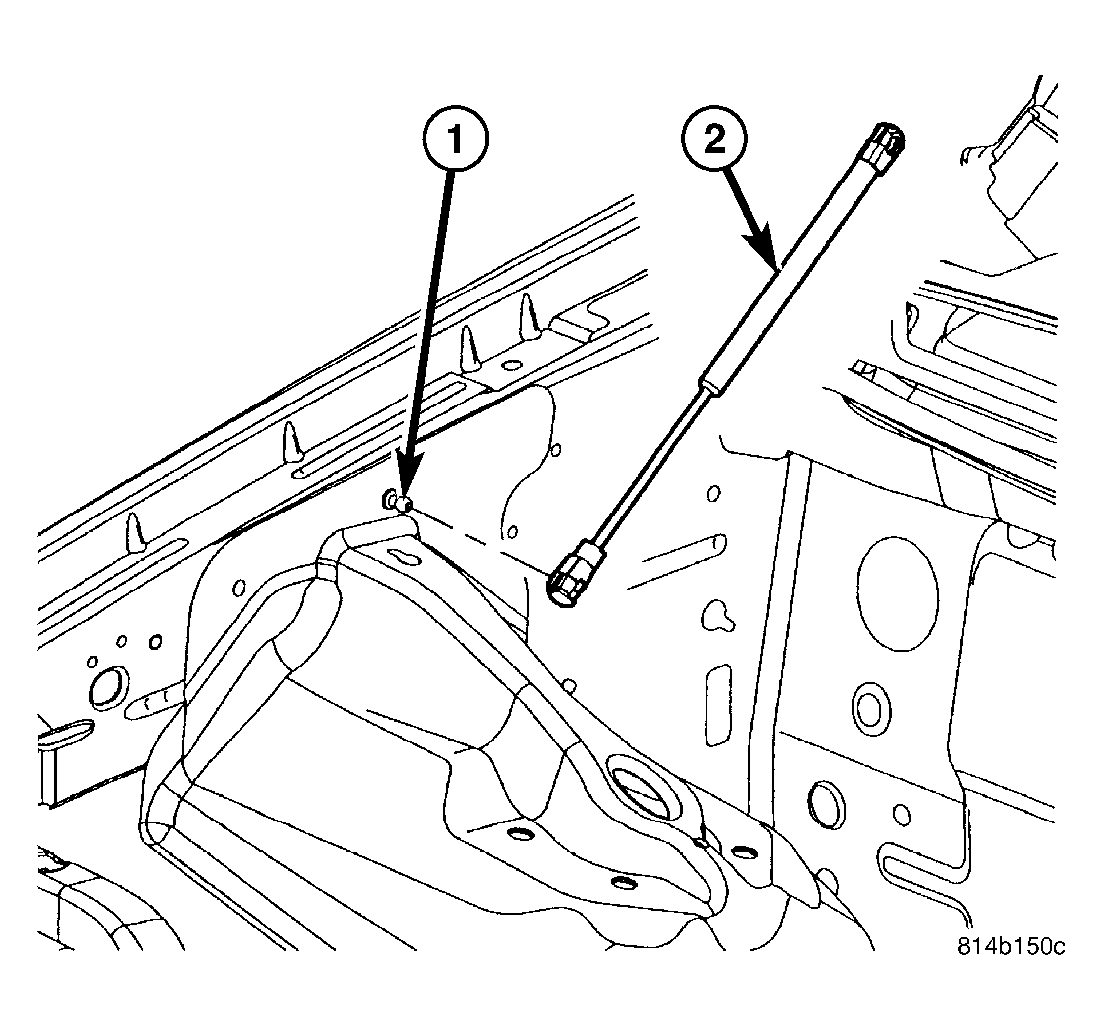

Lift the clips only enough to release the ball studs (1).
- Support hood.
- Disconnect the hood support cylinder (2) from the hood and the ball stud (1) on the fender rail.
- If required, remove the upper ball stud from hood and the lower ball stud (1) from the fender rail.
