Section 540 (Body - Interior & Exterior): Exterior: Rack-Luggage: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

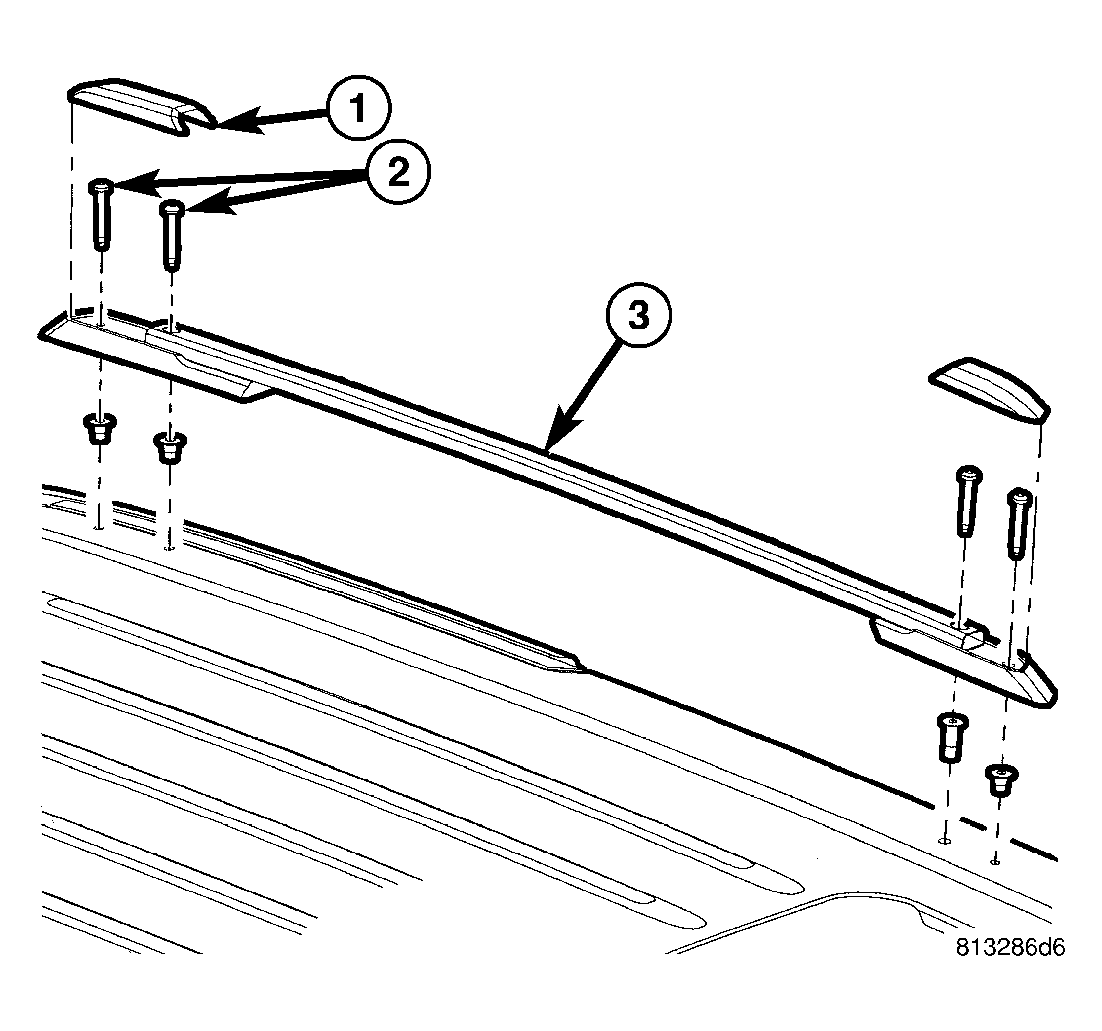

Fig 1: Removing/Installing Luggage Rack
GC0027890Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove luggage rack end covers, pull straight up.
  2. Remove the mounting bolts.
  3. Remove luggage rack bars.
