Panel-Cowl Top: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

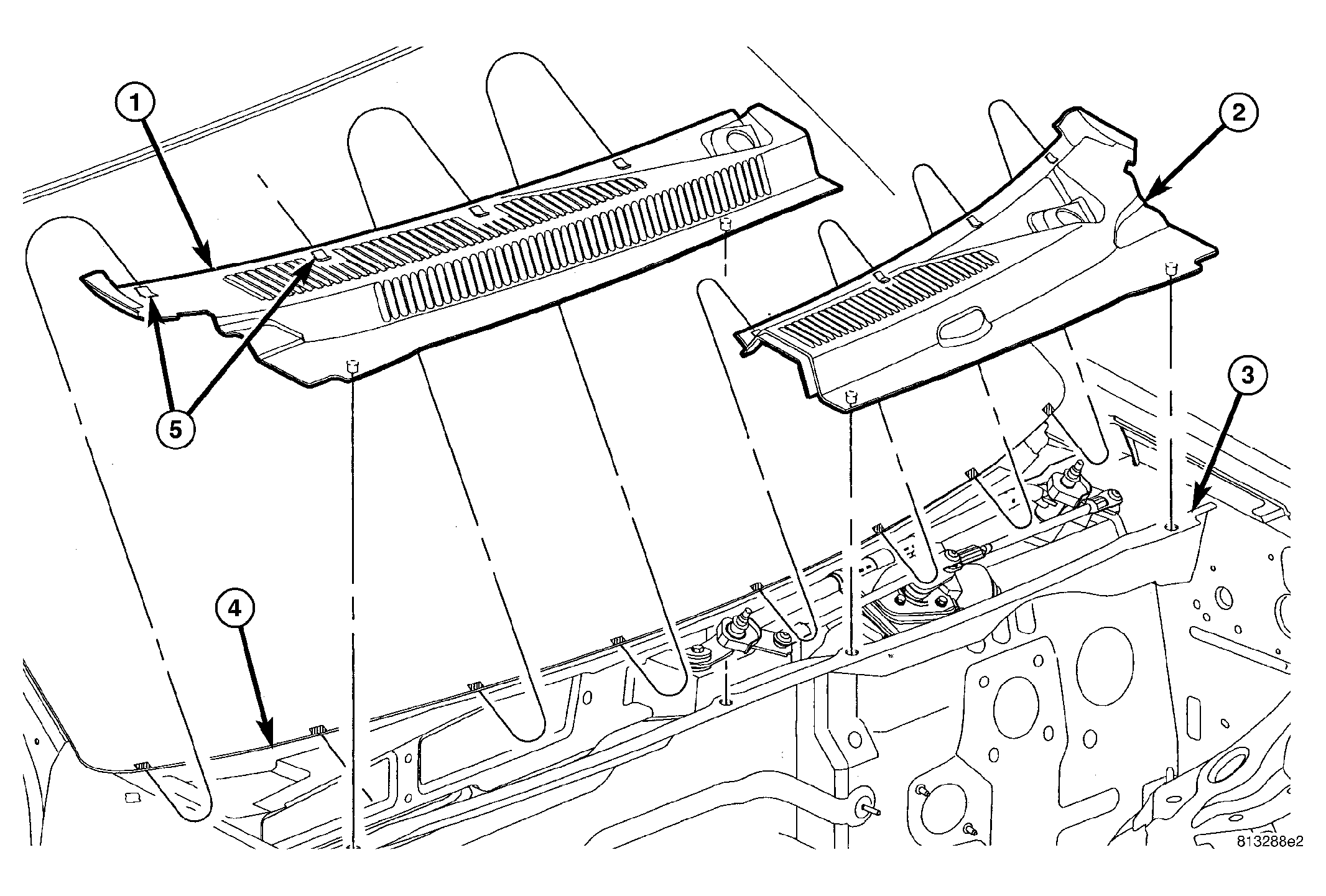

Fig 1: Removing/Installing Cowl Top Panel
GC0027889Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove wiper arms. (Refer to ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - REMOVAL)
  2. Remove plenum seal.
  3. Remove plastic push nuts attaching cowl cover to cowl.
  4. Remove cowl cover from cowl.
