Weld Locations

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
WELD LOCATIONS

DESCRIPTION FIGURE
ENGINE BOX (1 OF 4) Fig 1.
ENGINE BOX (2 OF 4) Fig 2.
ENGINE BOX (3 OF 4) Fig 3.
ENGINE BOX (4 OF 4) Fig 4.
ENGINE BOX - COMPLETE (1 OF 2) Fig 5.
ENGINE BOX - COMPLETE (2 OF 2) Fig 6.
DASH/PLENUM (1 OF 5) Fig 7.
DASH/PLENUM (2 OF 5) Fig 8.
DASH/PLENUM (3 OF 5) Fig 9.
DASH/PLENUM (4 OF 5) Fig 10.
DASH/PLENUM (5 OF 5) Fig 11.
FRONT RAILS (1 OF 11) Fig 12.
FRONT RAILS (2 OF 11) Fig 13.
FRONT RAILS (3 OF 11) Fig 14.
FRONT RAILS (4 OF 11) Fig 15.
FRONT RAILS (5 OF 11) Fig 16.
FRONT RAILS (6 OF 11) Fig 17.
FRONT RAILS (7 OF 11) Fig 18.
FRONT RAILS (8 OF 11) Fig 19.
FRONT RAILS (9 OF 11) Fig 20.
FRONT RAILS (10 OF 11) Fig 21.
FRONT RAILS (11 OF 11) Fig 22.
FRONT FLOOR/DASH/PLENUM (1 OF 2) Fig 23.
FRONT FLOOR/DASH/PLENUM (2 OF 2) Fig 24.
REAR FLOOR (1 OF 2) Fig 25.
REAR FLOOR (2 OF 2) Fig 26.
REAR RAILS (1 OF 8) Fig 27.
REAR RAILS (2 OF 8) Fig 28.
REAR RAILS (3 OF 8) Fig 29.
REAR RAILS (4 OF 8) Fig 30.
REAR RAILS (5 OF 8) Fig 31.
REAR RAILS (6 OF 8) Fig 32.
REAR RAILS (7 OF 8) Fig 33.
REAR RAILS (8 OF 8) Fig 34.
FRONT FLOOR PAN (1 OF 9) Fig 35.
FRONT FLOOR PAN (2 OF 9) Fig 36.
FRONT FLOOR PAN (3 OF 9) Fig 37.
FRONT FLOOR PAN (4 OF 9) Fig 38.
FRONT FLOOR PAN (5 OF 9) Fig 39.
FRONT FLOOR PAN (6 OF 9) Fig 40.
FRONT FLOOR PAN (7 OF 9) Fig 41.
FRONT FLOOR PAN (8 OF 9) Fig 42.
FRONT FLOOR PAN (9 OF 9) Fig 43.
REAR FLOOR & LADDER (1 OF 12) Fig 44.
REAR FLOOR & LADDER (2 OF 12) Fig 45.
REAR FLOOR & LADDER (3 OF 12) Fig 46.
REAR FLOOR & LADDER (4 OF 12) Fig 47.
REAR FLOOR & LADDER (5 OF 12) Fig 48.
REAR FLOOR & LADDER (6 OF 12) Fig 49.
REAR FLOOR & LADDER (7 OF 12) Fig 50.
REAR FLOOR & LADDER (8 OF 12) Fig 51.
REAR FLOOR & LADDER (9 OF 12) Fig 52.
REAR FLOOR & LADDER (10 OF 12) Fig 53.
REAR FLOOR & LADDER (11 OF 12) Fig 54.
REAR FLOOR & LADDER (12 OF 12) Fig 55.
UNDERBODY (1 OF 3) Fig 56.
UNDERBODY (2 OF 3) Fig 57.
UNDERBODY (3 OF 3) Fig 58.
UNDERBODY COMPLETE (1 OF 17) Fig 59.
UNDERBODY COMPLETE (2 OF 17) Fig 60.
UNDERBODY COMPLETE (3 OF 17) Fig 61.
UNDERBODY COMPLETE (4 OF 17) Fig 62.
UNDERBODY COMPLETE (5 OF 17) Fig 63.
UNDERBODY COMPLETE (6 OF 17) Fig 64.
UNDERBODY COMPLETE (7 OF 17) Fig 65.
UNDERBODY COMPLETE (8 OF 17) Fig 66.
UNDERBODY COMPLETE (9 OF 17) Fig 67.
UNDERBODY COMPLETE (10 OF 17) Fig 68.
UNDERBODY COMPLETE (11 OF 17) Fig 69.
UNDERBODY COMPLETE (12 OF 17) Fig 70.
UNDERBODY COMPLETE (13 OF 17) Fig 71.
UNDERBODY COMPLETE (14 OF 17) Fig 72.
UNDERBODY COMPLETE (15 OF 17) Fig 73.
UNDERBODY COMPLETE (16 OF 17) Fig 74.
UNDERBODY COMPLETE (17 OF 17) Fig 75.
BODY SIDE APERTURE - OUTER (1 OF 3) Fig 76.
BODY SIDE APERTURE - OUTER (2 OF 3) Fig 77.
BODY SIDE APERTURE - OUTER (3 OF 3) Fig 78.
BODY SIDE APERTURE - INNER (1 OF 4) Fig 79.
BODY SIDE APERTURE - INNER (2 OF 4) Fig 80.
BODY SIDE APERTURE - INNER (3 OF 4) Fig 81.
BODY SIDE APERTURE - INNER (4 OF 4) Fig 82.
BODY SIDE APERTURE - COMPLETE (1 OF 9) Fig 83.
BODY SIDE APERTURE - COMPLETE (2 OF 9) Fig 84.
BODY SIDE APERTURE - COMPLETE (3 OF 9) Fig 85.
BODY SIDE APERTURE - COMPLETE (4 OF 9) Fig 86.
BODY SIDE APERTURE - COMPLETE (5 OF 9) Fig 87.
BODY SIDE APERTURE - COMPLETE (6 OF 9) Fig 88.
BODY SIDE APERTURE - COMPLETE (7 OF 9) Fig 89.
BODY SIDE APERTURE - COMPLETE (8 OF 9) Fig 90.
BODY SIDE APERTURE - COMPLETE (9 OF 9) Fig 91.
MISCELLANEOUS BODY (1 OF 9) Fig 92.
MISCELLANEOUS BODY (2 OF 9) Fig 93.
MISCELLANEOUS BODY (3 OF 9) Fig 94.
MISCELLANEOUS BODY (4 OF 9) Fig 95.
MISCELLANEOUS BODY (5 OF 9) Fig 96.
MISCELLANEOUS BODY (6 OF 9) Fig 97.
MISCELLANEOUS BODY (7 OF 9) Fig 98.
MISCELLANEOUS BODY (8 OF 9) Fig 99.
MISCELLANEOUS BODY (9 OF 9) Fig 100.
BODY W/O ROOF (1 OF 12) Fig 101.
BODY W/O ROOF (2 OF 12) Fig 102.
BODY W/O ROOF (3 OF 12) Fig 103.
BODY W/O ROOF (4 OF 12) Fig 104.
BODY W/O ROOF (5 OF 12) Fig 105.
BODY W/O ROOF (6 OF 12) Fig 106.
BODY W/O ROOF (7 OF 12) Fig 107.
BODY W/O ROOF (8 OF 12) Fig 108.
BODY W/O ROOF (9 OF 12) Fig 109.
BODY W/O ROOF (10 OF 12) Fig 110.
BODY W/O ROOF (11 OF 12) Fig 111.
BODY W/O ROOF (12 OF 12) Fig 112.
BODY - COMPLETE (1 OF 7) Fig 113.
BODY - COMPLETE (2 OF 7) Fig 114.
BODY - COMPLETE (3 OF 7) Fig 115.
BODY - COMPLETE (4 OF 7) Fig 116.
BODY - COMPLETE (5 OF 7) Fig 117.
BODY - COMPLETE (6 OF 7) Fig 118.
BODY - COMPLETE (7 OF 7) Fig 119.

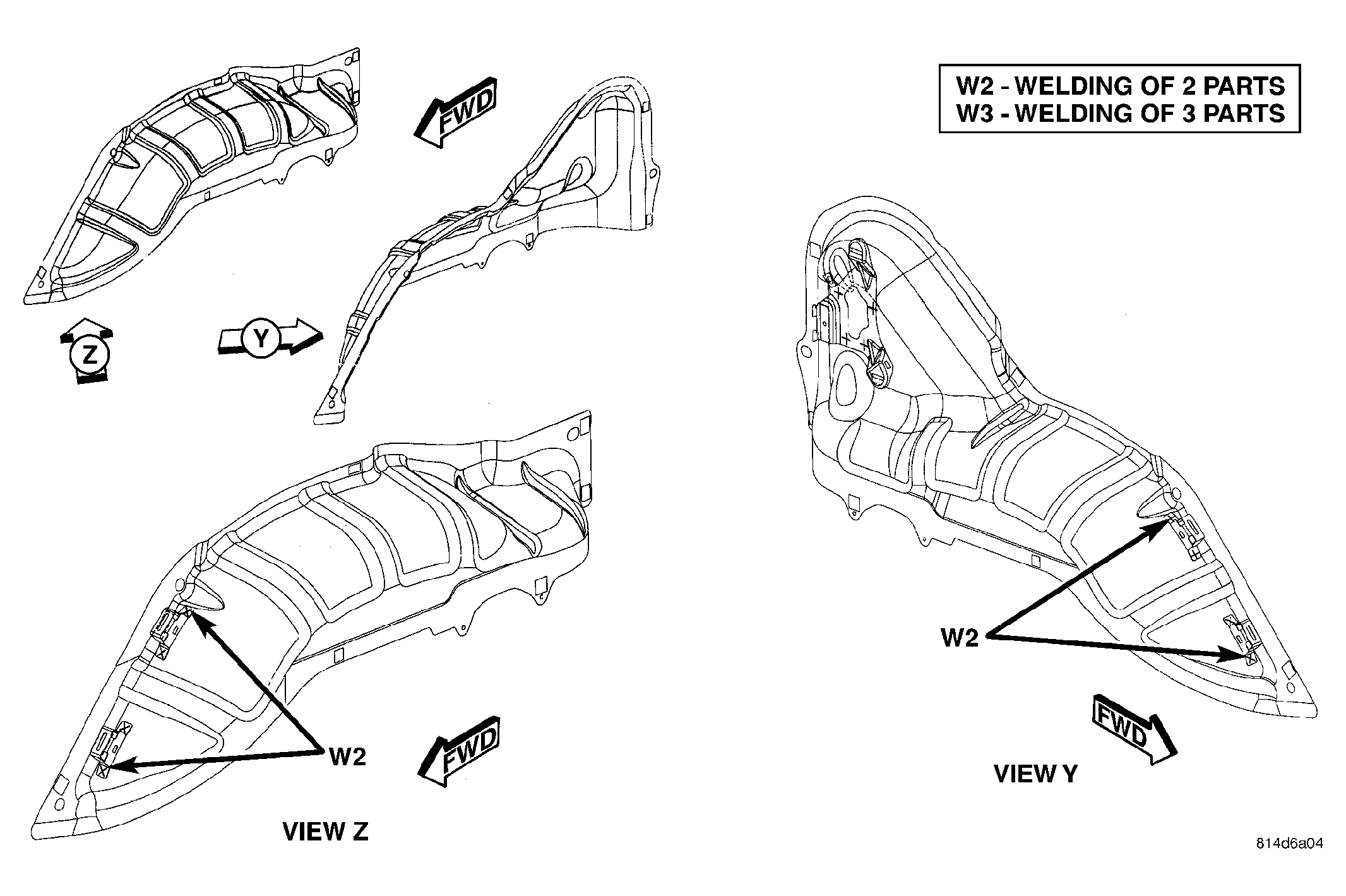

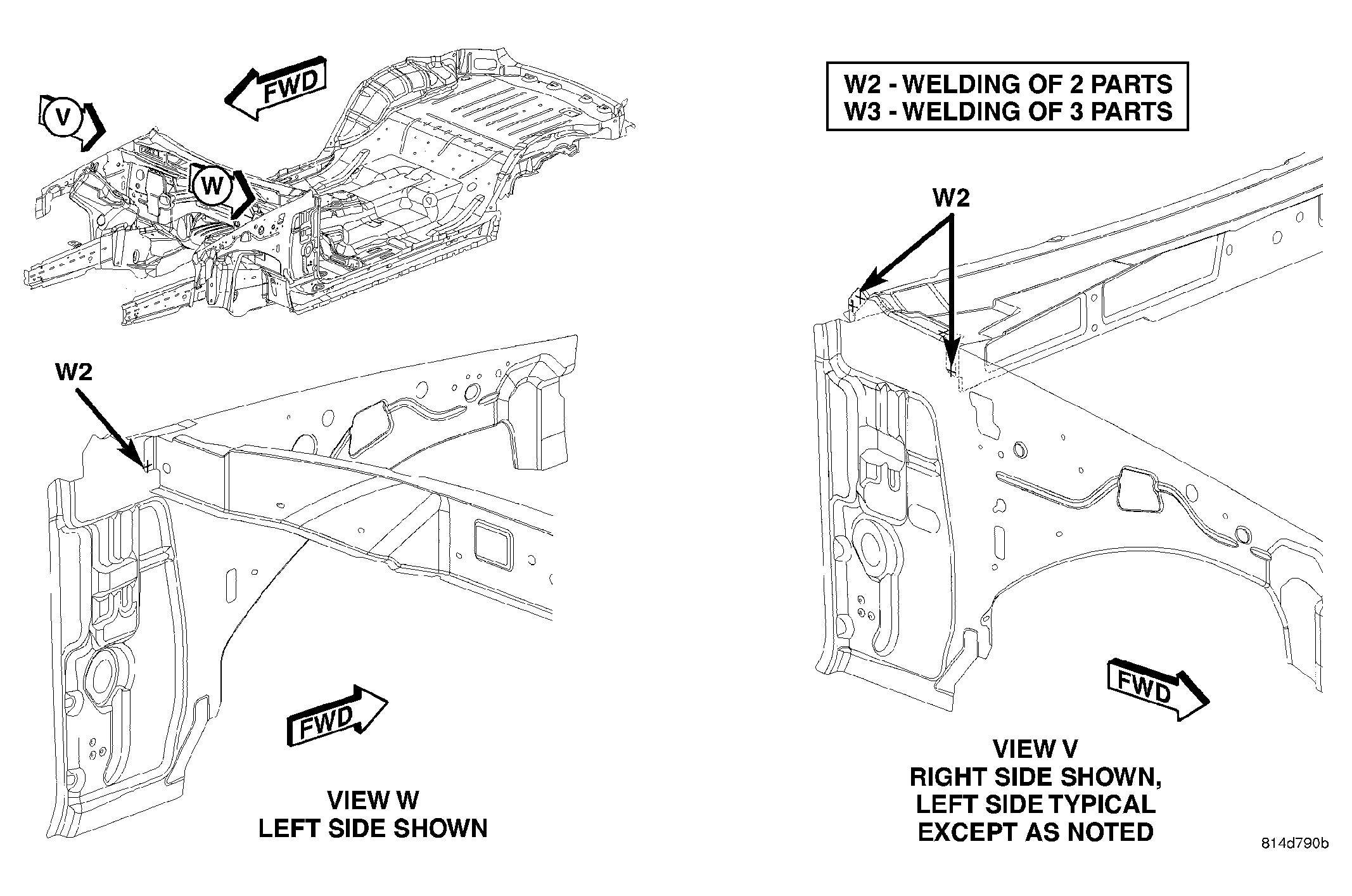

Fig 1: ENGINE BOX (1 OF 4)
GC0028044Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: ENGINE BOX (2 OF 4)
GC0028045Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: ENGINE BOX (3 OF 4)
GC0028046Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: ENGINE BOX (4 OF 4)
GC0028047Courtesy of DAIMLERCHRYSLER CORP.

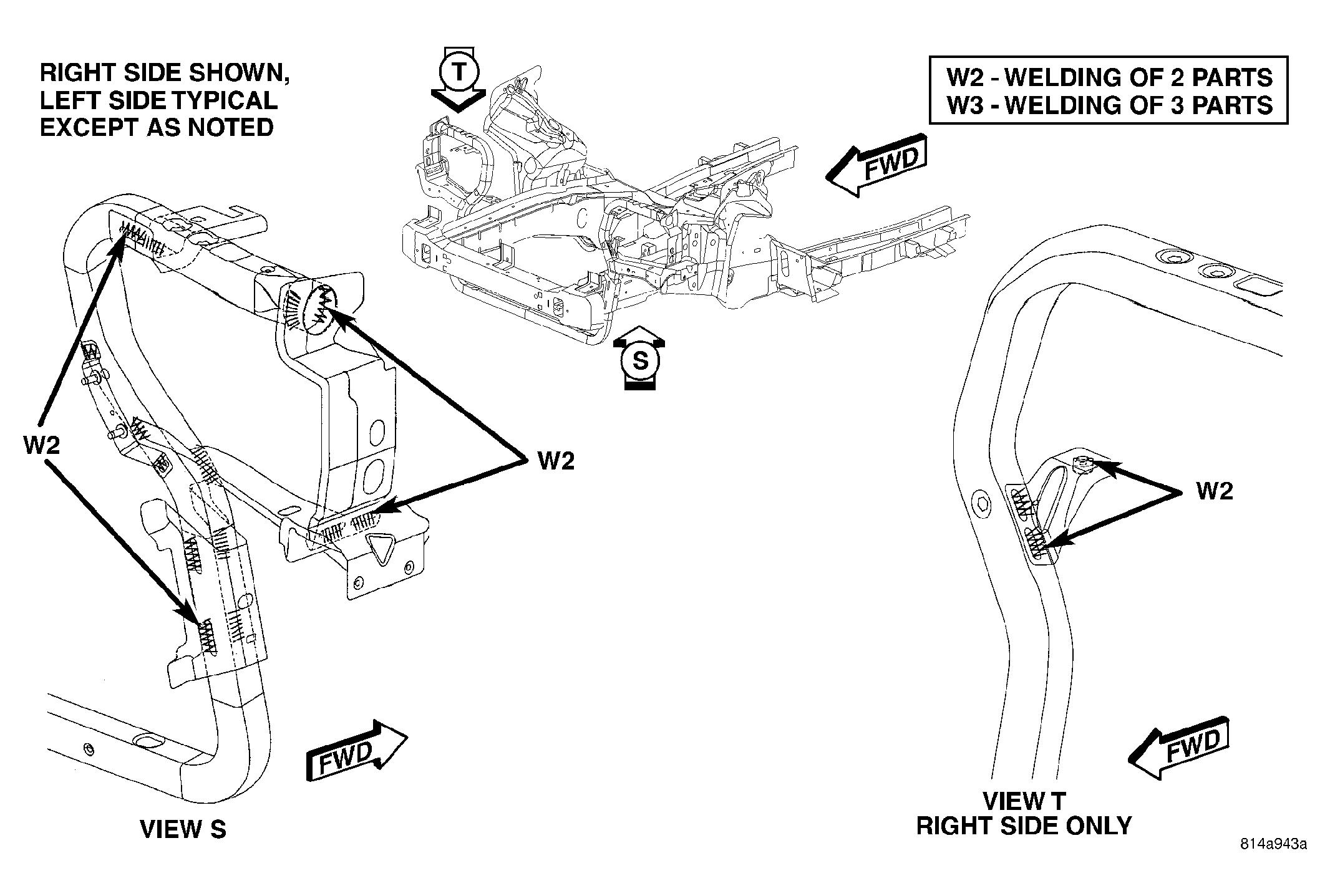

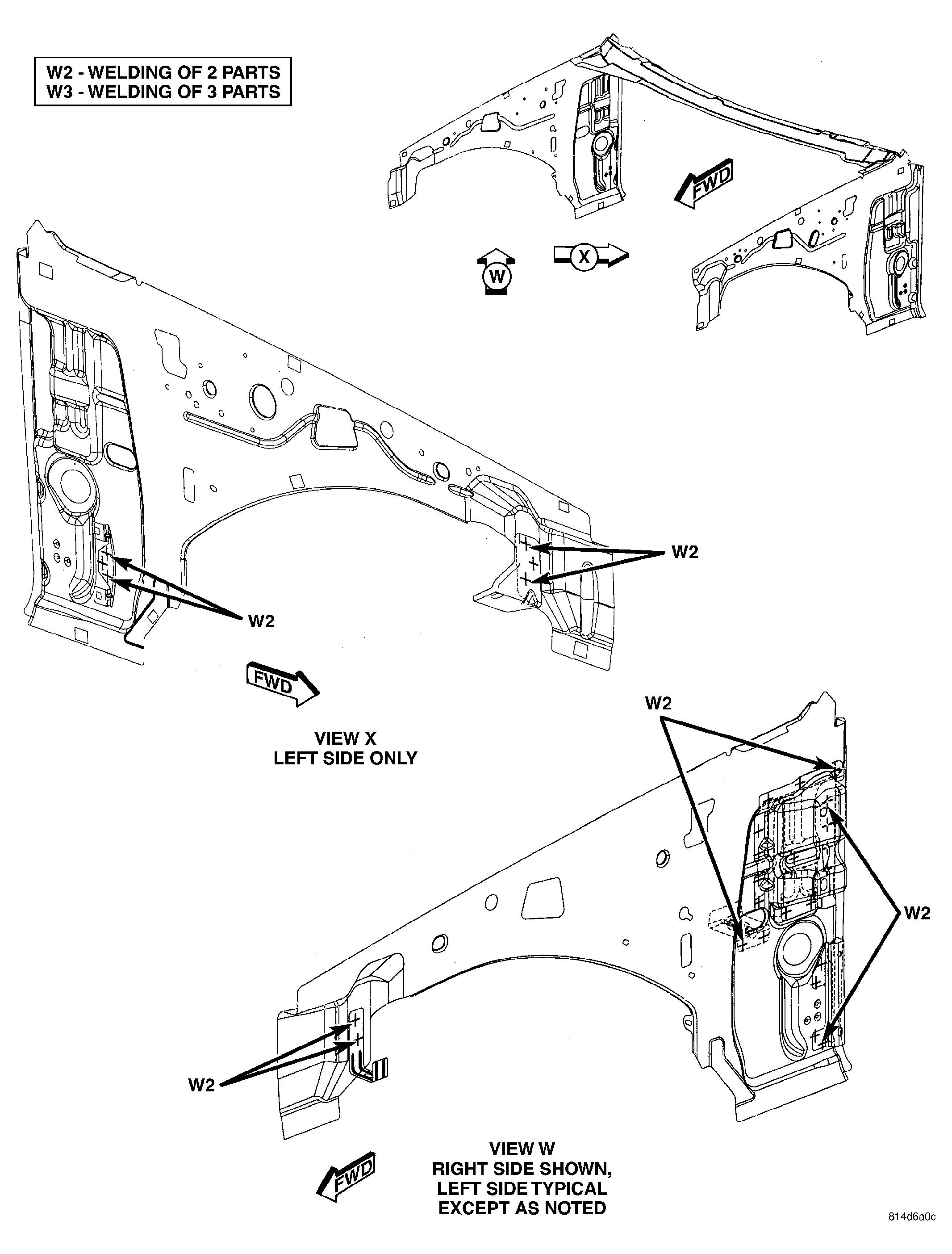

Fig 5: ENGINE BOX - COMPLETE (1 OF 2)
GC0028048Courtesy of DAIMLERCHRYSLER CORP.
Fig 6: ENGINE BOX - COMPLETE (2 OF 2)
GC0028049Courtesy of DAIMLERCHRYSLER CORP.

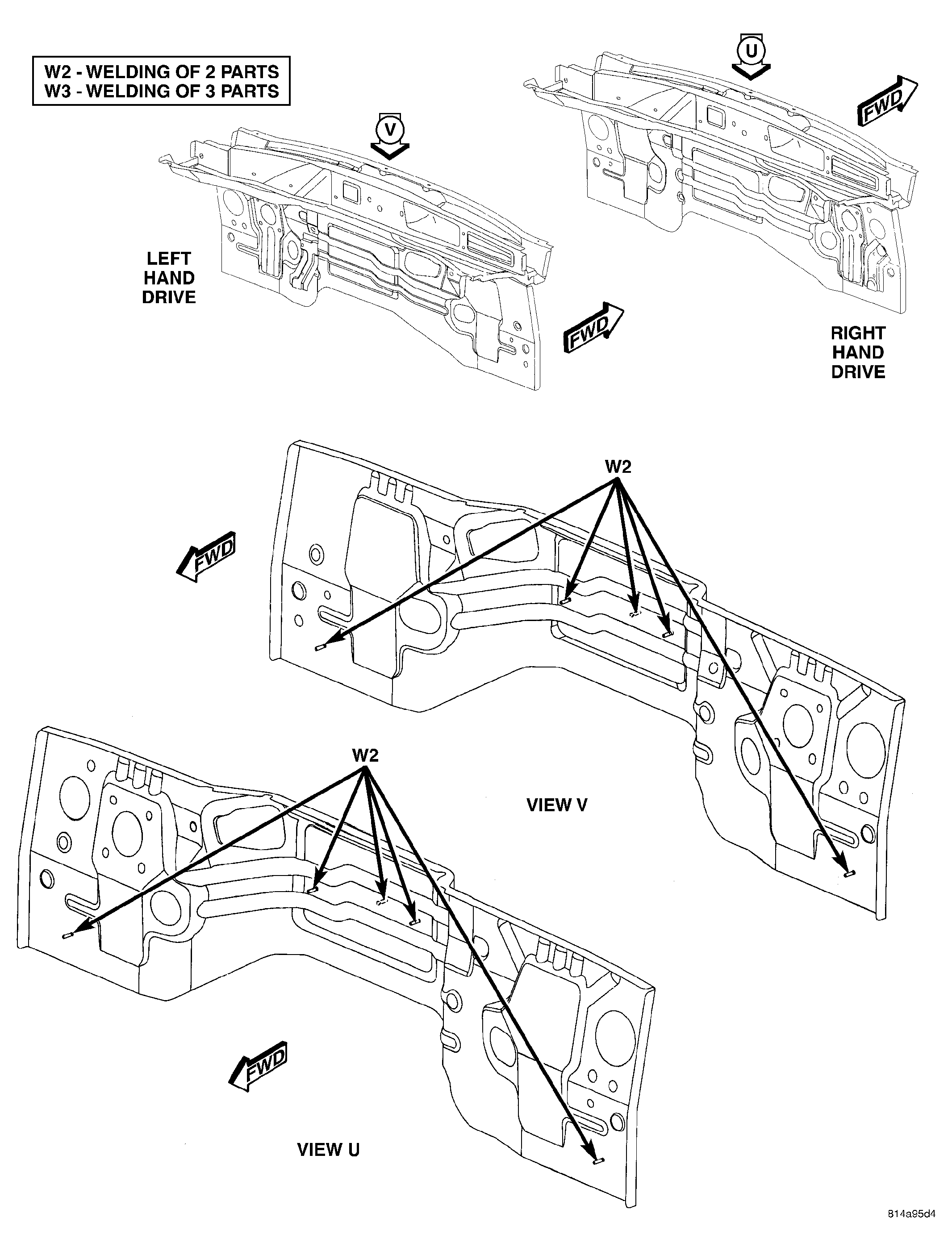

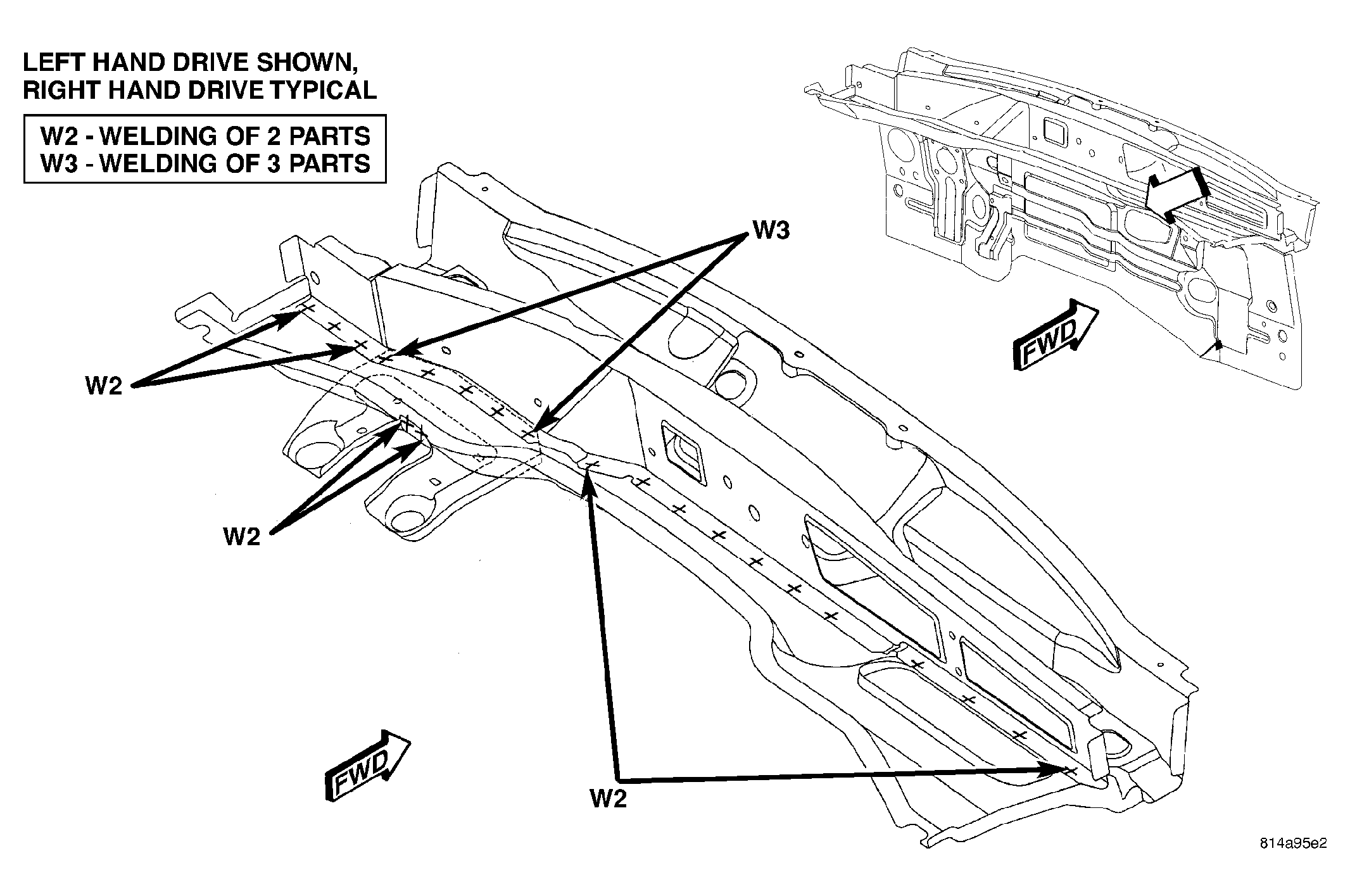

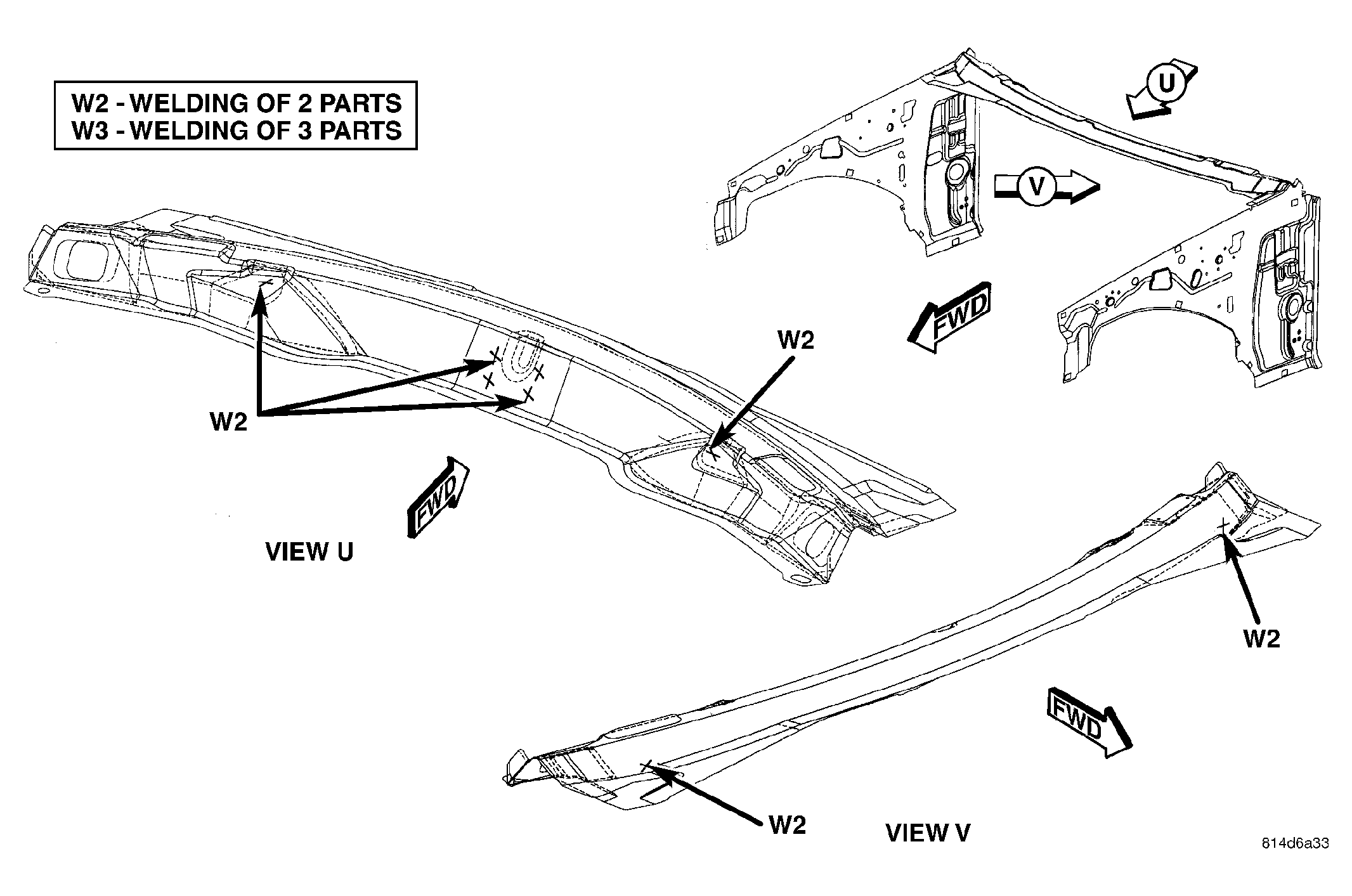

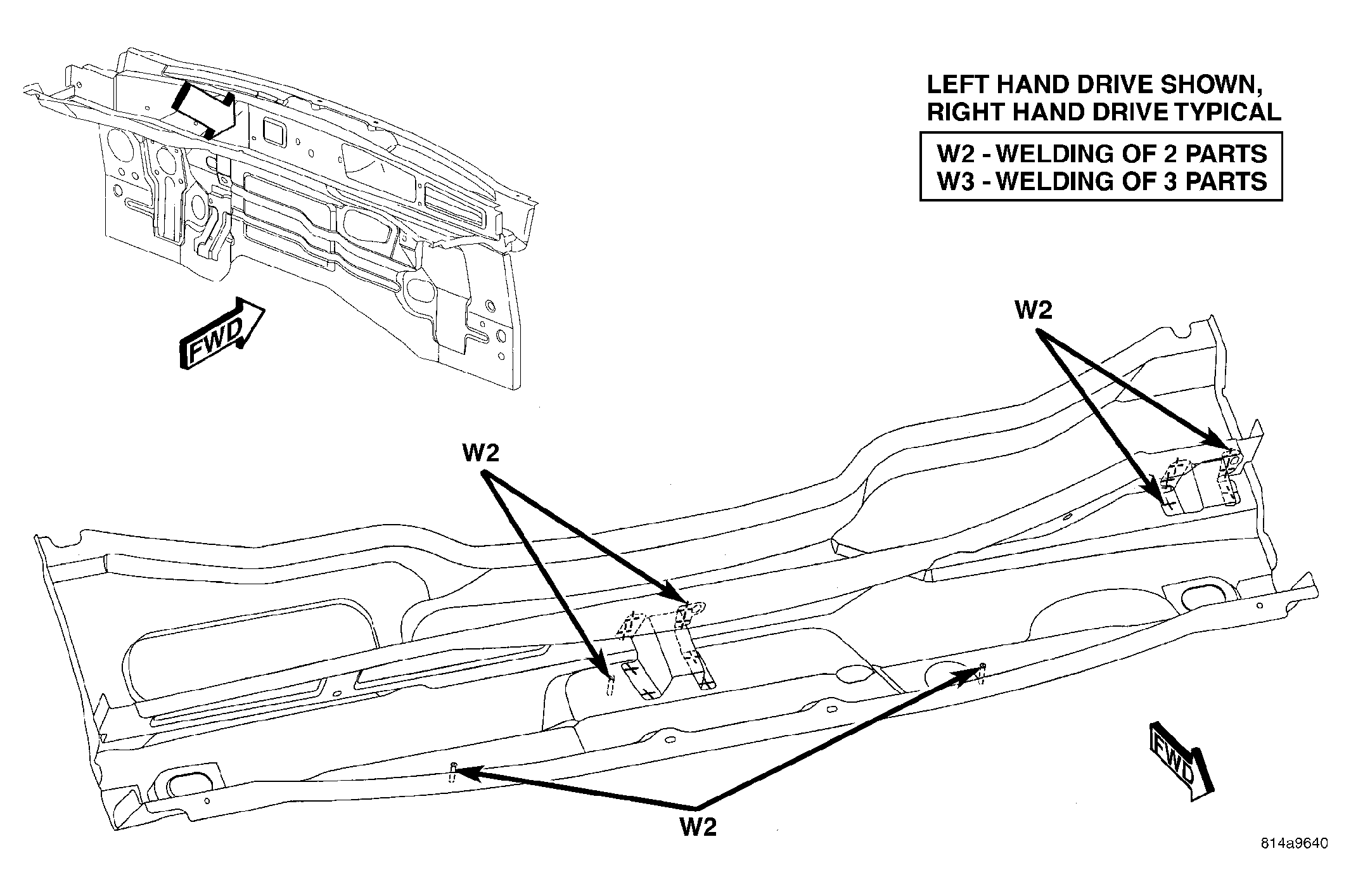

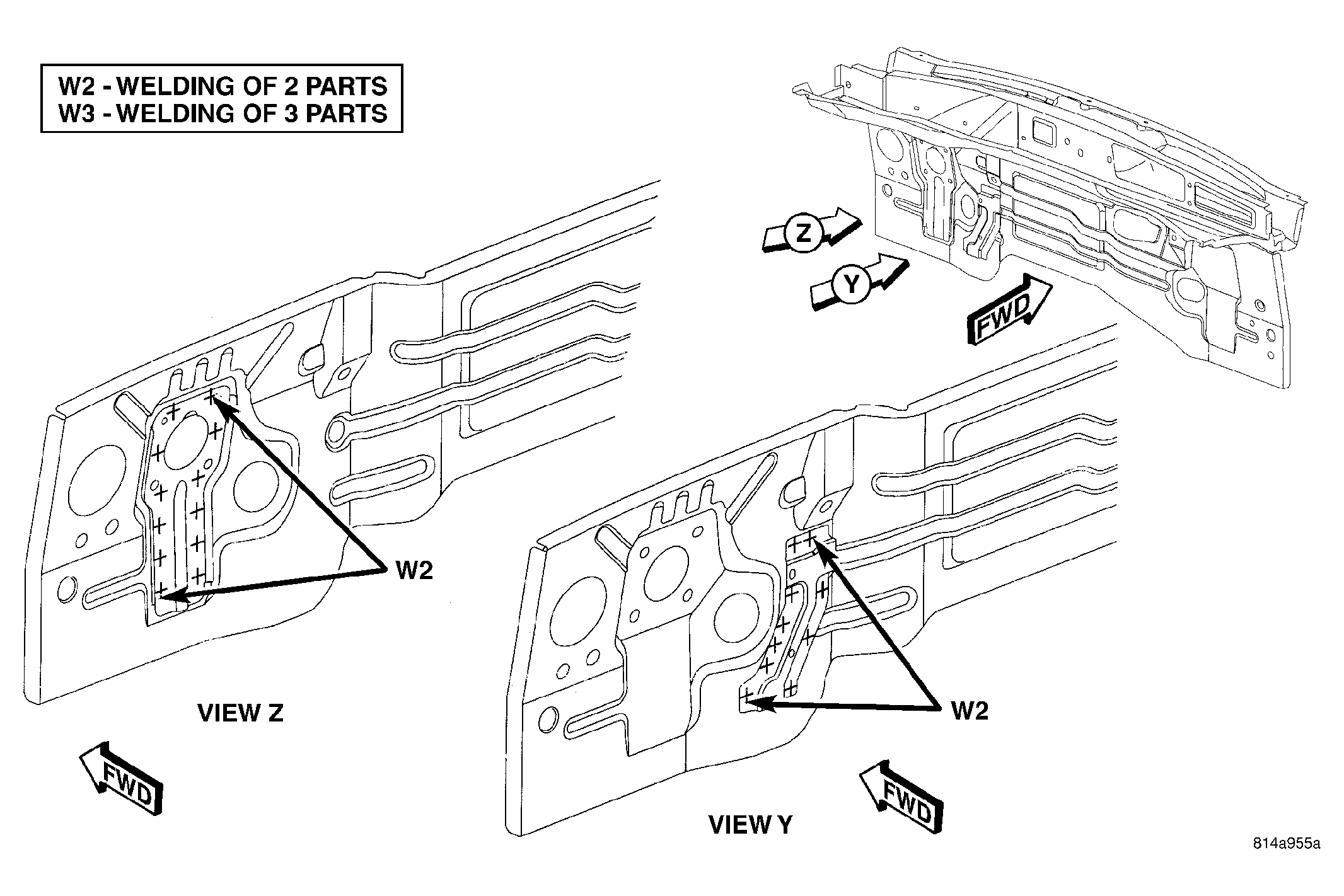

Fig 7: DASH/PLENUM (1 OF 5)
GC0028050Courtesy of DAIMLERCHRYSLER CORP.
Fig 8: DASH/PLENUM (2 OF 5) RHD ONLY
GC0028051Courtesy of DAIMLERCHRYSLER CORP.

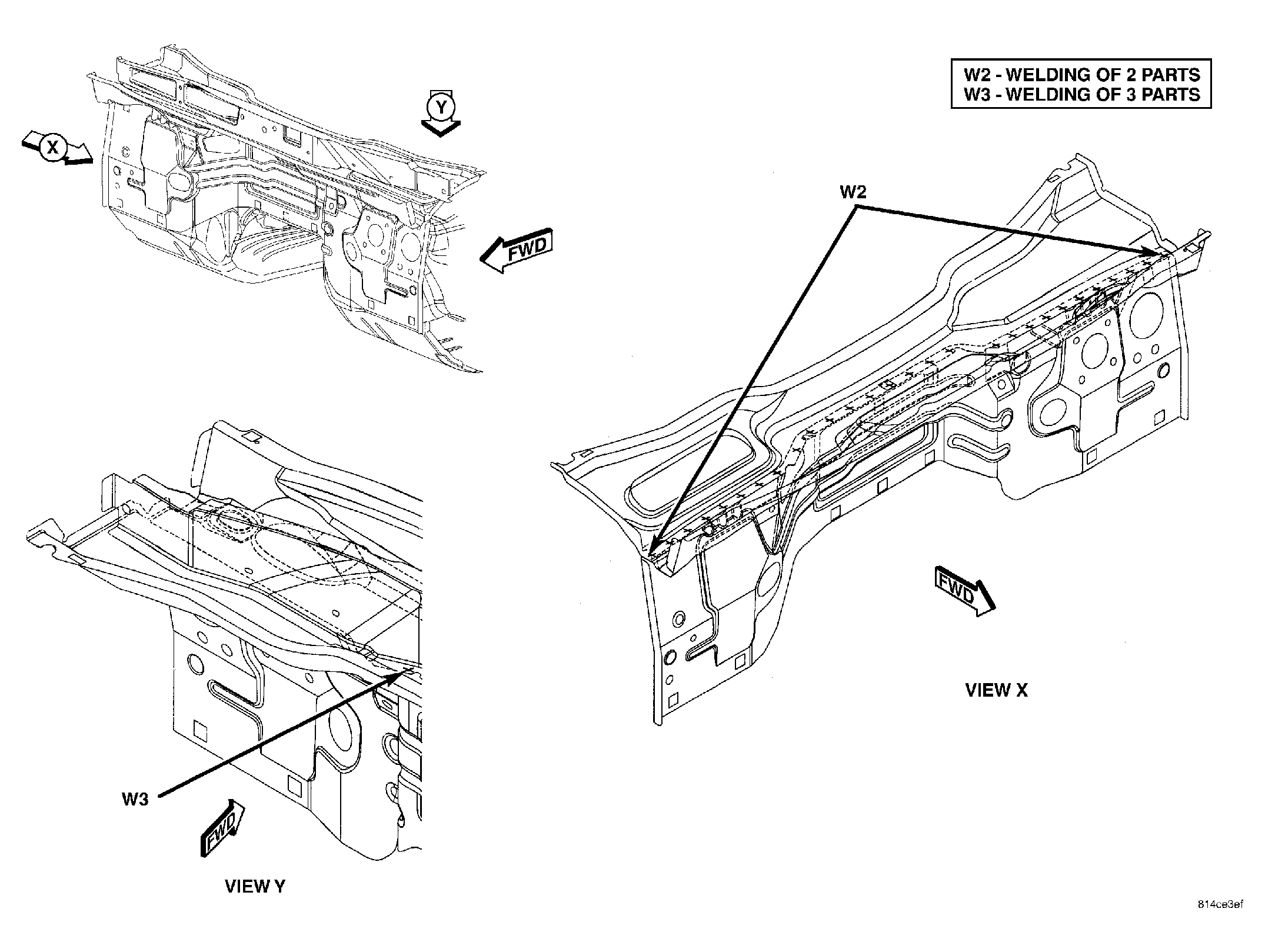

Fig 9: DASH/PLENUM (3 OF 5)
GC0028052Courtesy of DAIMLERCHRYSLER CORP.
Fig 10: DASH/PLENUM (4 OF 5)
GC0028053Courtesy of DAIMLERCHRYSLER CORP.

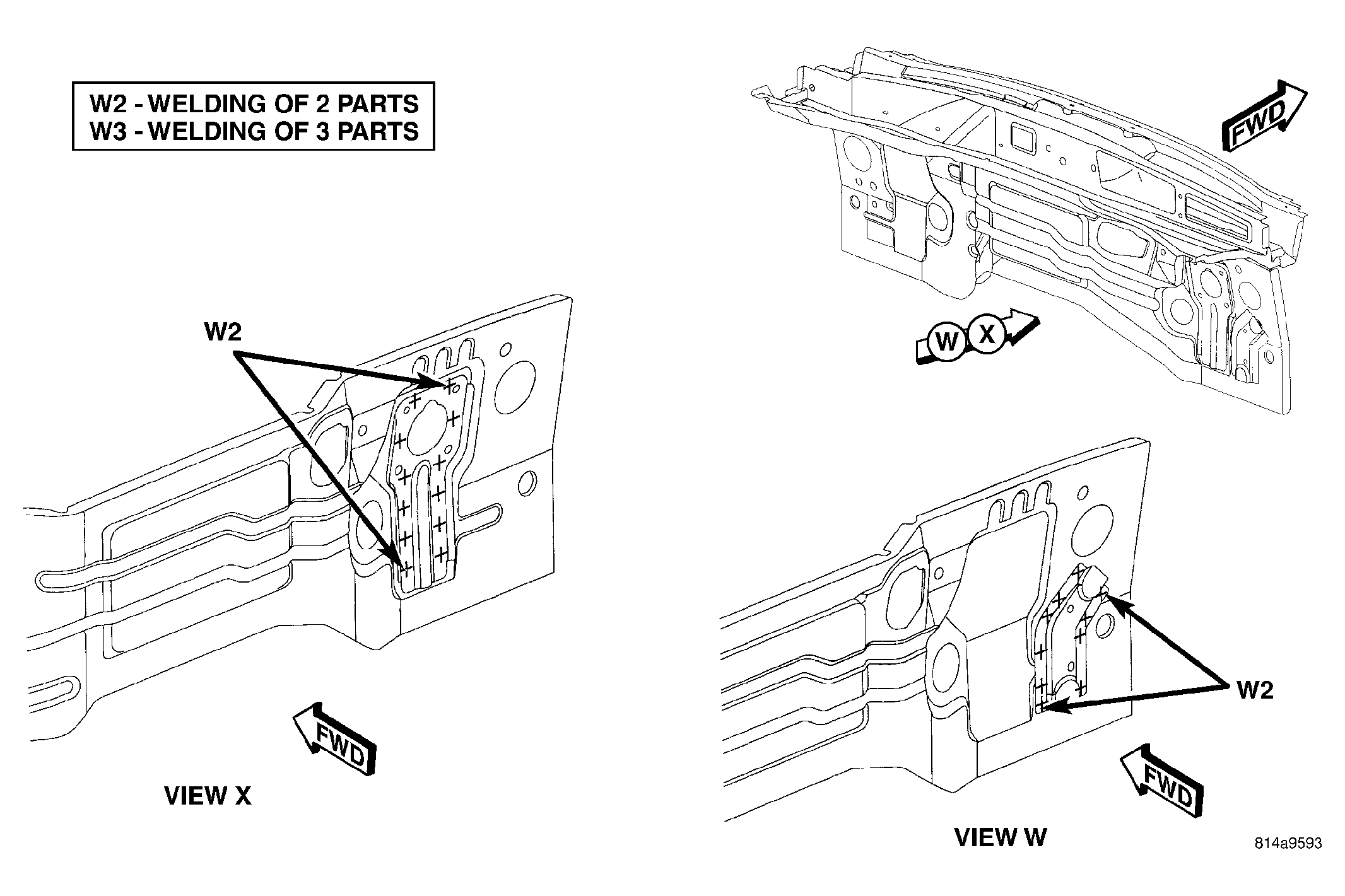

Fig 11: DASH/PLENUM (5 OF 5)
GC0028054Courtesy of DAIMLERCHRYSLER CORP.

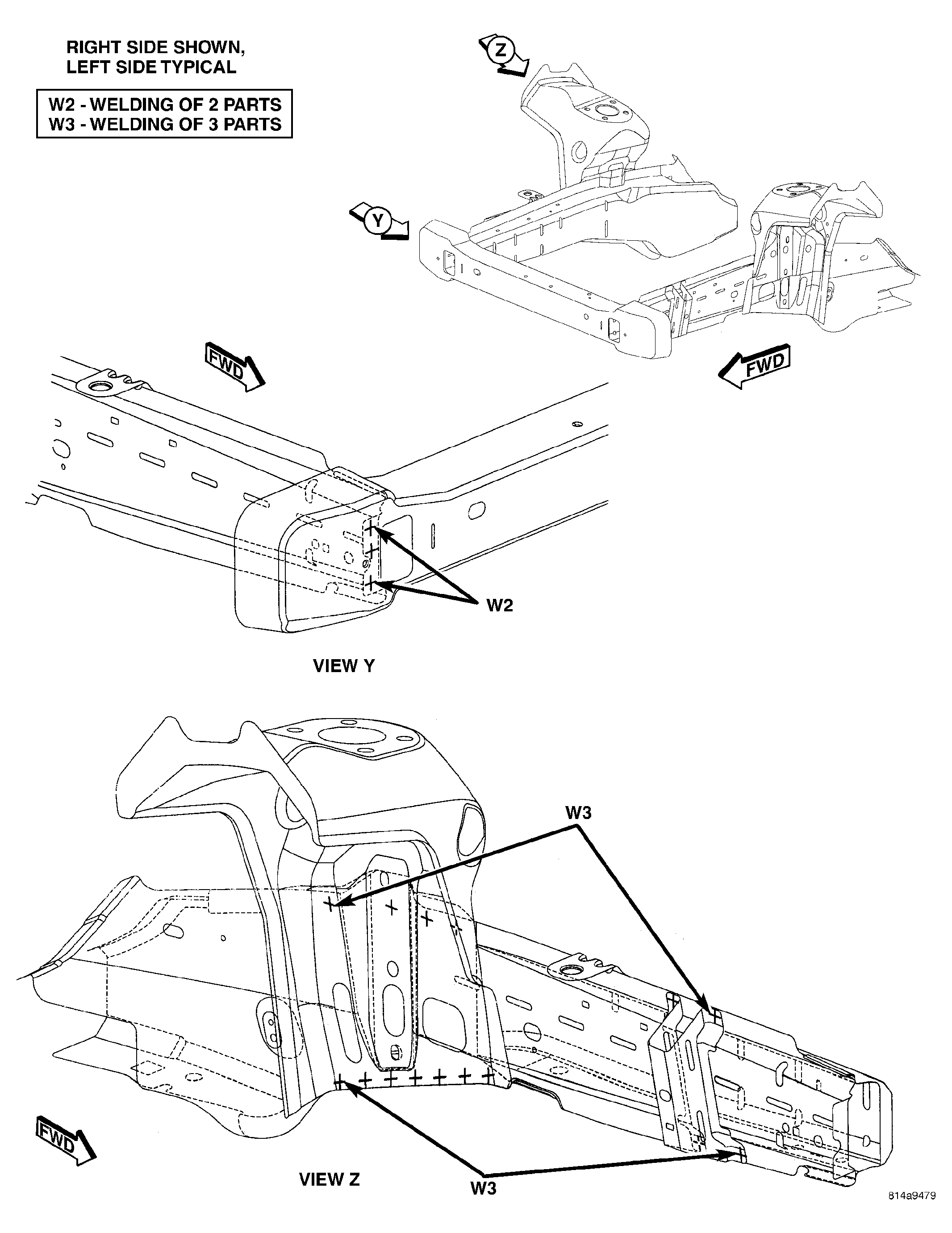

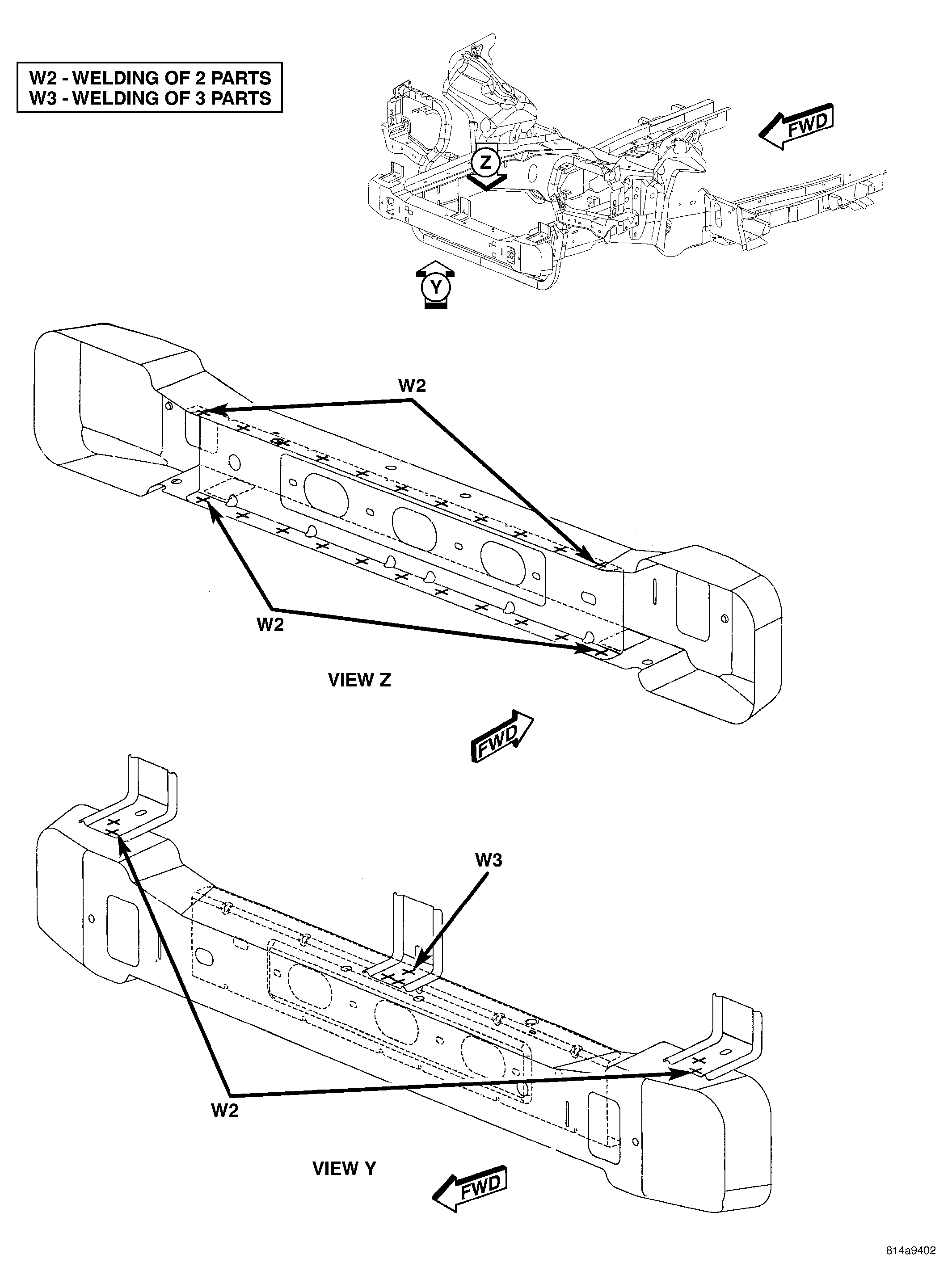

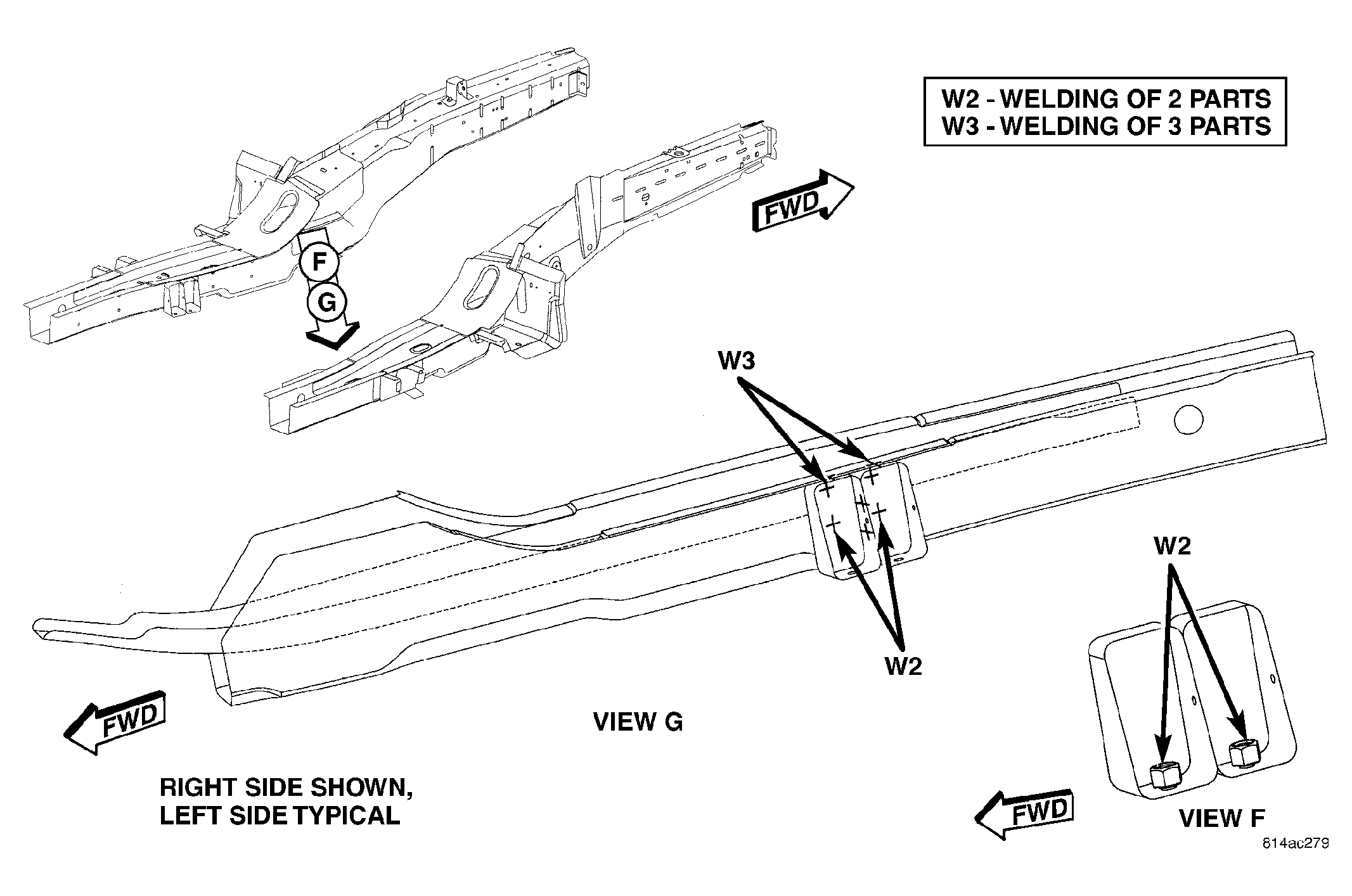

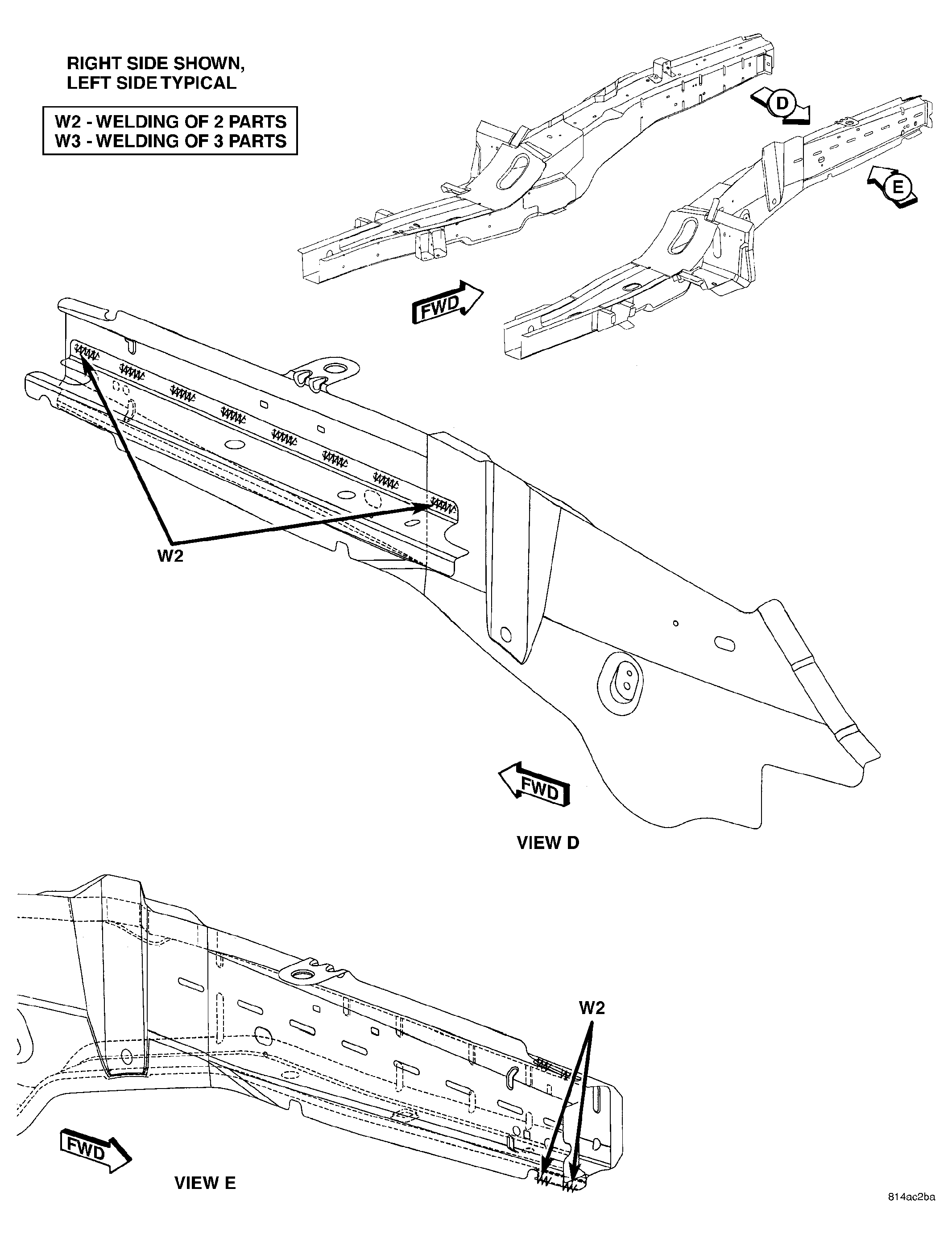

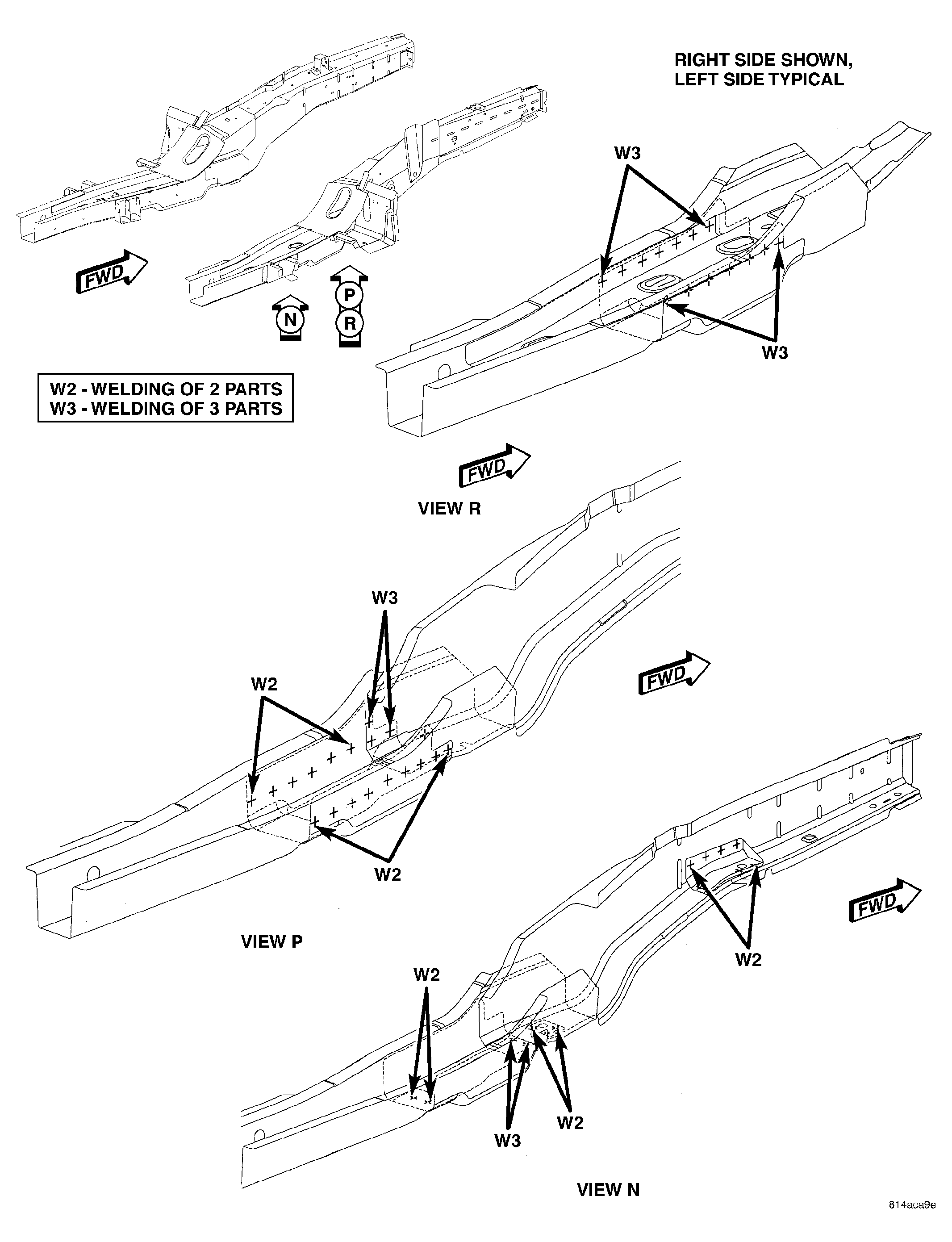

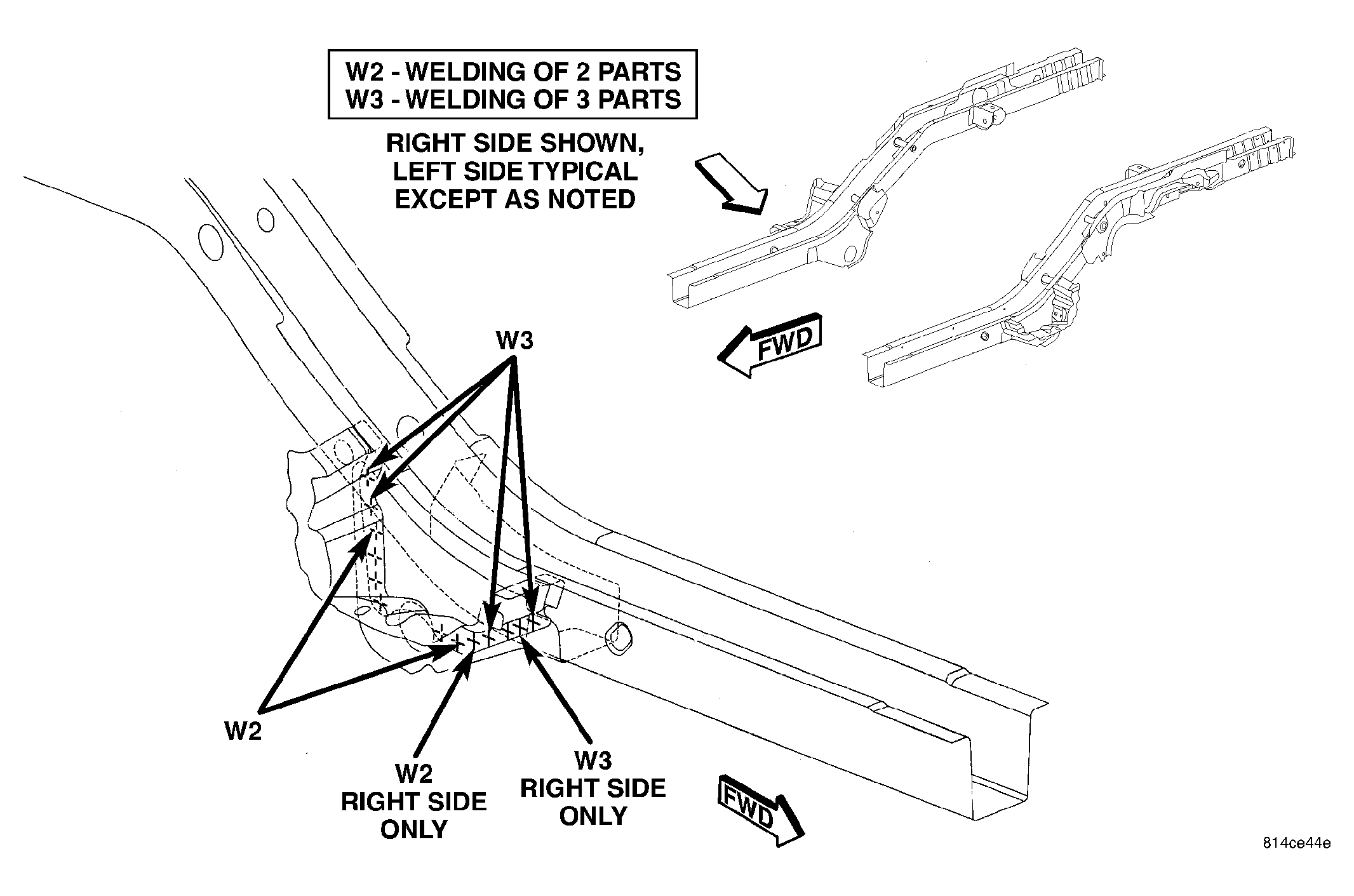

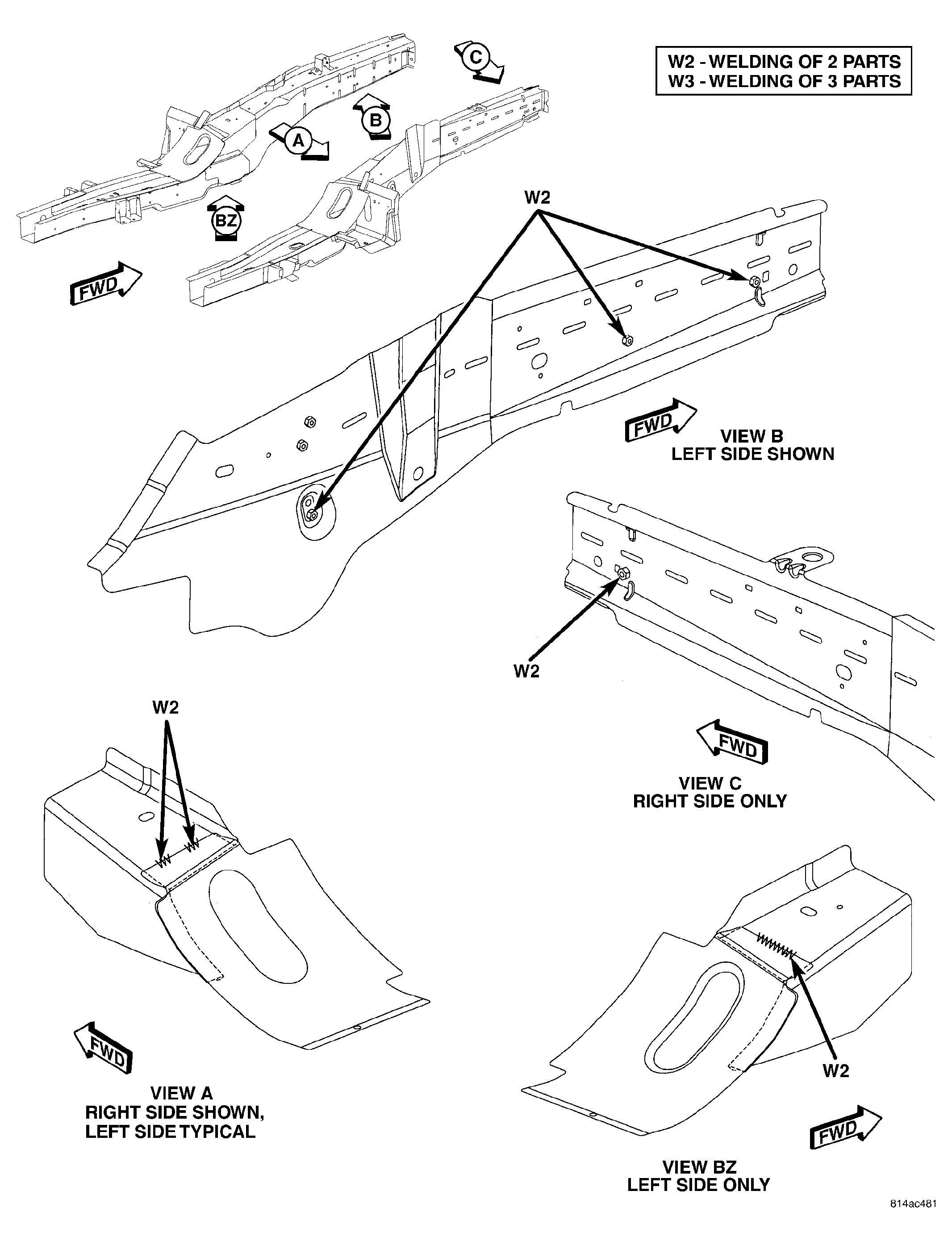

Fig 12: FRONT RAILS (1 OF 11)
GC0028055Courtesy of DAIMLERCHRYSLER CORP.

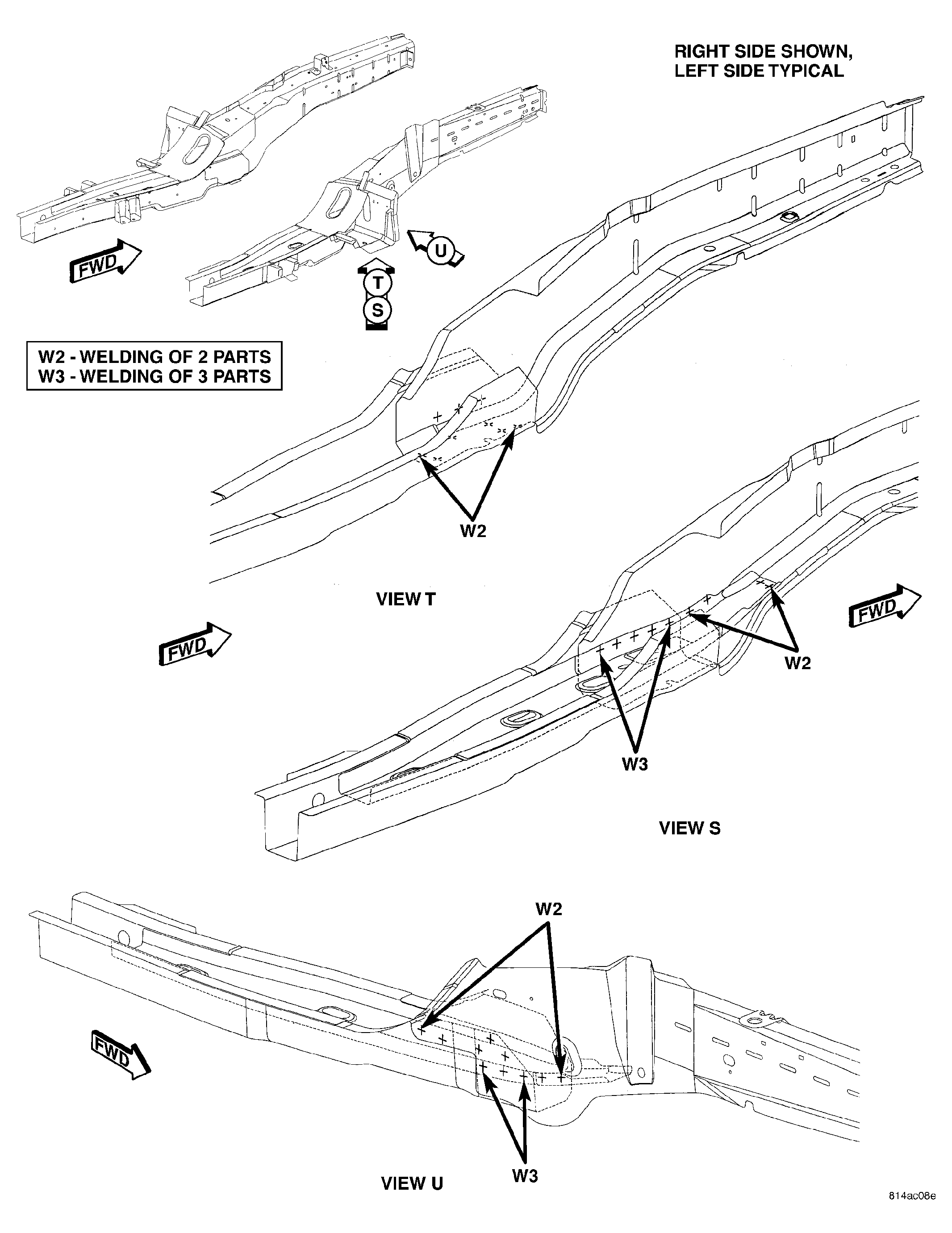

Fig 13: FRONT RAILS (2 OF 11)
GC0028056Courtesy of DAIMLERCHRYSLER CORP.
Fig 14: FRONT RAILS (3 OF 11)
GC0028057Courtesy of DAIMLERCHRYSLER CORP.

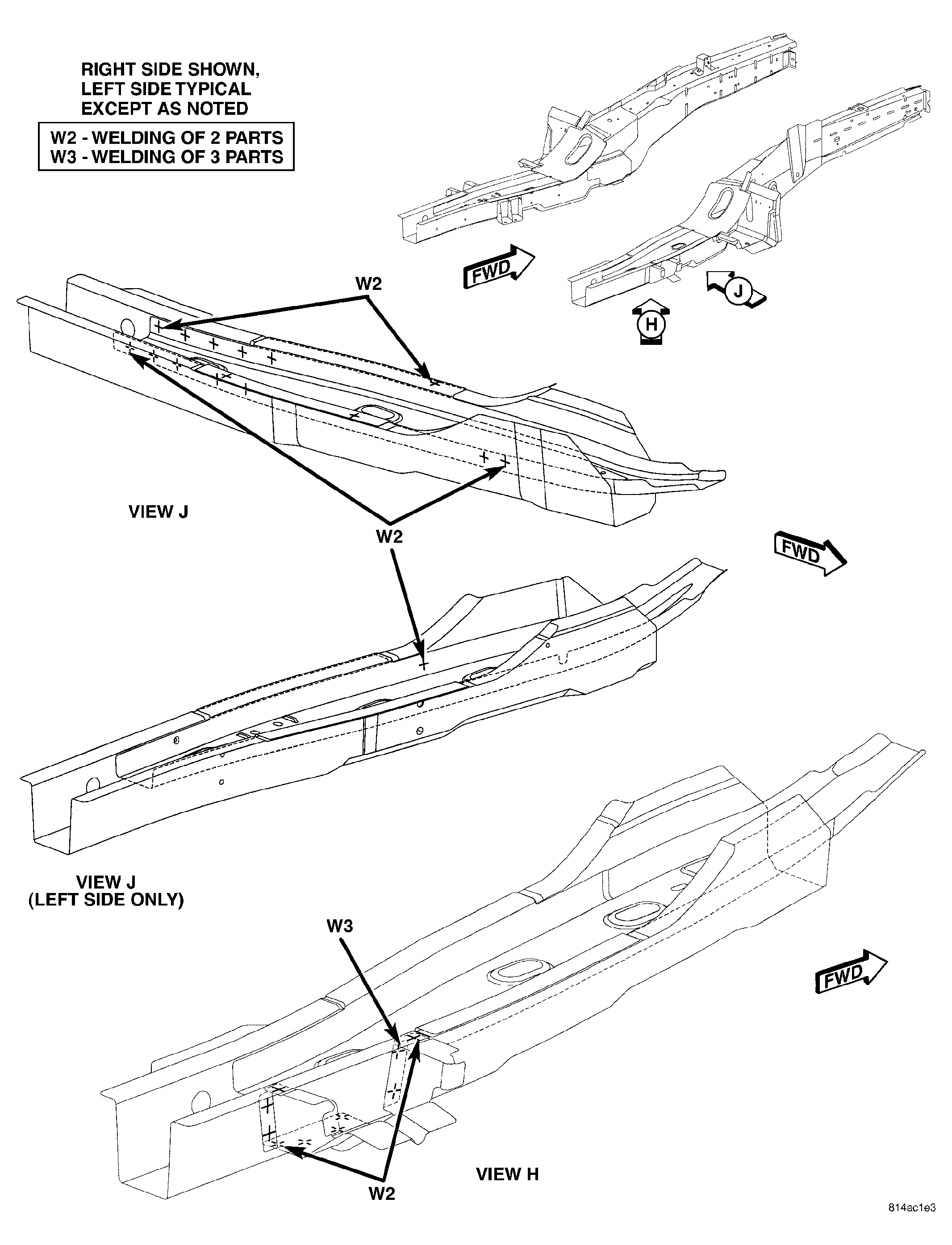

Fig 15: FRONT RAILS (4 OF 11)
GC0028058Courtesy of DAIMLERCHRYSLER CORP.

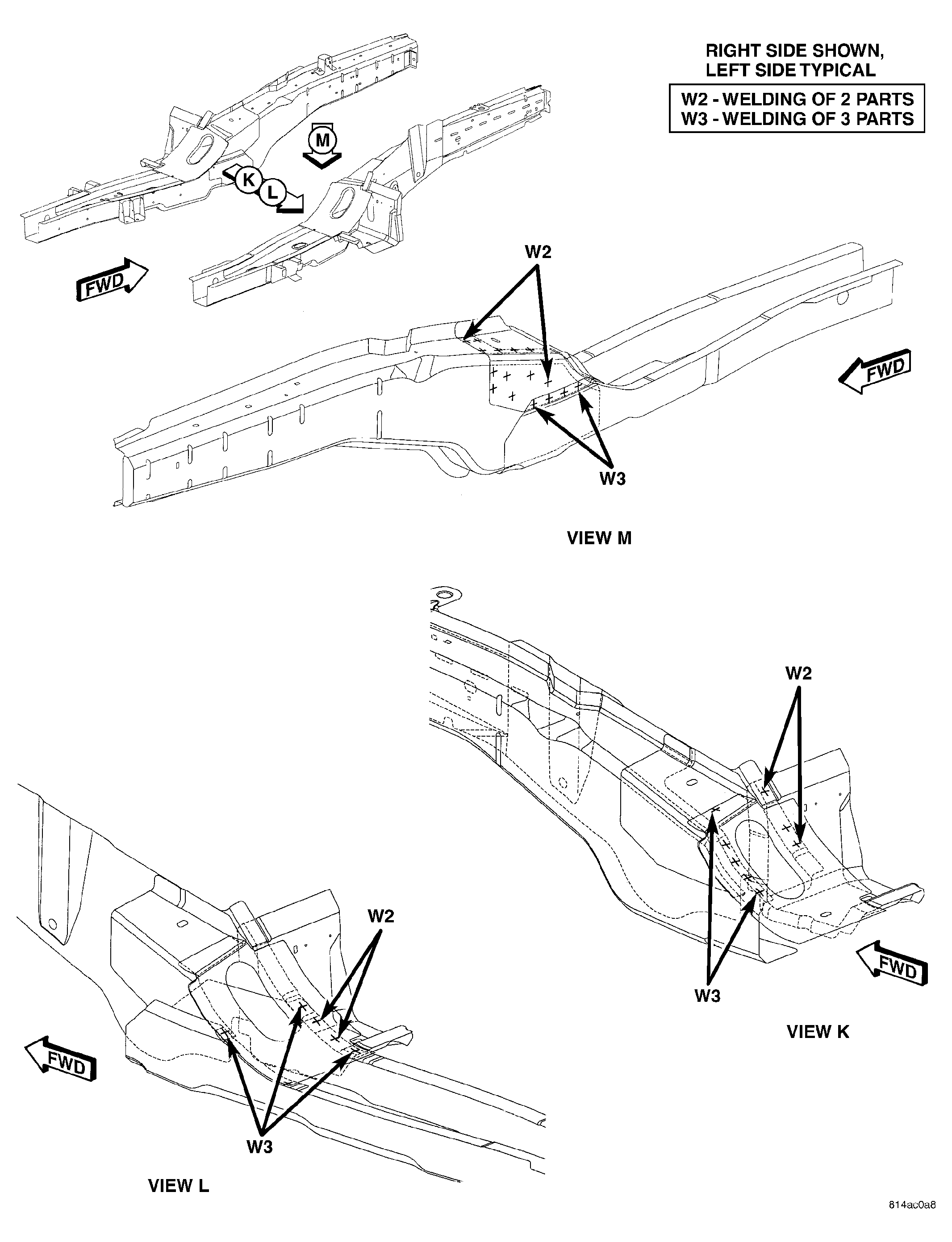

Fig 16: FRONT RAILS (5 OF 11)
GC0028059Courtesy of DAIMLERCHRYSLER CORP.
Fig 17: FRONT RAILS (6 OF 11)
GC0028060Courtesy of DAIMLERCHRYSLER CORP.
Fig 18: FRONT RAILS (7 OF 11)
GC0028061Courtesy of DAIMLERCHRYSLER CORP.
Fig 19: FRONT RAILS (8 OF 11)
GC0028062Courtesy of DAIMLERCHRYSLER CORP.

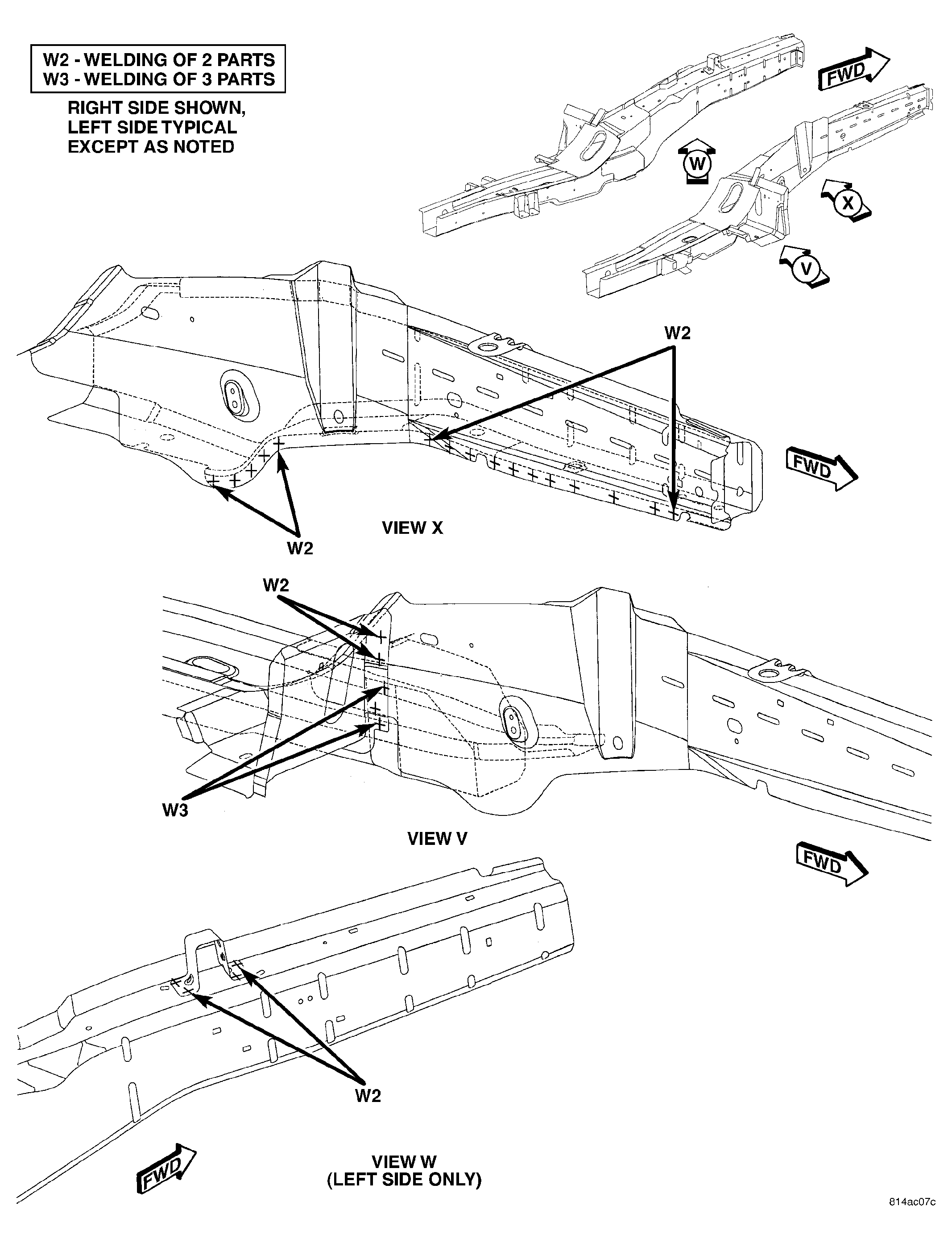

Fig 20: FRONT RAILS (9 OF 11)
GC0028063Courtesy of DAIMLERCHRYSLER CORP.

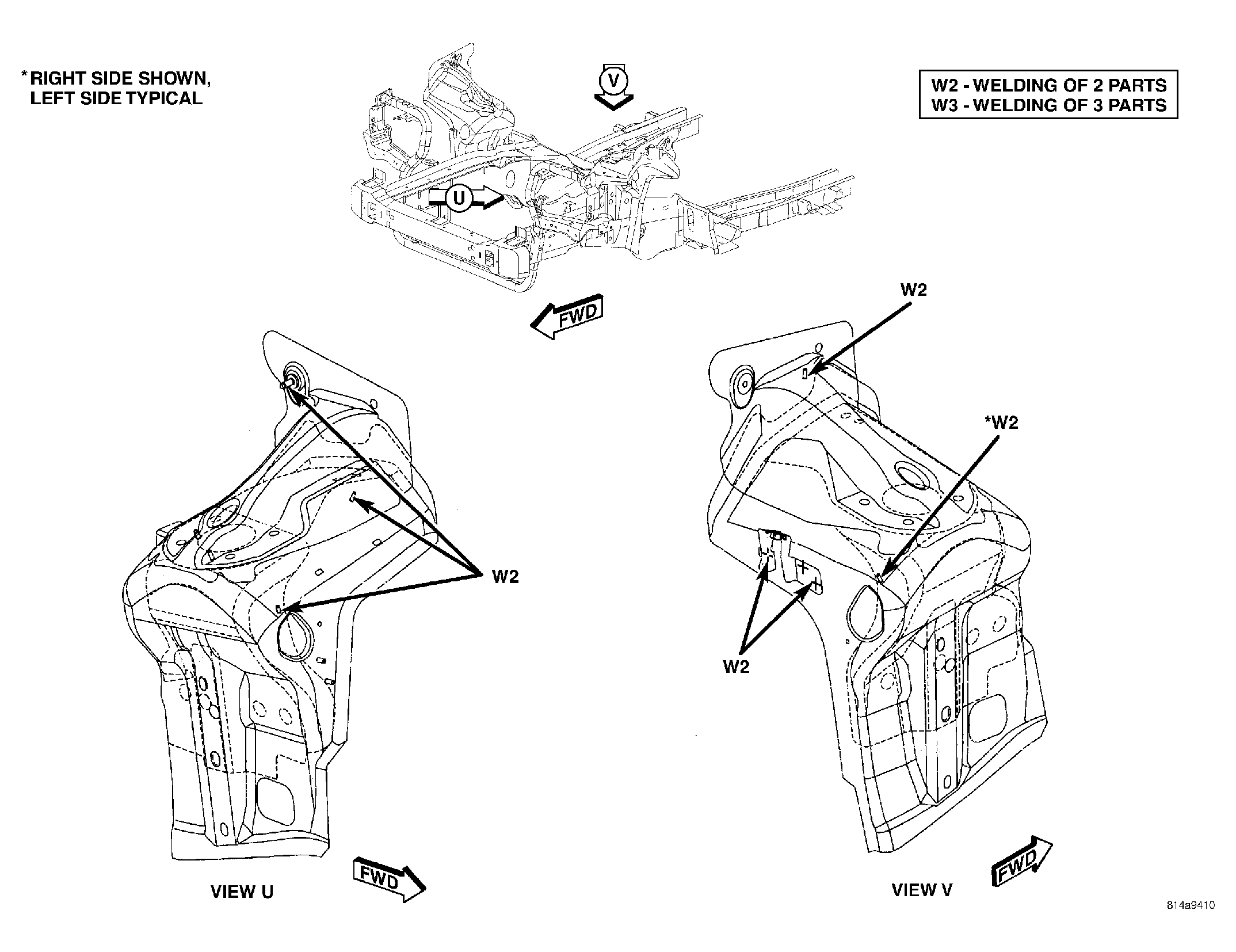

Fig 21: FRONT RAILS (10 OF 11)
GC0028064Courtesy of DAIMLERCHRYSLER CORP.

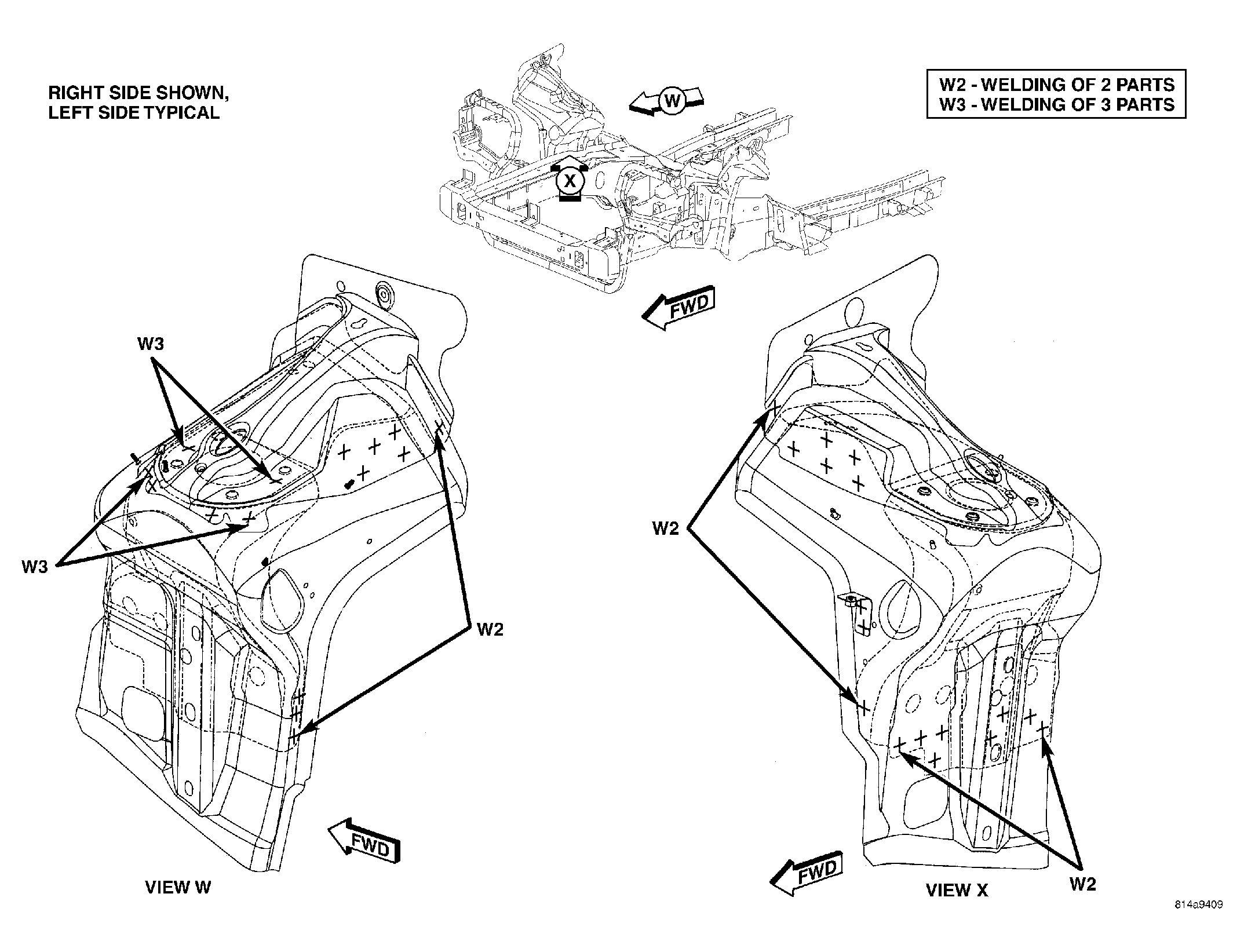

Fig 22: FRONT RAILS (11 OF 11)
GC0028065Courtesy of DAIMLERCHRYSLER CORP.

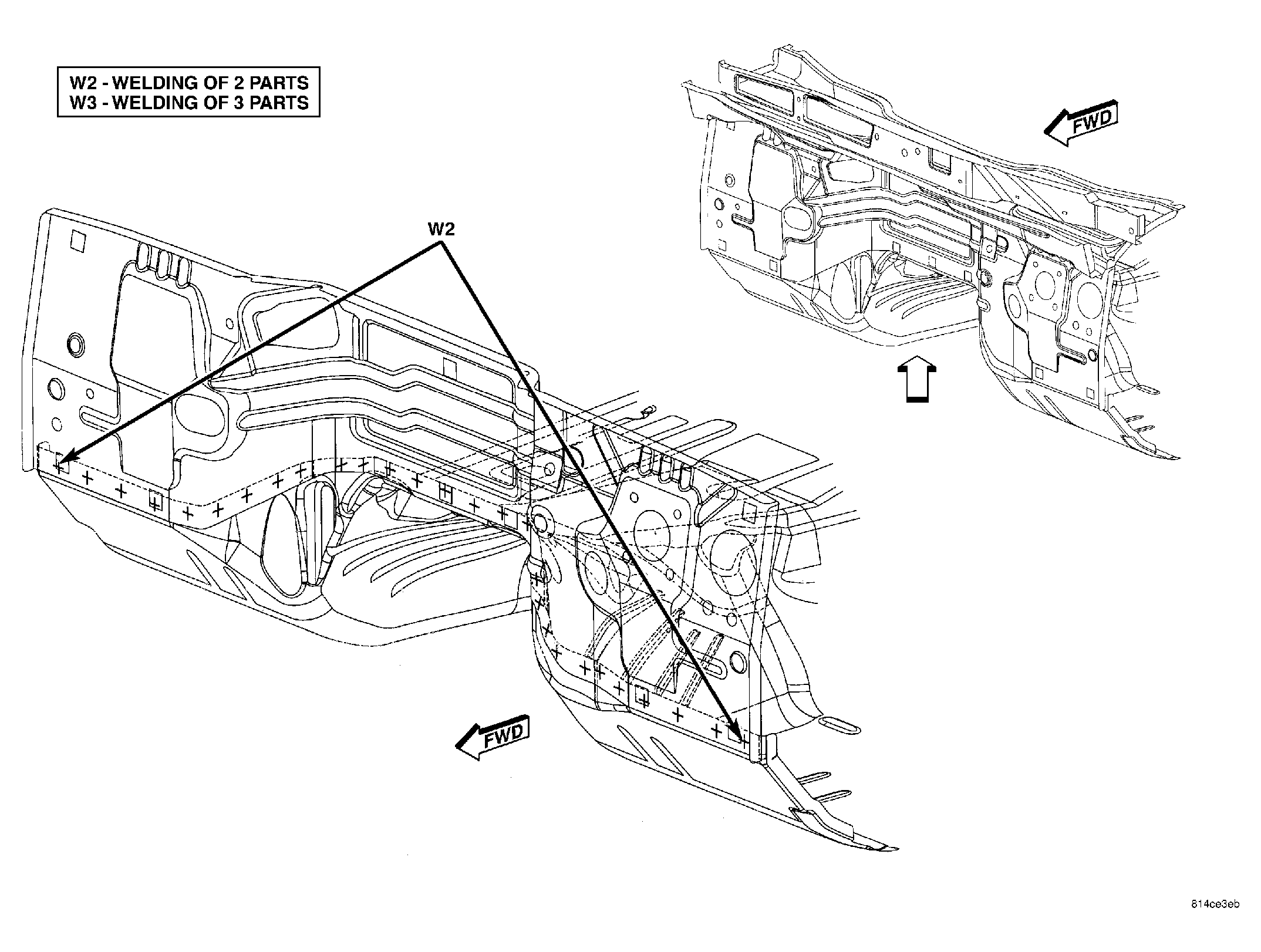

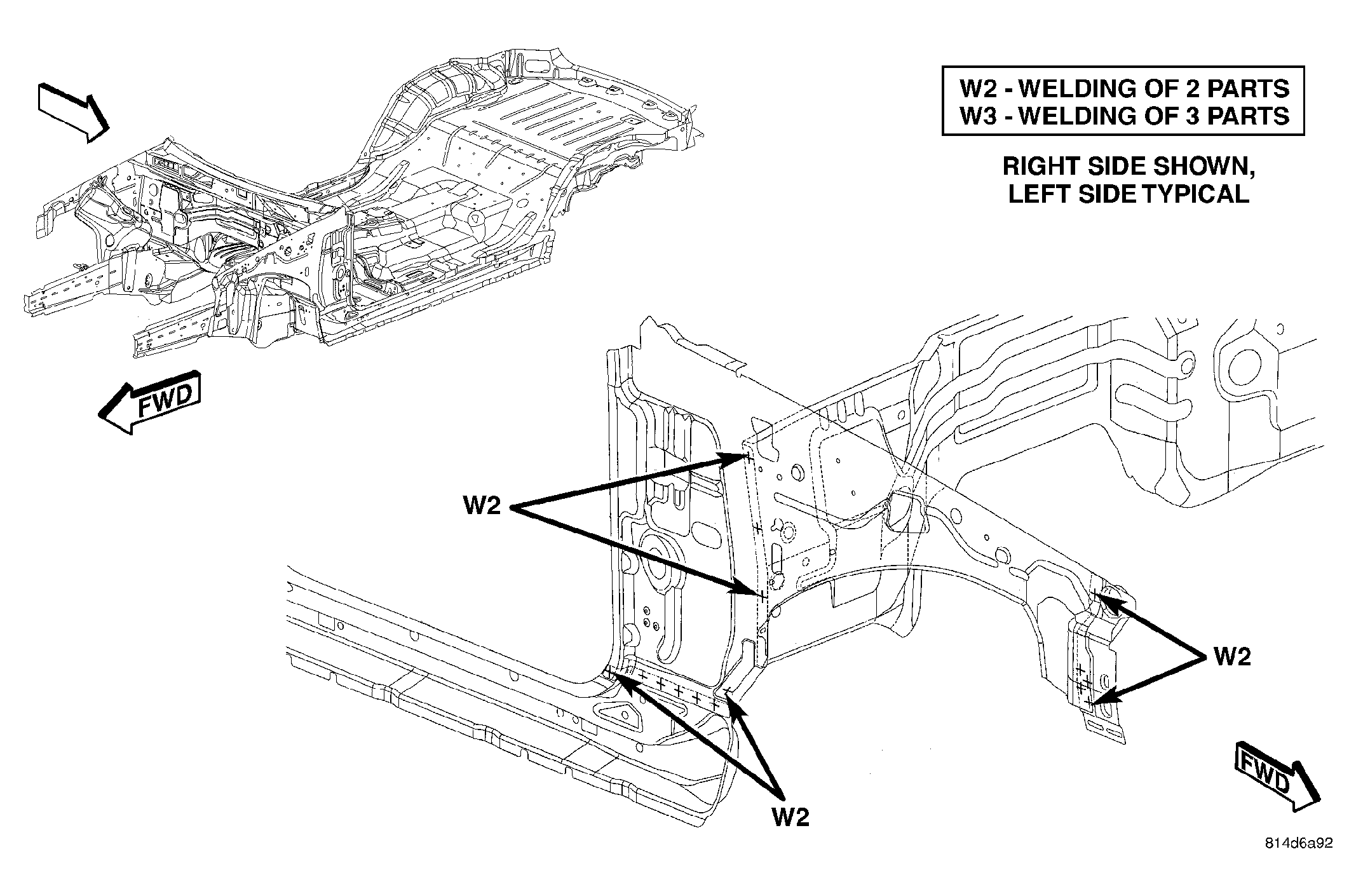

Fig 23: FRONT FLOOR/DASH/PLENUM (1 OF 2)
GC0028066Courtesy of DAIMLERCHRYSLER CORP.
Fig 24: FRONT FLOOR/DASH/PLENUM (2 OF 2)
GC0028067Courtesy of DAIMLERCHRYSLER CORP.

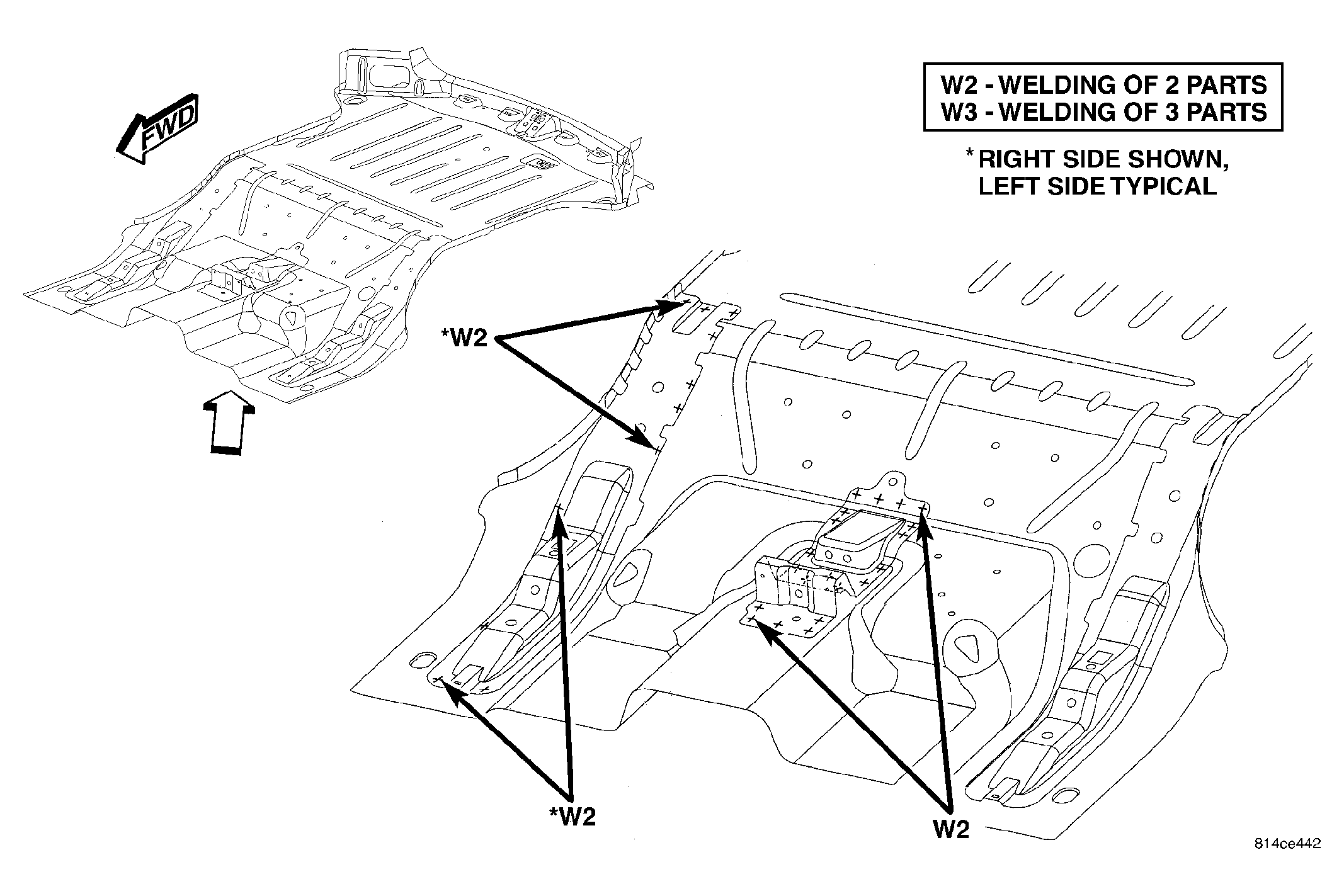

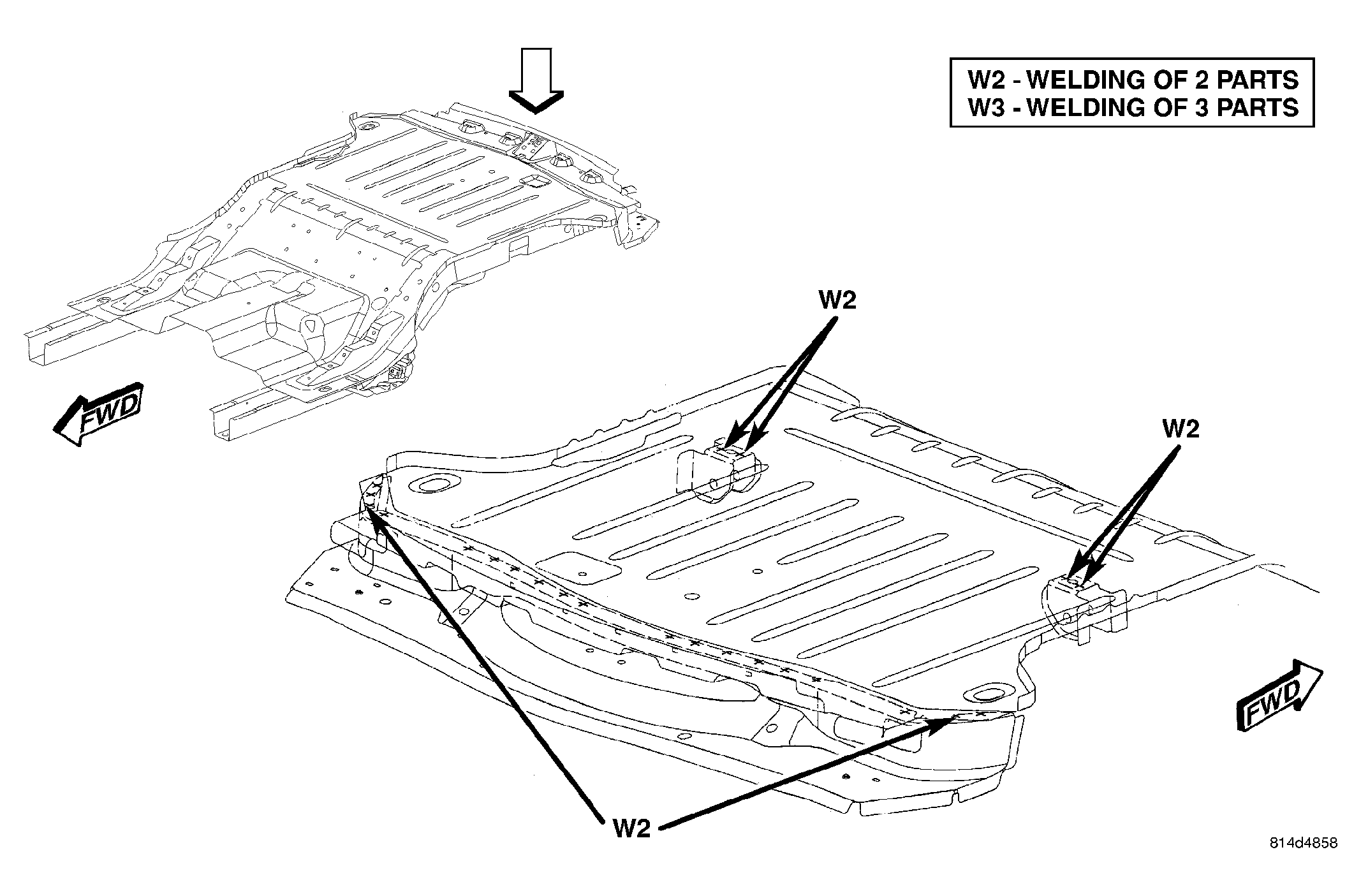

Fig 25: REAR FLOOR (1 OF 2)
GC0028068Courtesy of DAIMLERCHRYSLER CORP.
Fig 26: REAR FLOOR (2 OF 2)
GC0028069Courtesy of DAIMLERCHRYSLER CORP.

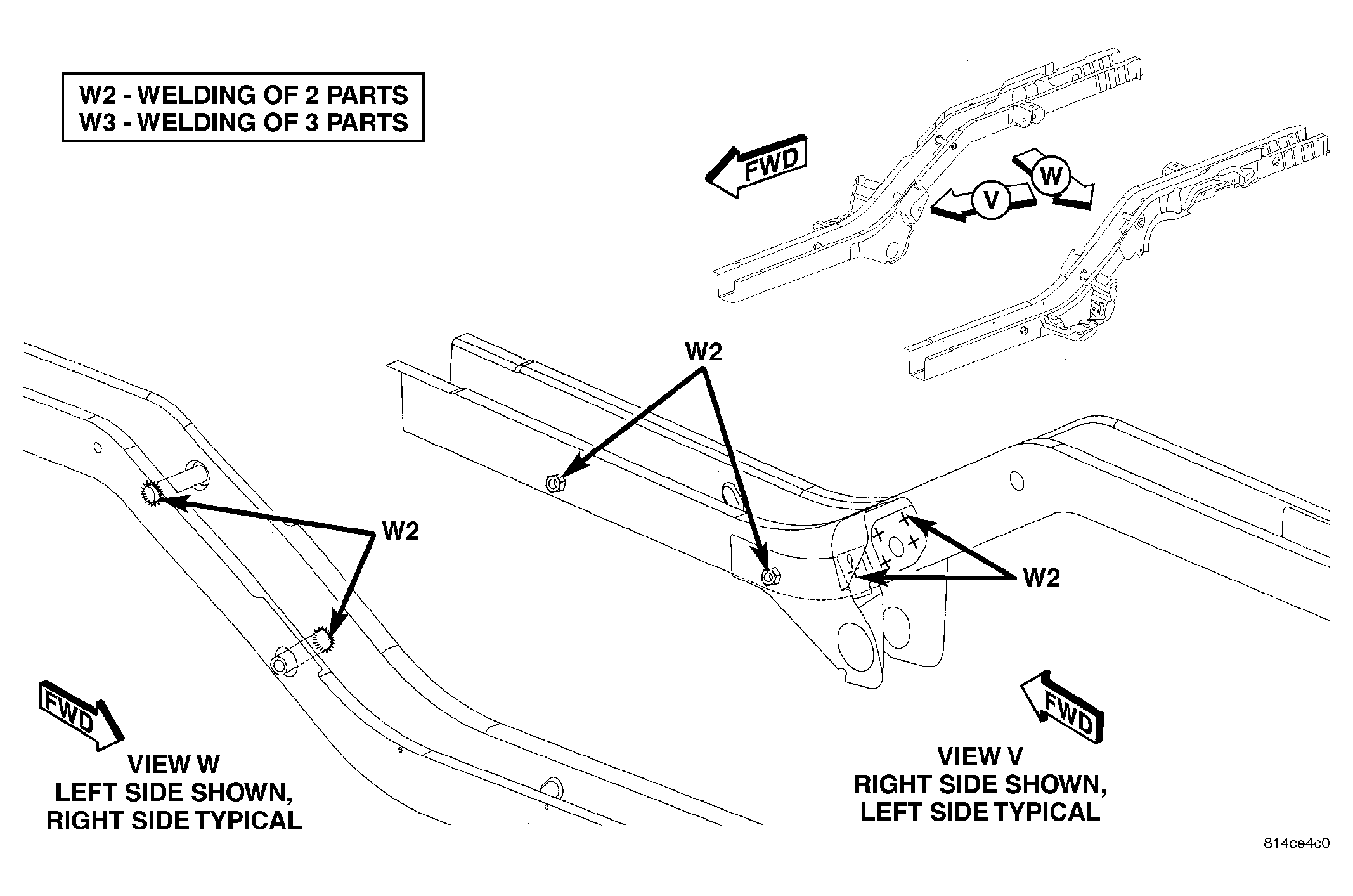

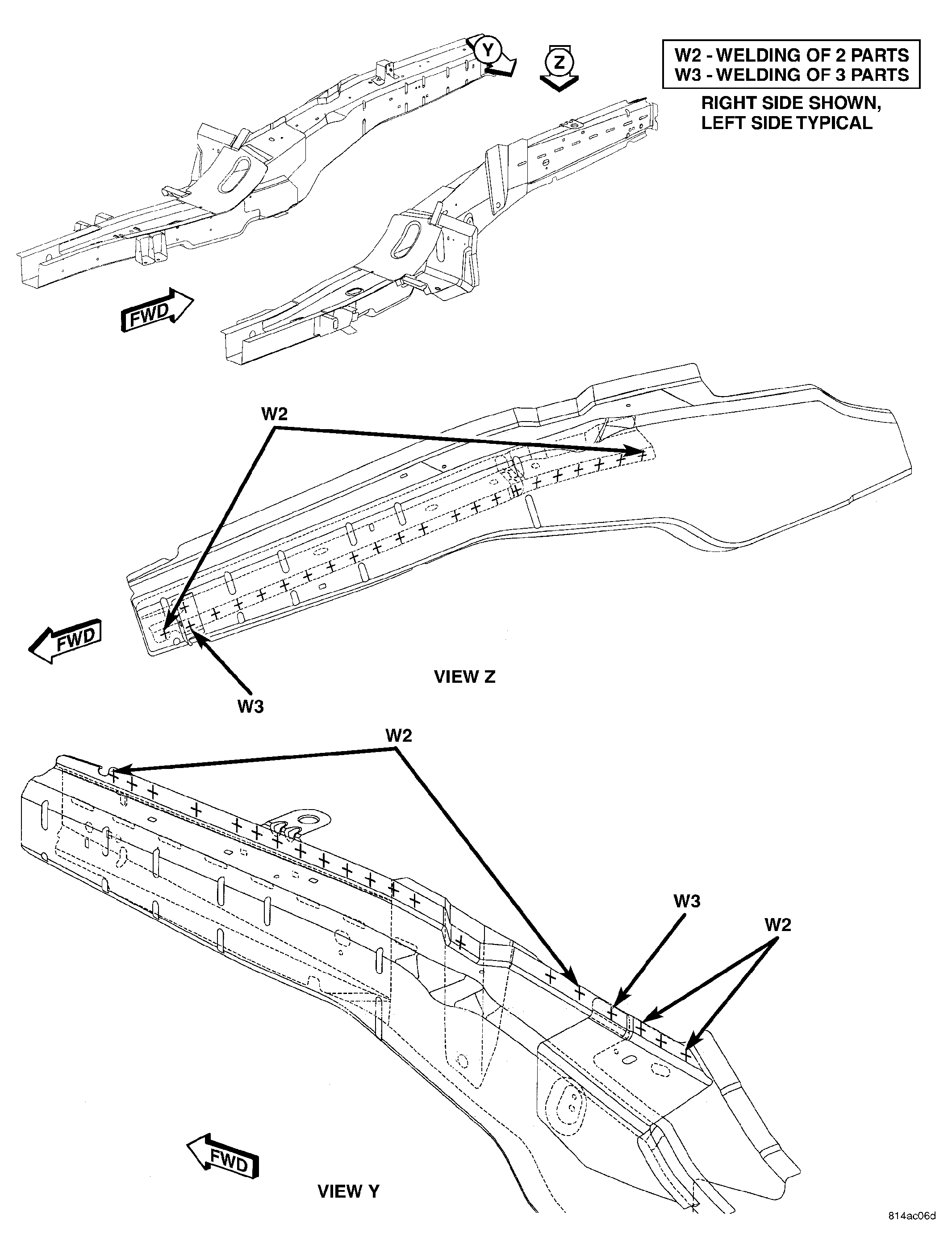

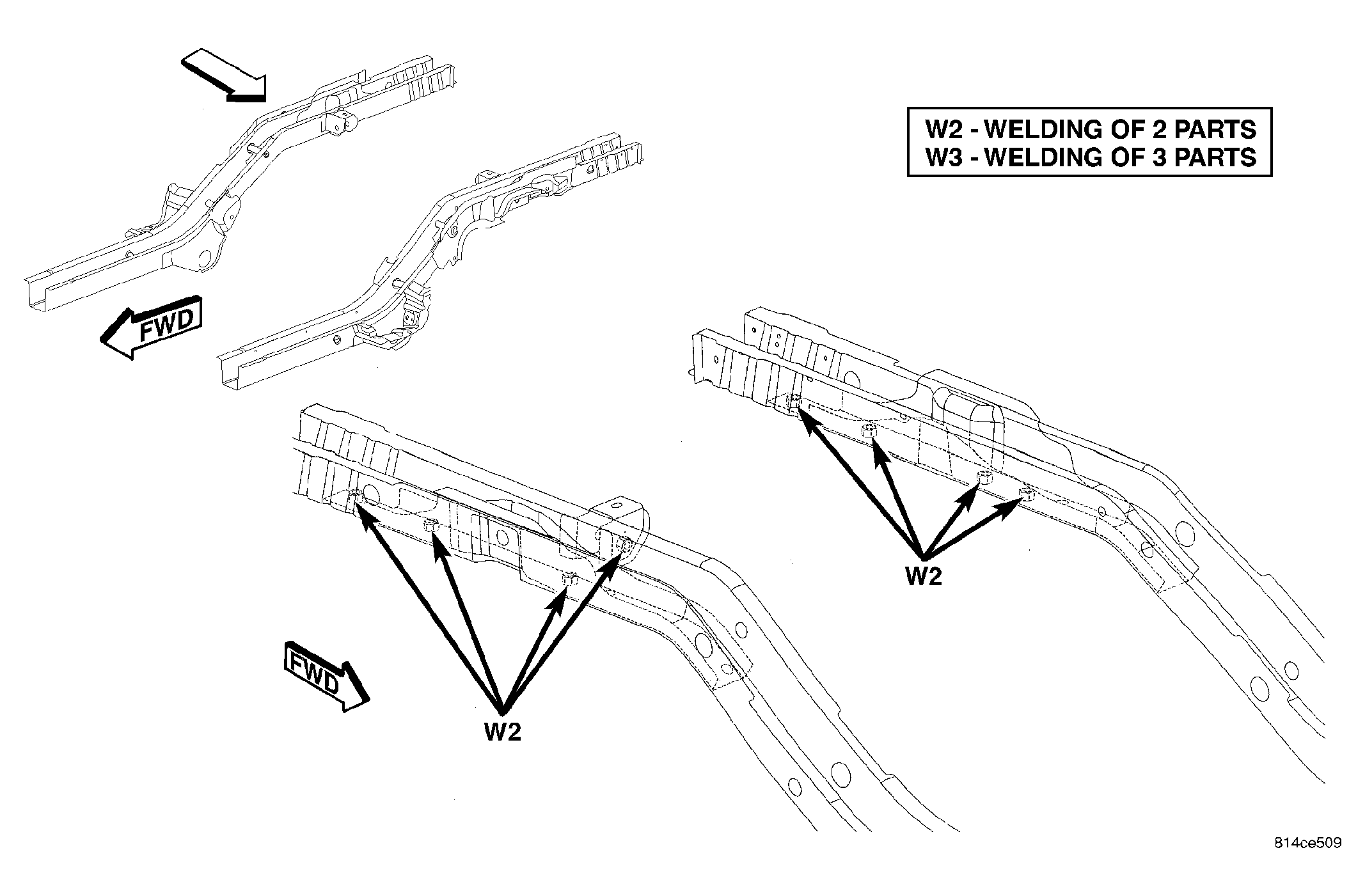

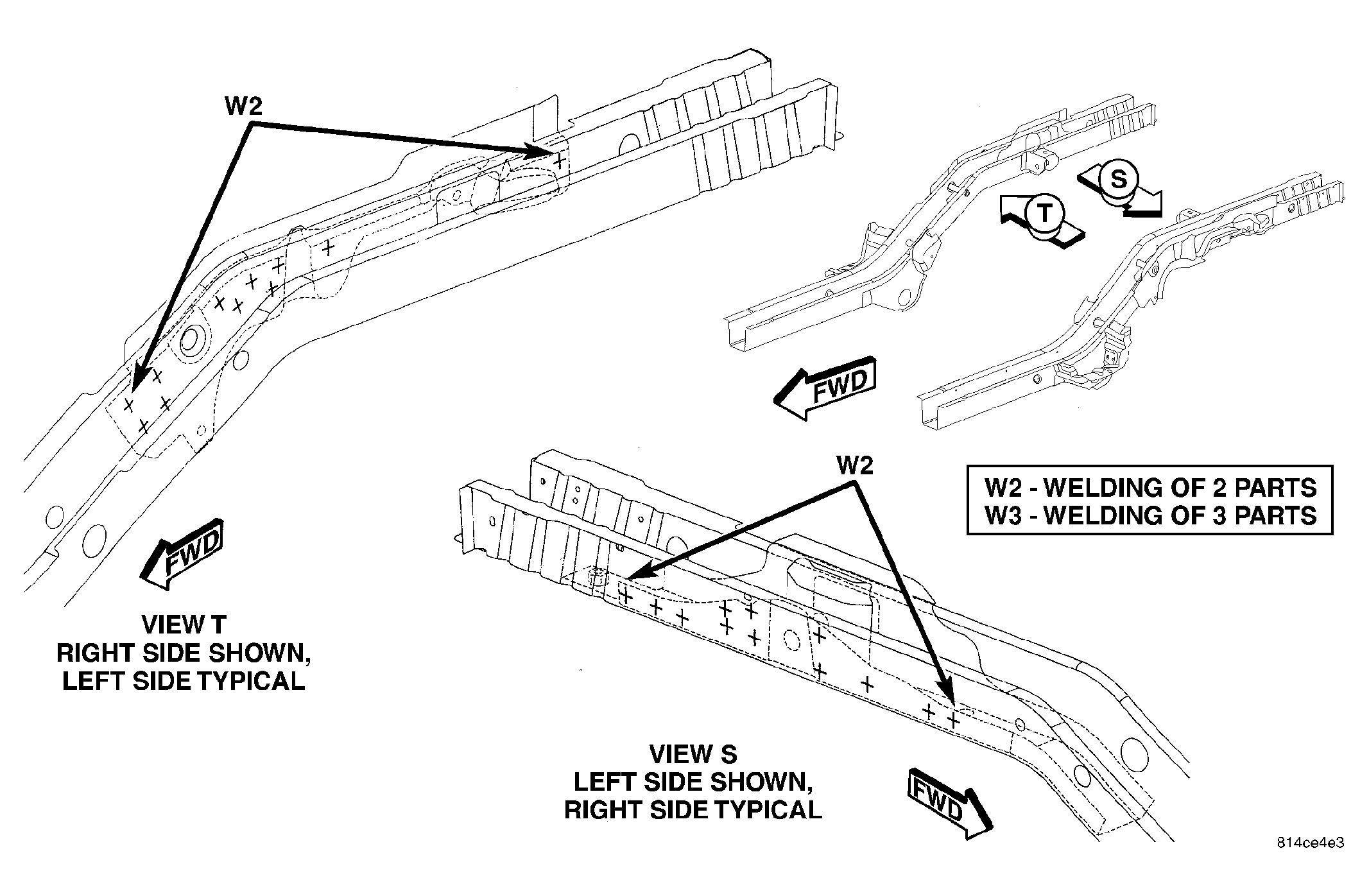

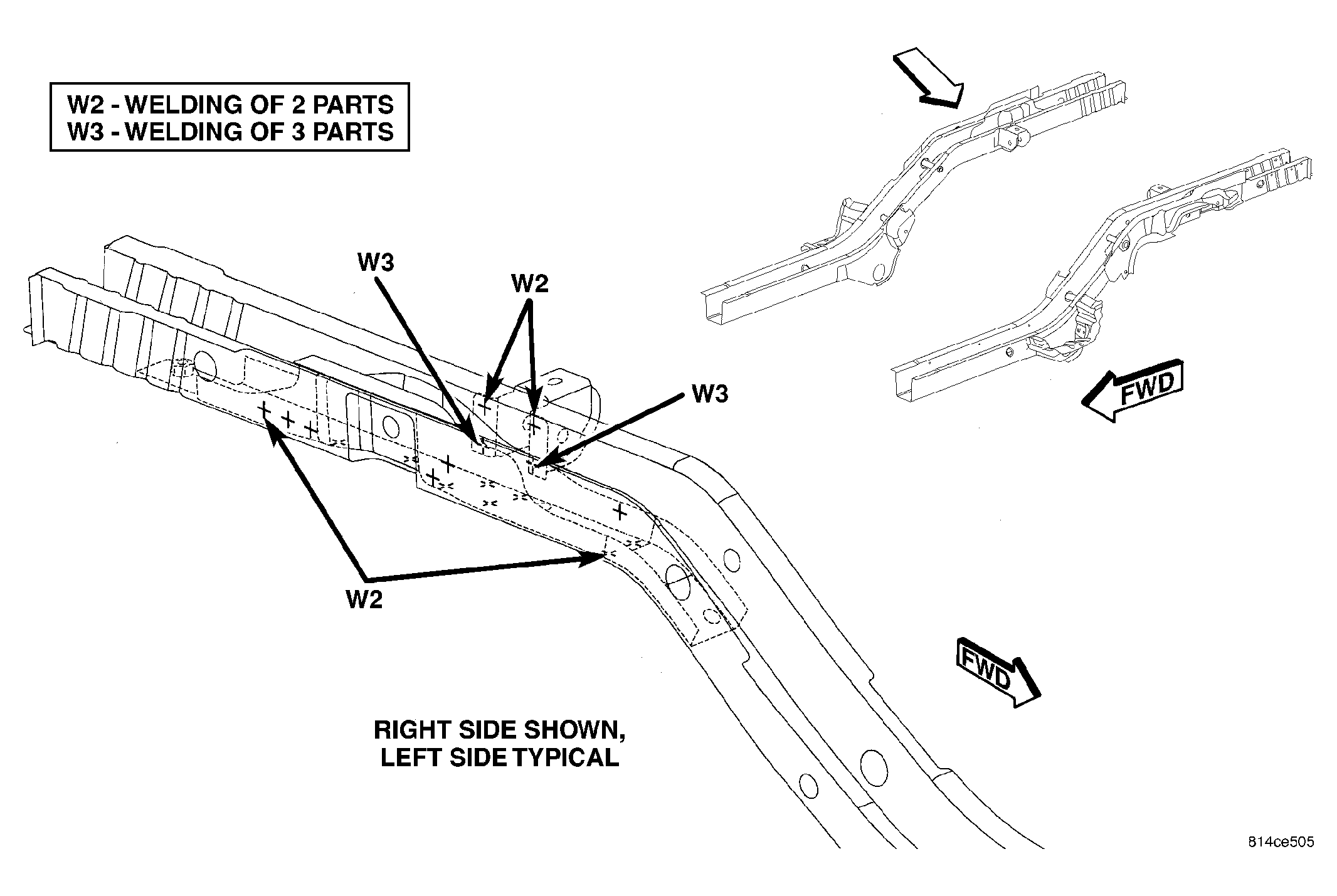

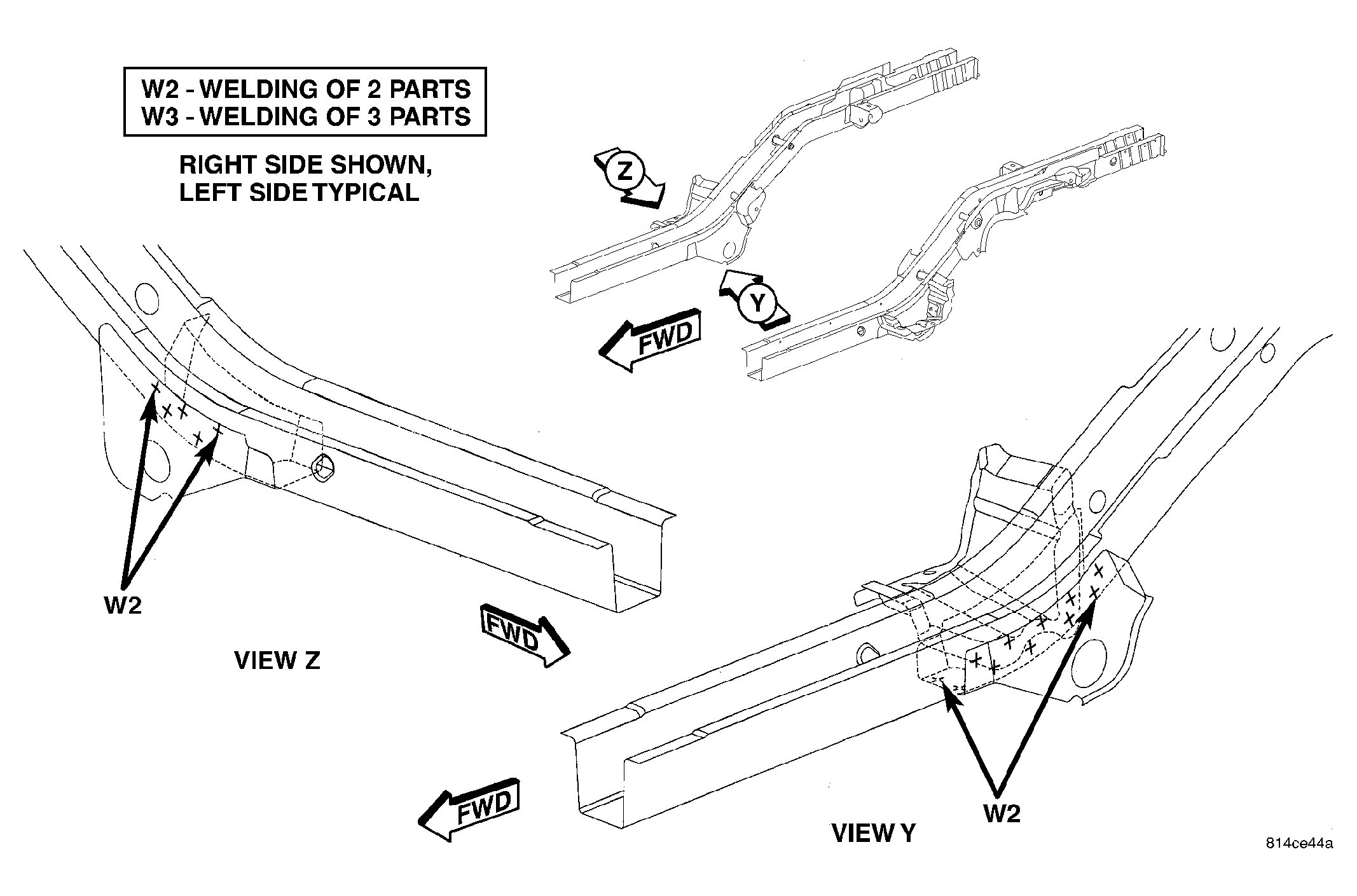

Fig 27: REAR RAILS (1 OF 8)
GC0028070Courtesy of DAIMLERCHRYSLER CORP.

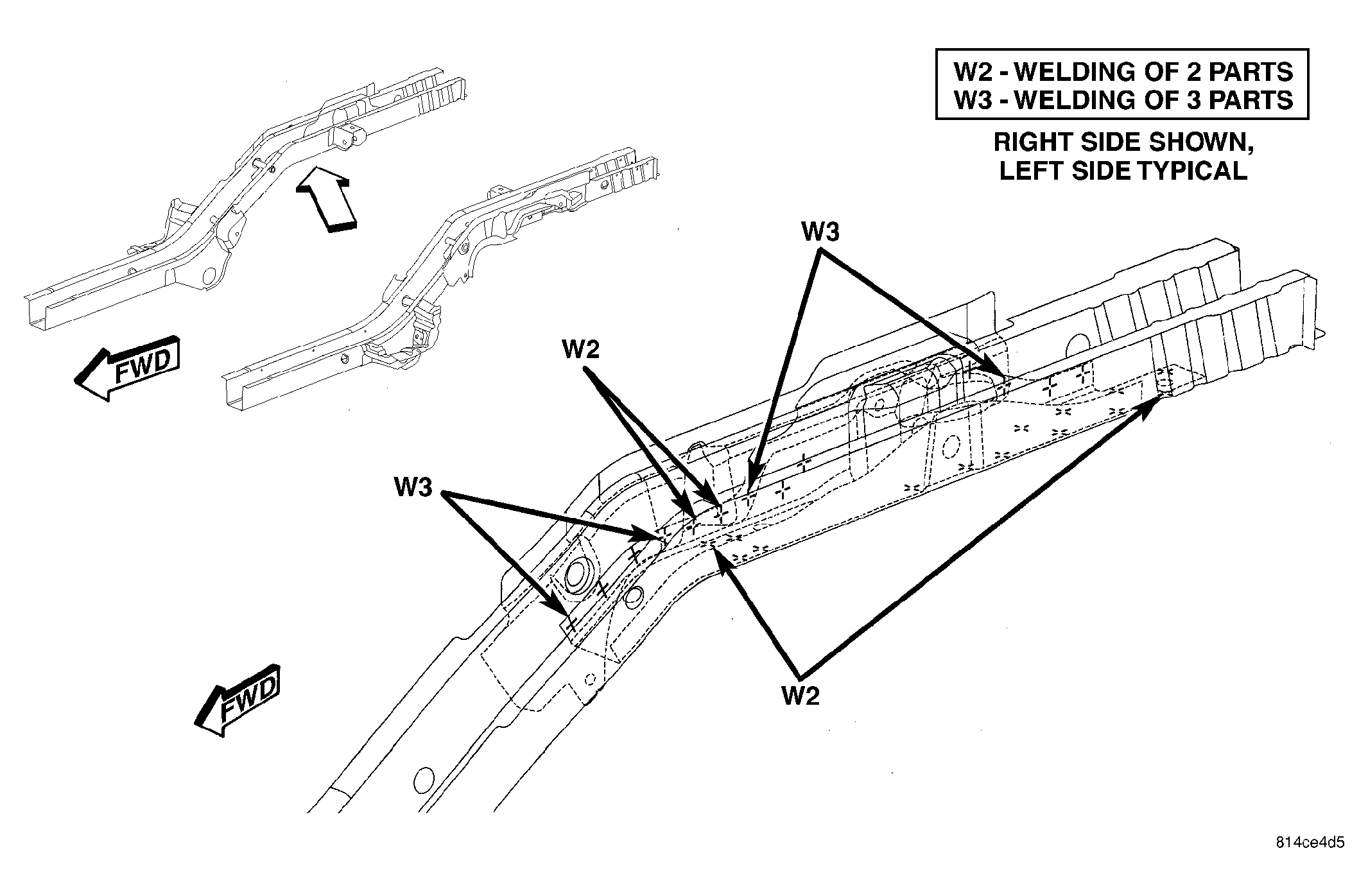

Fig 28: REAR RAILS (2 OF 8)
GC0028071Courtesy of DAIMLERCHRYSLER CORP.
Fig 29: REAR RAILS (3 OF 8)
GC0028072Courtesy of DAIMLERCHRYSLER CORP.
Fig 30: REAR RAILS (4 OF 8)
GC0028073Courtesy of DAIMLERCHRYSLER CORP.
Fig 31: REAR RAILS (5 OF 8)
GC0028074Courtesy of DAIMLERCHRYSLER CORP.
Fig 32: REAR RAILS (6 OF 8)
GC0028075Courtesy of DAIMLERCHRYSLER CORP.

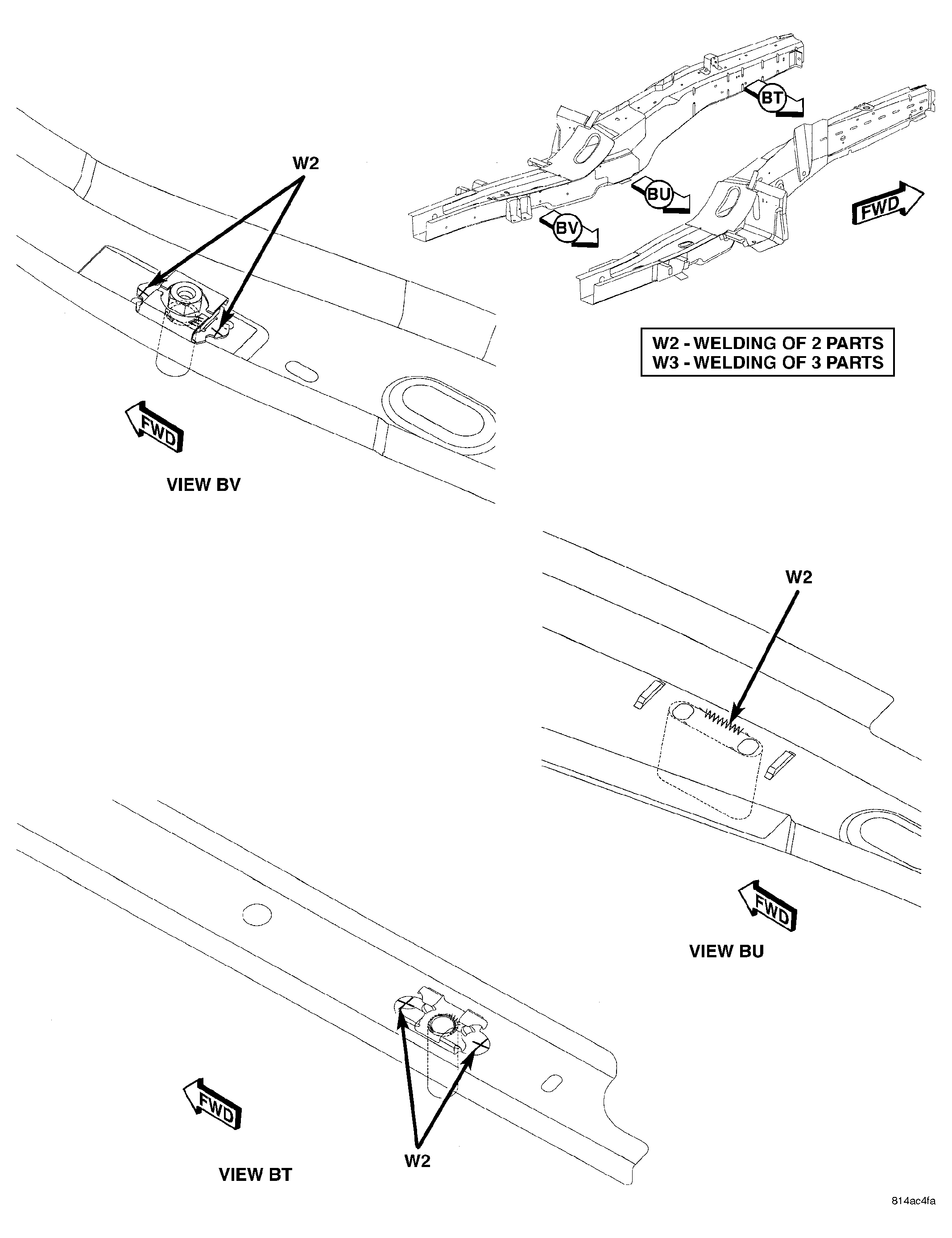

Fig 33: REAR RAILS (7 OF 8)
GC0028076Courtesy of DAIMLERCHRYSLER CORP.

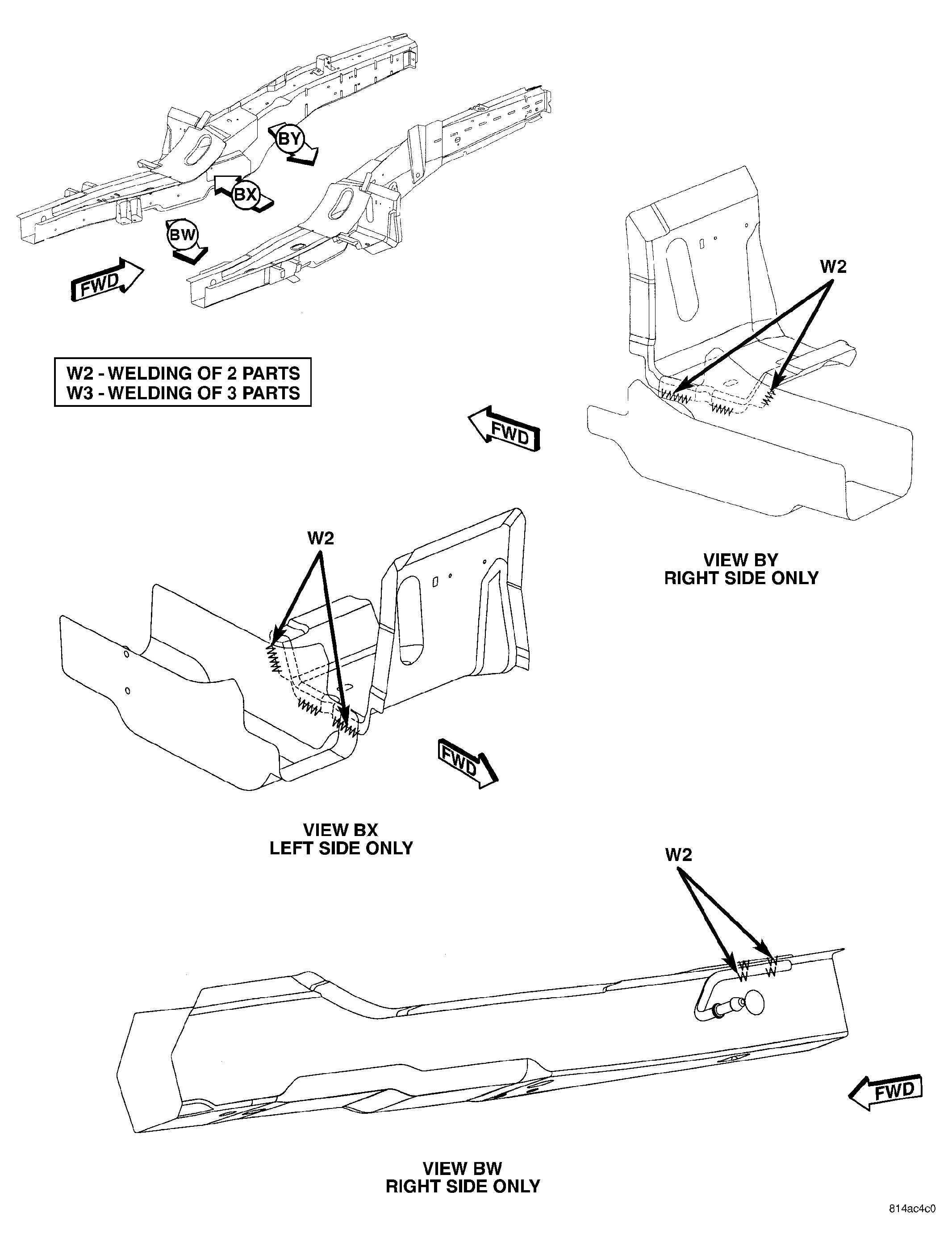

Fig 34: REAR RAILS (8 OF 8)
GC0028077Courtesy of DAIMLERCHRYSLER CORP.

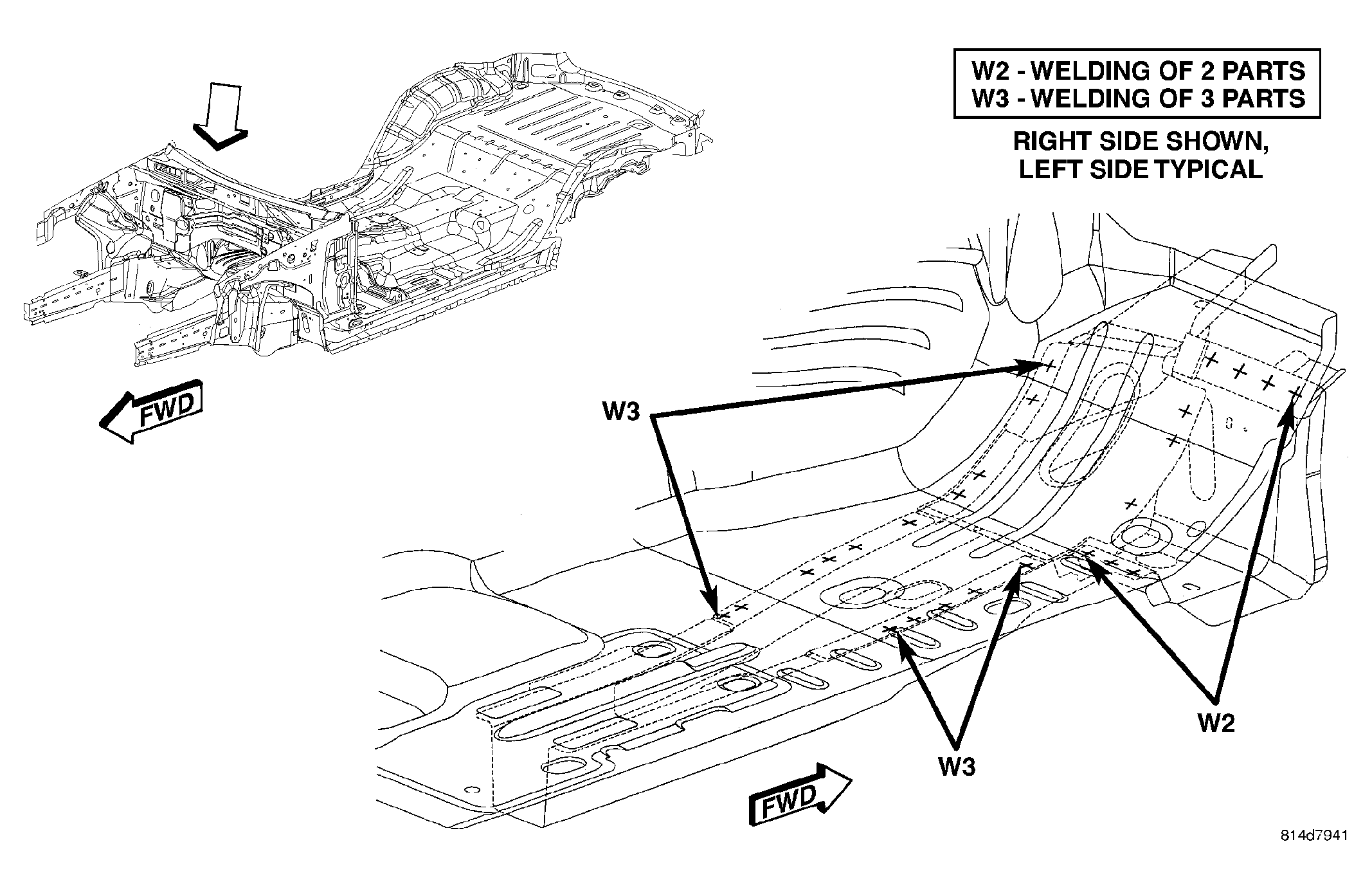

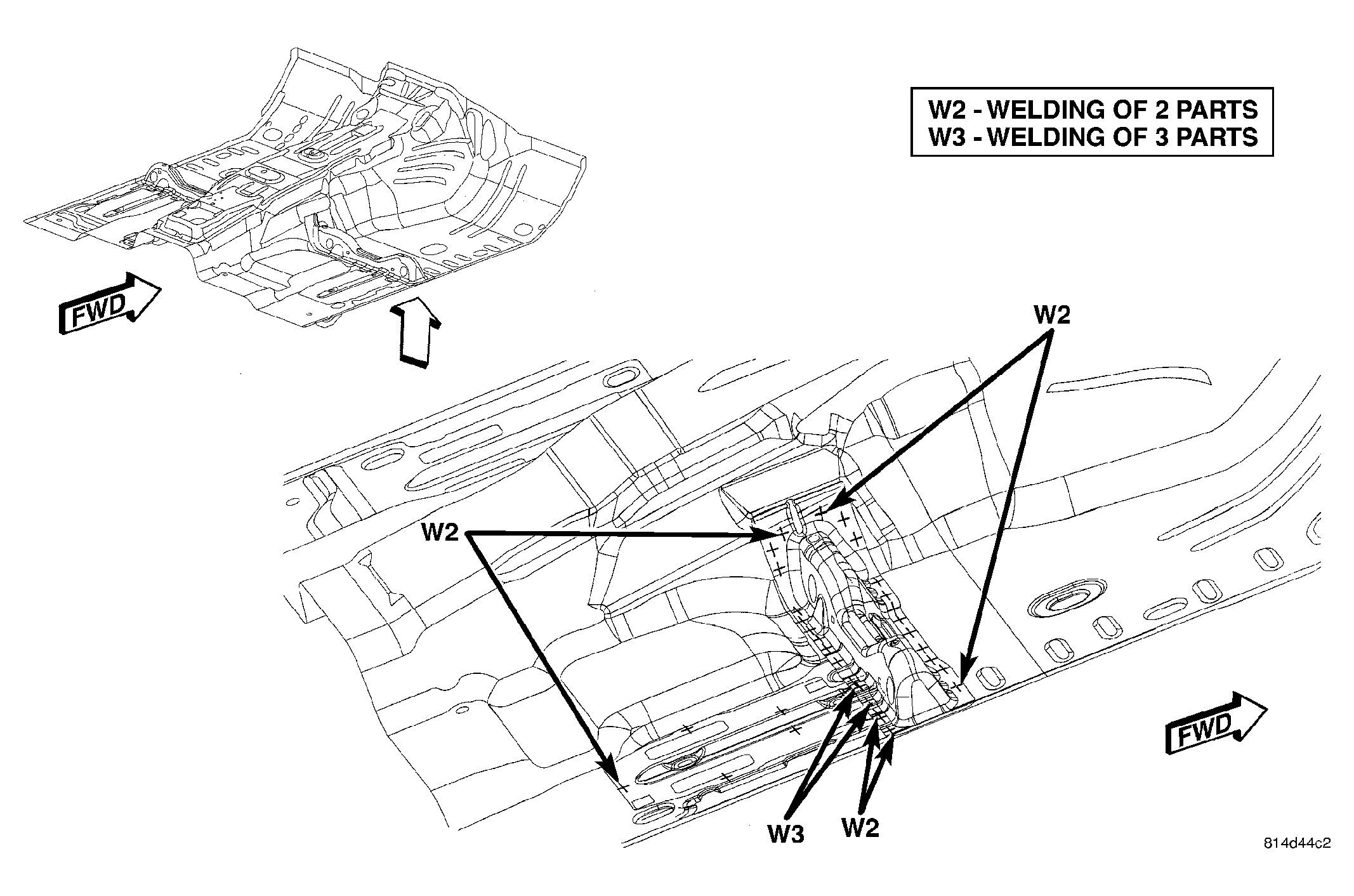

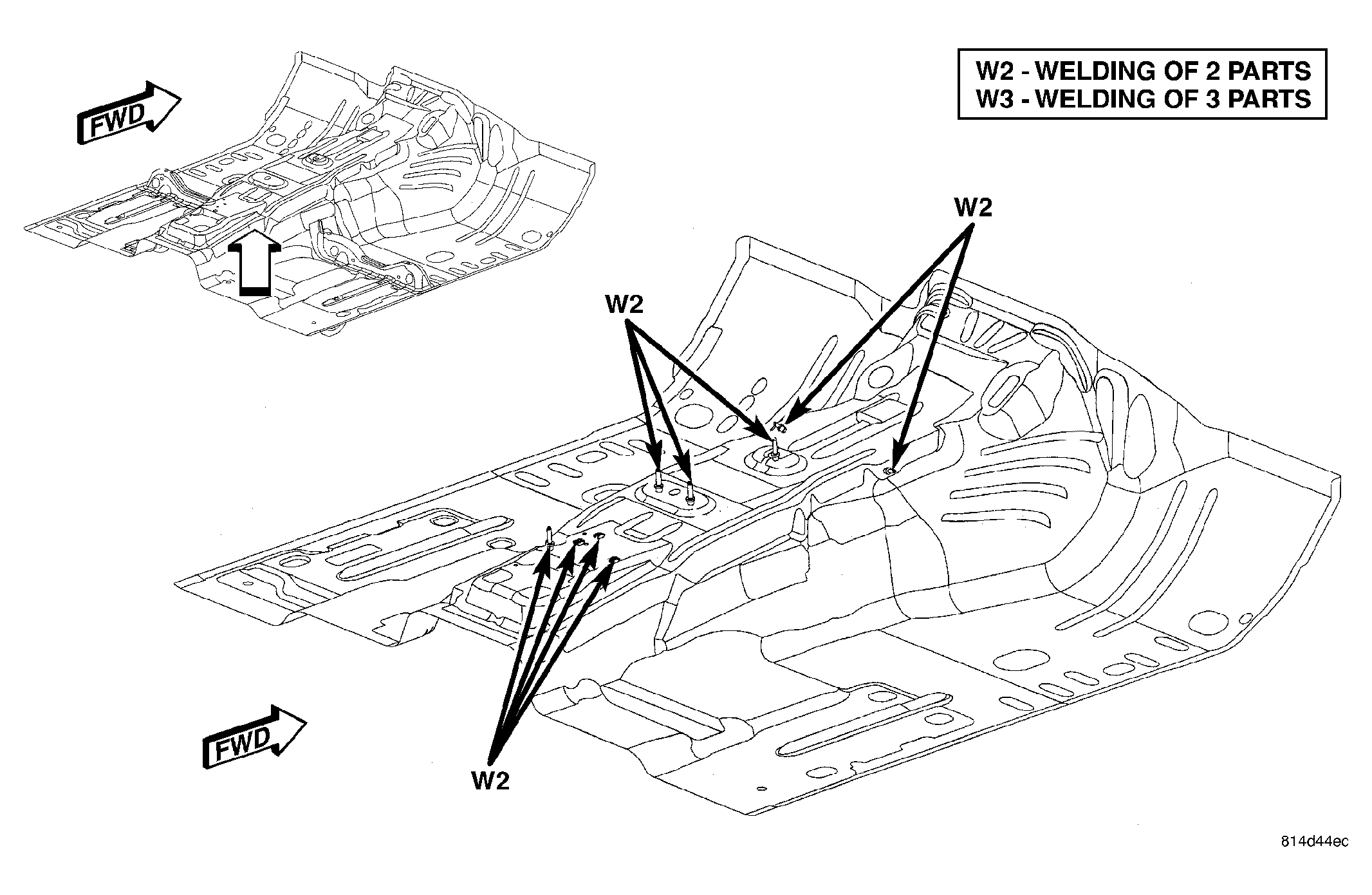

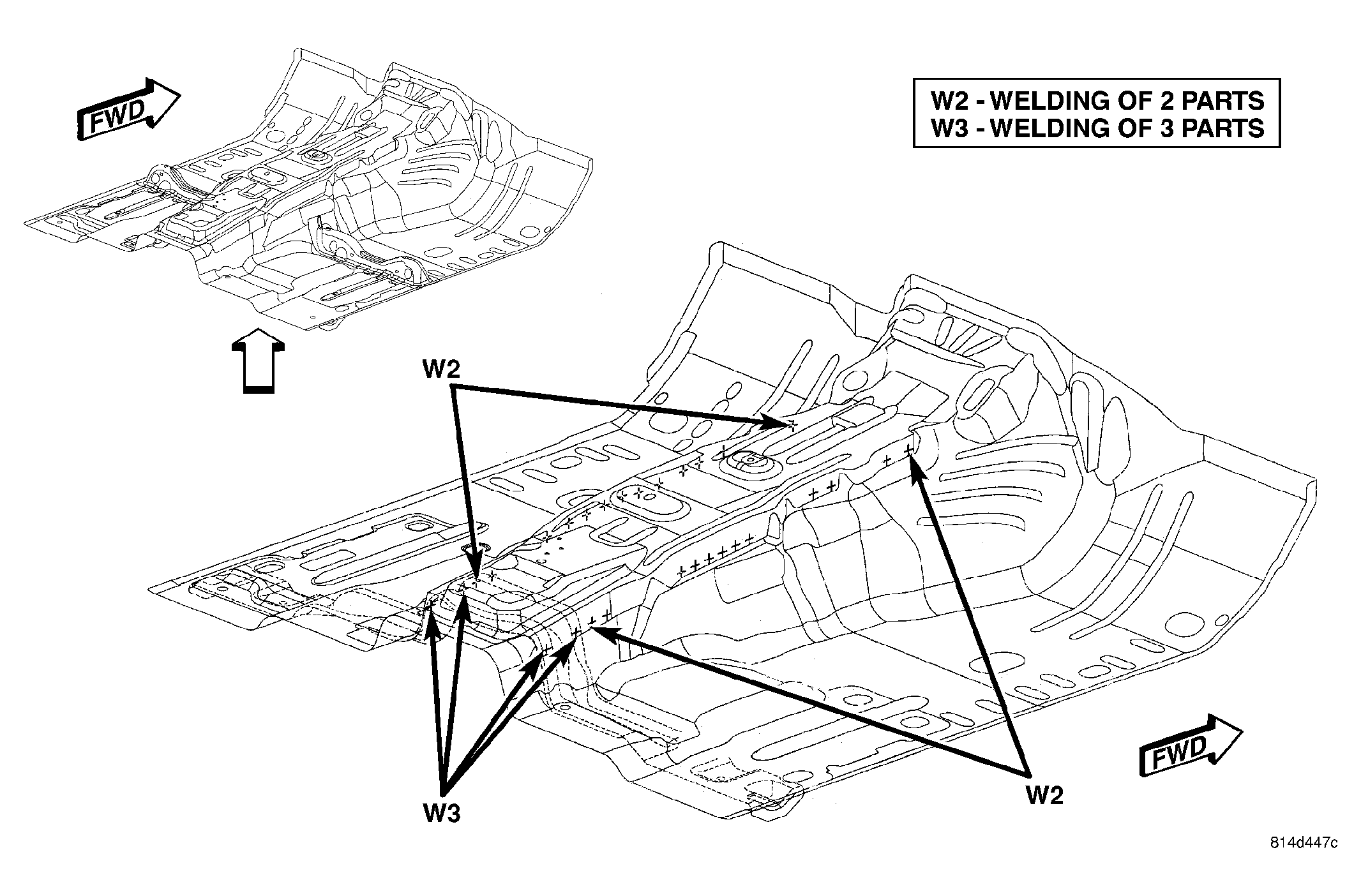

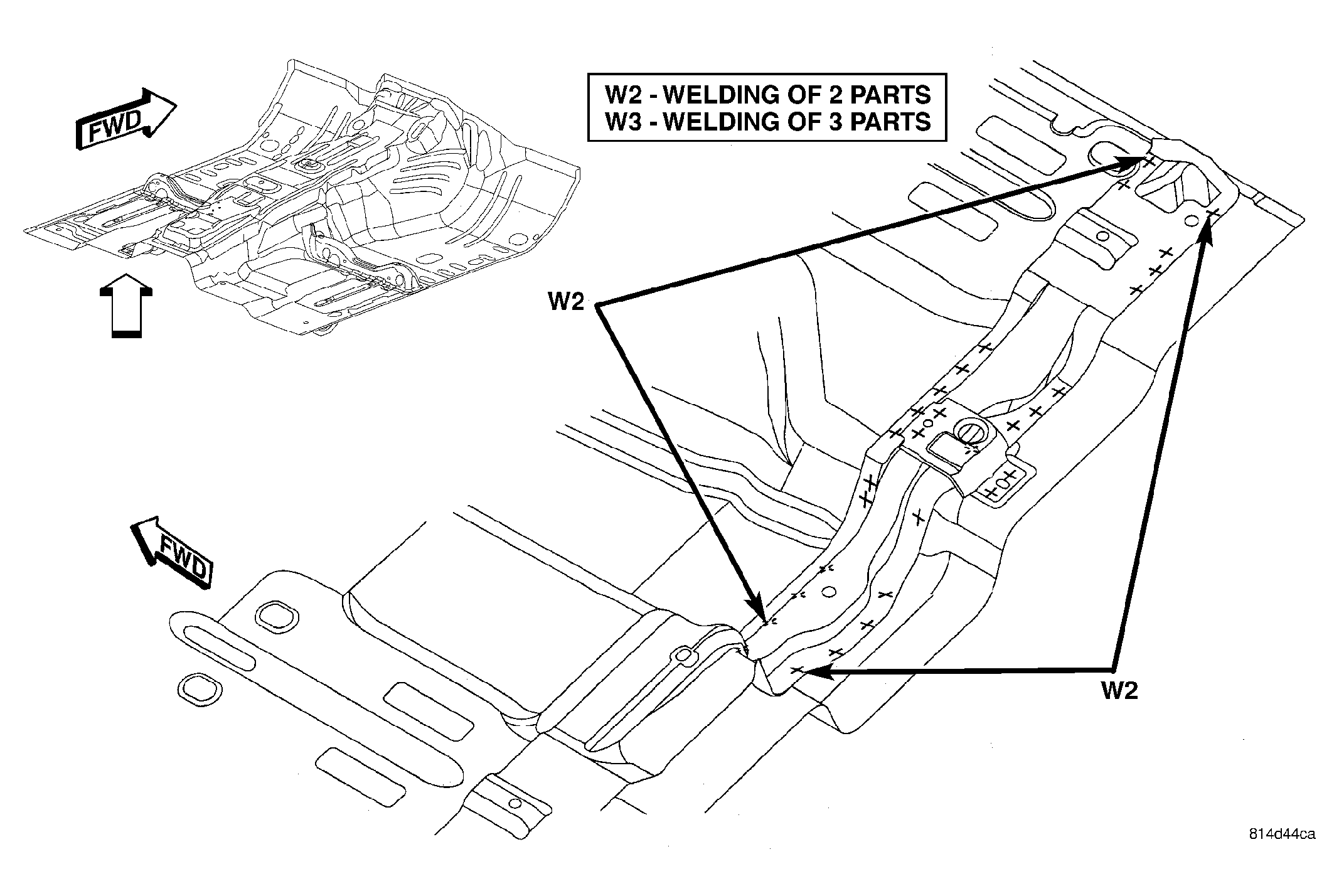

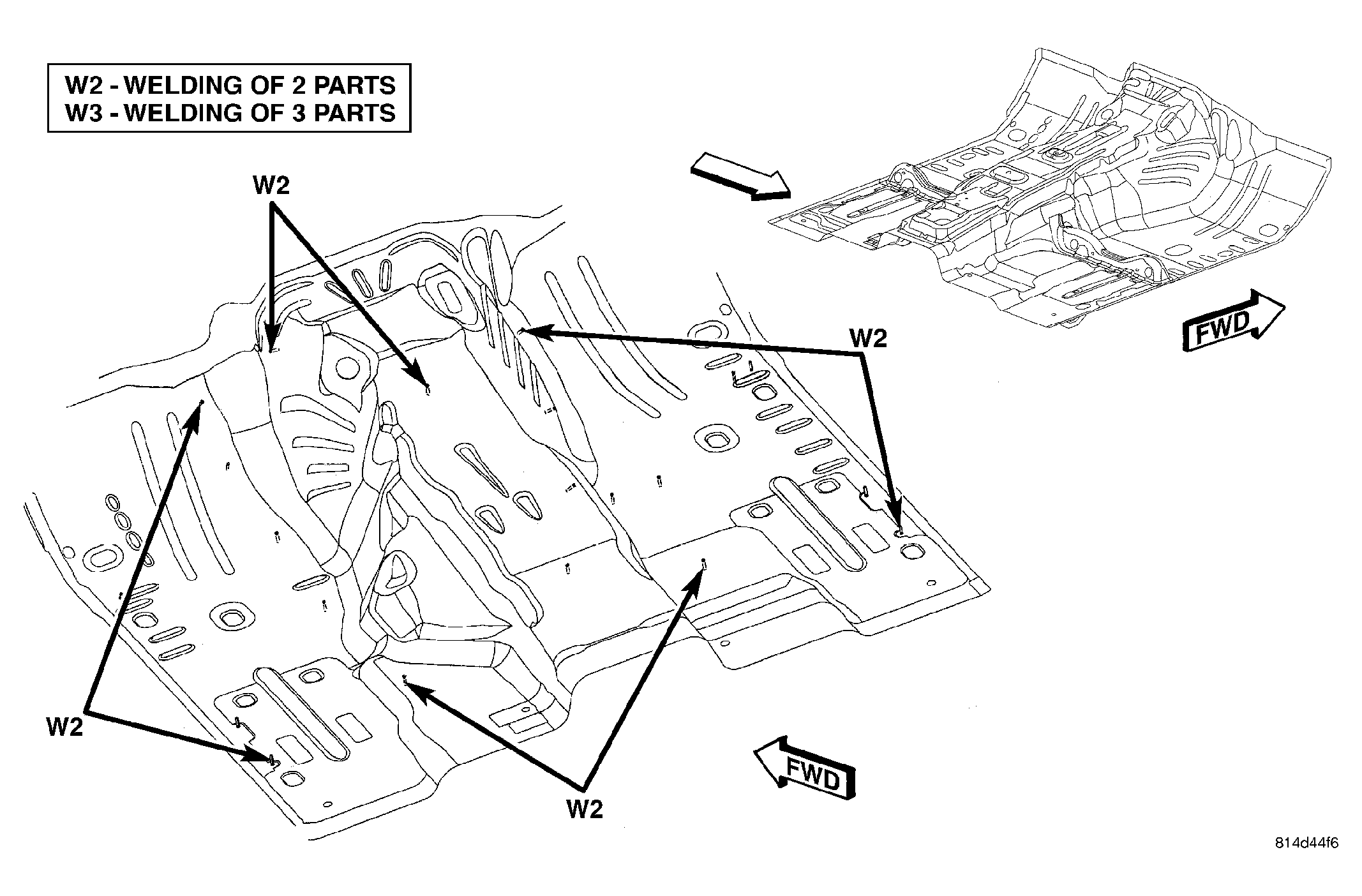

Fig 35: FRONT FLOOR PAN (1 OF 9)
GC0028078Courtesy of DAIMLERCHRYSLER CORP.

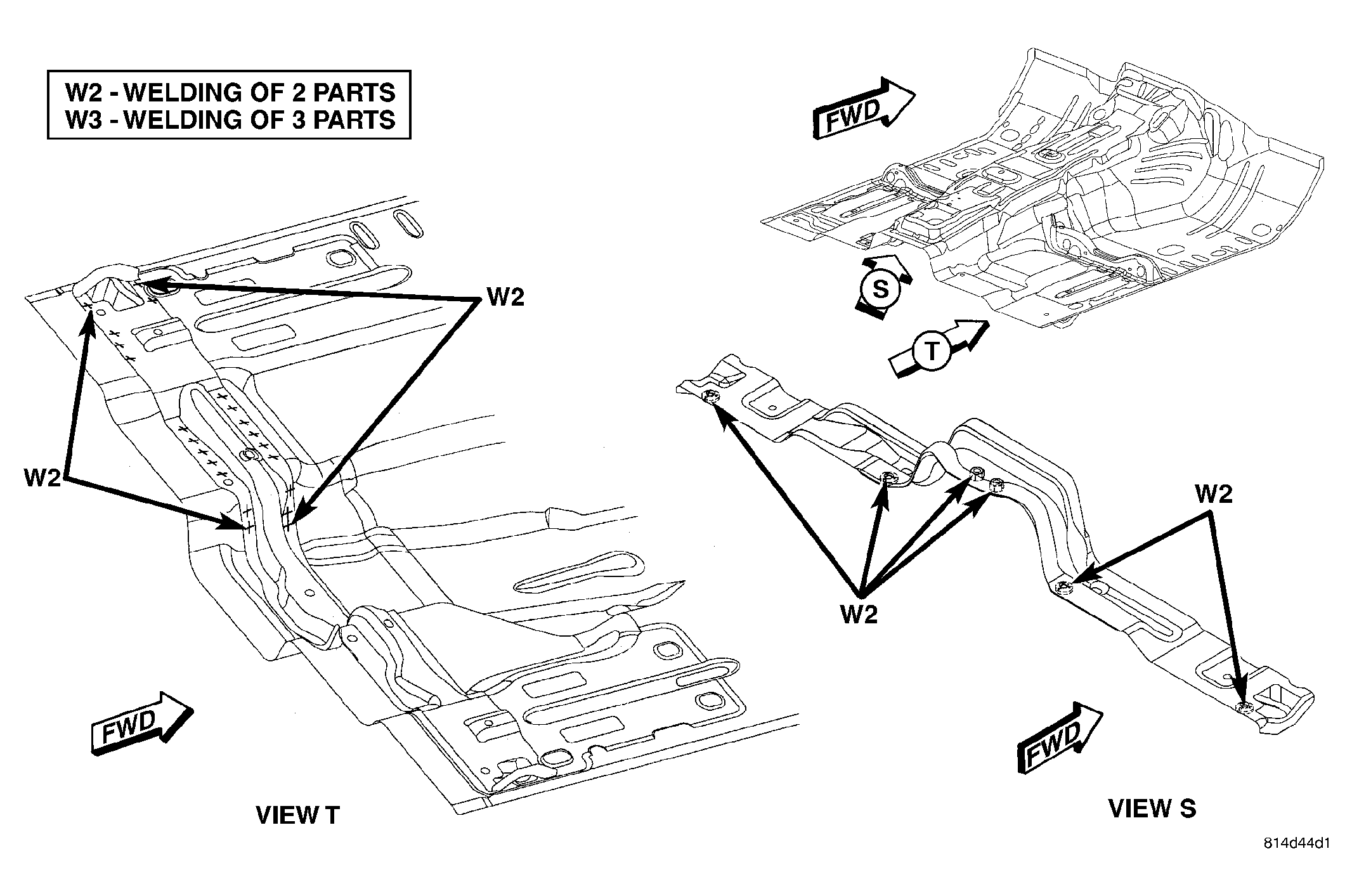

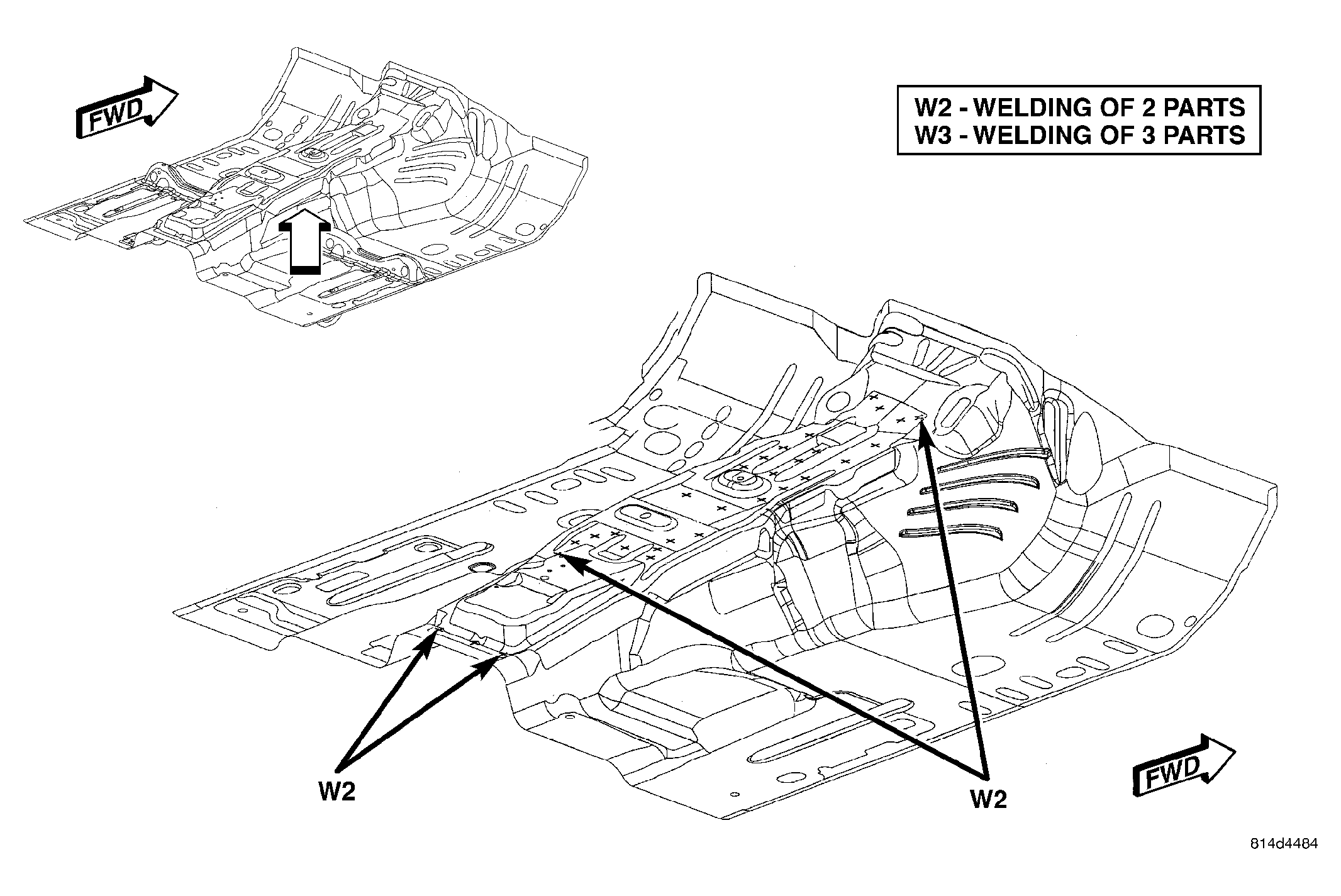

Fig 36: FRONT FLOOR PAN (2 OF 9)
GC0028079Courtesy of DAIMLERCHRYSLER CORP.

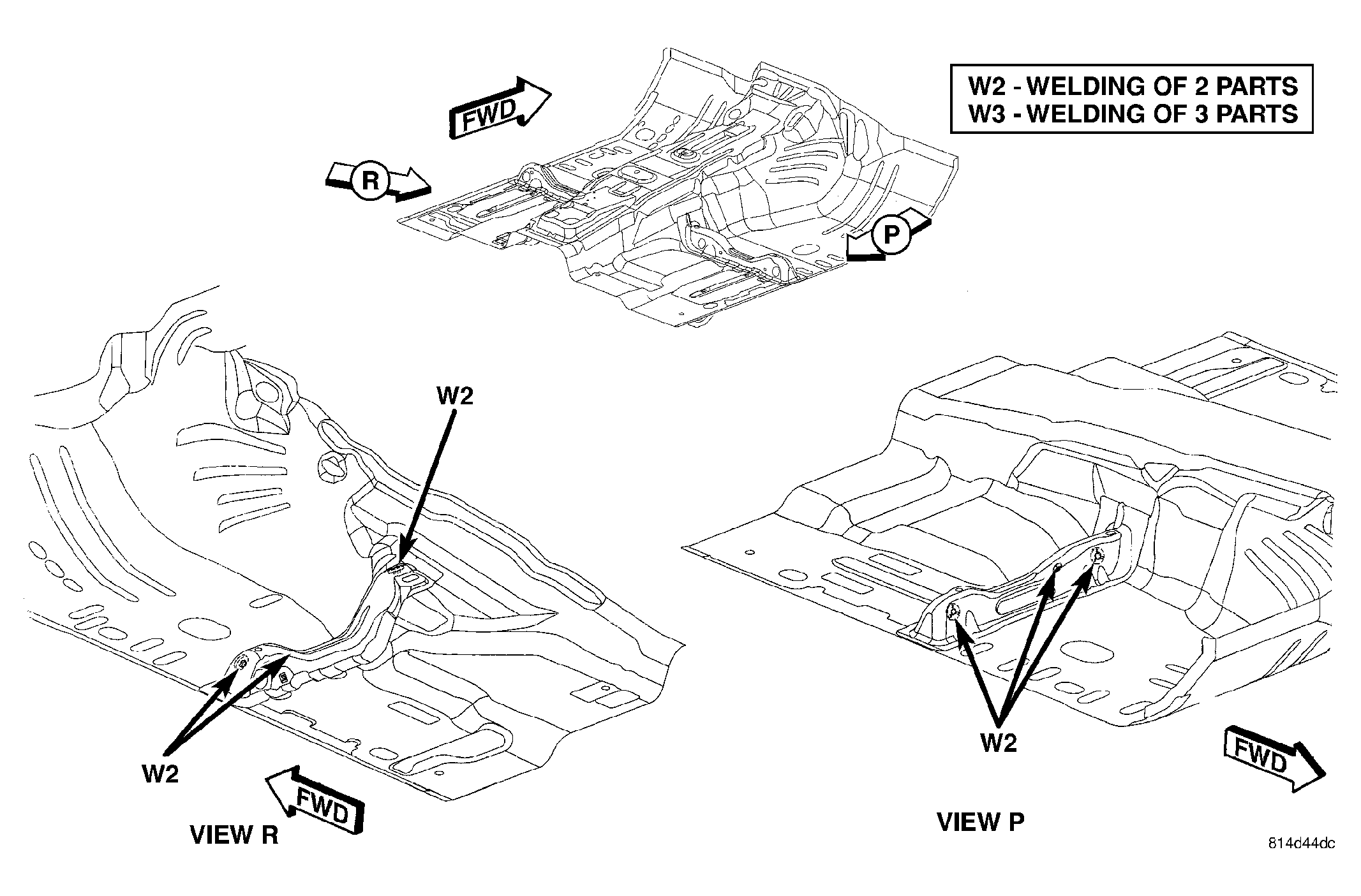

Fig 37: FRONT FLOOR PAN (3 OF 9)
GC0028080Courtesy of DAIMLERCHRYSLER CORP.
Fig 38: FRONT FLOOR PAN (4 OF 9)
GC0028081Courtesy of DAIMLERCHRYSLER CORP.
Fig 39: FRONT FLOOR PAN (5 OF 9)
GC0028082Courtesy of DAIMLERCHRYSLER CORP.
Fig 40: FRONT FLOOR PAN (6 OF 9)
GC0028083Courtesy of DAIMLERCHRYSLER CORP.
Fig 41: FRONT FLOOR PAN (7 OF 9)
GC0028084Courtesy of DAIMLERCHRYSLER CORP.

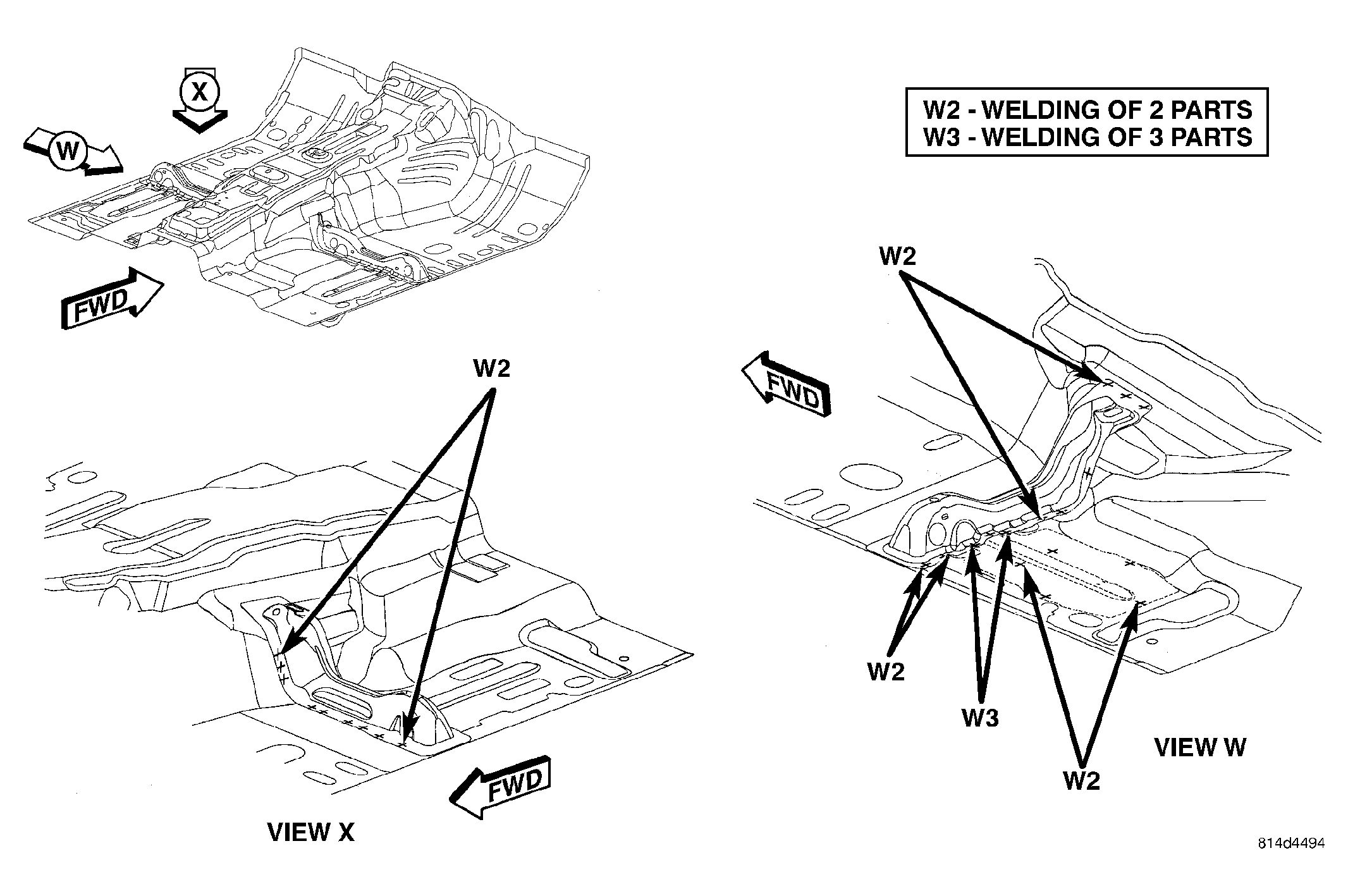

Fig 42: FRONT FLOOR PAN (8 OF 9)
GC0028085Courtesy of DAIMLERCHRYSLER CORP.
Fig 43: FRONT FLOOR PAN (9 OF 9)
GC0028086Courtesy of DAIMLERCHRYSLER CORP.

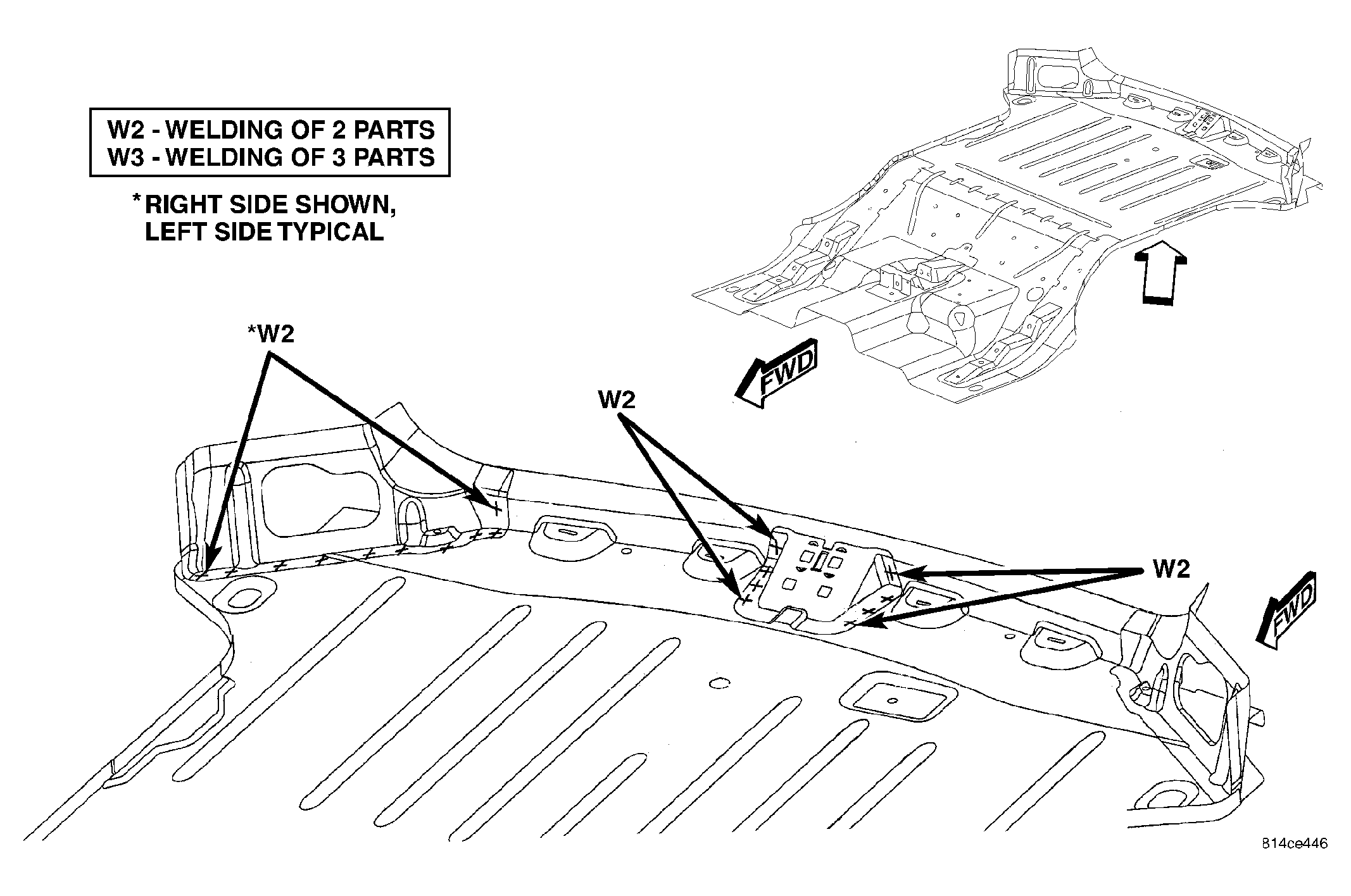

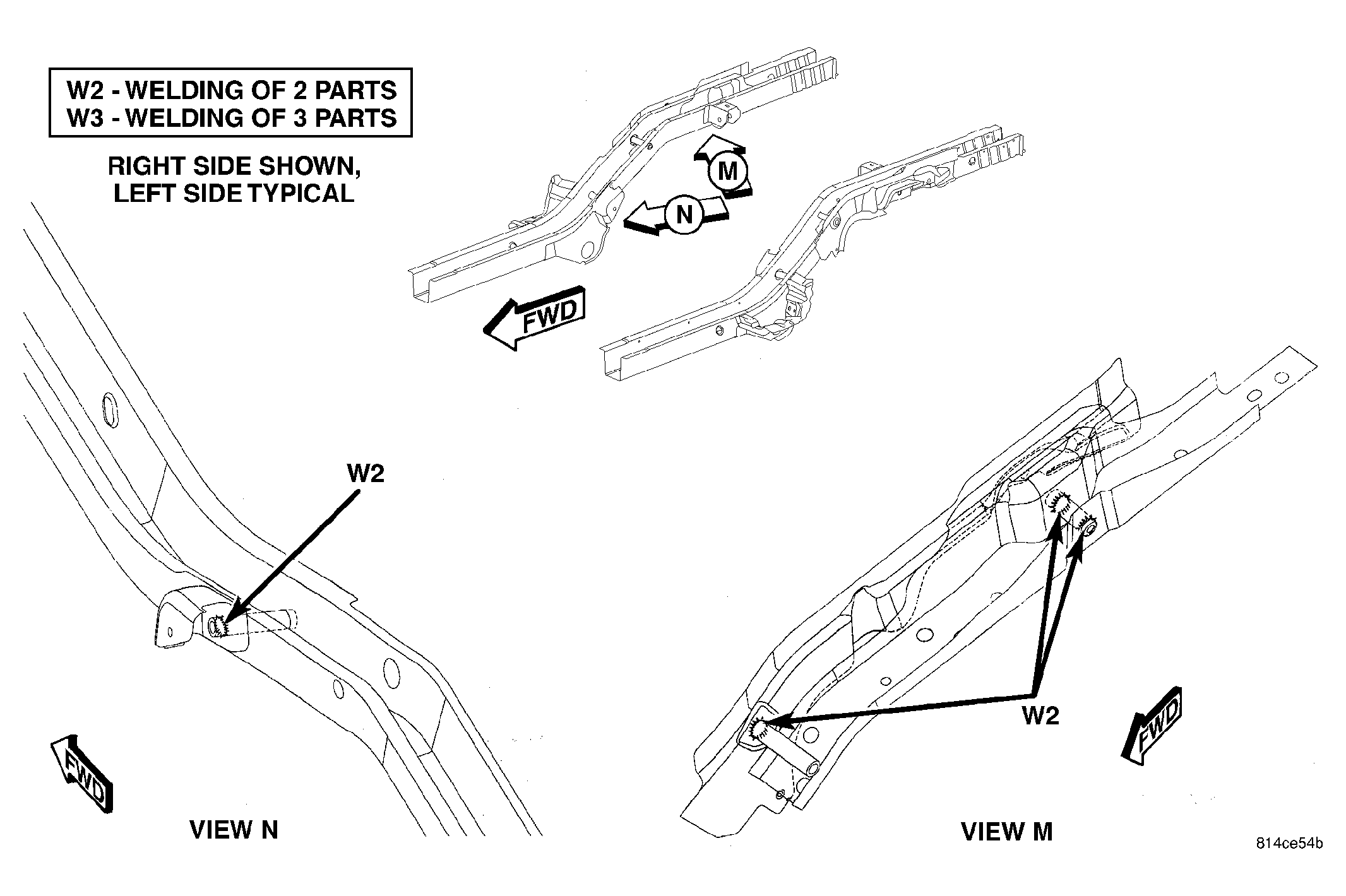

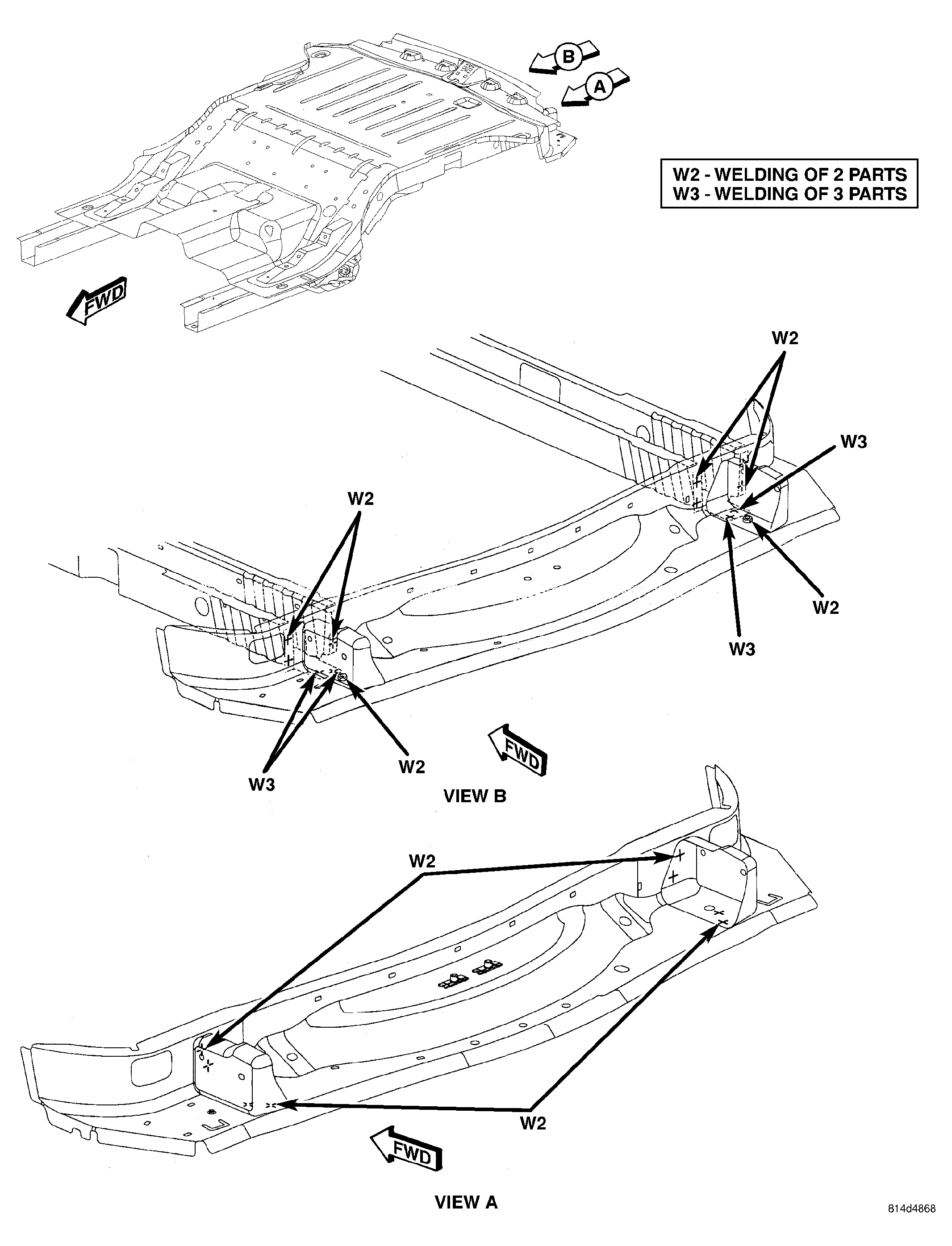

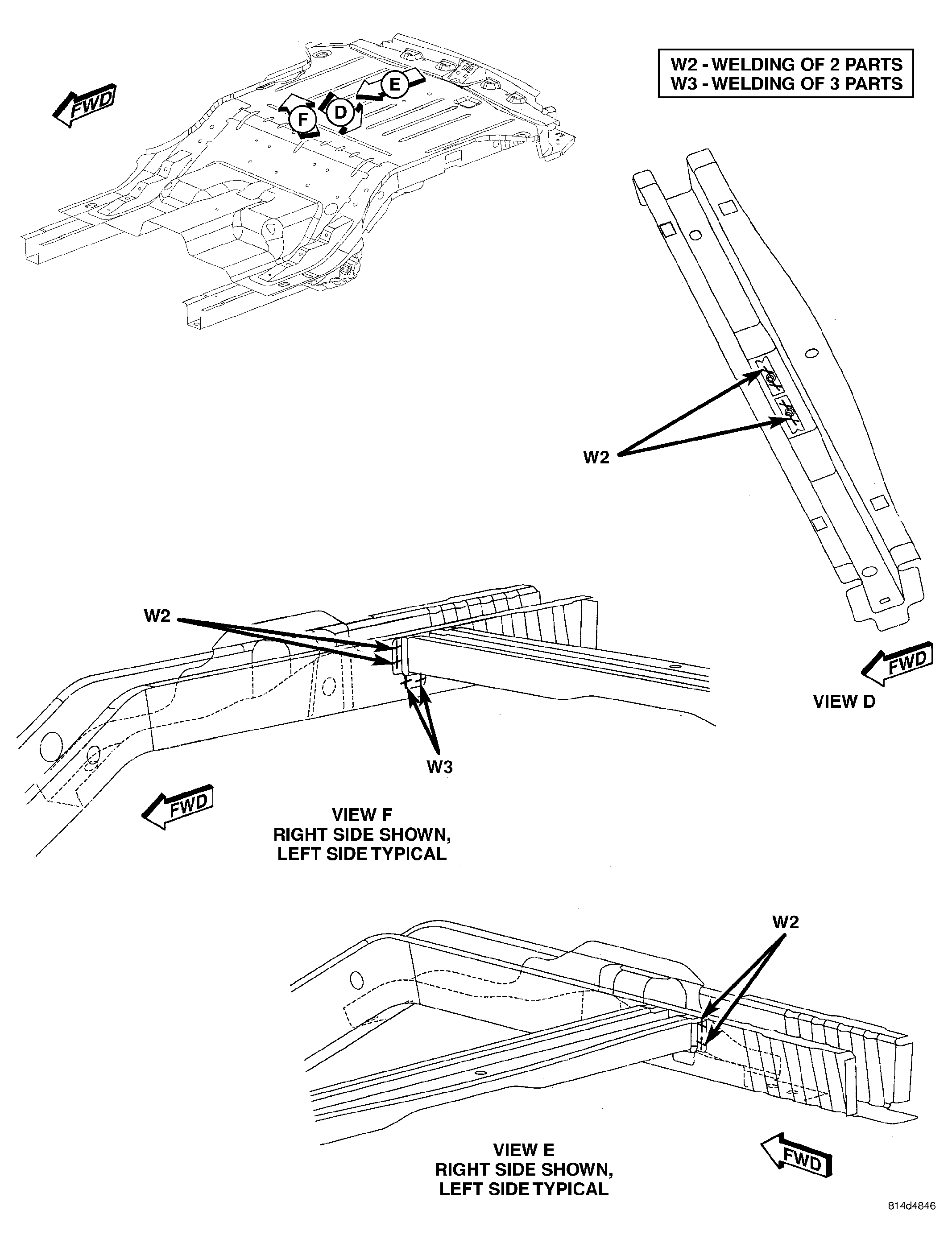

Fig 44: REAR FLOOR & LADDER (1 OF 12)
GC0028087Courtesy of DAIMLERCHRYSLER CORP.
Fig 45: REAR FLOOR & LADDER (2 OF 12)
GC0028088Courtesy of DAIMLERCHRYSLER CORP.
Fig 46: REAR FLOOR & LADDER (3 OF 12)
GC0028089Courtesy of DAIMLERCHRYSLER CORP.

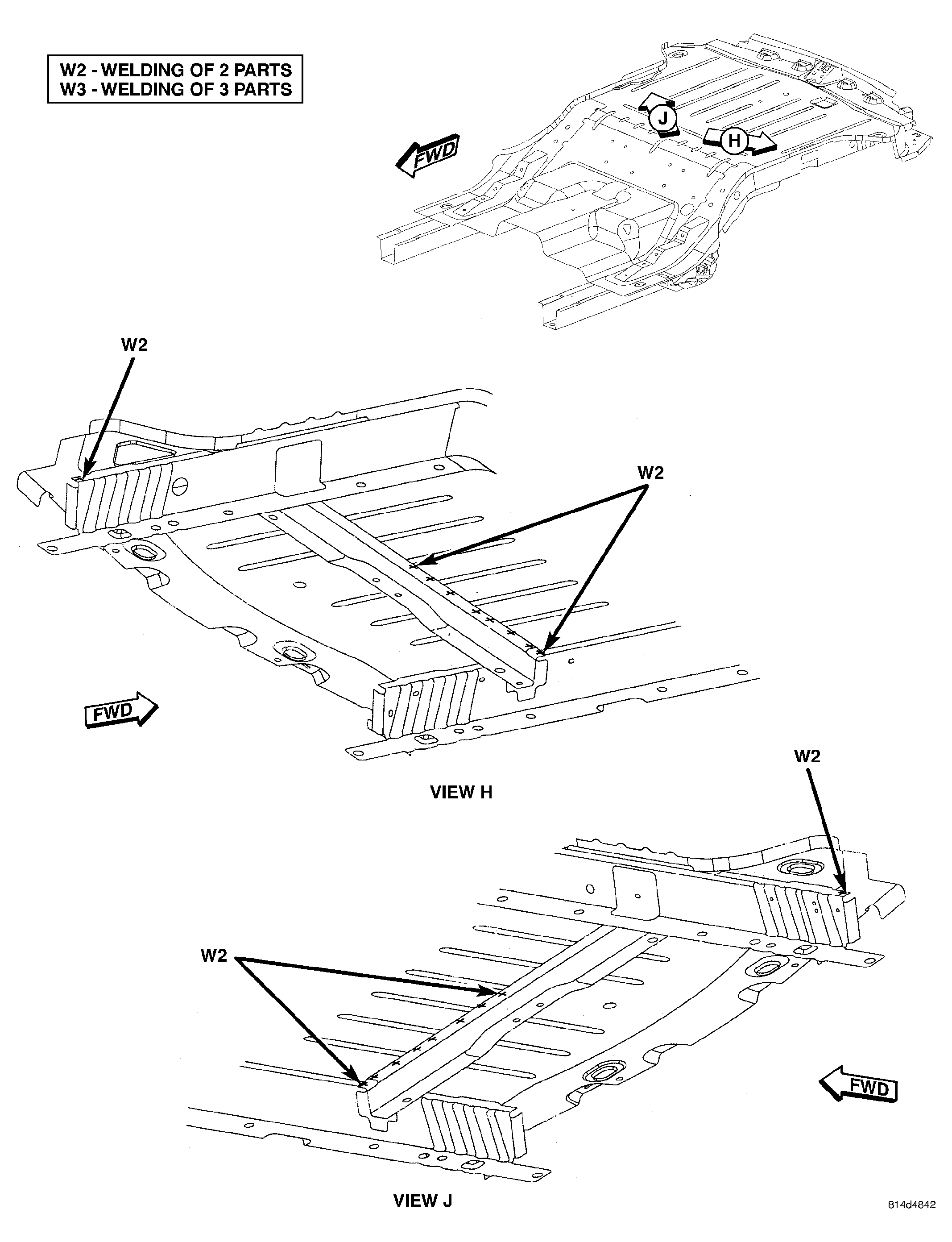

Fig 47: REAR FLOOR & LADDER (4 OF 12)
GC0028090Courtesy of DAIMLERCHRYSLER CORP.

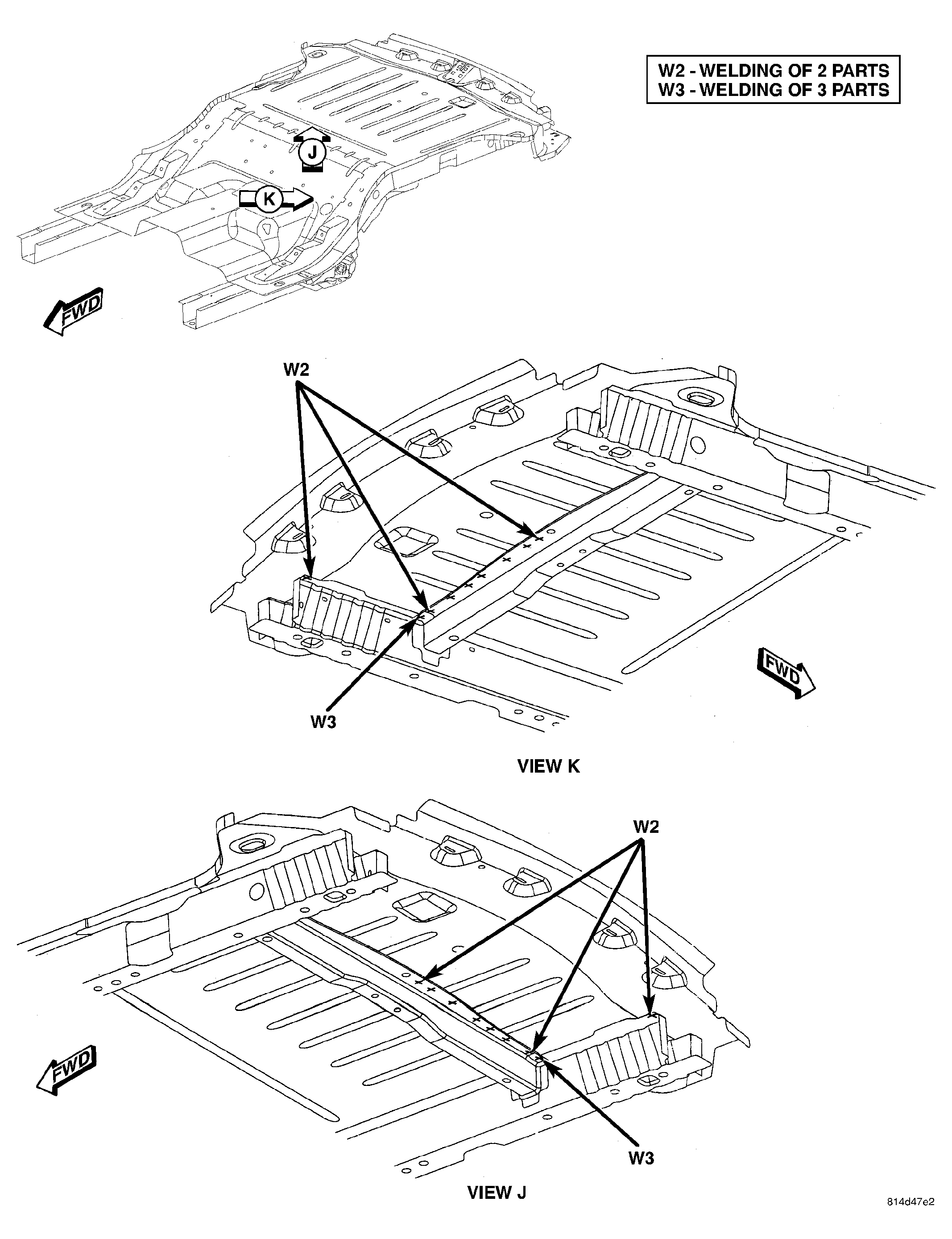

Fig 48: REAR FLOOR & LADDER (5 OF 12)
GC0028091Courtesy of DAIMLERCHRYSLER CORP.
Fig 49: REAR FLOOR & LADDER (6 OF 12)
GC0028092Courtesy of DAIMLERCHRYSLER CORP.
Fig 50: REAR FLOOR & LADDER (7 OF 12)
GC0028093Courtesy of DAIMLERCHRYSLER CORP.
Fig 51: REAR FLOOR & LADDER (8 OF 12)
GC0028094Courtesy of DAIMLERCHRYSLER CORP.
Fig 52: REAR FLOOR & LADDER (9 OF 12)
GC0028095Courtesy of DAIMLERCHRYSLER CORP.
Fig 53: REAR FLOOR & LADDER (10 OF 12)
GC0028096Courtesy of DAIMLERCHRYSLER CORP.
Fig 54: REAR FLOOR & LADDER (11 OF 12)
GC0028097Courtesy of DAIMLERCHRYSLER CORP.
Fig 55: REAR FLOOR & LADDER (12 OF 12)
GC0028098Courtesy of DAIMLERCHRYSLER CORP.

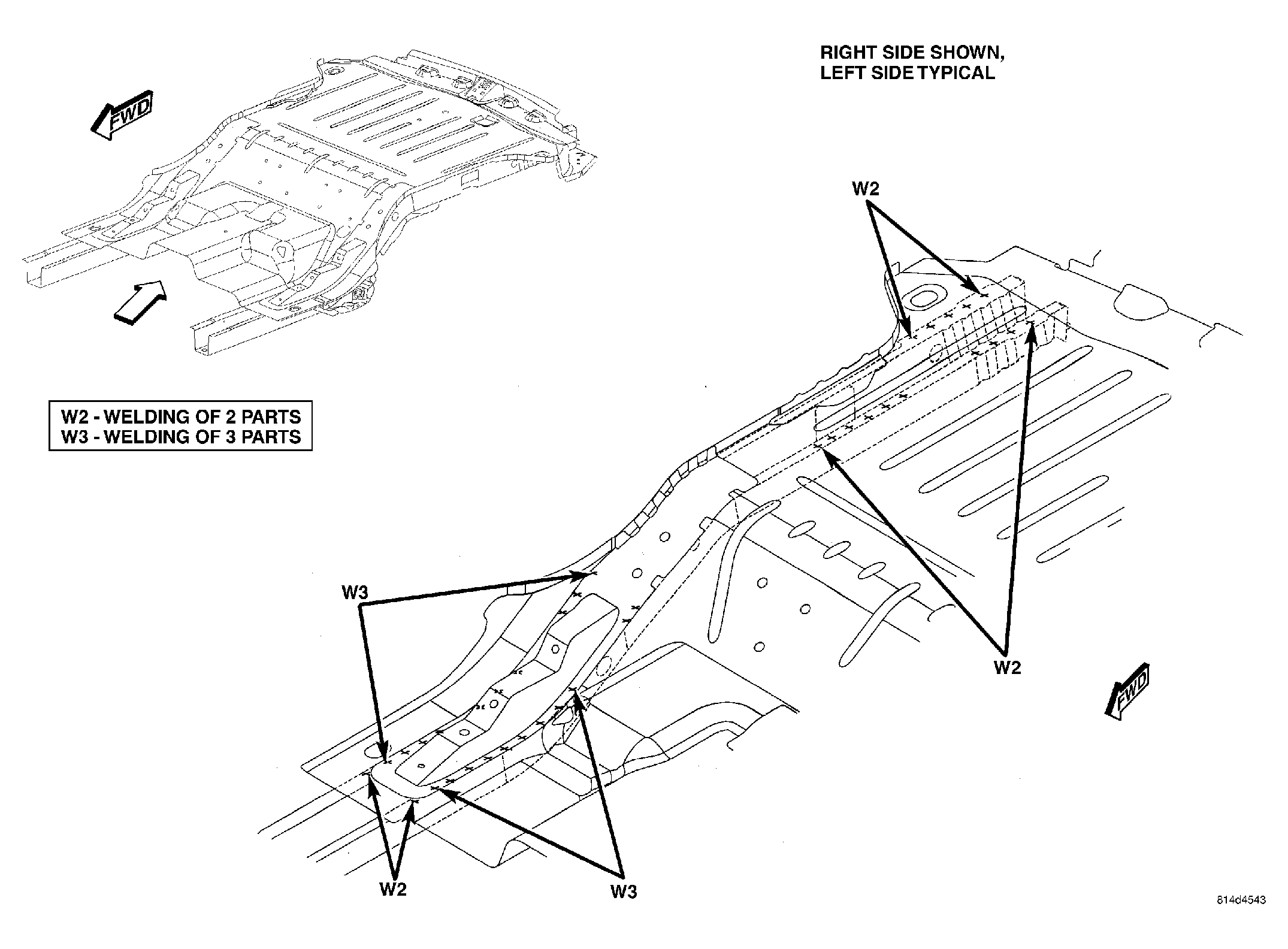

Fig 56: UNDERBODY (1 OF 3)
GC0028099Courtesy of DAIMLERCHRYSLER CORP.
Fig 57: UNDERBODY (2 OF 3)
GC0028100Courtesy of DAIMLERCHRYSLER CORP.
Fig 58: UNDERBODY (3 OF 3)
GC0028101Courtesy of DAIMLERCHRYSLER CORP.

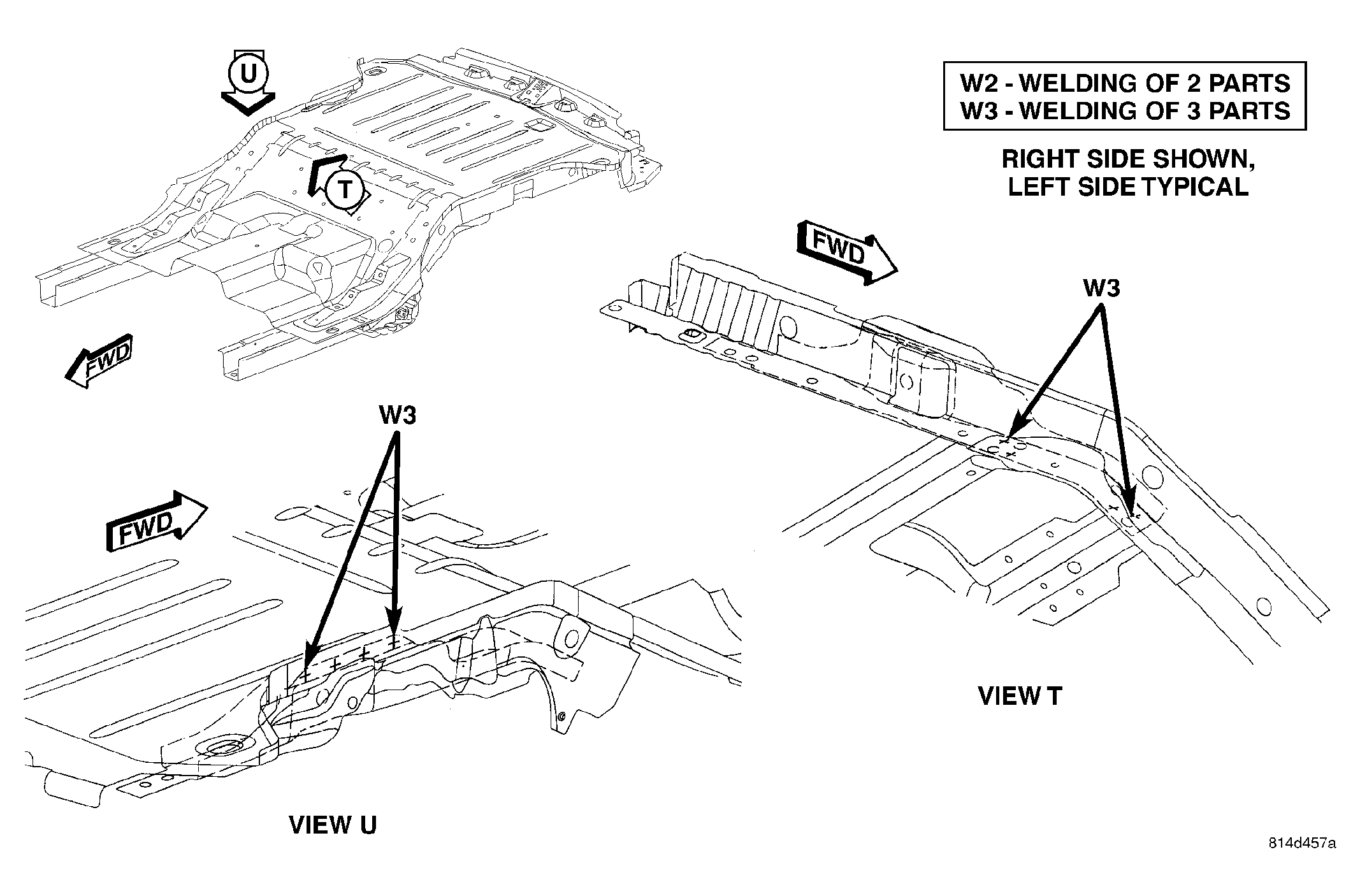

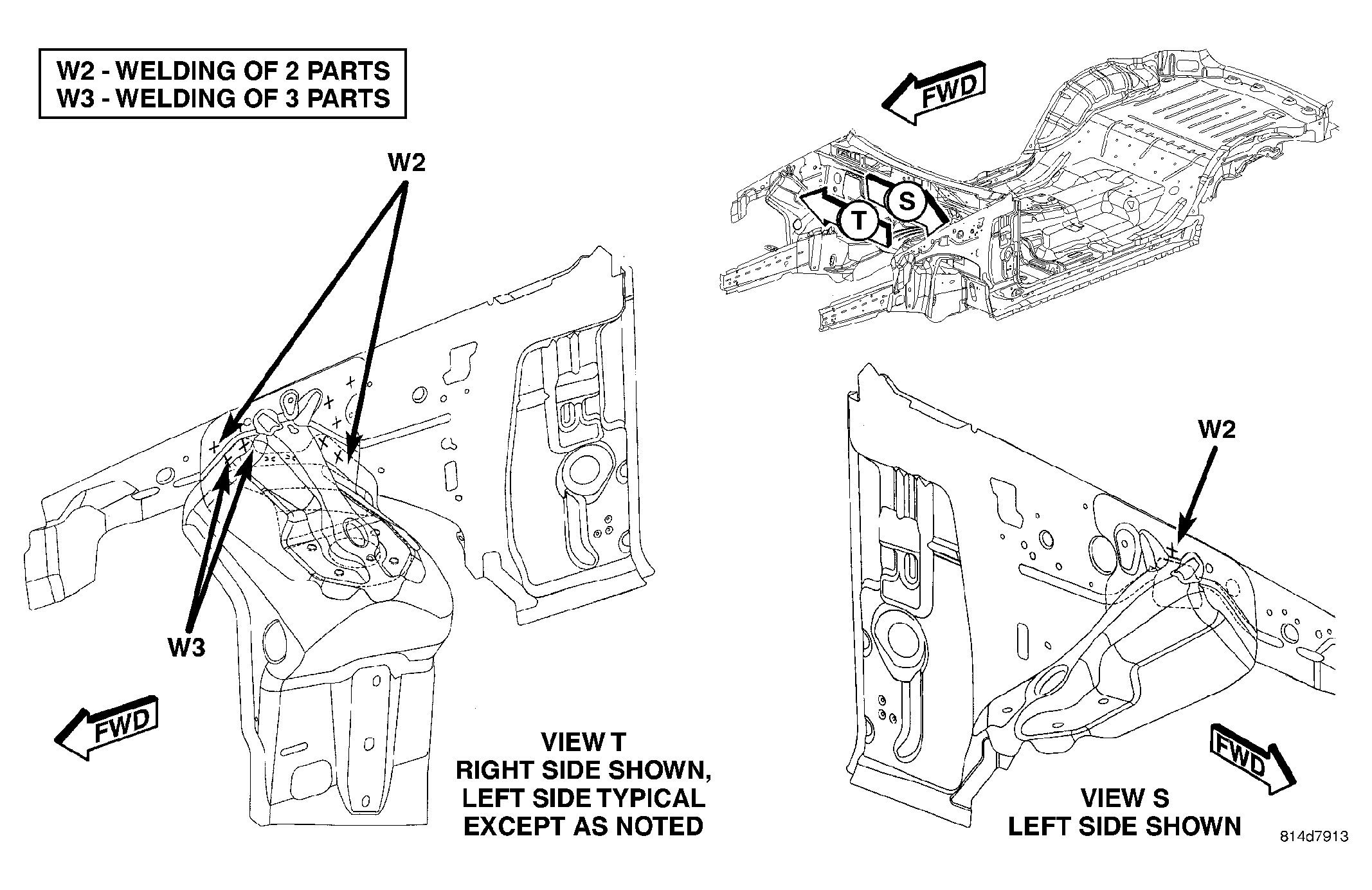

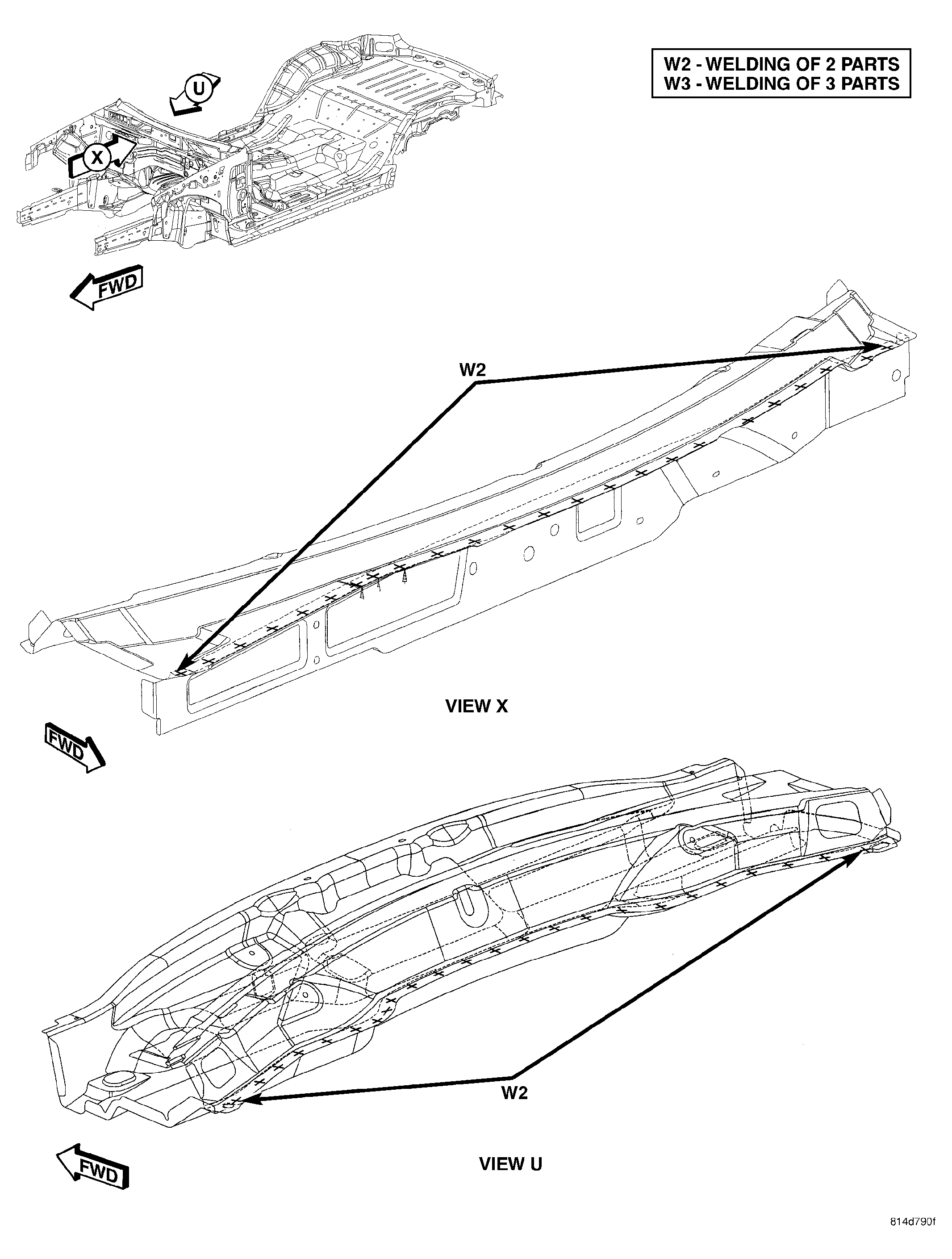

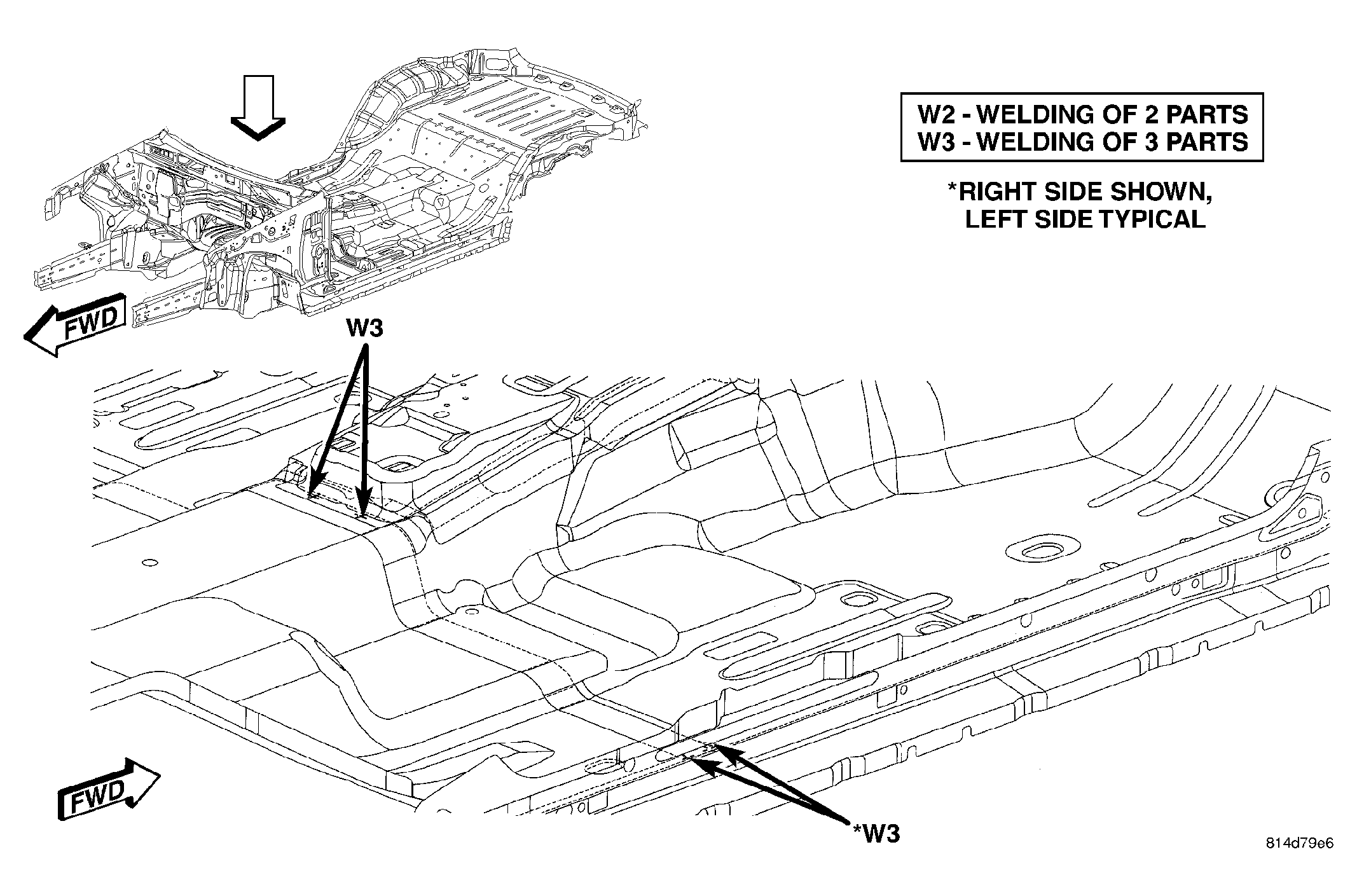

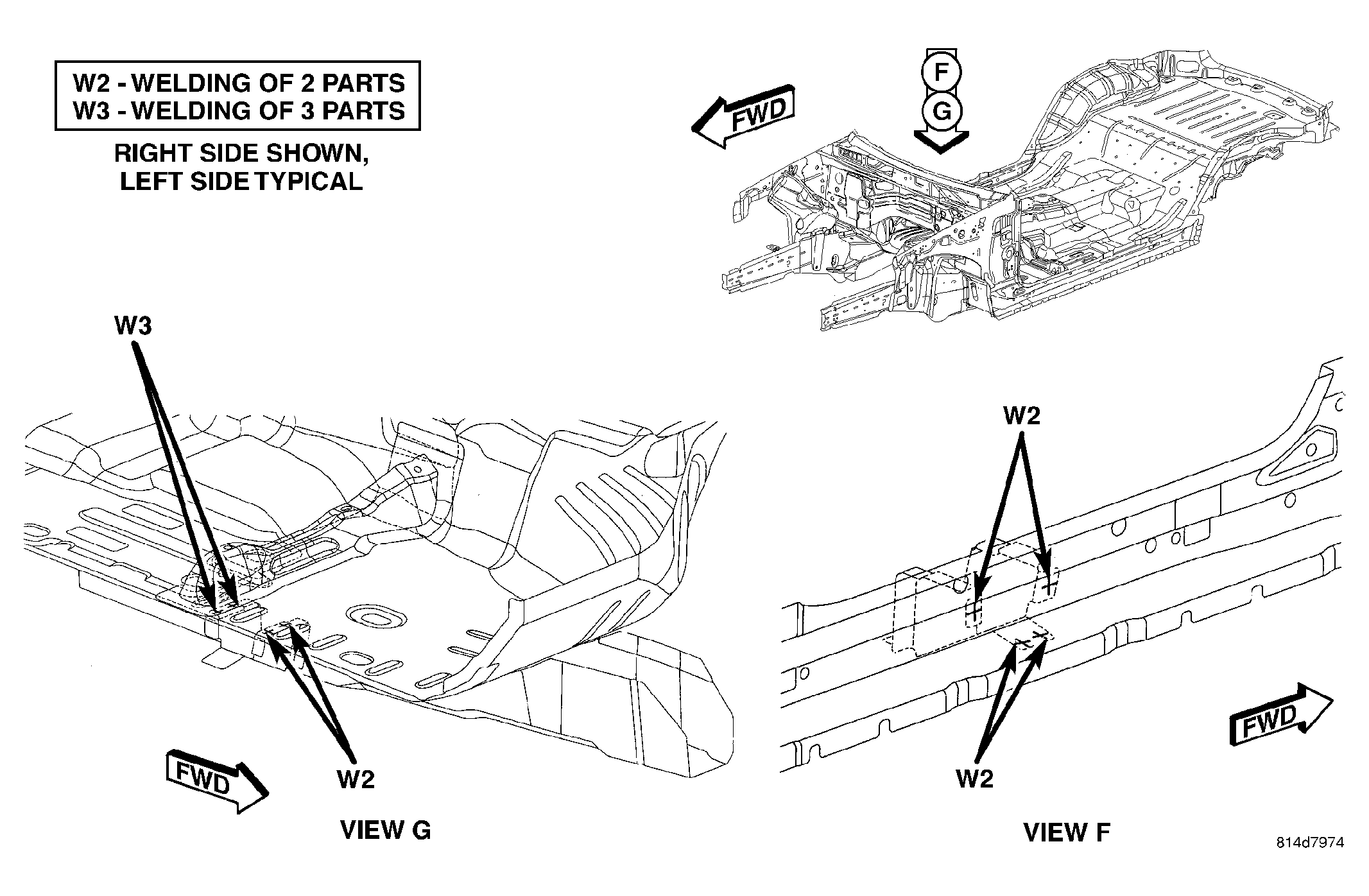

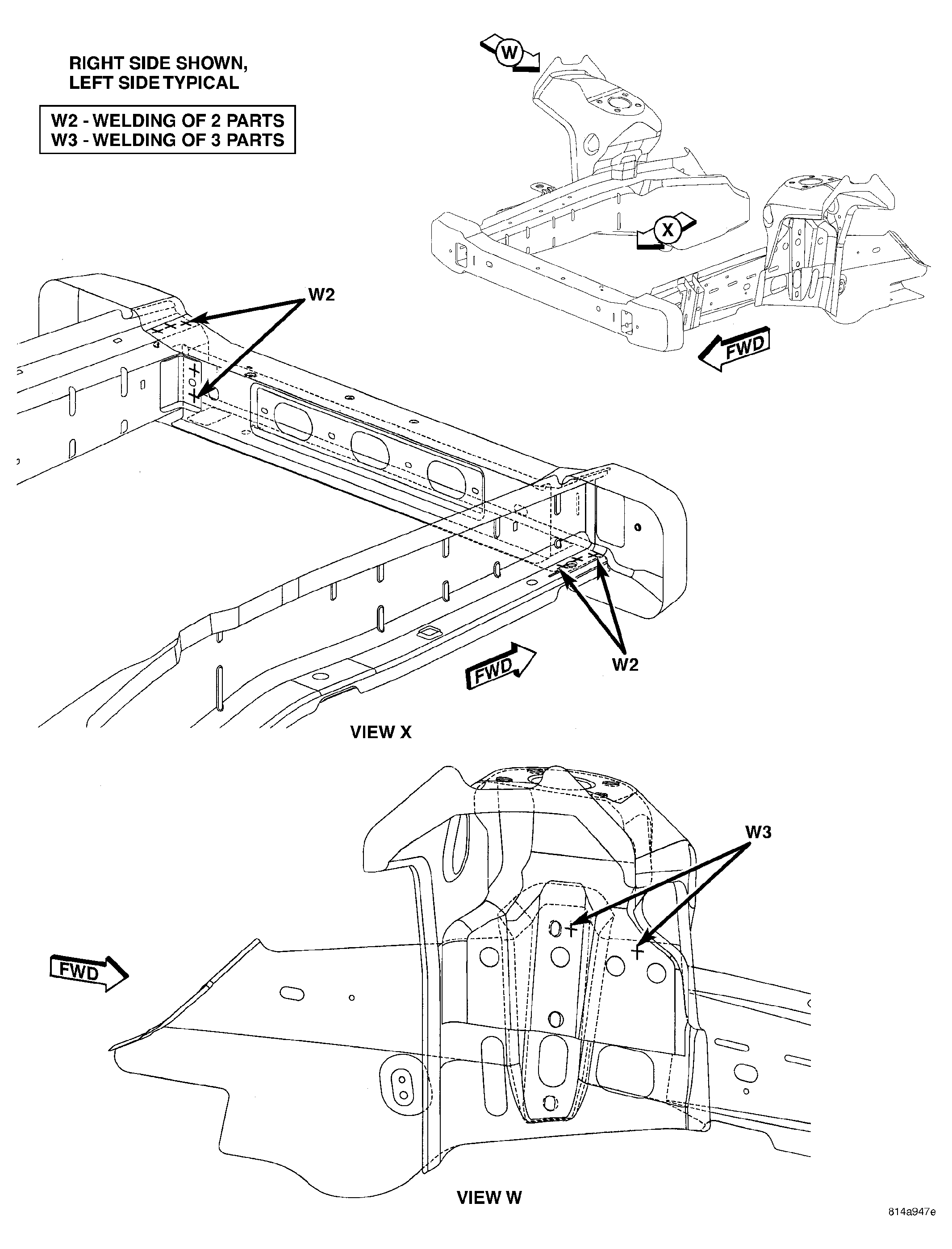

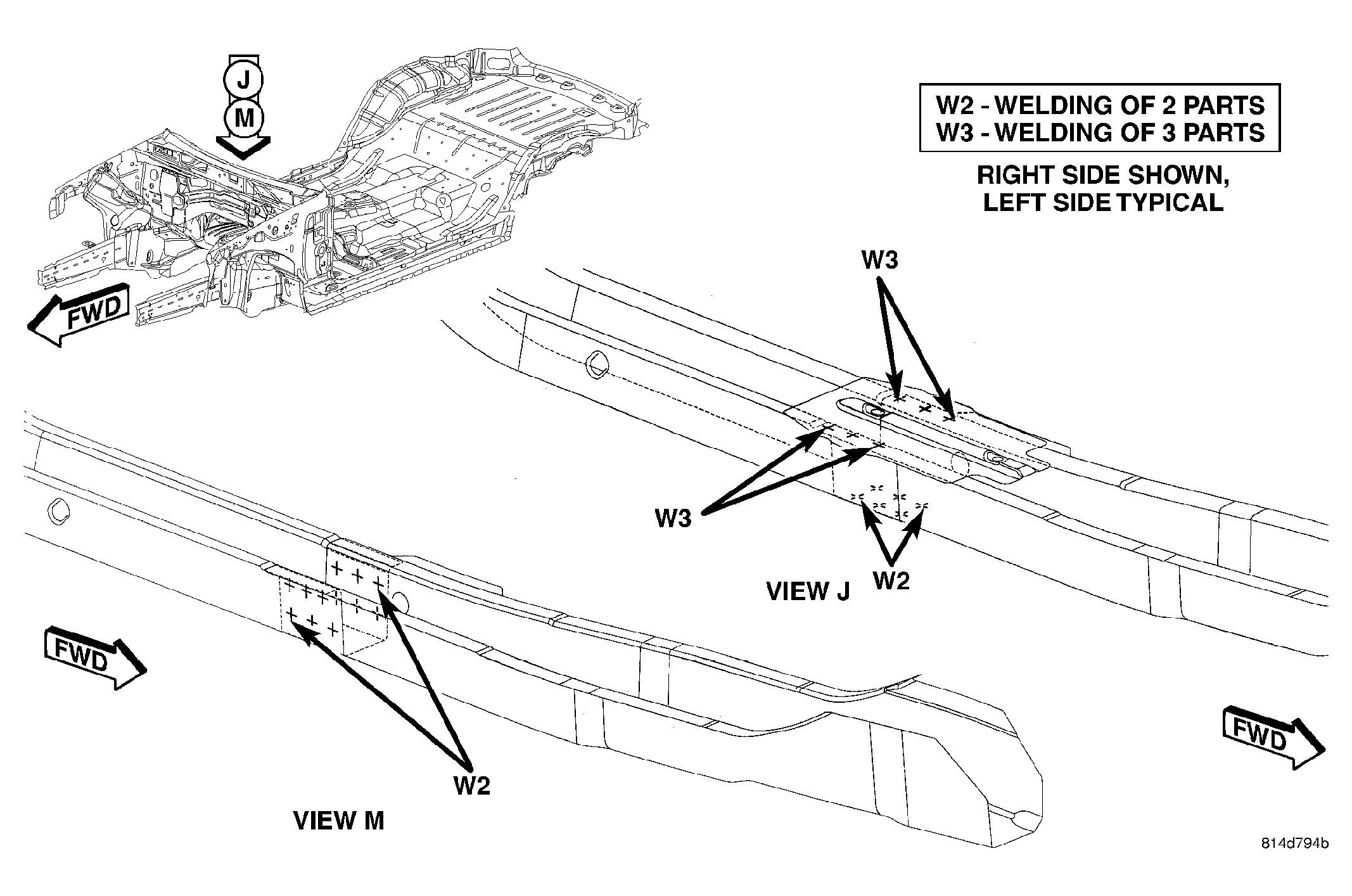

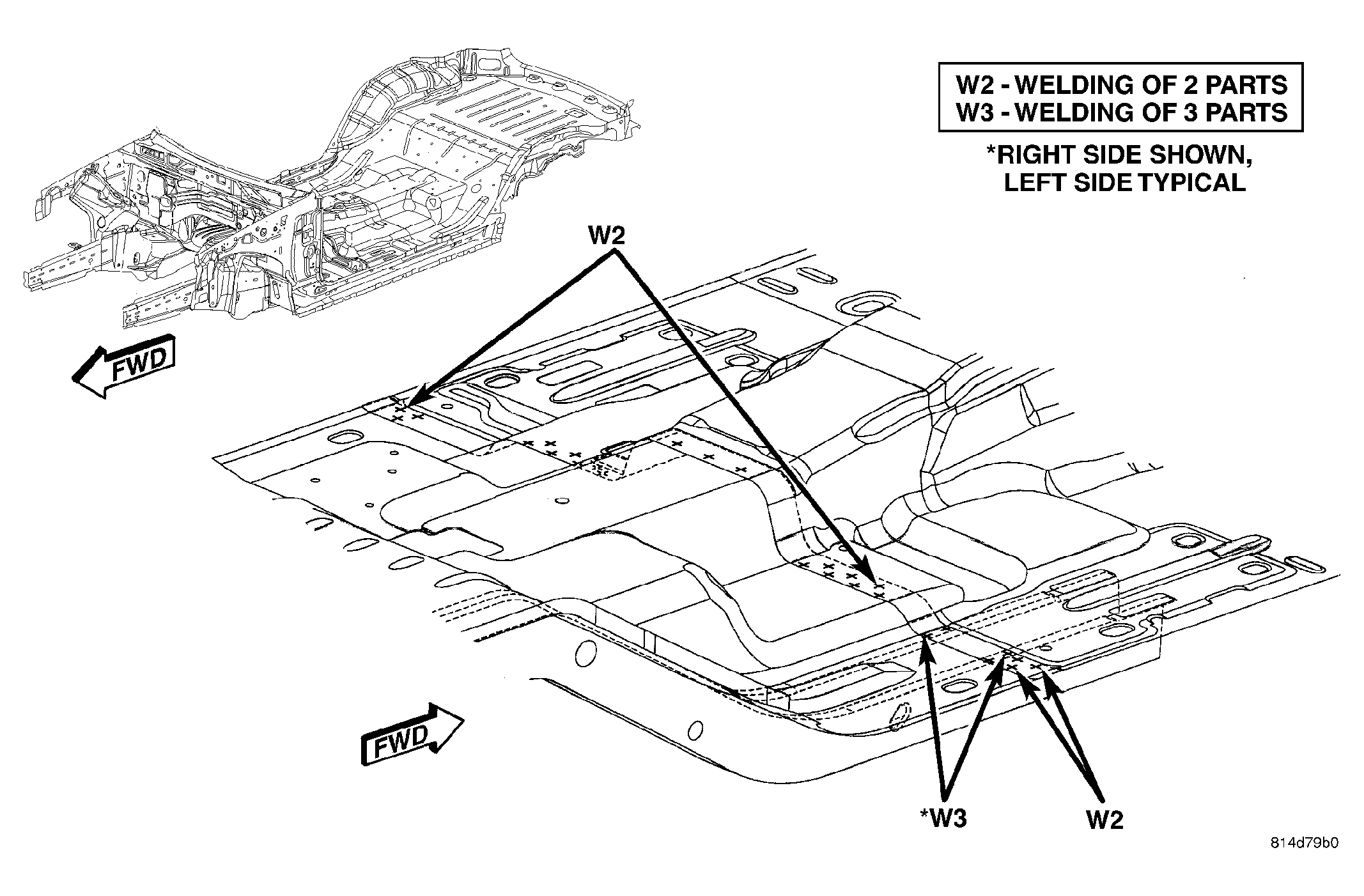

Fig 59: UNDERBODY COMPLETE (1 OF 17)
GC0028102Courtesy of DAIMLERCHRYSLER CORP.

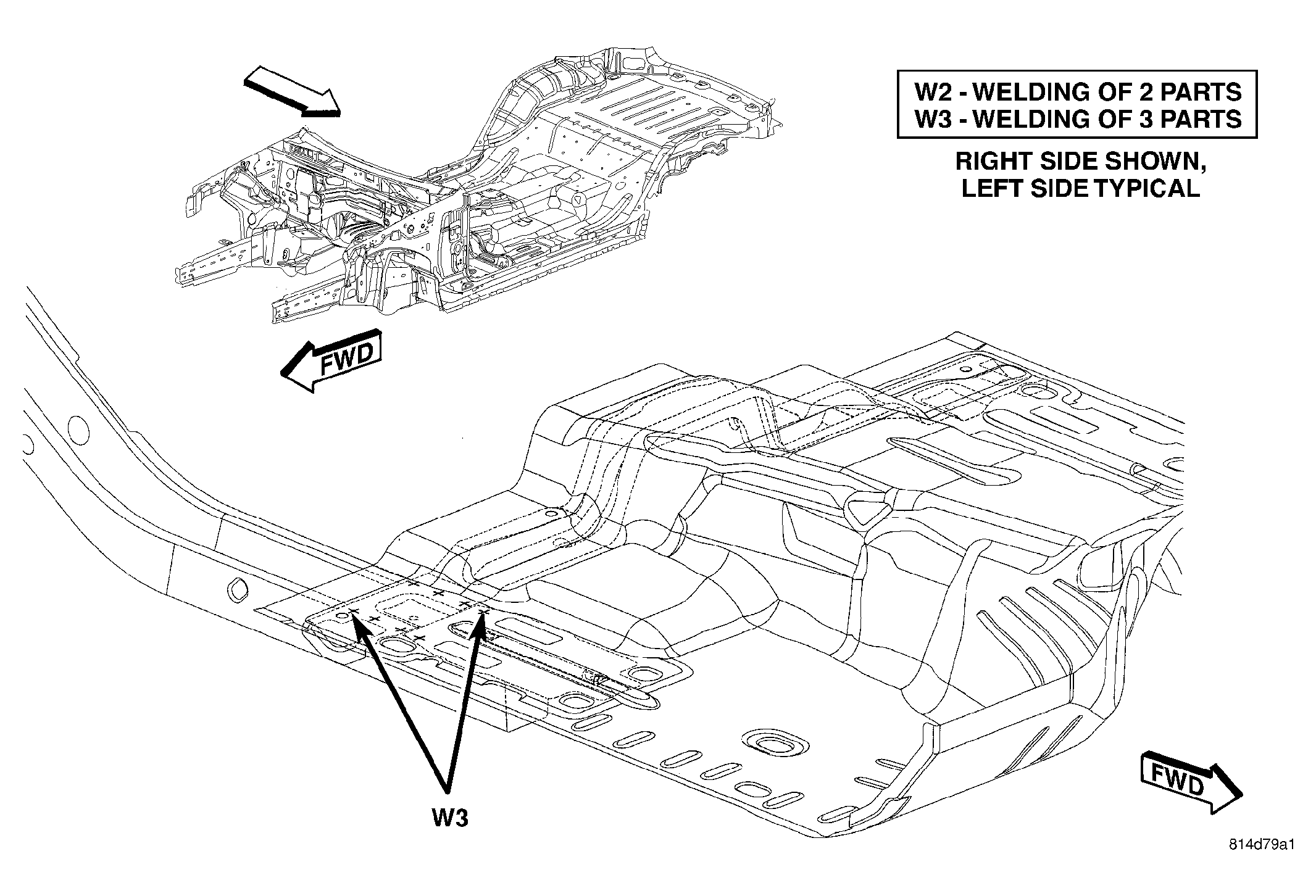

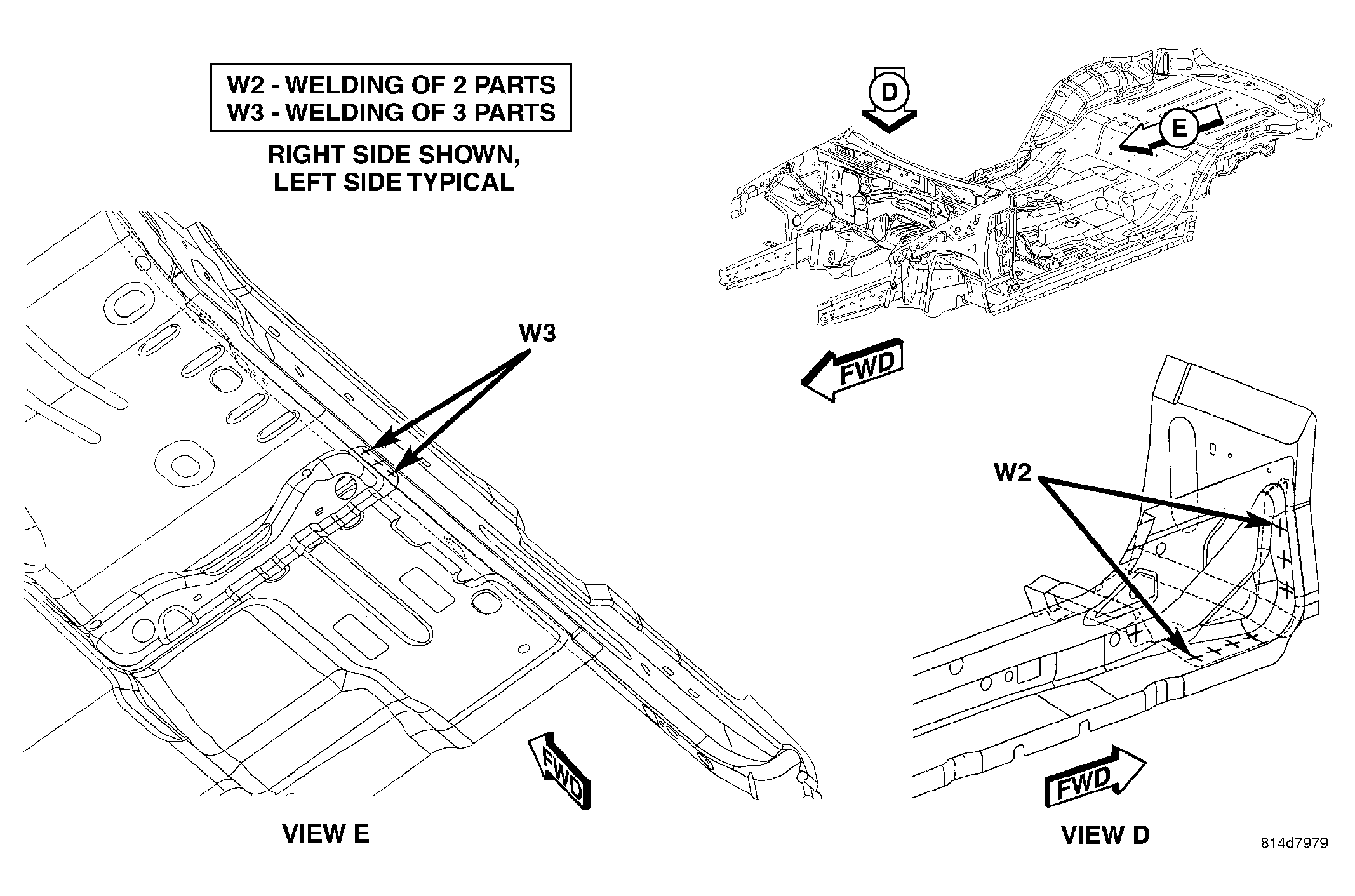

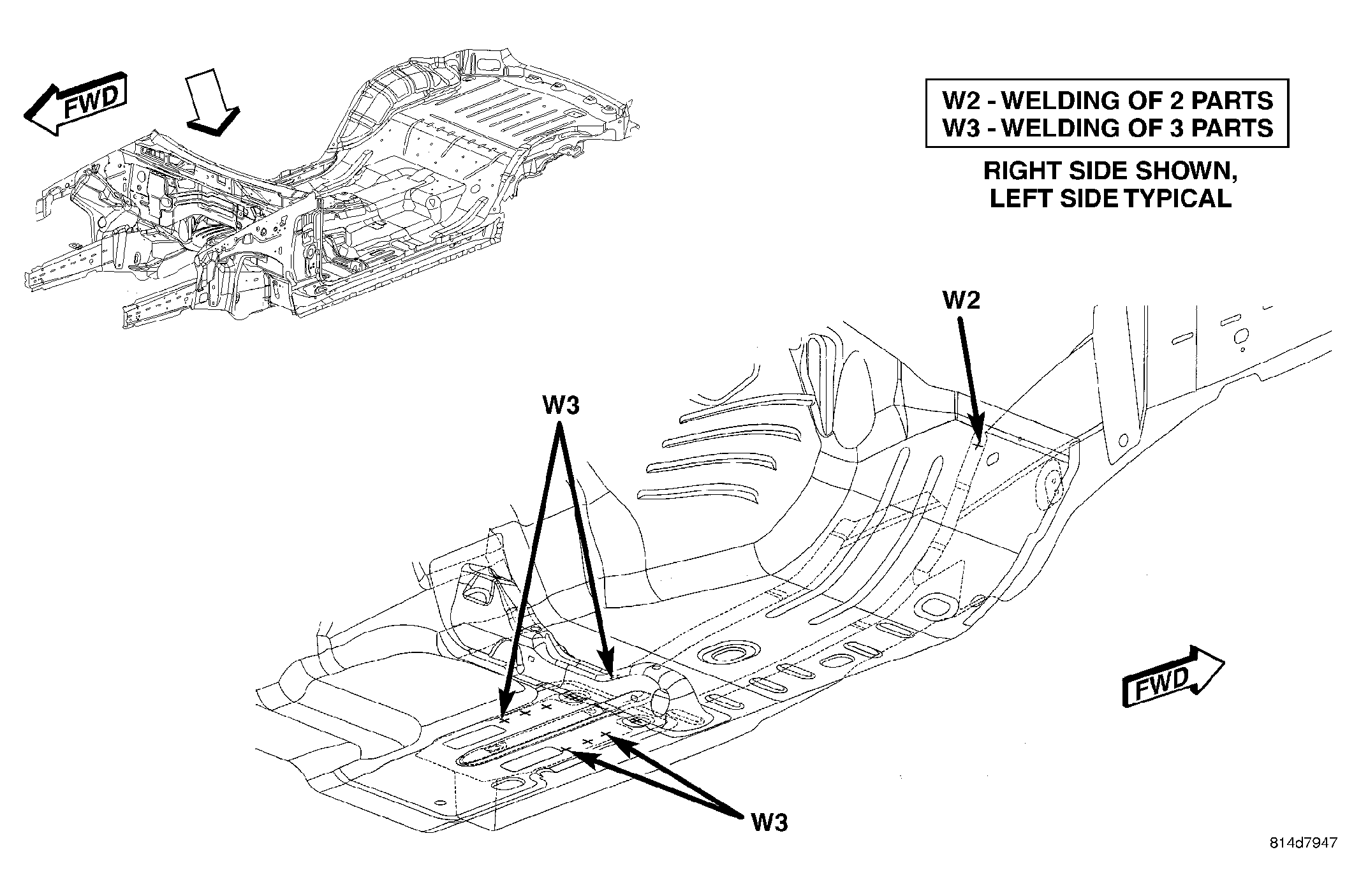

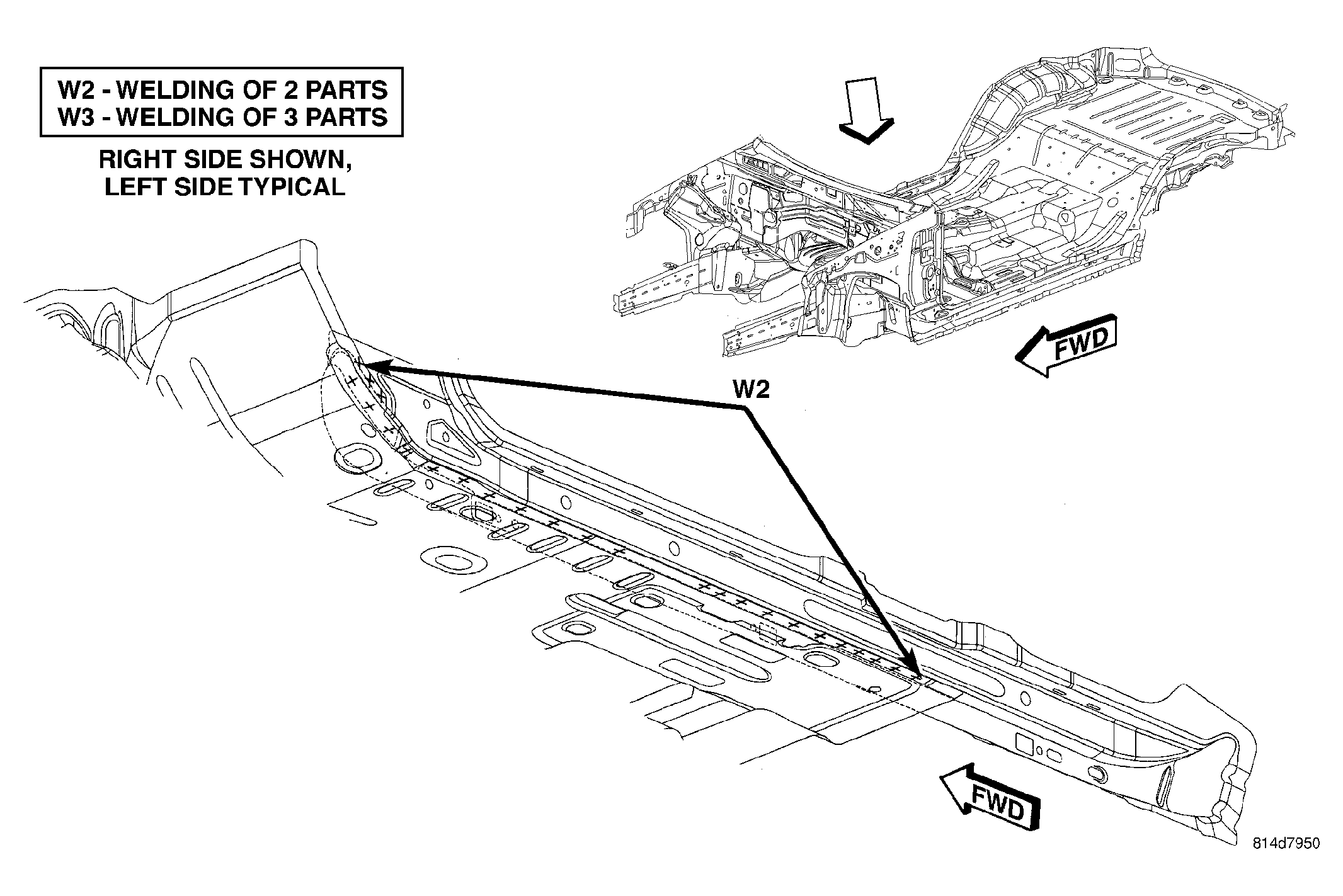

Fig 60: UNDERBODY COMPLETE (2 OF 17)
GC0028103Courtesy of DAIMLERCHRYSLER CORP.

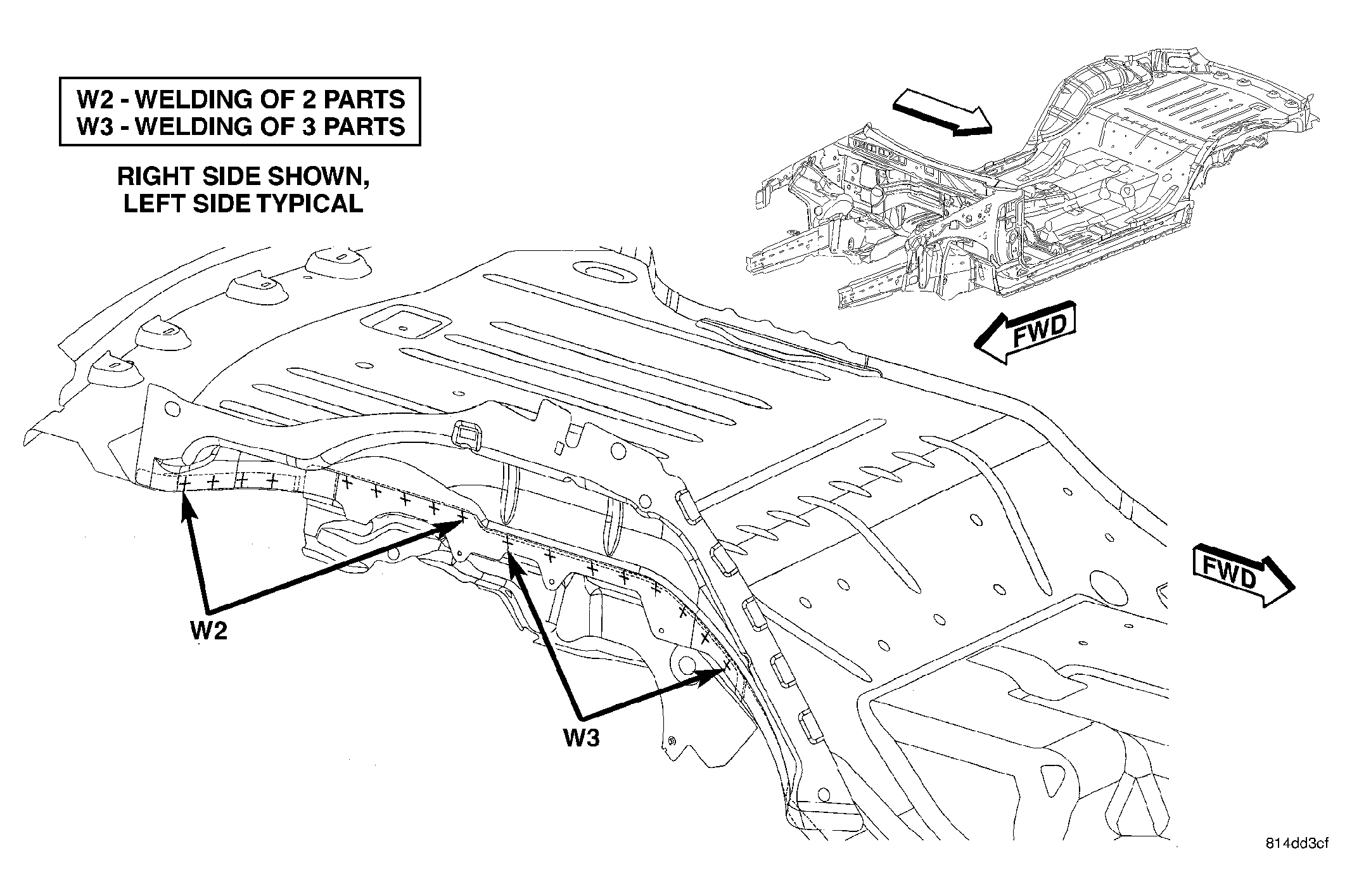

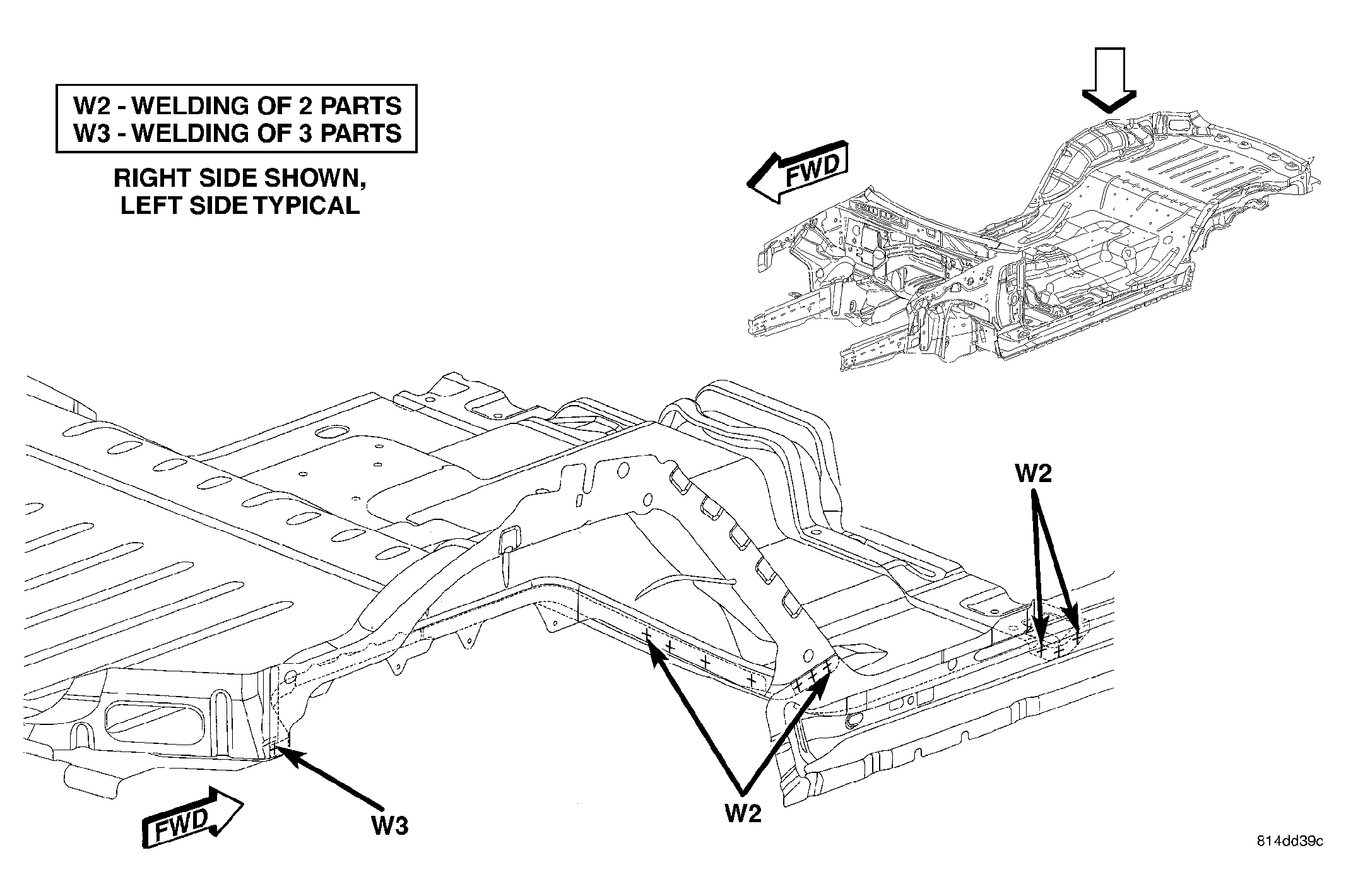

Fig 61: UNDERBODY COMPLETE (3 OF 17)
GC0028104Courtesy of DAIMLERCHRYSLER CORP.

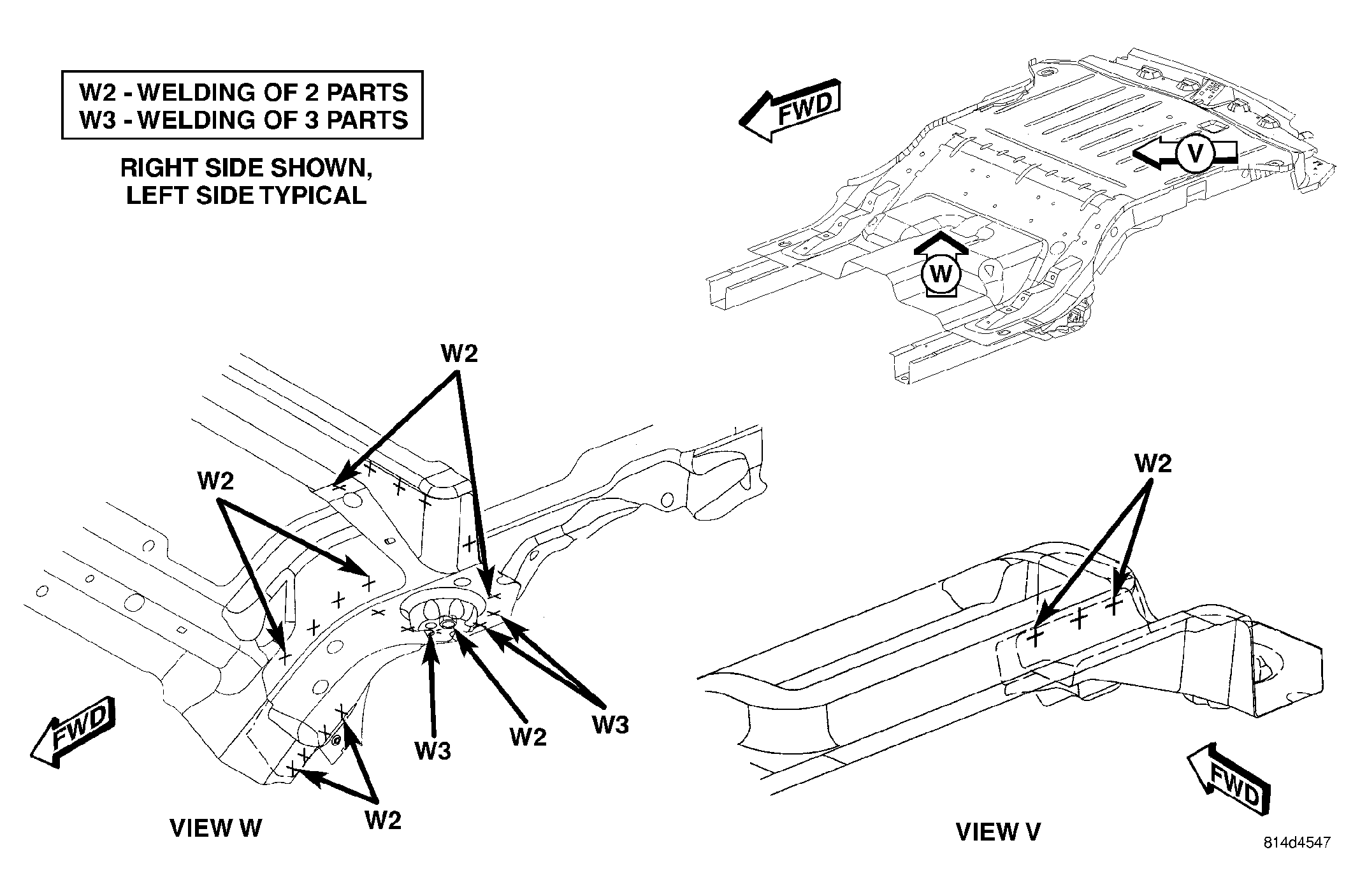

Fig 62: UNDERBODY COMPLETE (4 OF 17)
GC0028105Courtesy of DAIMLERCHRYSLER CORP.
Fig 63: UNDERBODY COMPLETE (5 OF 17)
GC0028106Courtesy of DAIMLERCHRYSLER CORP.

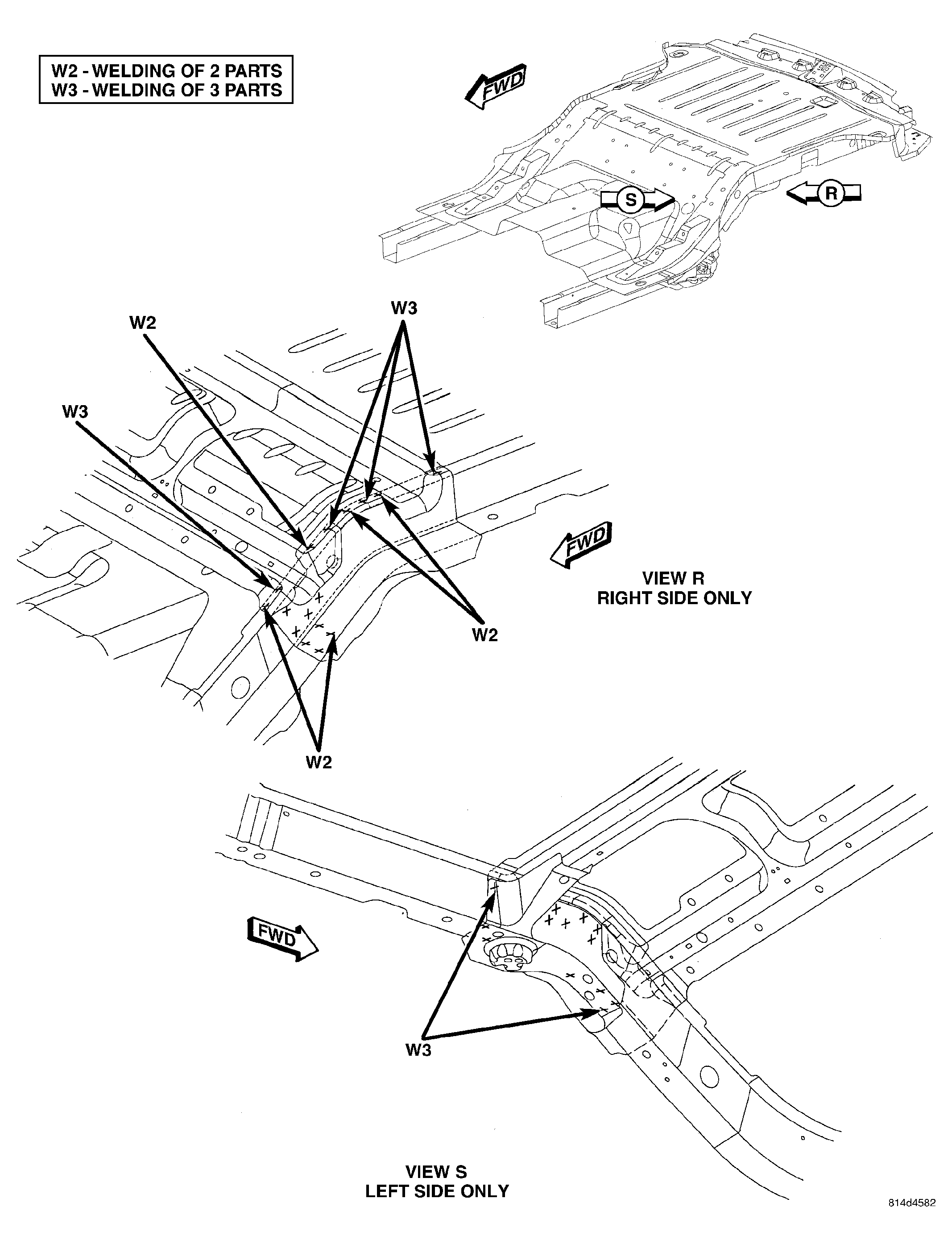

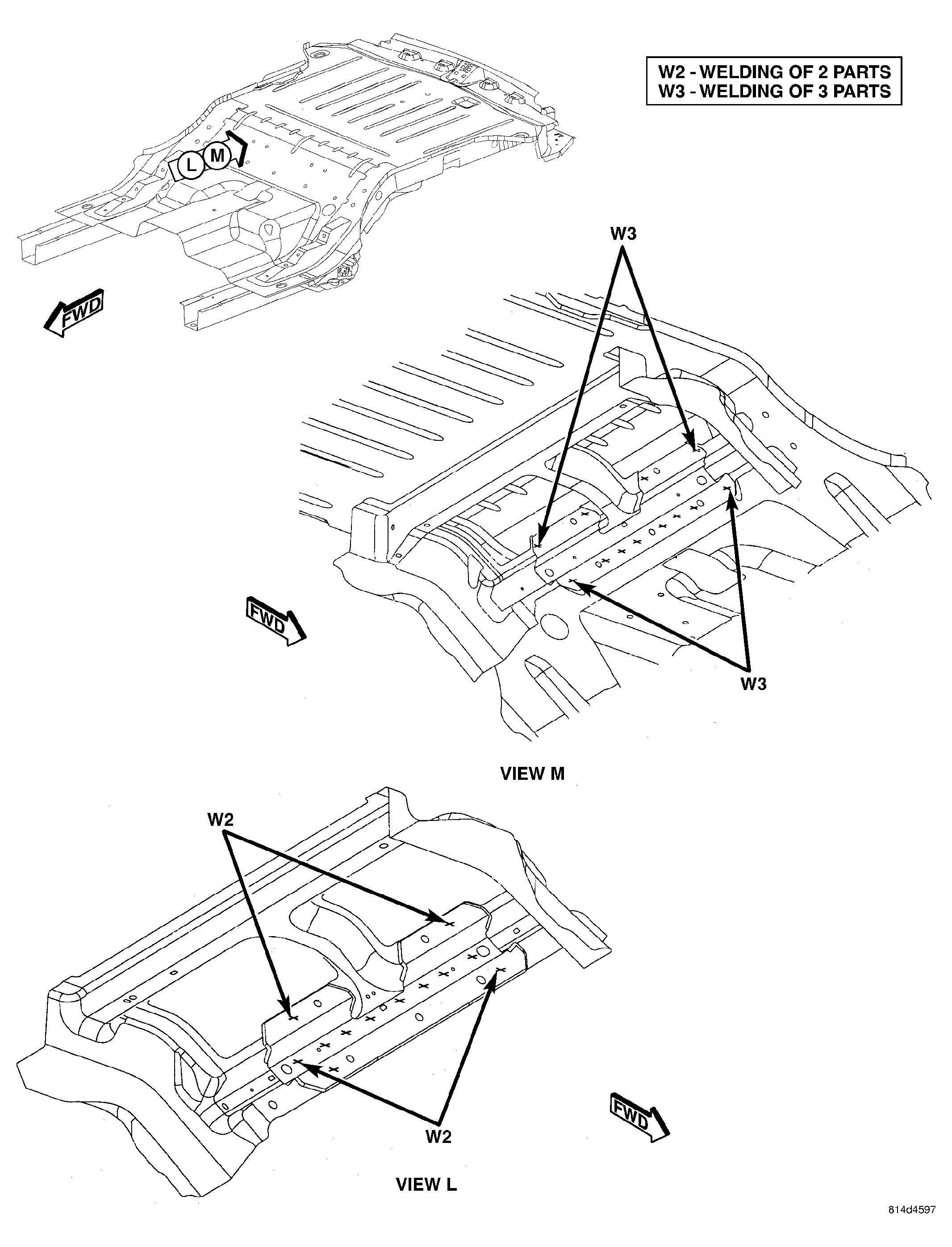

Fig 64: UNDERBODY COMPLETE (6 OF 17)
GC0028107Courtesy of DAIMLERCHRYSLER CORP.
Fig 65: UNDERBODY COMPLETE (7 OF 17)
GC0028108Courtesy of DAIMLERCHRYSLER CORP.

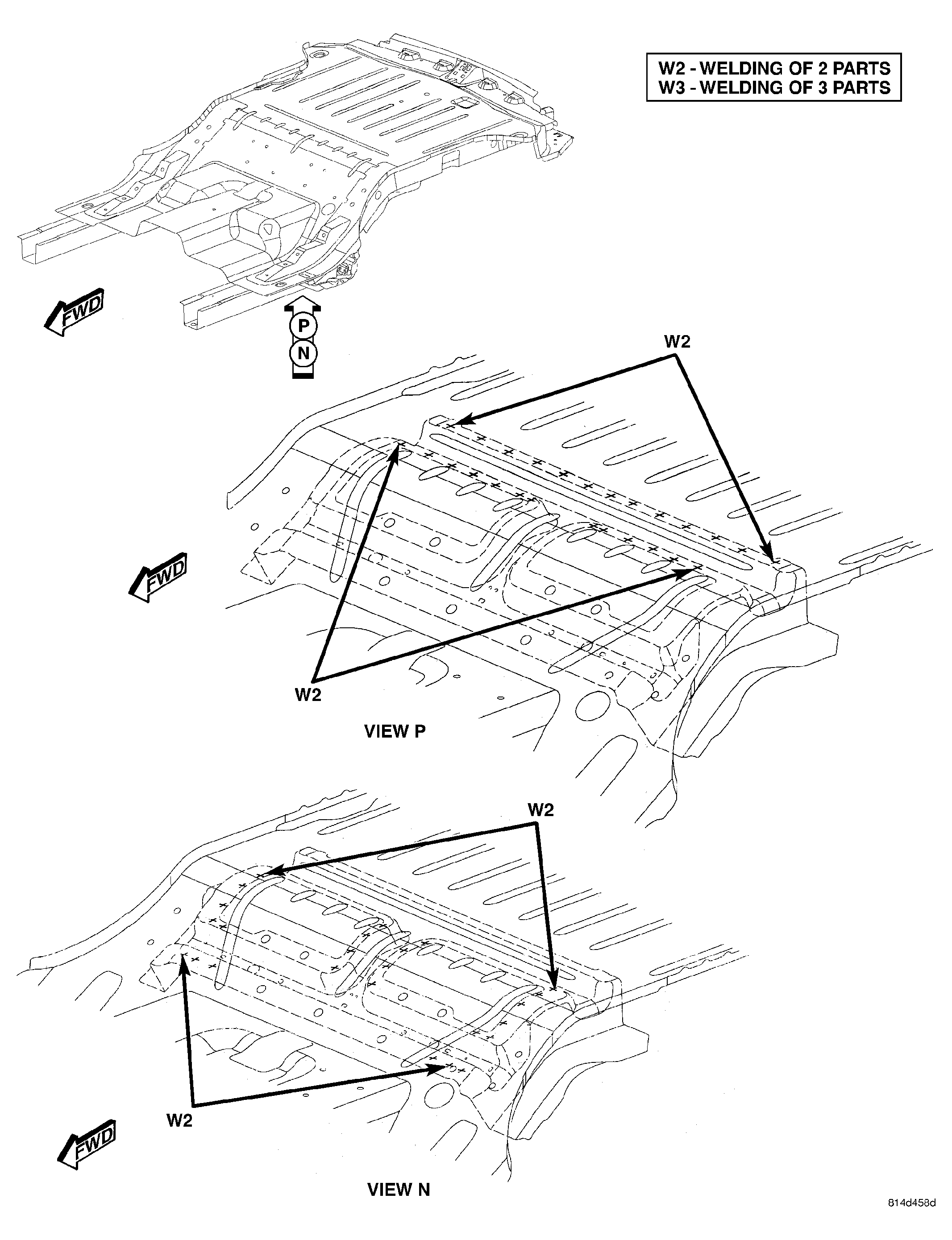

Fig 66: UNDERBODY COMPLETE (8 OF 17)
GC0028109Courtesy of DAIMLERCHRYSLER CORP.
Fig 67: UNDERBODY COMPLETE (9 OF 17)
GC0028110Courtesy of DAIMLERCHRYSLER CORP.
Fig 68: UNDERBODY COMPLETE (10 OF 17)
GC0028111Courtesy of DAIMLERCHRYSLER CORP.
Fig 69: UNDERBODY COMPLETE (11 OF 17)
GC0028112Courtesy of DAIMLERCHRYSLER CORP.
Fig 70: UNDERBODY COMPLETE (12 OF 17)
GC0028113Courtesy of DAIMLERCHRYSLER CORP.

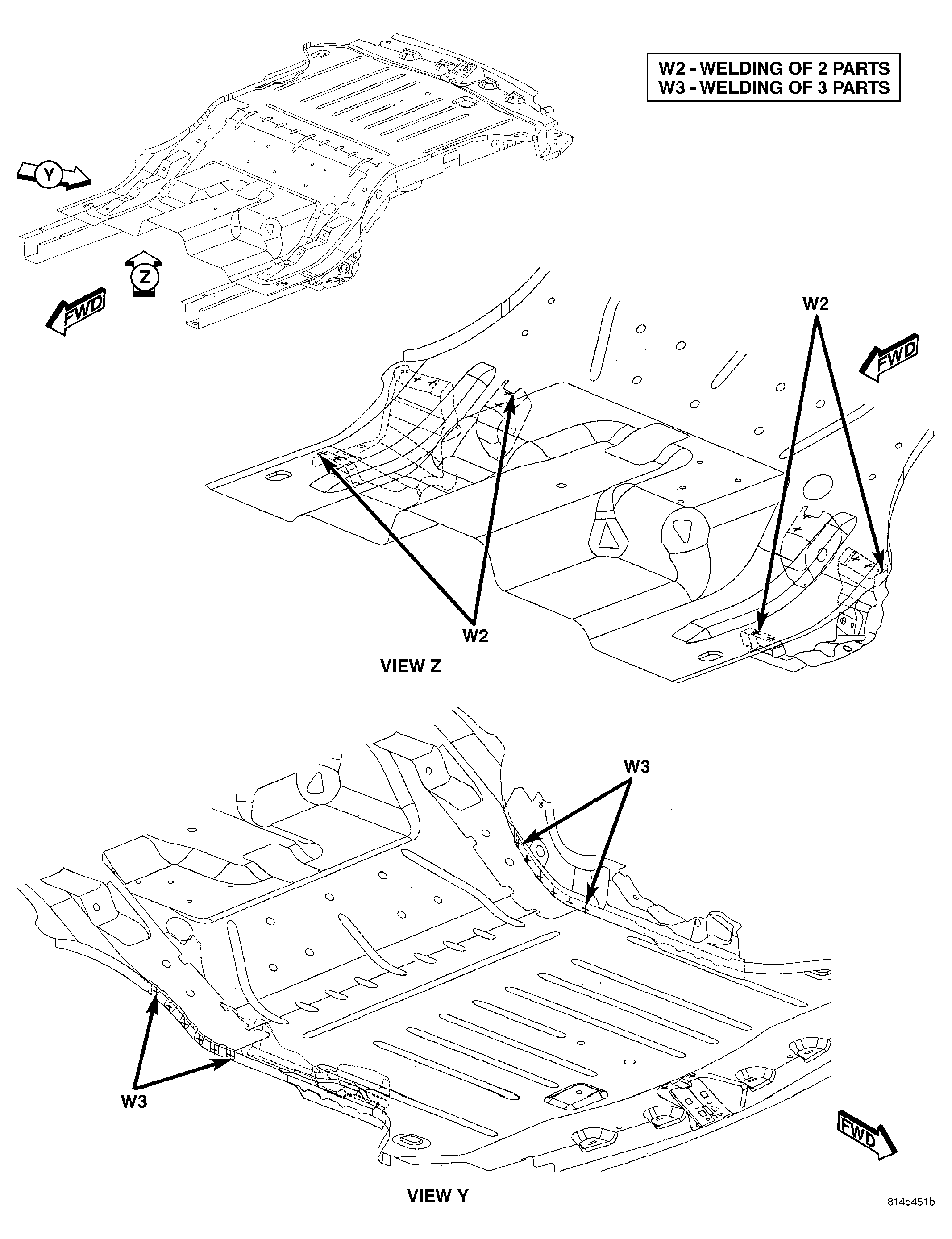

Fig 71: UNDERBODY COMPLETE (13 OF 17)
GC0028114Courtesy of DAIMLERCHRYSLER CORP.
Fig 72: UNDERBODY COMPLETE (14 OF 17)
GC0028115Courtesy of DAIMLERCHRYSLER CORP.
Fig 73: UNDERBODY COMPLETE (15 OF 17)
GC0028116Courtesy of DAIMLERCHRYSLER CORP.
Fig 74: UNDERBODY COMPLETE (16 OF 17)
GC0028117Courtesy of DAIMLERCHRYSLER CORP.

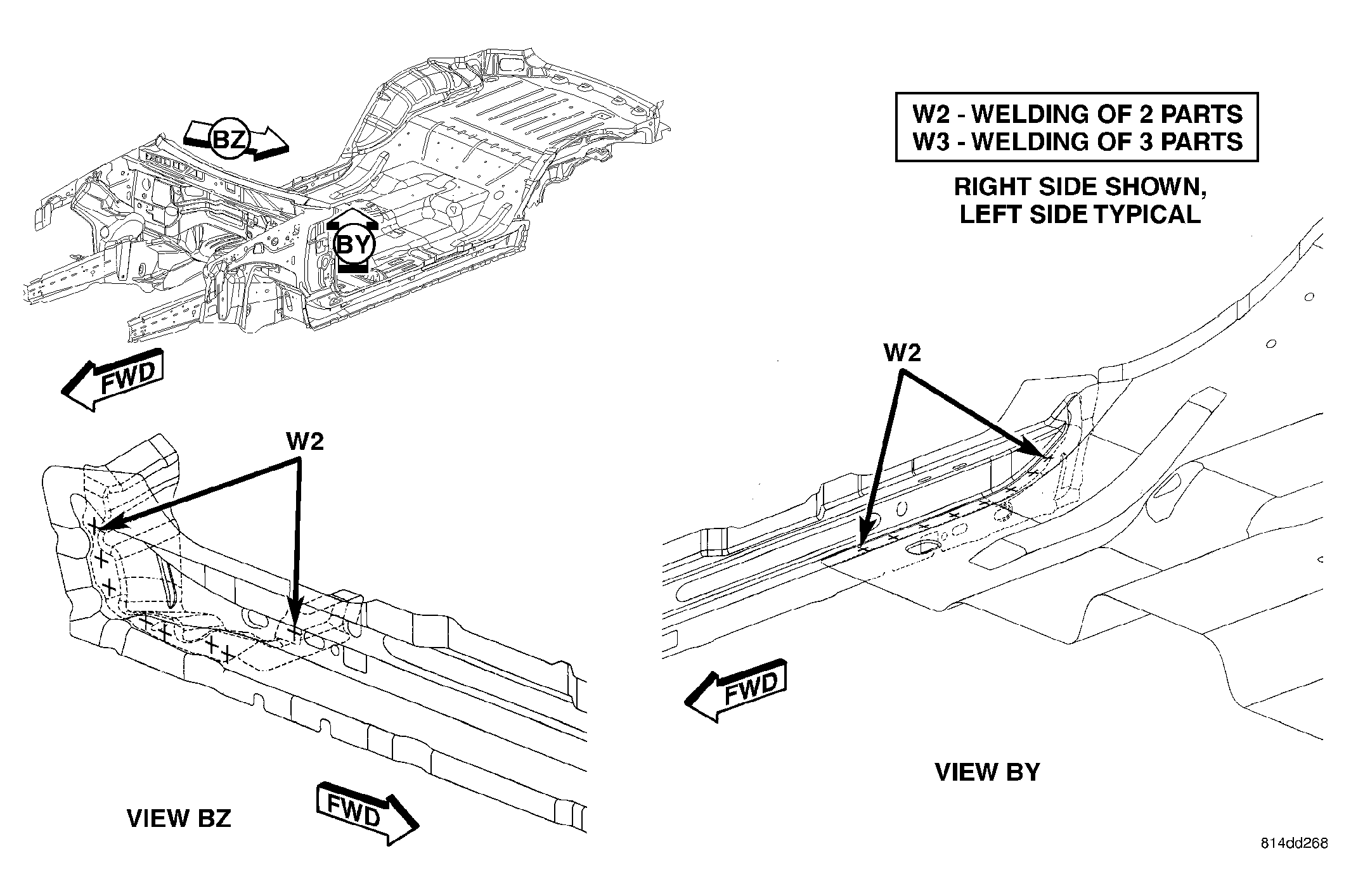

Fig 75: UNDERBODY COMPLETE (17 OF 17)
GC0028118Courtesy of DAIMLERCHRYSLER CORP.

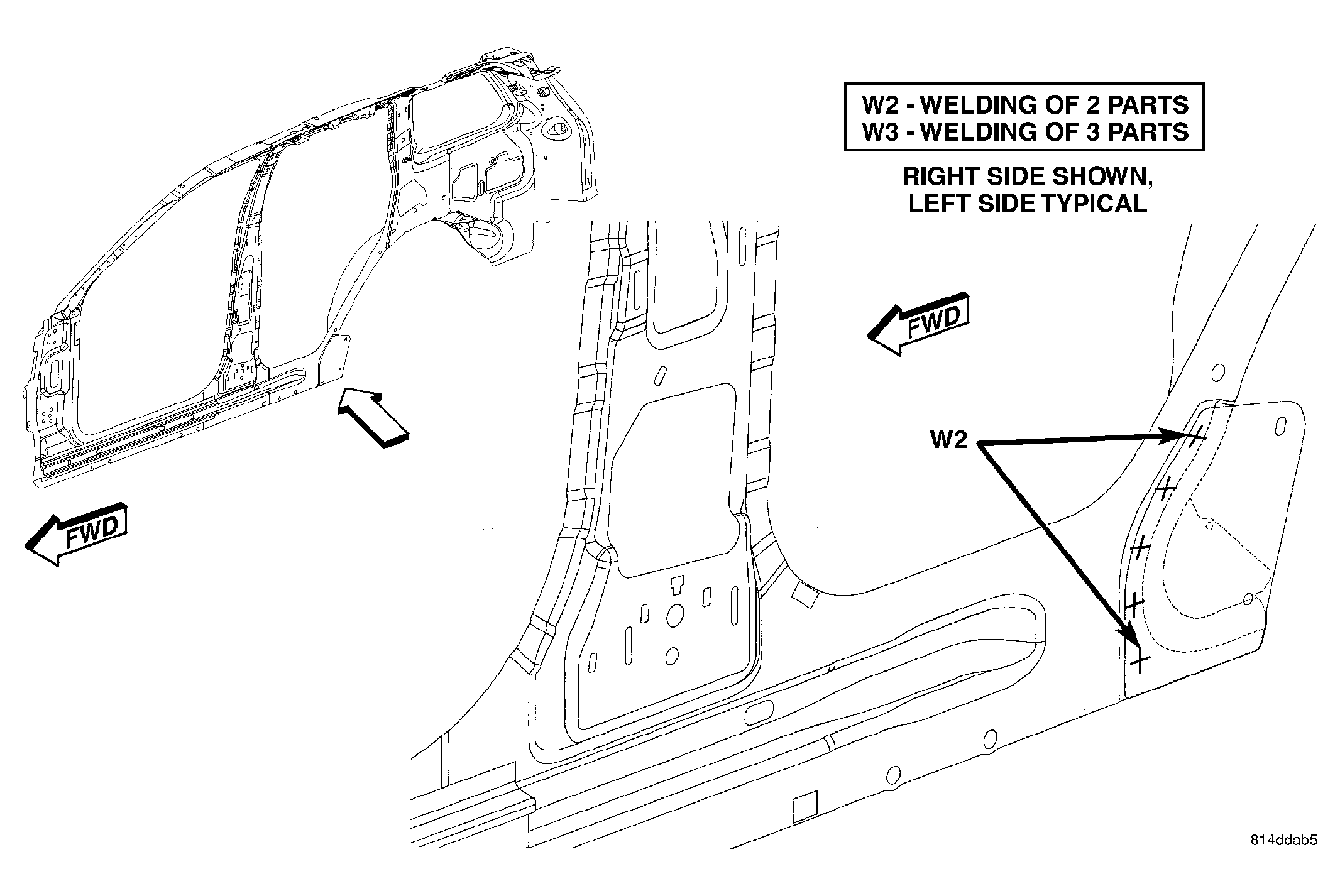

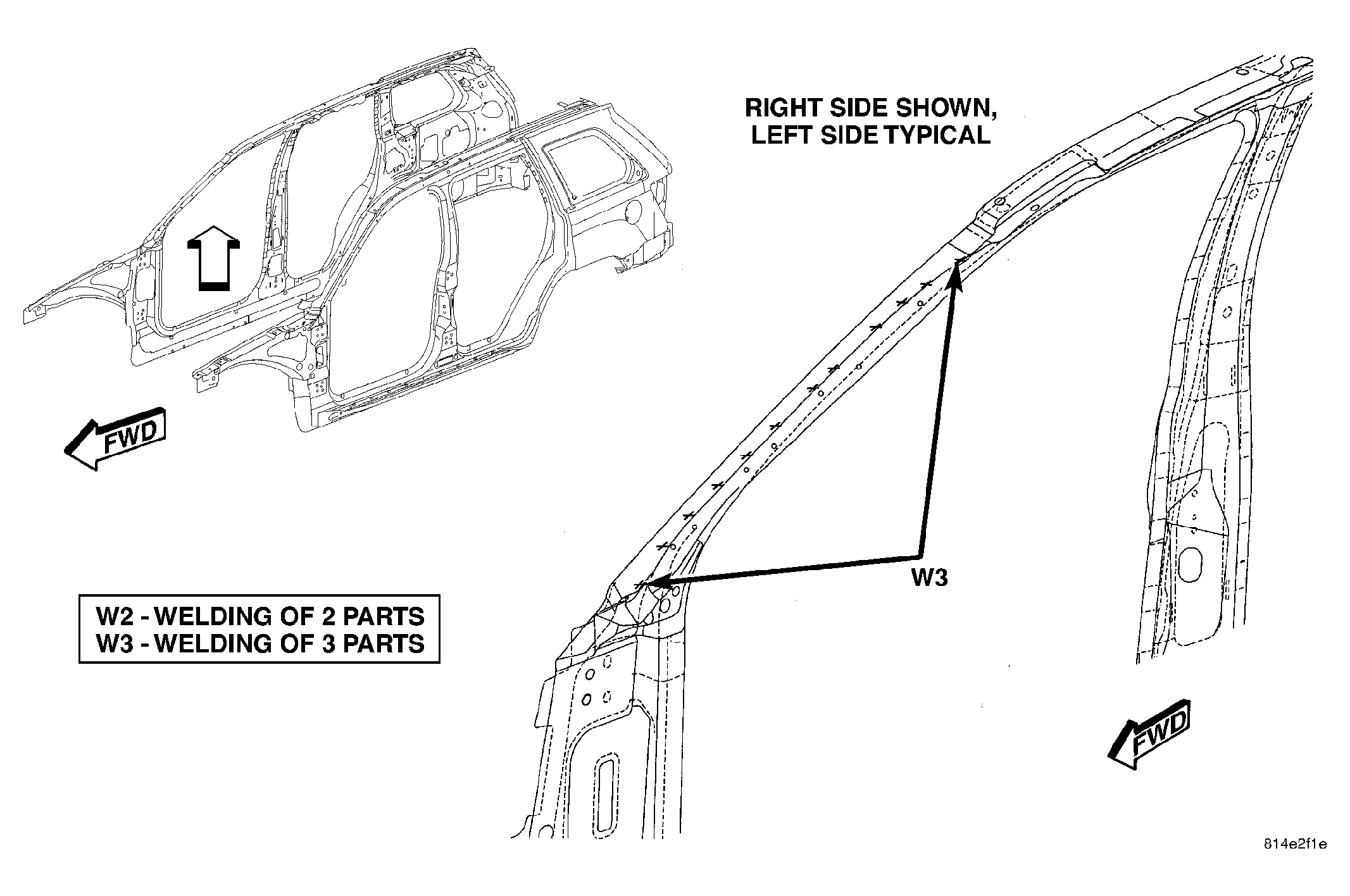

Fig 76: BODY SIDE APERTURE - OUTER (1 OF 3)
GC0028119Courtesy of DAIMLERCHRYSLER CORP.
Fig 77: BODY SIDE APERTURE - OUTER (2 OF 3)
GC0028120Courtesy of DAIMLERCHRYSLER CORP.
Fig 78: BODY SIDE APERTURE - OUTER (3 OF 3)
GC0028121Courtesy of DAIMLERCHRYSLER CORP.

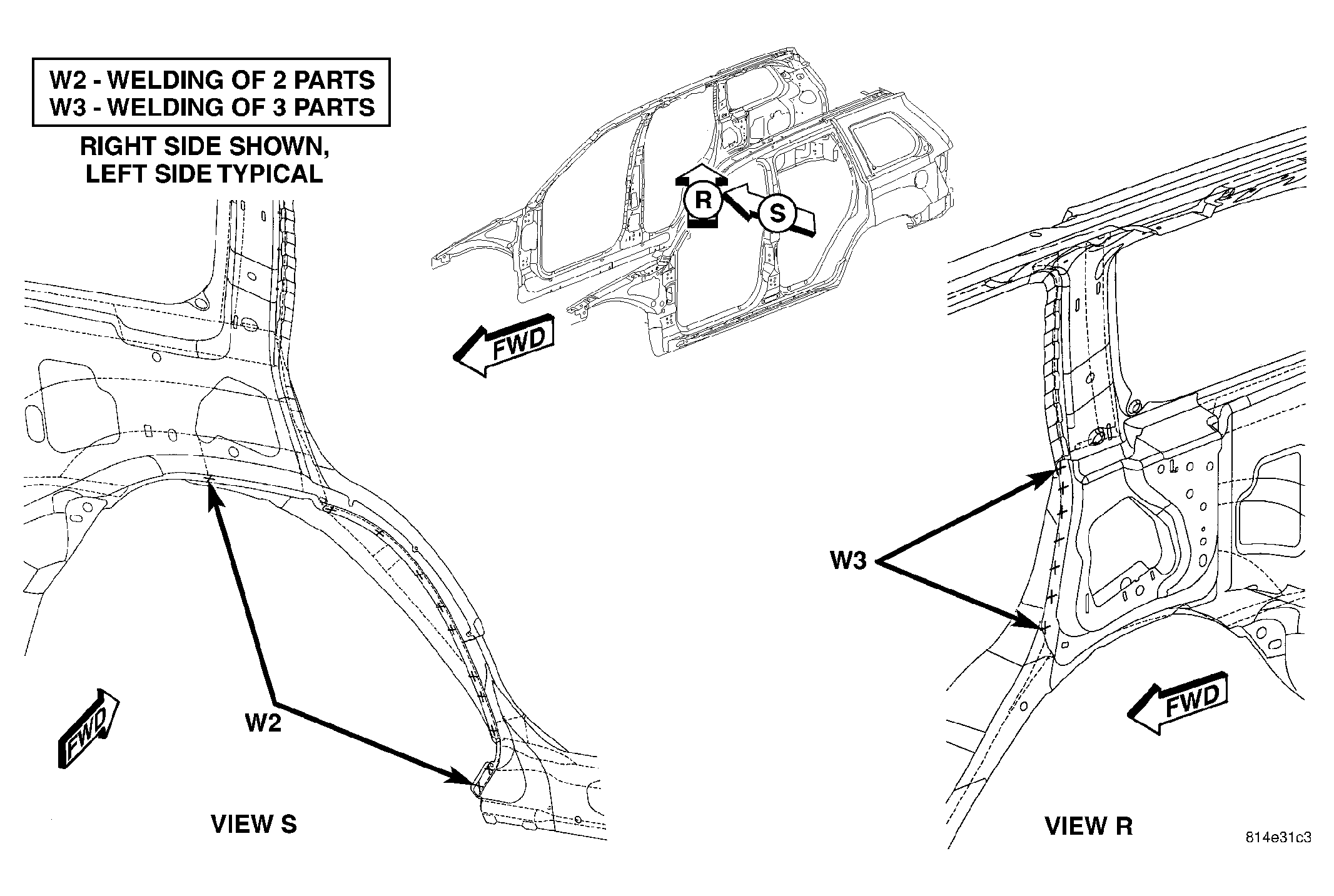

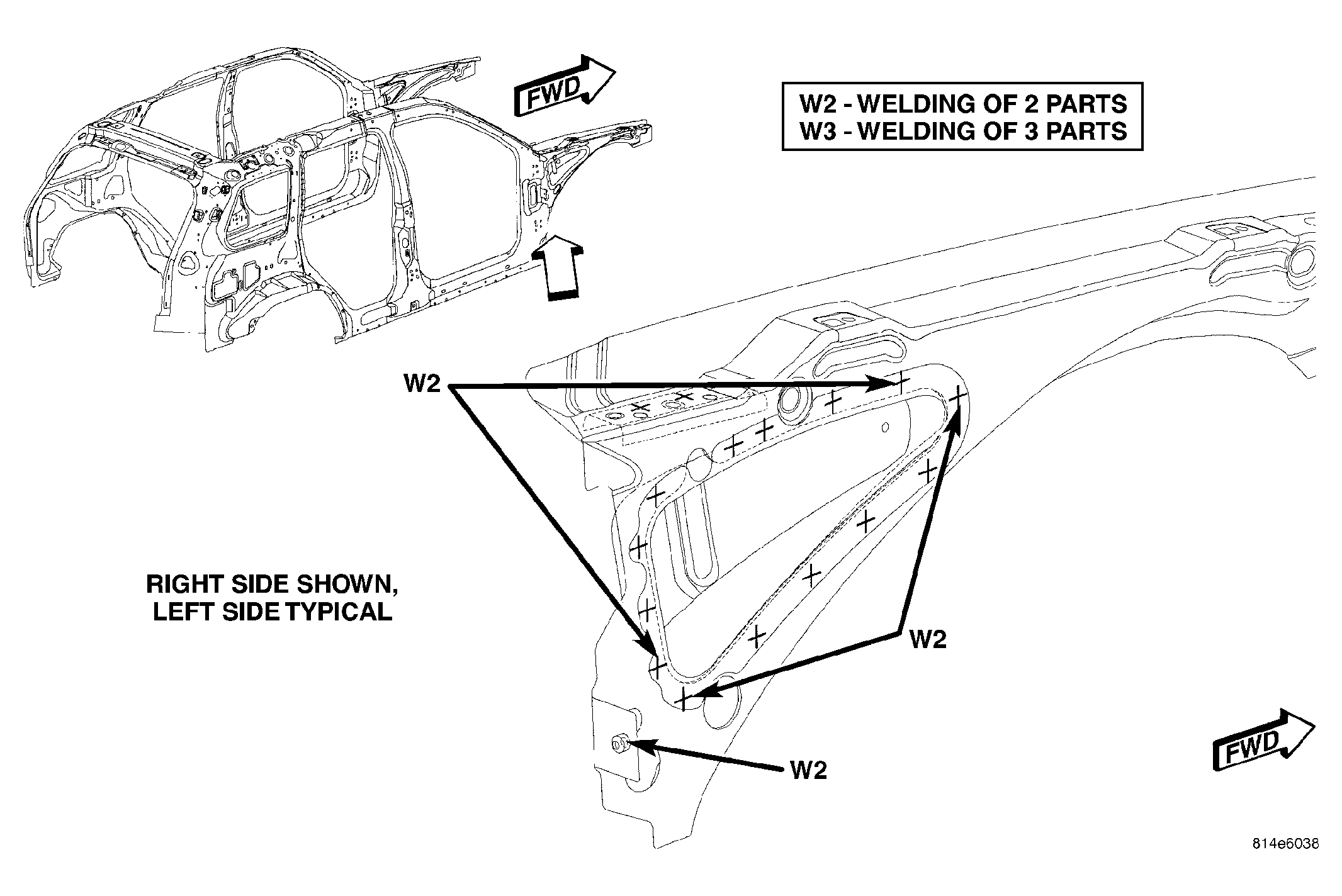

Fig 79: BODY SIDE APERTURE - INNER (1 OF 4)
GC0028122Courtesy of DAIMLERCHRYSLER CORP.

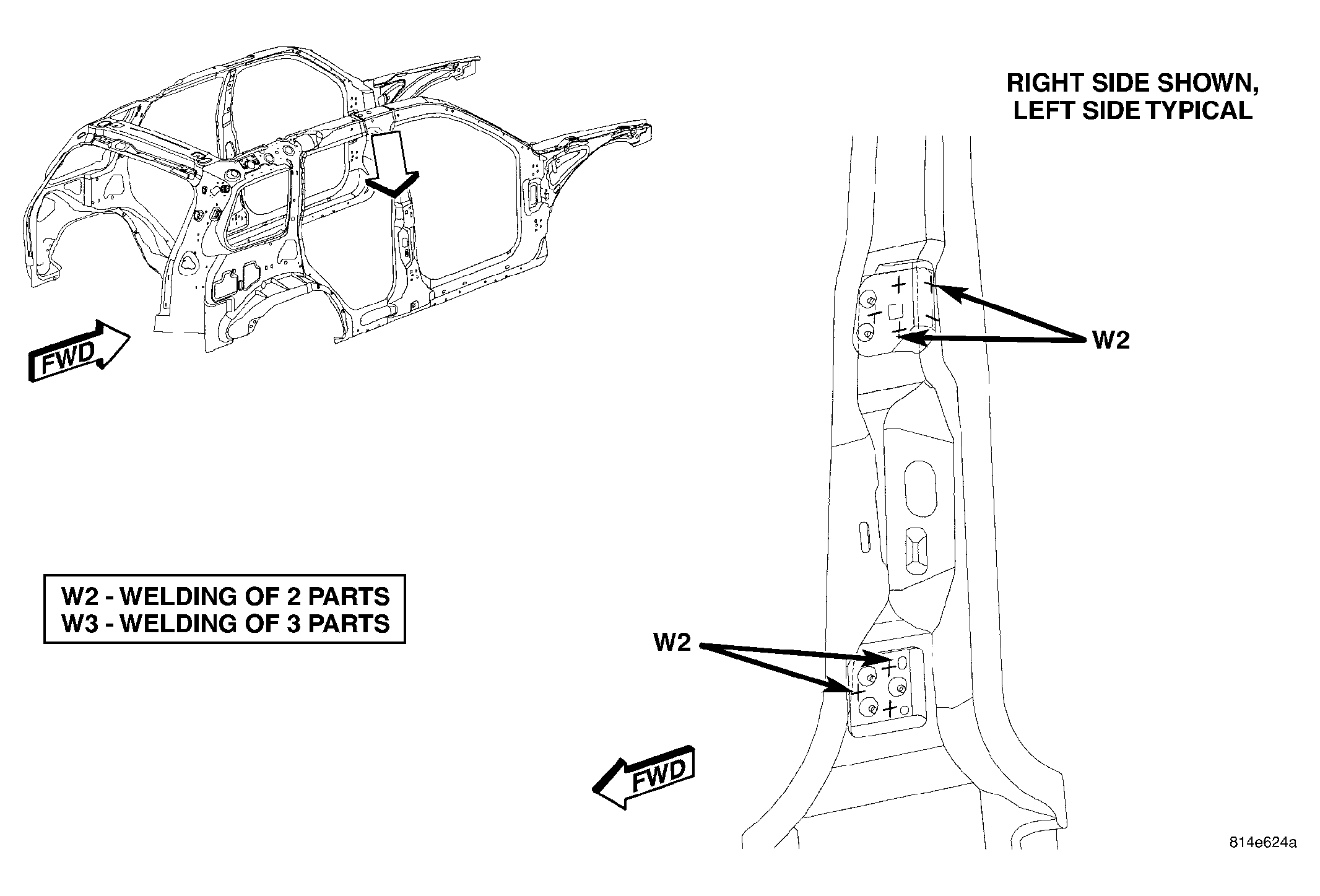

Fig 80: BODY SIDE APERTURE - INNER (2 OF 4)
GC0028123Courtesy of DAIMLERCHRYSLER CORP.
Fig 81: BODY SIDE APERTURE - INNER (3 OF 4)
GC0028124Courtesy of DAIMLERCHRYSLER CORP.
Fig 82: BODY SIDE APERTURE - INNER (4 OF 4)
GC0028125Courtesy of DAIMLERCHRYSLER CORP.

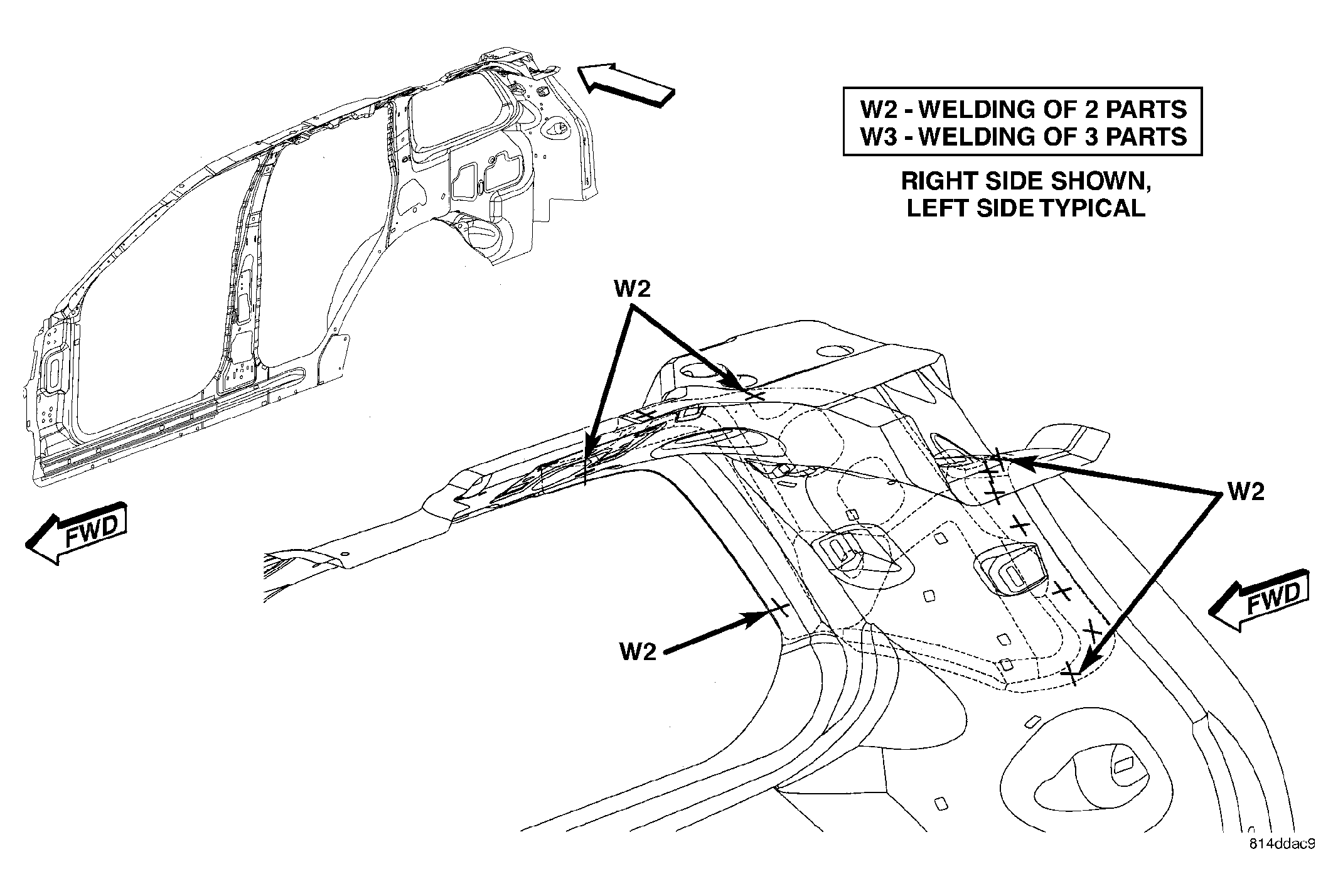

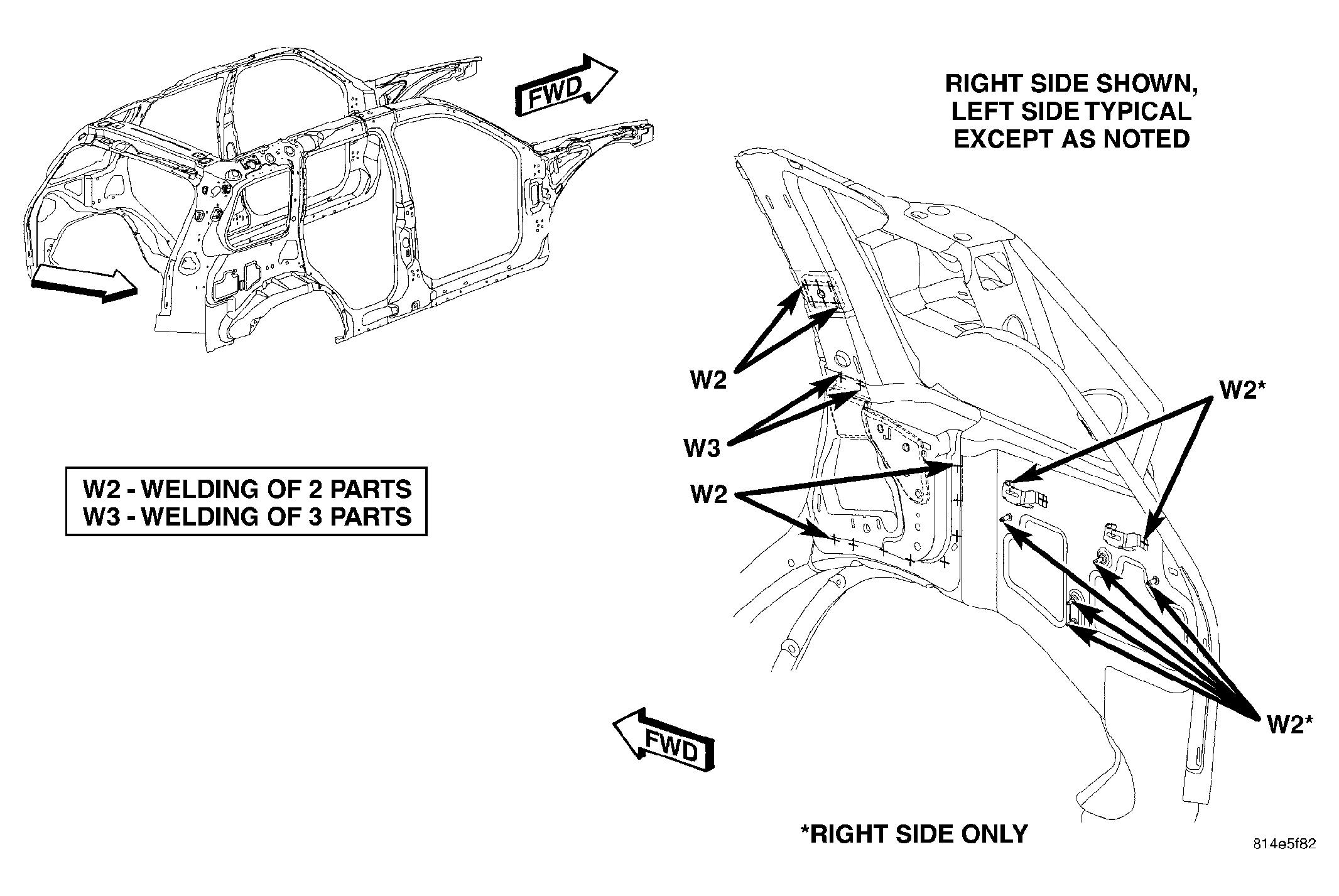

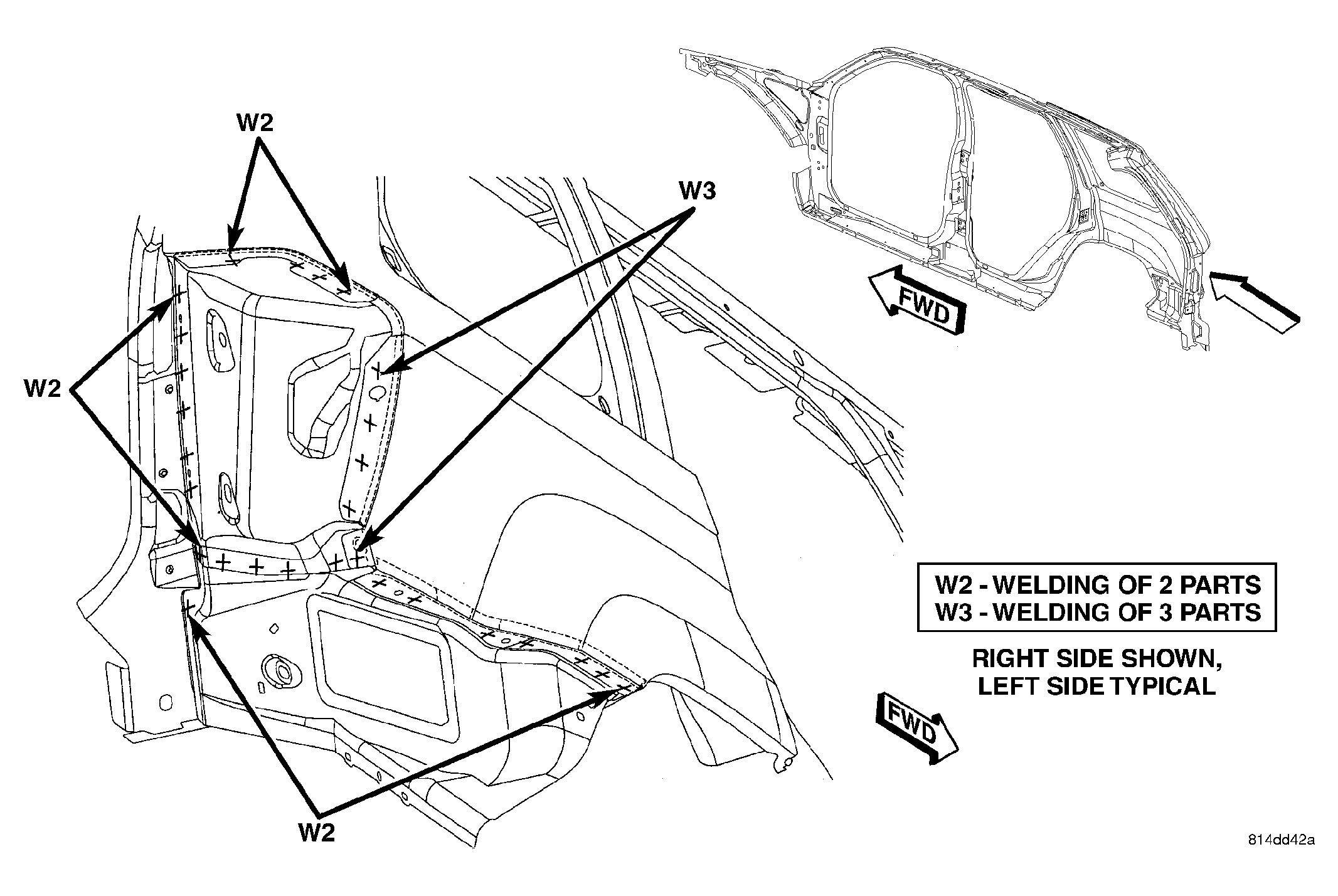

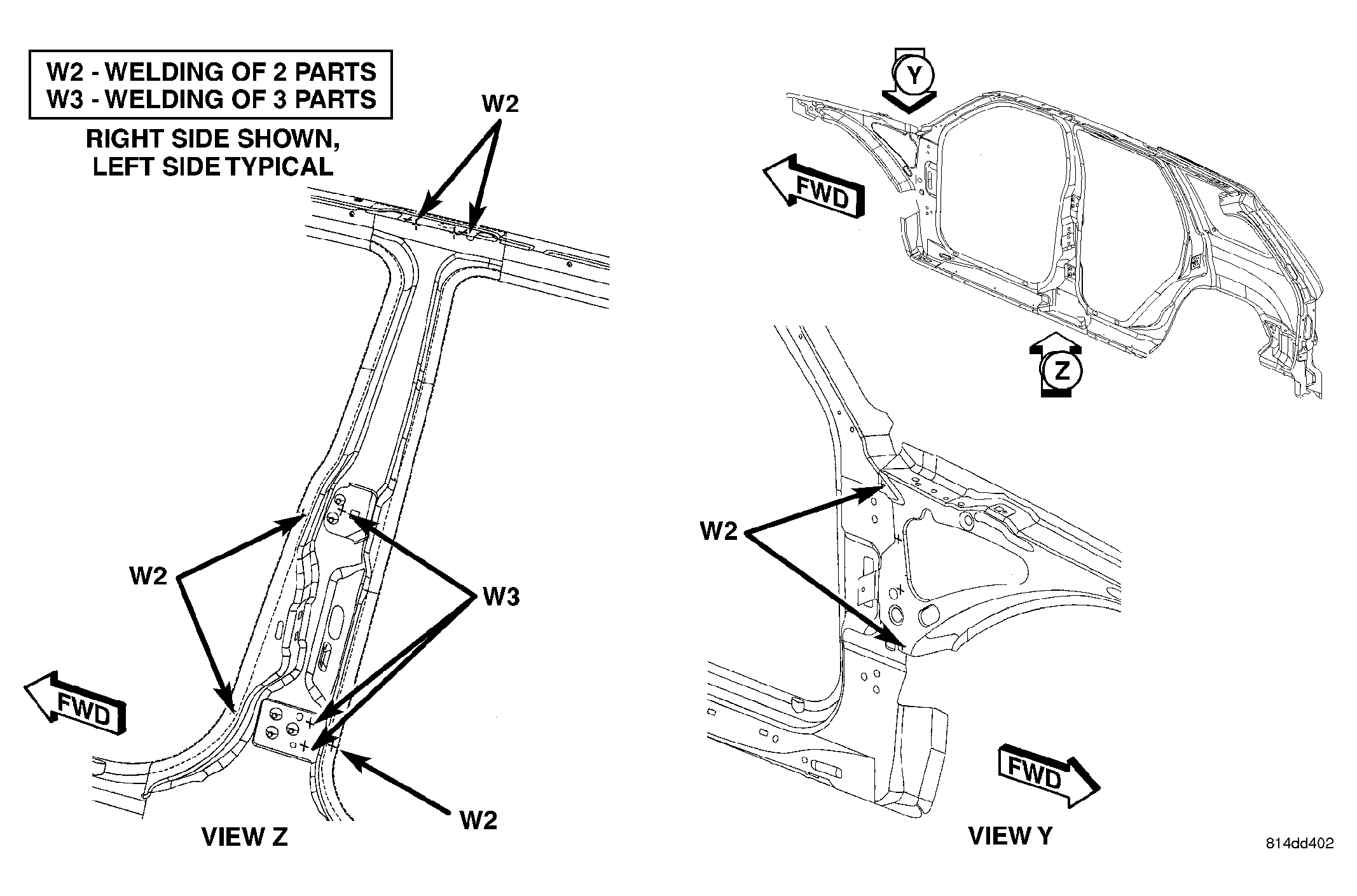

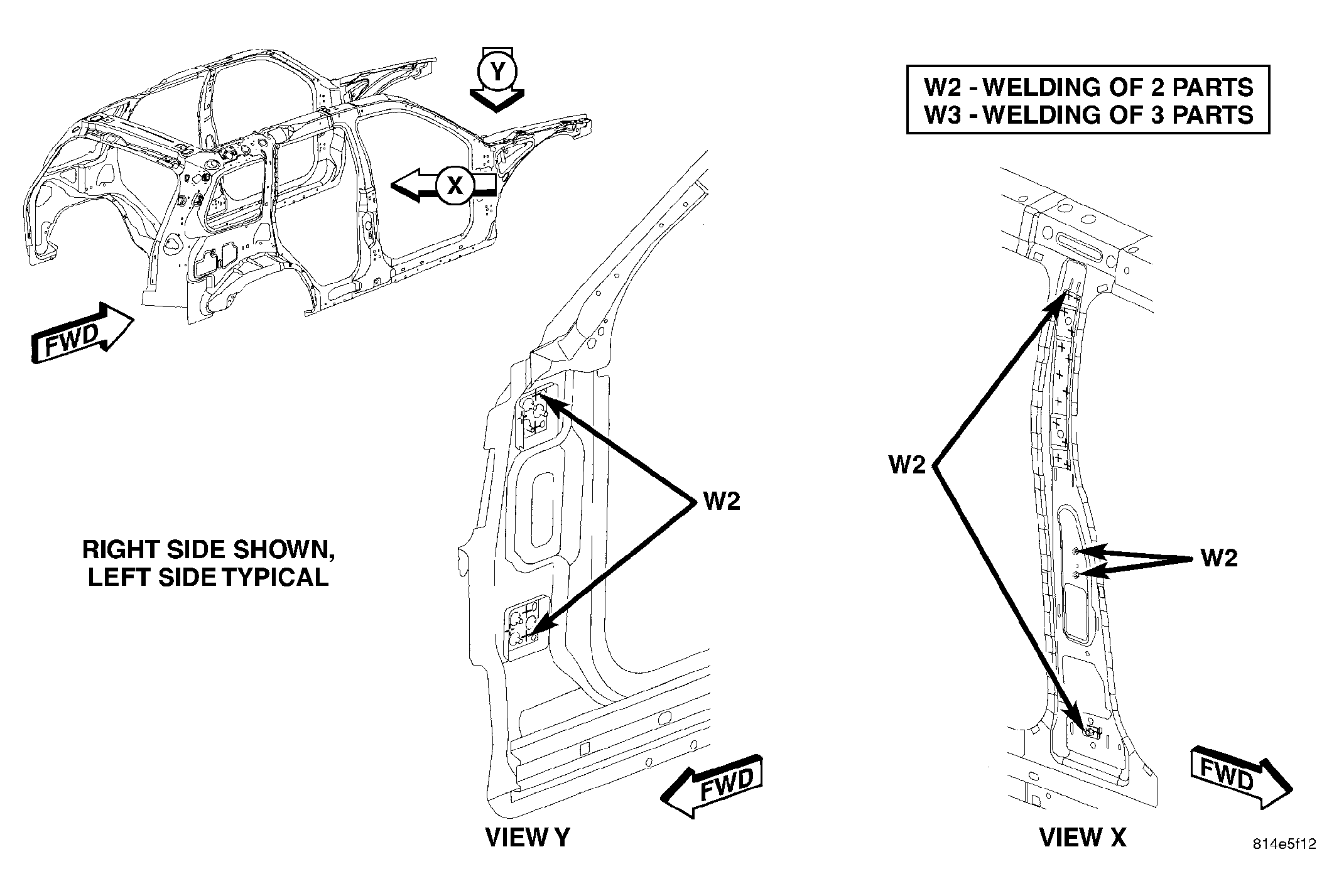

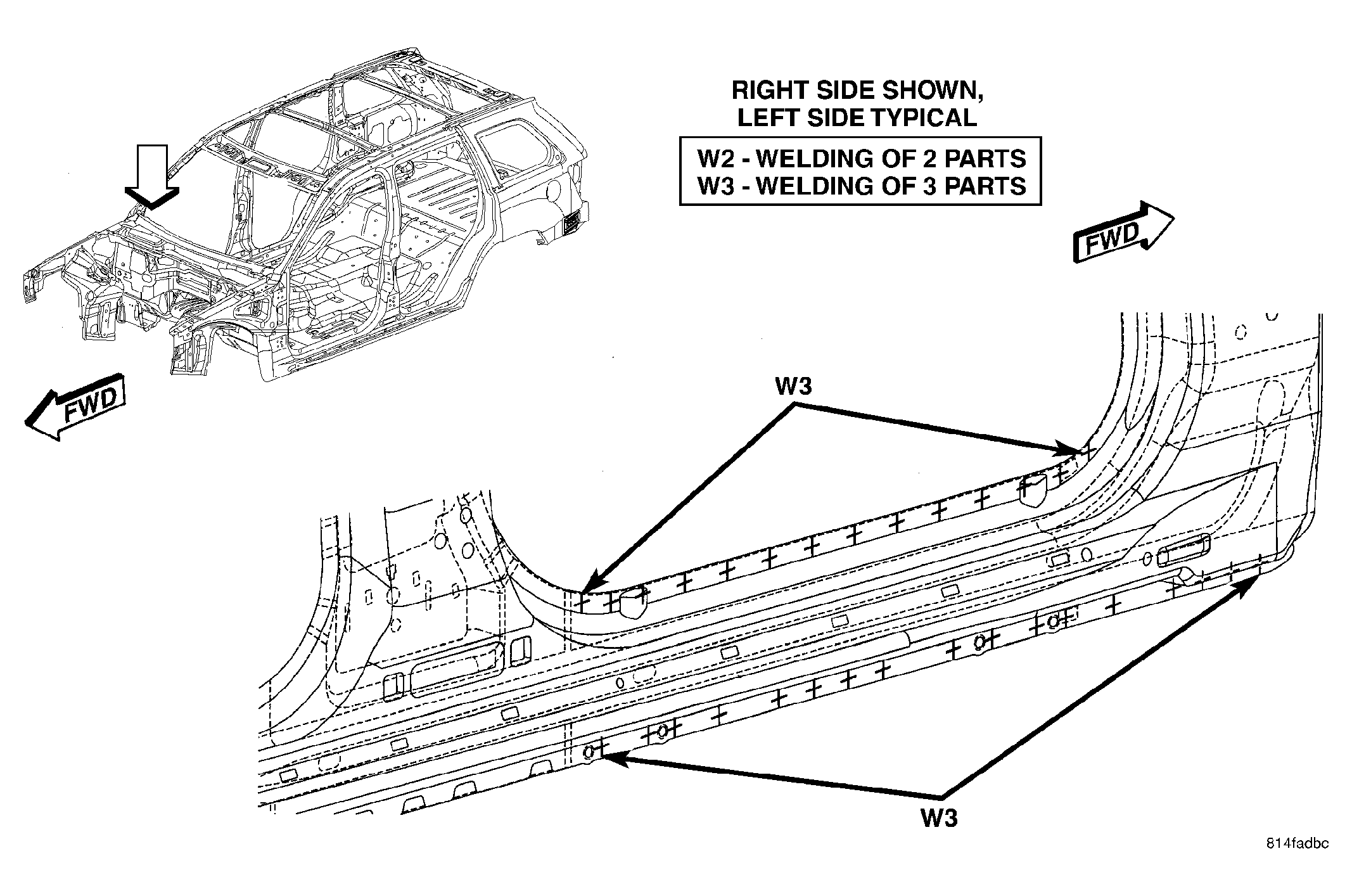

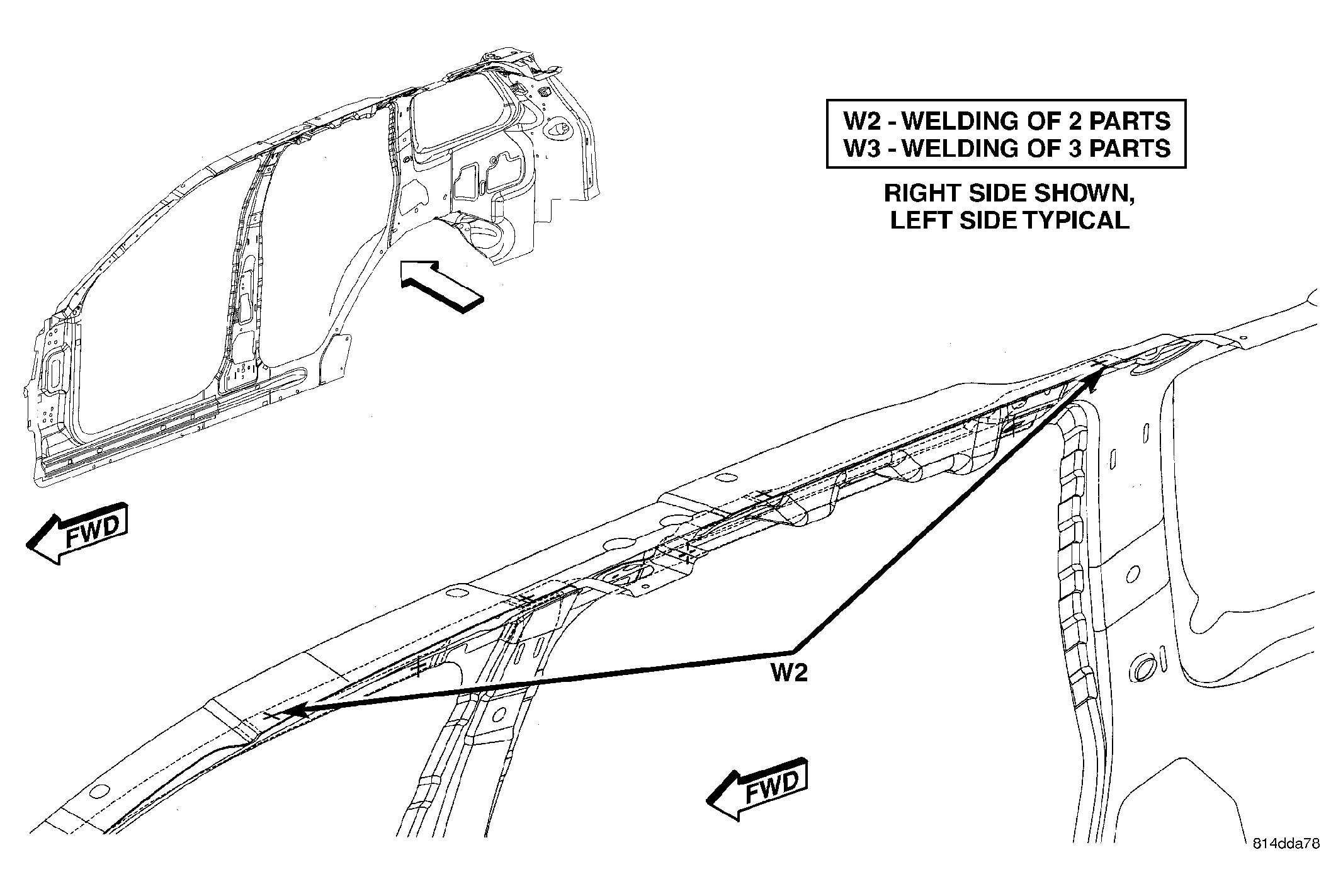

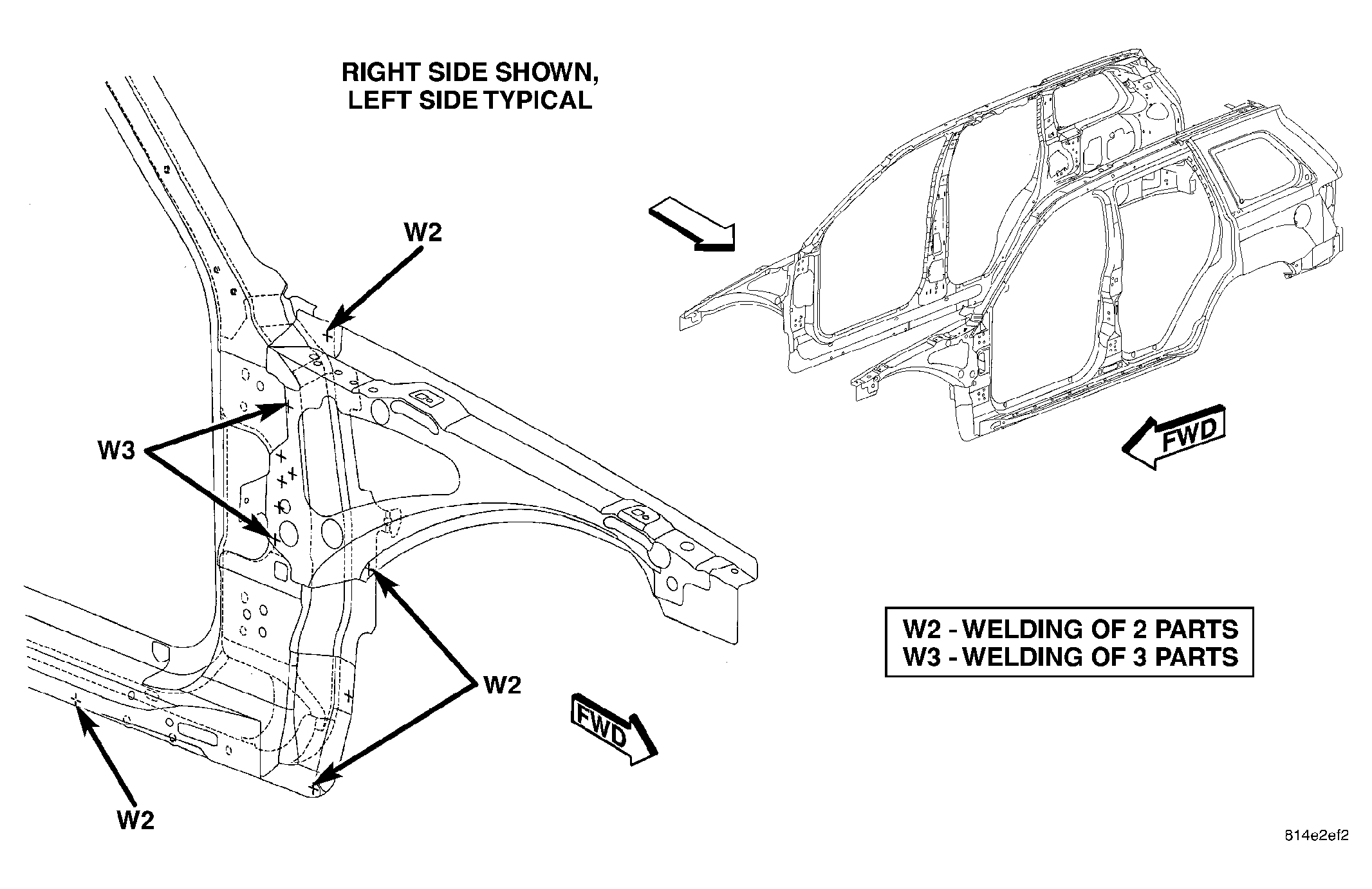

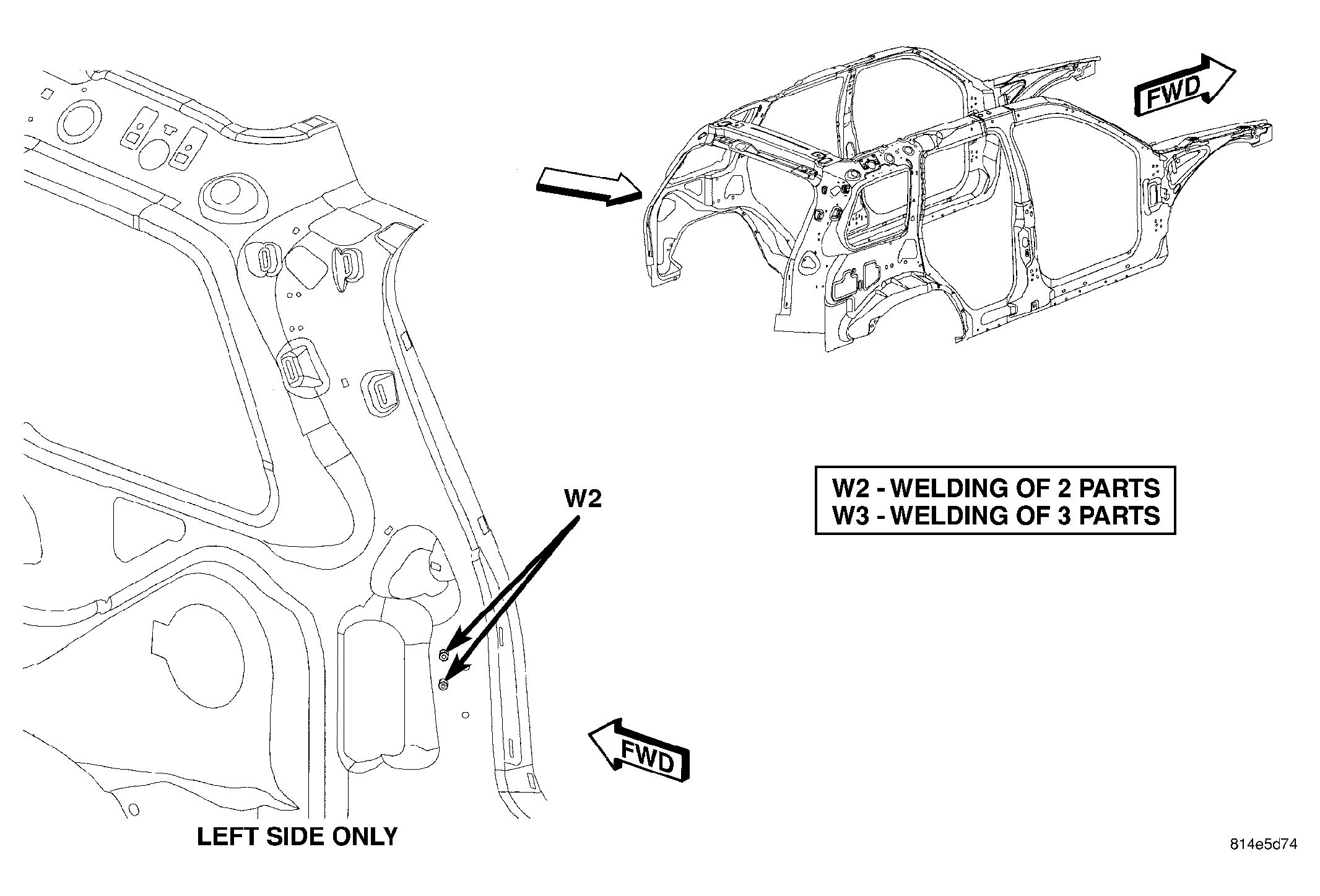

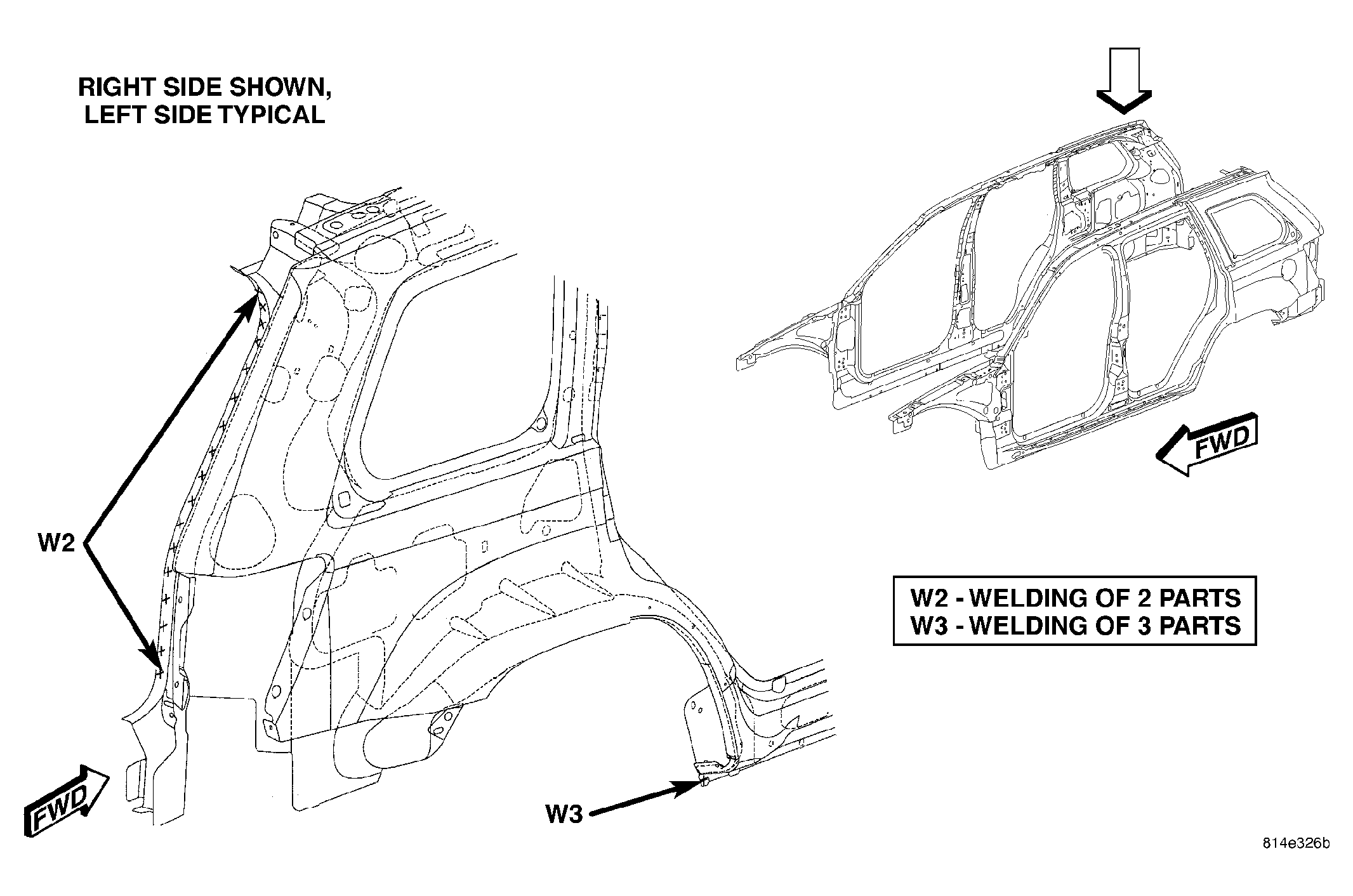

Fig 83: BODY SIDE APERTURE - COMPLETE (1 OF 9)
GC0028126Courtesy of DAIMLERCHRYSLER CORP.

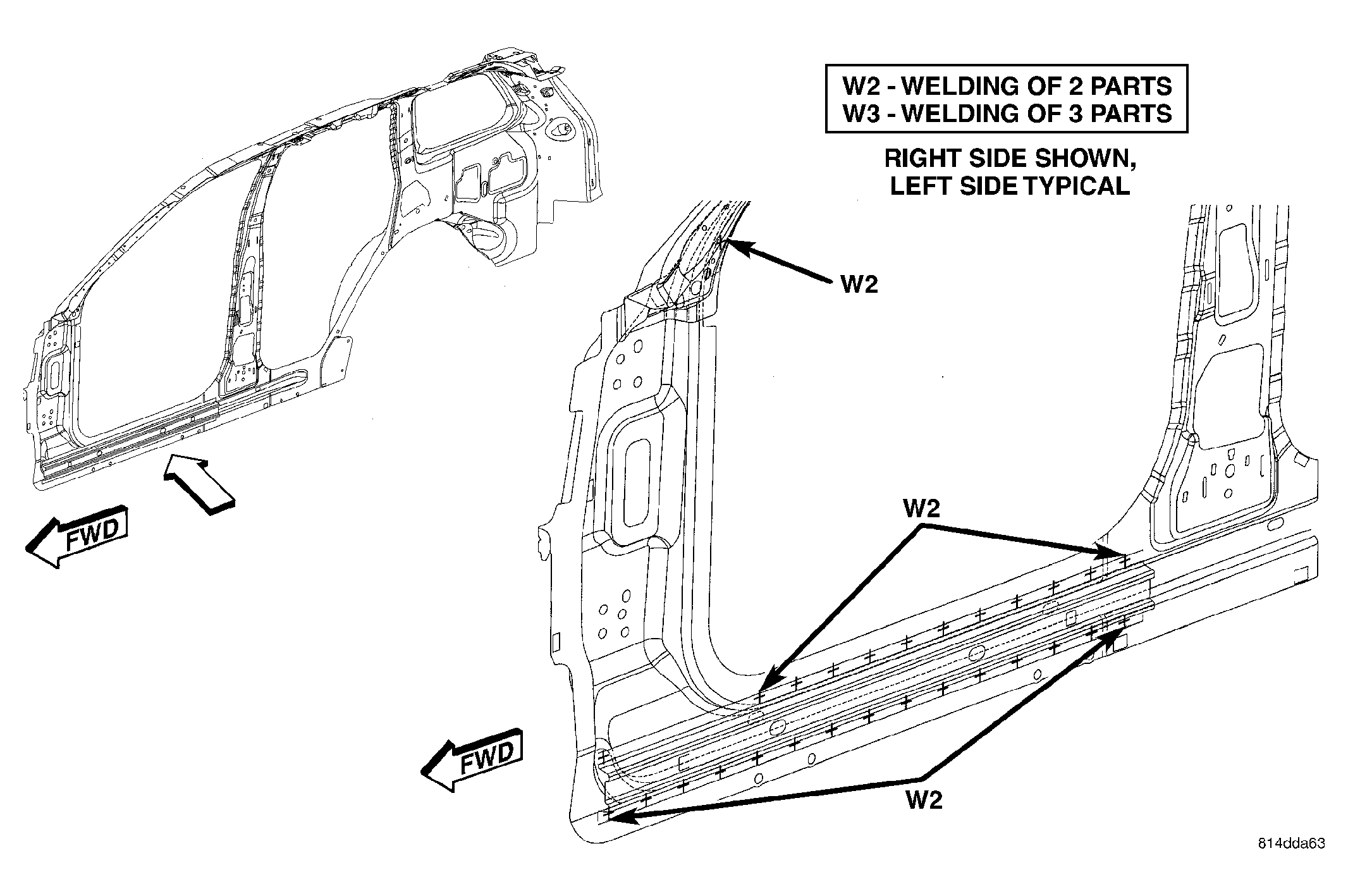

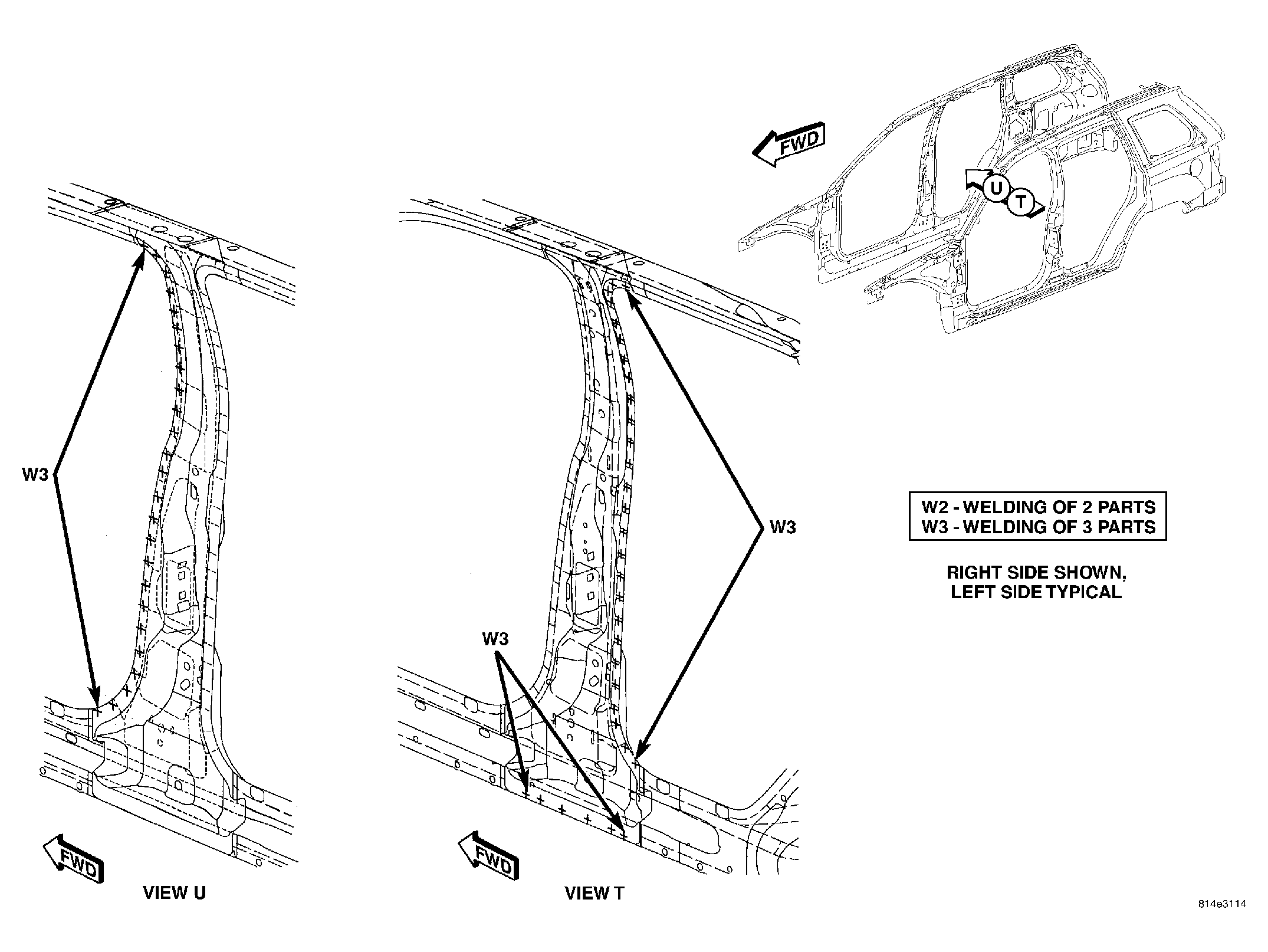

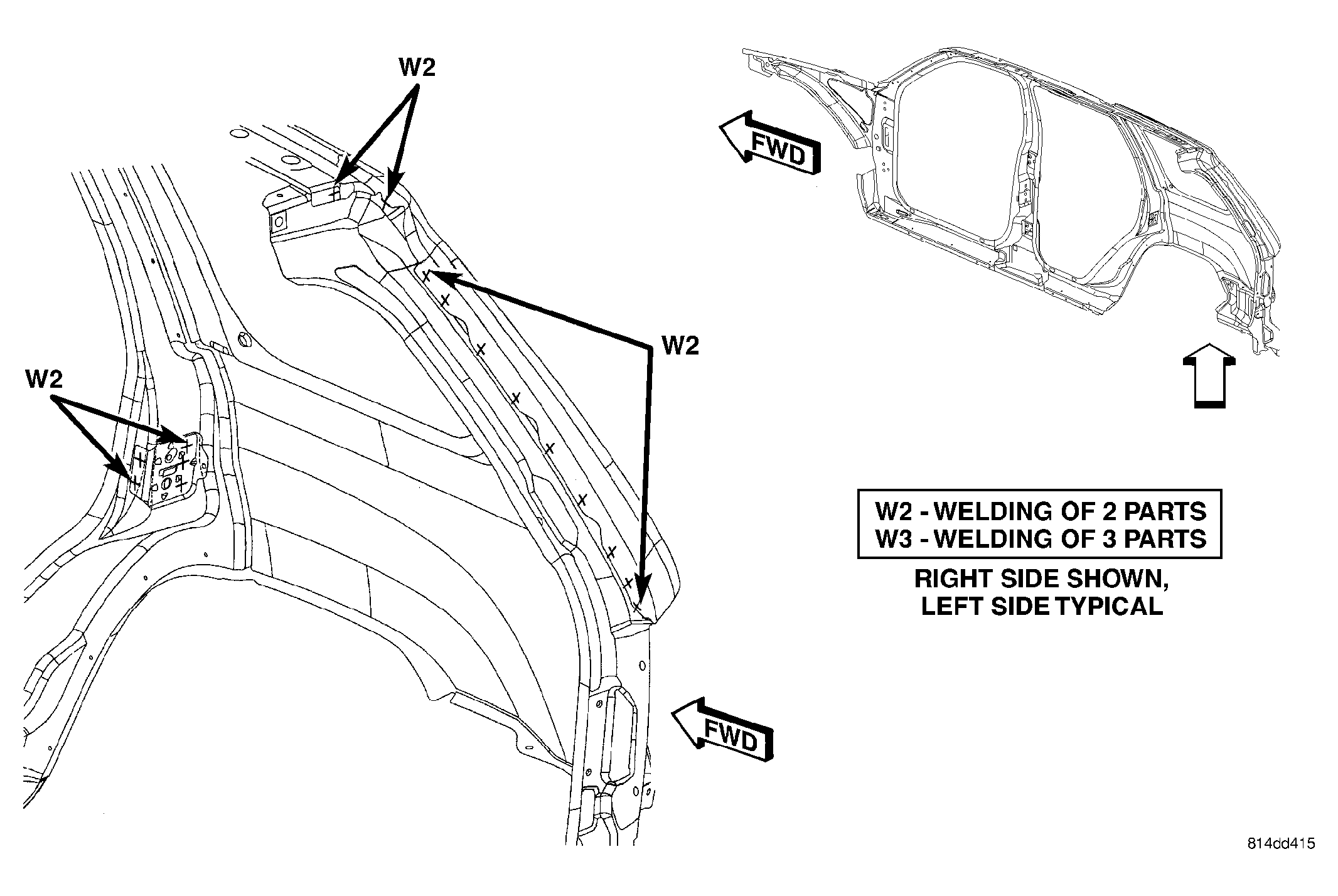

Fig 84: BODY SIDE APERTURE - COMPLETE (2 OF 9)
GC0028127Courtesy of DAIMLERCHRYSLER CORP.

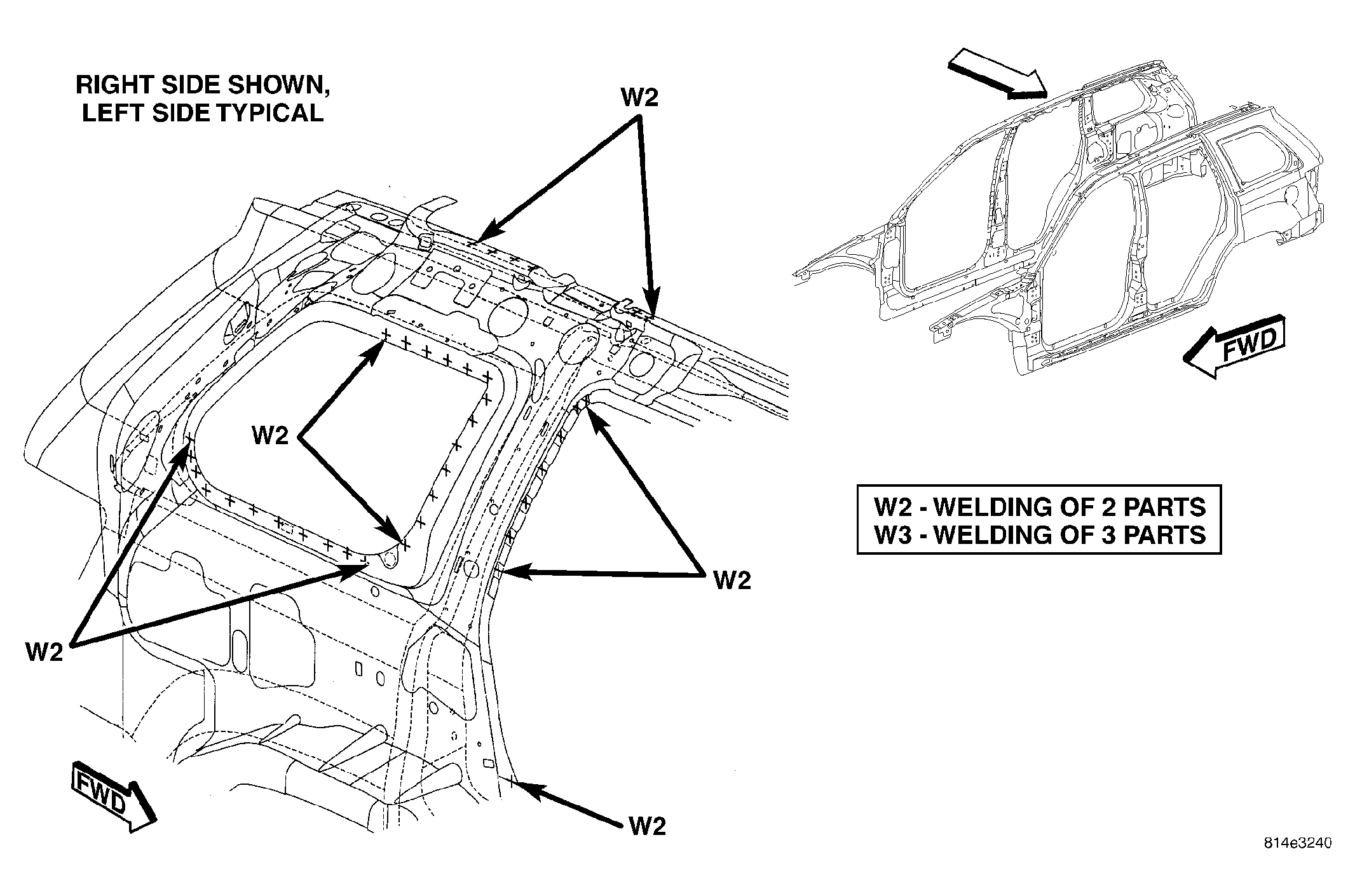

Fig 85: BODY SIDE APERTURE - COMPLETE (3 OF 9)
GC0028128Courtesy of DAIMLERCHRYSLER CORP.
Fig 86: BODY SIDE APERTURE - COMPLETE (4 OF 9)
GC0028129Courtesy of DAIMLERCHRYSLER CORP.

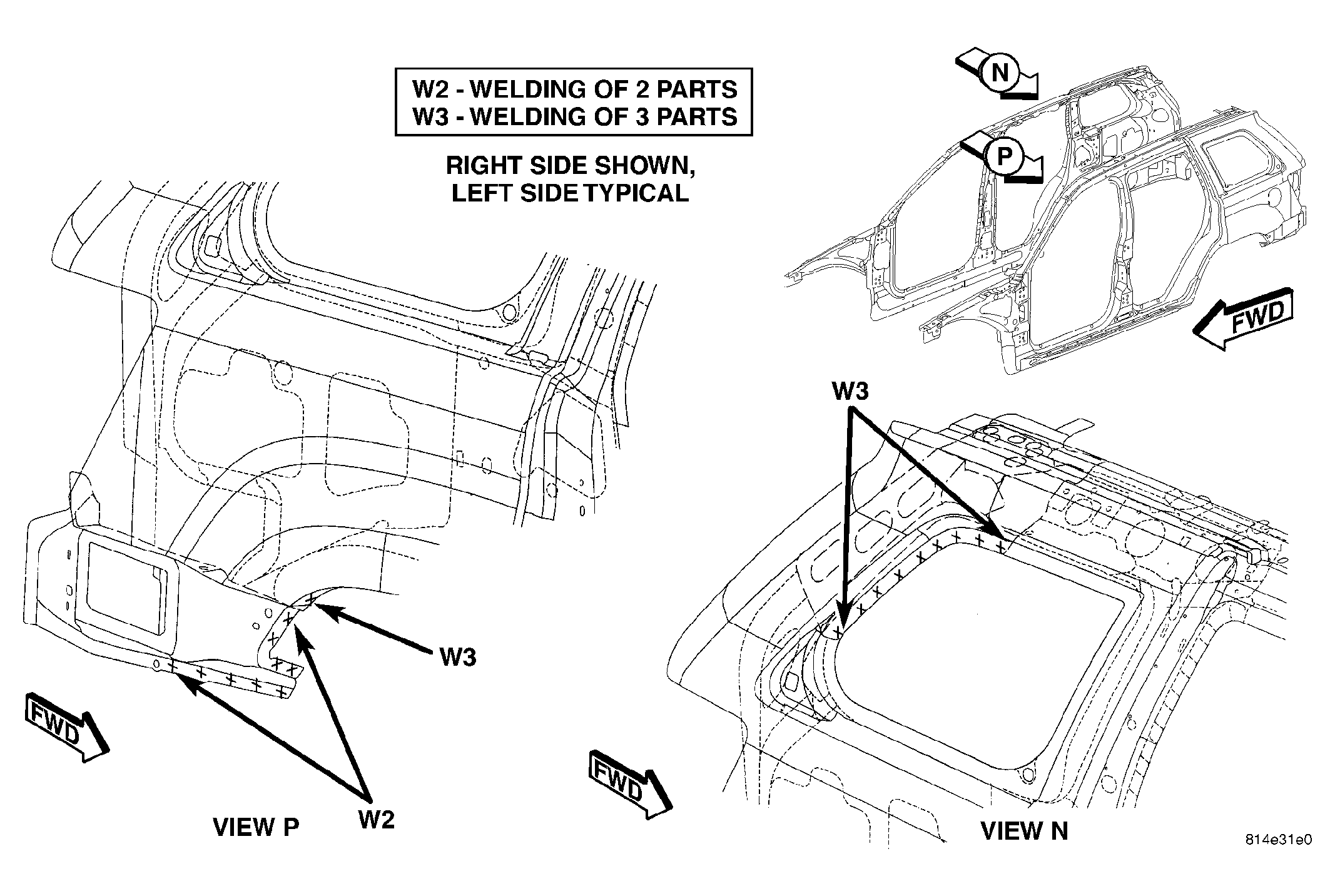

Fig 87: BODY SIDE APERTURE - COMPLETE (5 OF 9)
GC0028130Courtesy of DAIMLERCHRYSLER CORP.
Fig 88: BODY SIDE APERTURE - COMPLETE (6 OF 9)
GC0028131Courtesy of DAIMLERCHRYSLER CORP.
Fig 89: BODY SIDE APERTURE - COMPLETE (7 OF 9)
GC0028132Courtesy of DAIMLERCHRYSLER CORP.
Fig 90: BODY SIDE APERTURE - COMPLETE (8 OF 9)
GC0028133Courtesy of DAIMLERCHRYSLER CORP.
Fig 91: BODY SIDE APERTURE - COMPLETE (9 OF 9)
GC0028134Courtesy of DAIMLERCHRYSLER CORP.
Fig 92: MISCELLANEOUS BODY (1 OF 9)
GC0028135Courtesy of DAIMLERCHRYSLER CORP.
Fig 93: MISCELLANEOUS BODY (2 OF 9)
GC0028136Courtesy of DAIMLERCHRYSLER CORP.
Fig 94: MISCELLANEOUS BODY (3 OF 9)
GC0028137Courtesy of DAIMLERCHRYSLER CORP.
Fig 95: MISCELLANEOUS BODY (4 OF 9)
GC0028138Courtesy of DAIMLERCHRYSLER CORP.
Fig 96: MISCELLANEOUS BODY (5 OF 9)
GC0028139Courtesy of DAIMLERCHRYSLER CORP.
Fig 97: MISCELLANEOUS BODY (6 OF 9)
GC0028140Courtesy of DAIMLERCHRYSLER CORP.
Fig 98: MISCELLANEOUS BODY (7 OF 9)
GC0028141Courtesy of DAIMLERCHRYSLER CORP.
Fig 99: MISCELLANEOUS BODY (8 OF 9)
GC0028142Courtesy of DAIMLERCHRYSLER CORP.
Fig 100: MISCELLANEOUS BODY (9 OF 9)
GC0028143Courtesy of DAIMLERCHRYSLER CORP.

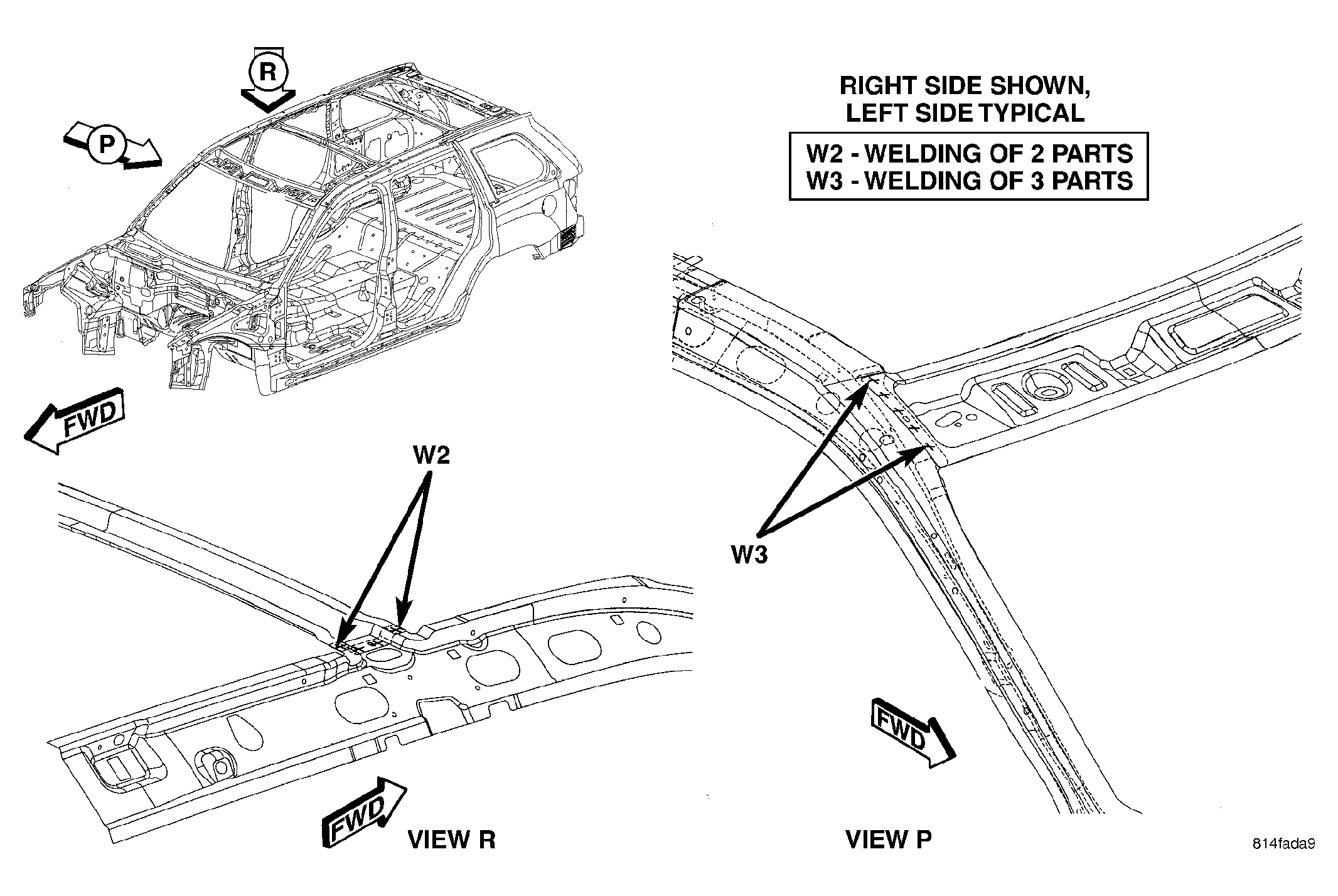

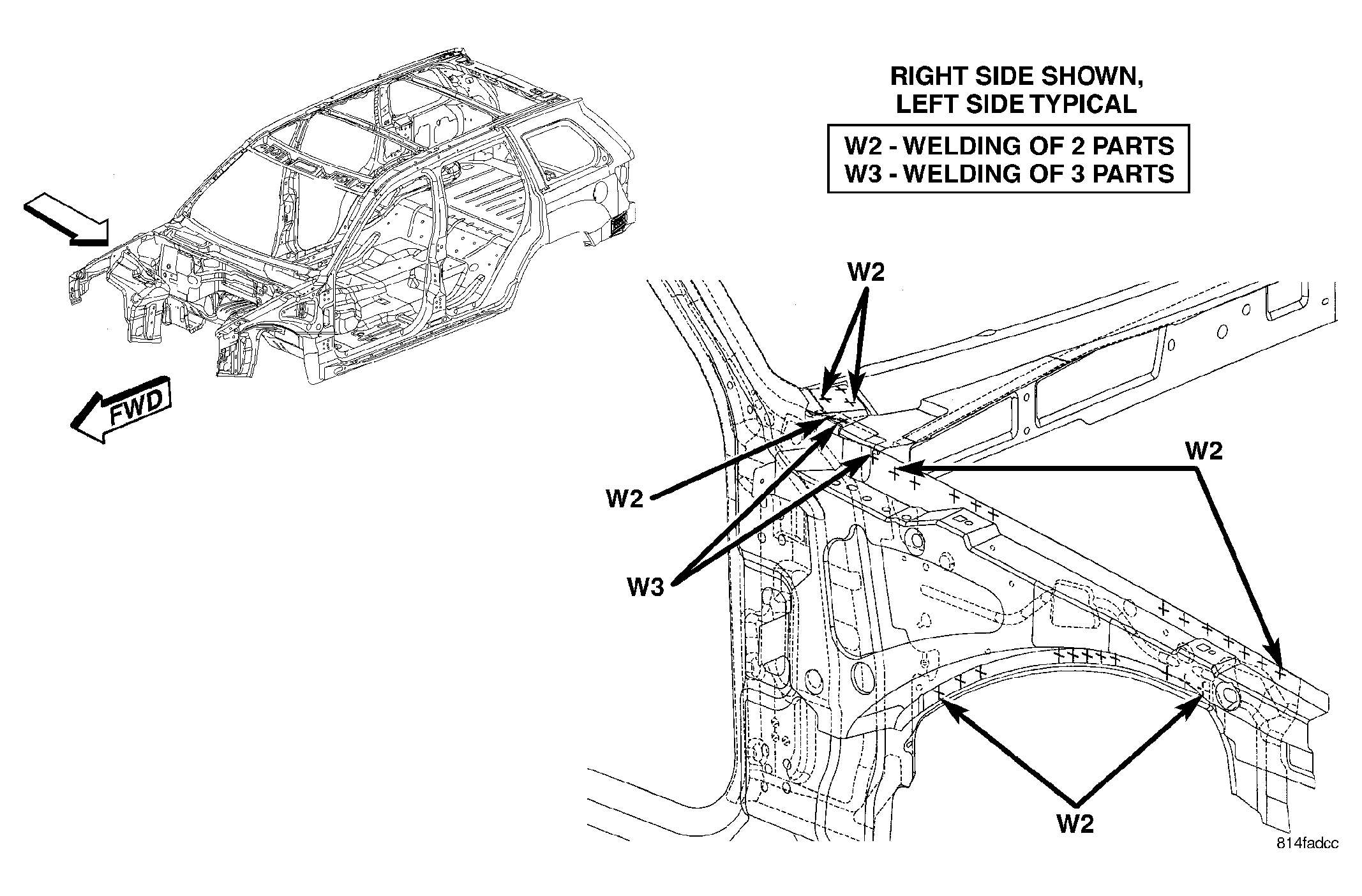

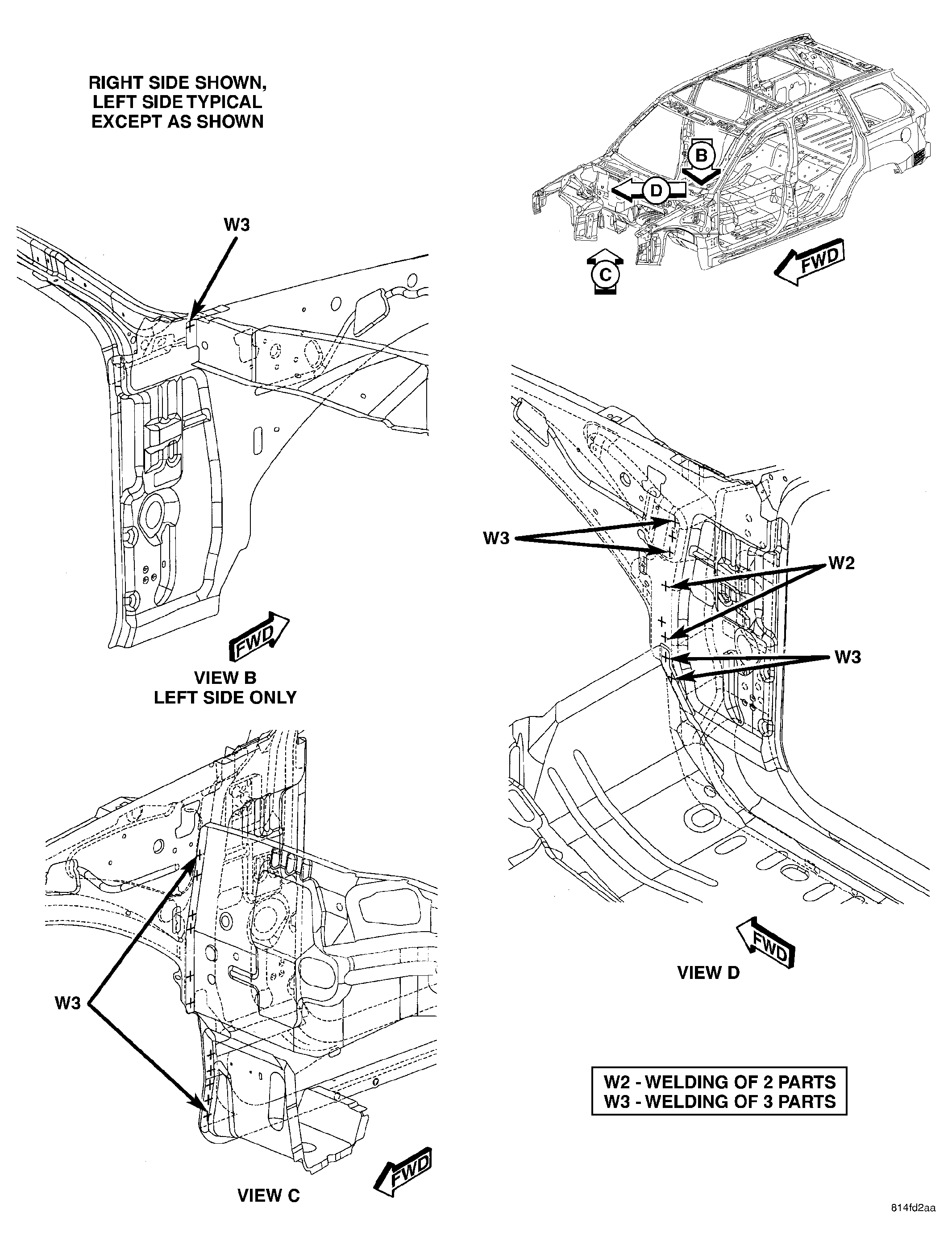

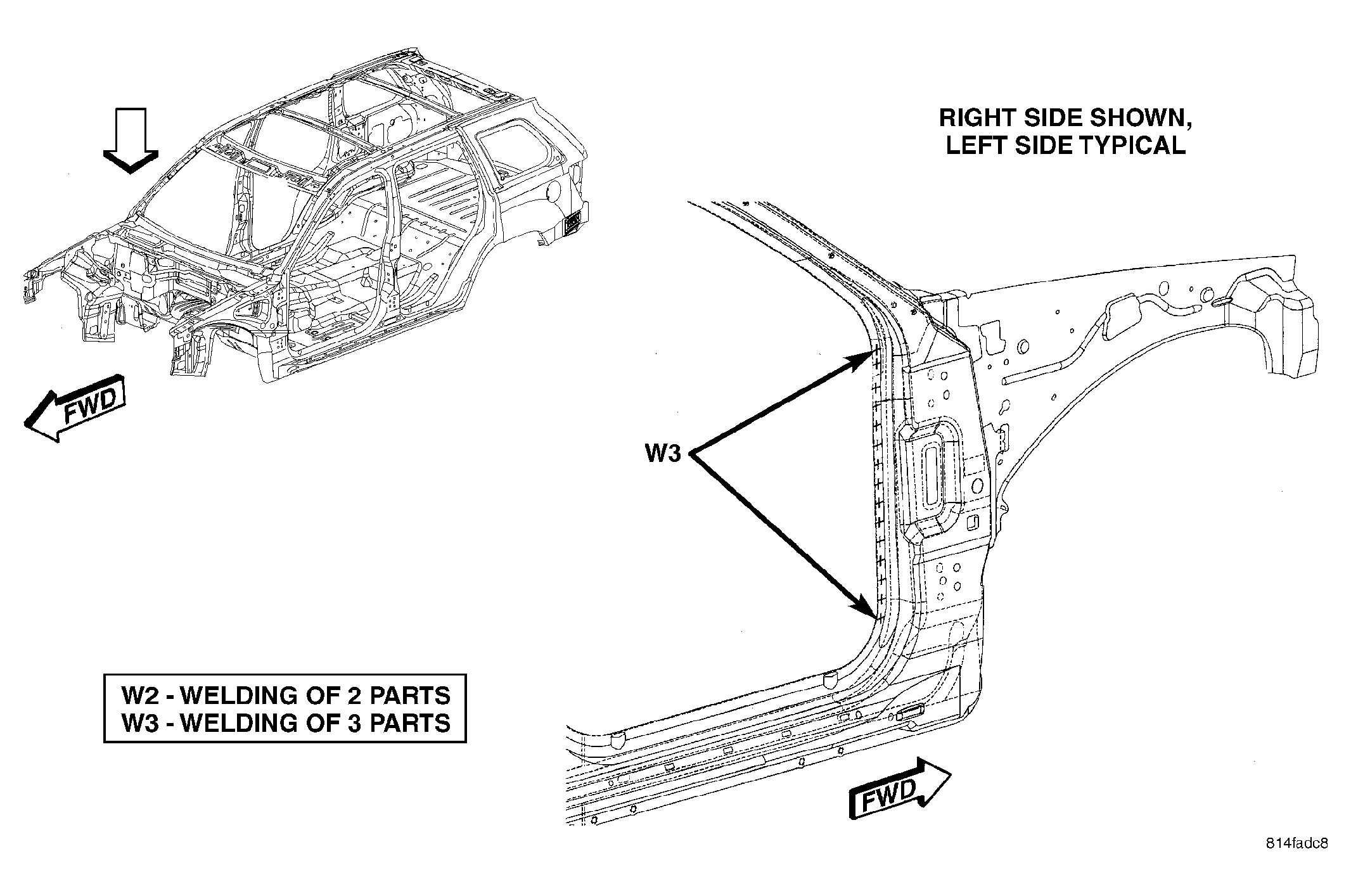

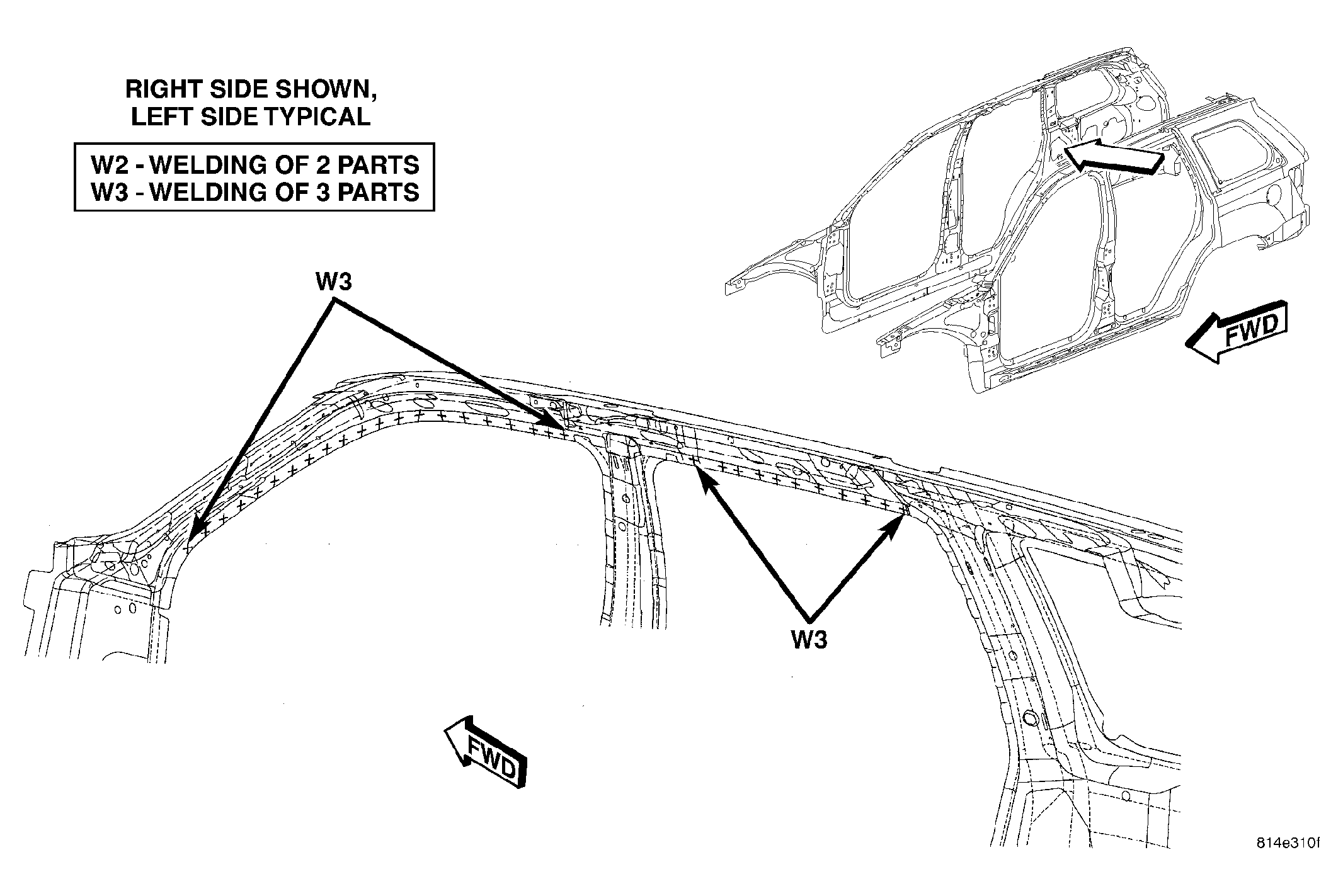

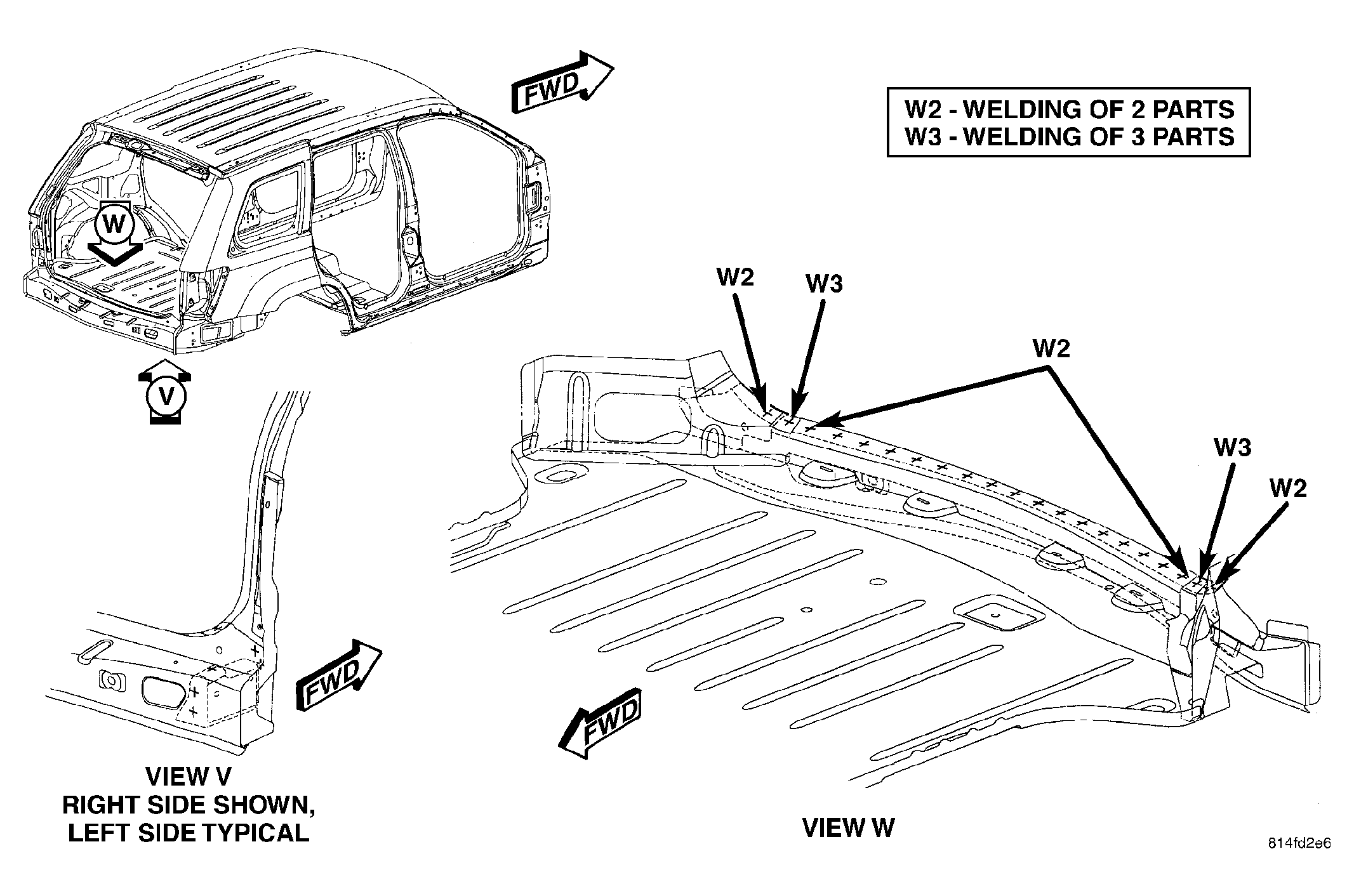

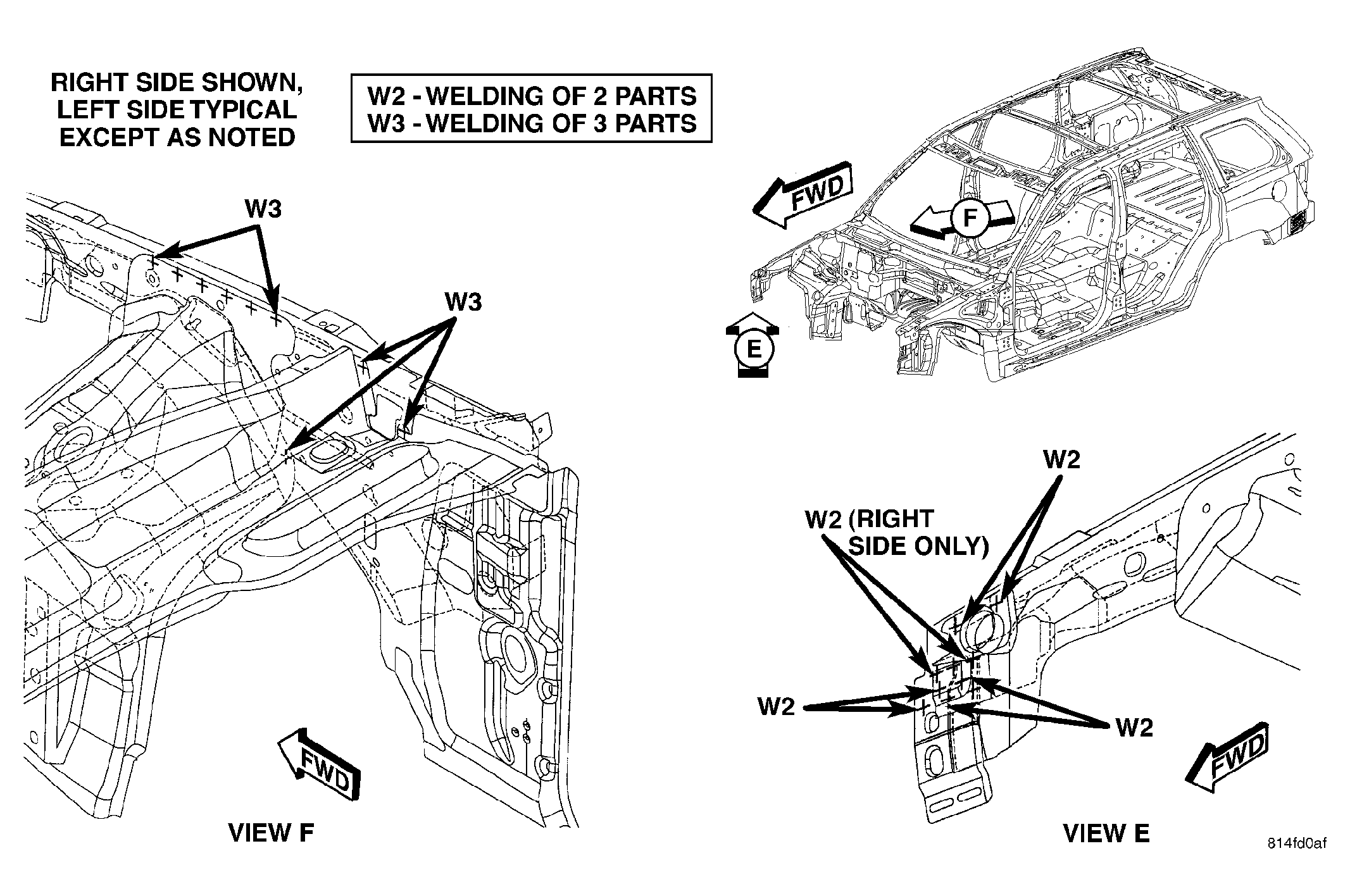

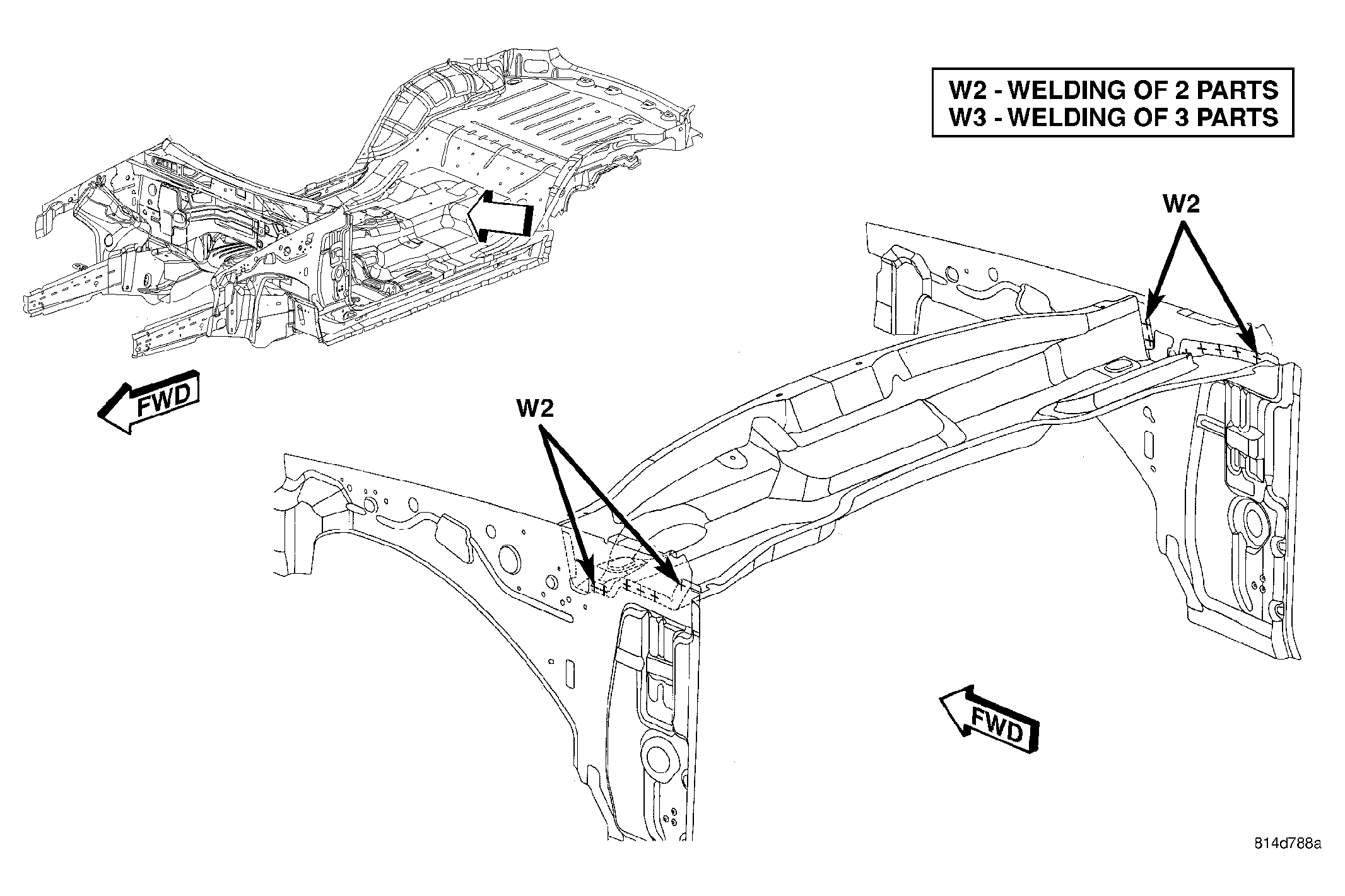

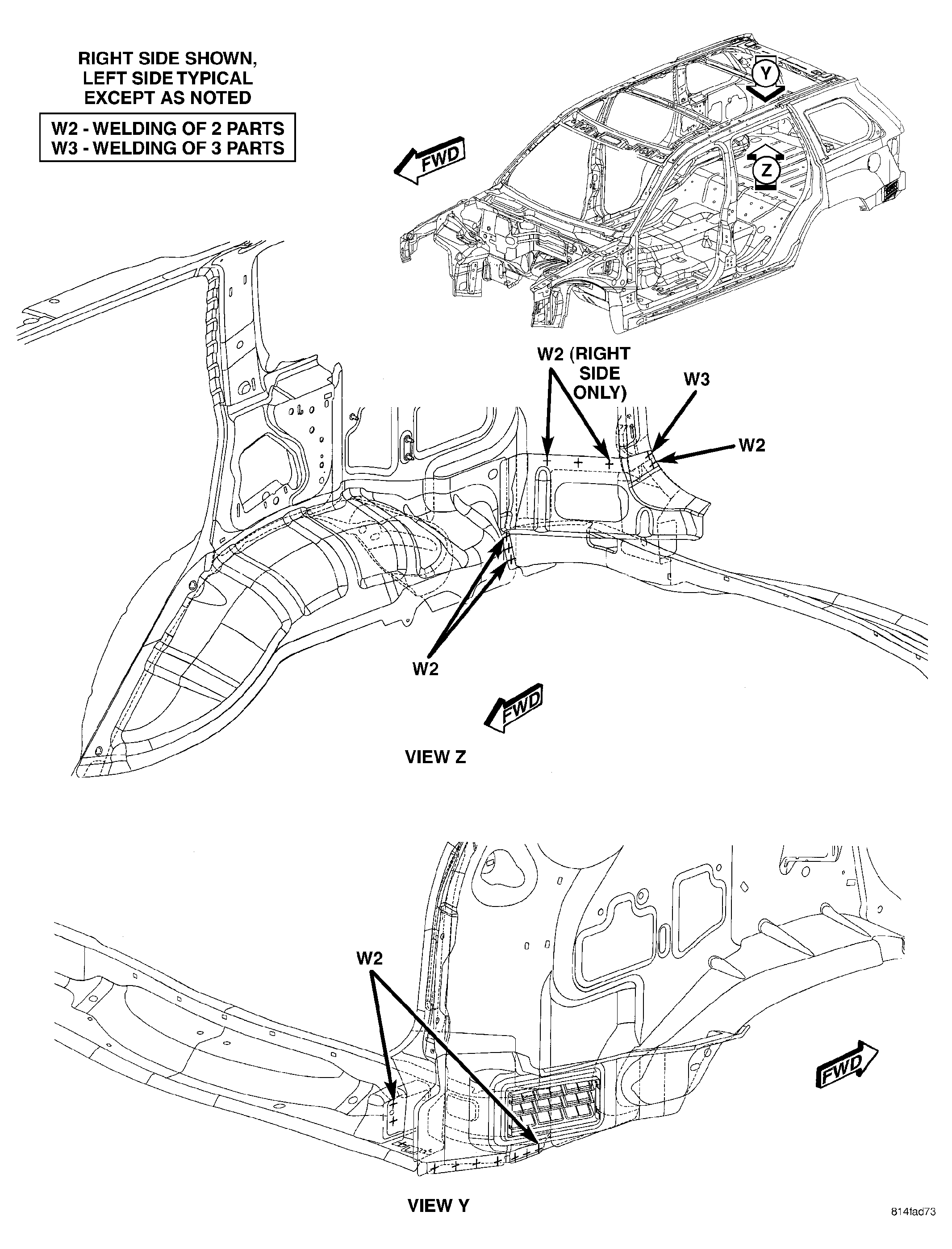

Fig 101: BODY W/O ROOF (1 OF 12)
GC0028144Courtesy of DAIMLERCHRYSLER CORP.

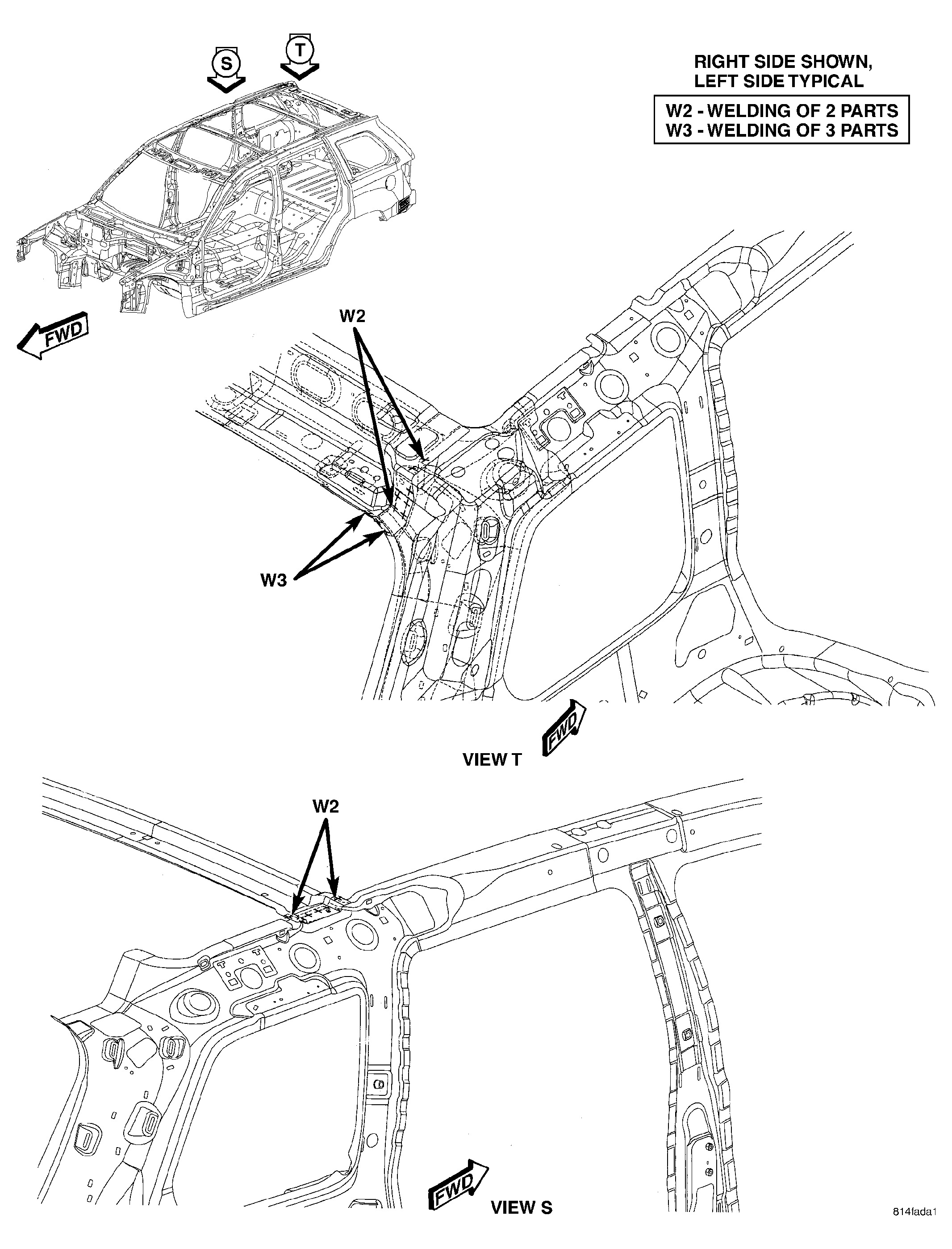

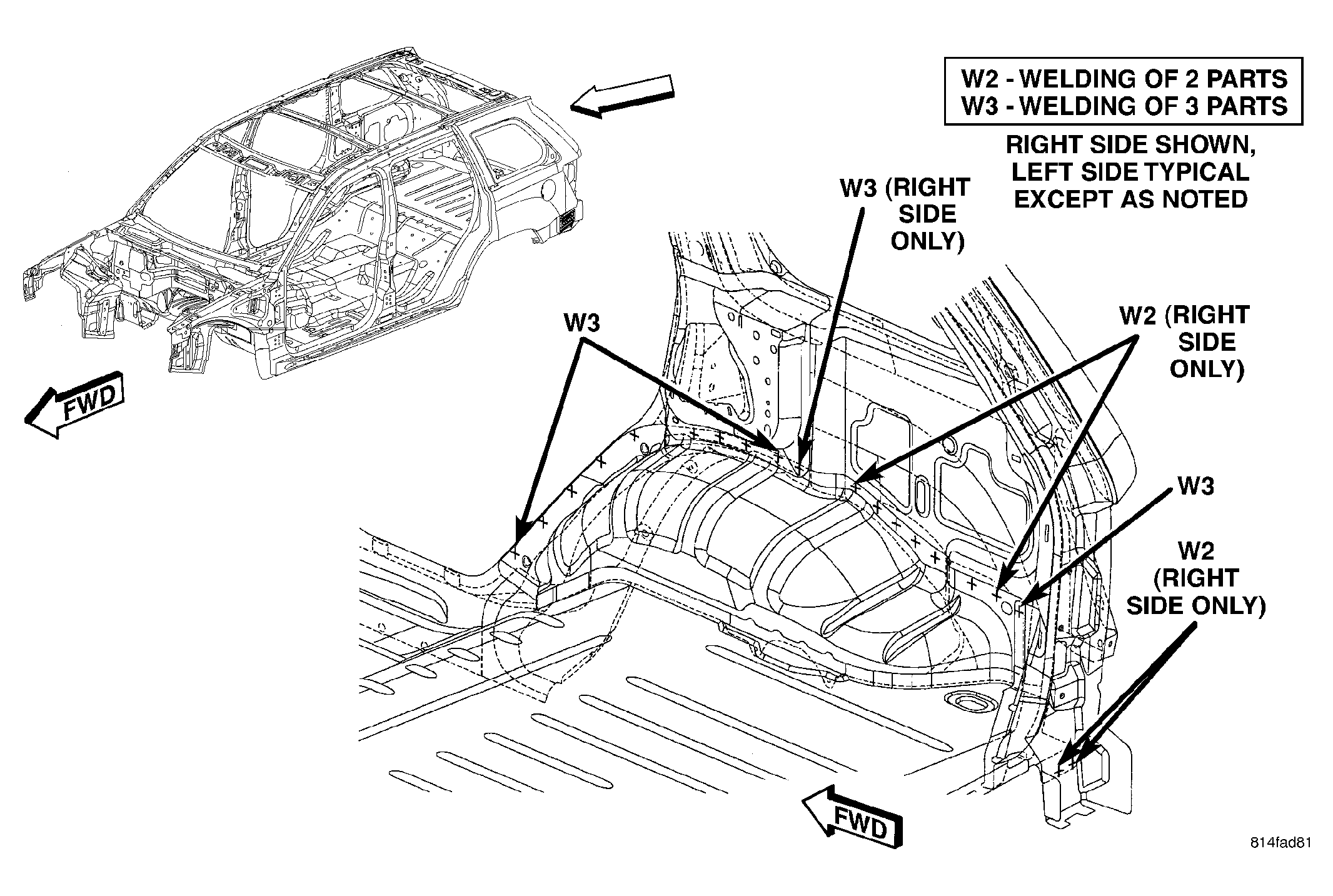

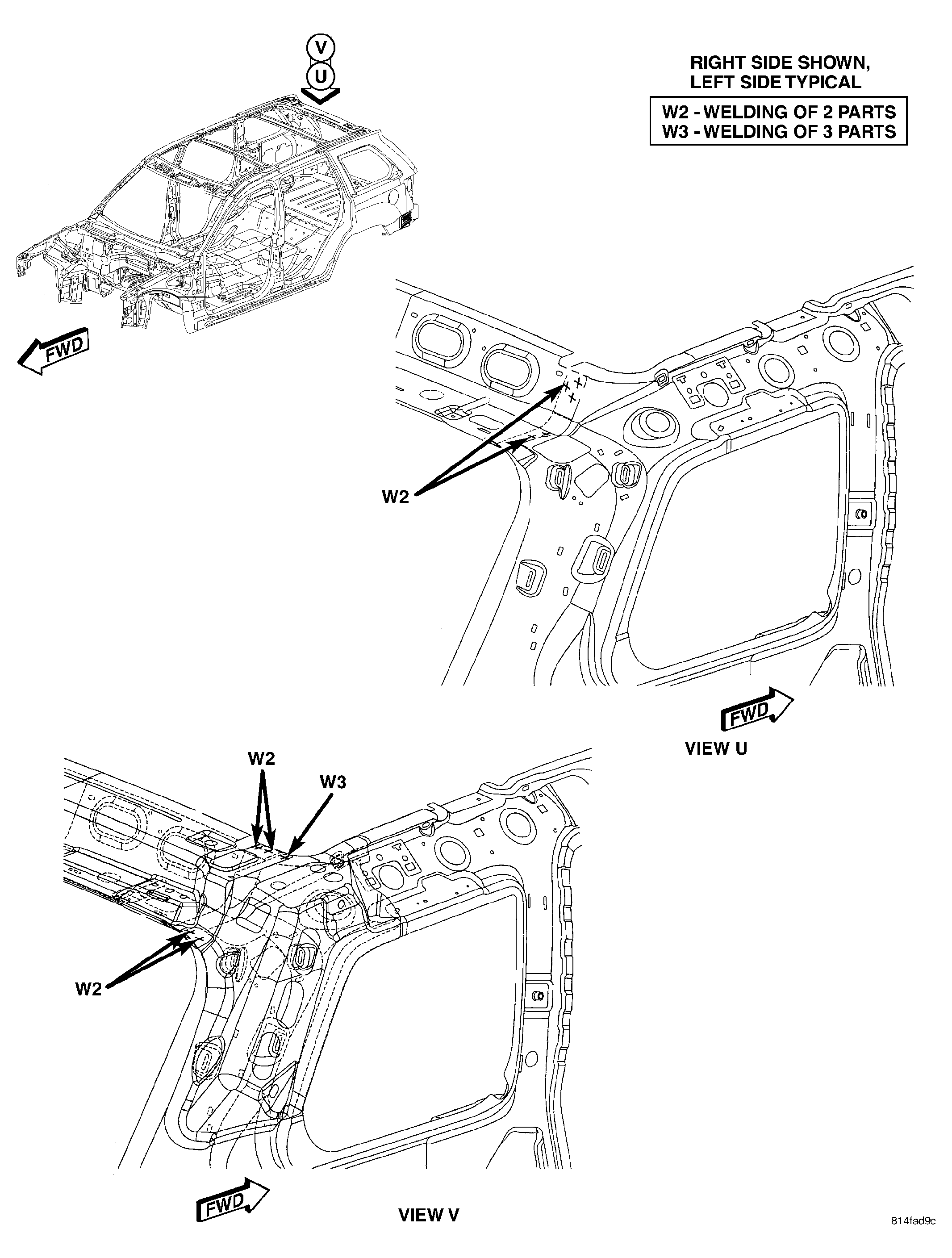

Fig 102: BODY W/O ROOF (2 OF 12)
GC0028145Courtesy of DAIMLERCHRYSLER CORP.

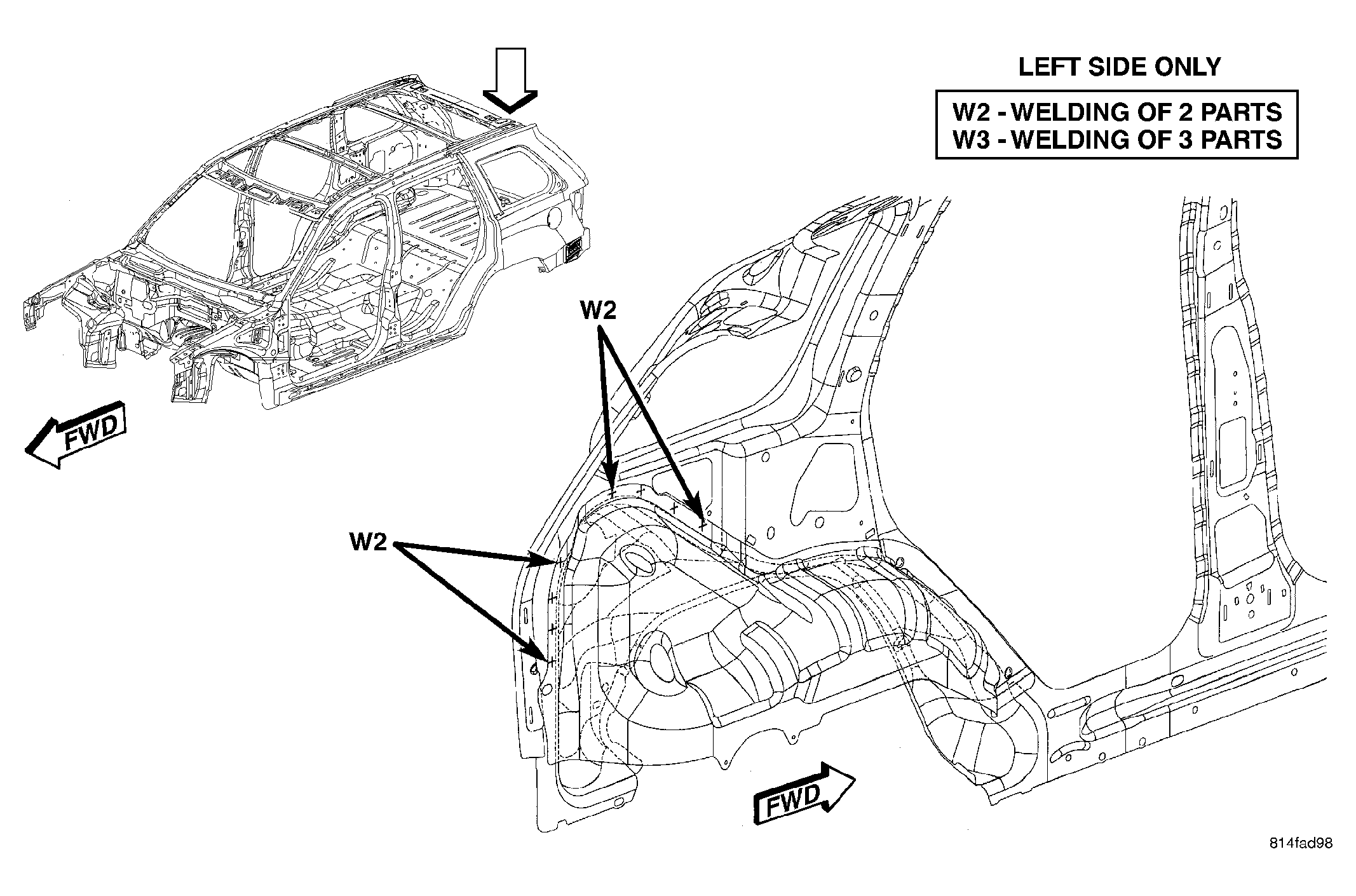

Fig 103: BODY W/O ROOF (3 OF 12)
GC0028146Courtesy of DAIMLERCHRYSLER CORP.
Fig 104: BODY W/O ROOF (4 OF 12)
GC0028147Courtesy of DAIMLERCHRYSLER CORP.
Fig 105: BODY W/O ROOF (5 OF 12)
GC0028148Courtesy of DAIMLERCHRYSLER CORP.
Fig 106: BODY W/O ROOF (6 OF 12)
GC0028149Courtesy of DAIMLERCHRYSLER CORP.

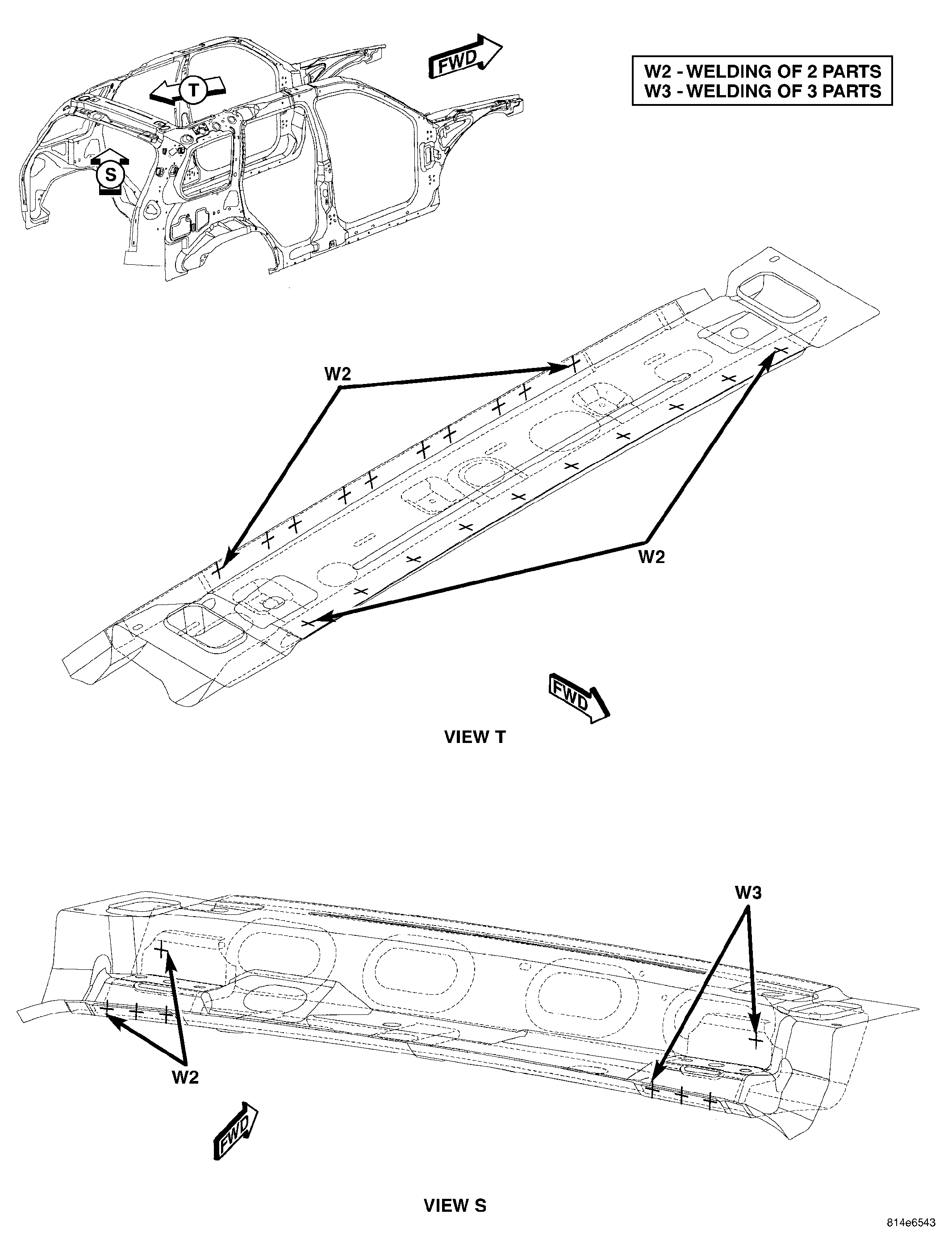

Fig 107: BODY W/O ROOF (7 OF 12)
GC0028150Courtesy of DAIMLERCHRYSLER CORP.
Fig 108: BODY W/O ROOF (8 OF 12)
GC0028151Courtesy of DAIMLERCHRYSLER CORP.
Fig 109: BODY W/O ROOF (9 OF 12)
GC0028152Courtesy of DAIMLERCHRYSLER CORP.
Fig 110: BODY W/O ROOF (10 OF 12)
GC0028153Courtesy of DAIMLERCHRYSLER CORP.
Fig 111: BODY W/O ROOF (11 OF 12)
GC0028154Courtesy of DAIMLERCHRYSLER CORP.
Fig 112: BODY W/O ROOF (12 OF 12)
GC0028155Courtesy of DAIMLERCHRYSLER CORP.

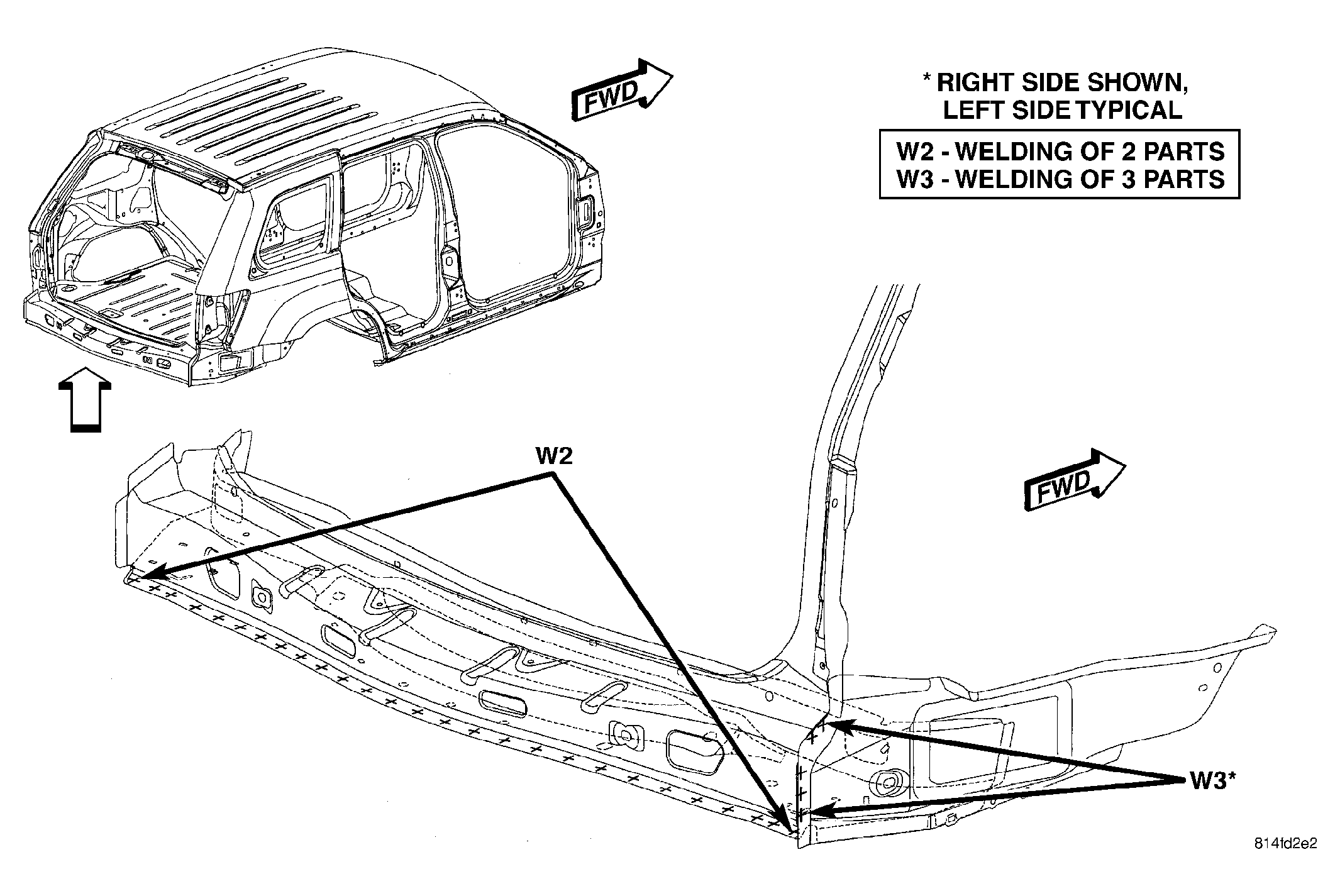

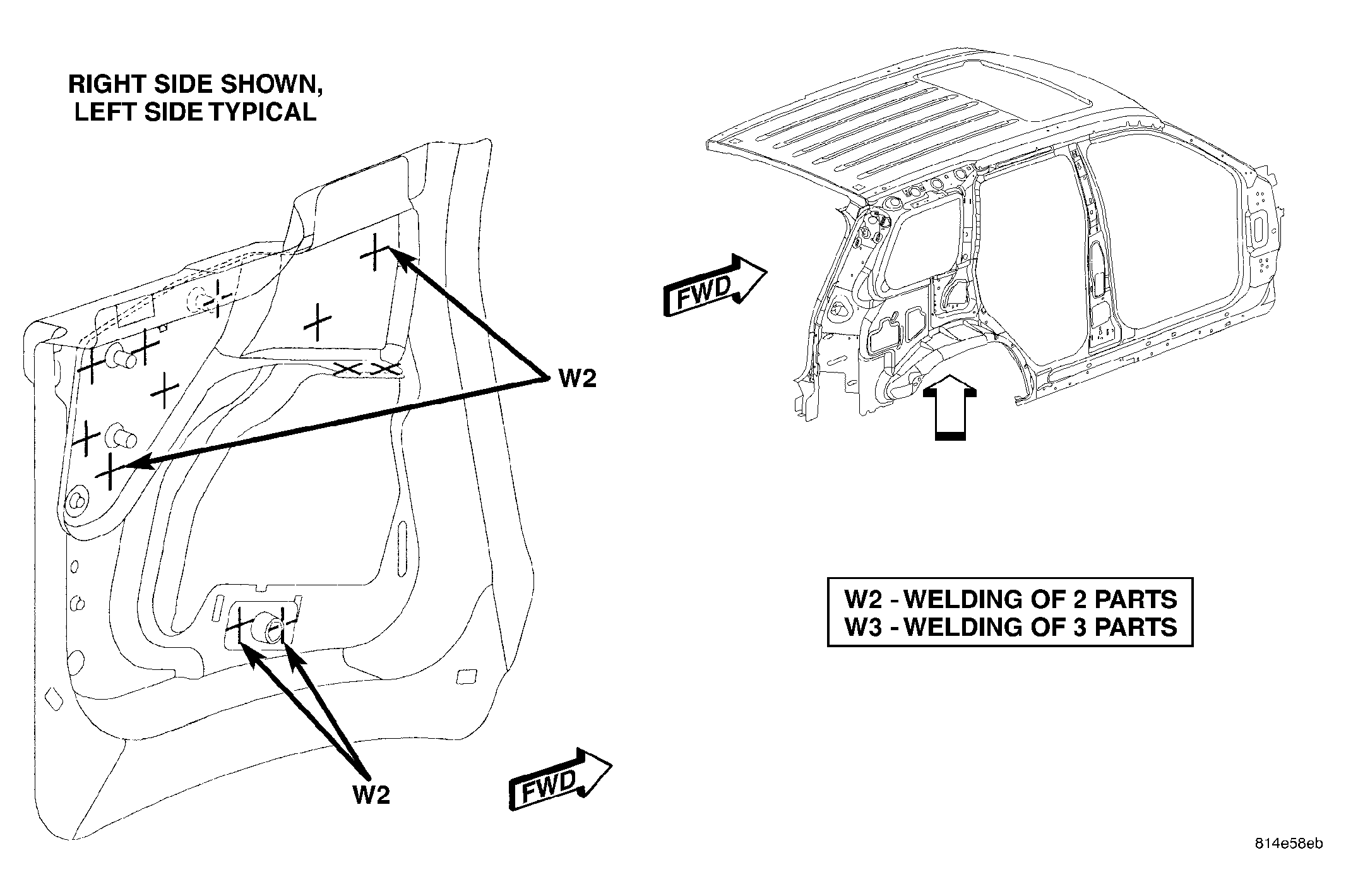

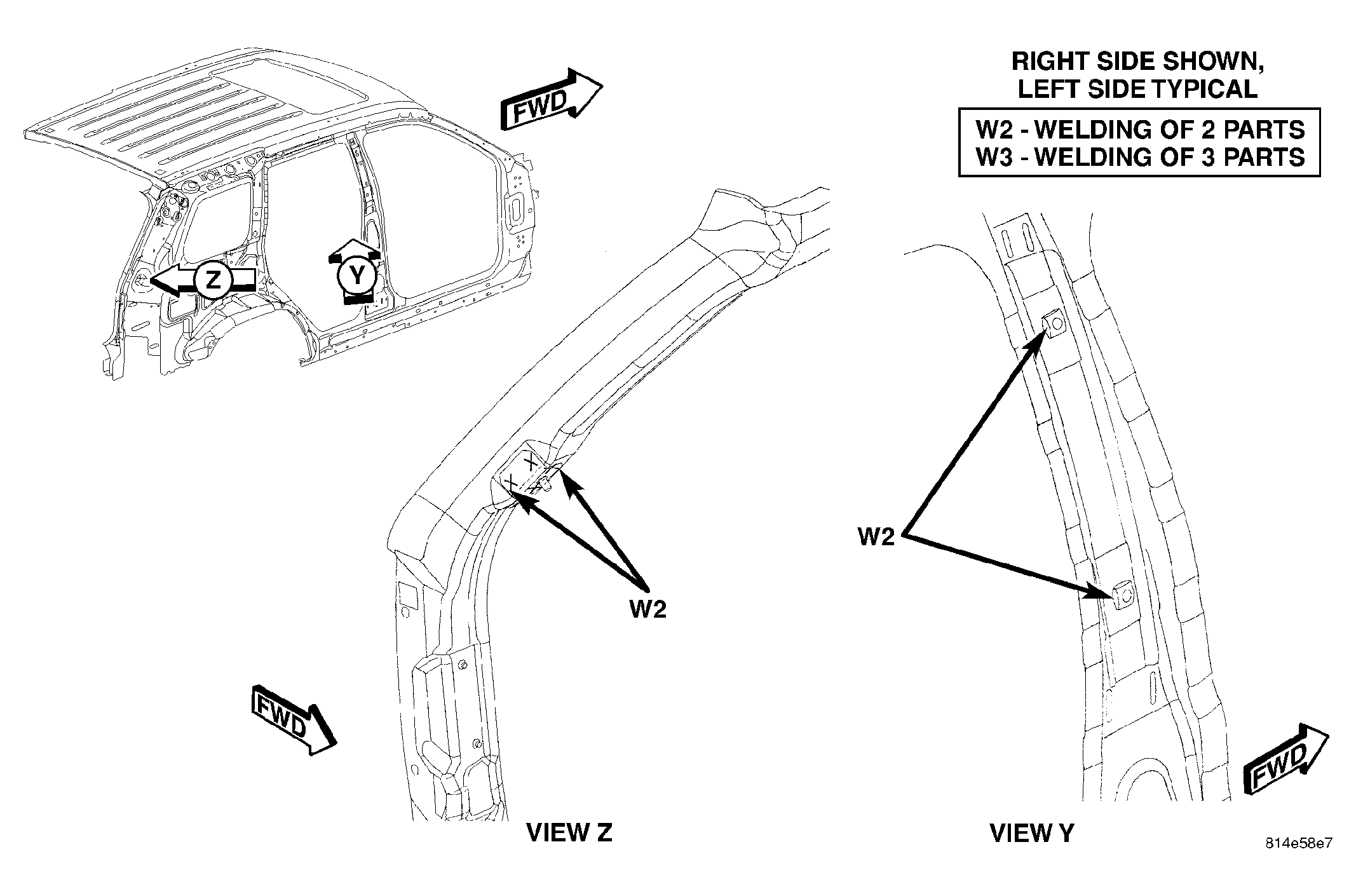

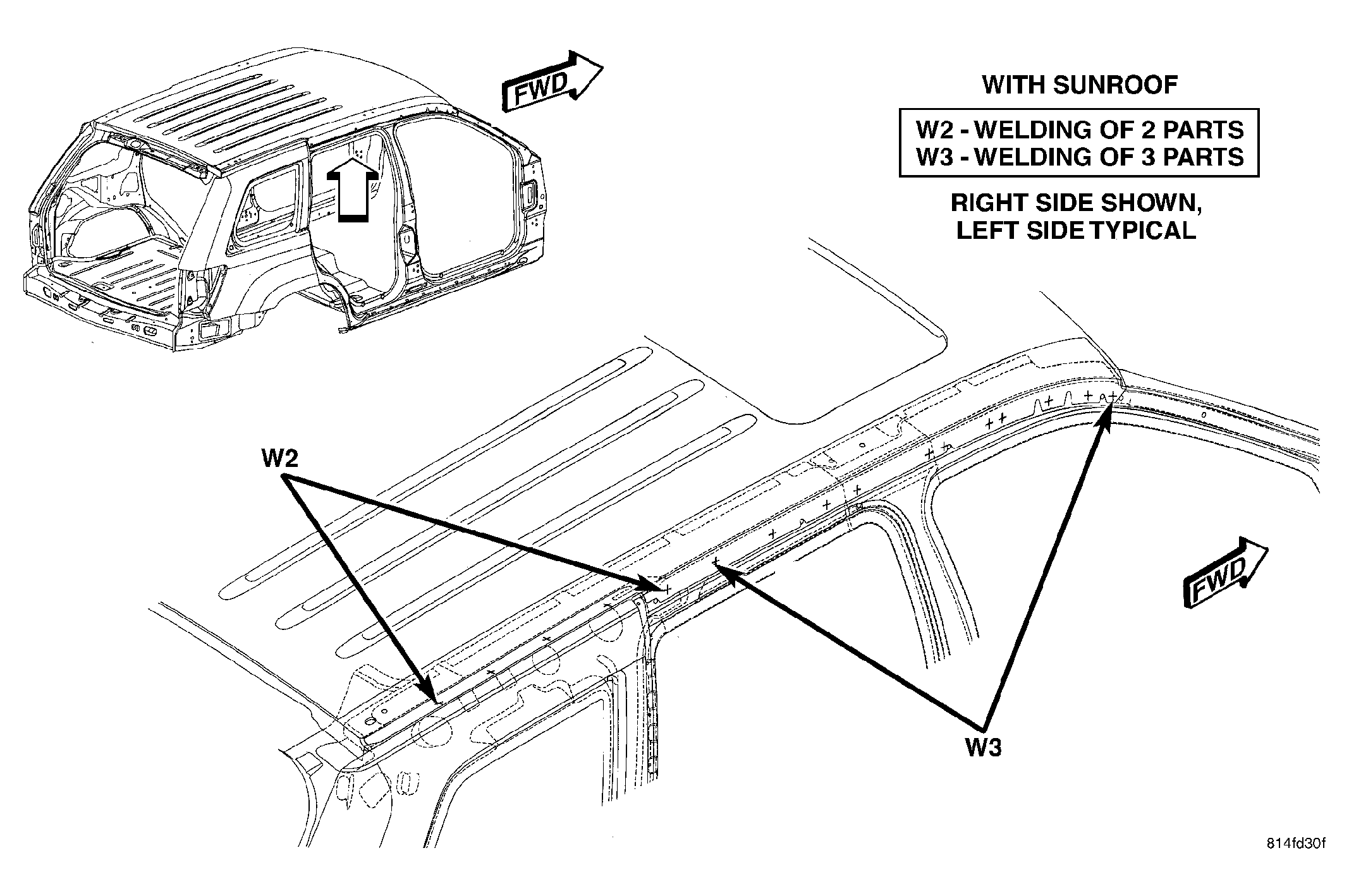

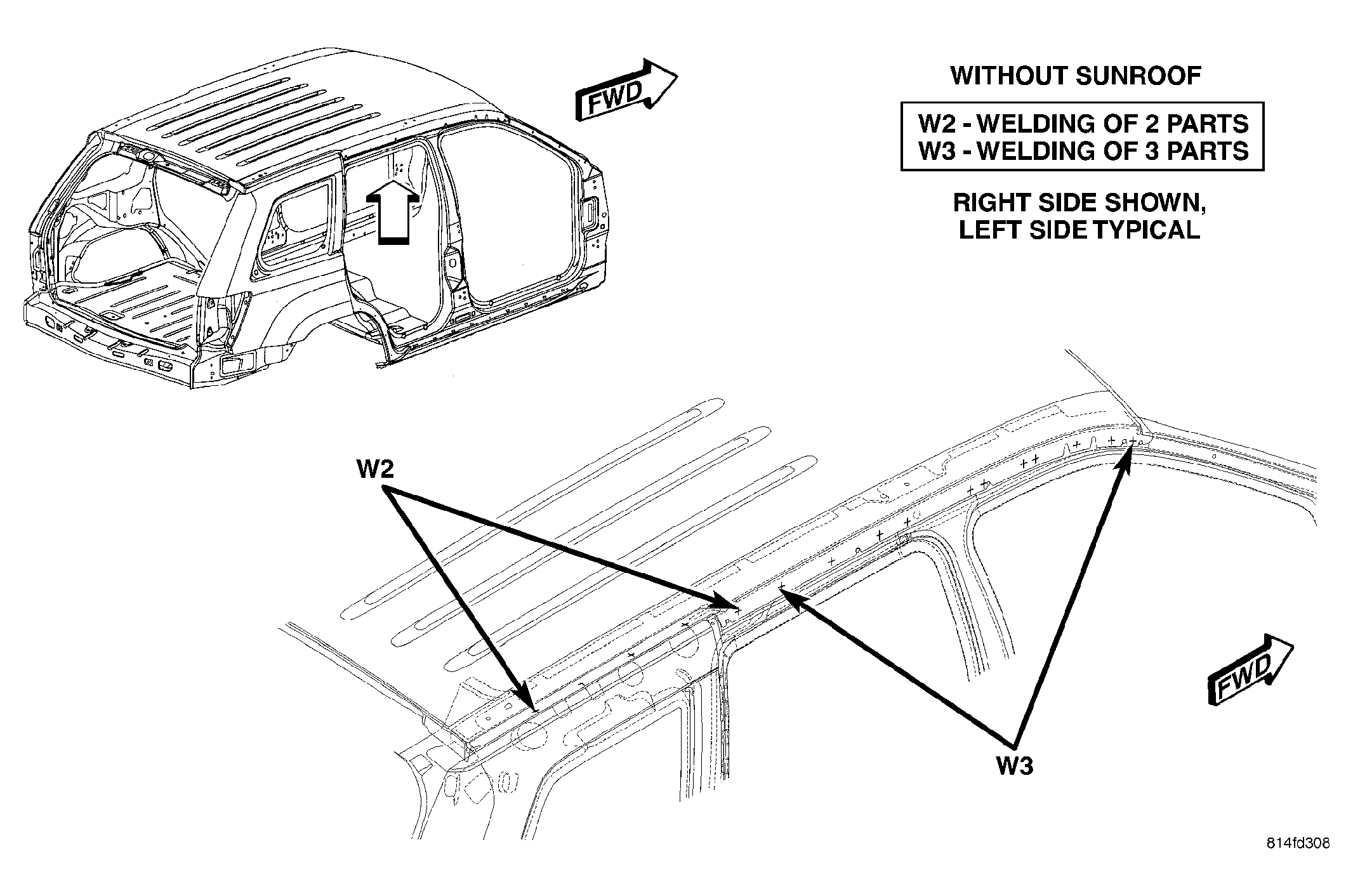

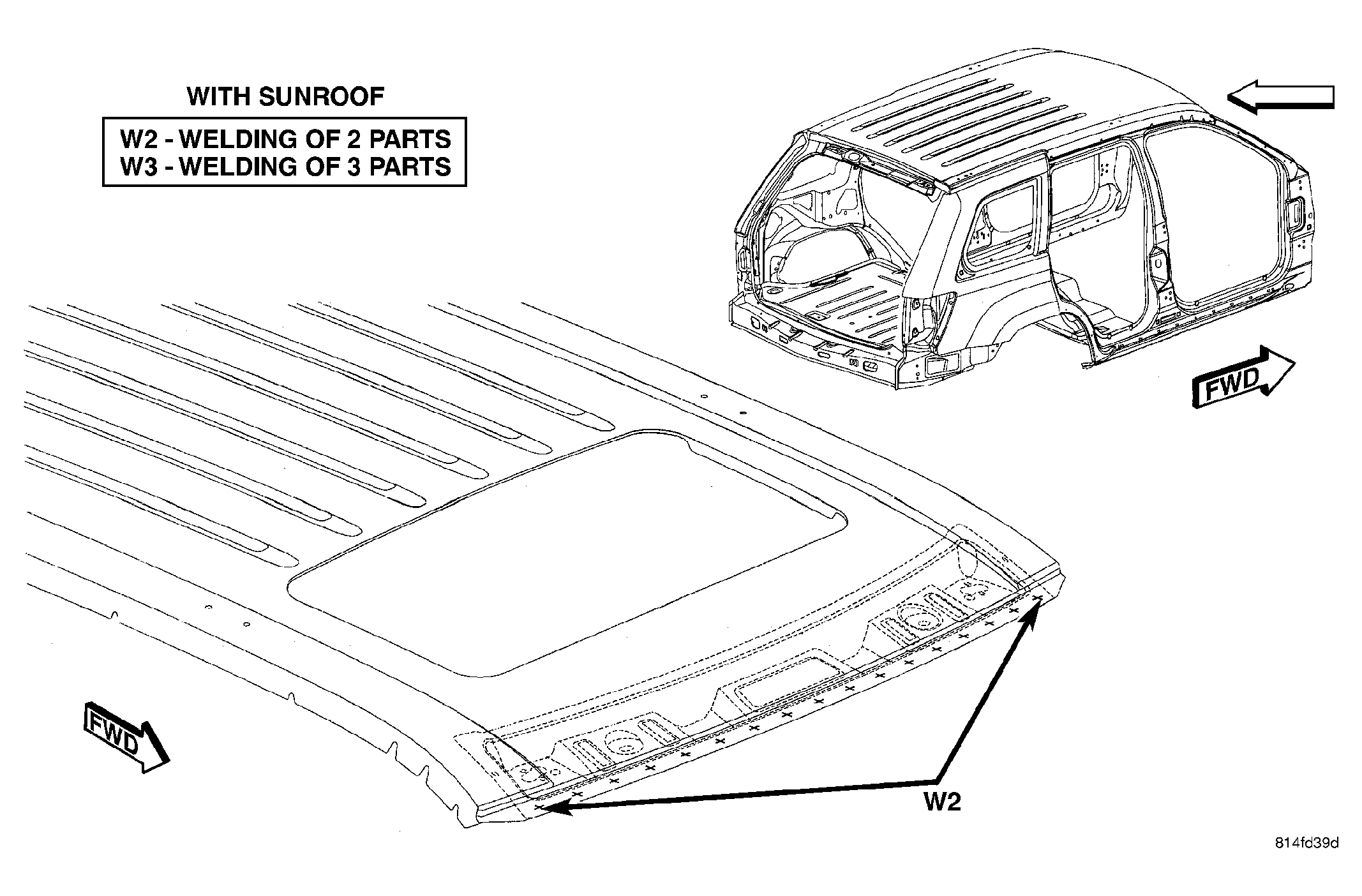

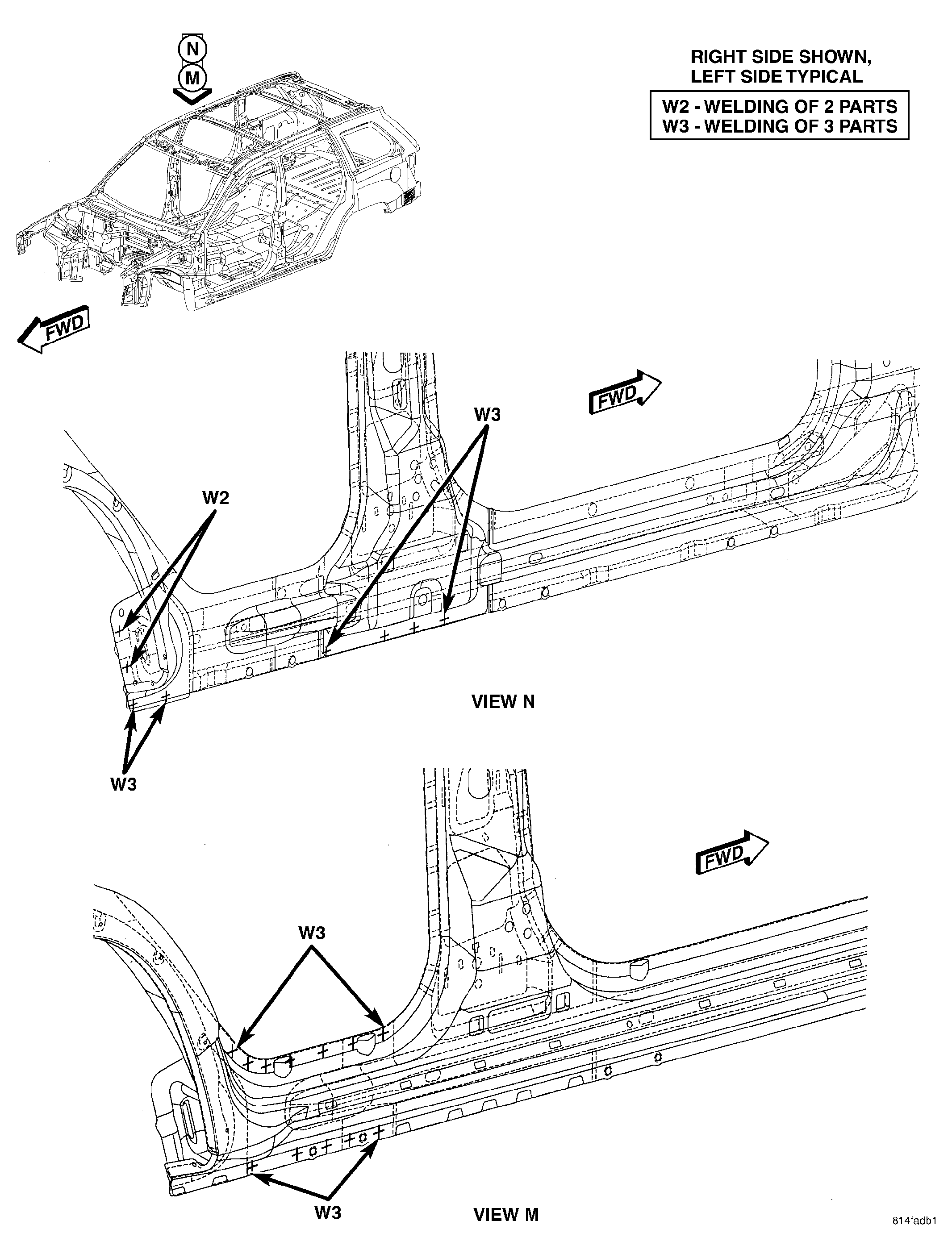

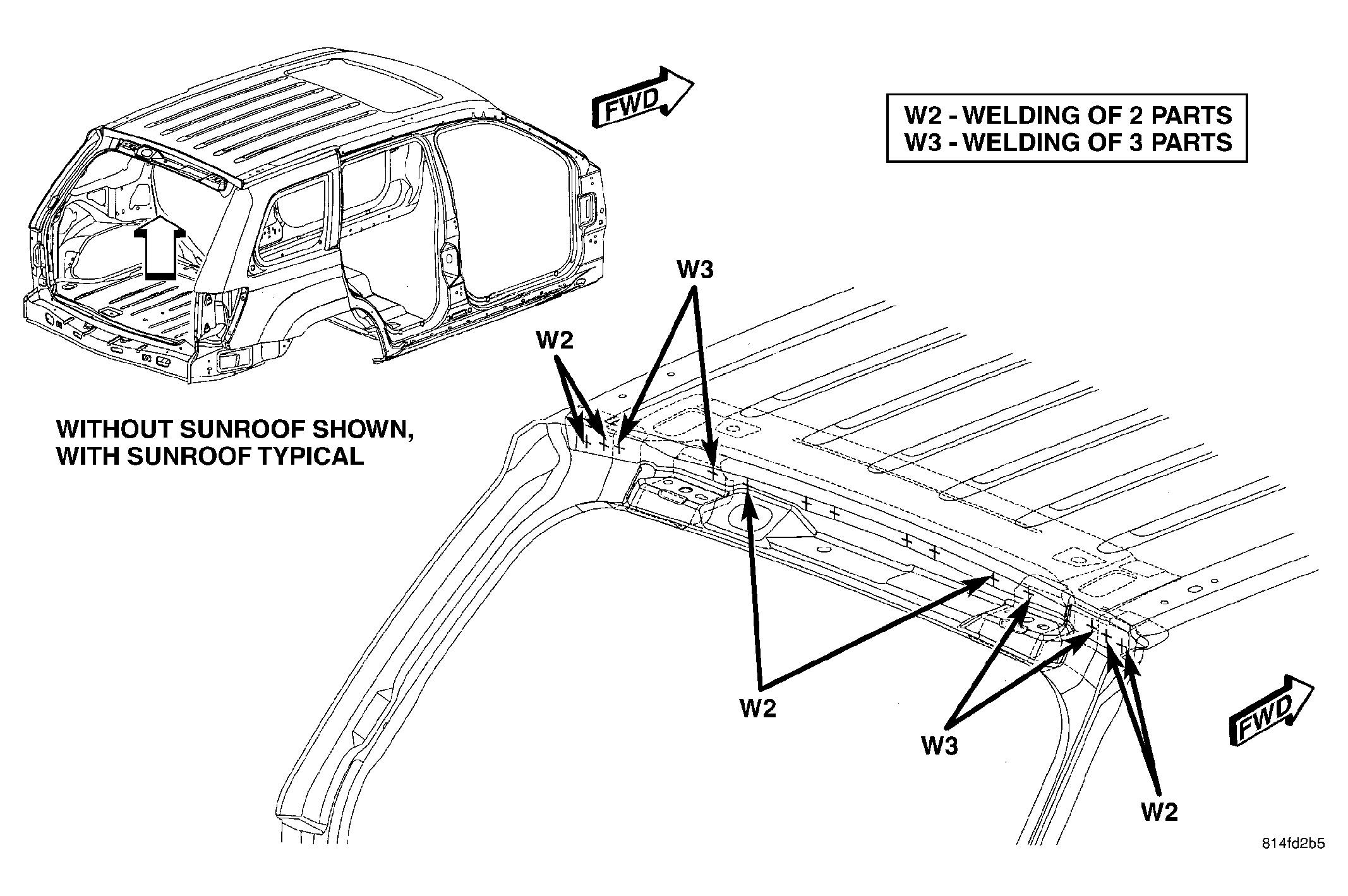

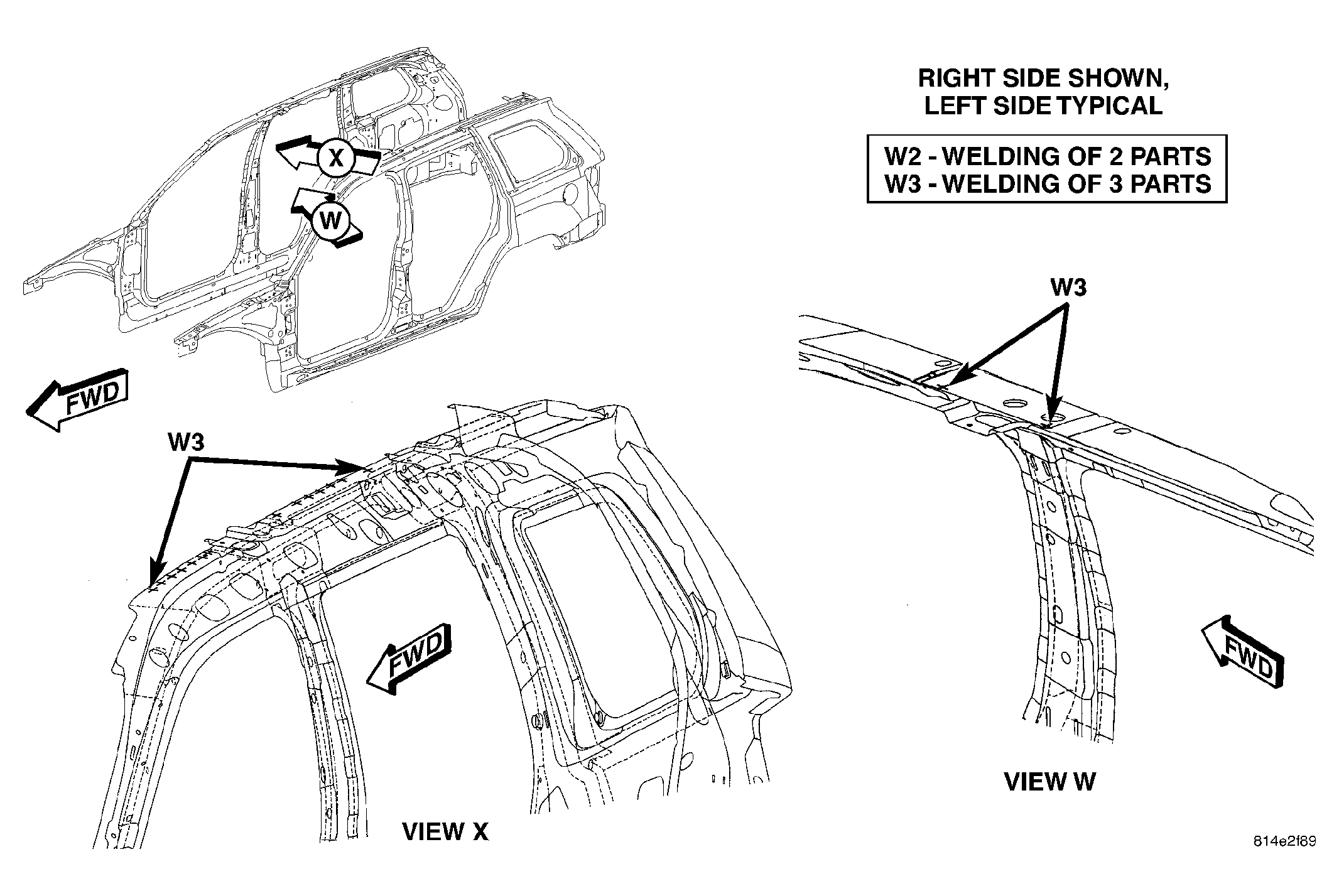

Fig 113: BODY - COMPLETE (1 OF 7)
GC0028156Courtesy of DAIMLERCHRYSLER CORP.
Fig 114: BODY - COMPLETE (2 OF 7)
GC0028157Courtesy of DAIMLERCHRYSLER CORP.
Fig 115: BODY - COMPLETE (3 OF 7)
GC0028158Courtesy of DAIMLERCHRYSLER CORP.
Fig 116: BODY - COMPLETE (4 OF 7)
GC0028159Courtesy of DAIMLERCHRYSLER CORP.
Fig 117: BODY - COMPLETE (5 OF 7)
GC0028160Courtesy of DAIMLERCHRYSLER CORP.

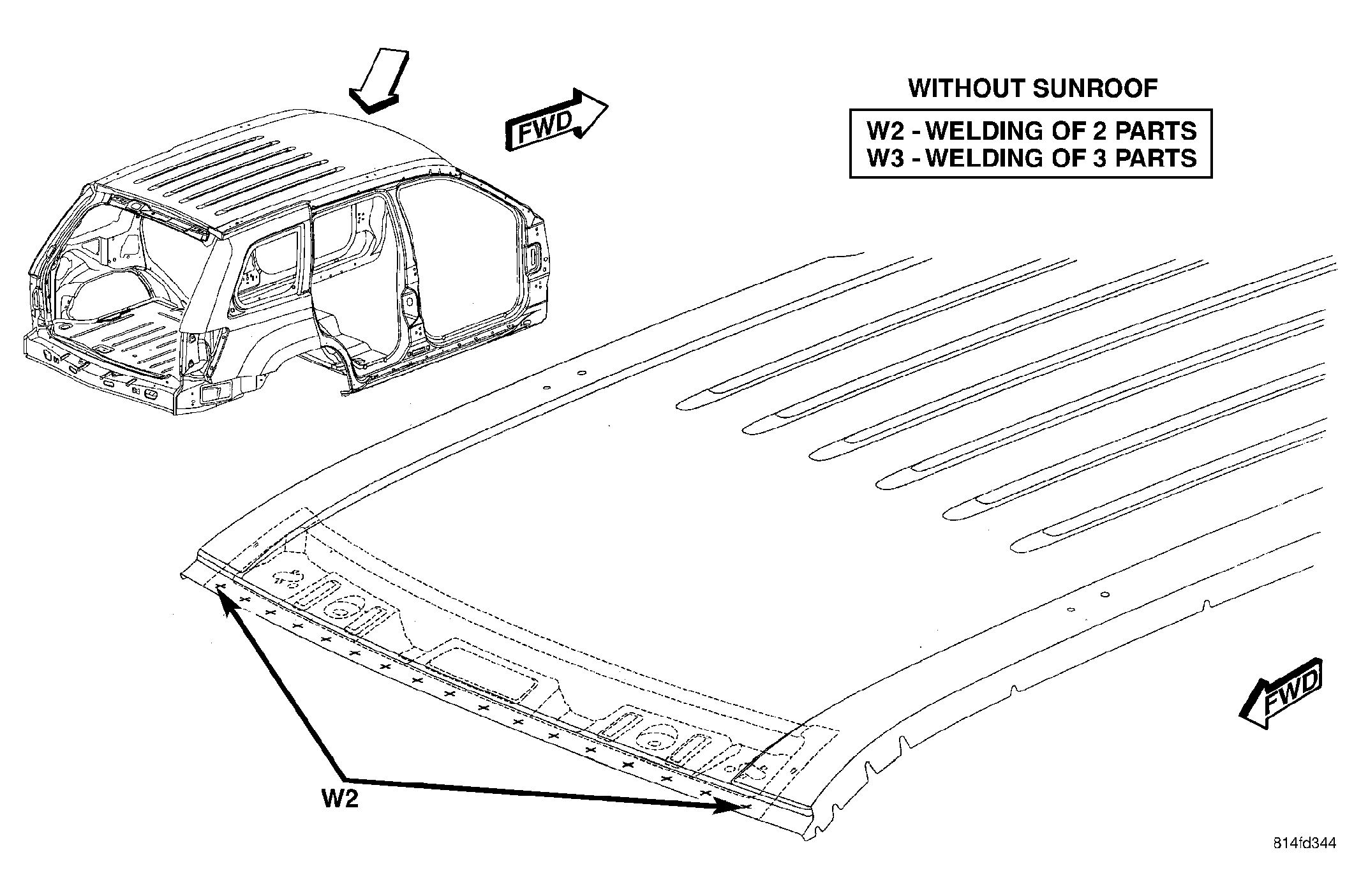

Fig 118: BODY - COMPLETE (6 OF 7)
GC0028161Courtesy of DAIMLERCHRYSLER CORP.

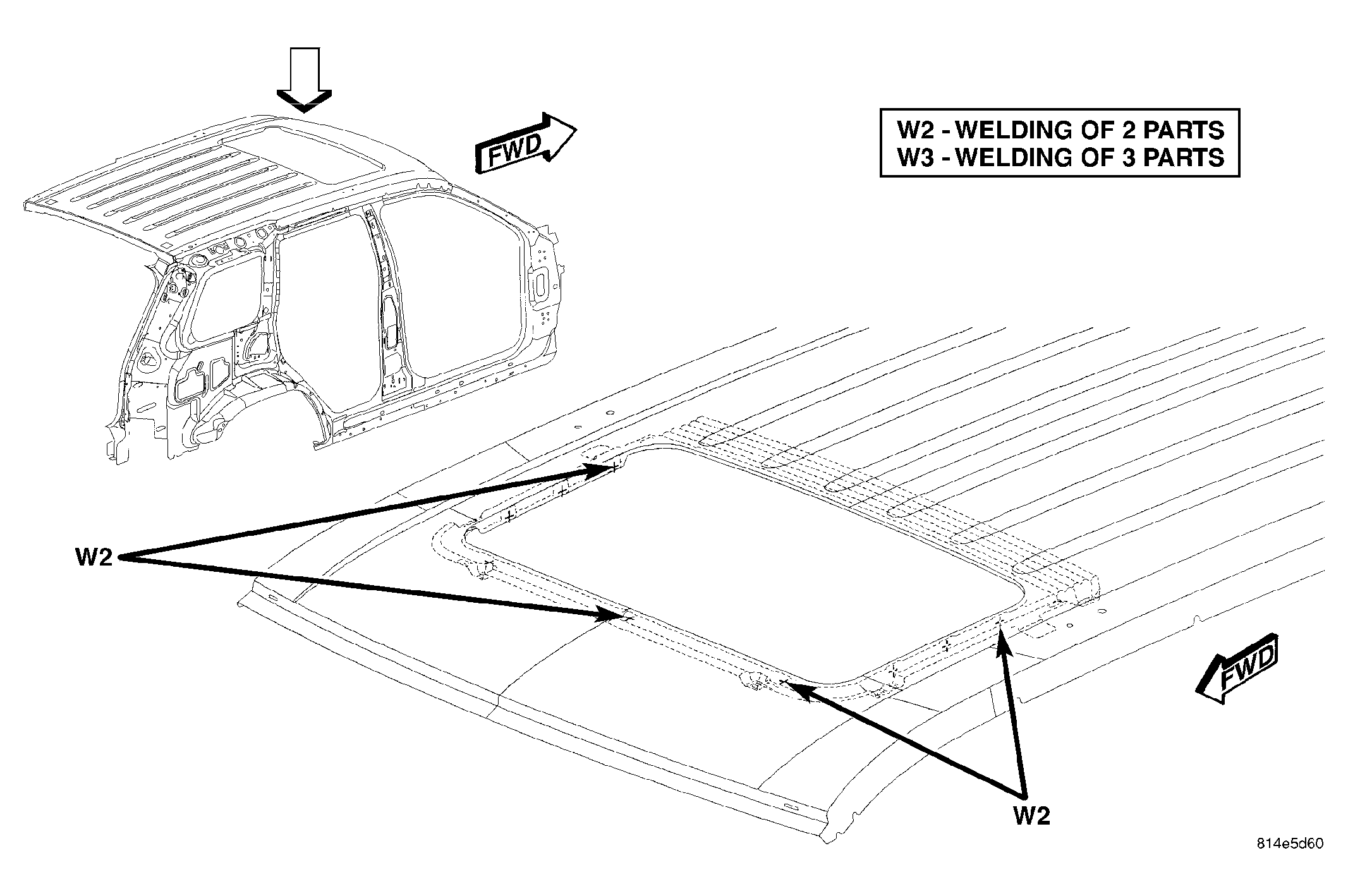

Fig 119: BODY - COMPLETE (7 OF 7)
GC0028162Courtesy of DAIMLERCHRYSLER CORP.
scientia non olet · About LEMON Manuals
