Gap And Flush Specifications

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

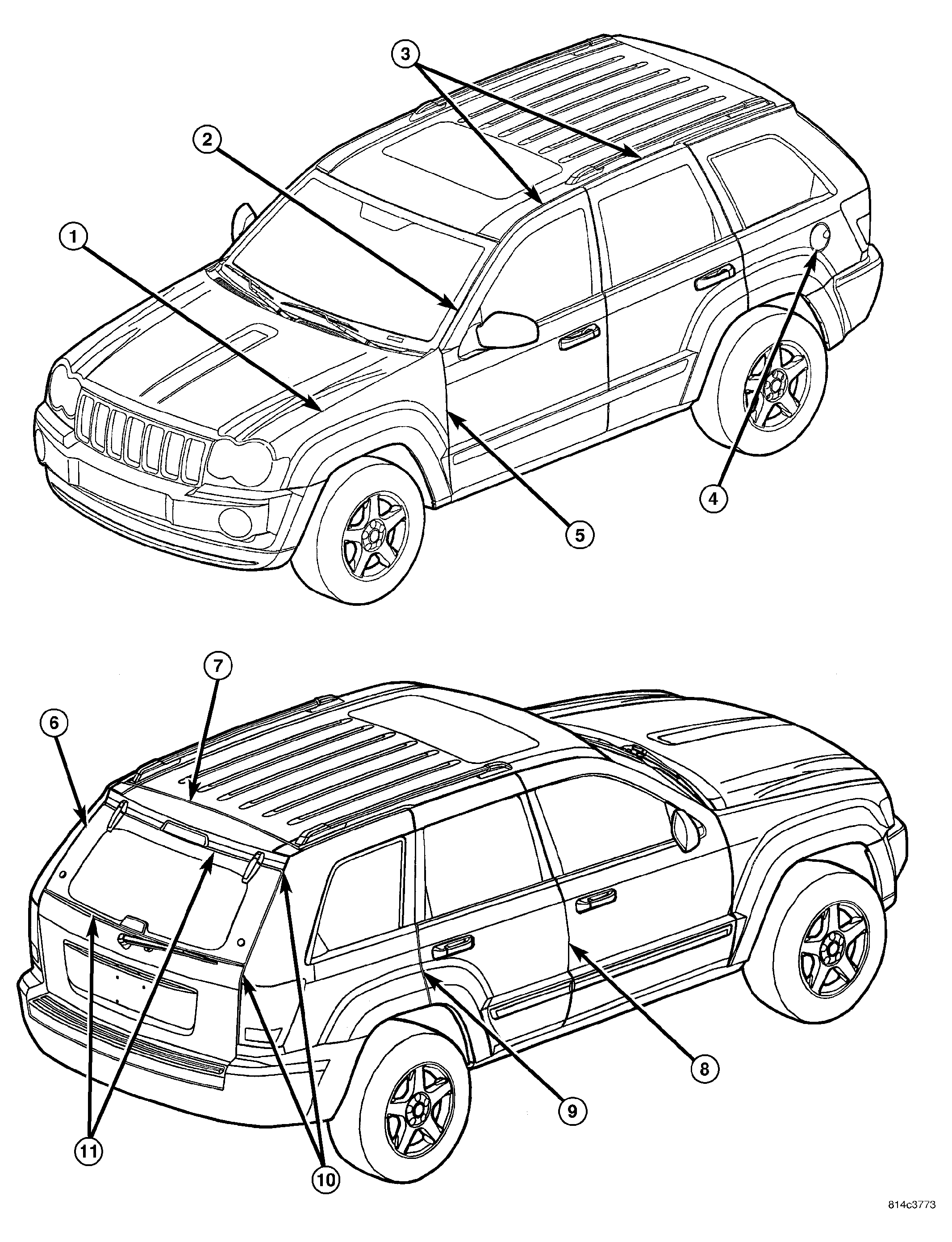

Fig 1: GAP AND FLUSH

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: All measurements are in mm.
DIMENSION	DESCRIPTION	GAP	FLUSH
1	HOOD TO FENDER	4.0 +/- 1.5 PARALLEL WITHIN 1.5	HOOD UNDERFLUSH -0.5 +/- 1.5 PARALLEL WITHIN 1.5
2	WINDSHIELD MOLDING TO FRONT DOOR	6.0 +/- 2.0	MOLDING OVERFLUSH 3.0 +/- 1.0
3	FRONT AND REAR DOORS TO ROOF	6.0 +/- 1.5 PARALLEL WITHIN 2.5	DOORS OVERFLUSH 2.0 +/- 1.5
4	FUEL DOOR TO BODY SIDE	3.0 +/- 1.0	FUEL DOOR UNDERFLUSH -0.5 +/- 1.0
5	FENDER TO FRONT DOOR	4.5 +/- 1.25 PARALLEL WITHIN 1.25	FENDER OVERFLUSH 0.5 +/- 1.0
6	FLIPPER GLASS TO BODY SIDE	4.0 +/- 1.5 PARALLEL WITHIN 1.5 SIDE TO SIDE WITHIN 1.5	GLASS UNDERFLUSH -2.5 +/- 2.5
7	LIFTGATE TO ROOF	9.0 +/- 2.0	LIFTGATE UNDERFLUSH -1.0 +/- 1.5 PARALLEL WITHIN 1.5
8	FRONT DOOR TO REAR DOOR	4.5 +/- 1.0 PARALLEL WITHIN 1.0	0.0 +/- 1.25 PARALLEL WITHIN 1.5
9	REAR DOOR TO BODY SIDE	4.5 +/- 1.0 PARALLEL WITHIN 1.0	0.0 +/- 1.25 PARALLEL WITHIN 1.5
10	LIFTGATE TO BODY SIDE	4.0 +/- 1.5 PARALLEL WITHIN 1.5 SIDE TO SIDE WITHIN 1.5	LIFTGATE UNDERFLUSH -0.5 +/- 1.5
11	FLIPPER GLASS TO LIFTGATE	5.0 +/- 1.5	-
