4.7L V-8
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

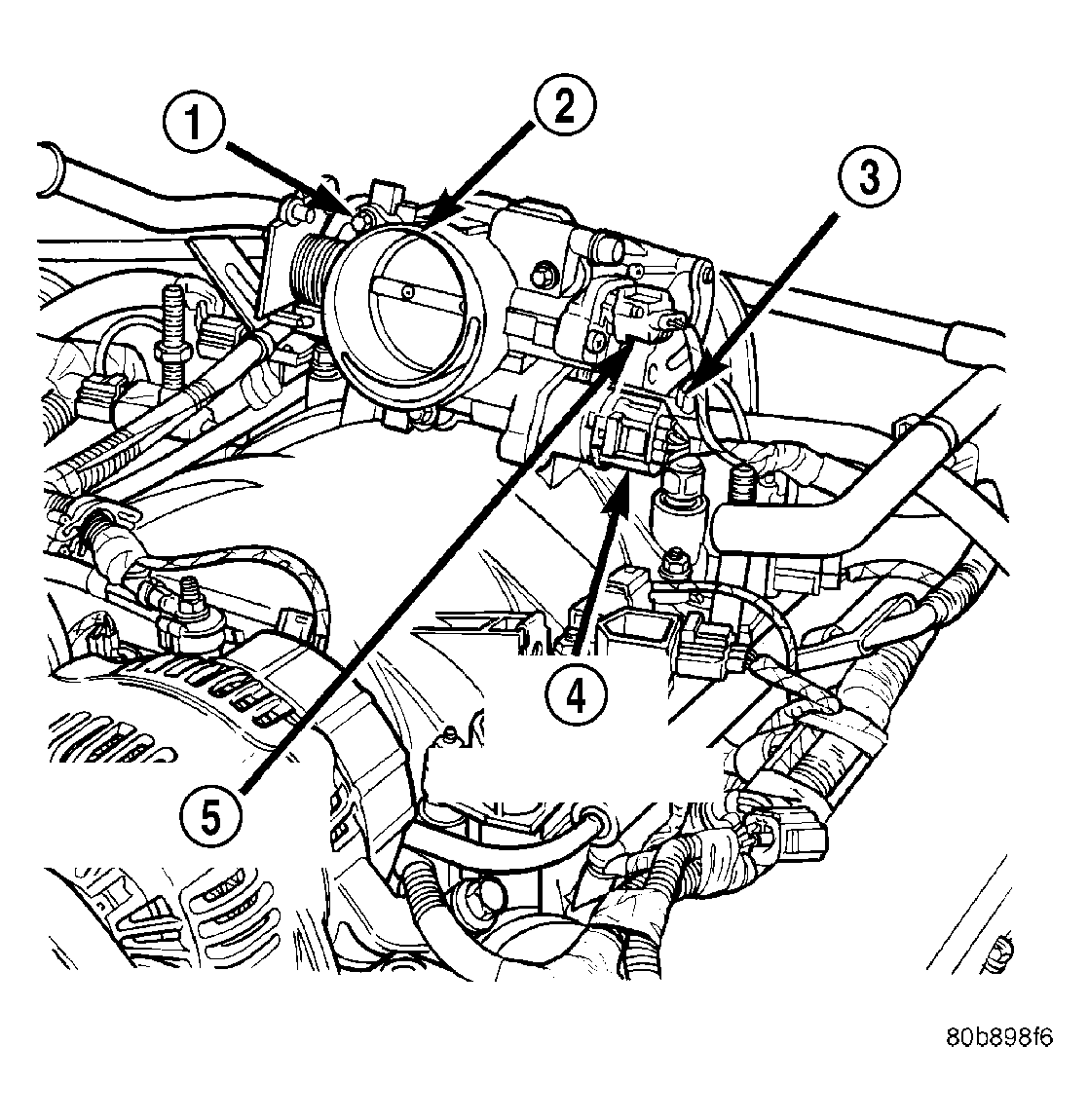

| 1 - MOUNTING BOLTS (3) |
| 2 - THROTTLE BODY |
| 3 - IAT SENSOR CONNECTOR |
| 4 - IAC MOTOR CONNECTOR |
| 5 - TPS CONNECTOR |
- Remove air duct and air resonator box at throttle body.
- Disconnect throttle body electrical connectors at IAC motor and TPS (3) , (4), and (5).
- Remove vacuum line at throttle body.
- Remove all control cables from throttle body (lever) arm. Refer to PEDAL-ACCELERATOR and CABLE-THROTTLE CONTROL .
- Remove three throttle body mounting bolts (1).
- Remove throttle body from intake manifold.
