With APPS (Accelerator Pedal Position Sensor)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

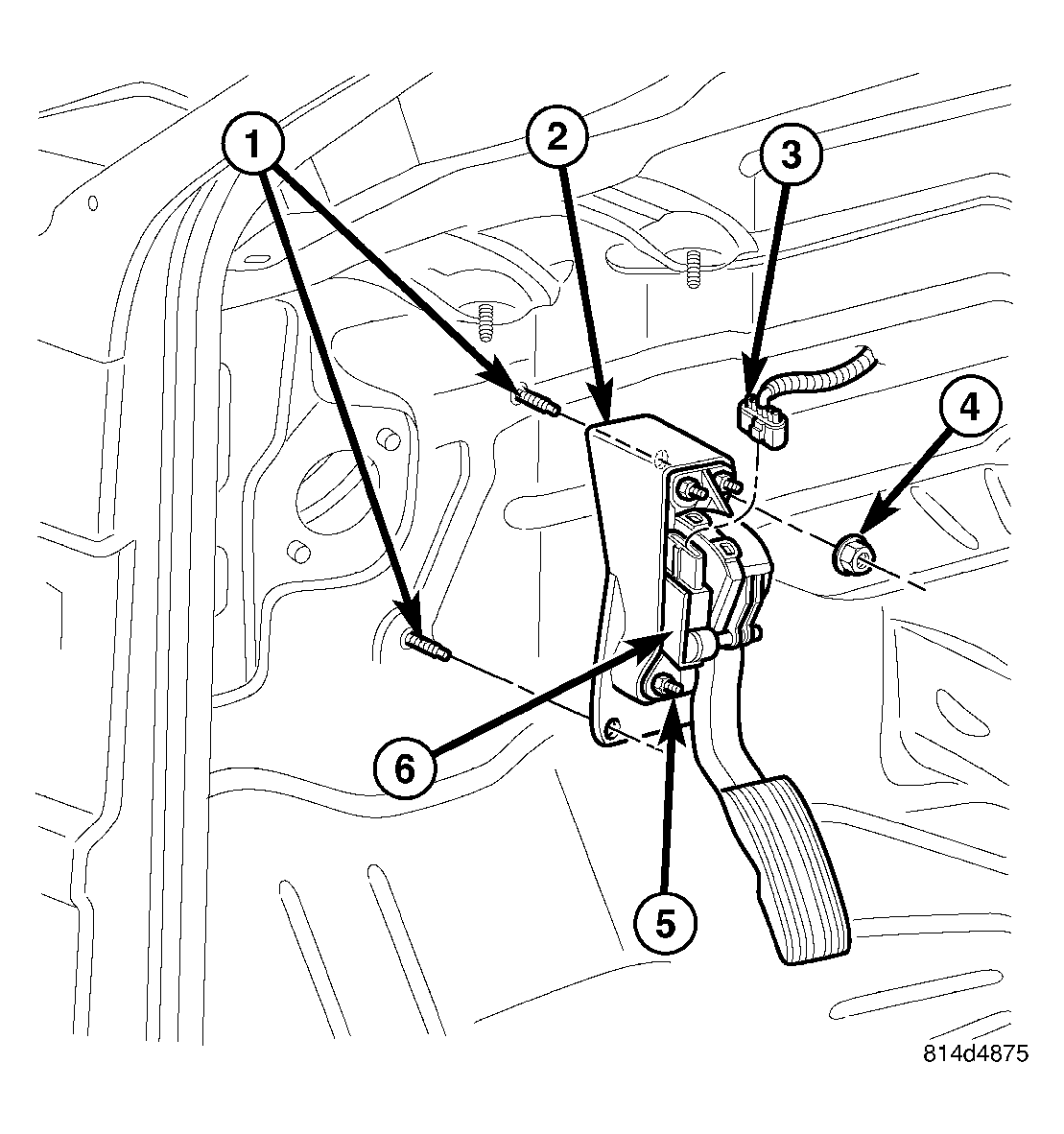

The following procedure applies only to vehicles without the Adjustable Pedal Package (code XAP). It also applies to vehicles equipped with an accelerator pedal position sensor (6).
The accelerator pedal is serviced as a complete assembly including the bracket.
- Disconnect electrical connector (3) at APPS (6).
- Remove two accelerator pedal mounting bracket nuts (4). Remove accelerator pedal assembly.
- Remove three sensor-to-pedal nuts (5). Remove APPS from accelerator pedal assembly.
