Fluid Reservoir - 5.7L & Diesel

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

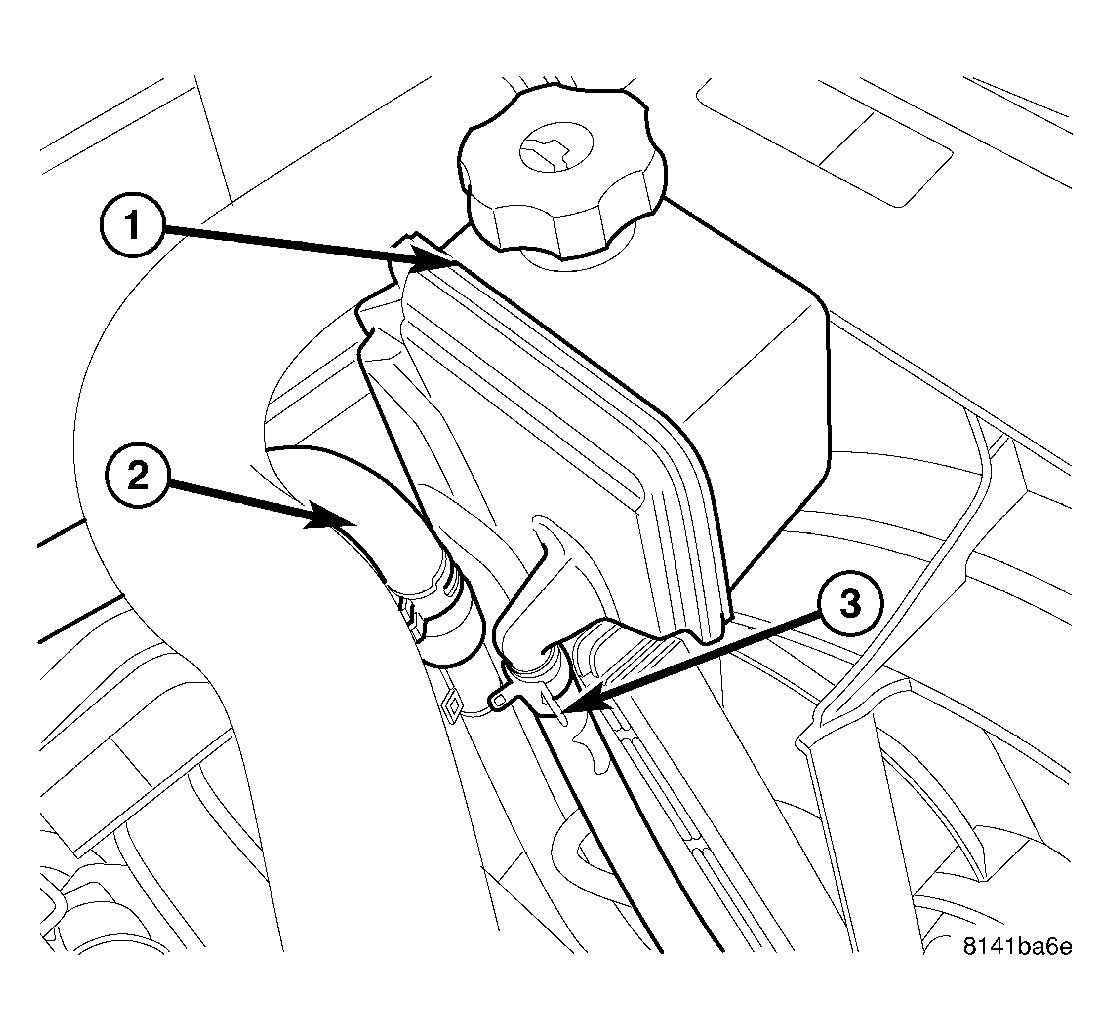

Fig 1: Fluid Reservoir

Courtesy of DAIMLERCHRYSLER CORP.

Install the lower return hose (3) to the reservoir (1).
Install the reservoir (1) into the mounting slot.

Fig 2: 5.7 Reservoir Hoses
Courtesy of DAIMLERCHRYSLER CORP.
Install the hoses (2&3).
Add power steering fluid, (Refer to STEERING/PUMP - STANDARD PROCEDURE) .
