Fluid Reservoir - 3.7L & 4.7L

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

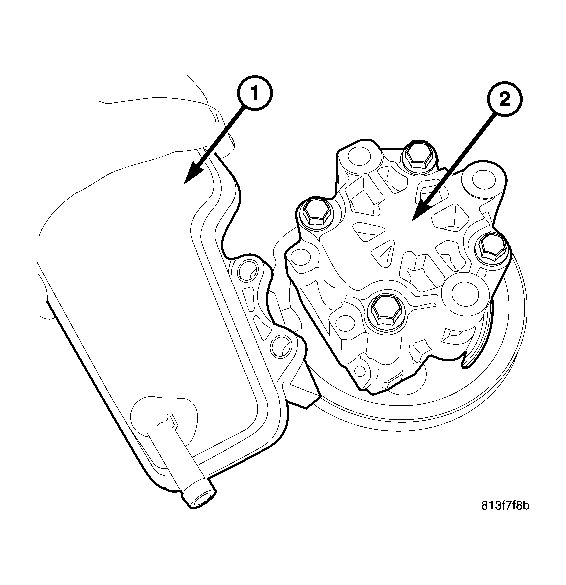

Fig 1: Reservoir From Pump

Courtesy of DAIMLERCHRYSLER CORP.

Lubricate new O-ring Seal with Mopar Power Steering Fluid or equivalent.
Install O-ring seal.
Install the reservoir (1) onto the pump body (2).

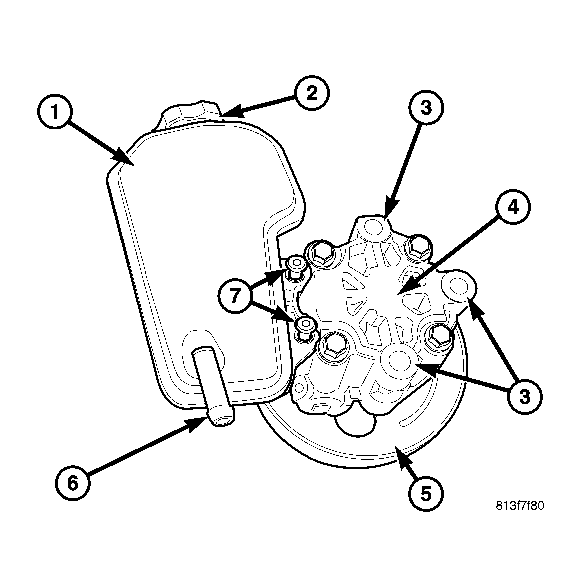

Fig 2: Pump With Reservoir
Courtesy of DAIMLERCHRYSLER CORP.
Install the 2 reservoir mounting bolts (7) to the pump (4).

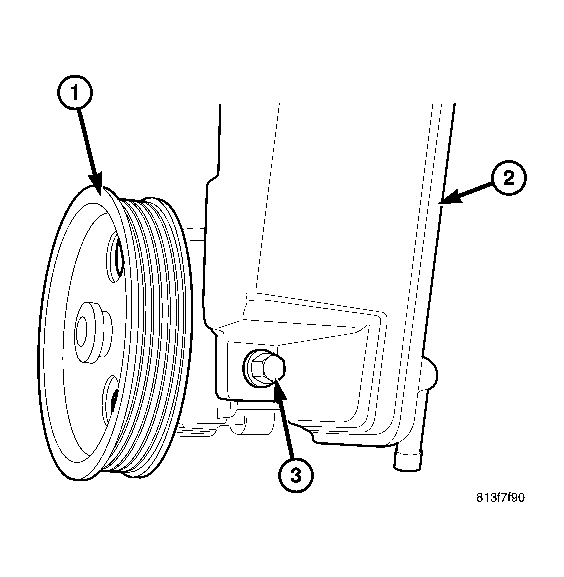

Fig 3: Reservoir Mounting Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Install the side reservoir (2) mounting bolt (3) to the pump.
Install power steering pump (Refer to STEERING/PUMP - INSTALLATION) .
Add power steering fluid, (Refer to STEERING/PUMP - STANDARD PROCEDURE) .
