Pump - Service Information: Pulley: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

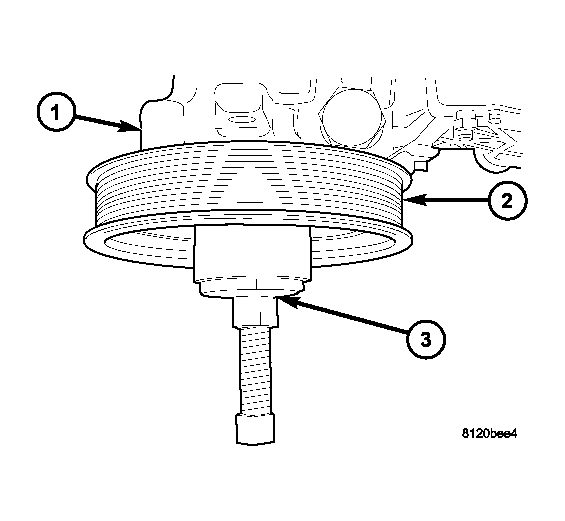

Fig 1: Removing Pulley
GC0010491Courtesy of DAIMLERCHRYSLER CORP.
CAUTION: Do not reuse the old power steering pump pulley it is not intended for reuse. A new pulley must be installed if removed.
  1. Remove the power steering pump assembly, 4.7L & 5.7L only. (Refer to STEERING/PUMP - REMOVAL) .
  2. Remove the pulley (2) from the pump (1) using (OTC® 7185) power steering pulley removal tool (3) or equivalent.
