Supply Hose - Pump To Reservoir

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

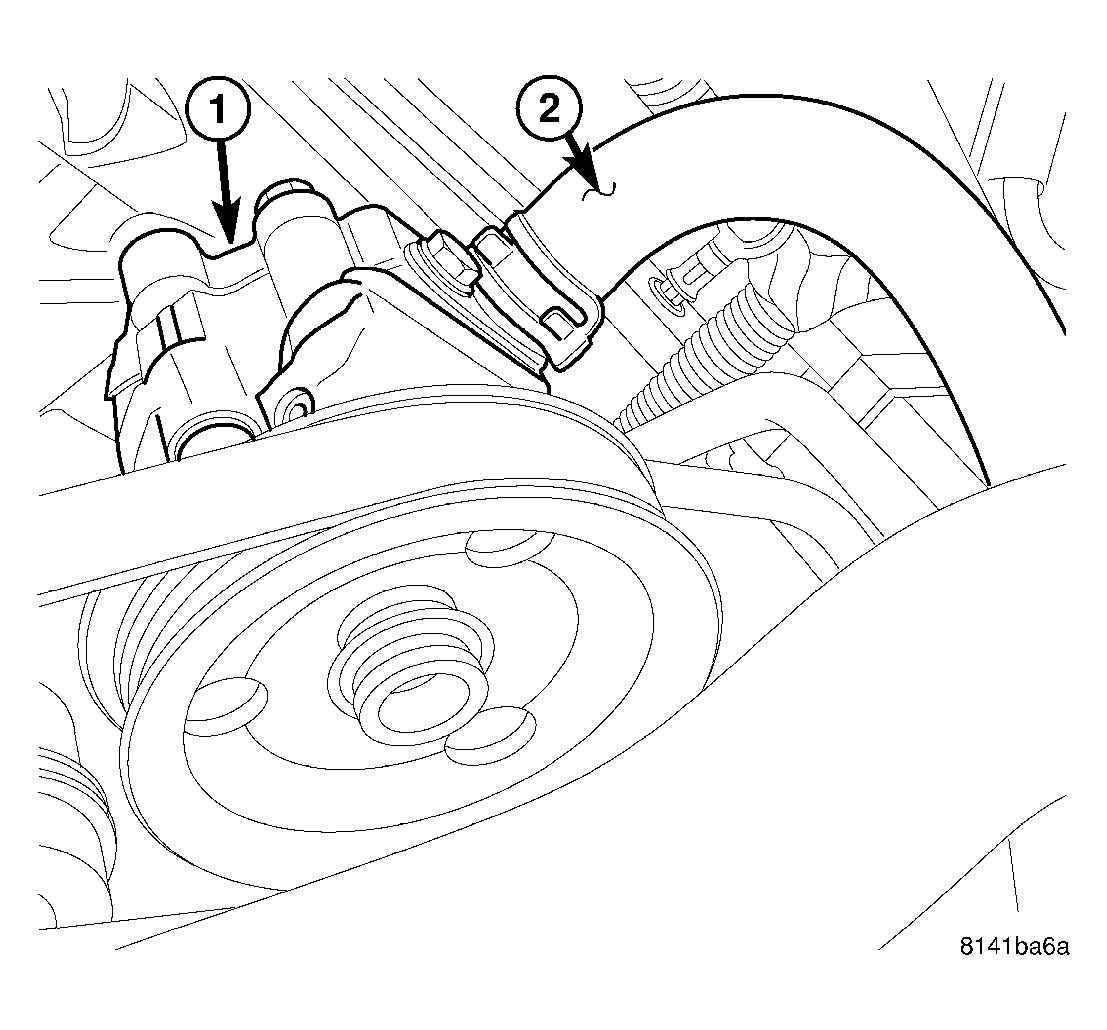

Fig 1: Return Hose - 5.7

Courtesy of DAIMLERCHRYSLER CORP.

Reconnect the power steering supply hose (2) to the power steering pump (1).

Fig 2: 5.7 Reservoir Hoses
Courtesy of DAIMLERCHRYSLER CORP.
Reconnect the supply hose (2) to the reservoir (1).
Fill the system with power steering fluid.
Install the air cleaner assembly.
Bleed the system (Refer to STEERING/PUMP - STANDARD PROCEDURE) .
