Pressure Line - Pump To Gear

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

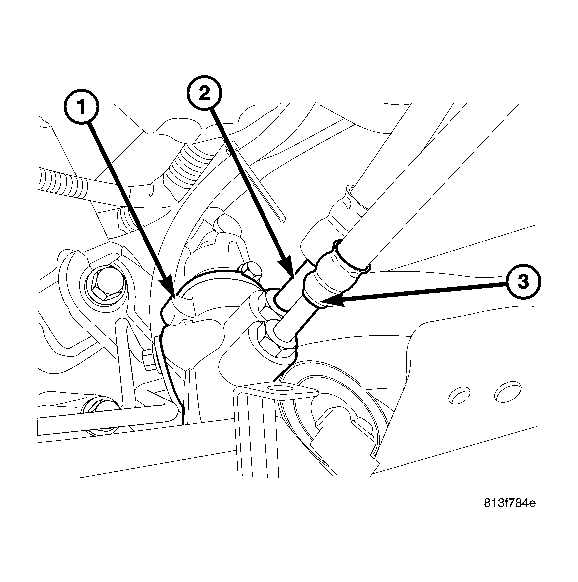

Fig 1: Gear Lines
GC0027300Courtesy of DAIMLERCHRYSLER CORP.
  1. Install the line (2) to the vehicle.
  2. Reconnect the power steering pressure line (2) to the power steering gear (1) Tighten to 28 N.m (21 ft.lbs.).

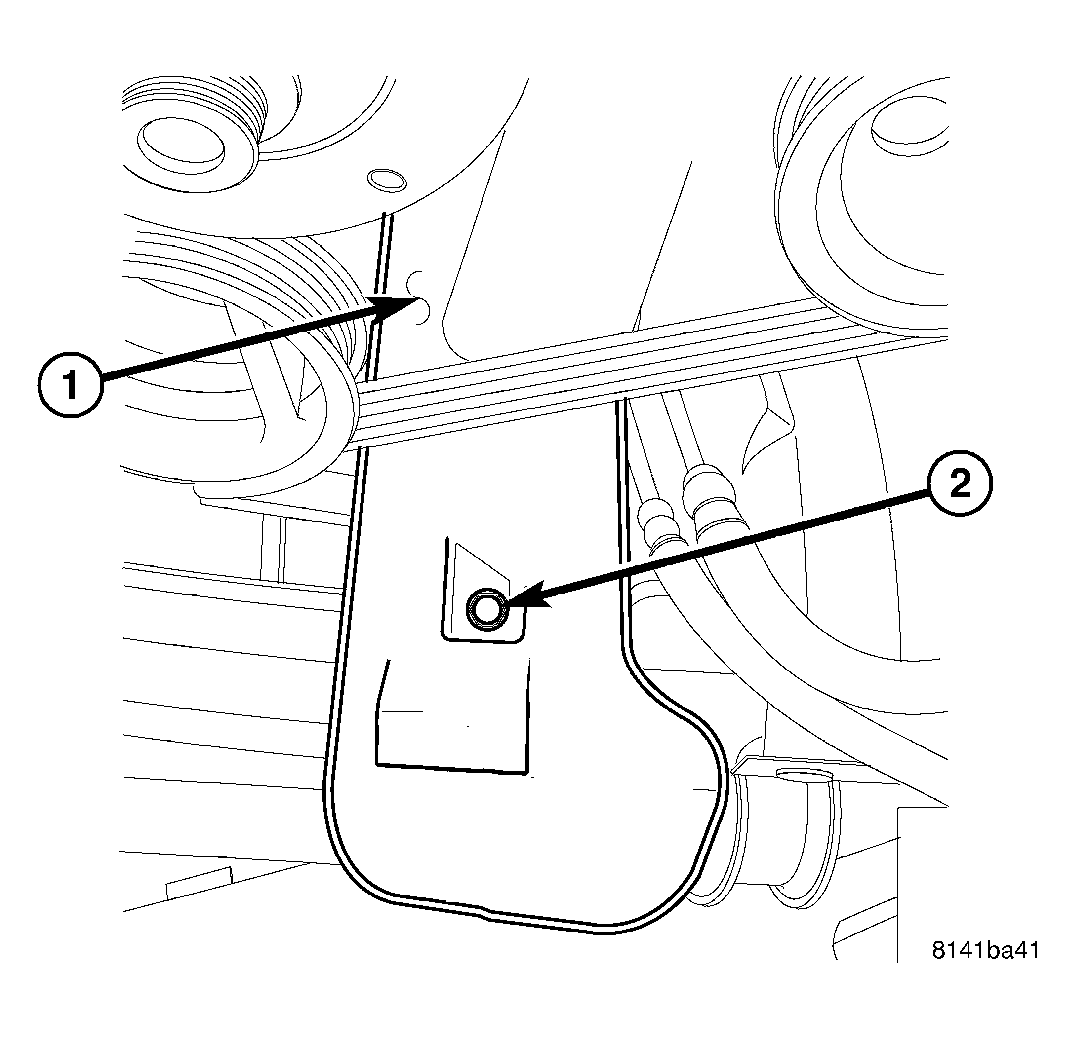

    Fig 2: Oil Drip Tray
    GC0027301Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the oil filter drain (1) and tighten the 3 bolts (2).
  4. Install the front splash shield.
  5. Lower the vehicle.
  6. Reconnect the power steering pressure line to the power steering pump Tighten to 28 N.m (21 ft.lbs.).
  7. Install the air cleaner assembly.
  8. Refill the power steering fluid and bleed the system, (Refer to STEERING/PUMP - STANDARD PROCEDURE) .
