Line From Cooler To Reservoir

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

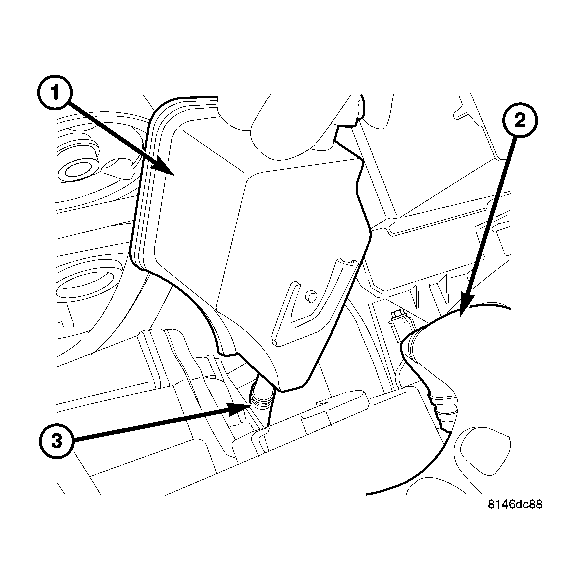

Fig 1: Fluid Reservoir

Courtesy of DAIMLERCHRYSLER CORP.

install the fluid cooler hose (3) to the reservoir (1).
Reinstall the reservoir (1) into the mounting slot.

Fig 2: Cooler Quick Disconnect
Courtesy of DAIMLERCHRYSLER CORP.
Install the fluid cooler quick connect line (3) to the fluid cooler (1).
Refill the power steering fluid and bleed the system, (Refer to STEERING/PUMP - STANDARD PROCEDURE) .
Start engine and check for leaks.

Fig 3: Grille Push Pins
Courtesy of DAIMLERCHRYSLER CORP.
Install the grille and the 6 grille push pins (1).
Install the hood weather-strip seal (2) at the radiator cowl.
