Fluid Cooler - 5.7L & Diesel

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Grille Push Pins

Courtesy of DAIMLERCHRYSLER CORP.

Drain the power steering fluid out of the reservoir.
Remove the hood weather-strip seal (2) at the radiator cowl.
Remove the 6 grille push pins (1).

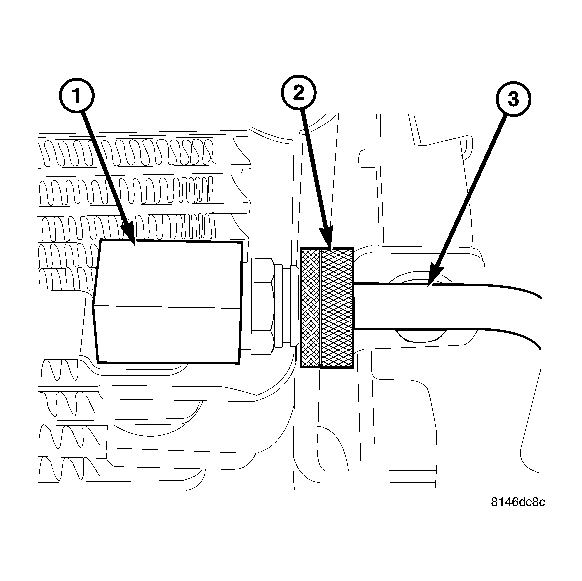

Fig 2: Cooler Quick Disconnect
Courtesy of DAIMLERCHRYSLER CORP.
Install tool 8875-A (2) to remove the quick connect lines (3) from the fluid cooler (1).

Fig 3: Fluid Cooler
Courtesy of DAIMLERCHRYSLER CORP.
Remove the two hood latch support brackets.
Remove the two mounting bolts (4) from the cooler (5).
Remove the fluid cooler (5) from the vehicle.
