Fluid Cooler - 5.7L & Diesel

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Fluid Cooler

Courtesy of DAIMLERCHRYSLER CORP.

Install the fluid cooler (5) to the vehicle.
Install the two fluid cooler mounting bolts (4).
Install the hood latch brackets.

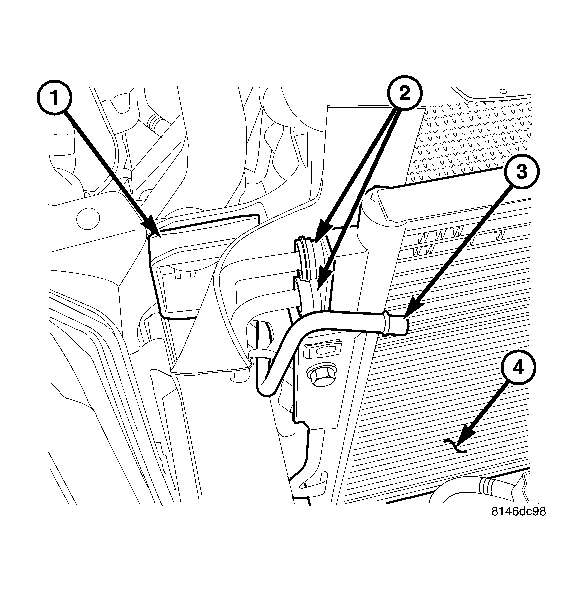

Fig 2: Radiator Mounting Bracket
Courtesy of DAIMLERCHRYSLER CORP.
Install the power steering cooler lines (3) to the fluid cooler (4).
Refill the power steering fluid and bleed the system, (Refer to STEERING/PUMP - STANDARD PROCEDURE) .
Start engine and check for leaks.

Fig 3: Grille Push Pins
Courtesy of DAIMLERCHRYSLER CORP.
Install the grille and the 6 grille push pins (1).
Install the hood weather-strip seal (2) at the radiator cowl.
