Fluid Cooler - 3.7L & 4.7L

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

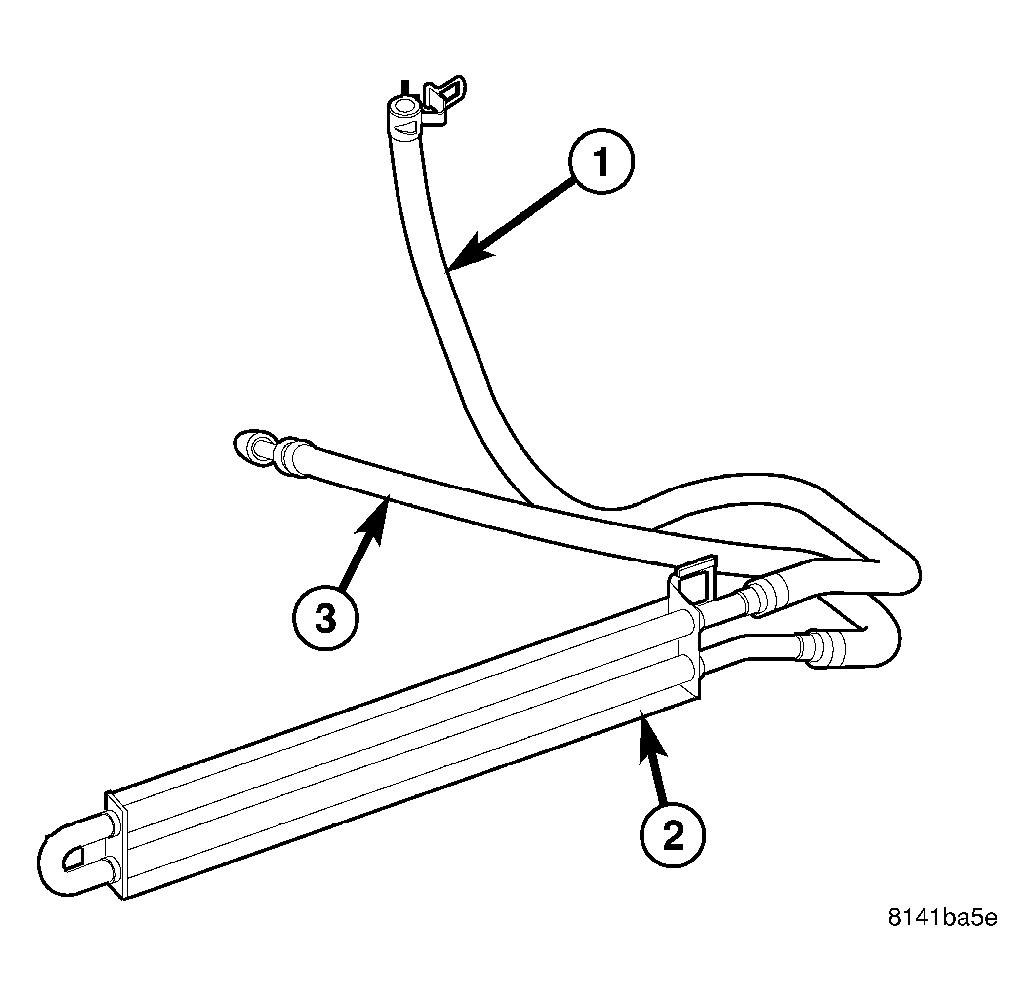

Fig 1: 3.7 & 4.7L Fluid Cooler

Courtesy of DAIMLERCHRYSLER CORP.

1 - RETURN HOSE

2 - FLUID COOLER

3 - PRESSURE HOSE

The power steering fluid cooler (2) is located at the front of the vehicle. It is mounted to the radiator support just forward of the air-conditioning condenser and just rearward of the front fascia. The cooler is positioned so it is in the air flow through the front fascia of the vehicle.
