Module-Steering Control: Assembly

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Remove/Install Right Multi-Function (Wiper/Washer) Switch

Courtesy of DAIMLERCHRYSLER CORP.

Place the turn signal cancel cam into the center of the SCM and firmly snap into place. There is an alignment dowel that will only let you install it one way.

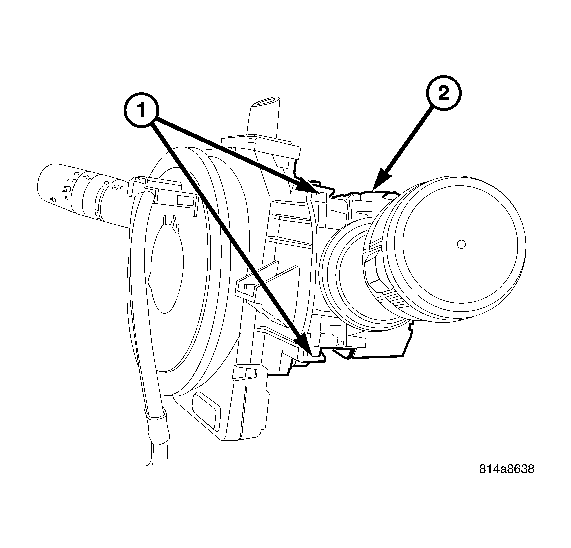

Install the right multi-function switch (2) by aligning the self docking connector. Push down firmly to snap switch into place. Install the two screws (1). The left multi-function switch installs the exact same way.

Fig 2: Remove/Install Hazard Switch
Courtesy of DAIMLERCHRYSLER CORP.

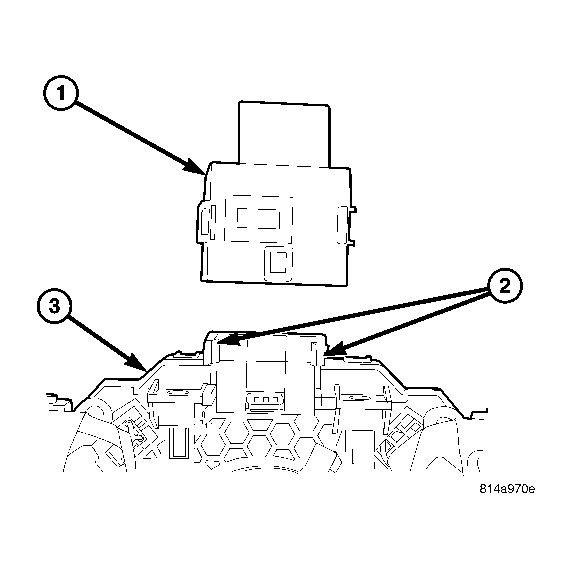

Install the hazard switch (1) to the SCM (3) by firmly sliding the switch into position, into the tangs (2).

Fig 3: SCM Location
Courtesy of DAIMLERCHRYSLER CORP.
Install the SCM (Refer to STEERING/COLUMN/STEERING COLUMN CONTROL MODULE - INSTALLATION) .

NOTE: IF EQUIPPED WITH ESP - recalibrate the steering angle sensor using the scan tool. (Refer to STANDARD PROCEDURE ).
