Intermediate Shaft: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

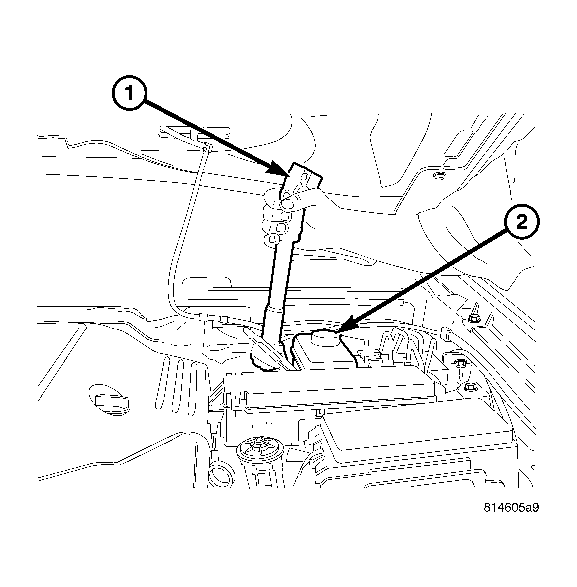

Fig 1: Intermediate Shaft Out/In

Courtesy of DAIMLERCHRYSLER CORP.

1 - INTERMEDIATE SHAFT

2 - MASTER CYLINDER

Install the shaft (1) in from the top by the master cylinder (2).

Slide the shaft forward past the lines and then upwards.

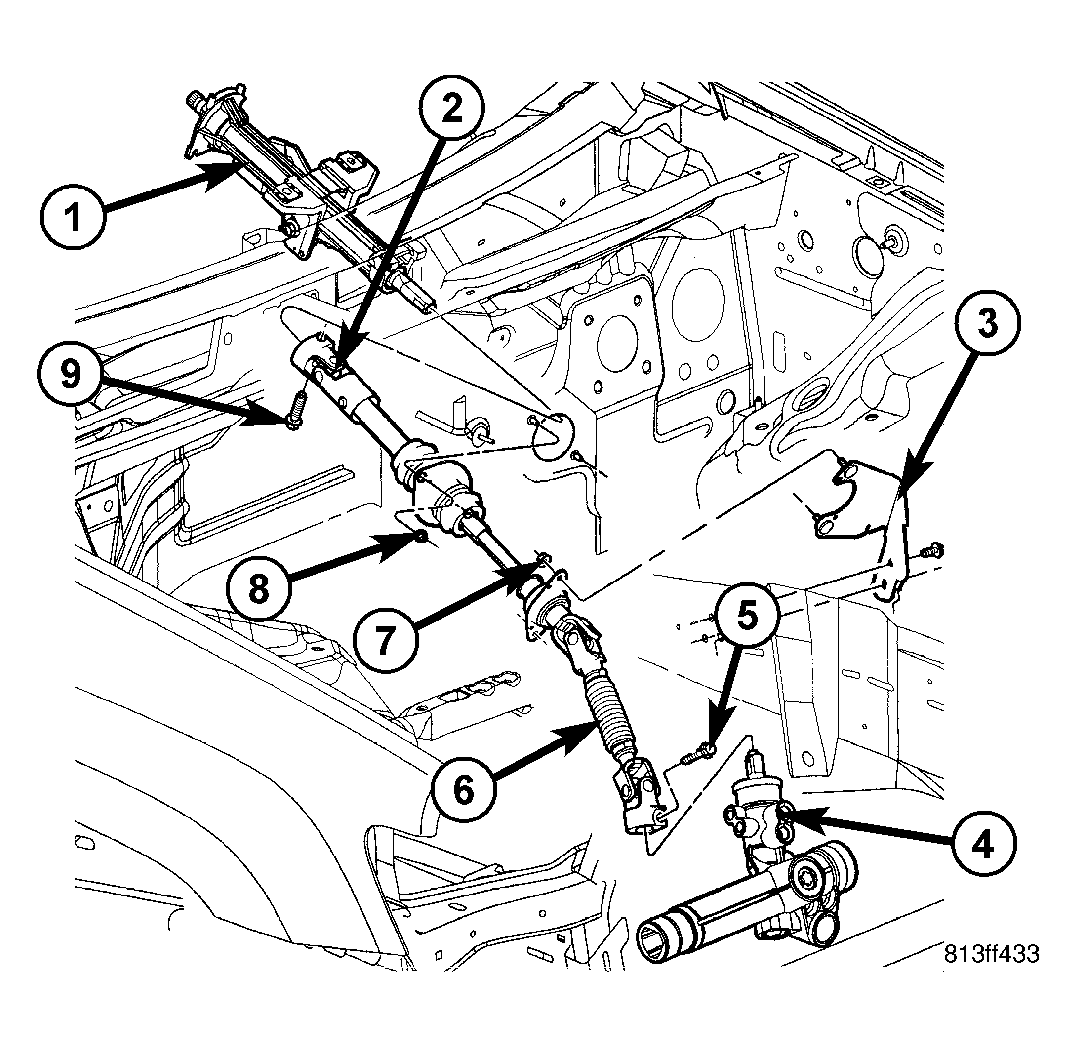

Fig 2: Intermediate Shaft

Courtesy of DAIMLERCHRYSLER CORP.

1 - STEERING COLUMN

2 - UPPER COUPLER

3 - BRACKET

4 - STEERING GEAR

5 - LOWER COUPLER BOLT

6 - INTERMEDIATE SHAFT

7 - NUT

8 - NUT

9 - UPPER COUPLER BOLT

Install a new pinch bolt at the upper coupling (2) to the column (1).

Fig 3: Column Access Cover
Courtesy of DAIMLERCHRYSLER CORP.
Install the column access cover (2).

Fig 4: Left Hush Panel
Courtesy of DAIMLERCHRYSLER CORP.
Install the hush panel (2).

Fig 5: Intermediate Shaft Mounting Nuts
Courtesy of DAIMLERCHRYSLER CORP.

1 - MOUNTING NUTS

2 - INTERMEDIATE SHAFT
Install the intermediate shaft (2) mounting nuts (1) to the bulkhead (The lower nut can be accessed from the inner fender well and the upper can be accessed from the top by the master cylinder).

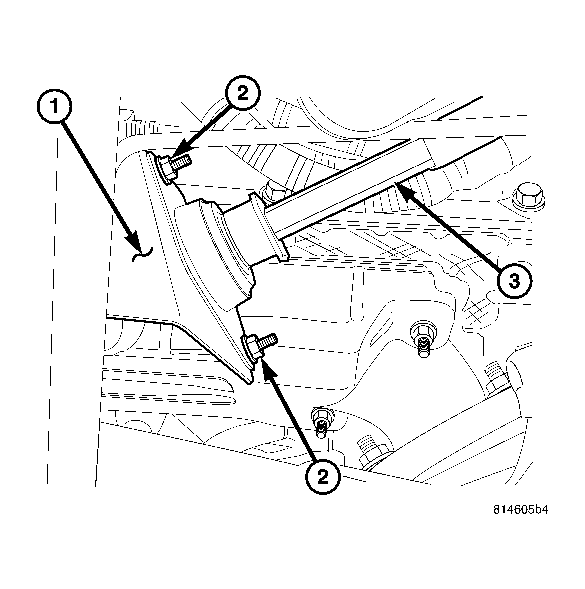

Fig 6: Intermediate Shaft Bearing Bracket
Courtesy of DAIMLERCHRYSLER CORP.

1 - BRACKET

2 - NUT

3 - INTERMEDIATE SHAFT
Install the intermediate shaft bearing nuts (2) to the bracket (1).
Install the intermediate shaft bearing bracket (1) to the frame.

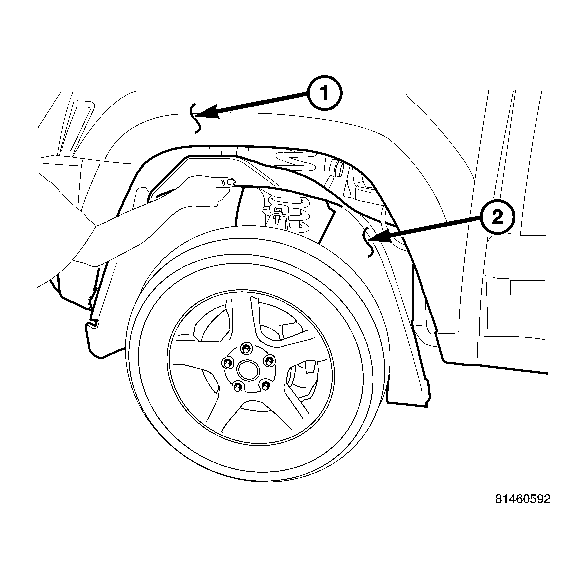

Fig 7: Inner Fender Well
Courtesy of DAIMLERCHRYSLER CORP.

1 - FENDER

2 - INNER FENDER WELL
Install the left inner fender well (2).
Lower the vehicle.

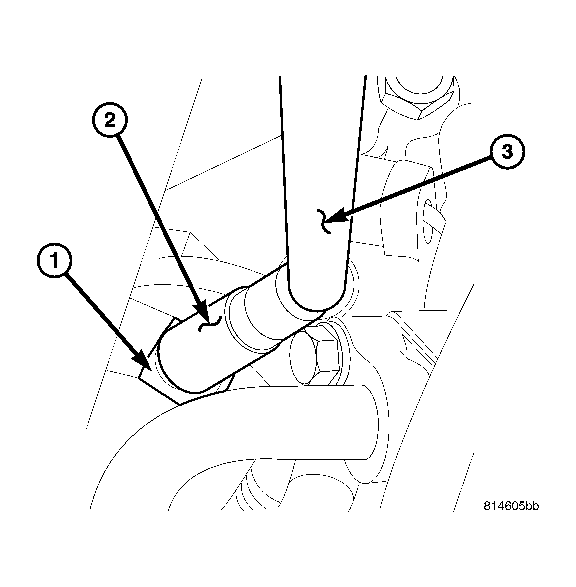

Fig 8: Steering Coupling Pinch Bolt
Courtesy of DAIMLERCHRYSLER CORP.

1 - LOWER COUPLING

2 - SOCKET

3 - EXTENSION
Install the lower coupling (1) pinch bolt using a long extension (3) with a swivel socket (2).
