Rear Transponder
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of DAIMLERCHRYSLER CORP.

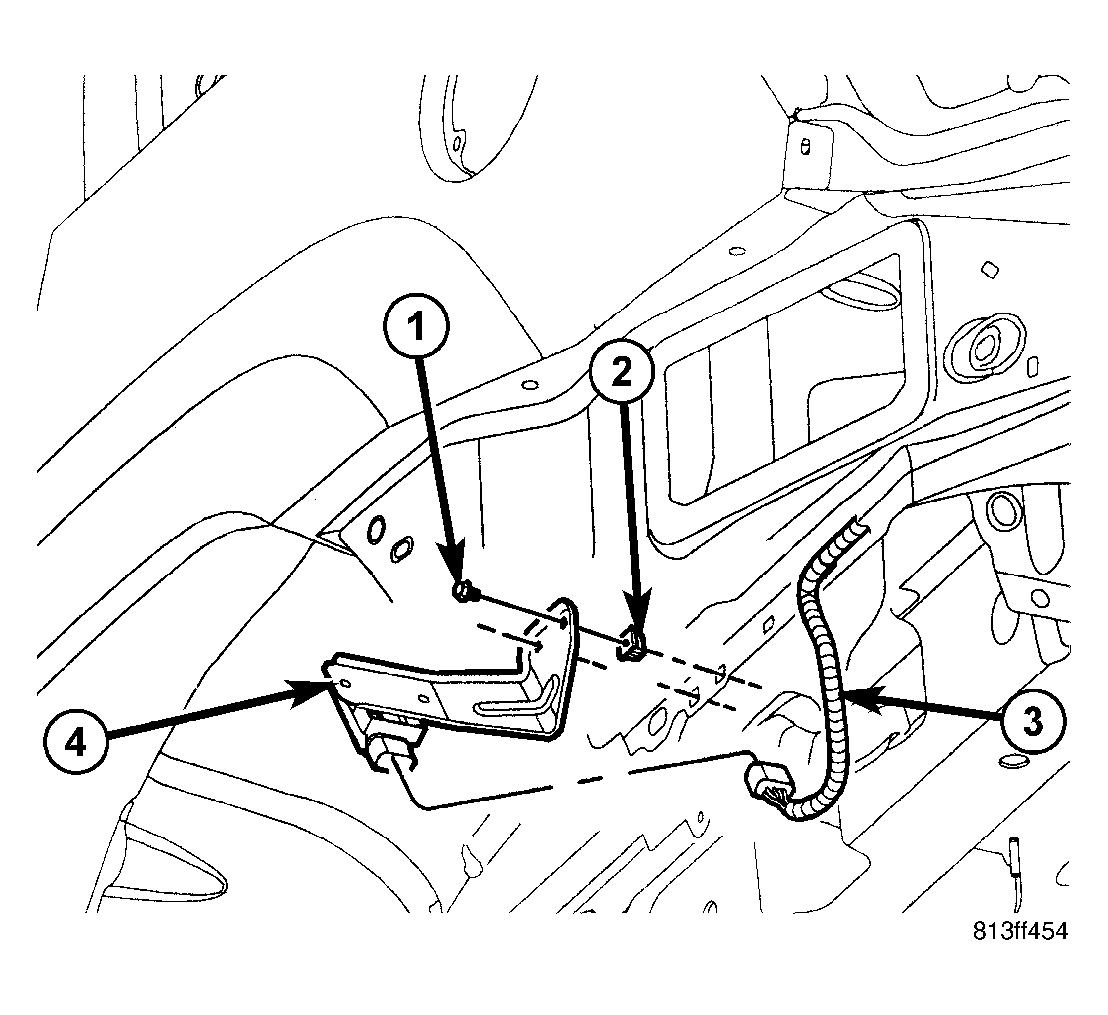

| 1 - SCREW |
| 2 - SPEED NUT |
| 3 - ELECTRICAL CONNECTOR |
| 4 - TRANSPONDER |
- Raise and support the vehicle.
- Remove the mounting screw (1) for the transponder (4).
- Disconnect the electrical connector (3) and remove the transponder (4) from the vehicle.
