Front Transponder

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

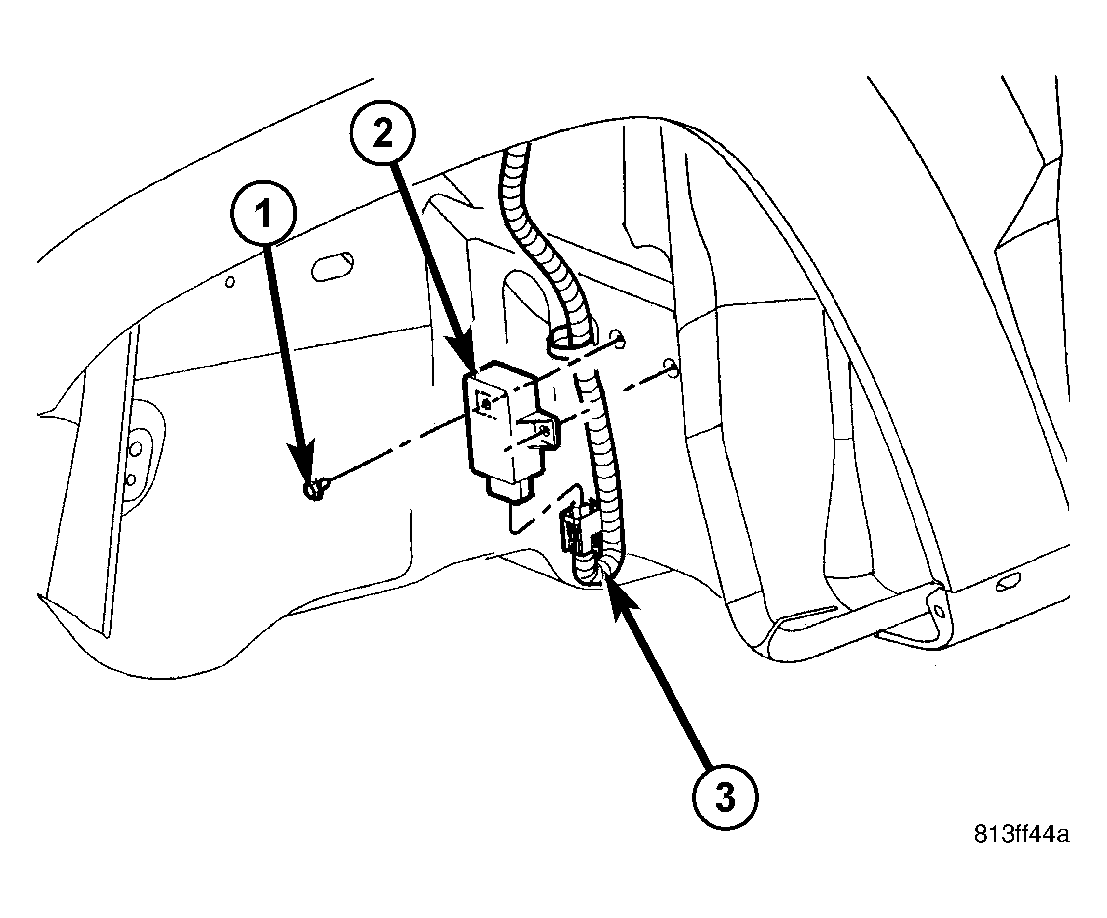

Fig 1: Front Transponder

Courtesy of DAIMLERCHRYSLER CORP.

1 - SCREW

2 - TRANSPONDER

3 - ELECTRICAL CONNECTOR

Install the transponder (2) to the vehicle and reconnect the electrical connector (3).
Install the mounting screw (1) for the transponder (2) Tighten to 4 N.m (35 in. lbs.).

Fig 2: Inner Fender Well
Courtesy of DAIMLERCHRYSLER CORP.

1 - FENDER

2 - INNER FENDER WELL
Install the wheel well housing cover (2).
Lower the vehicle.
