Rear Wheel Stud

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not use a hammer to remove wheel studs.

Raise and support vehicle.
Remove wheel and tire assembly.

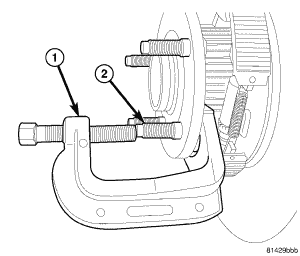

Fig 1: Stud
Courtesy of DAIMLERCHRYSLER CORP.

1 - SPECIAL TOOL 8677

2 - STUD
Remove brake caliper and rotor, (Refer to BRAKES/HYDRAULIC/MECHANICAL/ROTORS - REMOVAL) .
Remove stud (2) from hub with Remover 8677 (1).

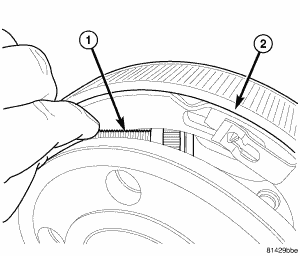

Fig 2: Stud In/Out
Courtesy of DAIMLERCHRYSLER CORP.

1 - STUD

2 - PARK BRAKE SHOE
Remove the stud (1) from between the hub/bearing and brake shoes (2)
