Front Wheel Stud
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

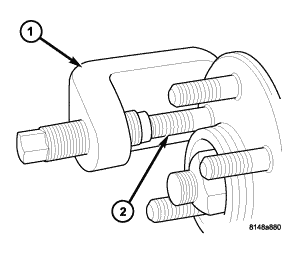

| 1 - C-4150-A |
| 2 - STUD |
CAUTION:
Do not use a hammer to remove wheel studs.
- Raise and support vehicle.
- Remove wheel and tire assembly.
- Remove brake caliper, caliper adapter and rotor, (Refer to BRAKES/HYDRAULIC/MECHANICAL/ROTORS - REMOVAL) .
- Remove stud (2) from hub with Remover C-4150-A (1).
