Section 535 (Mechanical Brake System - Base (Service Information)): Shoes: Installation
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

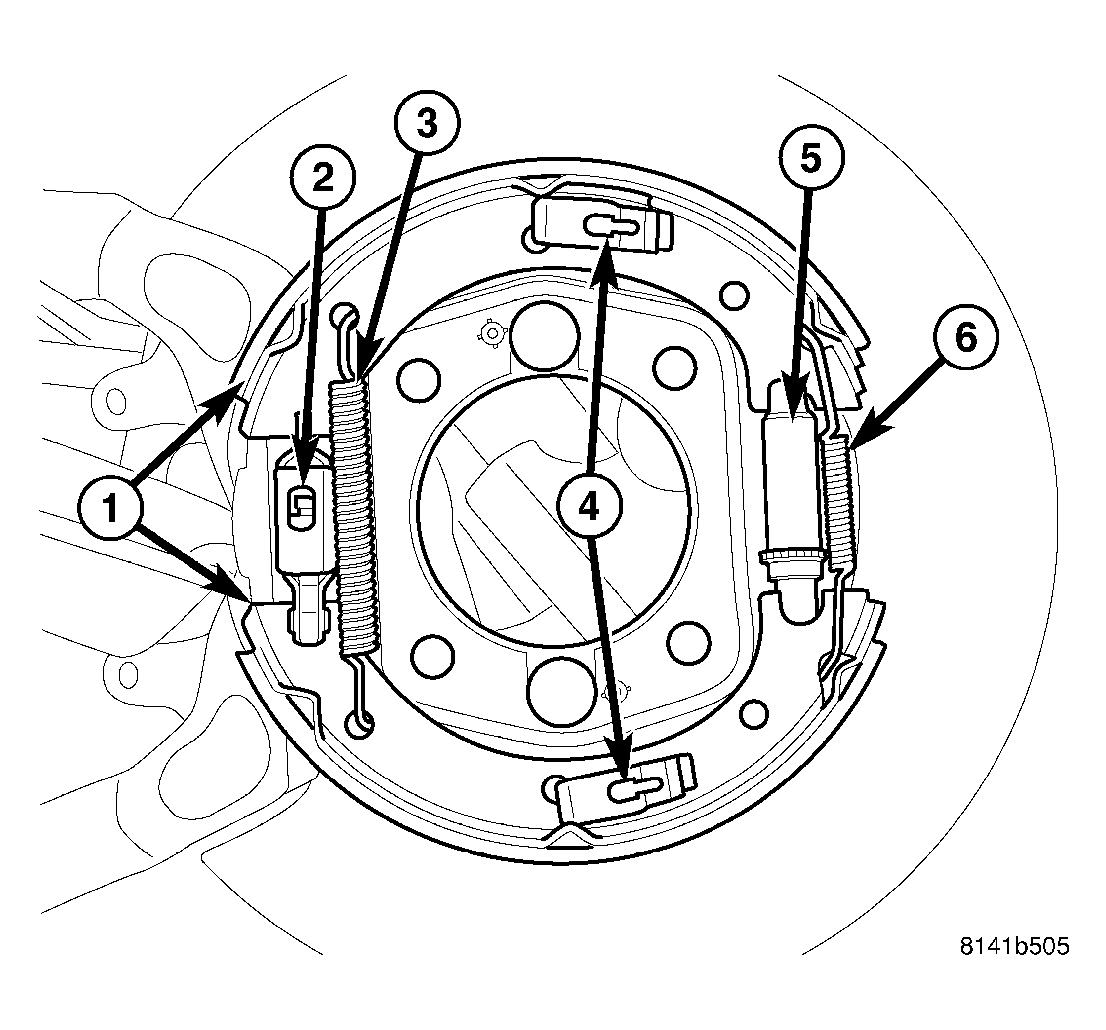

| 1 - PARK BRAKE SHOES |
| 2 - BRAKE LEVER ACTUATOR |
| 3 - RETURN SPRING |
| 4 - HOLD DOWN CLIPS |
| 5 - ADJUSTER |
| 6 - ADJUSTER RETURN SPRING |
- Install the park brake shoes (1) onto the actuator lever (2).
- Install shoes on support plate with hold down clips and pins (4). Be sure shoes are properly engaged in the park brake actuator lever (2).
- Install through return spring (3).
- Lubricate and install adjuster screw assembly (5). Be sure notched ends of screw assembly are properly seated on shoes and that star wheel is aligned with access hole in the support plate.
- Install shoe to shoe adjuster spring (6). Needle nose pliers can be used to connect spring to each shoe.

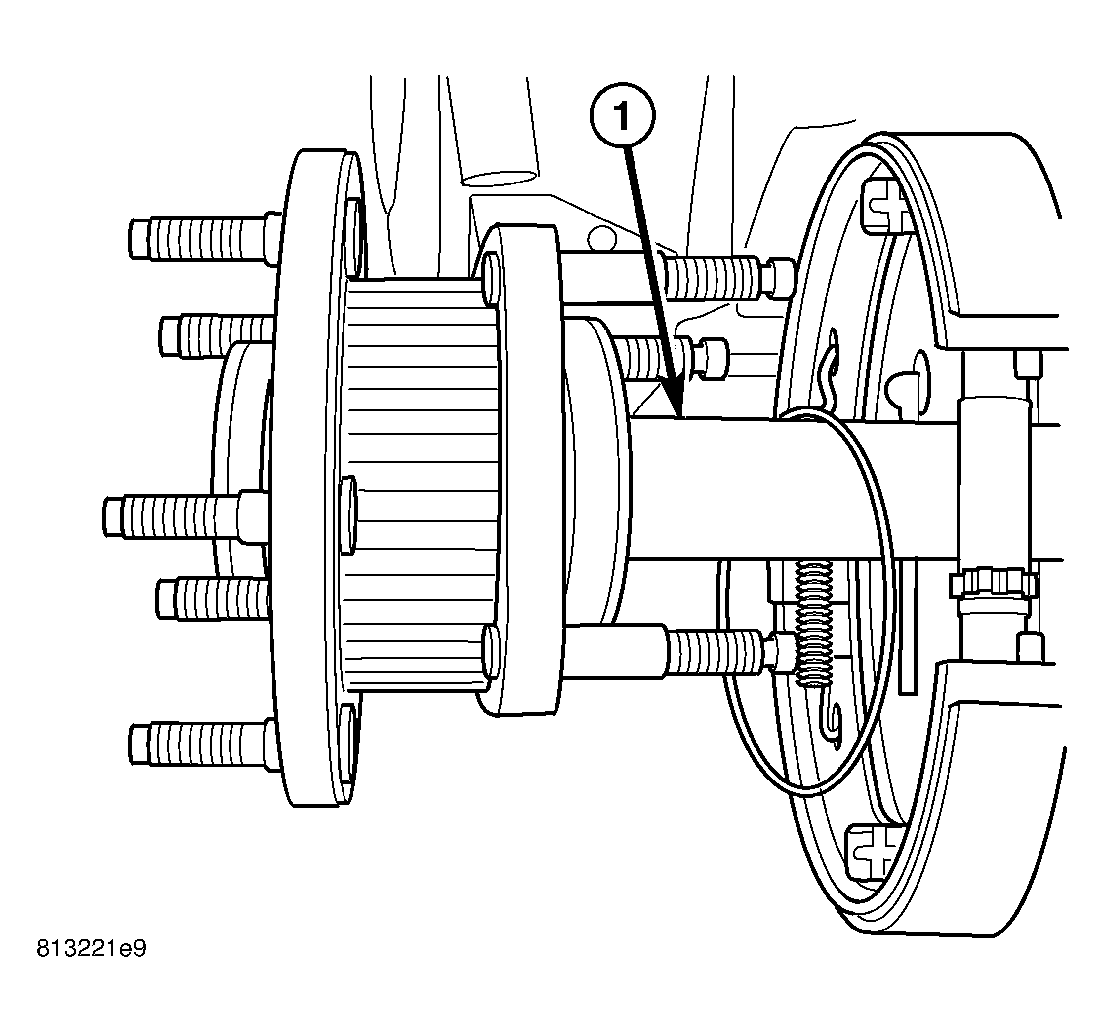

- Install the axle shaft (1) to the rear differential (Refer to DIFFERENTIAL & DRIVELINE/REAR AXLE - C213R/AXLE SHAFTS - INSTALLATION) .

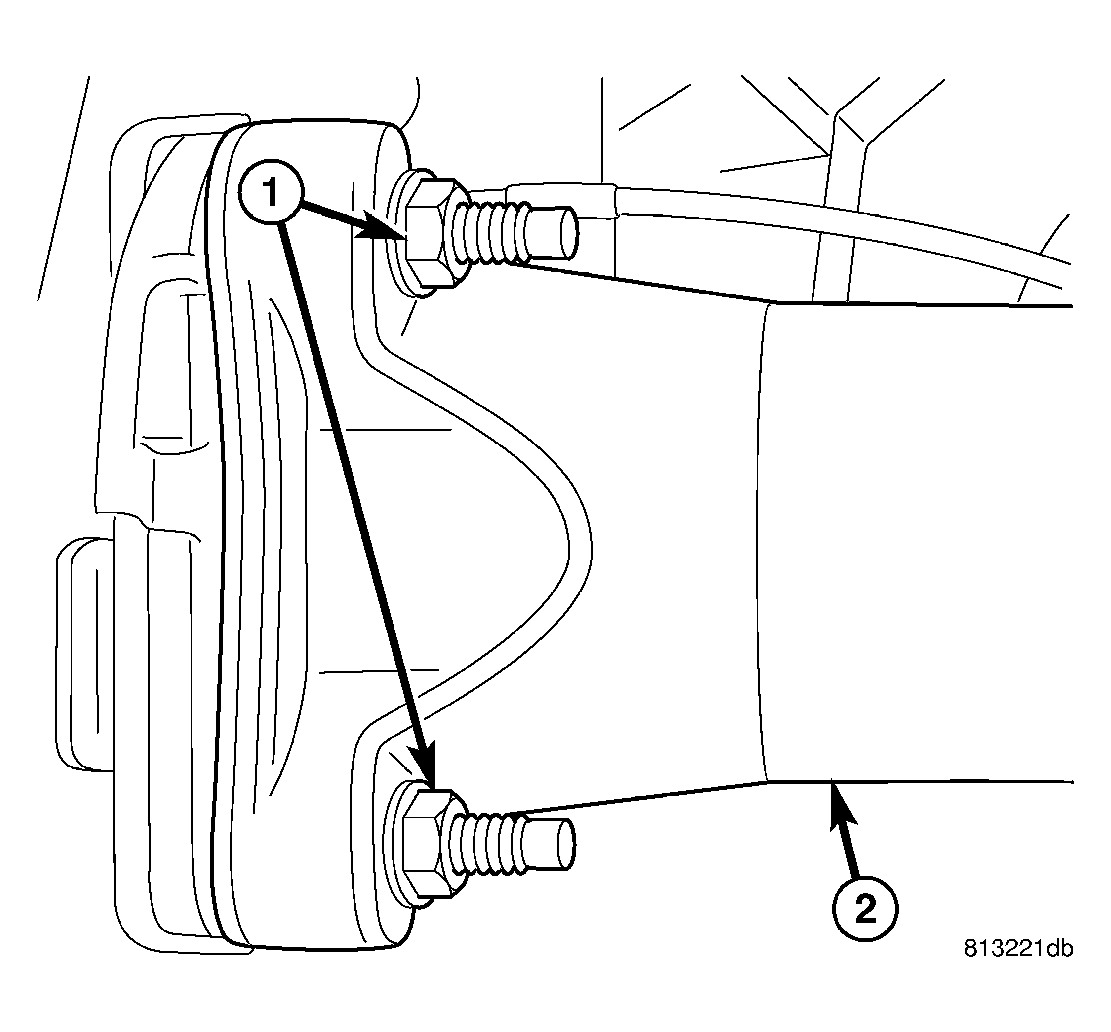

- Install and tighten the axle flange nuts (1).

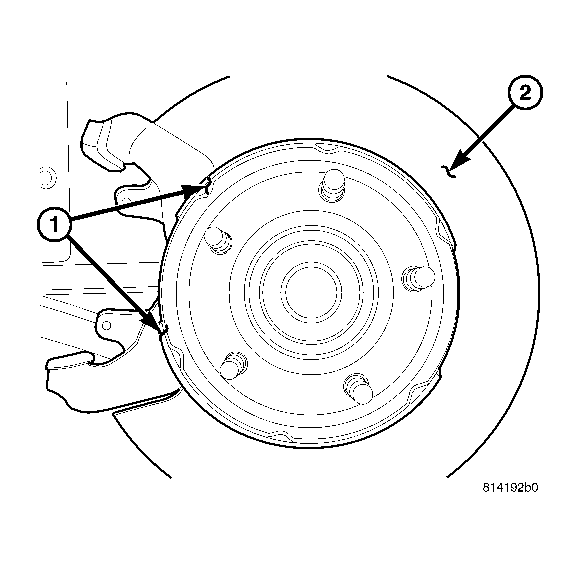

1 - PARK BRAKE SHOES 2 - SUPPORT PLATE - Install rotor to the axle hub.

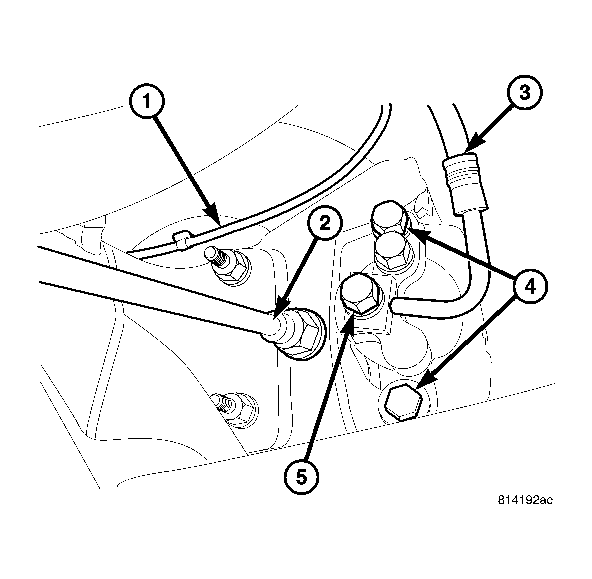

1 - WHEEL SPEED SENSOR WIRE 2 - CABLE 3 - BRAKE HOSE 4 - CALIPER SLIDE BOLTS 5 - BANJO BOLT - Install the caliper and the 2 mounting bolts (4) to 90-115 N.m (66-85 ft. lbs.).

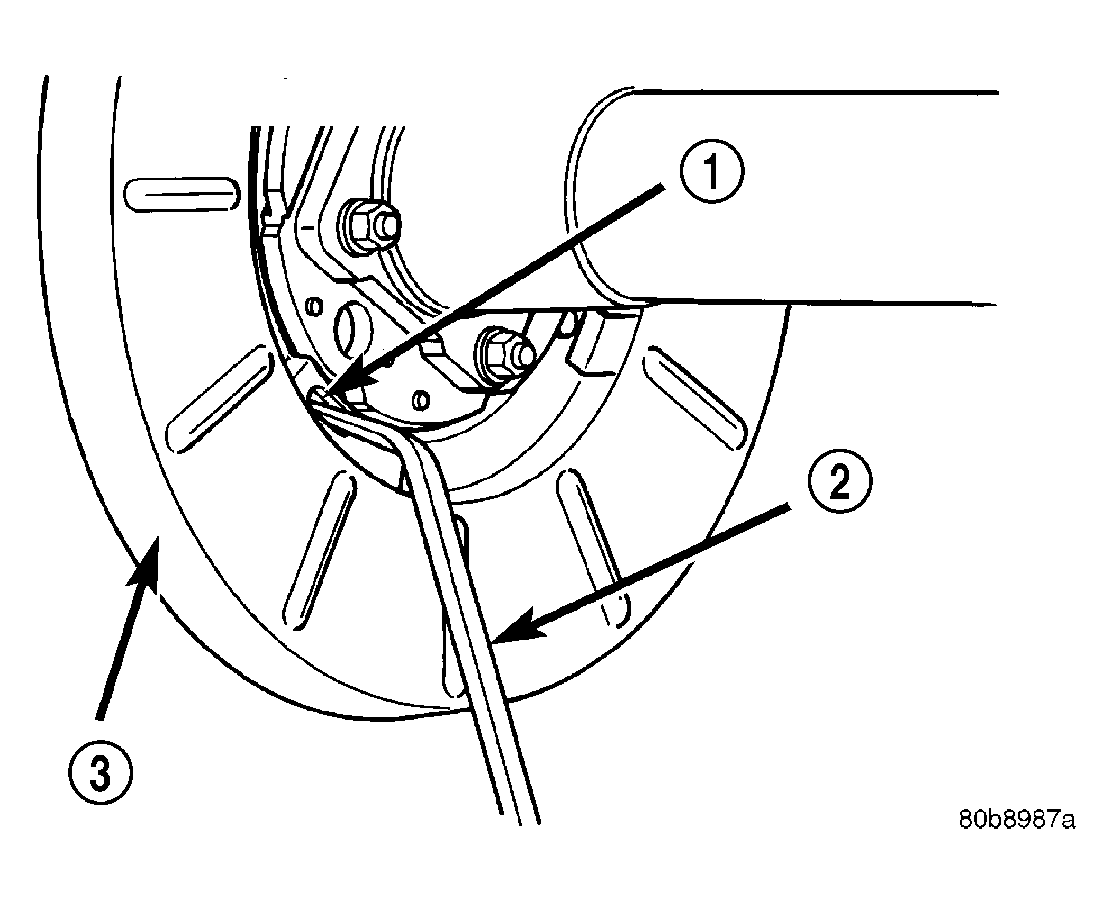

1 - ACCESS HOLE 2 - BRAKE ADJUSTING TOOL 3 - SUPPORT PLATE - Adjust the parking brake shoes.
- Install wheel and tire assembly.
- Lower vehicle and verify correct parking brake operation.
