Rear Disc Brake Rotor

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Cable To Support Plate

Courtesy of DAIMLERCHRYSLER CORP.

1 - WHEEL SPEED SENSOR WIRE

2 - CABLE

3 - BRAKE HOSE

4 - CALIPER SLIDE BOLTS

5 - BANJO BOLT

Raise and support the vehicle.
Remove wheel and tire assembly.
Remove the caliper slide bolts (4).

Fig 2: Rotor/Caliper
Courtesy of DAIMLERCHRYSLER CORP.

1 - DISC BRAKE CALIPER

2 - DISC BRAKE ROTOR
Remove caliper (1).
Secure caliper assembly (1) to nearby suspension part with wire. Do not allow brake hose to support caliper weight.

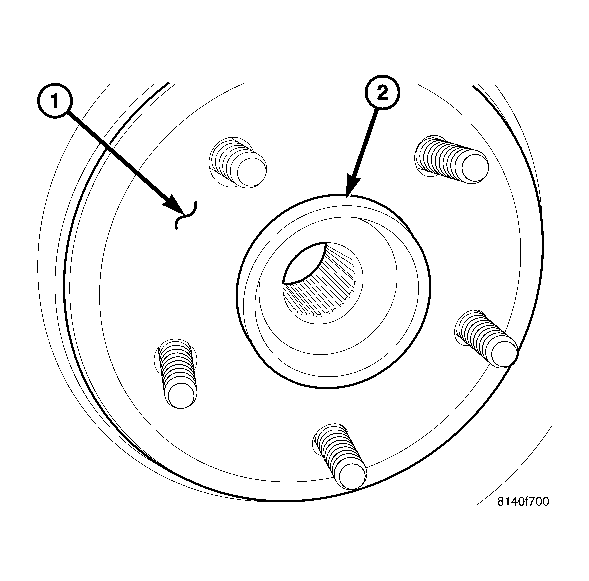

Fig 3: O-Ring
Courtesy of DAIMLERCHRYSLER CORP.

1 - ROTOR

2 - O-RING
Remove and discard the o-ring (2) securing rotor (1) to axle studs.
Remove rotor (1) off axle studs.
