Non-Adjustable Pedal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pedal assembly to the vehicle.
  2. Tighten the upper brake pedal sled nuts.
    Fig 1: Intermediate Shaft Mounting Nuts
    GC0026811Courtesy of DAIMLERCHRYSLER CORP.
    1 - MOUNTING NUTS
    2 - INTERMEDIATE SHAFT
  3. Install the lower steering shaft to the column.
  4. Install the lower steering shaft pinch bolt at the column.
  5. Unlock the steering wheel.
  6. Install the 2 intermediate shaft bearing nuts (1).

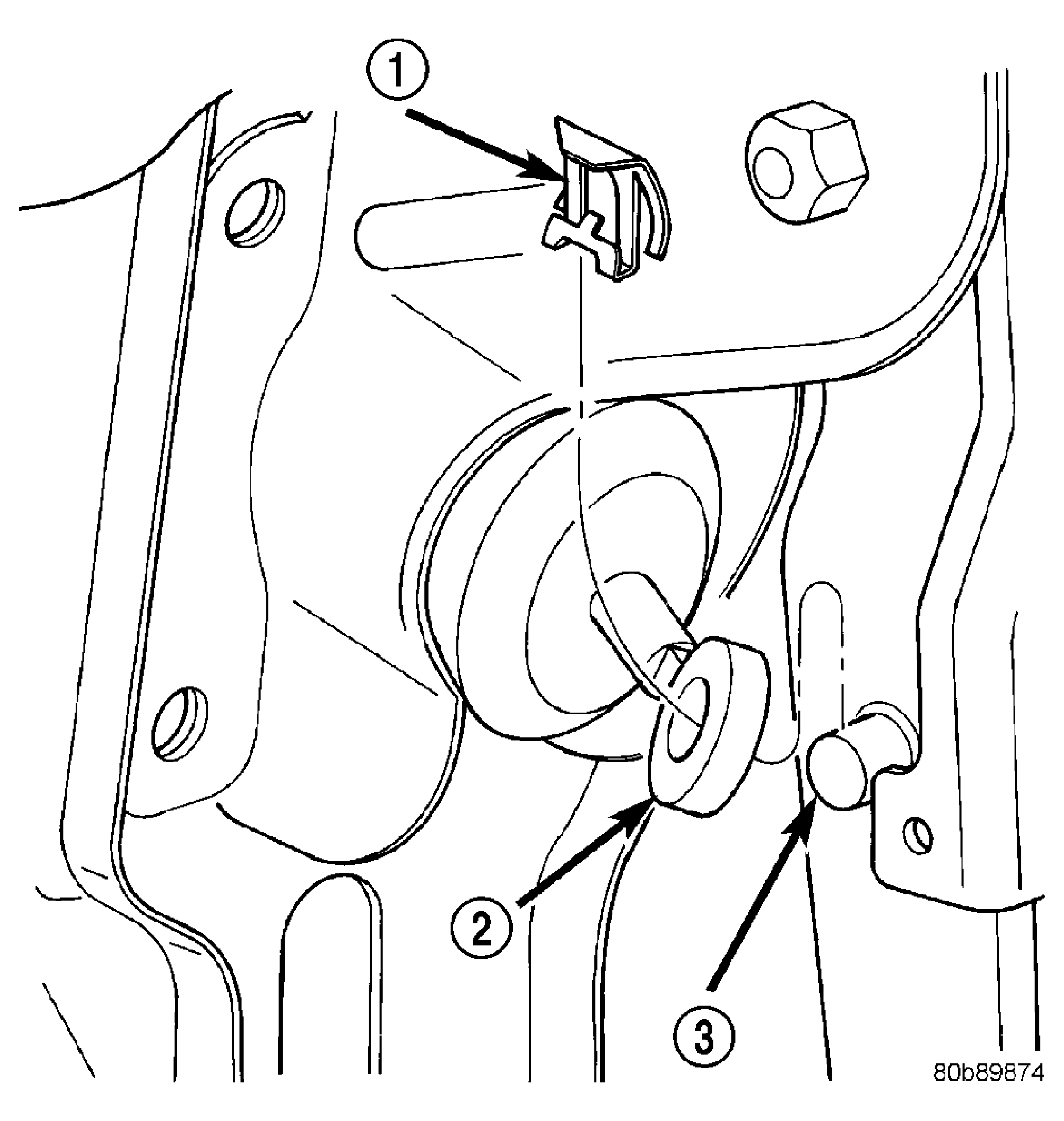

    Fig 2: Push Rod Retainer Clip
    GC0026810Courtesy of DAIMLERCHRYSLER CORP.
    1 - RETAINER CLIP
    2 - PUSH ROD
    3 - PEDAL PIN
  7. Install the power brake booster (Refer to BRAKES/HYDRAULIC/MECHANICAL/POWER BRAKE BOOSTER - INSTALLATION) .
  8. Install booster push rod (2) on pedal pin (3) and install retainer clip (1) on pedal pin.
  9. Reconnect the negative battery cable.
  10. Fill and bleed brake system.
  11. Check and adjust stop lamp switch if necessary.
