Adjustable Pedal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

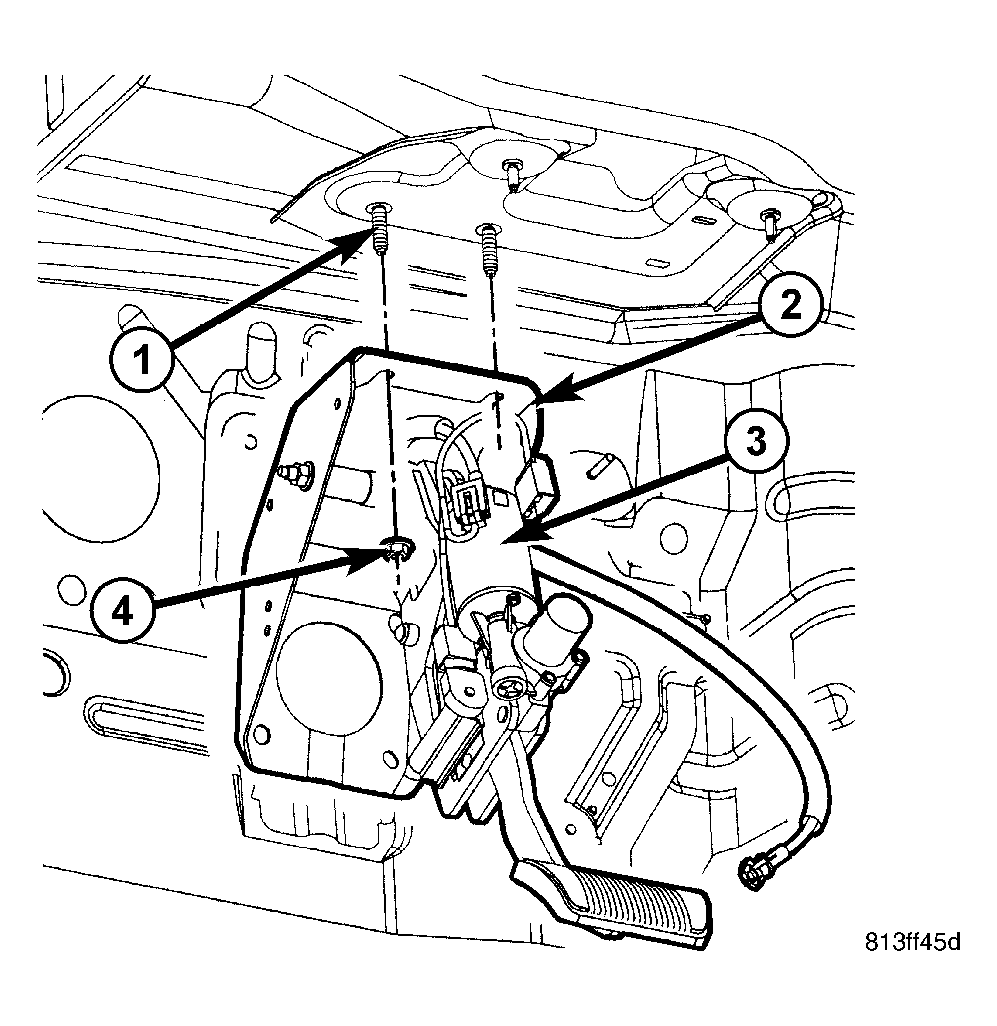

Fig 1: Adjustable Pedals Mounting
GC0026814Courtesy of DAIMLERCHRYSLER CORP.
1 - STUDS
2 - SLED
3 - ADJUSTABLE PEDALS MOTOR
4 - NUT
  1. Install the pedal assembly (2) to the vehicle.
  2. Tighten the upper brake pedal sled nuts (4).

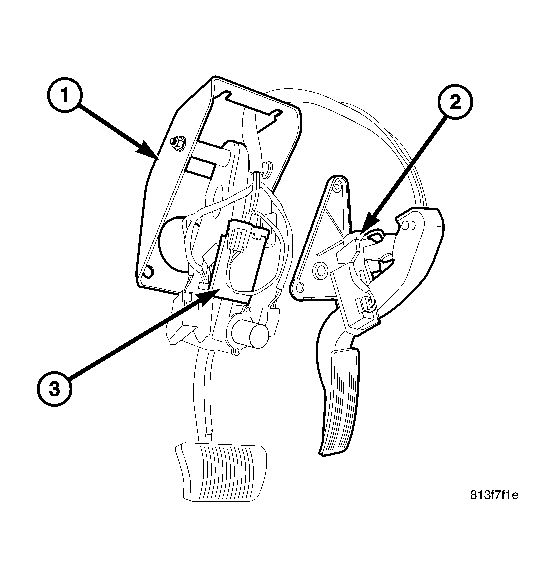

    Fig 2: Adjustable Pedals Sled
    GC0026813Courtesy of DAIMLERCHRYSLER CORP.
    1 - SLED
    2 - ACCELERATOR PEDAL
    3 - ADJUSTABLE PEDALS MOTOR
  3. Install and tighten the 2 accelerator pedal (2) nuts to 28 N.m ( 21 ft. lbs.).
  4. Reconnect the accelerator pedal cable.
  5. Reconnect the pedal motor electrical connector.

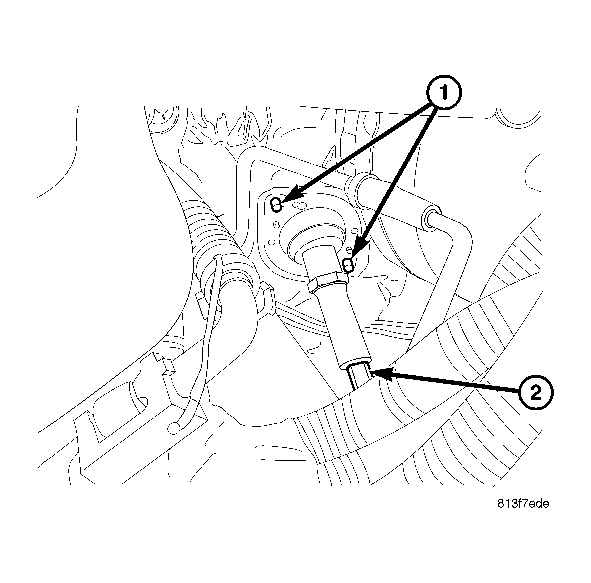

    Fig 3: Intermediate Shaft Mounting Nuts
    GC0026811Courtesy of DAIMLERCHRYSLER CORP.
    1 - MOUNTING NUTS
    2 - INTERMEDIATE SHAFT
  6. Install the lower steering shaft to the column.
  7. Install the lower steering shaft pinch bolt at the column.
  8. Unlock the steering wheel.
  9. Install the 2 intermediate shaft bearing nuts (1).
  10. Install the power brake booster (Refer to BRAKES/HYDRAULIC/MECHANICAL/POWER BRAKE BOOSTER - INSTALLATION) .
  11. Reconnect the negative battery cable.
  12. Fill and bleed brake system.
