Fluid Reservoir: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Fluid Level Switch
GC0026799Courtesy of DAIMLERCHRYSLER CORP.
1 - RESERVOIR
2 - FLUID LEVEL SENSOR
  1. Install a brake pedal prop rod.
  2. Remove reservoir cap and remove fluid with a clean  suction gun.
  3. Remove the wire connector from the brake fluid level sensor (2).
    Fig 2: Reservoir With O-Rings
    GC0026806Courtesy of DAIMLERCHRYSLER CORP.
    1 - FLUID RESERVOIR
    2 - O-RINGS
    3 - MASTER CYLINDER
  4. Remove the fluid reservoir (1) from the master cylinder (3).

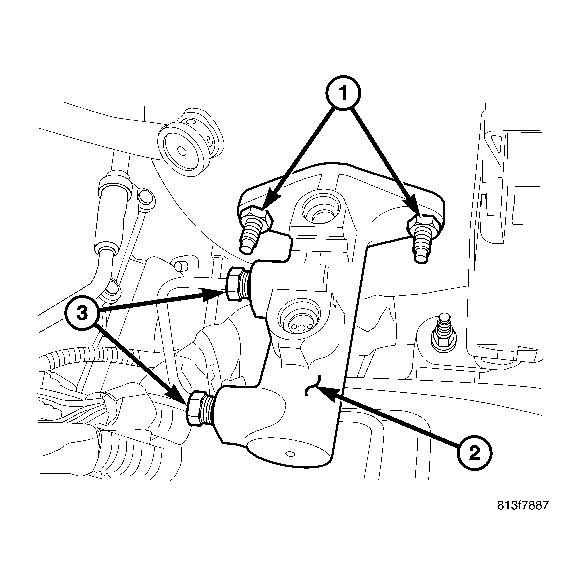

    Fig 3: Reservoir Mount
    GC0026807Courtesy of DAIMLERCHRYSLER CORP.
    1 - MOUNTING NUTS
    2 - MASTER CYLINDER
    3 - BRAKE LINES
  5. Pull the reservoir straight up out of the cylinder (2).
  6. Remove and discard grommets from the cylinder body (2).
    Fig 4: Fluid Level Switch Remove/Install
    GC0026800Courtesy of DAIMLERCHRYSLER CORP.
    1 - FLUID LEVEL SENSOR
    2 - RESERVOIR
  7. Remove the fluid level sensor (1) from the reservoir (2) if needed.
