Fluid Reservoir: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

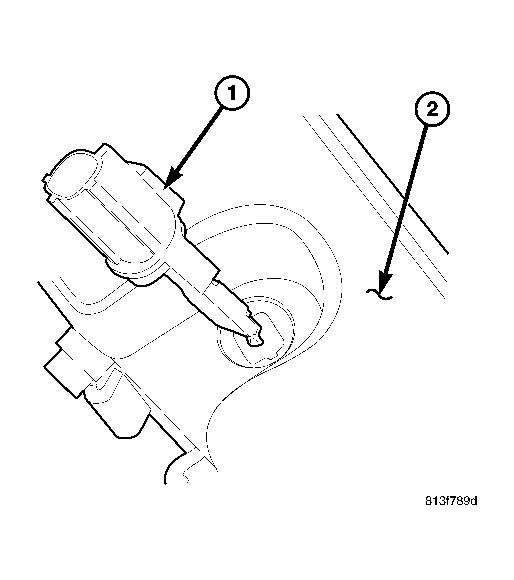

Fig 1: Fluid Level Switch Remove/Install
GC0026800Courtesy of DAIMLERCHRYSLER CORP.
1 - FLUID LEVEL SENSOR
2 - RESERVOIR
  1. Install the fluid level sensor (1) into the reservoir (2) if removed.

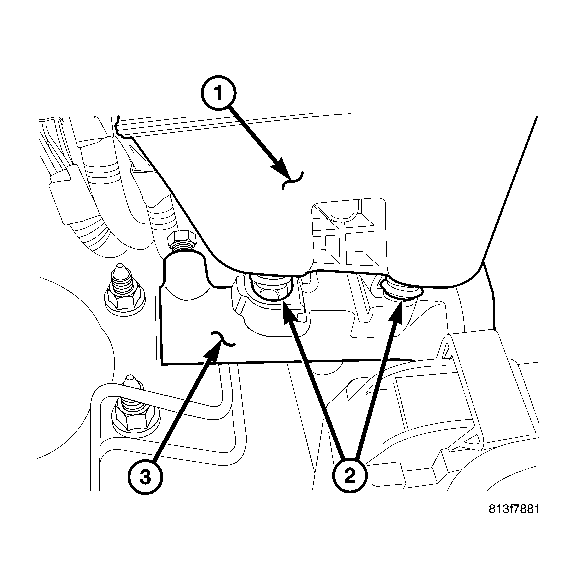

    Fig 2: Reservoir With O-Rings
    GC0026806Courtesy of DAIMLERCHRYSLER CORP.
    1 - FLUID RESERVOIR
    2 - O-RINGS
    3 - MASTER CYLINDER
  2. Lubricate new o-rings (2) with clean brake fluid.
    CAUTION: Do not use tools to install the o-rings. Tools may cut, or tear the o-rings. Install the o-rings using finger pressure only.
  3. Start reservoir in o-rings then press the reservoir straight down to seat the reservoir into the cylinder o-rings.
    CAUTION: Do not rock the reservoir during installation.
  4. Verify retaining tabs are seated.

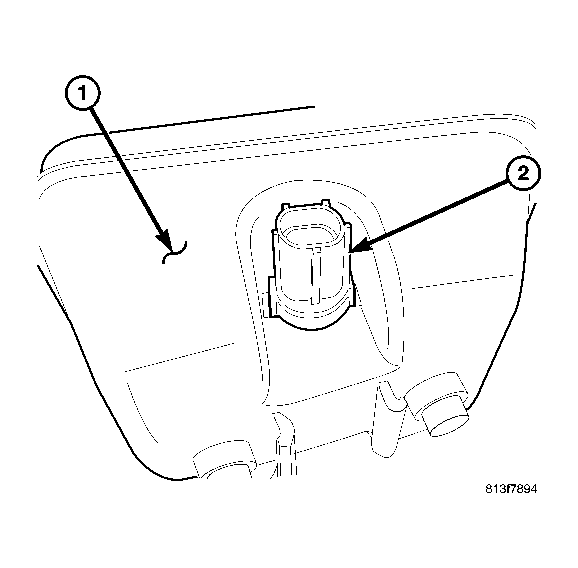

    Fig 3: Fluid Level Switch
    GC0026799Courtesy of DAIMLERCHRYSLER CORP.
    1 - RESERVOIR
    2 - FLUID LEVEL SENSOR
  5. Install the wire connector to the brake fluid level sensor (2).
  6. Remove brake pedal prop rod.
  7. Fill master cylinder.
