Rear Parking Brake Cables

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

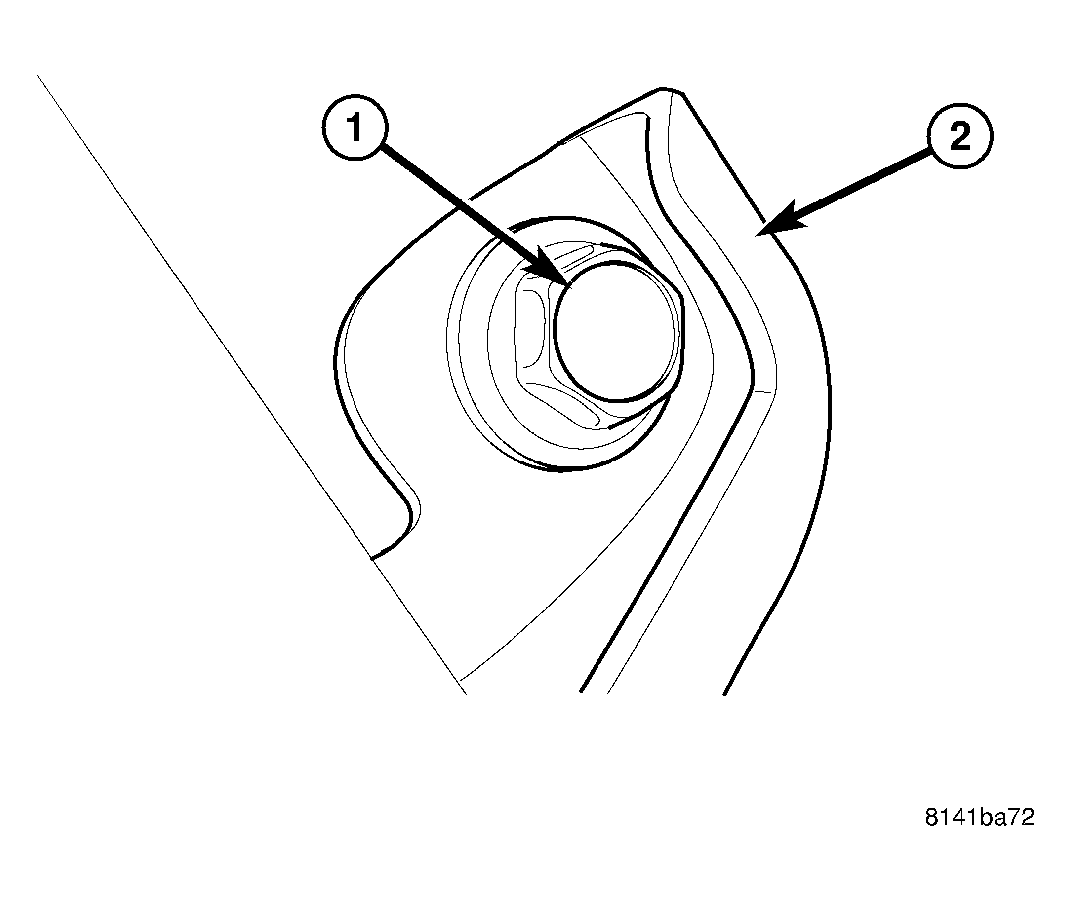

Fig 1: Seat Mounting Bolt

Courtesy of DAIMLERCHRYSLER CORP.

1 - SEAT BOLT

2 - BRACKET

Remove the rear seat bottom (Refer to BODY/SEATS/SEAT CUSHION - REMOVAL) .

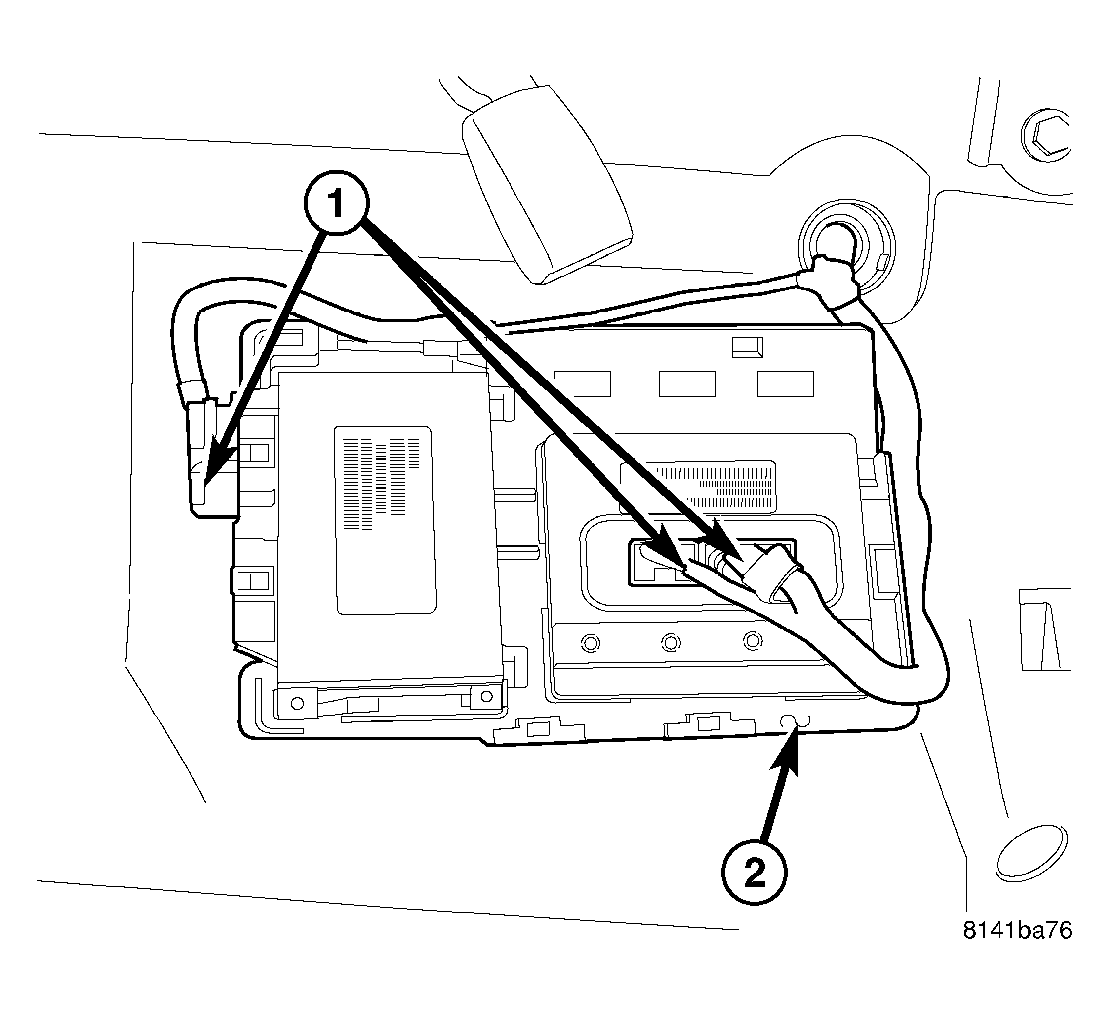

Fig 2: FDCM Electrical Connectors
Courtesy of DAIMLERCHRYSLER CORP.

1 - ELECTRICAL CONNECTORS

2 - BRACKET
Disconnect the (FDCM) final drive control module electrical connectors (1).
Remove the (FDCM) module bracket (2) mounting nuts.
Remove the rear sill plates.

Roll the carpet back to access the rear park brake cables.

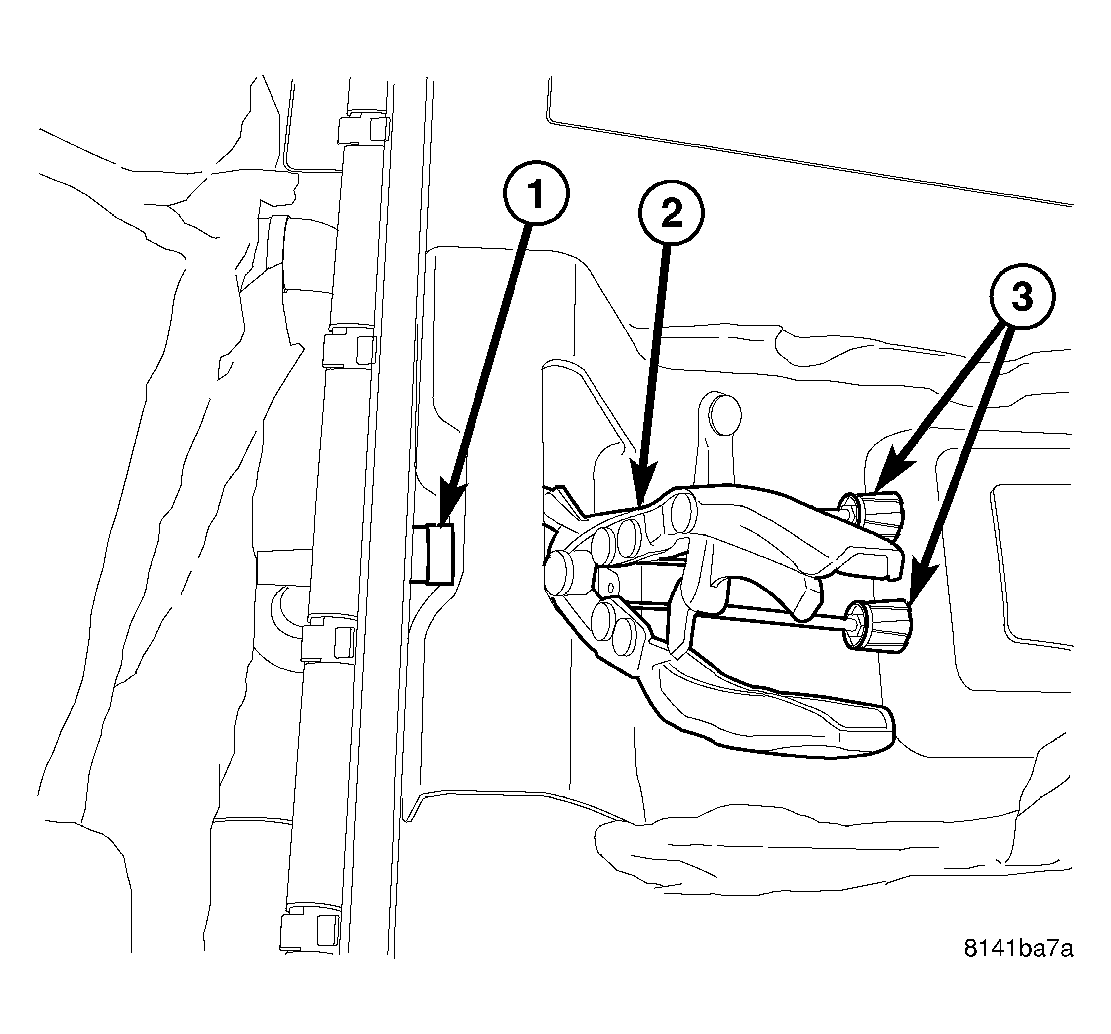

Fig 3: Lock Out Cables

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT CABLE

2 - LOCK OUT PLIERS

3 - REAR CABLES

Lock-out the park brake cable (1).

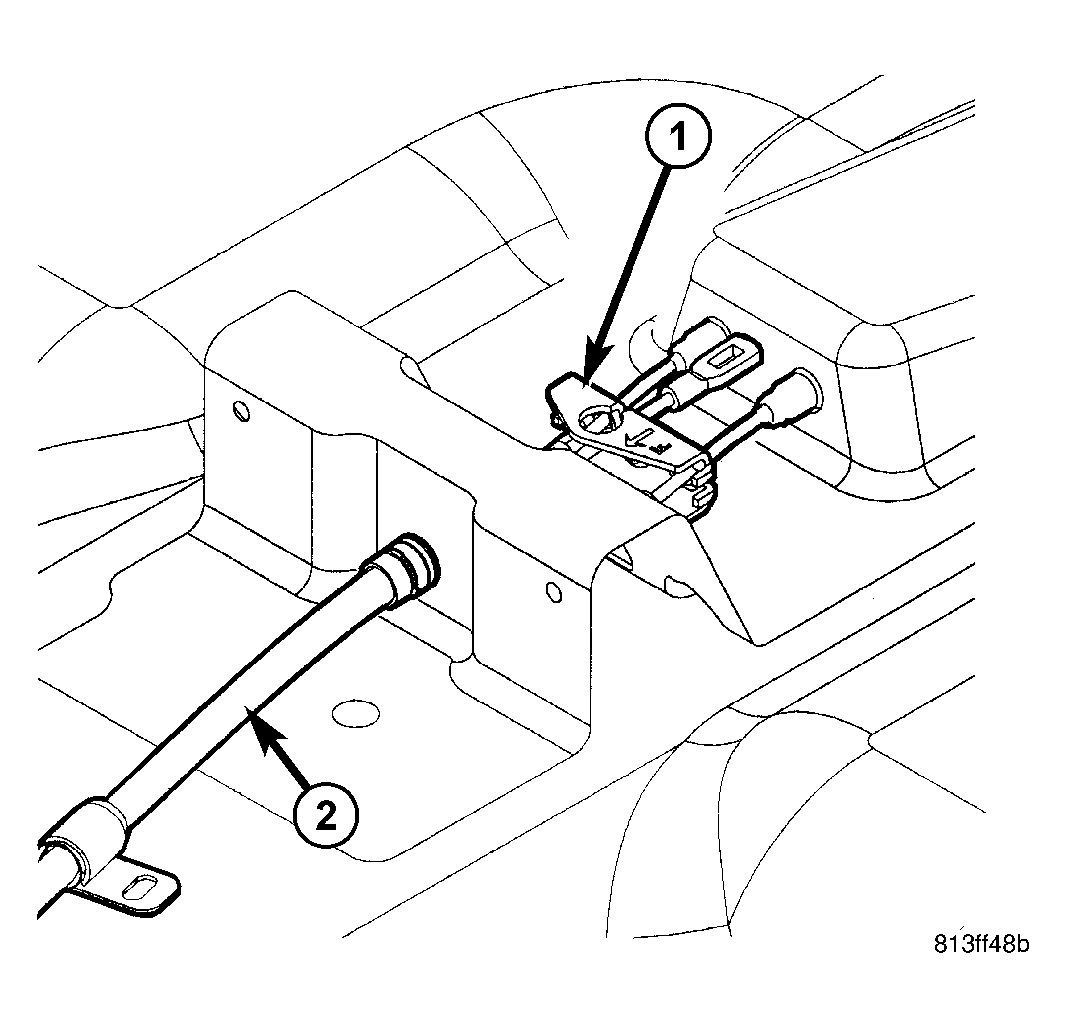

Fig 4: Cable Equalizer
Courtesy of DAIMLERCHRYSLER CORP.

1 - EQUALIZER

2 - CABLE
Disconnect the brake cables from the equalizer (1).

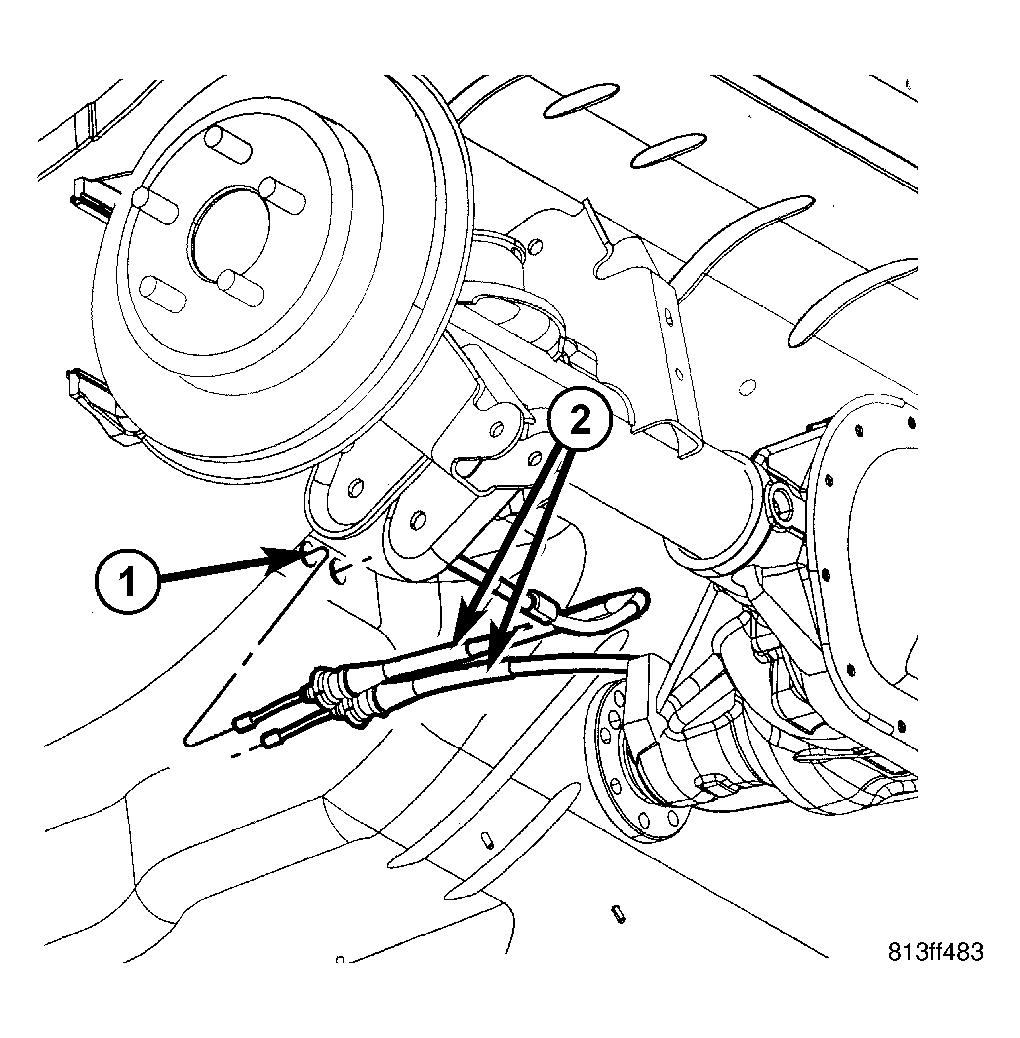

Fig 5: Cable To Floor
Courtesy of DAIMLERCHRYSLER CORP.

1 - FLOOR

2 - CABLES

Remove the park brake cables (2) thru the floor (1).

Fig 6: Wheel Speed Sensor- Rear

Courtesy of DAIMLERCHRYSLER CORP.

1 - CALIPER

2 - CALIPER ADAPTER

3 - WHEEL SPEED SENSOR

4 - PARK BRAKE CABLE

5 - CALIPER SLIDE BOLTS

Raise and support the vehicle.
Remove the tire and wheel assembly.

Remove the rear caliper (1) (Refer to BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPERS - REMOVAL) .

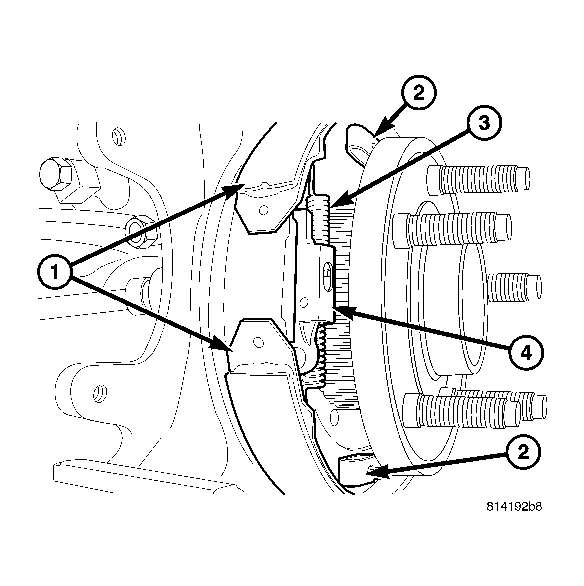

Fig 7: Spring/Actuator

Courtesy of DAIMLERCHRYSLER CORP.

1 - PARK BRAKE SHOES

2 - HOLD DOWN CLIPS

3 - RETURN SPRING

4 - ACTUATOR LEVER

Remove the disc brake rotor.

Fig 8: Axle Flange Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Remove the axle flange bolts (1).

Fig 9: Axle Shaft
Courtesy of DAIMLERCHRYSLER CORP.
