Base Brakes

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

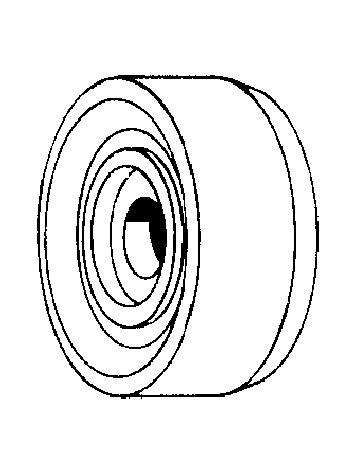

Fig 1: Installer Caliper Dust Boot 8280

Courtesy of DAIMLERCHRYSLER CORP.

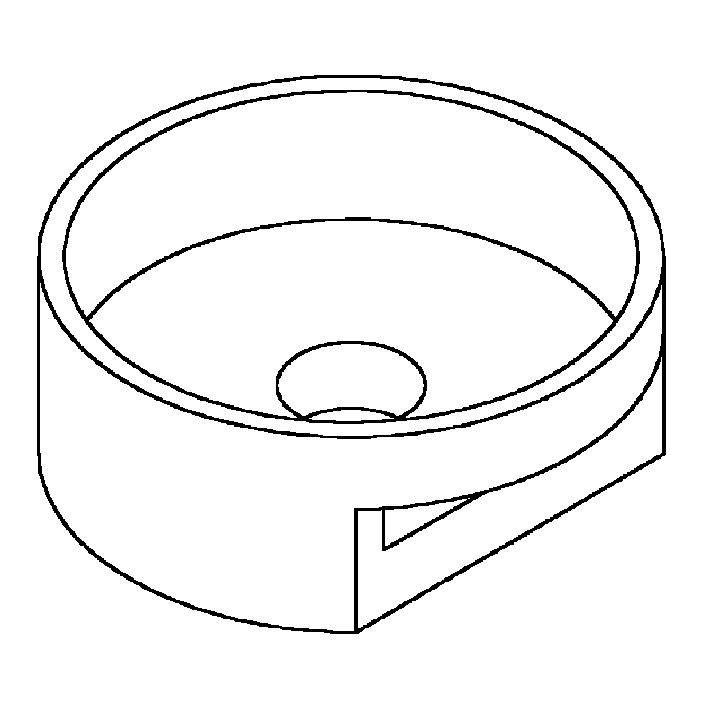

Fig 2: Universal Driver Handle - C4171

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Adapter, Master Cylinder Pressure Bleed Cap 6921

Courtesy of DAIMLERCHRYSLER CORP.

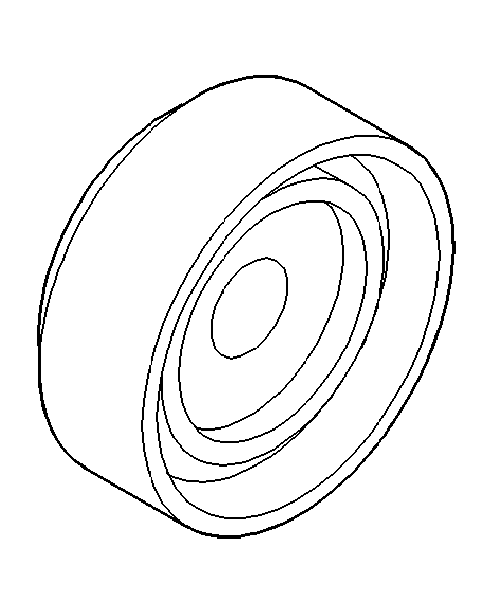

Fig 4: Installer, Brake Caliper Dust Boot C-3716-A

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Installer, Brake Caliper Dust Boot C-4340

Courtesy of DAIMLERCHRYSLER CORP.

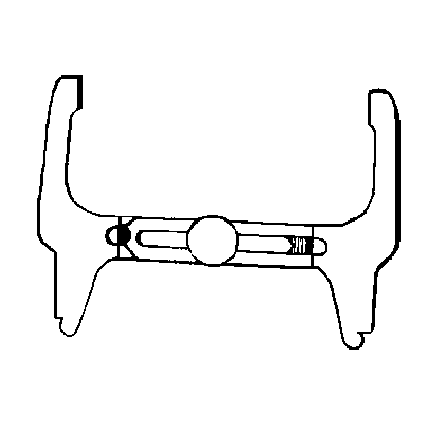

Fig 6: Gauge, Brake Safe-Set C-3919

Courtesy of DAIMLERCHRYSLER CORP.
