Rear Disc Brake Pads

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

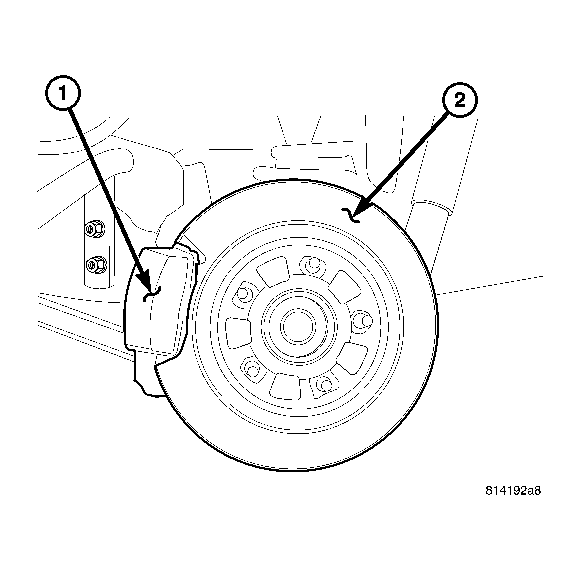

Fig 1: Rotor/Caliper

Courtesy of DAIMLERCHRYSLER CORP.

1 - DISC BRAKE CALIPER

2 - DISC BRAKE ROTOR

Install the inboard & outboard brake pads onto the caliper.
Lubricate the slide pins and slide pin bushings with caliper slide grease or the grease provided with the brake pads.

Install caliper (1) on the anchor.

Fig 2: Cable To Support Plate

Courtesy of DAIMLERCHRYSLER CORP.

1 - WHEEL SPEED SENSOR WIRE

2 - CABLE

3 - BRAKE HOSE

4 - CALIPER SLIDE BOLTS

5 - BANJO BOLT

Install the caliper slide pin bolts (4) and tighten to 25 N.m (18 ft. lbs.).
Install wheel and tire assembly.
Remove support and lower vehicle.
Pump brake pedal until caliper piston and brake pads are seated and a firm brake pedal is obtained.
Fill brake fluid level if necessary.
