Left Side

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Support the rear axle.

Lower the fuel tank in order to gain access to the bolt (Refer to FUEL SYSTEM/FUEL DELIVERY/FUEL TANK - REMOVAL) .

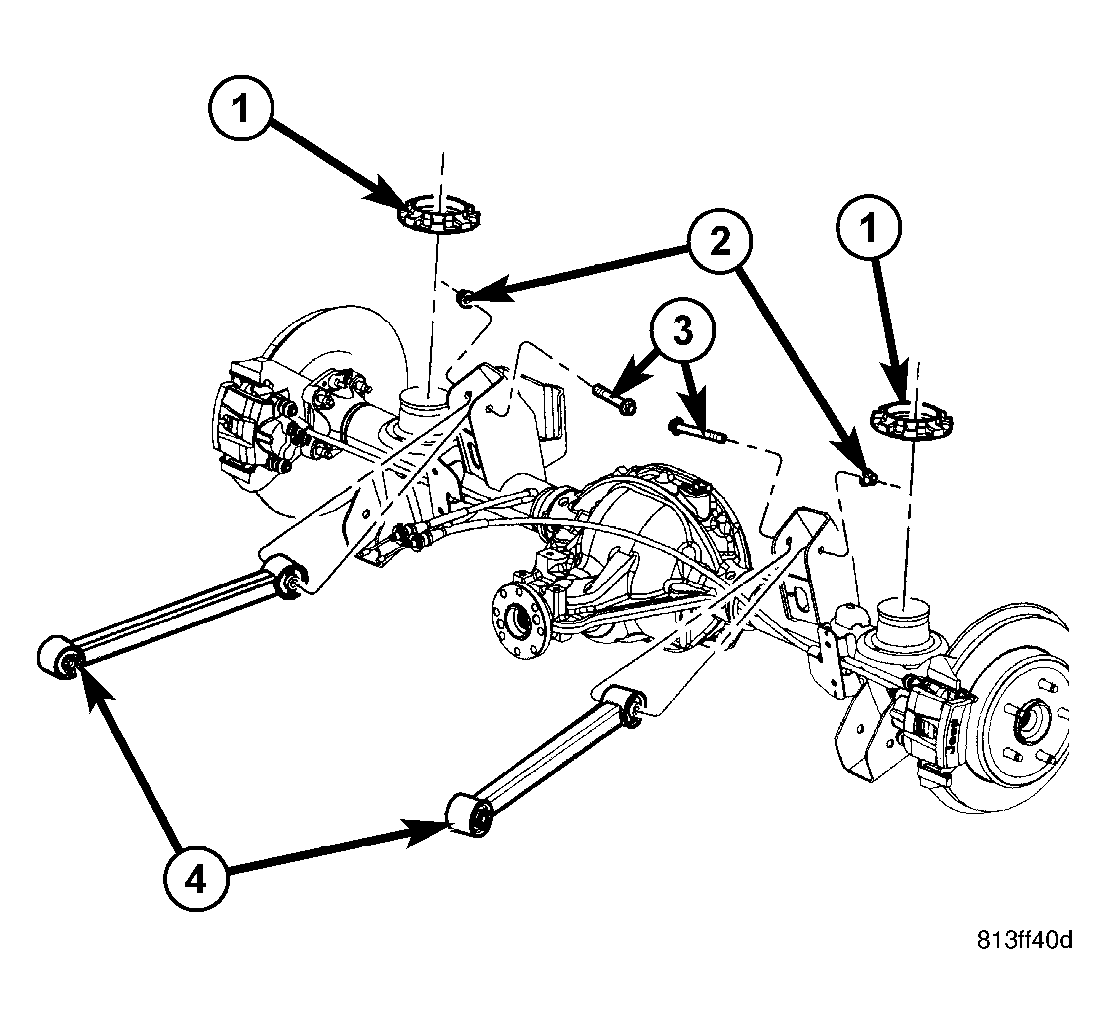

Fig 1: Upper Suspension Arm

Courtesy of DAIMLERCHRYSLER CORP.

1 - ISOLATOR

2 - NUT

3 - BOLT

4 - UPPER SUSPENSION ARM

Remove the upper suspension arm nut (2) and bolt (3) from the axle bracket.

Fig 2: Suspension Arms

Courtesy of DAIMLERCHRYSLER CORP.

1 - NUT

2 - UPPER SUSPENSION ARM

3 - UPPER SPRING ISOLATOR

4 - JOUNCE BUMPER RETAINER

5 - BOLT

6 - JOUNCE BUMPER

7 - UPPER FLAG BOLT

8 - LOWER FLAG BOLT

9 - LOWER SUSPENSION ARM

Remove the nut (1) and bolt (5) from the frame rail and remove the upper suspension arm (2).
