Track Bar: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

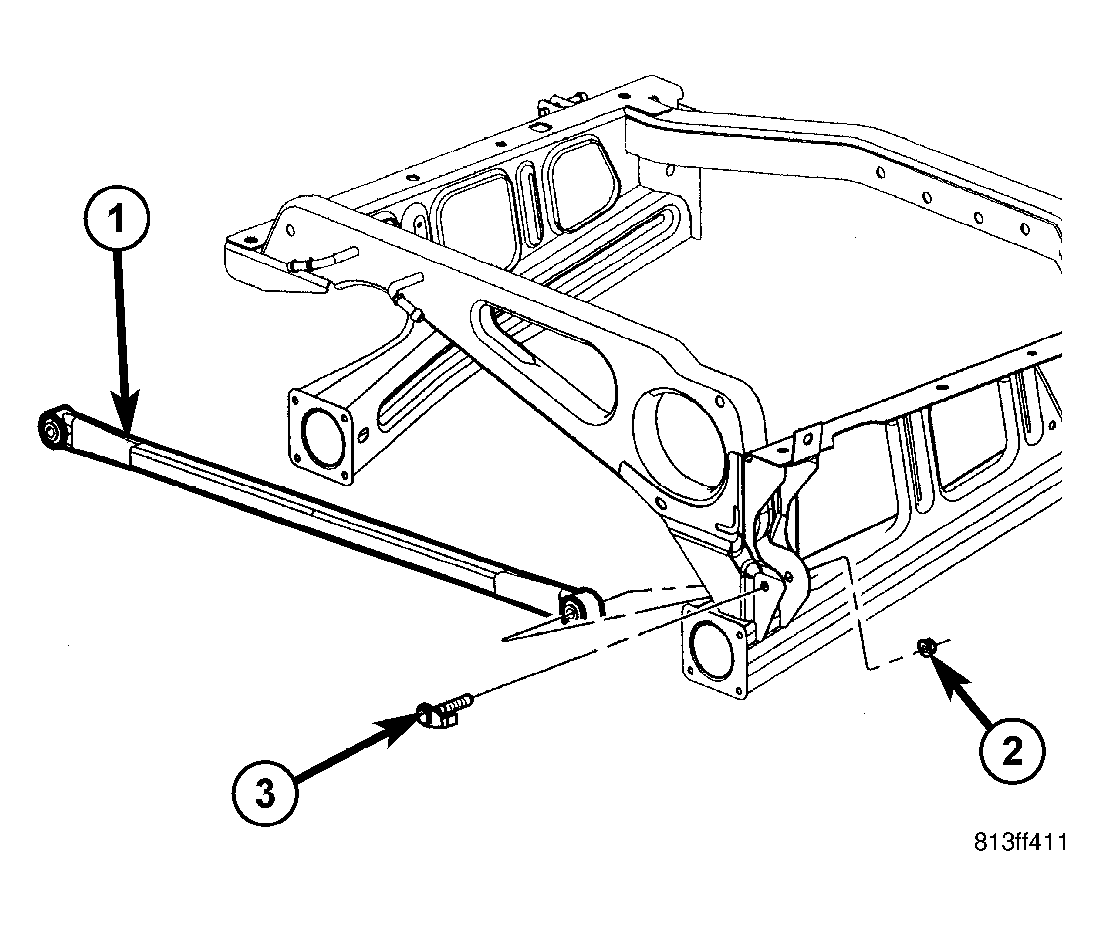

Fig 1: Track Bar
GC0026797Courtesy of DAIMLERCHRYSLER CORP.
1 - TRACK BAR
2 - NUT
3 - BOLT
  1. Raise and support the vehicle. Position a hydraulic jack under the axle to support the axle.
  2. Remove the track bar bolt (3) and nut (2) from the frame bracket.
  3. Remove the left lower shock bolt at the axle.
  4. Pry in between the coil springs to remove track bar bolt.

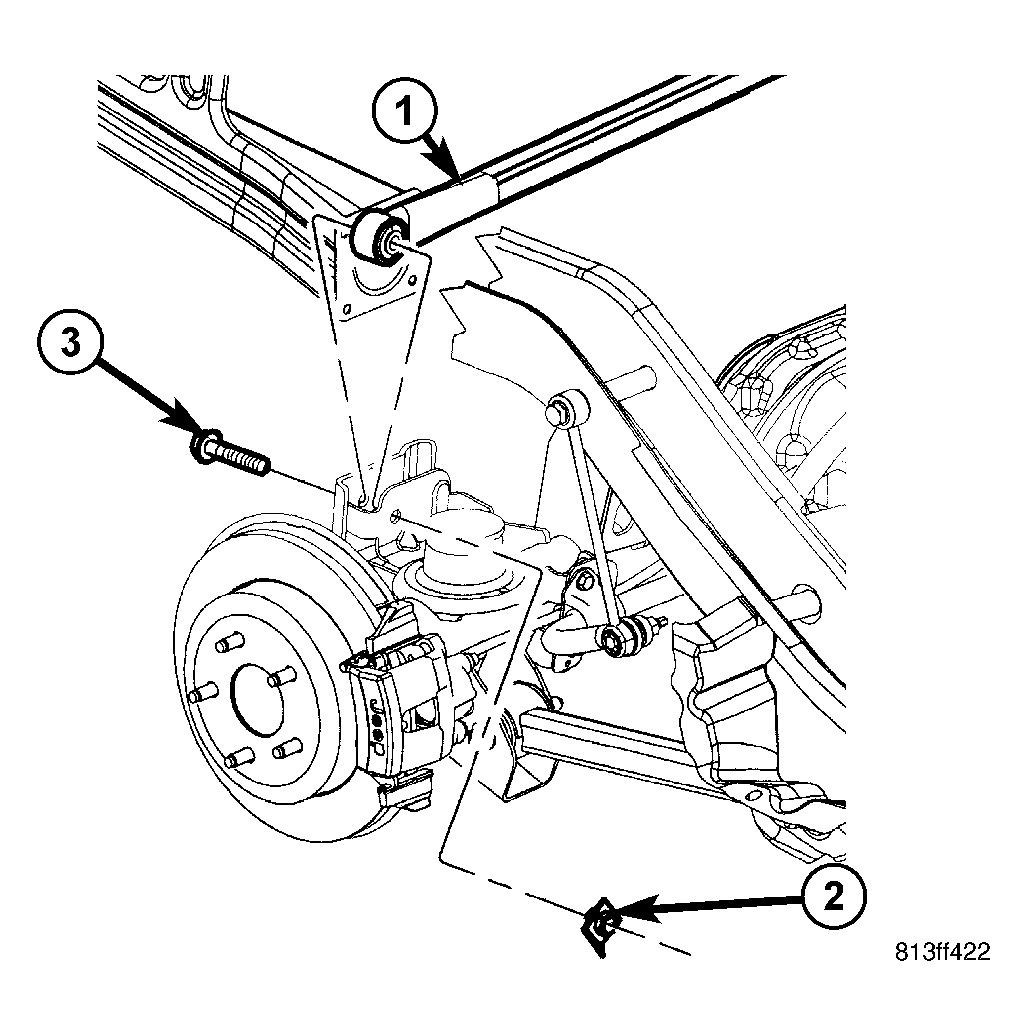

    Fig 2: Track Bar Mount
    GC0026798Courtesy of DAIMLERCHRYSLER CORP.
    1 - TRACK BAR
    2 - NUT
    3 - BOLT
  5. Remove the track bar bolt (3) and nut (2) from the axle bracket.
