Stabilizer Bar: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

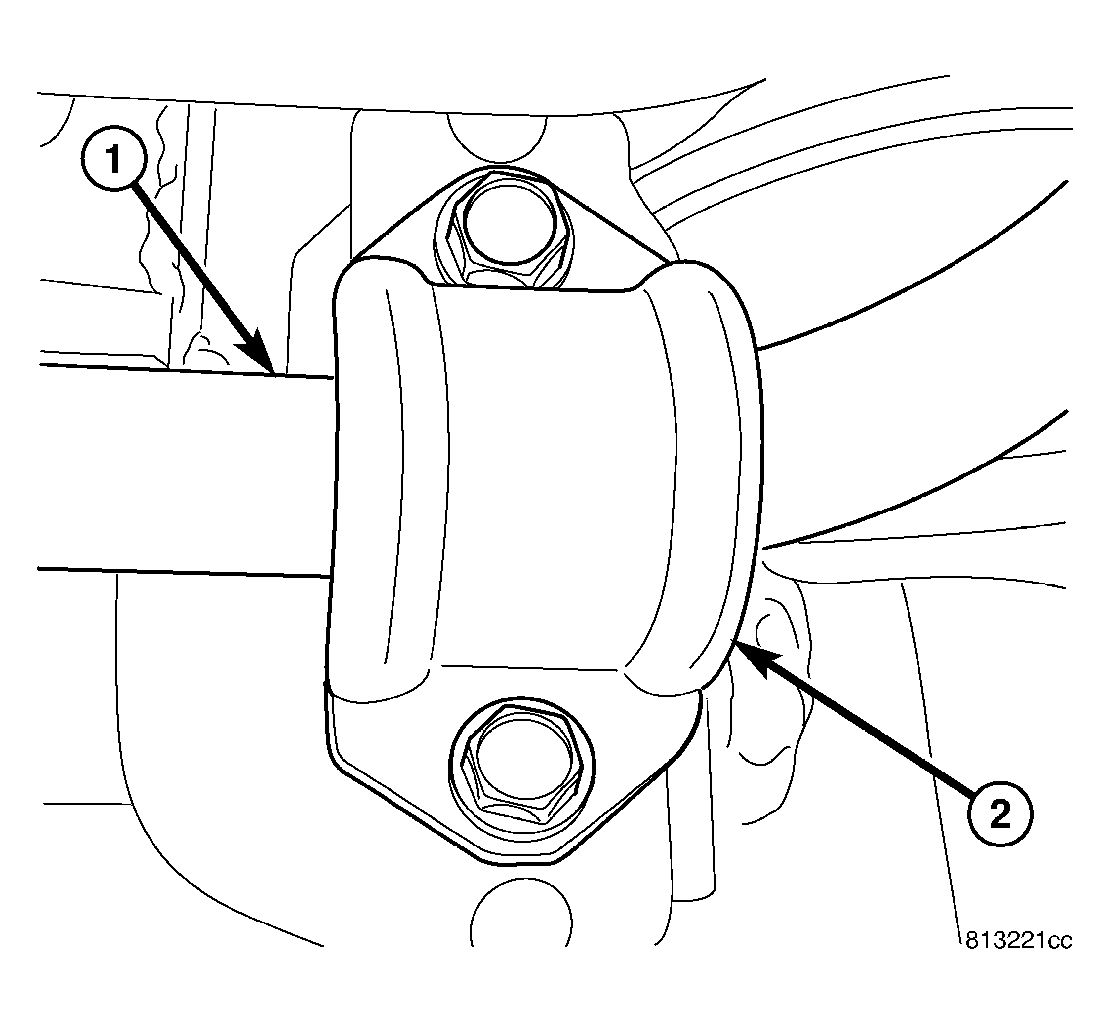

Fig 1: Stabilizer Bar Clamp
GC0026795Courtesy of DAIMLERCHRYSLER CORP.
  1. Raise and support the vehicle.
  2. Remove both rear tire assemblies.
  3. Remove the stabilizer bar links from stabilizer bar.
  4. Remove the stabilizer bar retainer bolts from the retainer (2).

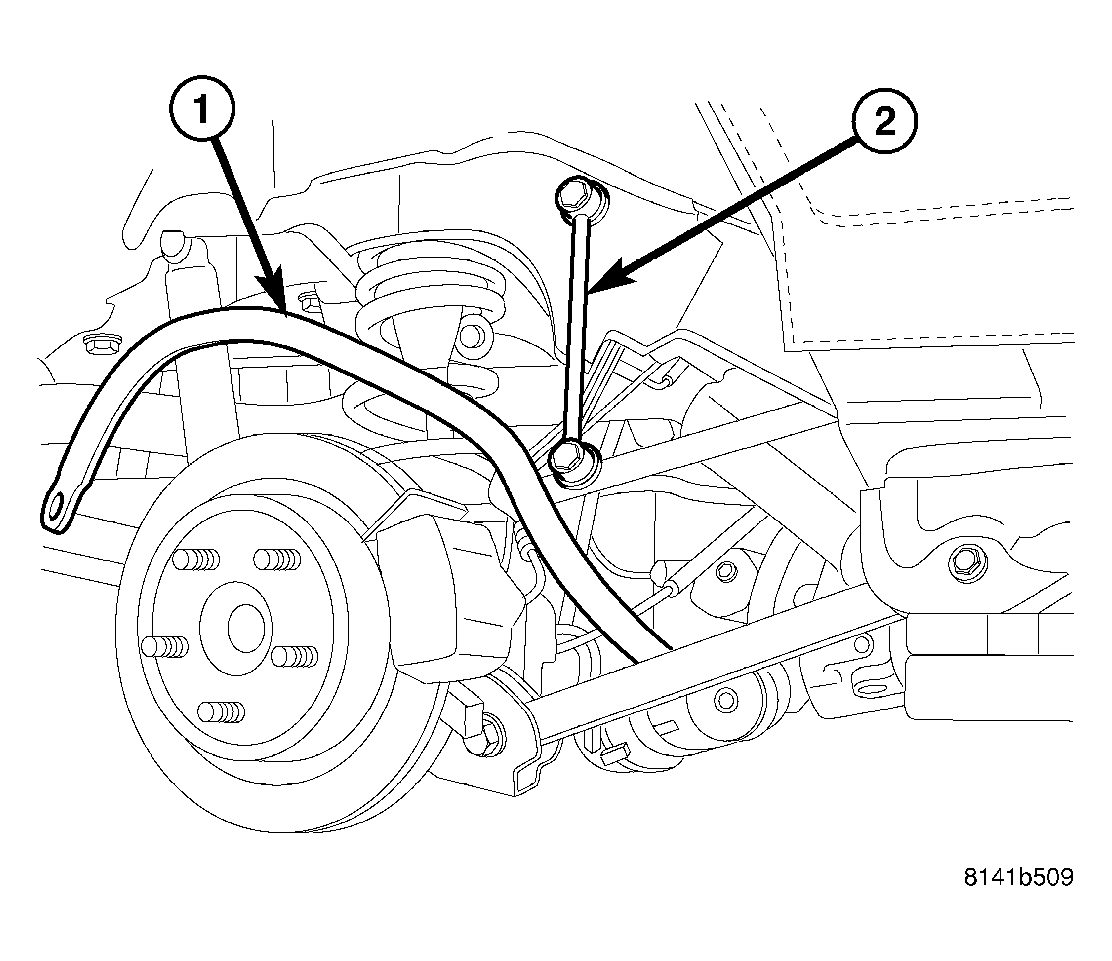

    Fig 2: Stabilizer Bar
    GC0026796Courtesy of DAIMLERCHRYSLER CORP.
    1 - STABILIZER BAR
    2 - STABILIZER LINK
  5. Remove the stabilizer bar (1) by twisting it out and around the rotor and caliper from the right rear side of the vehicle.
