Section 534 (Suspension System (Service Information)): Rear: Spring: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

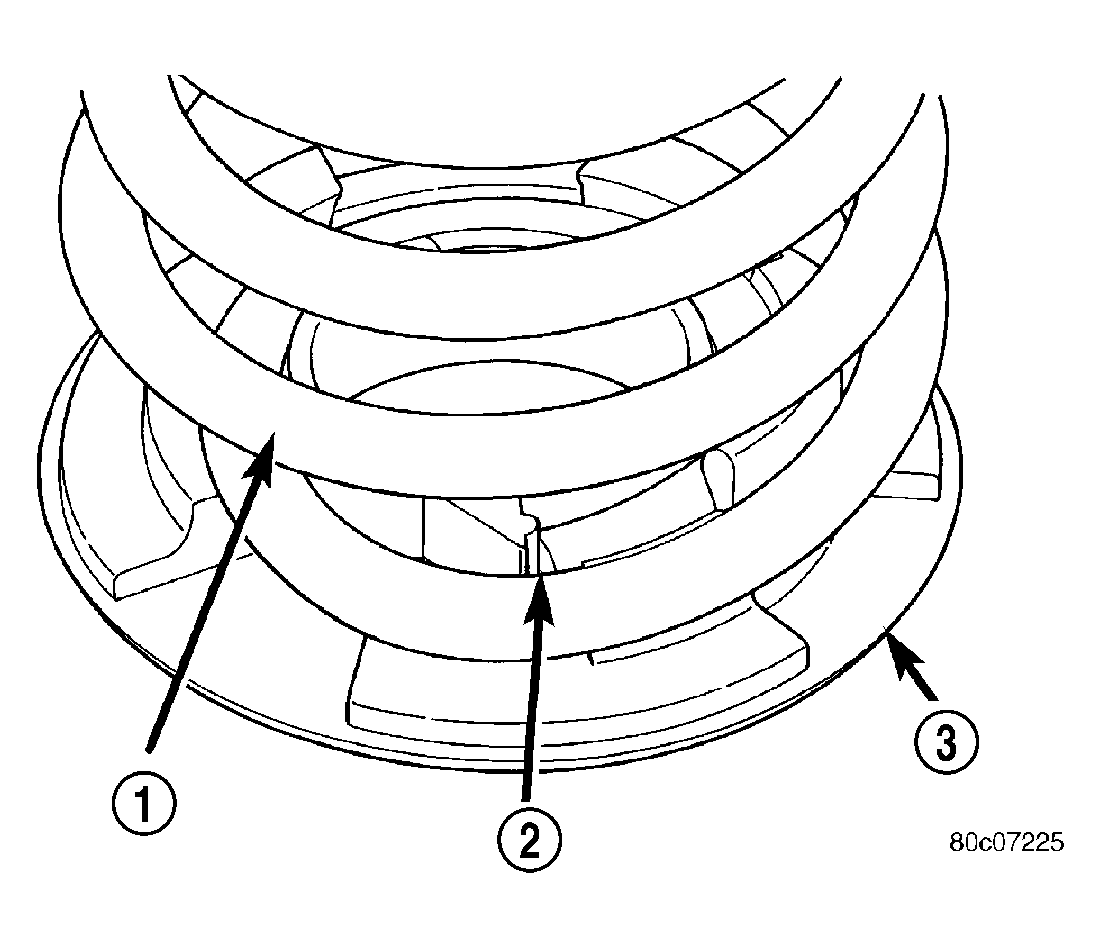

Fig 1: Isolator Spring Locator - Typical

Courtesy of DAIMLERCHRYSLER CORP.

1 - LOWER ISOLATOR

2 - SPRING LOCATOR

3 - COIL SPRING

Install the upper isolator.
Install the lower isolator (3).

Pull down on the axle and position the coil spring (1) in the lower isolator.

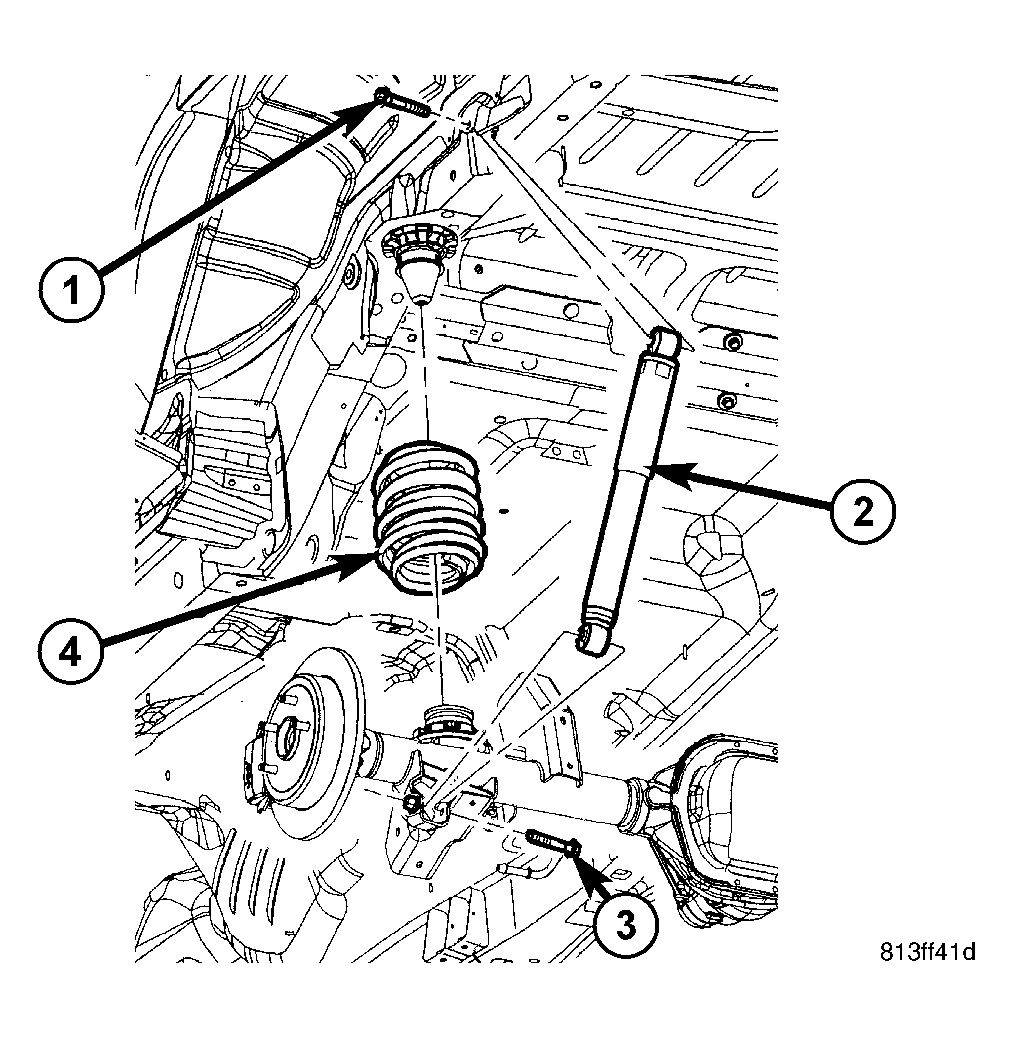

Fig 2: Spring

Courtesy of DAIMLERCHRYSLER CORP.

1 - UPPER SHOCK BOLT

2 - SHOCK

3 - LOWER SHOCK BOLT

4 - SPRING

Raise the axle with the hydraulic jack.
Install the shock absorber (3) to the axle bracket and tighten to 115 N.m (85 ft. lbs.).
Install the stabilizer bar link to the body rail, tighten to 102 N.m (75 ft. lbs.).
Install the wheel and tire assemblies.
Remove the supports and lower the vehicle.
