Section 534 (Suspension System (Service Information)): Rear: Shock: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Spring

Courtesy of DAIMLERCHRYSLER CORP.

1 - UPPER SHOCK BOLT

2 - SHOCK

3 - LOWER SHOCK BOLT

4 - SPRING

Raise and support the vehicle. Position a hydraulic jack under the axle to support the axle.
Remove the upper nut and bolt (1) from the frame bracket.

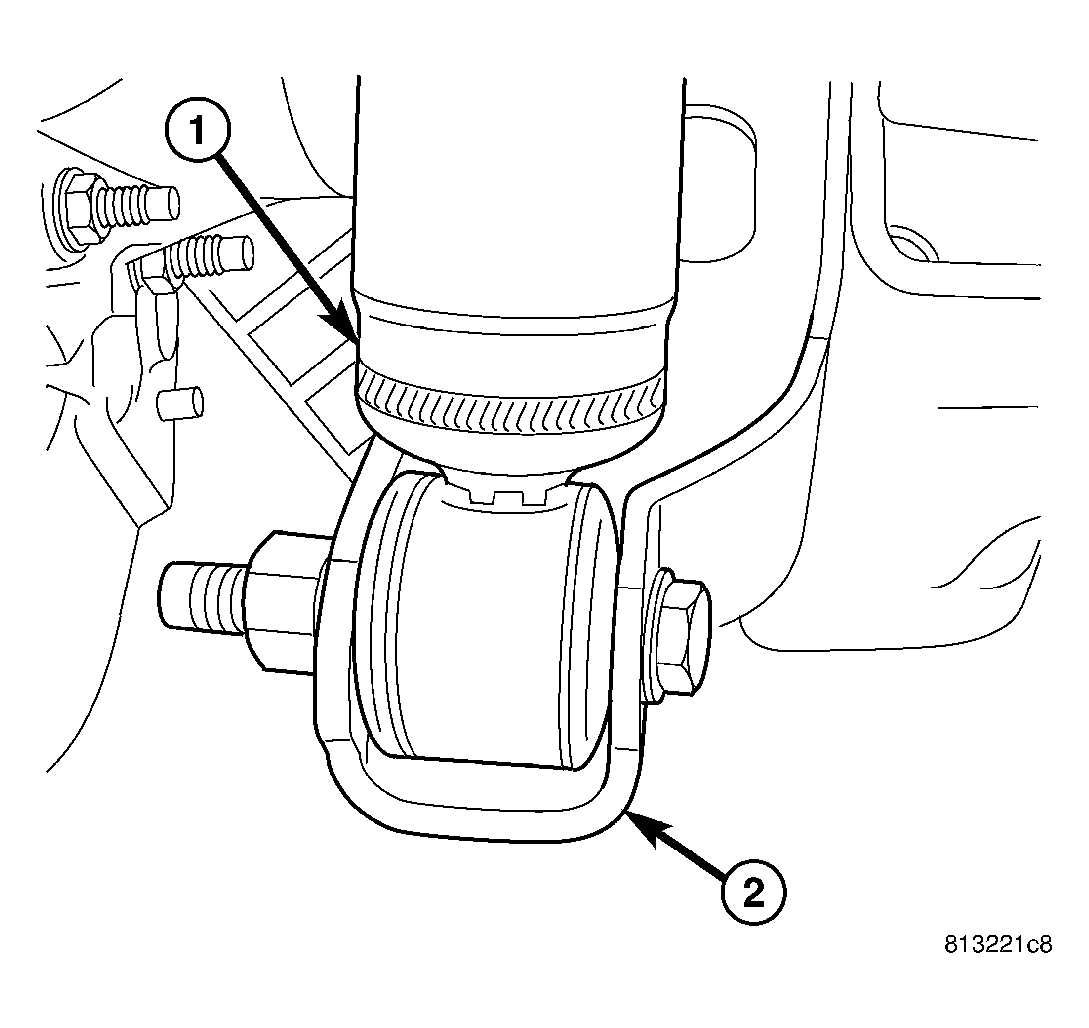

Fig 2: Shock Absorber
Courtesy of DAIMLERCHRYSLER CORP.
Remove the lower nut and bolt from the axle bracket (2). Remove the shock absorber (1).
