Stabilizer Bar: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

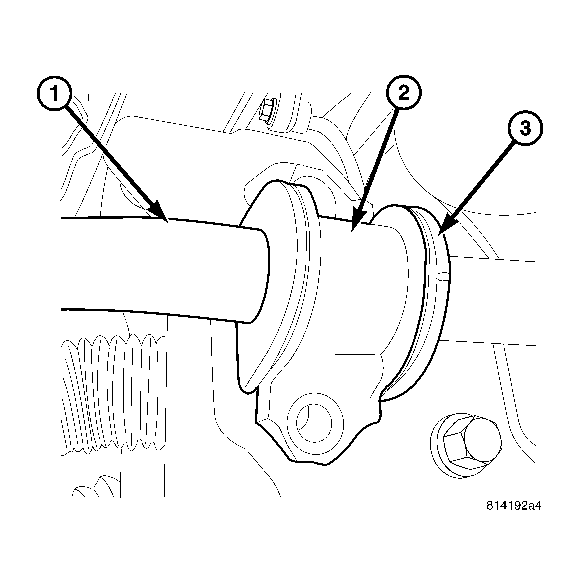

Fig 1: Stabilizer Bar Bracket To Frame

Courtesy of DAIMLERCHRYSLER CORP.

1 - STABILIZER BAR

2 - RETAINER BRACKET

3 - BUSHING

Install the stabilizer bar (1) to the vehicle.

Install the stabilizer bushing clamp (2) and tighten the bolts to 142 N.m (105 ft. lbs.).

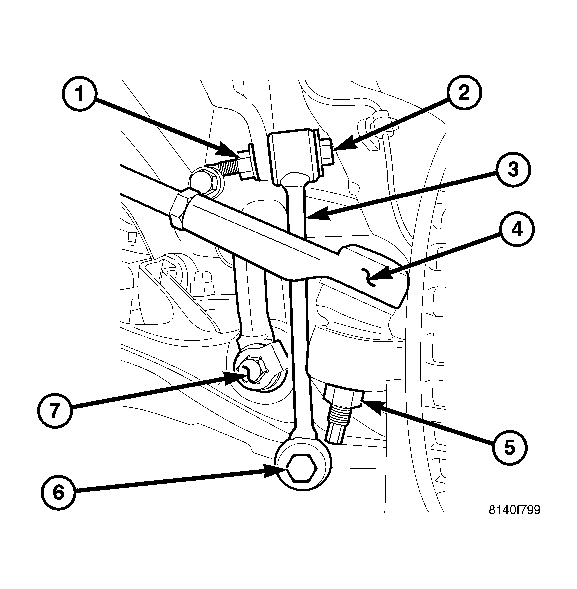

Fig 2: Stabilizer Link

Courtesy of DAIMLERCHRYSLER CORP.

1 - NUT

2 - BOLT

3 - STABILIZER LINK

4 - OUTER TIE ROD END

5 - NUT

6 - BOLT

Install the upper stabilizer link (3) and tighten nut (1) & bolt (2) to 135 N.m (100 ft. lbs.).
Install the front splash shield.
Lower the vehicle.
