Connector/Ground/Splice Location: Description

This article provides illustrations identifying connector, ground, and splice locations in the vehicle. Connector, ground, and splice indexes are provided. Use the wiring diagrams for connector, ground, and splice identification (Refer to appropriate Wiring Information article in ELECTRICAL). Refer to the appropriate index below for the proper figure number. For items that are not shown in this article N/S is placed in the Fig. column.

CONNECTOR NAME/NUMBER	COLOR	LOCATION	FIG.
A/C Compressor Clutch	BK	At A/C Compressor	Fig 2, Fig 21.
A/C Heater Control C1	BK	Center of Dash, Behind A/C-Heater Controls	N/S
A/C Heater Control C2	WT	Center of Dash, Behind A/C-Heater Controls	N/S
A/C High Pressure Switch (Diesel)	GY	Left Front Side of Engine Compartment	Fig 21.
A/C Low Pressure Switch (RHD)	GY	Left Rear Side of Engine Compartment	Fig 35.
A/C Low Pressure Switch (LHD)	GY	Right Rear Side of Engine Compartment	Fig 26.

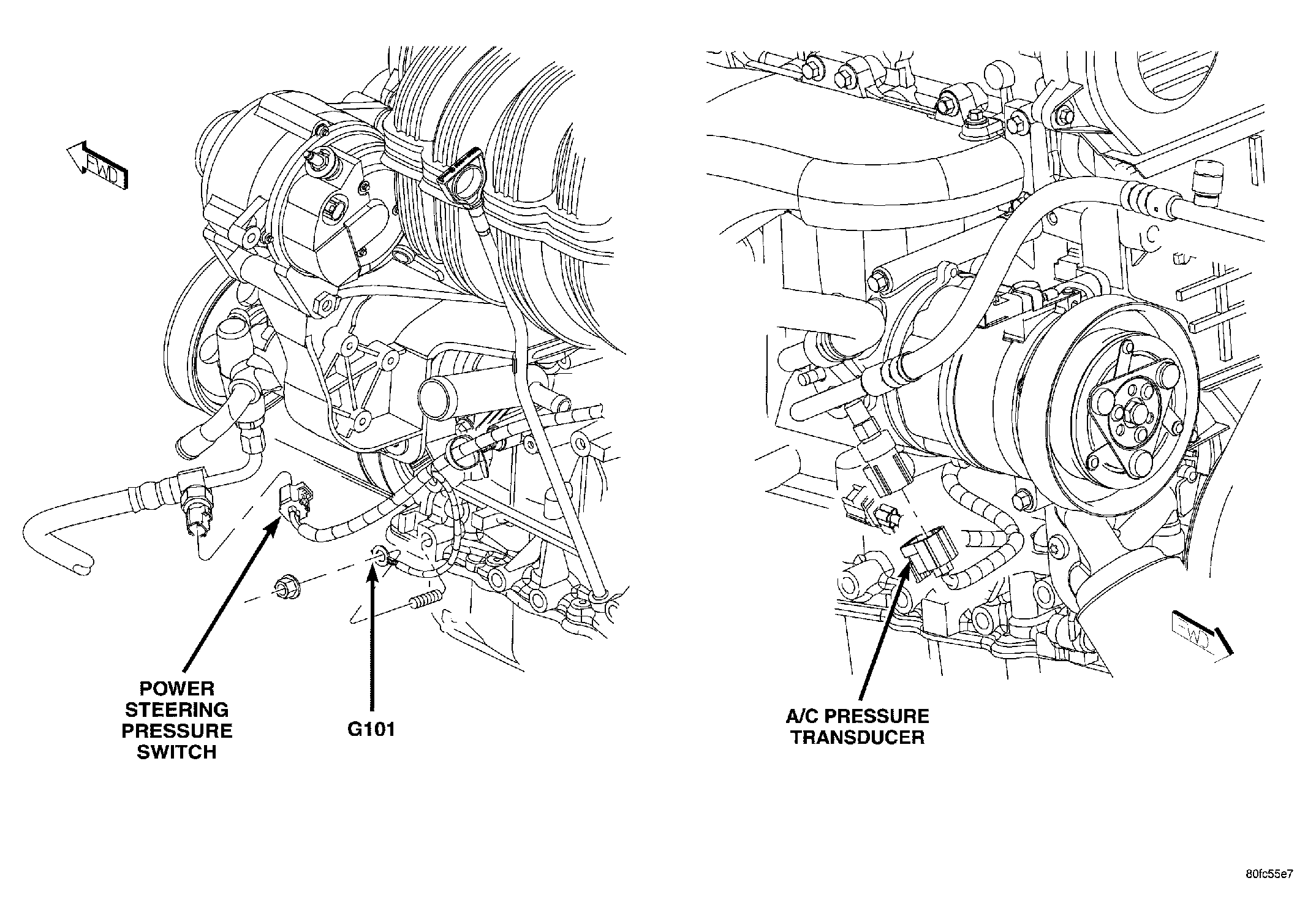

A/C Pressure Transducer (2.4L)	BK	Front Side of Engine	Fig 12, Fig 15.
A/C Pressure Transducer (3.7L)	BK	Front Side of Engine	Fig 2.
Accelerator Pedal Position Sensor (Diesel)	BK	At Base of Pedal	NS

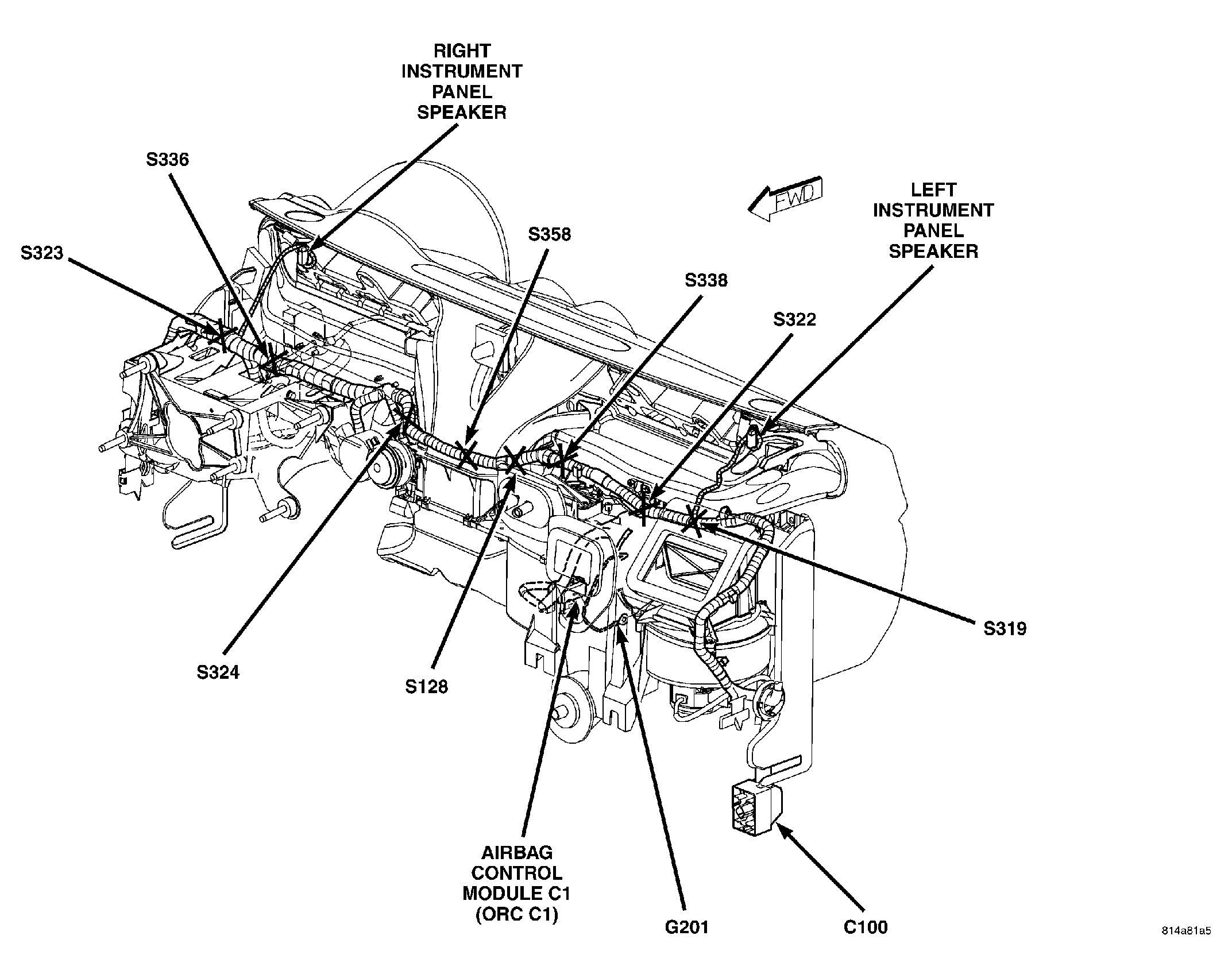

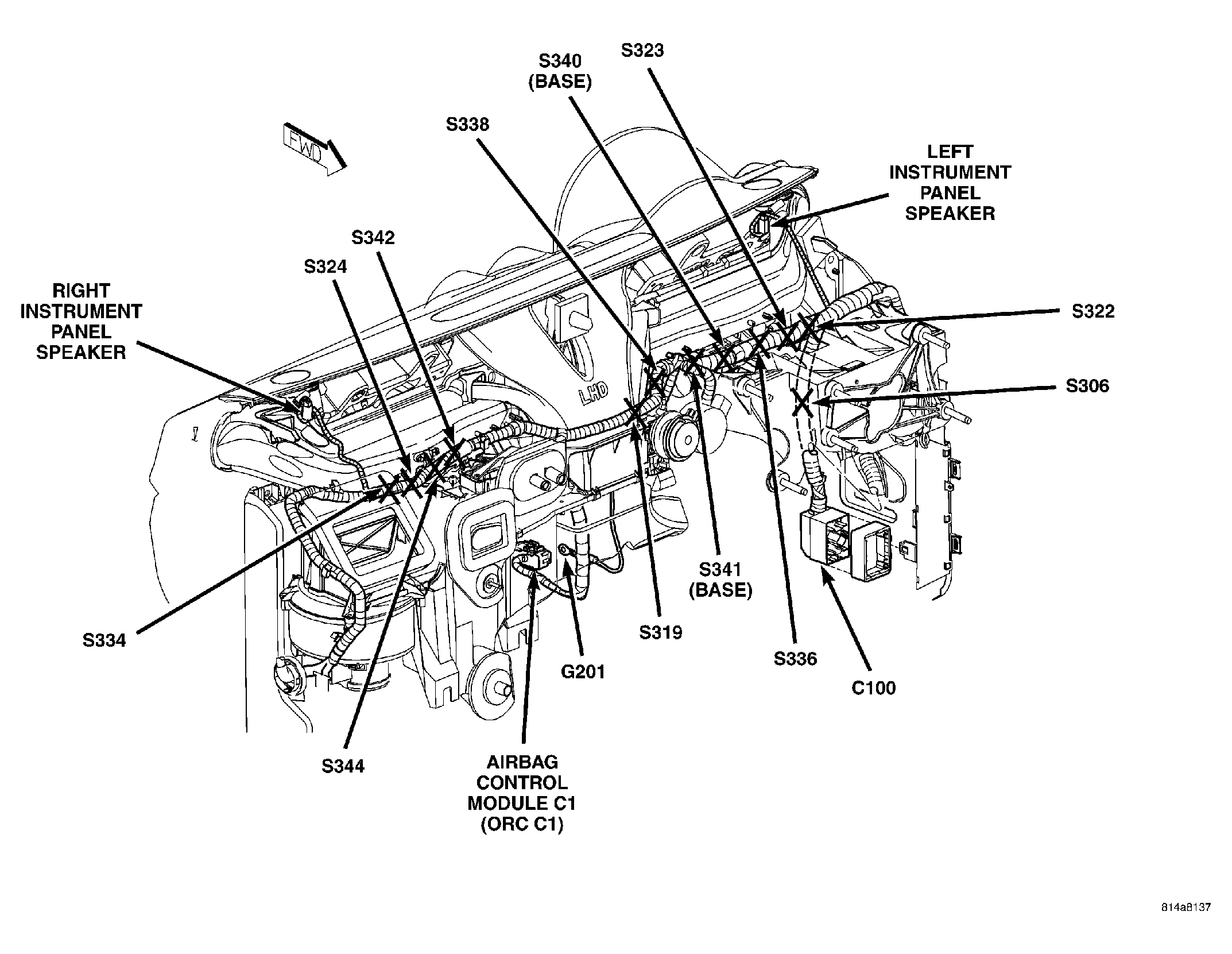

Airbag Control Module C1 (ORC C1)	YL	Under Center Console	Fig 39, Fig 43.

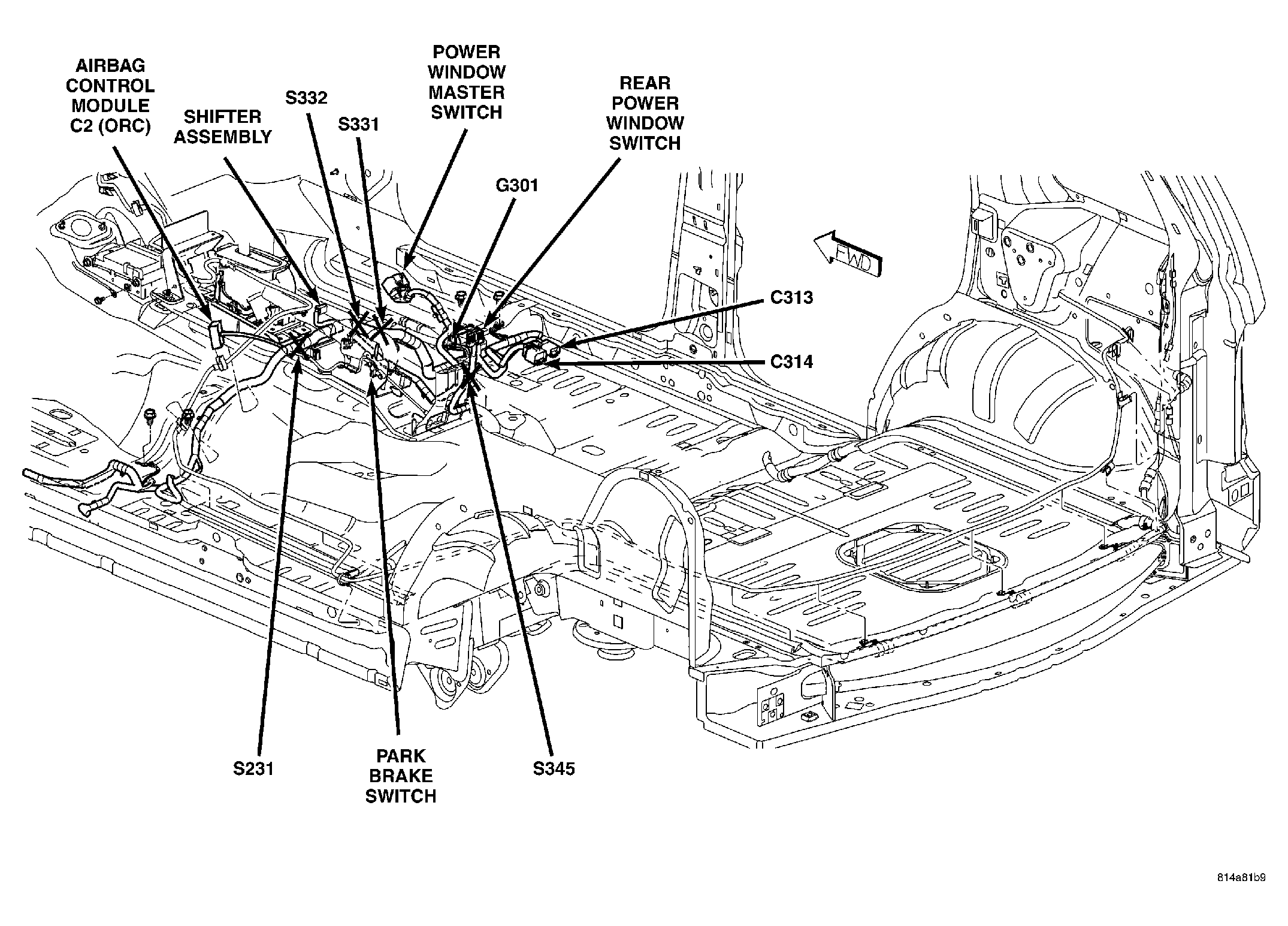

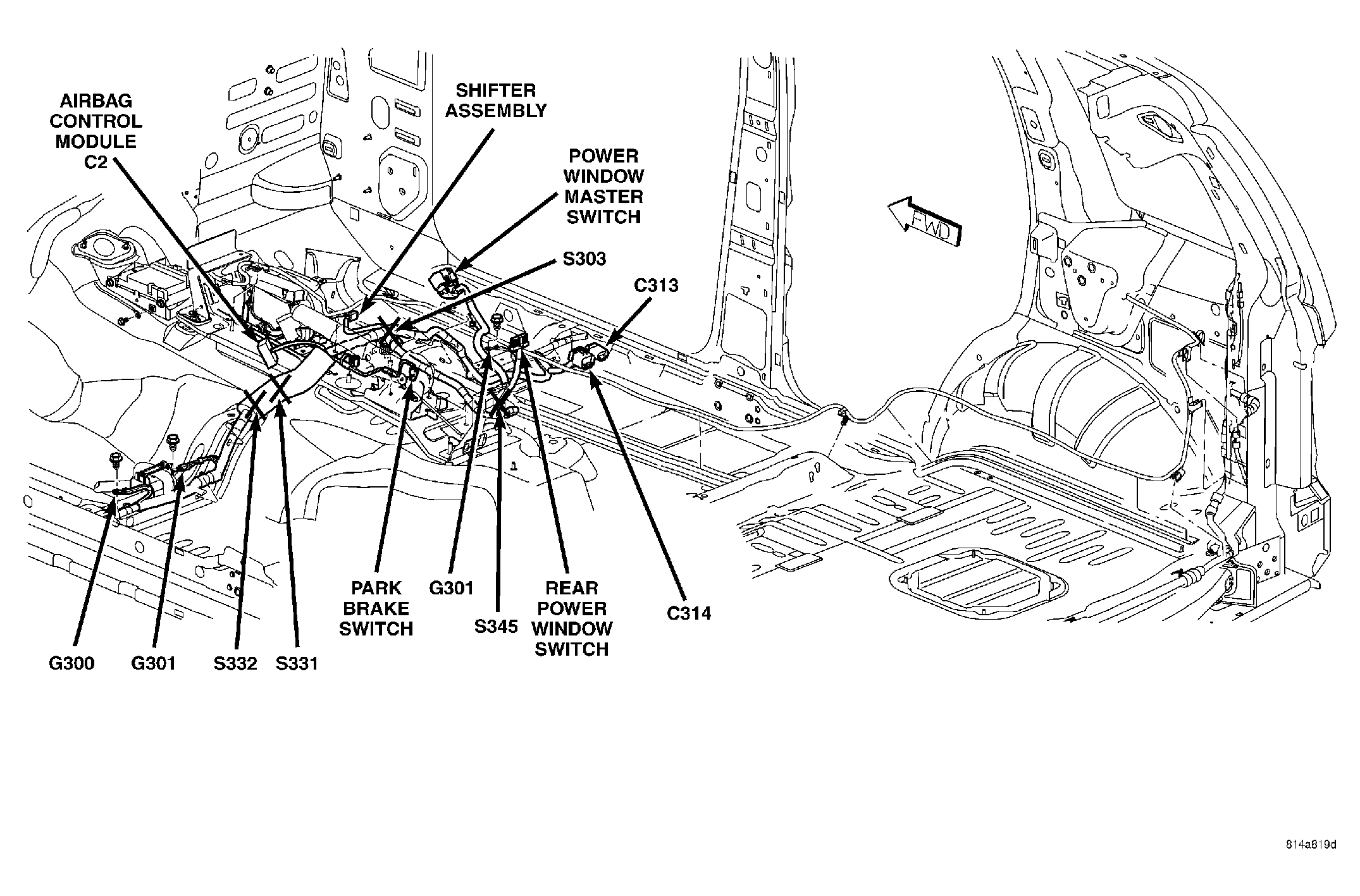

Airbag Control Module C2 (ORC C2)	BK	Under Center Console	Fig 42, Fig 46.
Ambient Temperature Sensor	BK	Front of Engine Compartment	N/S
Antenna Module C1 (Export)	-	Above Right Quarter Window	Fig 53.
	Antenna Module C2 (Export)	Above Right Quarter Window	N/S
	Automatic Day/Night Mirror C1	Top Center Windshield	N/S
	Automatic Day/Night Mirror C2 (Hands Free)	Top Center Windshield	N/S
Back-Up Lamp Switch (2.4L)	BK	Right Side of Transmission	Fig 12.

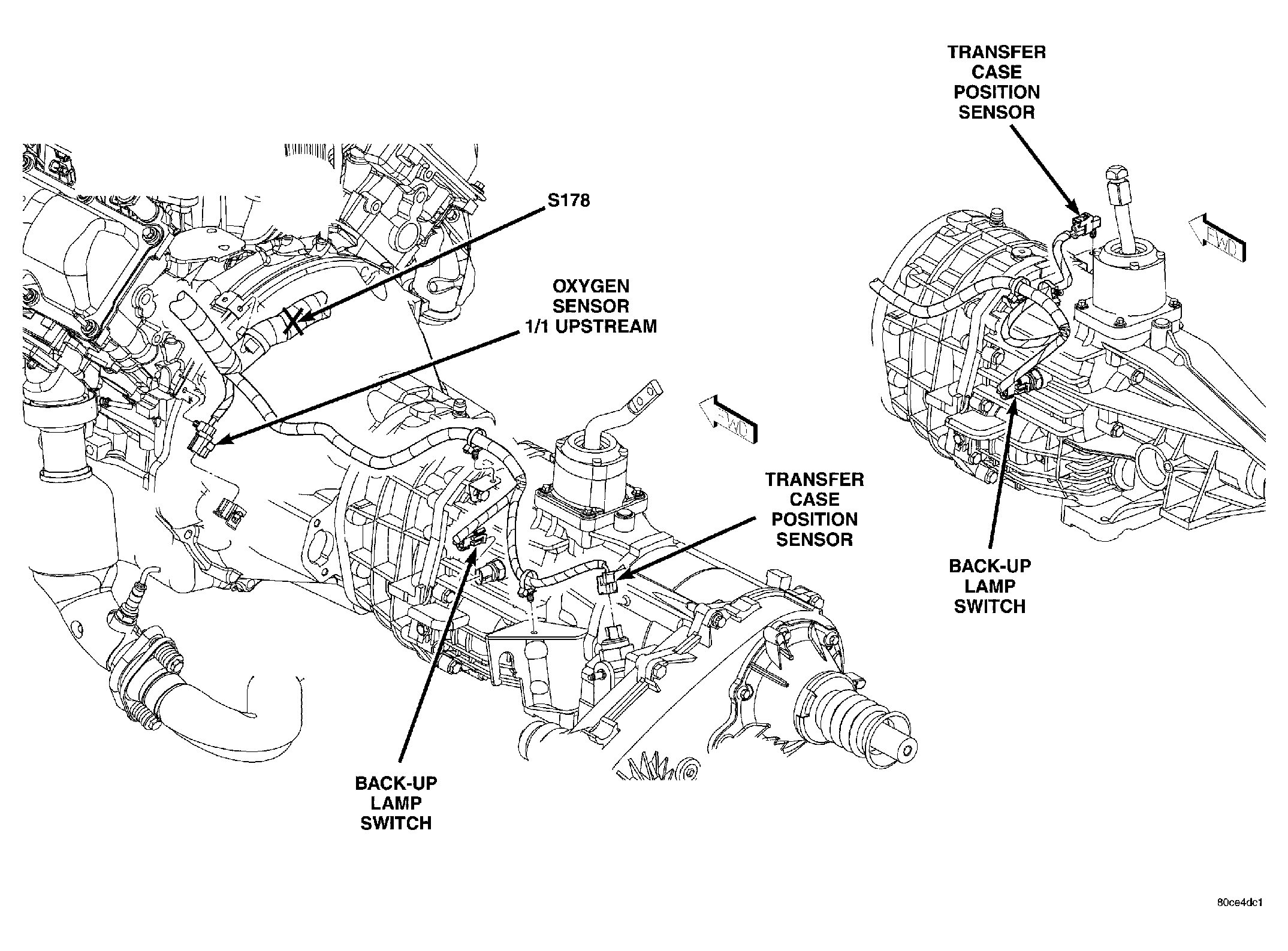

Back-Up Lamp Switch (M/T) (3.7L) (Diesel)	BK	Left Side of Transmission	Fig 7, Fig 23.

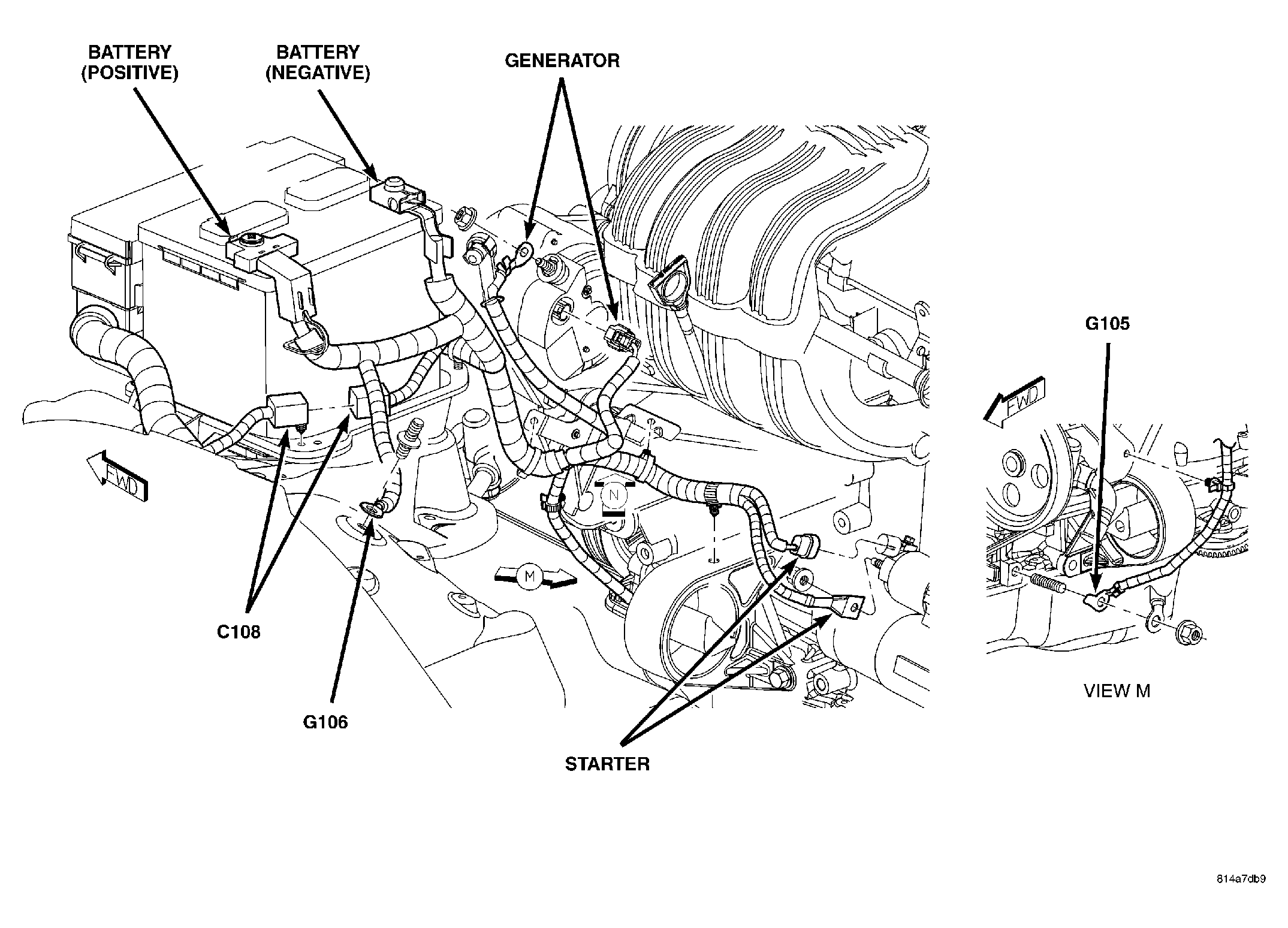

	Battery (Positive)	Left Front Engine Compartment	Fig 32, Fig 33.
	Battery (Negative)	Left Front Engine Compartment	Fig 32, Fig 33.
Blend Door Actuator	BK	Behind Right Side of Instrument Panel	N/S
Blower Motor	BK	Behind Right Side of Instrument Panel	N/S
Blower Motor Resistor Block	BK	Behind Right Side of Instrument Panel	N/S
Body Control Module C1	GY	Under Left Side of Instrument Panel	N/S
Body Control Module C2	GY	Under Left Side of Instrument Panel	N/S
	Body Control Module JB	Under Left Side of Instrument Panel	N/S

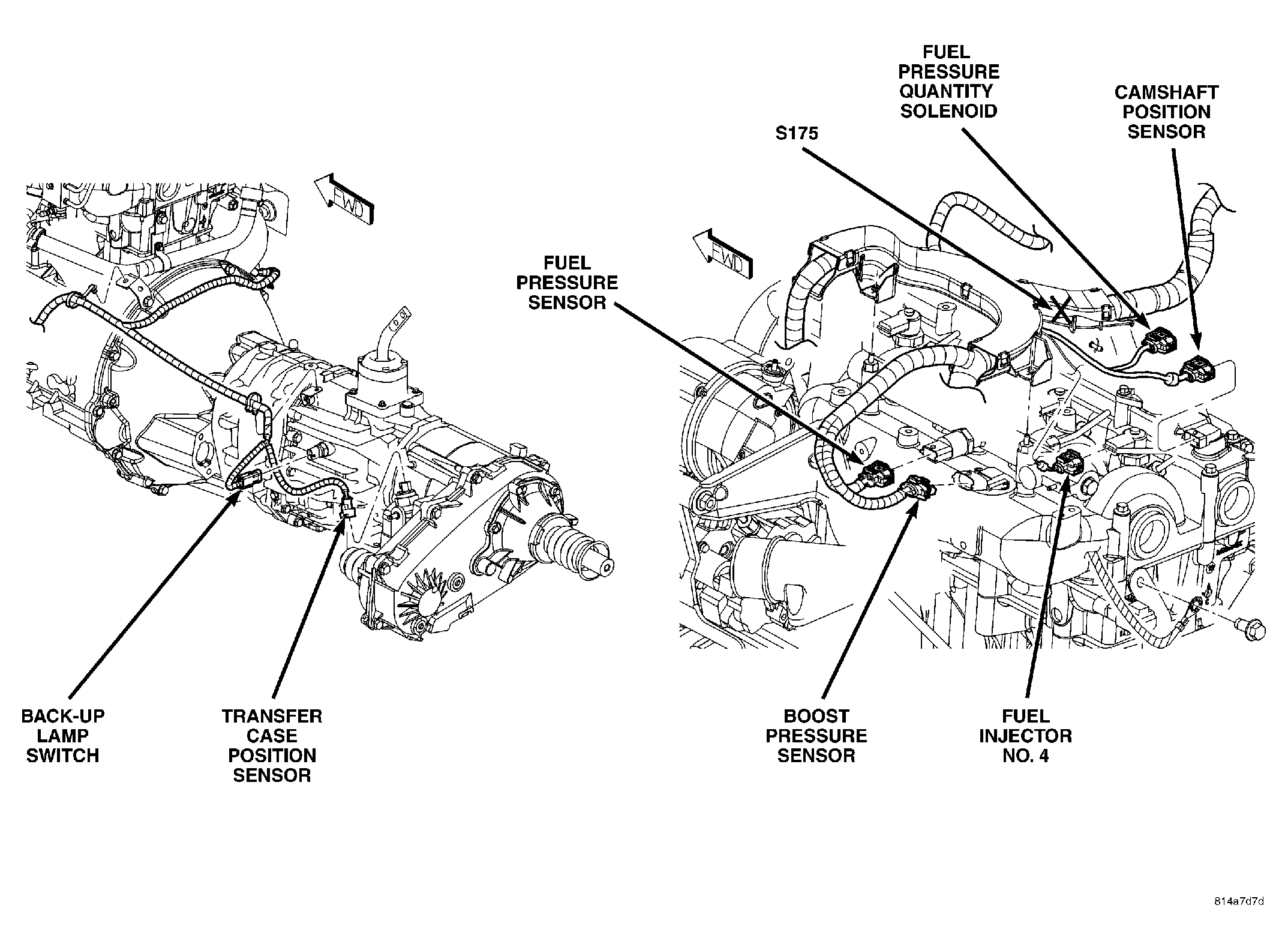

	Boost Pressure Sensor (Diesel)	Left Side of Engine	Fig 23.
	Boost Pressure Solenoid	Right Rear Engine Compartment	Fig 27.
Brake Lamp Switch	BK	At Brake Pedal	N/S

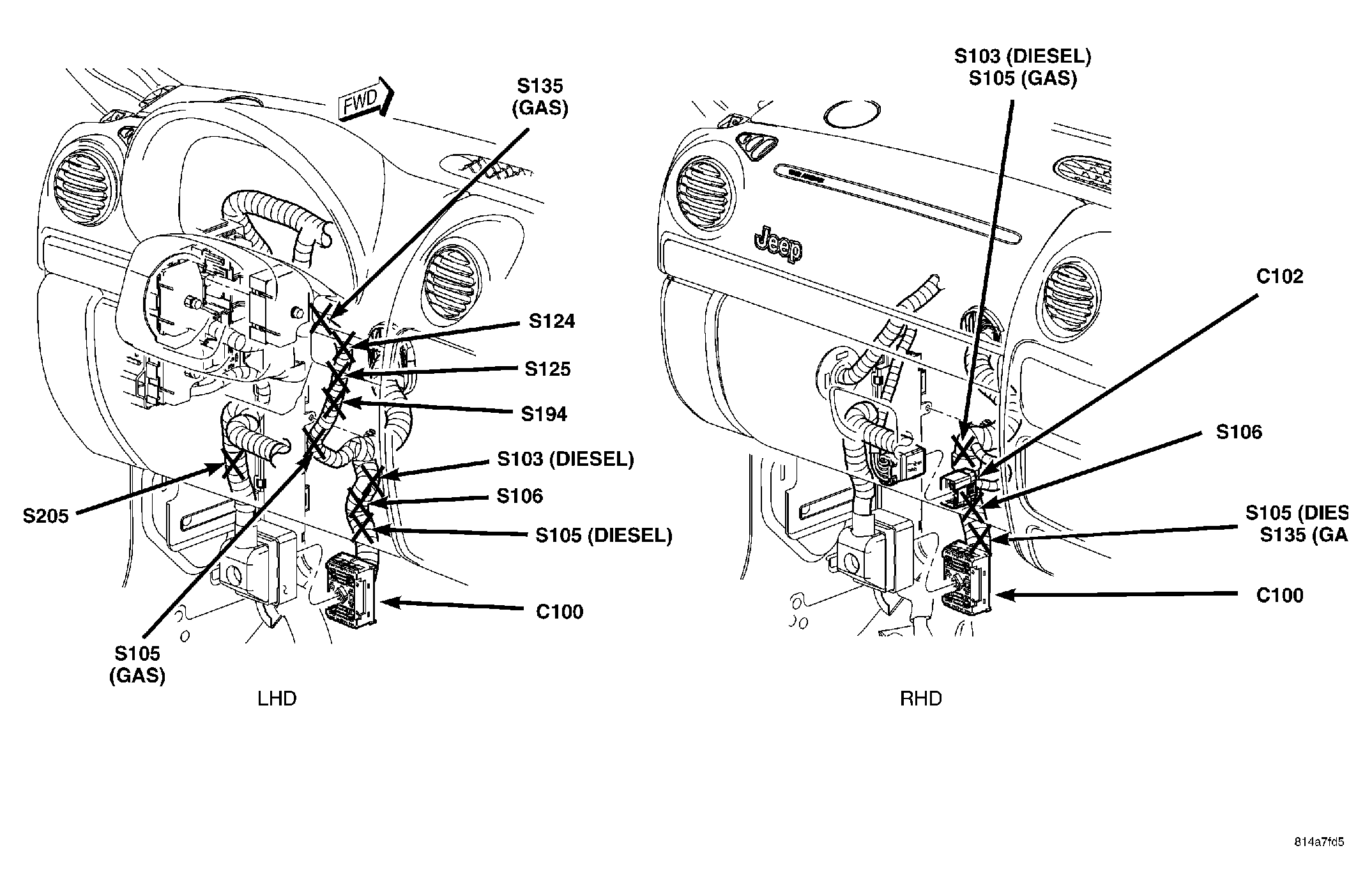

C100	GY	Left Kick Panel	Fig 36, Fig 39, Fig 43.

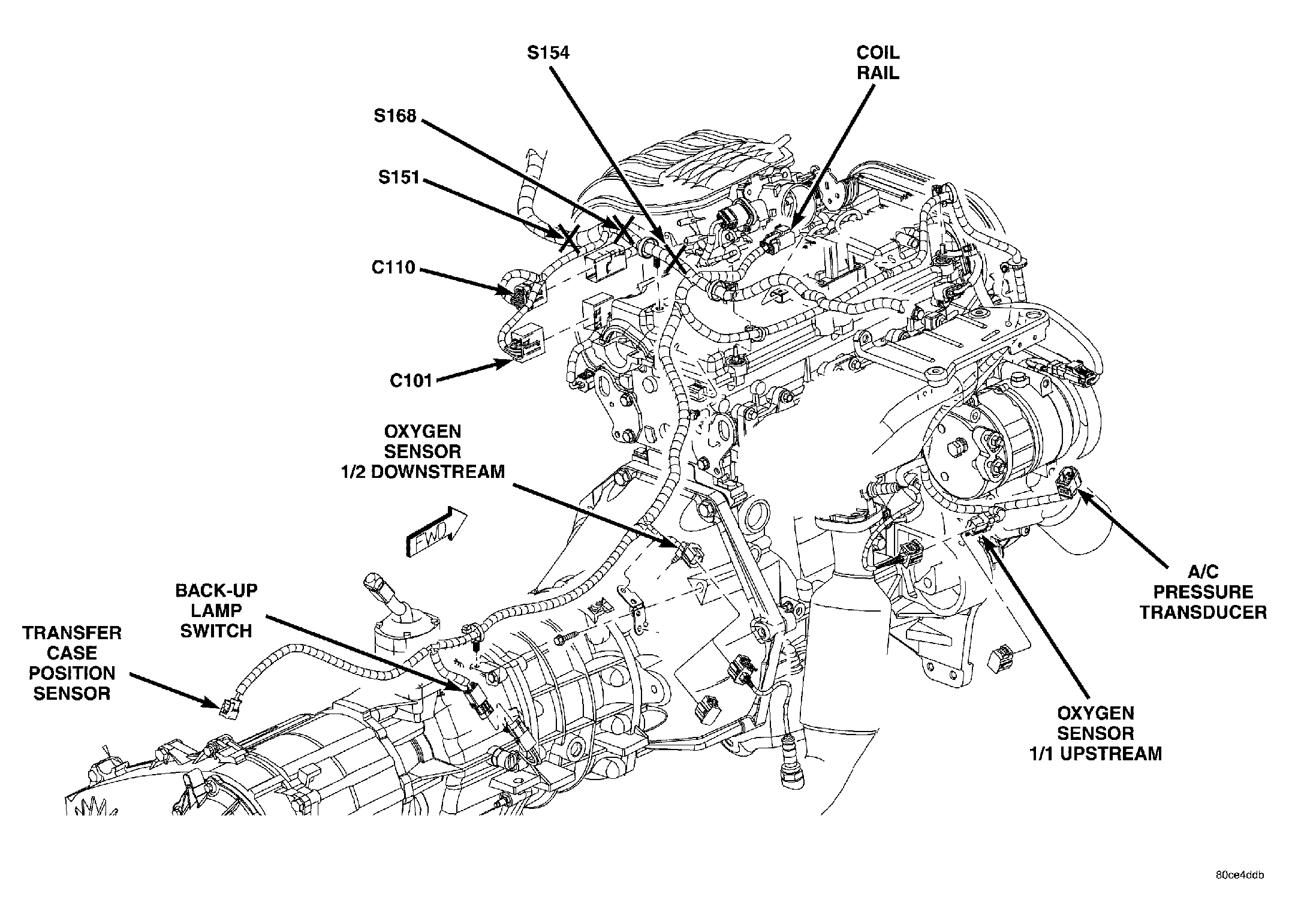

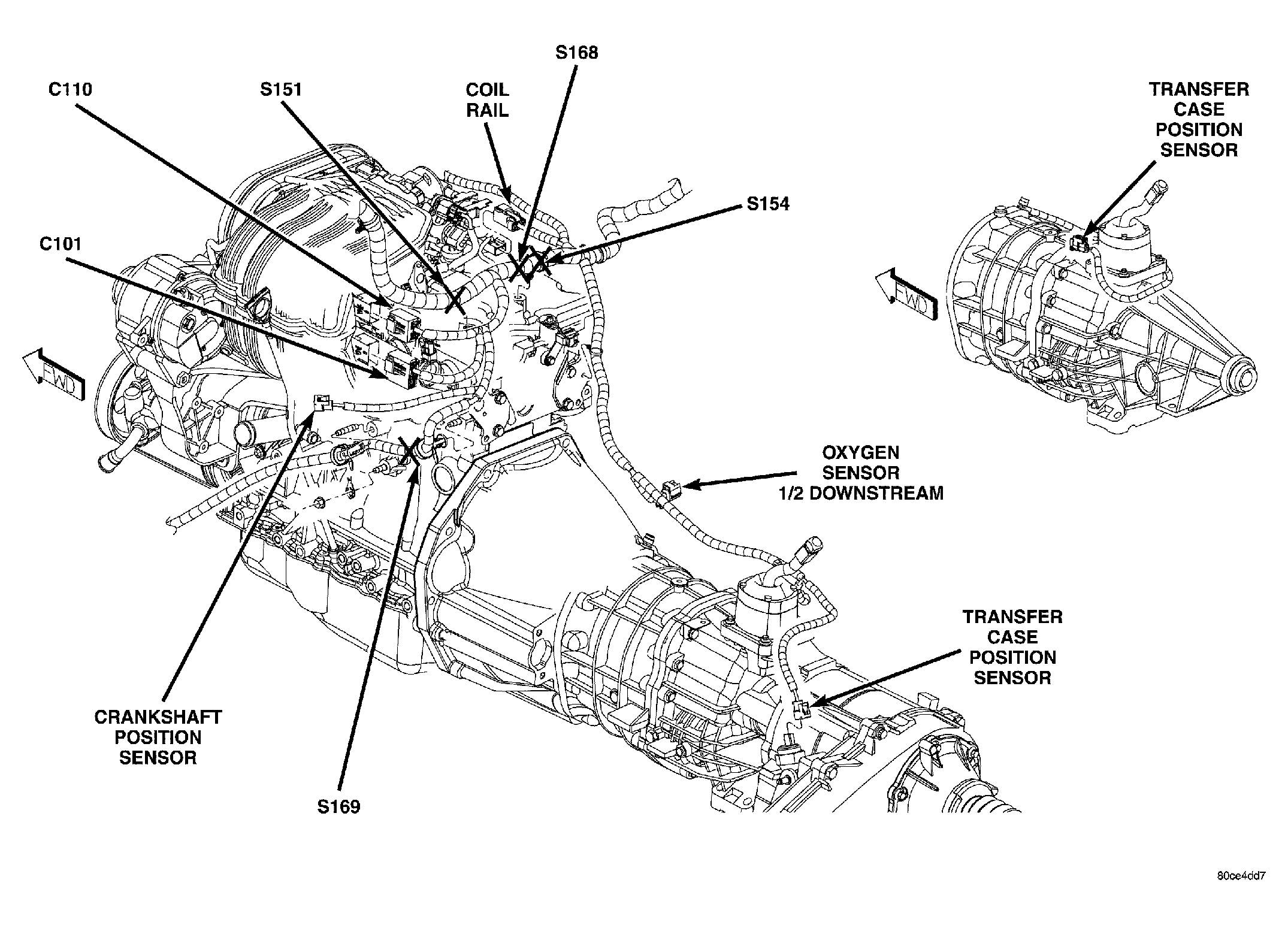

C101 (2.4L)	BK	Left Side of Engine Compartment	Fig 11, Fig 12.
	C102 (RHD)	Left Kick Panel	Fig 36.

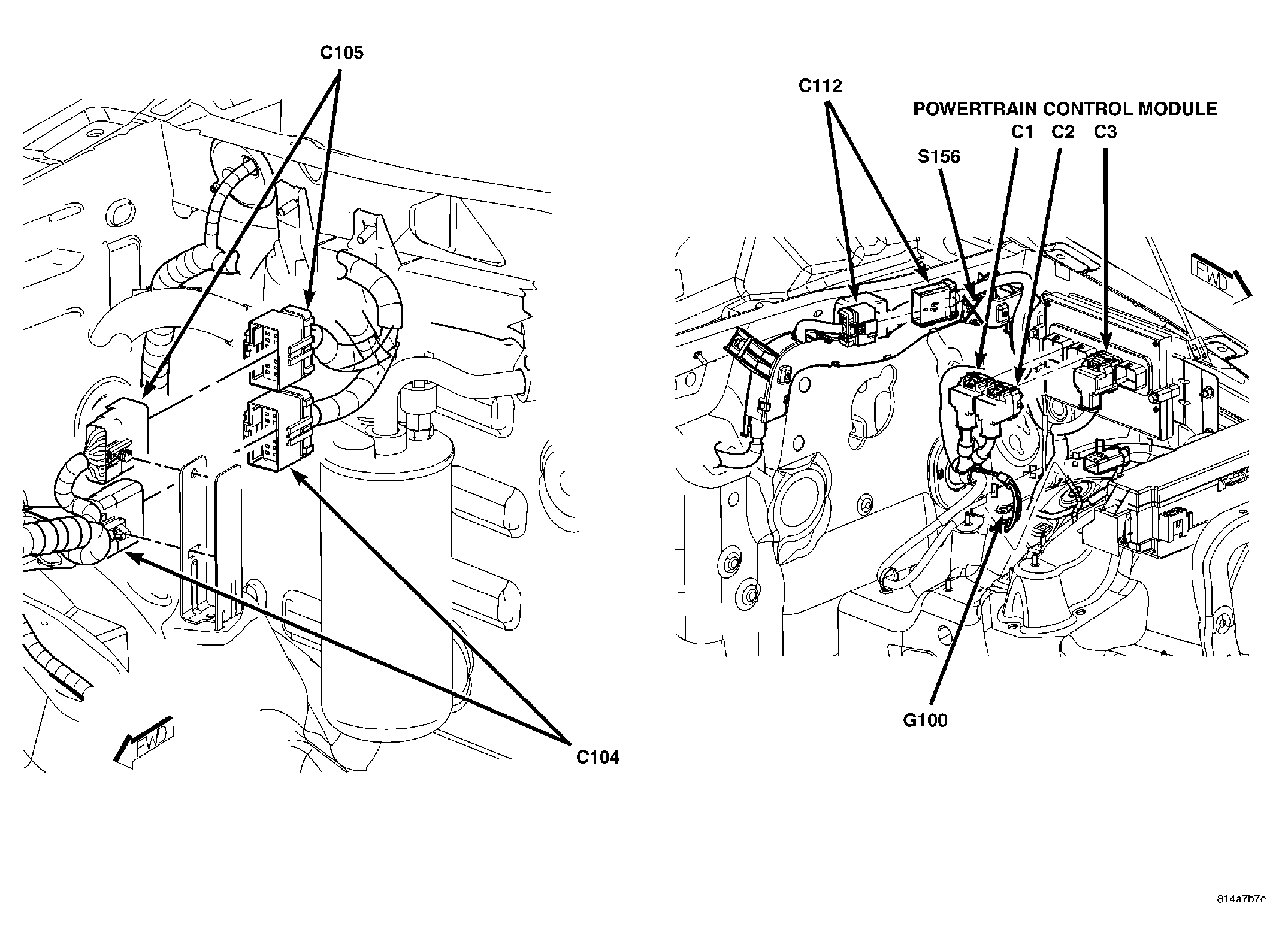

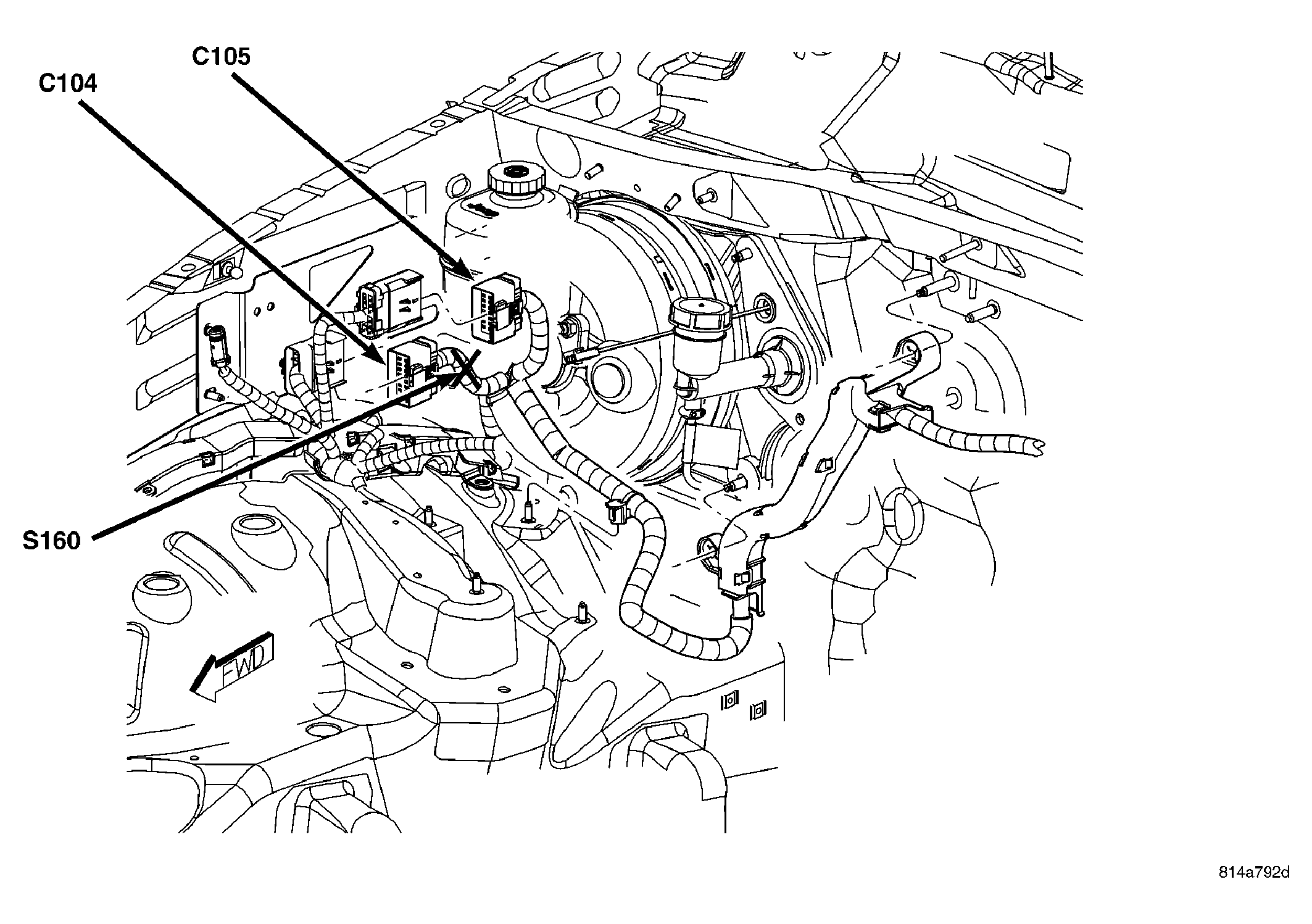

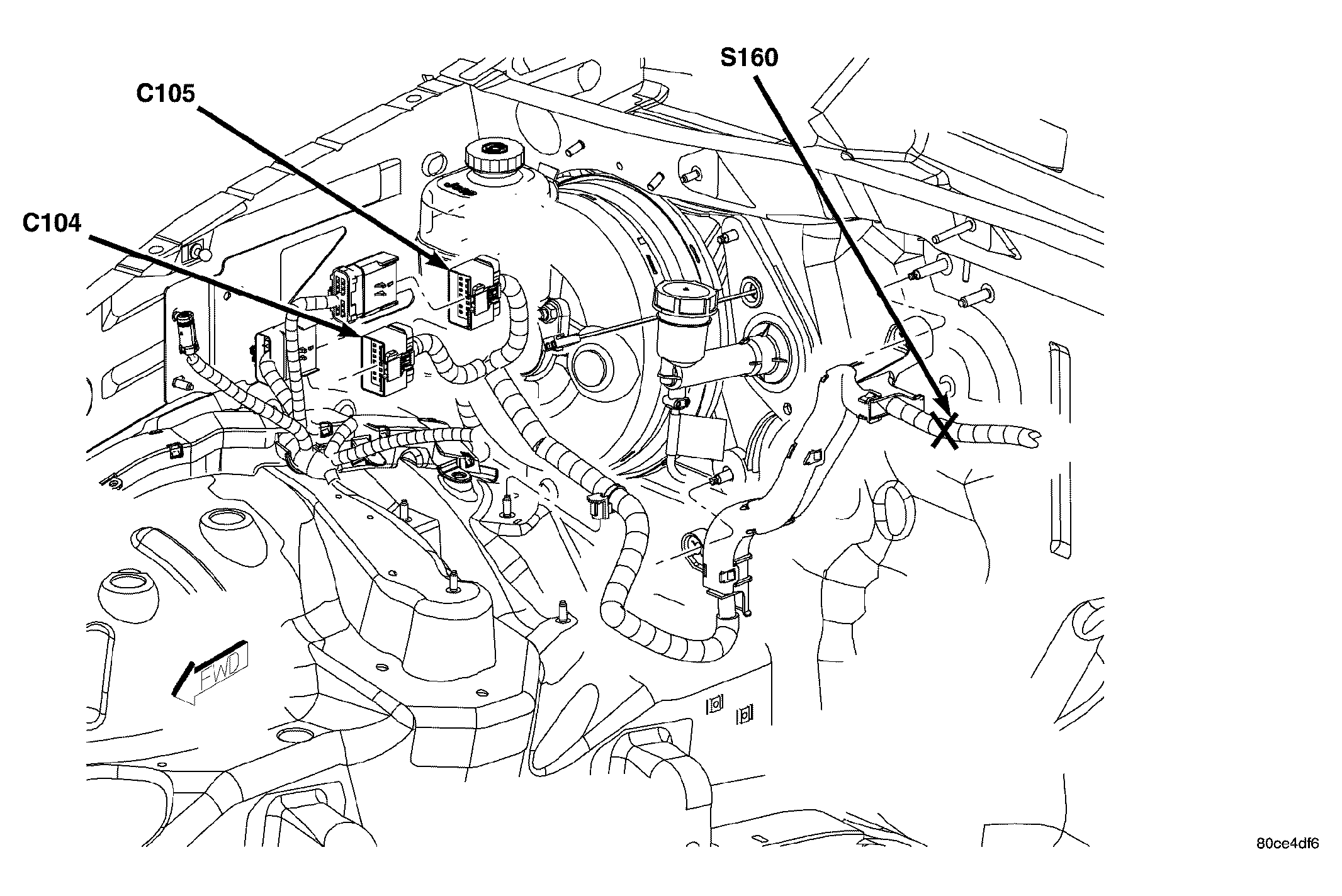

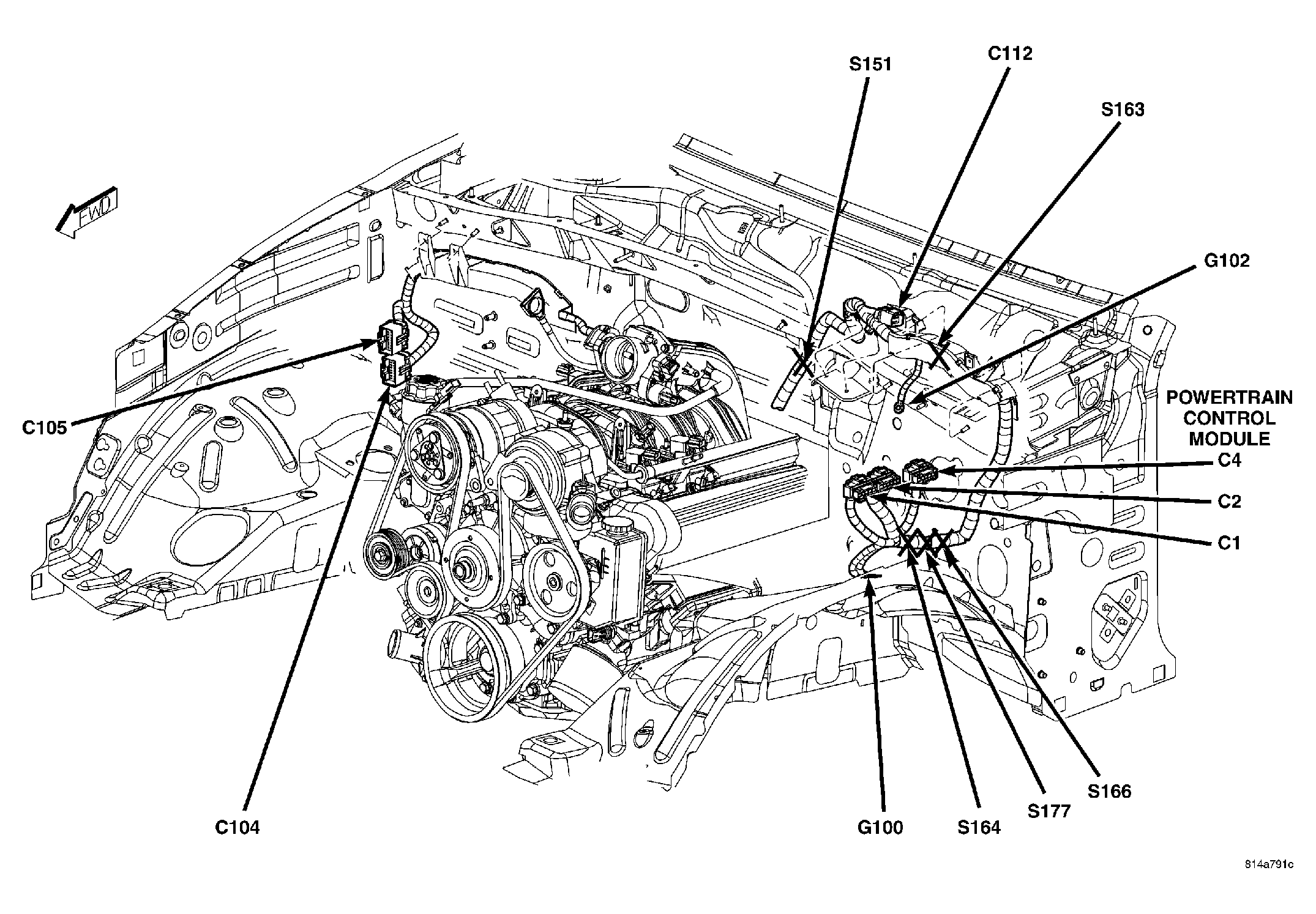

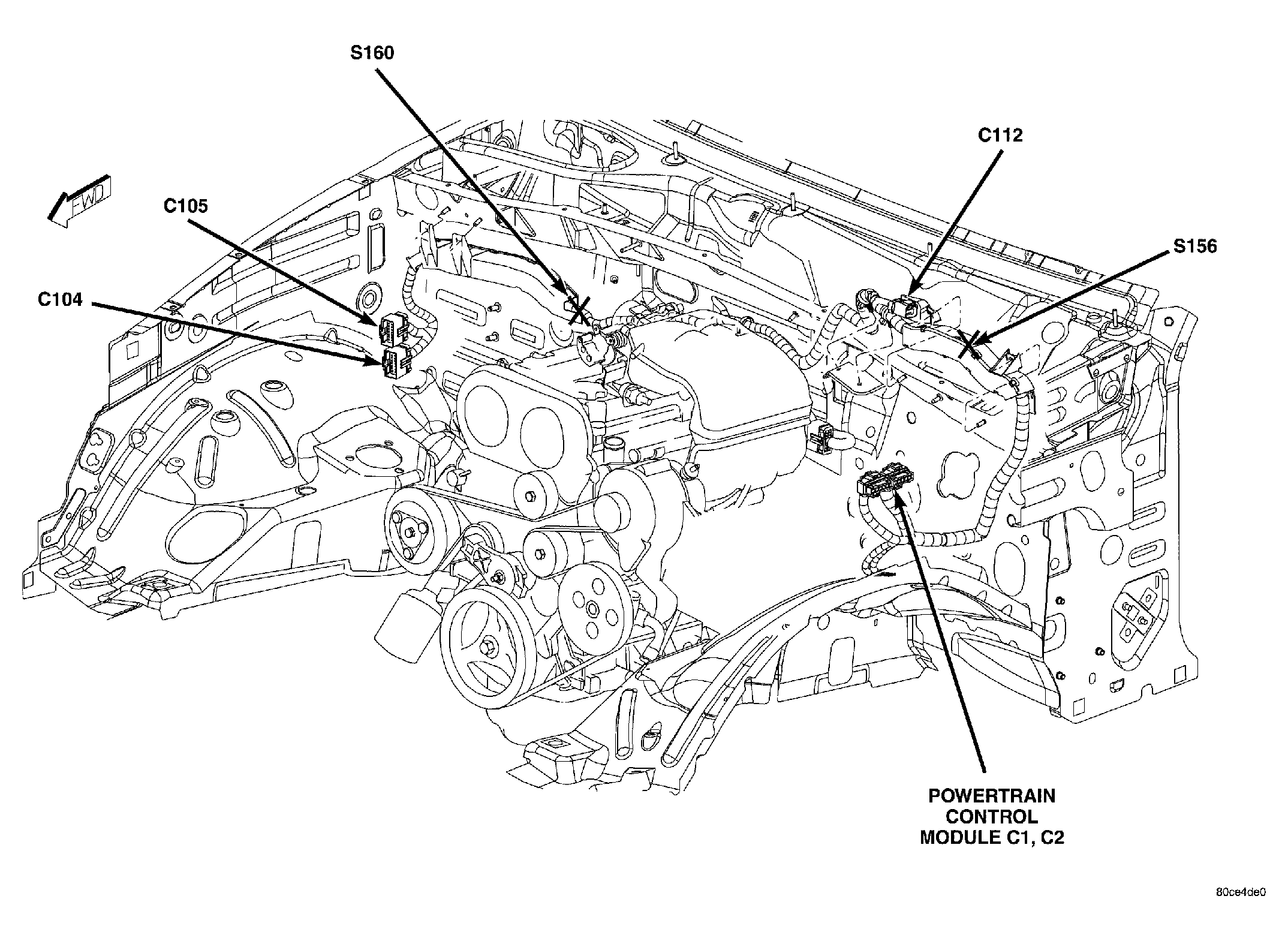

C104	BK	Right Rear Side of Engine Compartment	Fig 8, Fig 10, Fig 13, Fig 14, Fig 16, , Fig 19.
C105	GY	Right Rear Side of Engine Compartment	Fig 8, Fig 10, Fig 13, Fig 14, Fig 16, Fig 19.

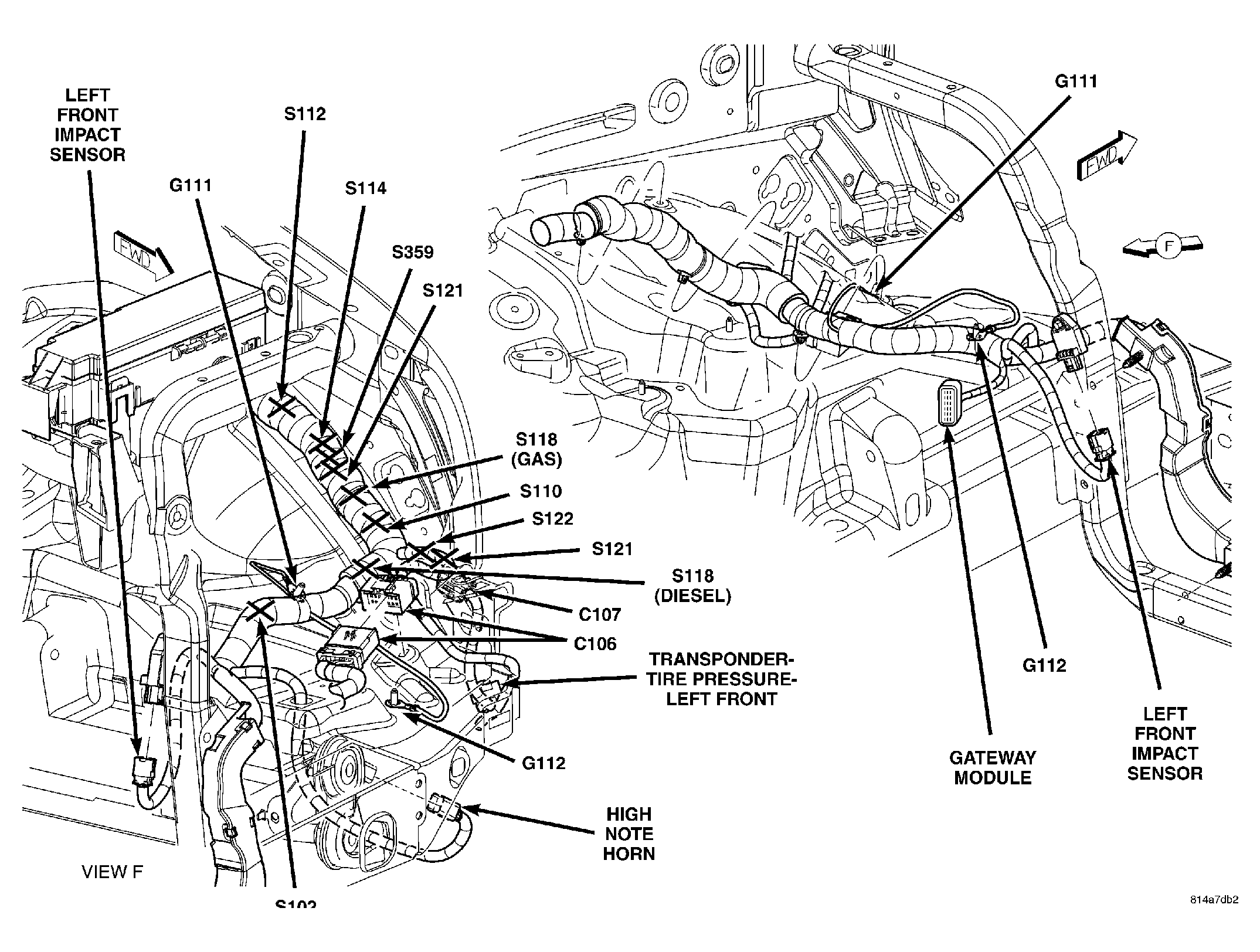

C106	BK	Left Front Side of Engine Compartment	Fig 31.
C107	BK	Left Front Side of Engine Compartment	Fig 31.
C108 (Gas)	GY	Left Front Side of Engine	Fig 32, Fig 34.

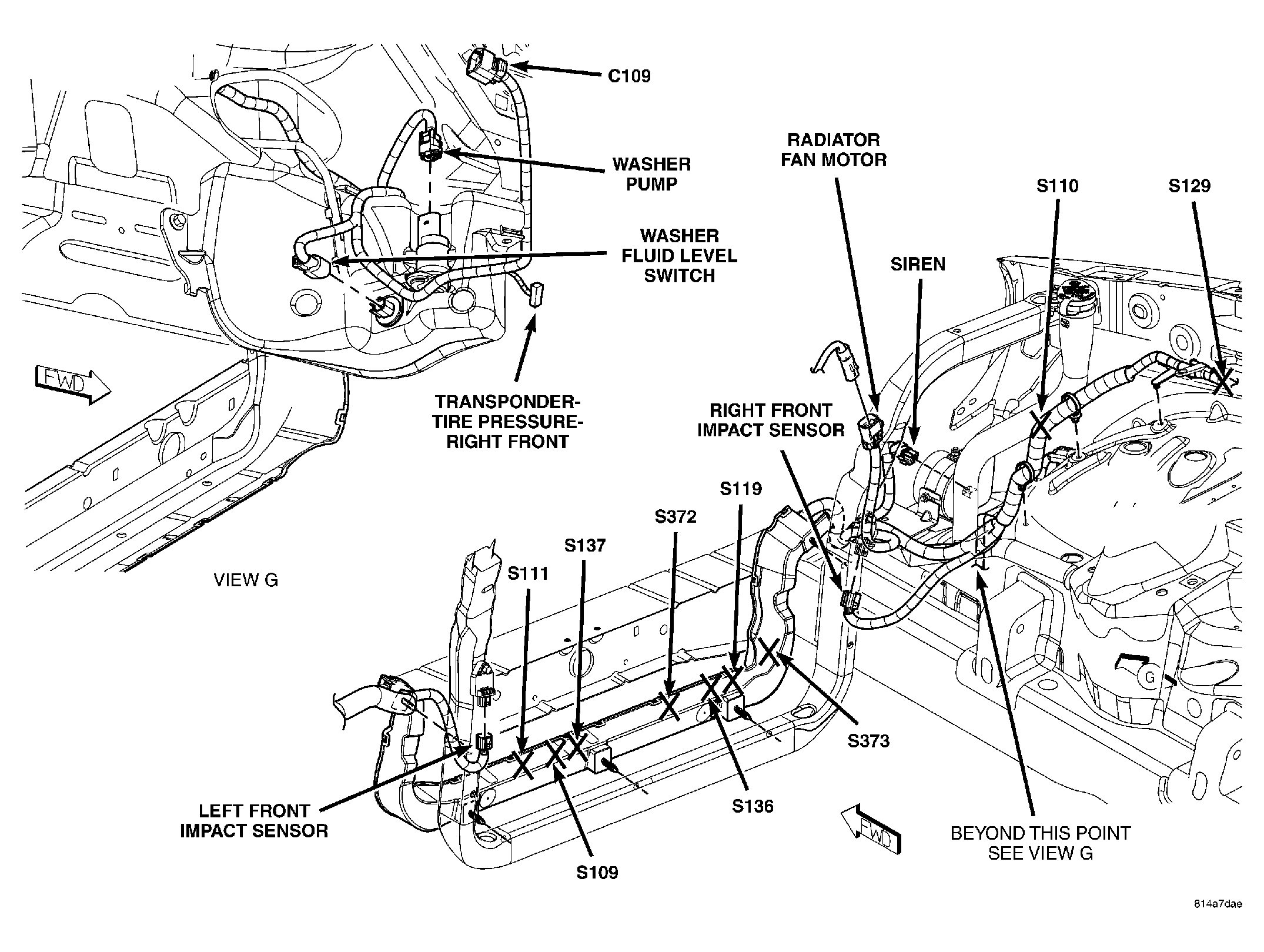

	C109	Right Front Engine Compartment	Fig 30.
C110 (2.4L)	BK	Left Side of Engine	Fig 11, Fig 12.

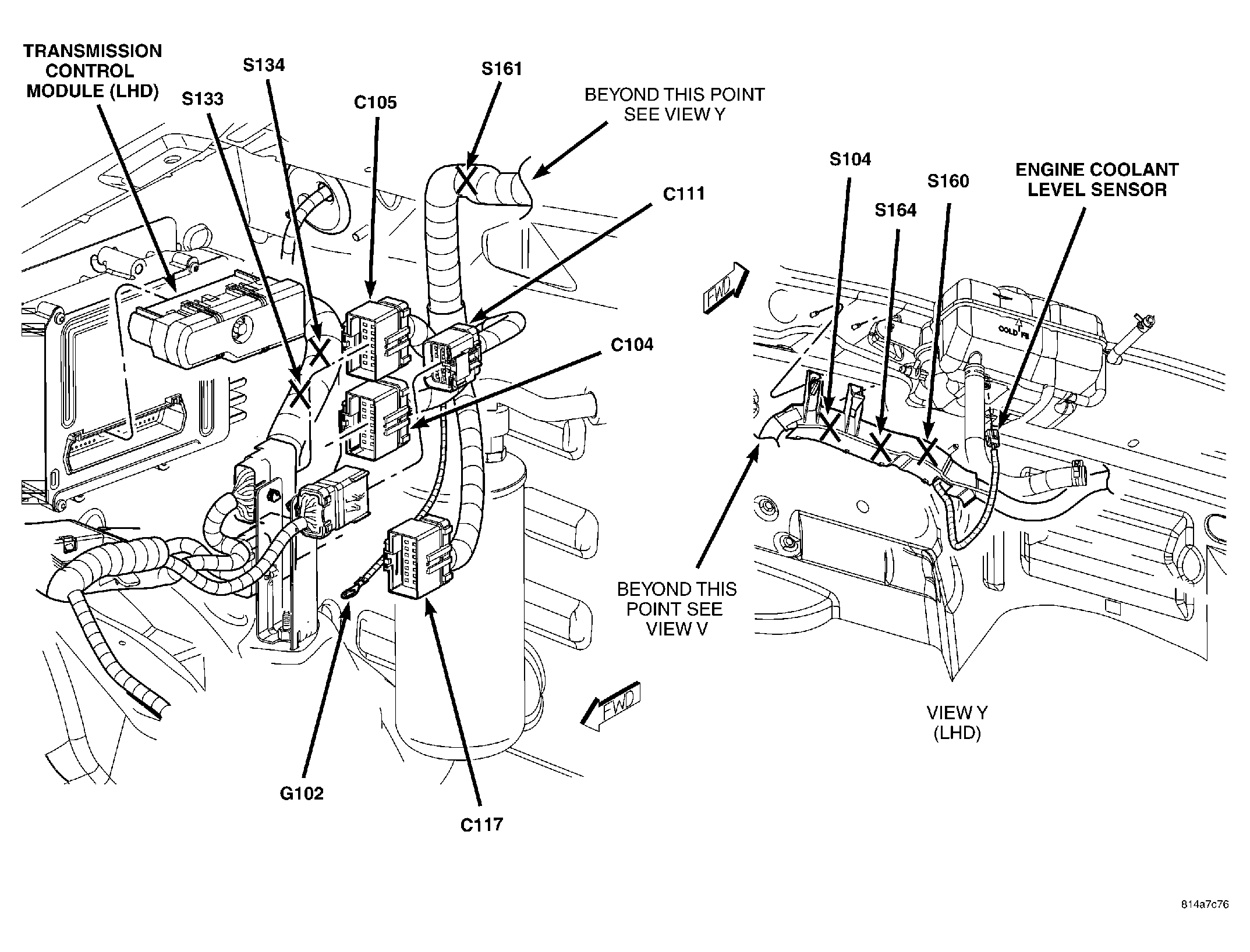

C111 (Diesel)	LG	Right Rear Side of Engine Compartment	Fig 19.

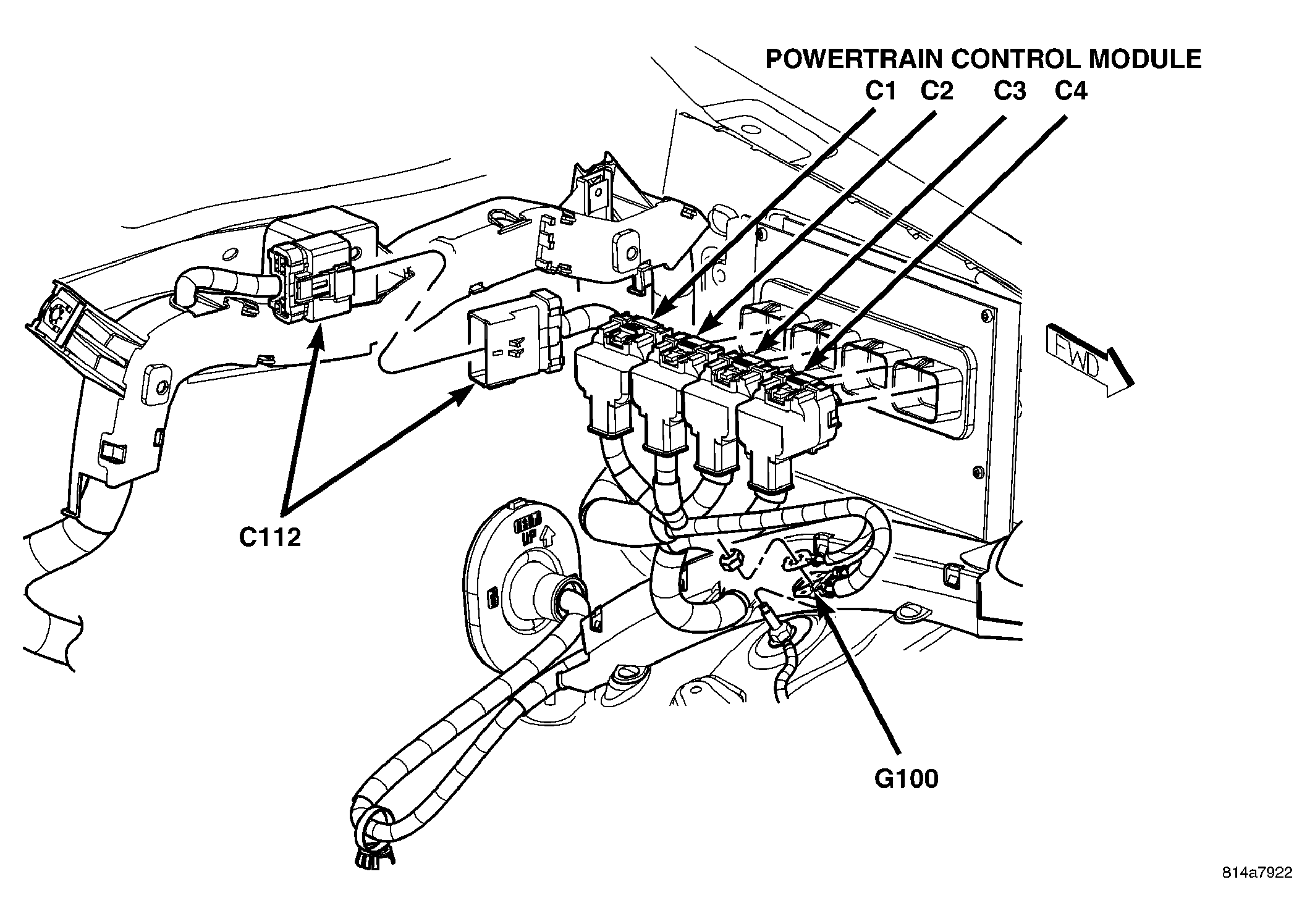

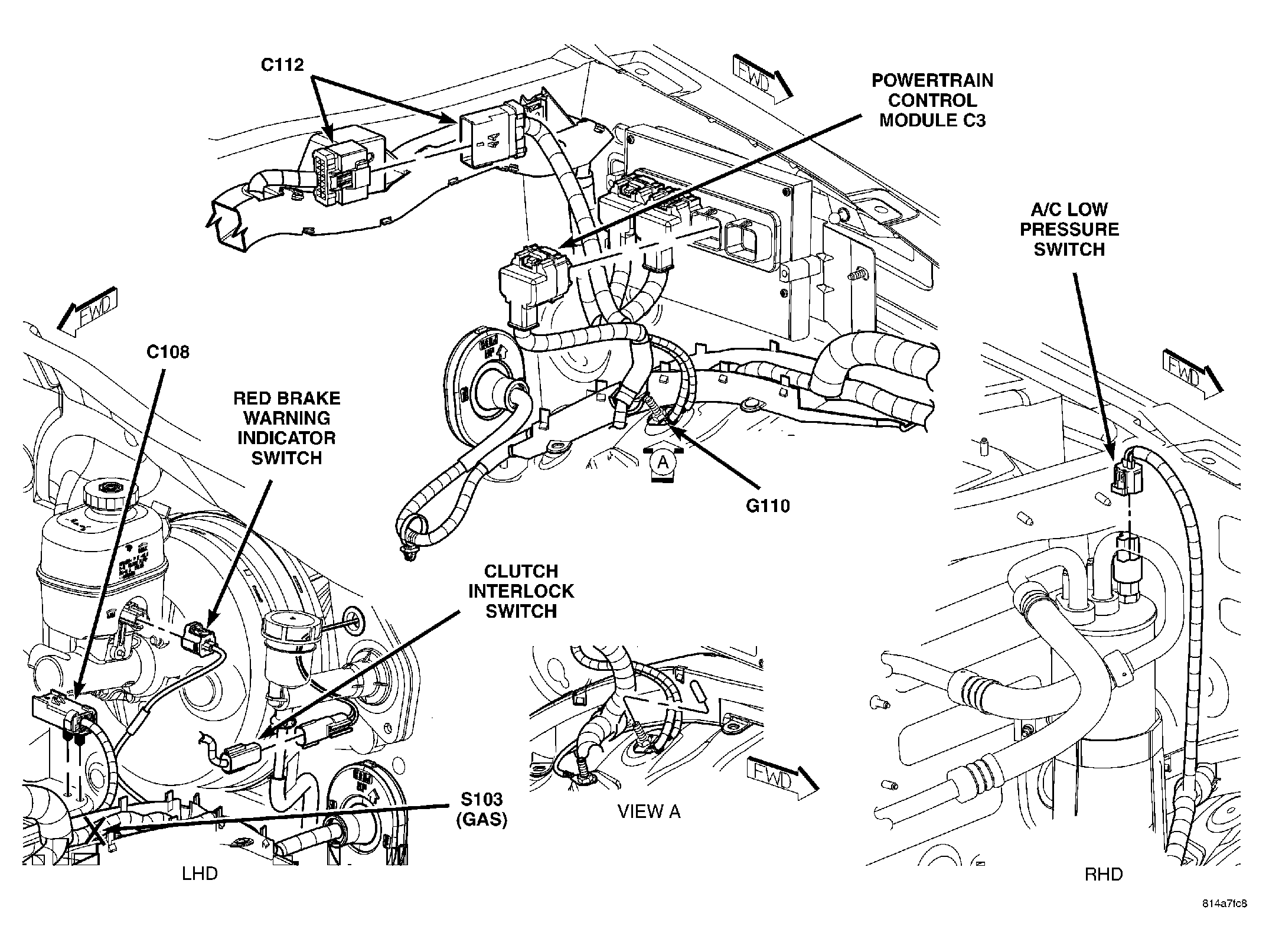

C112 (Gas)	BK	Right Side of Engine Compartment	Fig 8, Fig 9, Fig 13, Fig 14, Fig 35.
C113 (Diesel)	LG	Left Rear Side of Engine Compartment	N/S

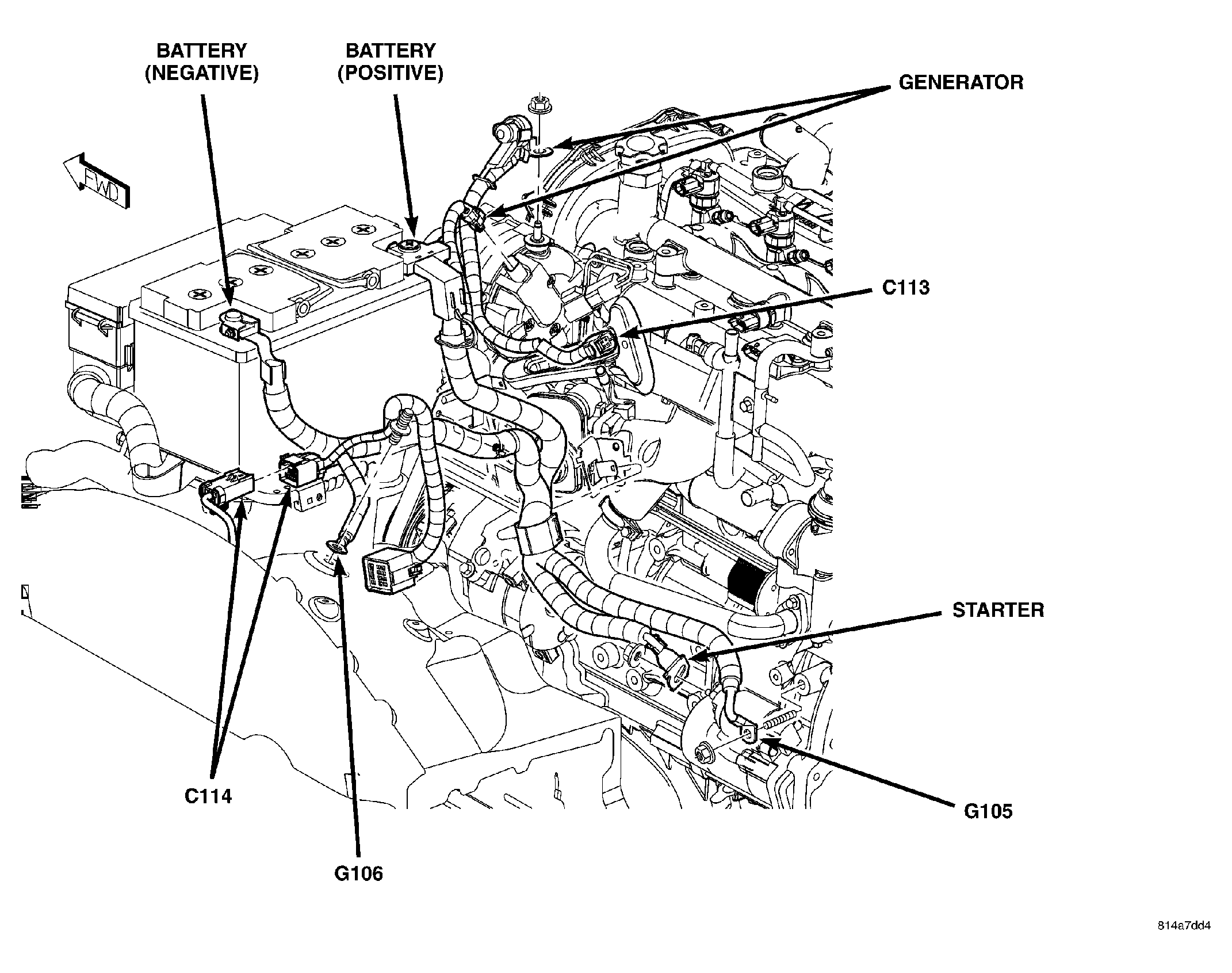

	C114	Left Front Engine Compartment	Fig 33.
	C117 (Diesel)-(Injector Side)	Right Rear Engine Compartment	Fig 19.
C201	BK	Behind Center of Instrument Panel	N/S

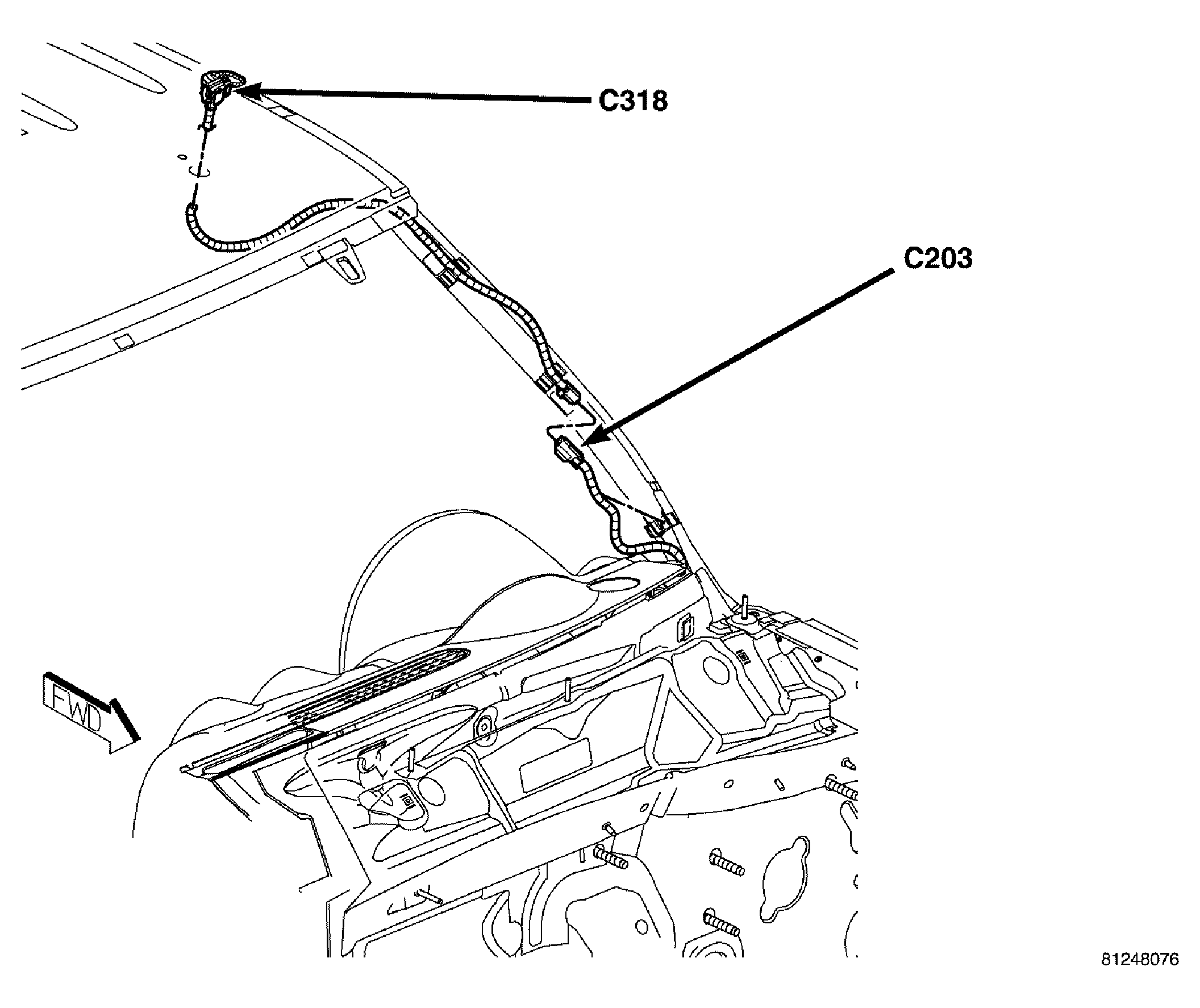

	C203	Left A-Pillar	Fig 38.
C300 (LHD)	OR	Left A-Pillar	Fig 41, Fig 47.
C300 (RHD)	OR	Right A-Pillar	Fig 45, Fig 47.
C301 (LHD)	OR	Left A-Pillar	Fig 41, Fig 47.
C301 (RHD)	OR	Right A-Pillar	Fig 45, Fig 47.

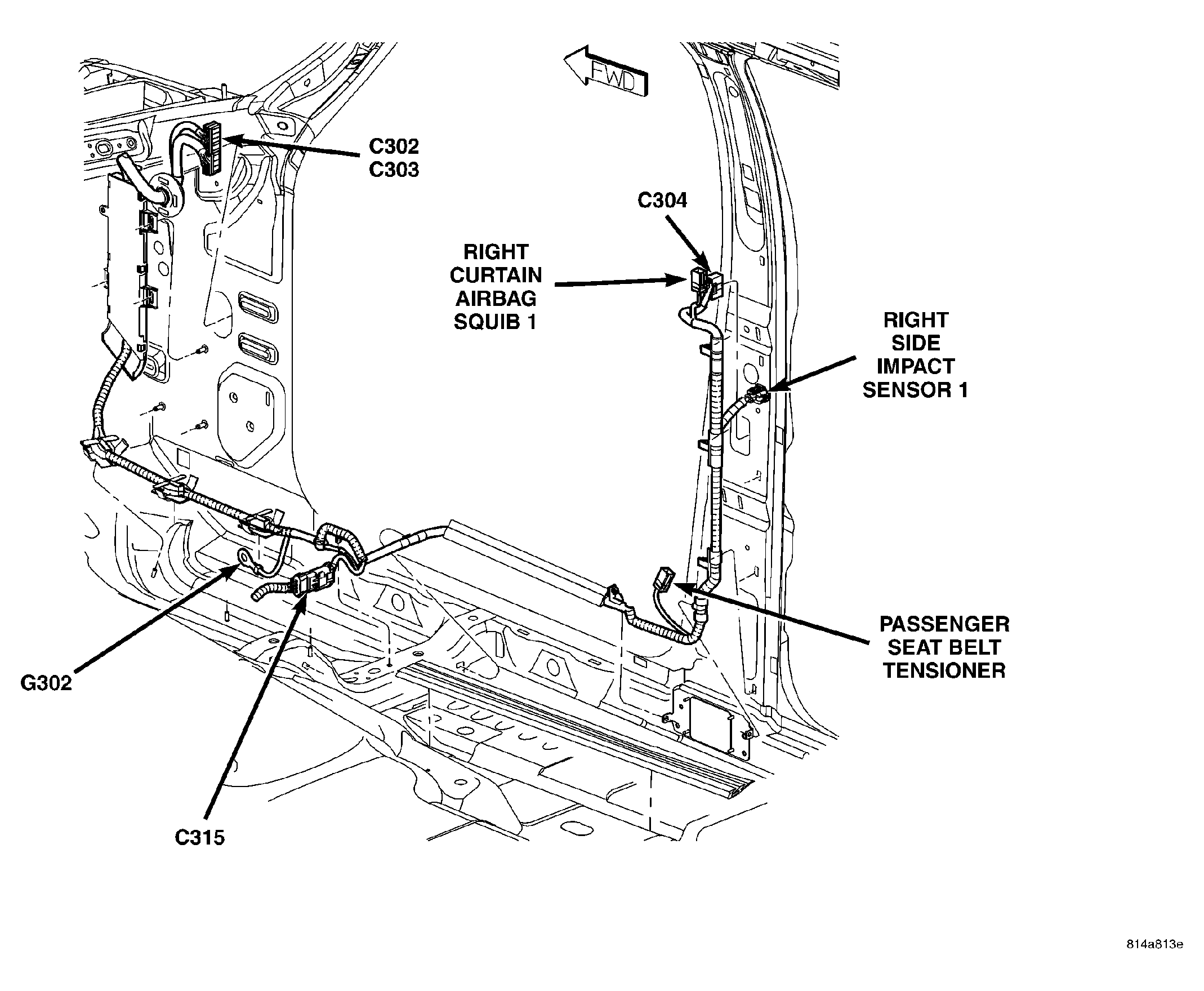

C302 (LHD)	OR	Right A-Pillar	Fig 40, Fig 47, Fig 48.
C302 (RHD)	OR	Left A-Pillar	Fig 44, Fig 47.
C303 (LHD)	OR	Right A-Pillar	Fig 40, Fig 47, Fig 48.
C303 (RHD)	OR	Left A-Pillar	Fig 44, Fig 47.

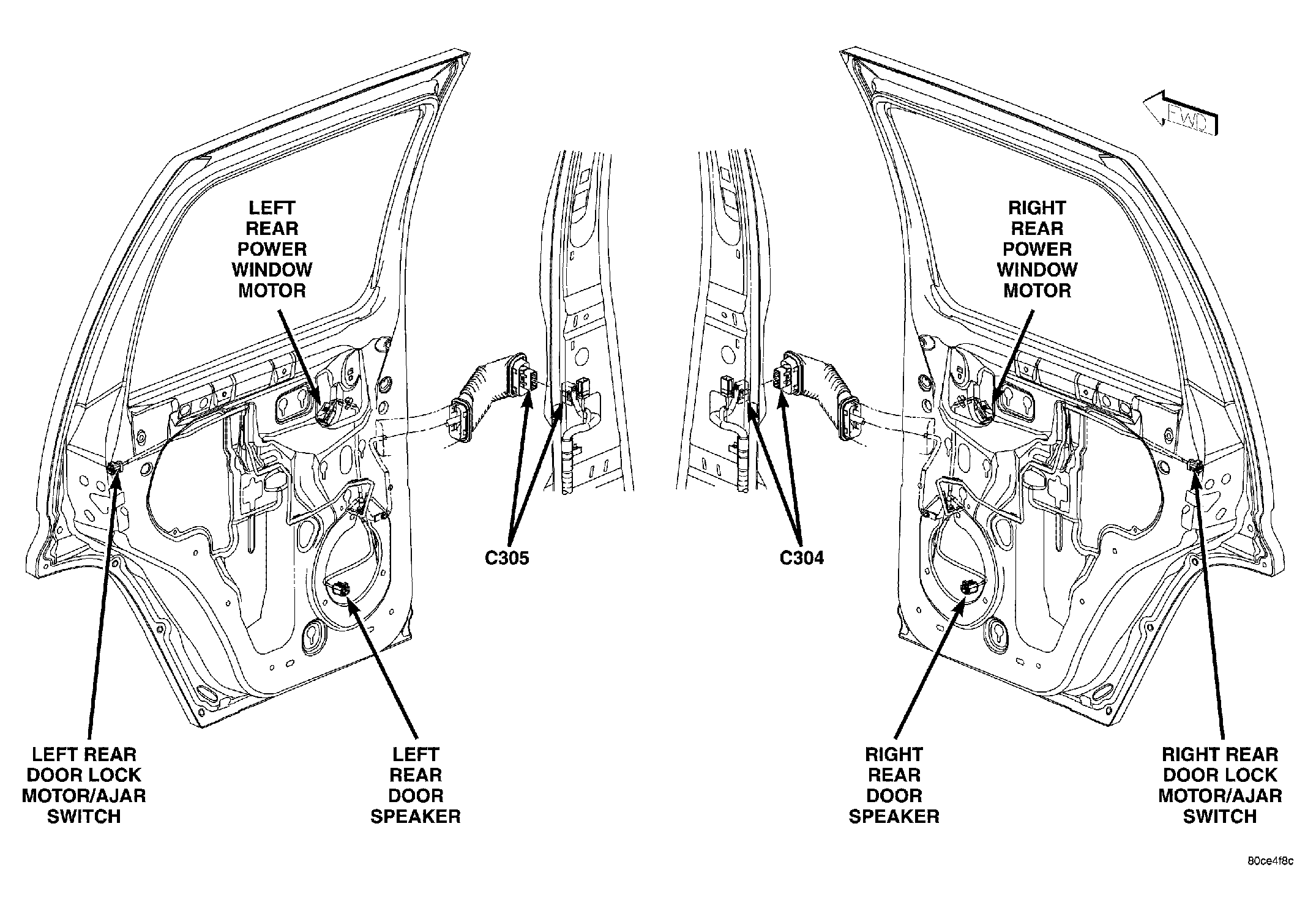

C304	DB	Right Mid B-Pillar	Fig 40, Fig 45, Fig 48.
C305	DB	Left Mid B-Pillar	Fig 41, Fig 44, Fig 48.
C306 (LHD)	WT	Left Lower B-Pillar	Fig 41, Fig 49.
C307 (LHD)	LG	Left Lower B-Pillar	Fig 41, Fig 44.

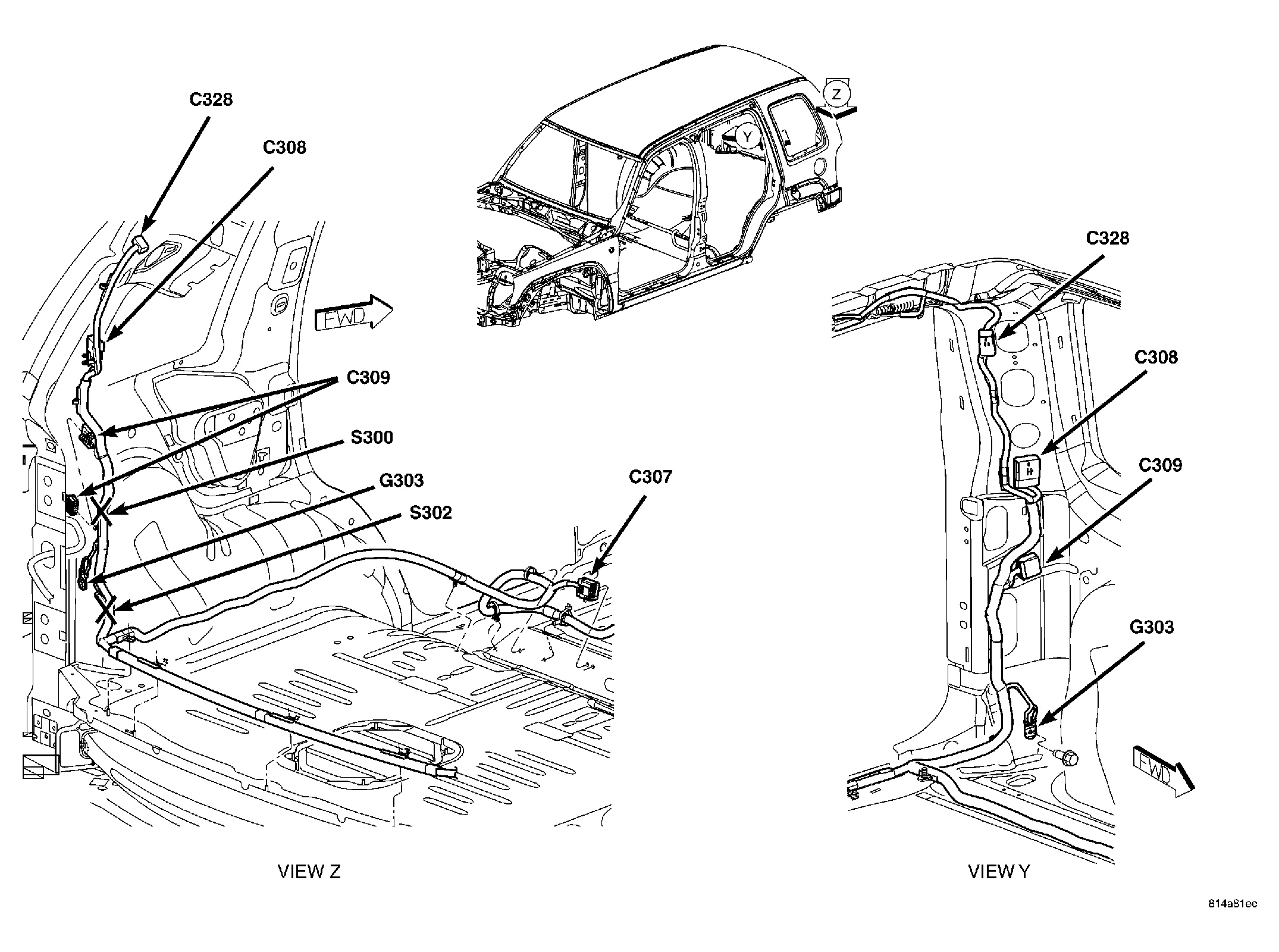

C308	LG	Left Rear Quarter Panel	Fig 49.
C309	DB	Left Rear Quarter Panel	Fig 49, Fig 54.

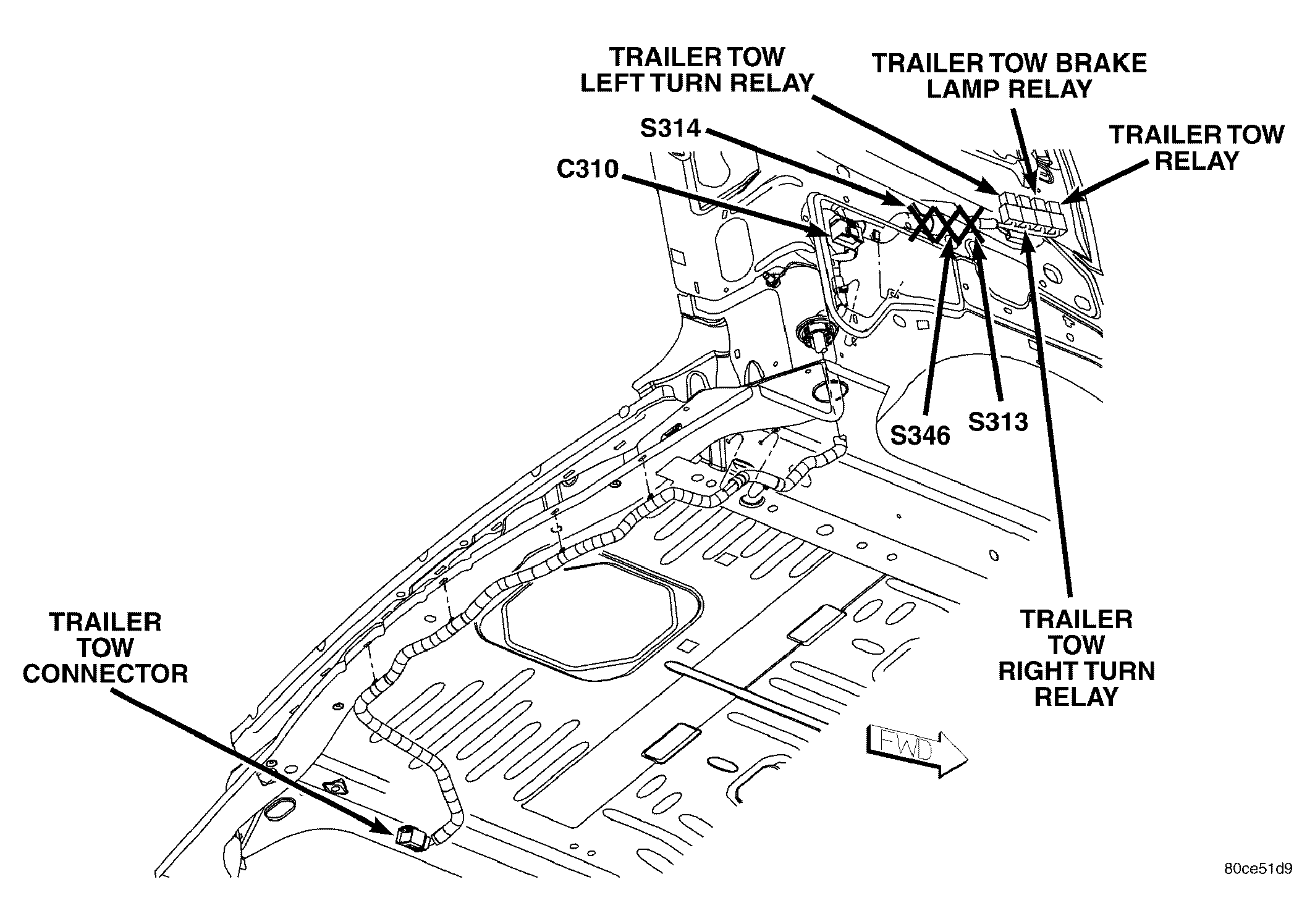

C310	LG	Right Rear Quarter Panel	Fig 50, Fig 53, Fig 55.
C311	LG	Left Front Seat	Fig 41, Fig 44.
C312 (Highline)	LG	Left Front Seat	Fig 41, Fig 44.
C313	LG	Right Front Seat	Fig 42, Fig 45, Fig 46.
C314	LG	Right Front Seat	Fig 42, Fig 45, Fig 46.
C315 (Midline/Highline) (LHD)	LG	Right Front Seat	Fig 40.
C315 (Midline/Highline) (RHD)	LG	Left Front Seat	Fig 44.
	C318	Front of Roof in Light Bar Harness	Fig 38, Fig 57.
	C328 (Overhead Side)	Left Rear Headliner	Fig 49.

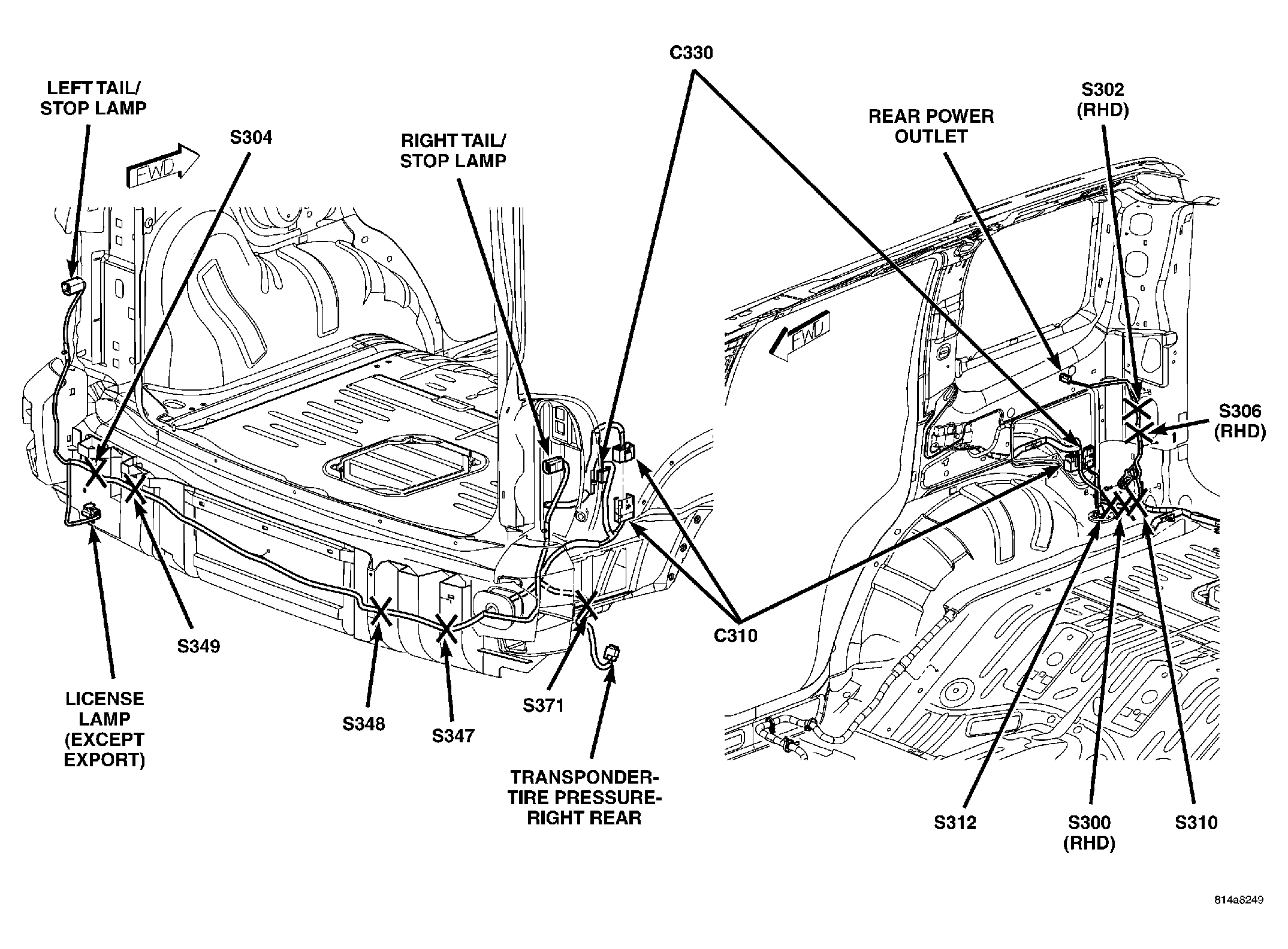

	C330 (Rear Fascia Side)	Right Rear Body	Fig 53.

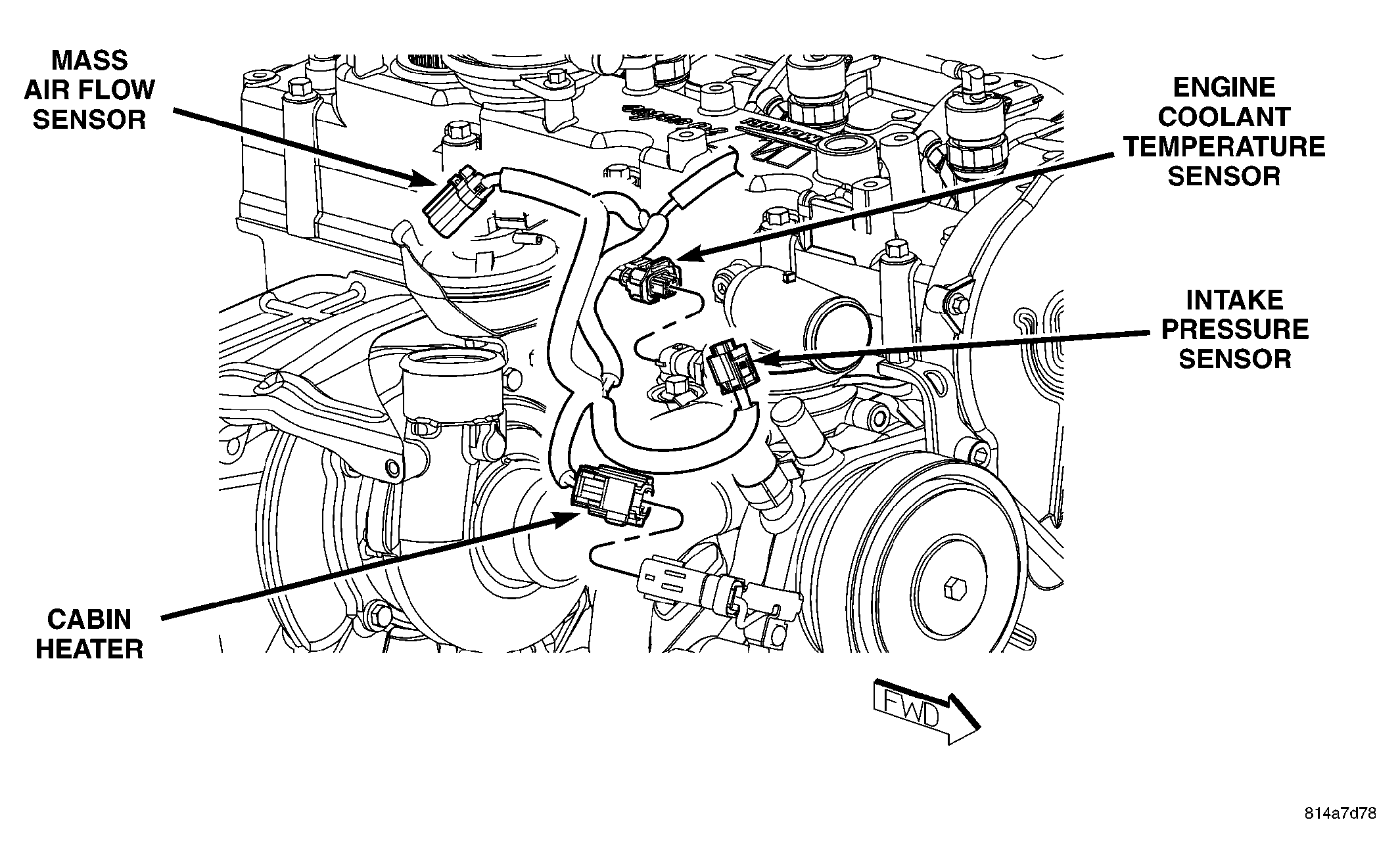

Cabin Heater (Diesel)	BK	Right Front Side of Engine	Fig 22.
Camshaft Position Sensor (2.4L)	BK	Top of Engine	N/S

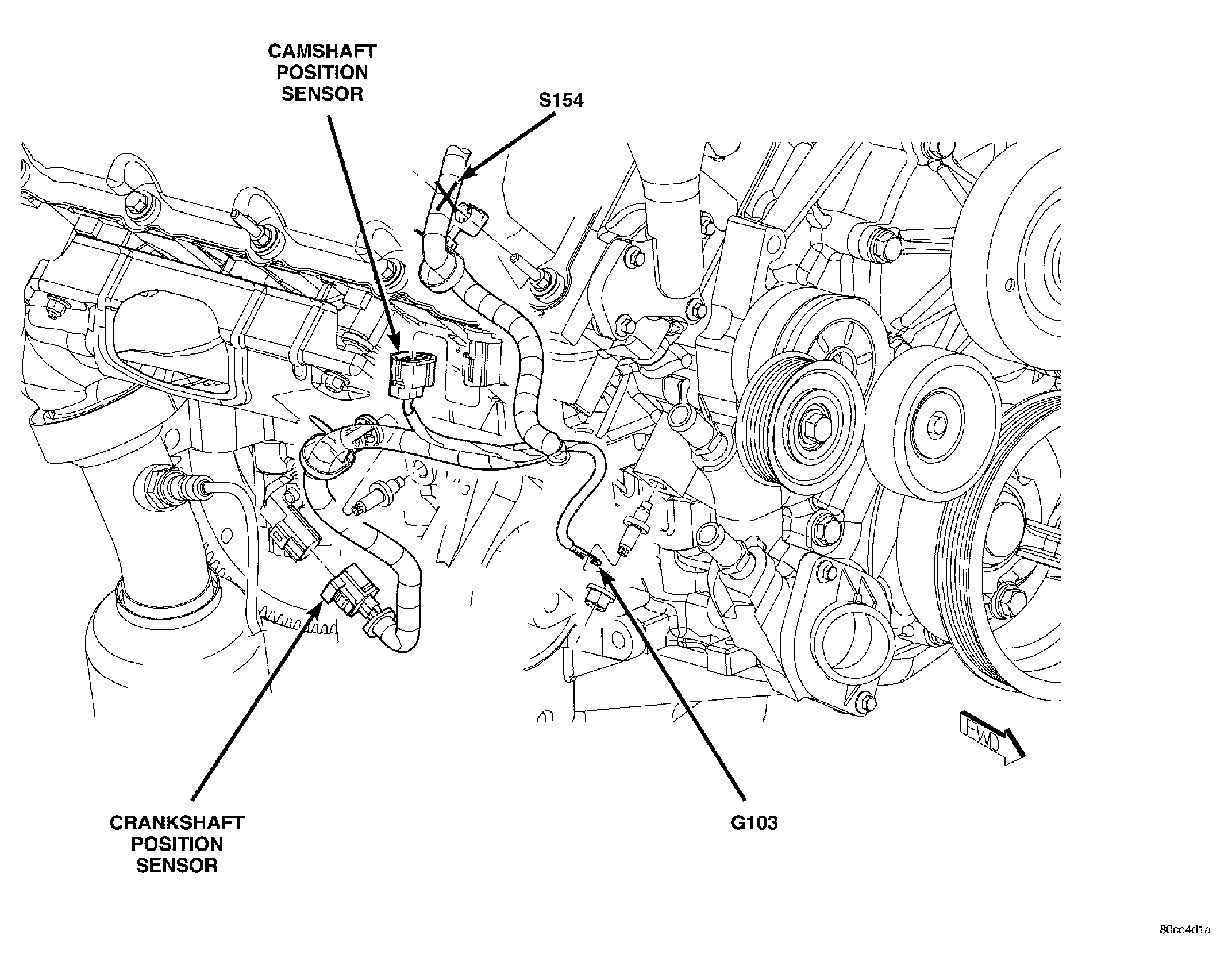

Camshaft Position Sensor (3.7L)	LG	Right Side of Engine	Fig 4.
	Camshaft Position Sensor (Diesel)	Top of Engine	Fig 23.
Cargo Lamp	BK	Center Rear Headliner	N/S

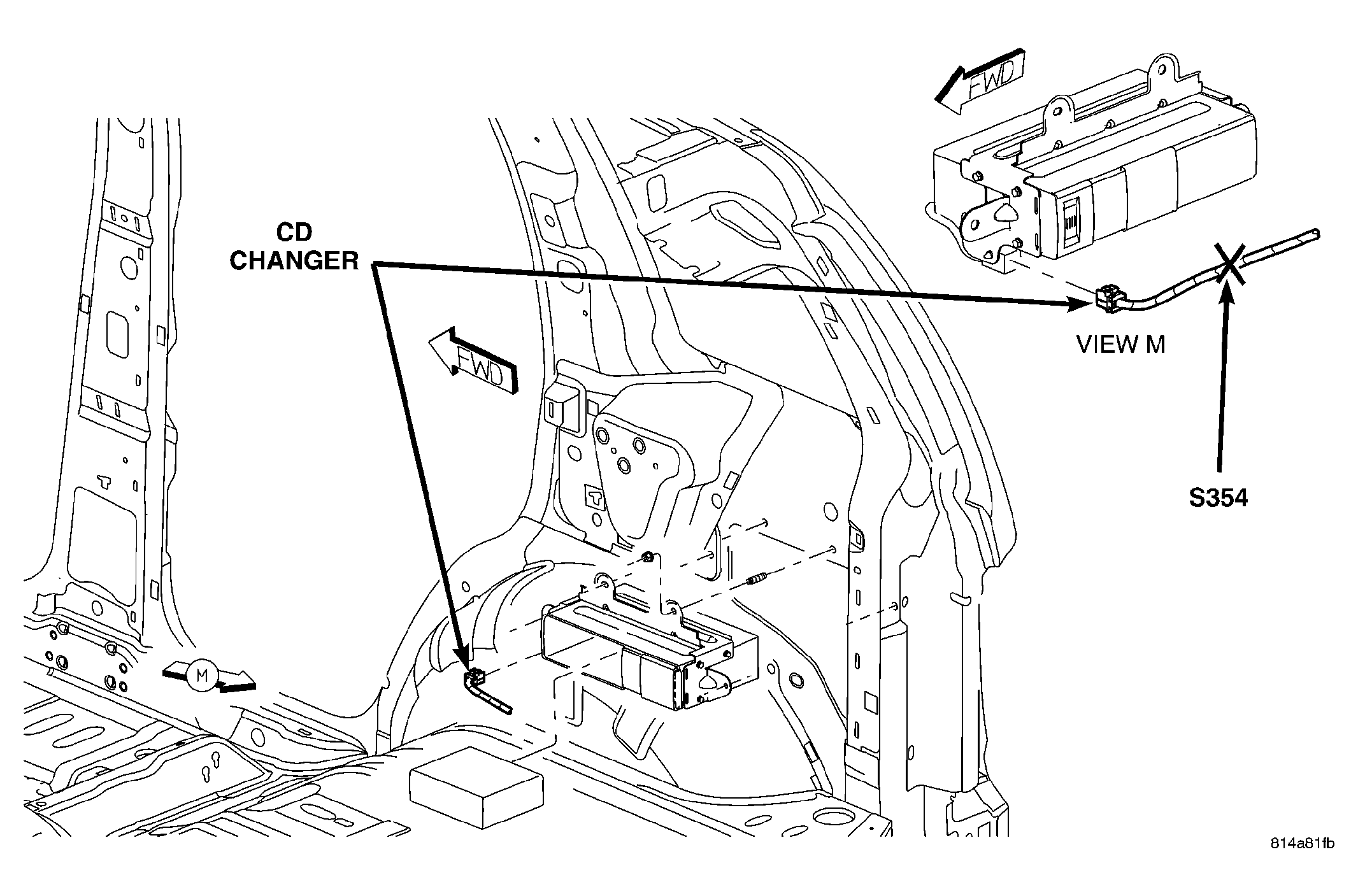

CD Changer	GN	Right Rear Body	Fig 50.
Center High Mounted Stop Lamp	WT	At Lamp	Fig 54.
Cigar Lighter	RD	Behind Cigar Lighter	N/S
Clockspring C1	WT	Behind Steering Wheel	Fig 37.
Clockspring C2	YL	Behind Steering Wheel	N/S
Clockspring C3	BK	At Steering Wheel	N/S

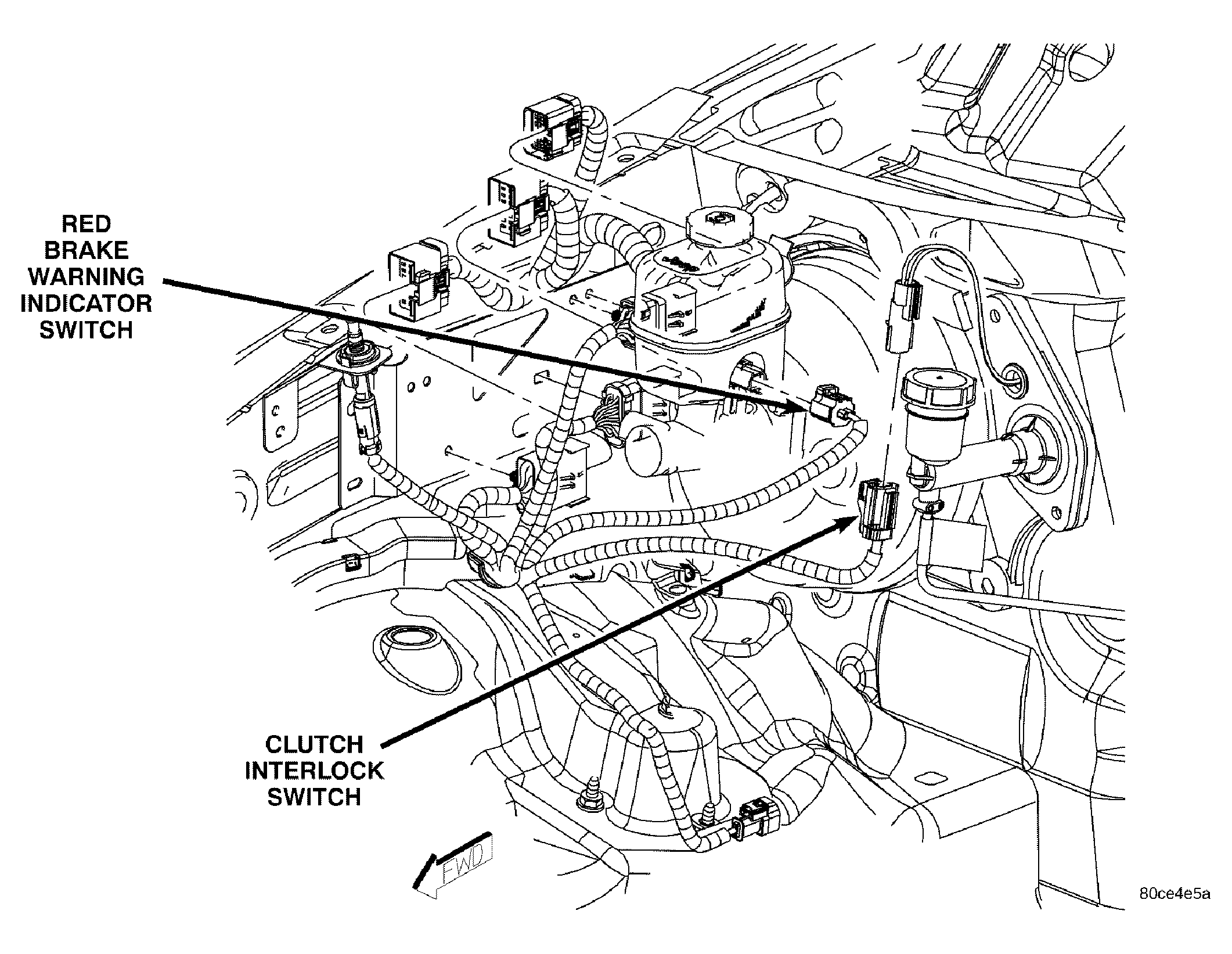

Clutch Interlock Switch (LHD)	BK	Left Rear Side of Engine Compartment	Fig 35.
Clutch Interlock Switch (RHD)	BK	Right Rear Side of Engine Compartment	Fig 28.

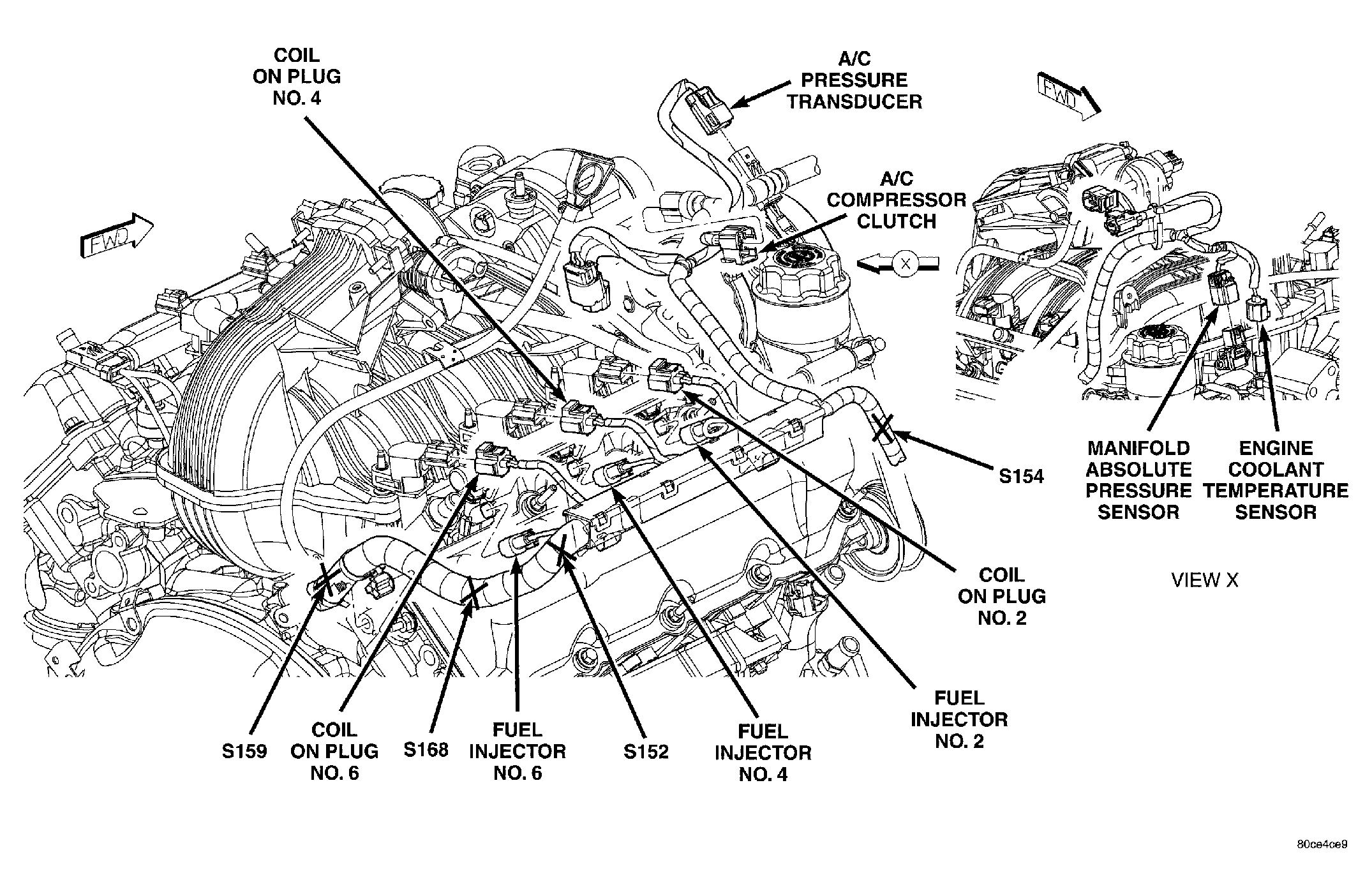

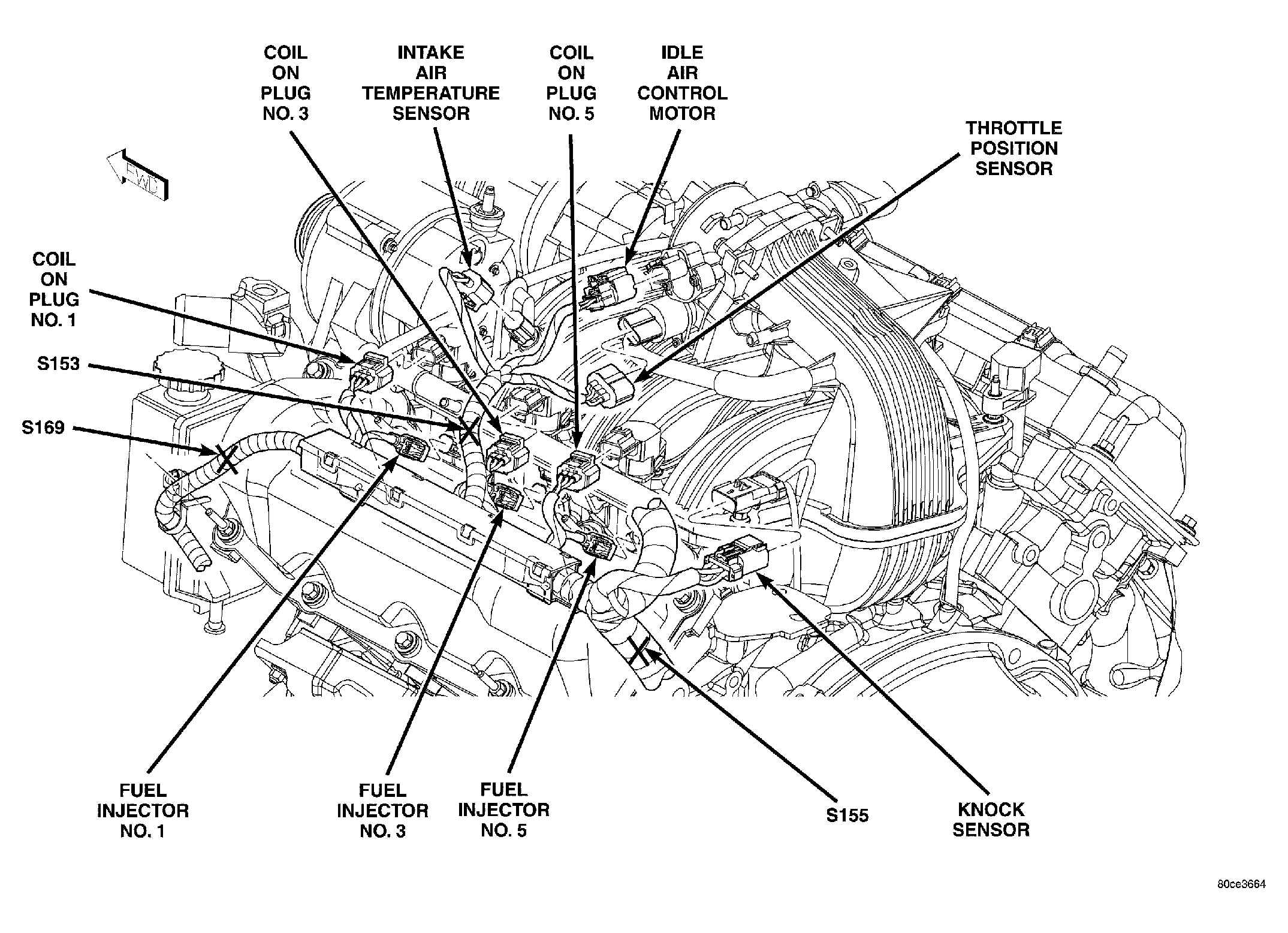

Coil On Plug No.1 (3.7L)	BK	Left Side of Engine Near Fuel Injector No.1	Fig 1.
Coil On Plug No.2 (3.7L)	BK	Right Side of Engine Near Fuel Injector No.2	Fig 2.
Coil On Plug No.3 (3.7L)	BK	Left Side of Engine Near Fuel Injector No.3	Fig 1.
Coil On Plug No.4 (3.7L)	BK	Right Side of Engine Near Fuel Injector No.4	Fig 2.
Coil On Plug No.5 (3.7L)	BK	Left Side of Engine Near Fuel Injector No.5	Fig 1.
Coil On Plug No.6 (3.7L)	BK	Right Side of Engine Near Fuel Injector No.6	Fig 2.
Coil Rail (2.4L)	BK	Right Side of Engine	Fig 11, Fig 12.
Compass Mini-Trip Computer	BK	At Overhead Console	N/S

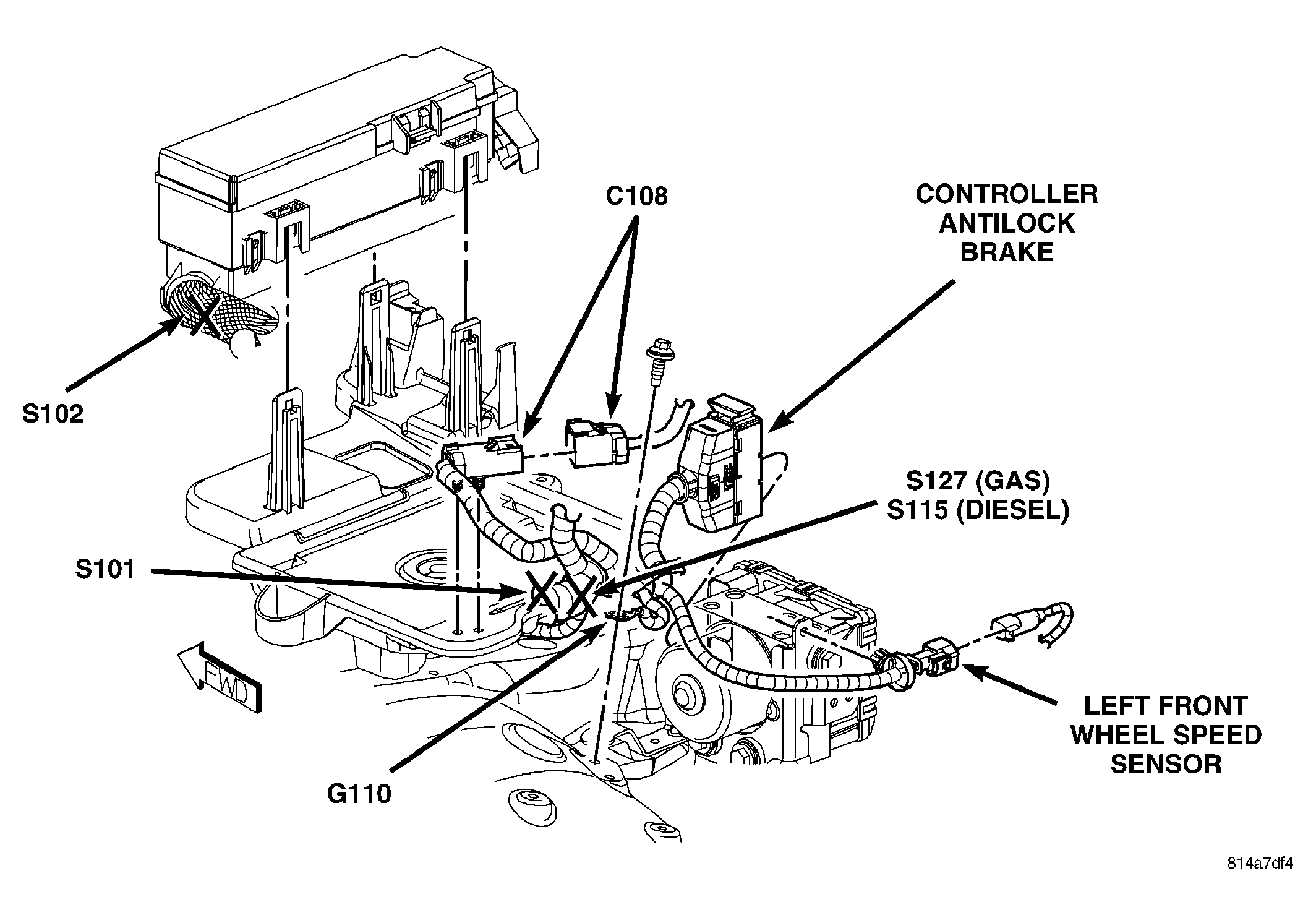

Controller Antilock Brake	BK	Left Side of Engine Compartment	Fig 34.
Crankshaft Position Sensor (2.4L)	BK	Top of Engine	Fig 11.
Crankshaft Position Sensor (3.7L)	BK	Right Lower Side of Engine	Fig 4.

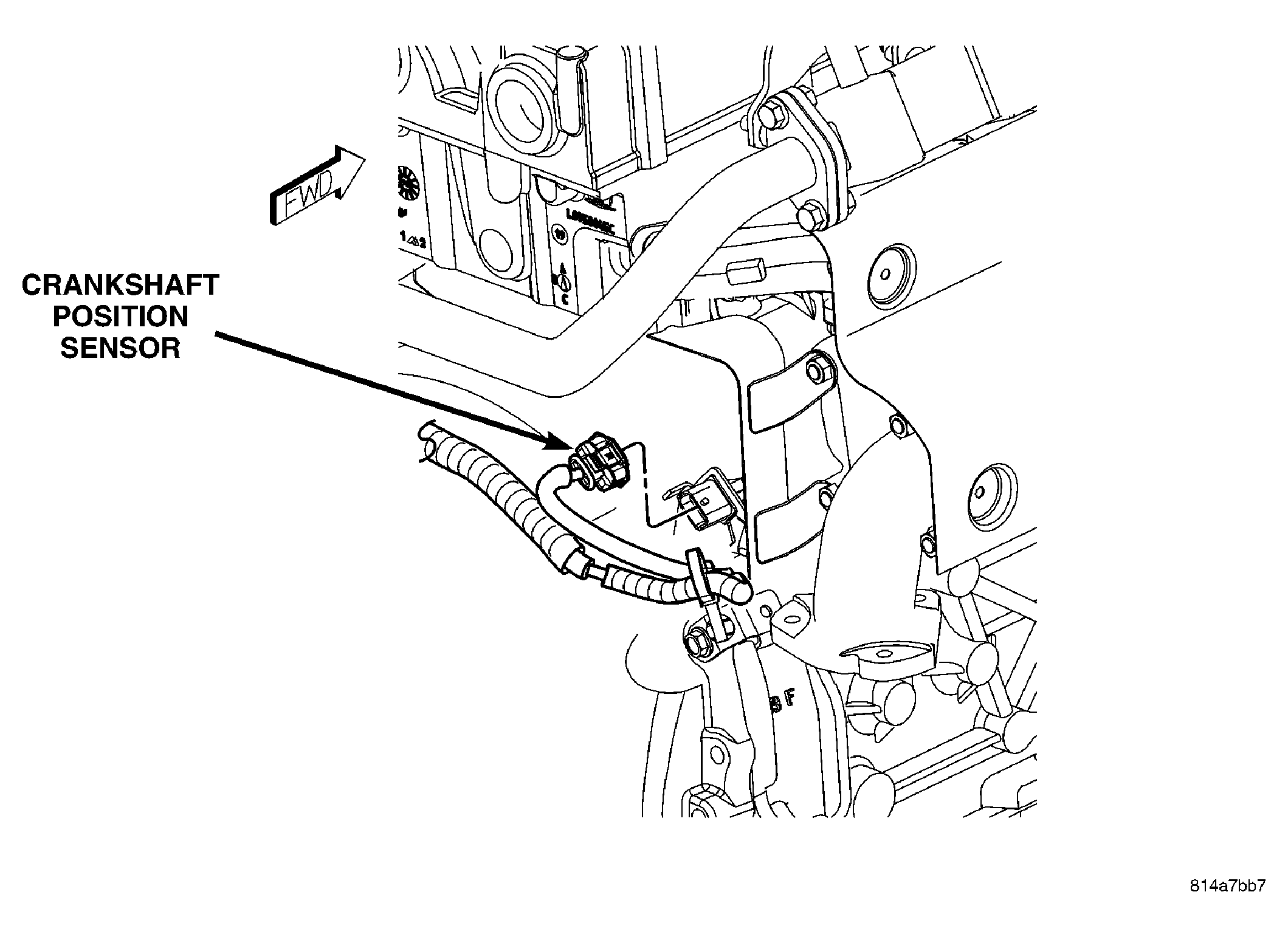

Crankshaft Position Sensor (Diesel)	BK	Right Rear Side of Engine	Fig 17, Fig 24.
Data Link Connector	BK	Under Center of Instrument Panel	N/S
	Dome Lamp (Base)	Front Center Headliner	N/S

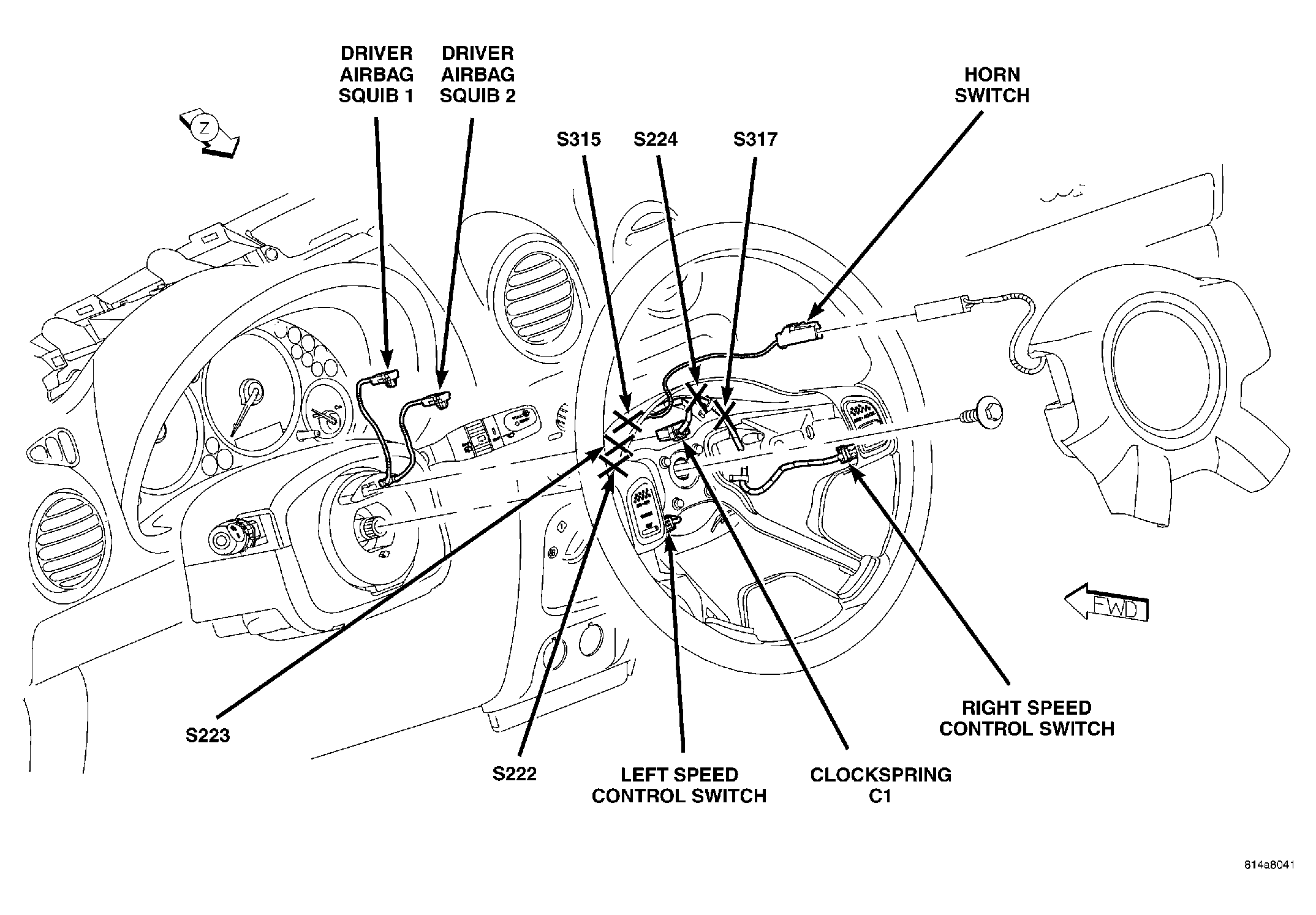

Driver Airbag Squib 1	GY	In Steering Wheel	Fig 37.
Driver Airbag Squib 2	BK	In Steering Wheel	Fig 37.
Driver Door Lock Motor/Ajar Switch (Except Base)	BK	In Driver Door	Fig 47.

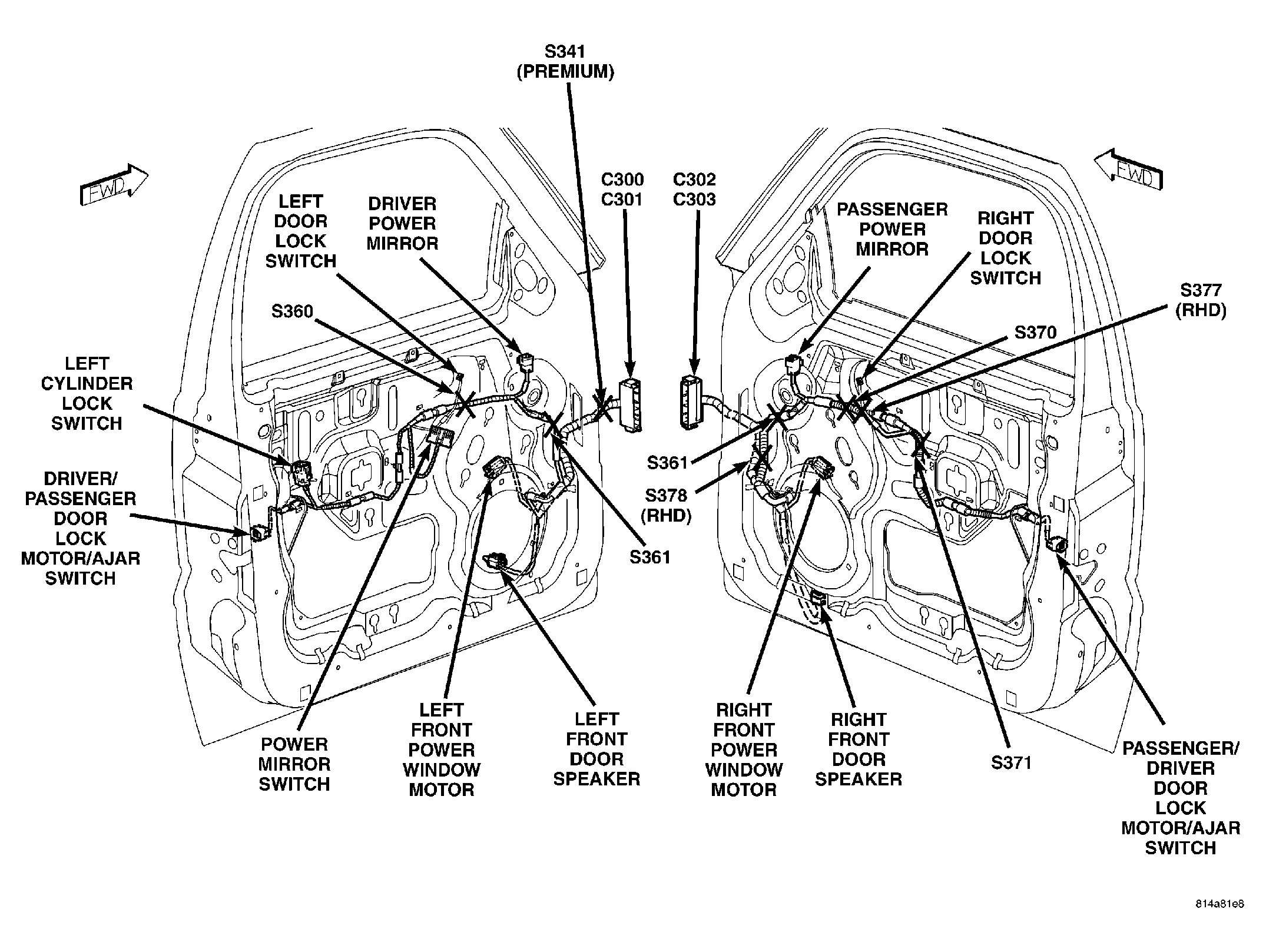

Driver Power Mirror	WT	In Left Front Door	Fig 47.
Driver Seat Belt Switch	LG	At Drive Seat	N/S
Driver Seat Belt Tensioner (LHD)	YL	Lower Left B-Pillar	Fig 41.

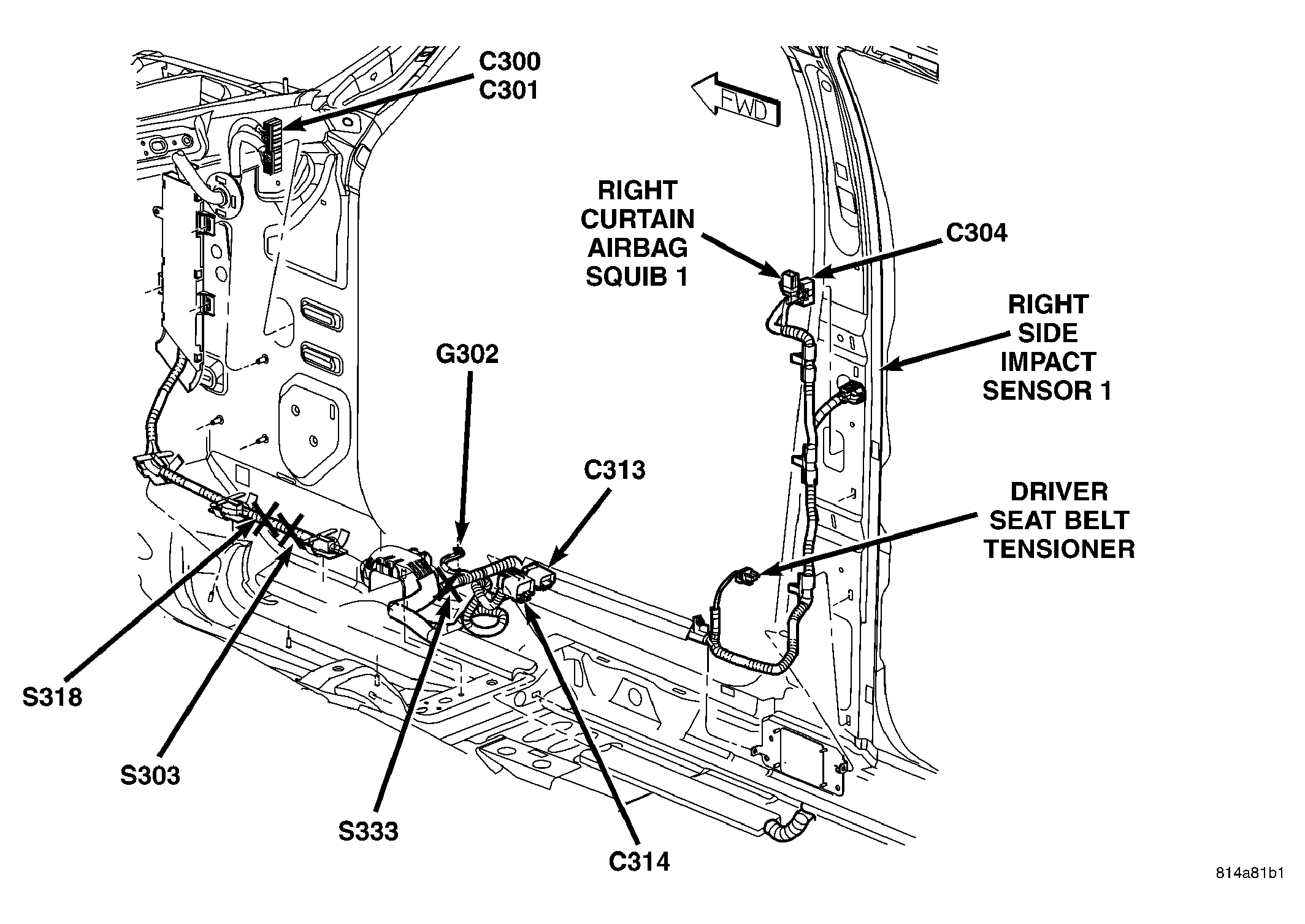

Driver Seat Belt Tensioner (RHD)	YL	Lower Right B-Pillar	Fig 45.

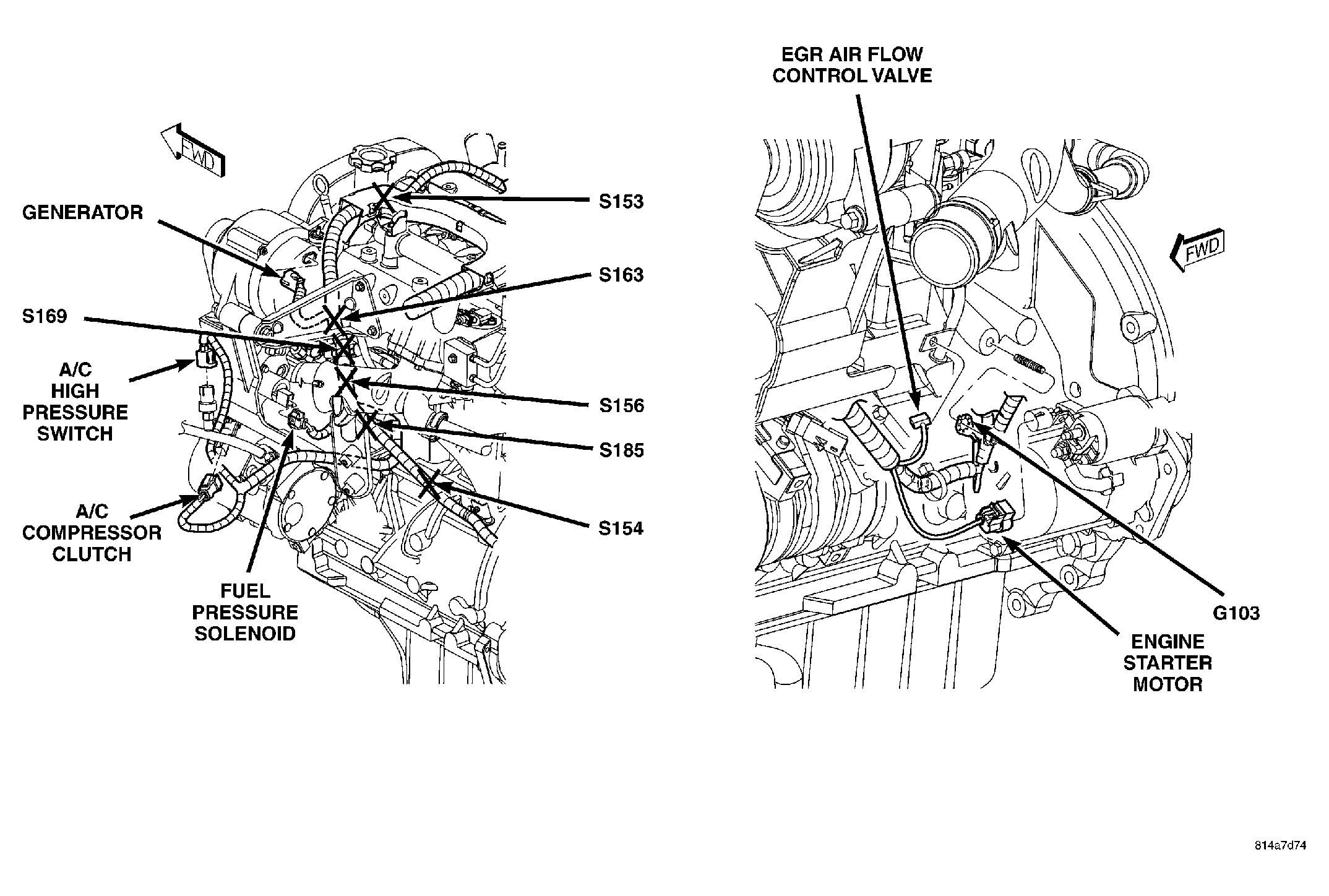

	EGR Air Flow Control Valve (Diesel) - 4 Way	Left Rear Engine	Fig 21.

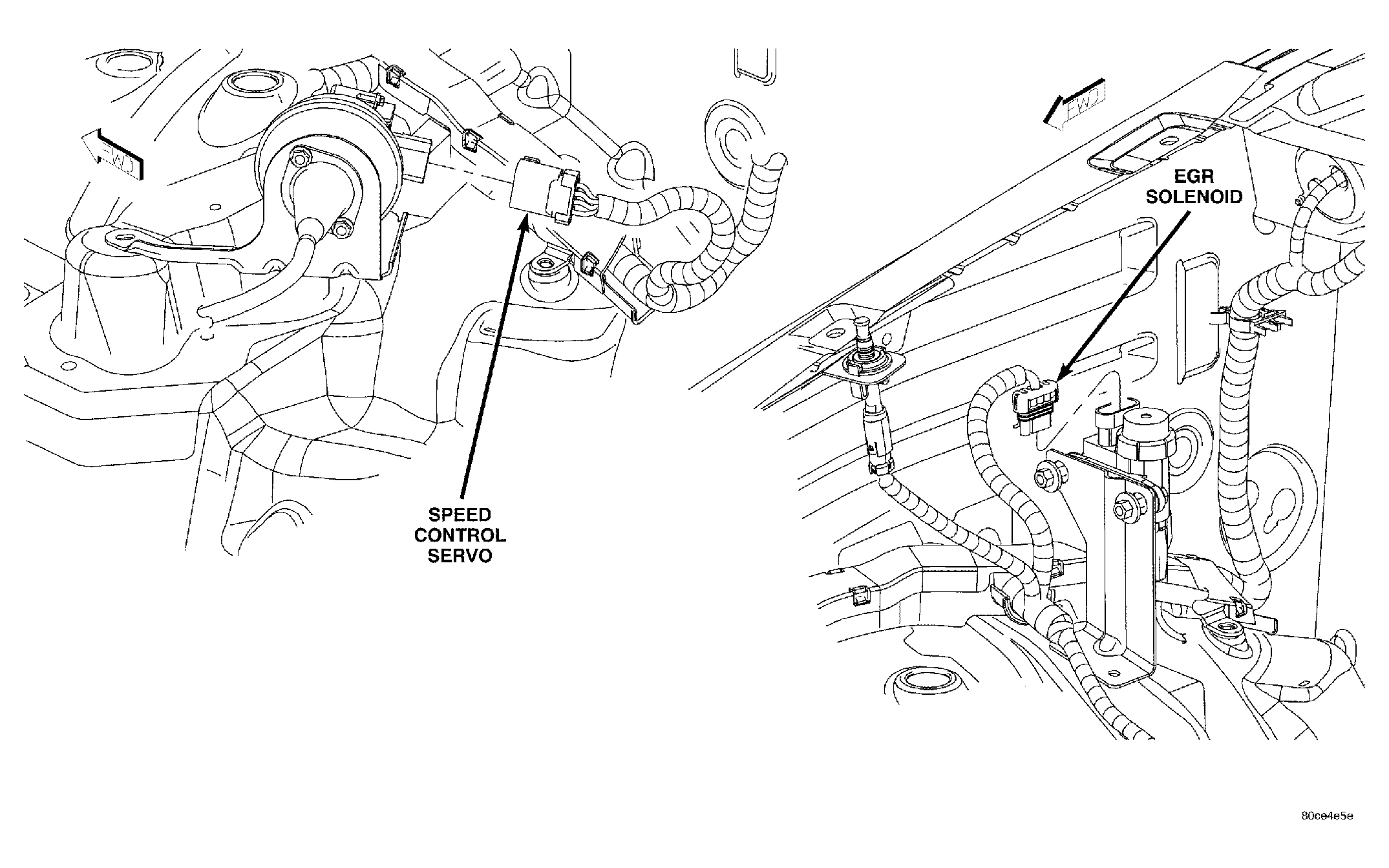

	EGR Solenoid	Right Rear Side of Engine Compartment	Fig 29.
Engine Control Module C1	BK	Left Rear Side of Engine Compartment	Fig 20.
Engine Control Module C2	BK	Left Rear Side of Engine Compartment	Fig 20.
Engine Coolant Level Sensor (Diesel)	LG	Rear Side of Engine Compartment	Fig 19.
Engine Coolant Temperature Sensor (Diesel)	BK	Left Side of Engine	Fig 22.
Engine Coolant Temperature Sensor (Gas)	BK	Front Side of Engine	Fig 2.
Engine Oil Pressure Switch (2.4L)	BK	Top of Engine	N/S

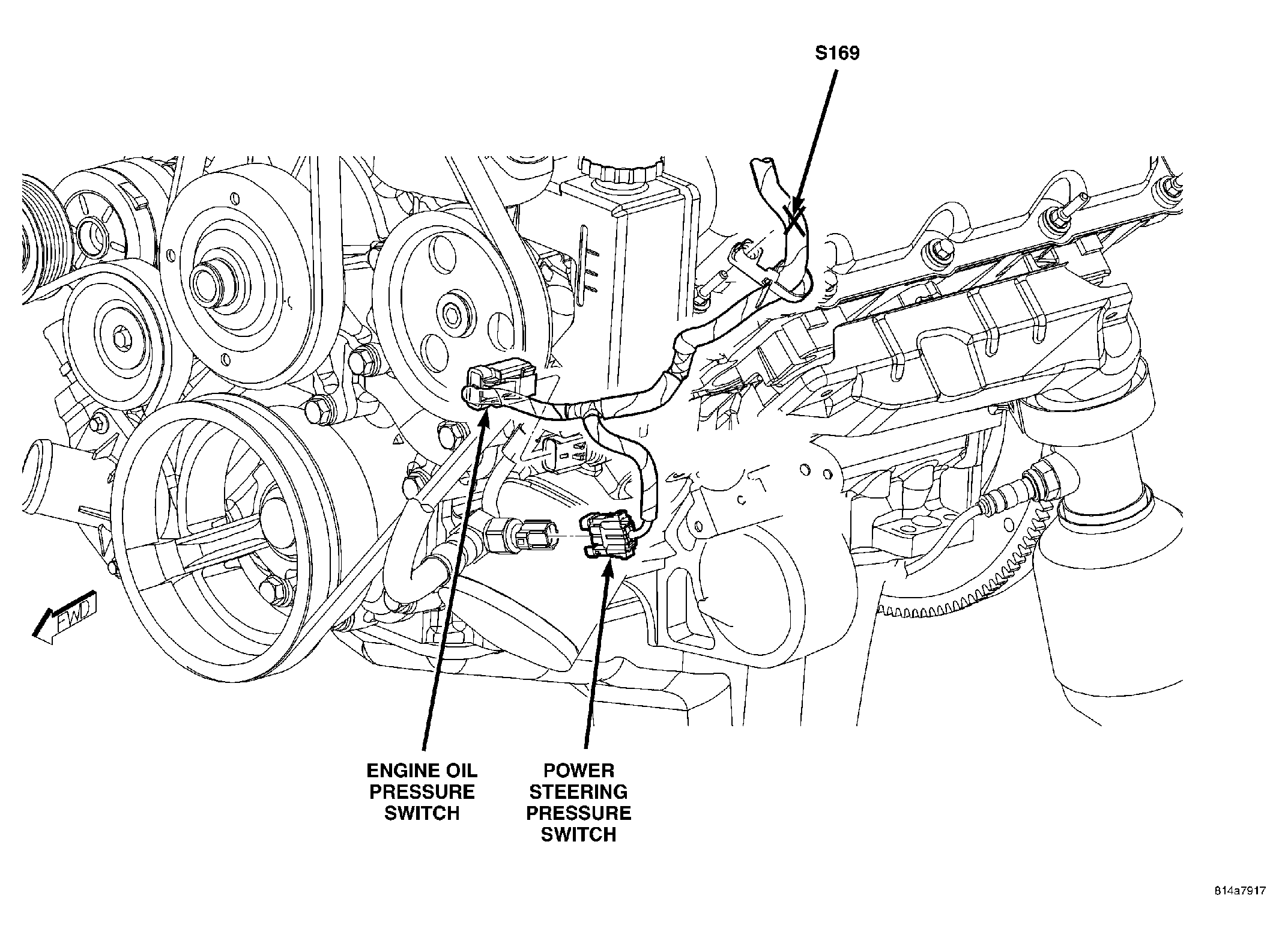

Engine Oil Pressure Switch (3.7L)	BK	Left Front Side of Engine	Fig 3.

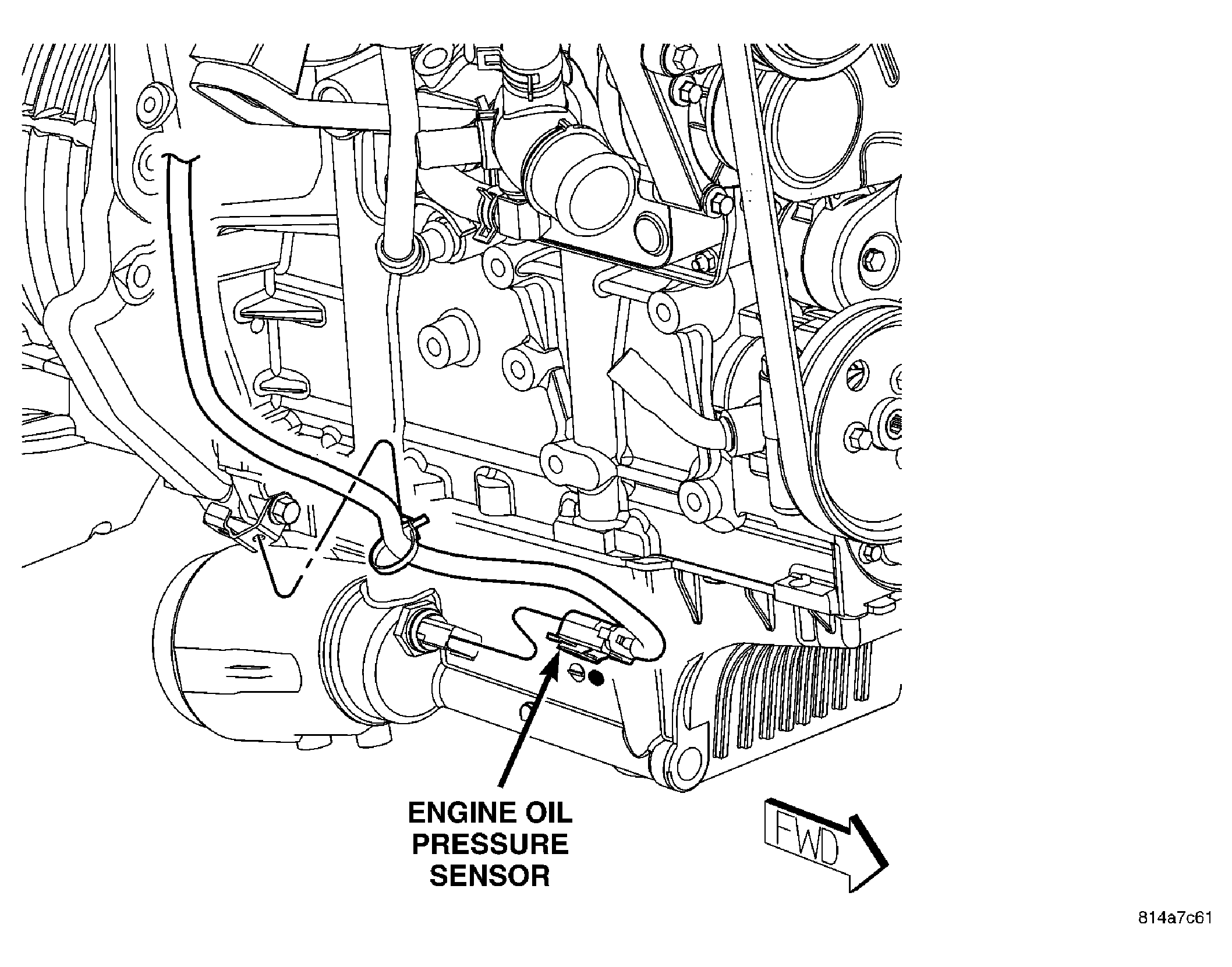

Engine Oil Pressure Sensor (Diesel)	BK	Right Rear Side of Engine	Fig 18, Fig 24.
	Engine Starter Motor	Right Front Side of Engine	Fig 21.
EVAP/Purge Solenoid	BK	At Solenoid	N/S

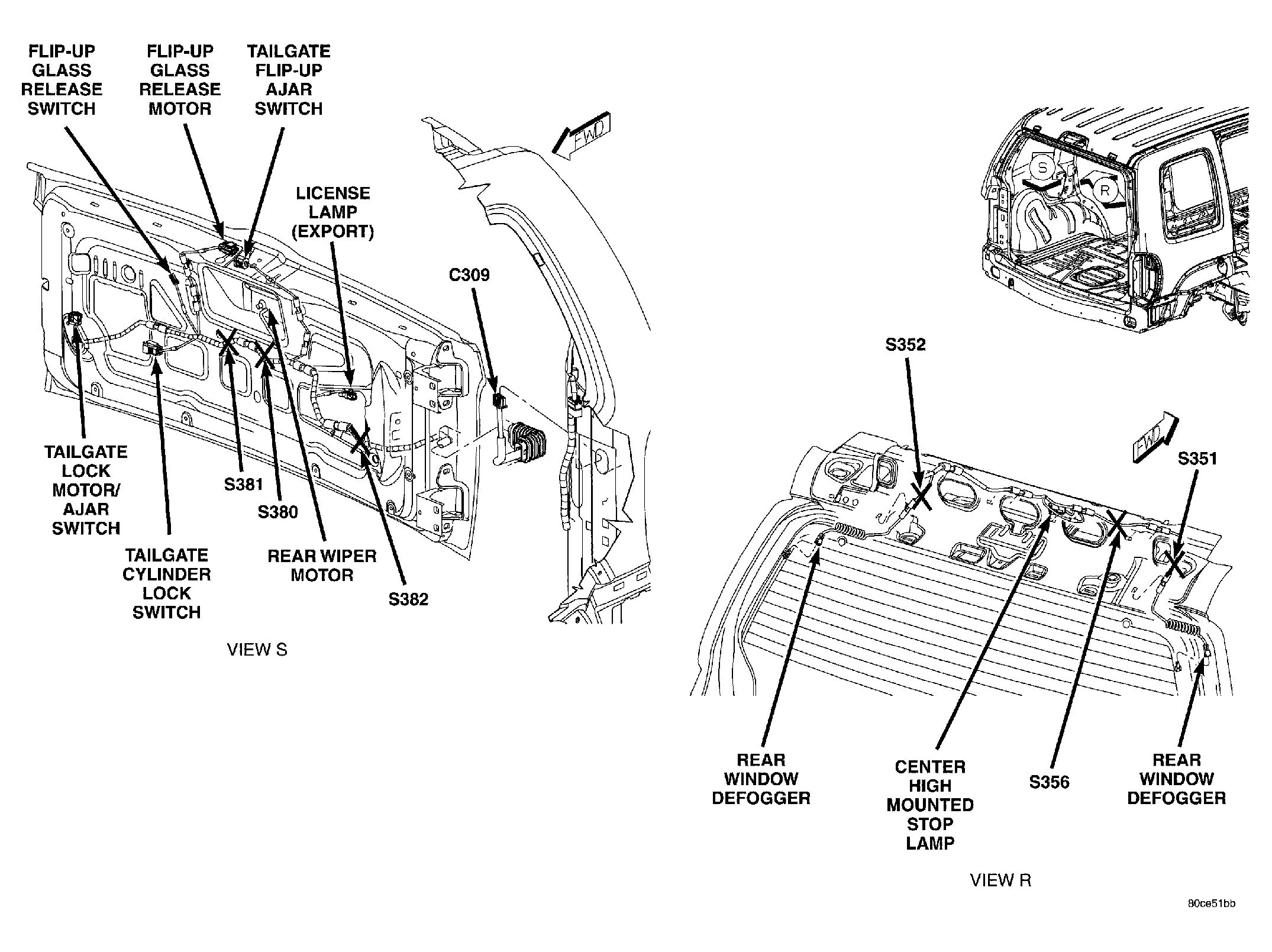

Flip-Up Glass Release Motor	BK	In Tailgate	Fig 54.
Flip-Up Glass Release Switch	WT	In Tailgate	Fig 54.
	Front Reading Lamp	At Overhead Console	N/S

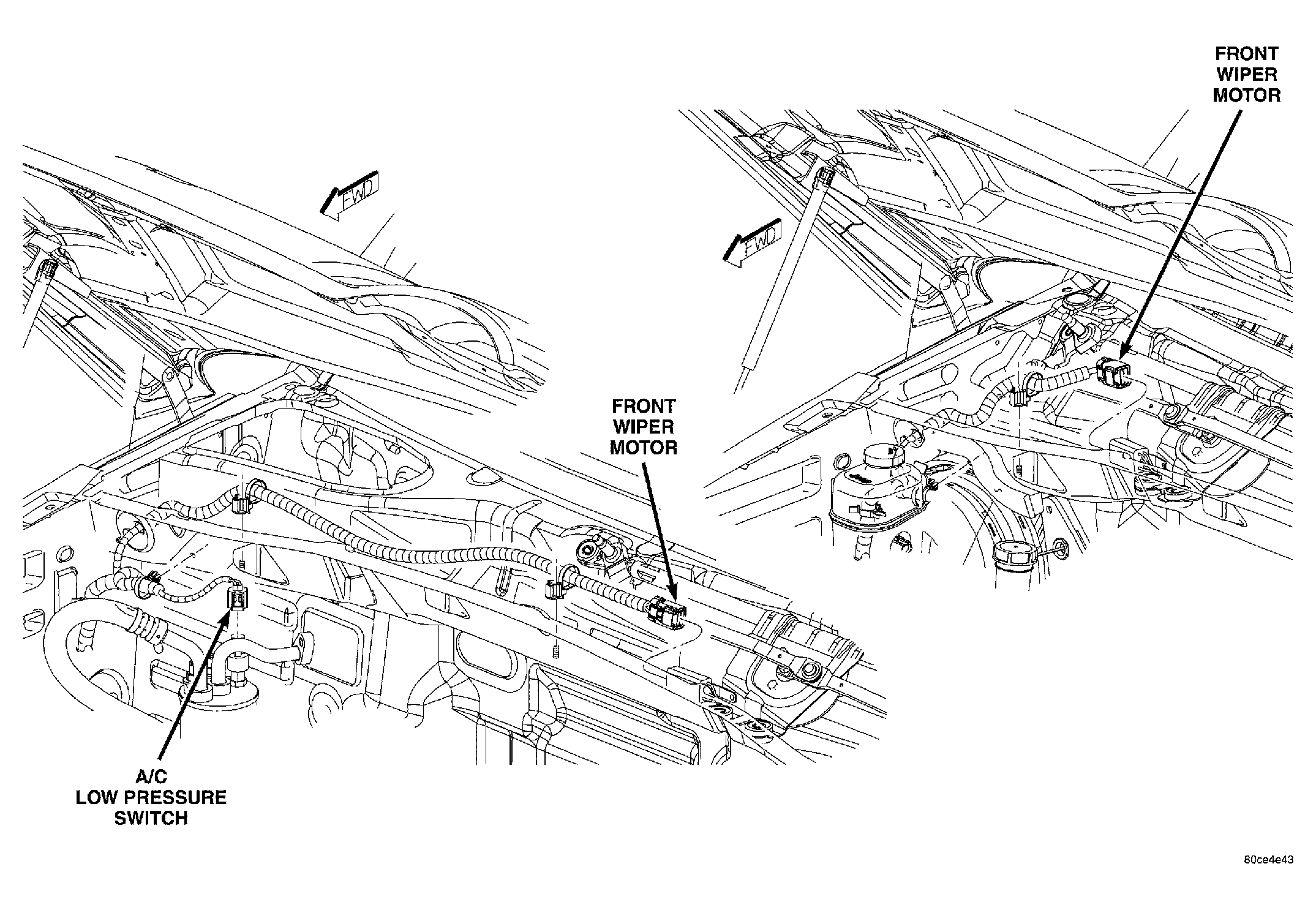

Front Wiper Motor (LHD)	BK	Left Side of Cowl	Fig 26.
Front Wiper Motor (RHD)	BK	Right Side of Cowl	Fig 26.

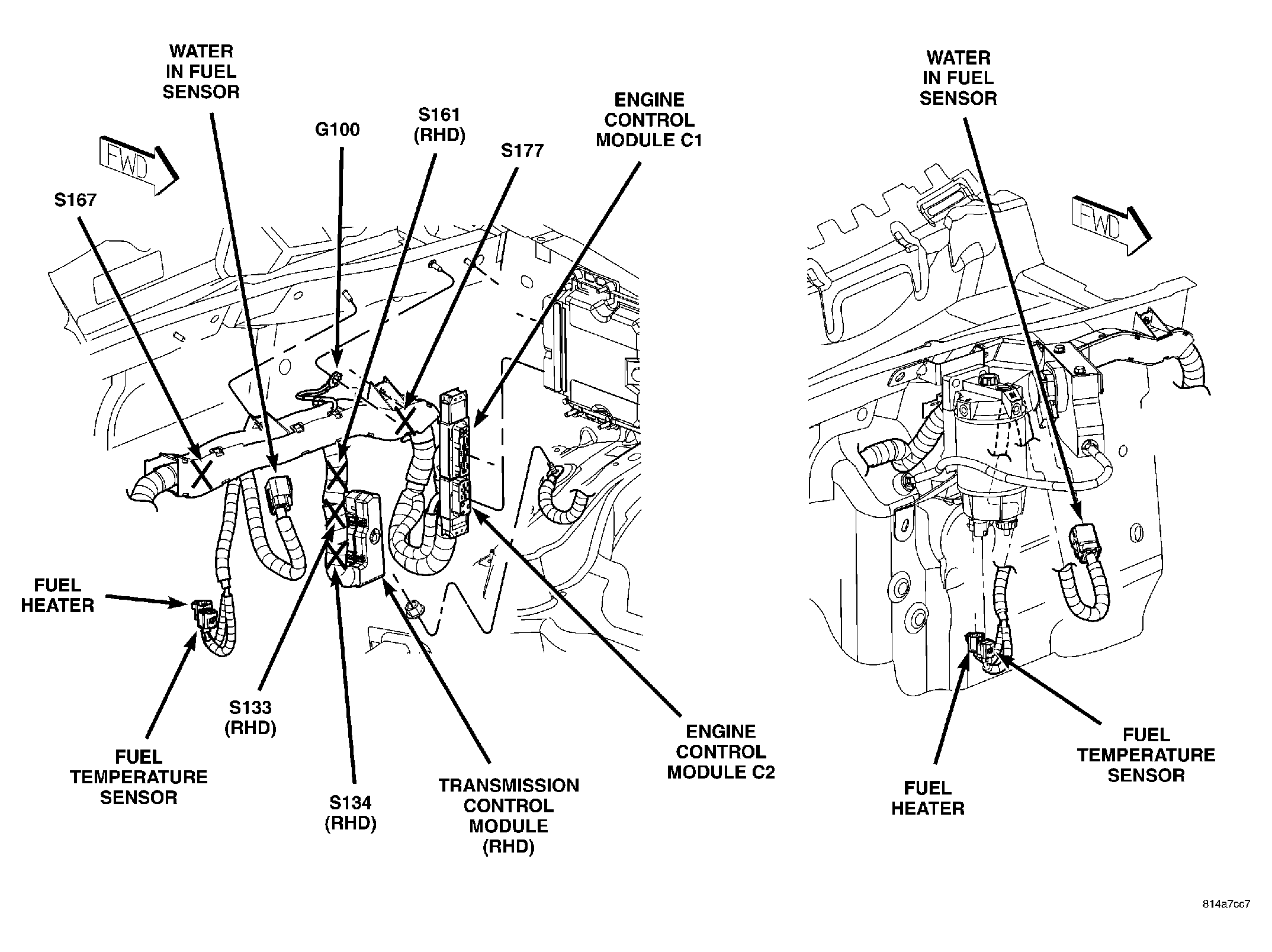

Fuel Heater (Diesel)	BK	Left Rear Side of Engine Compartment	Fig 20.

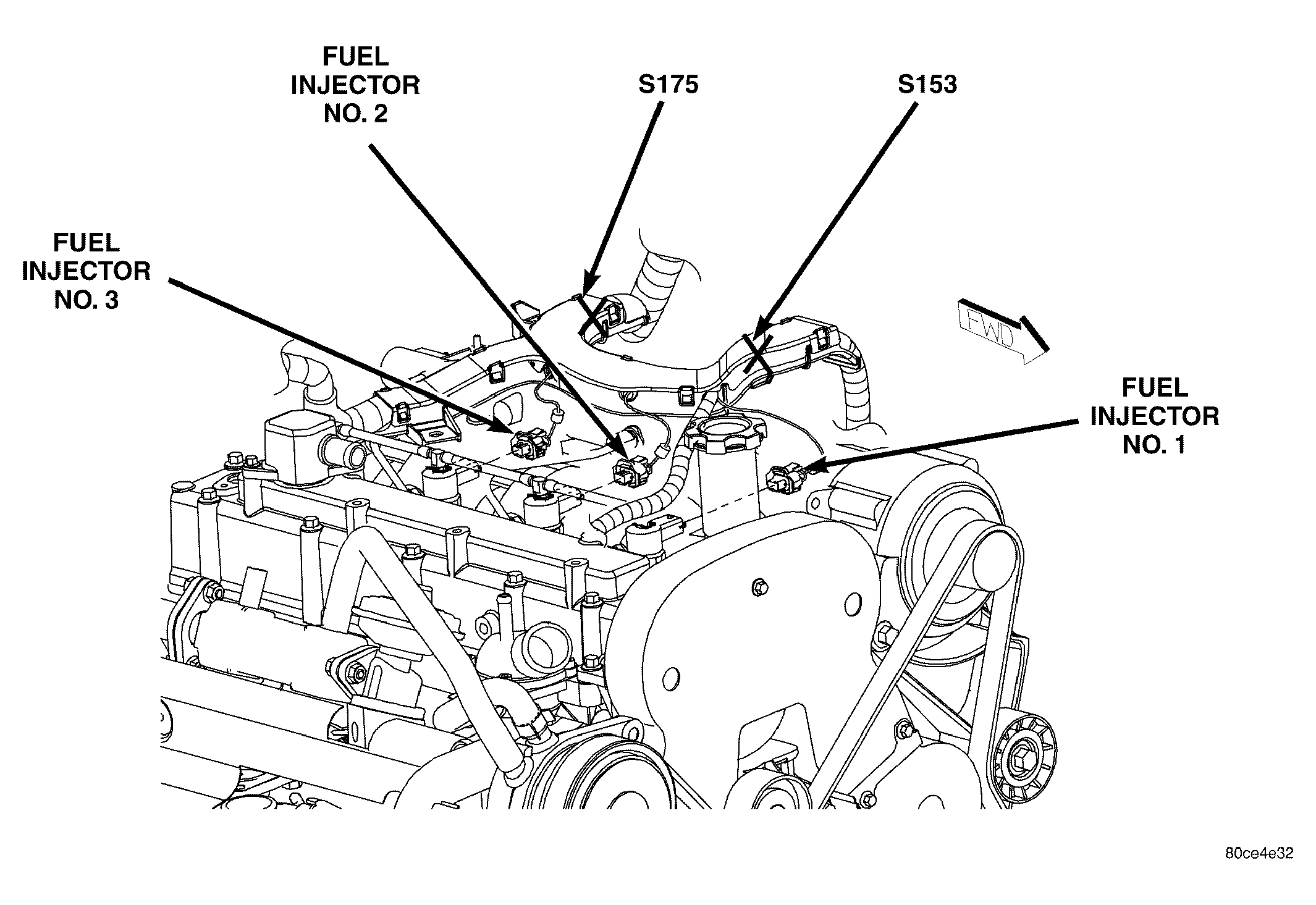

Fuel Injector No.1 (Diesel)	BK	At Fuel Injector	Fig 25.
Fuel Injector No.1 (Gas)	BK	At Fuel Injector	Fig 1.
Fuel Injector No.2 (Diesel)	BK	At Fuel Injector	Fig 25.
Fuel Injector No.2 (Gas)	BK	At Fuel Injector	Fig 2.
Fuel Injector No.3 (Diesel)	BK	At Fuel Injector	Fig 25.
Fuel Injector No.3 (Gas)	BK	At Fuel Injector	Fig 1.
Fuel Injector No.4 (Diesel)	BK	At Fuel Injector	Fig 23.
Fuel Injector No.4 (Gas)	BK	At Fuel Injector	Fig 2.
Fuel Injector No.5 (3.7L)	BK	At Fuel Injector	Fig 1.
Fuel Injector No.6 (3.7L)	BK	At Fuel Injector	Fig 2.
	Fuel Pressure Sensor (Diesel)	Left Side of Engine	Fig 23.
Fuel Pressure Solenoid (Diesel)	BK	Left Side of Engine	Fig 21.
Fuel Pump Module	LG	At Fuel Tank	N/S
	Fuel Quality Solenoid (Diesel)	Top of Engine	Fig 23.
	Fuel Temperature Sensor (Diesel)	Center Rear of Engine Compartment	Fig 20.
	Gateway Module	Left Front Engine Compartment	Fig 31.
Generator	BK	Left Front Side of Engine	Fig 21, Fig 32, Fig 33.
	Glow Plug Module (Diesel)	Top of Engine	N/S

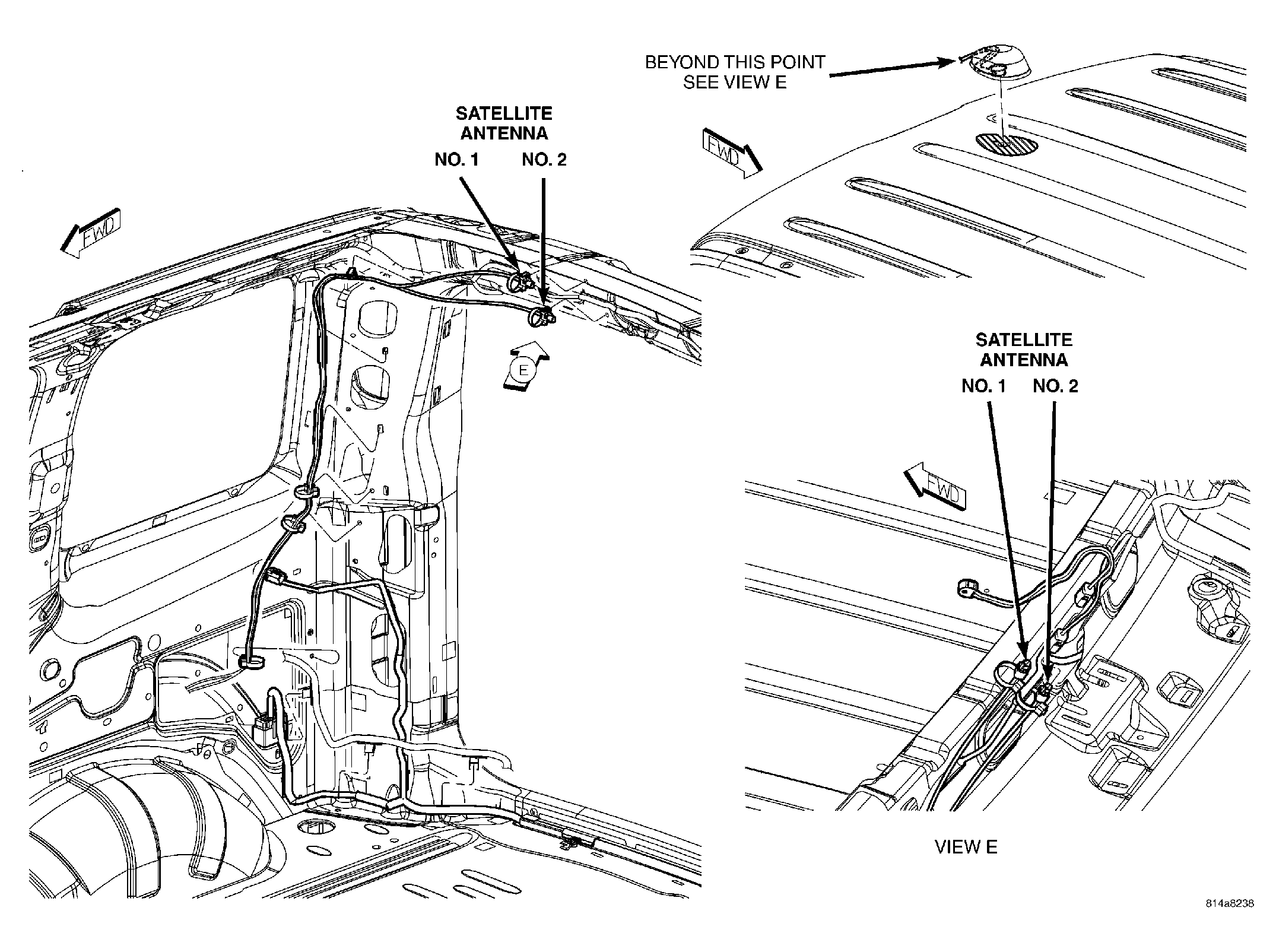

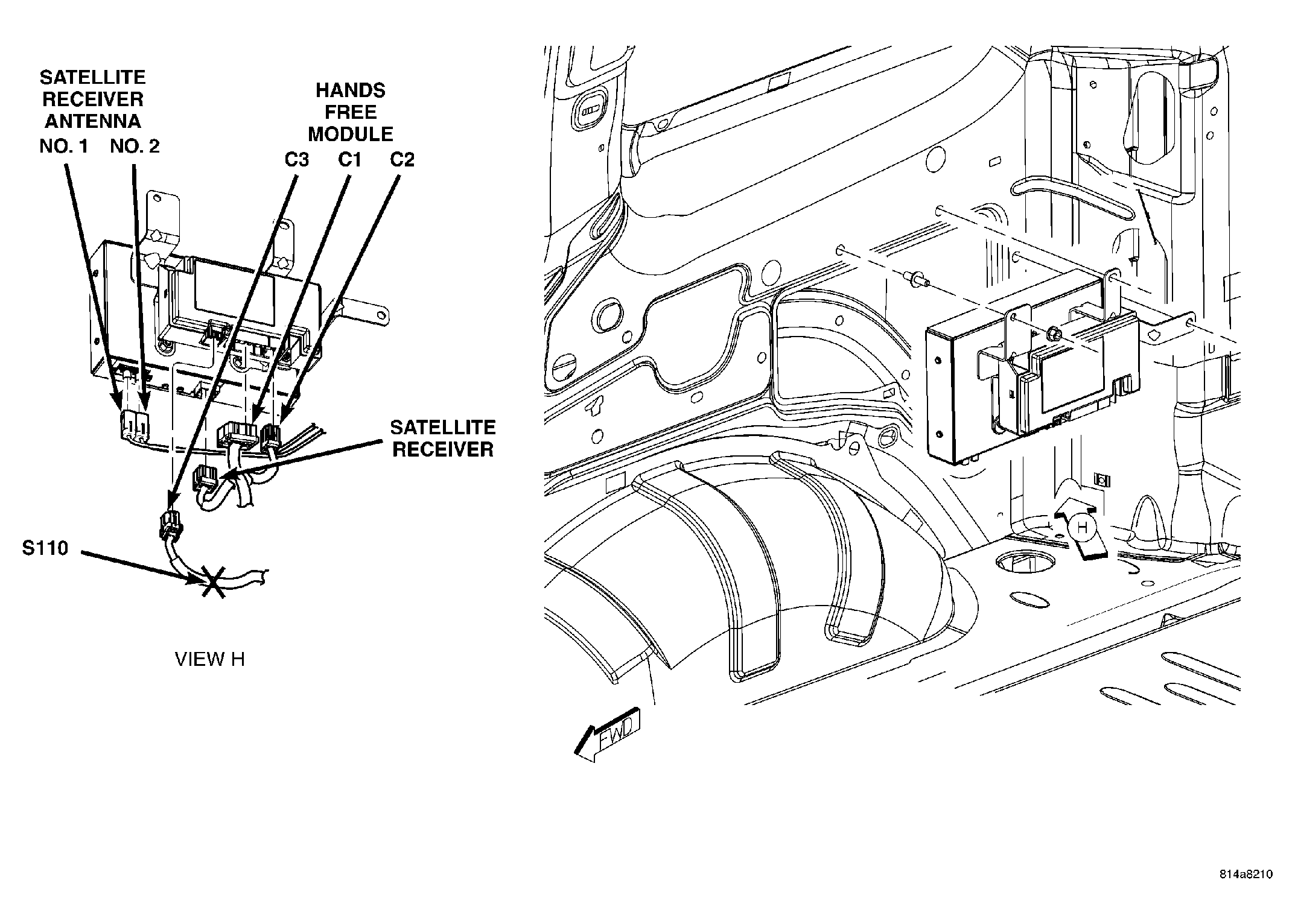

	Hands Free Module C1	Right Rear Side of Cargo Area	Fig 51.
	Hands Free Module C2 (Satellite)	Right Rear Side of Cargo Area	Fig 51.
	Hands Free Module C3	Right Rear Side of Cargo Area	Fig 51.
Hazard Switch/Combination Flasher	WT	Steering Column	N/S
Headlamp Leveling Switch (Export)	BK	Center of Instrument Panel	N/S
Heated Seat Module (Highline)	GN	At Left Seat	N/S
High Note Horn	BK	Left Front Side of Engine Compartment	Fig 31.

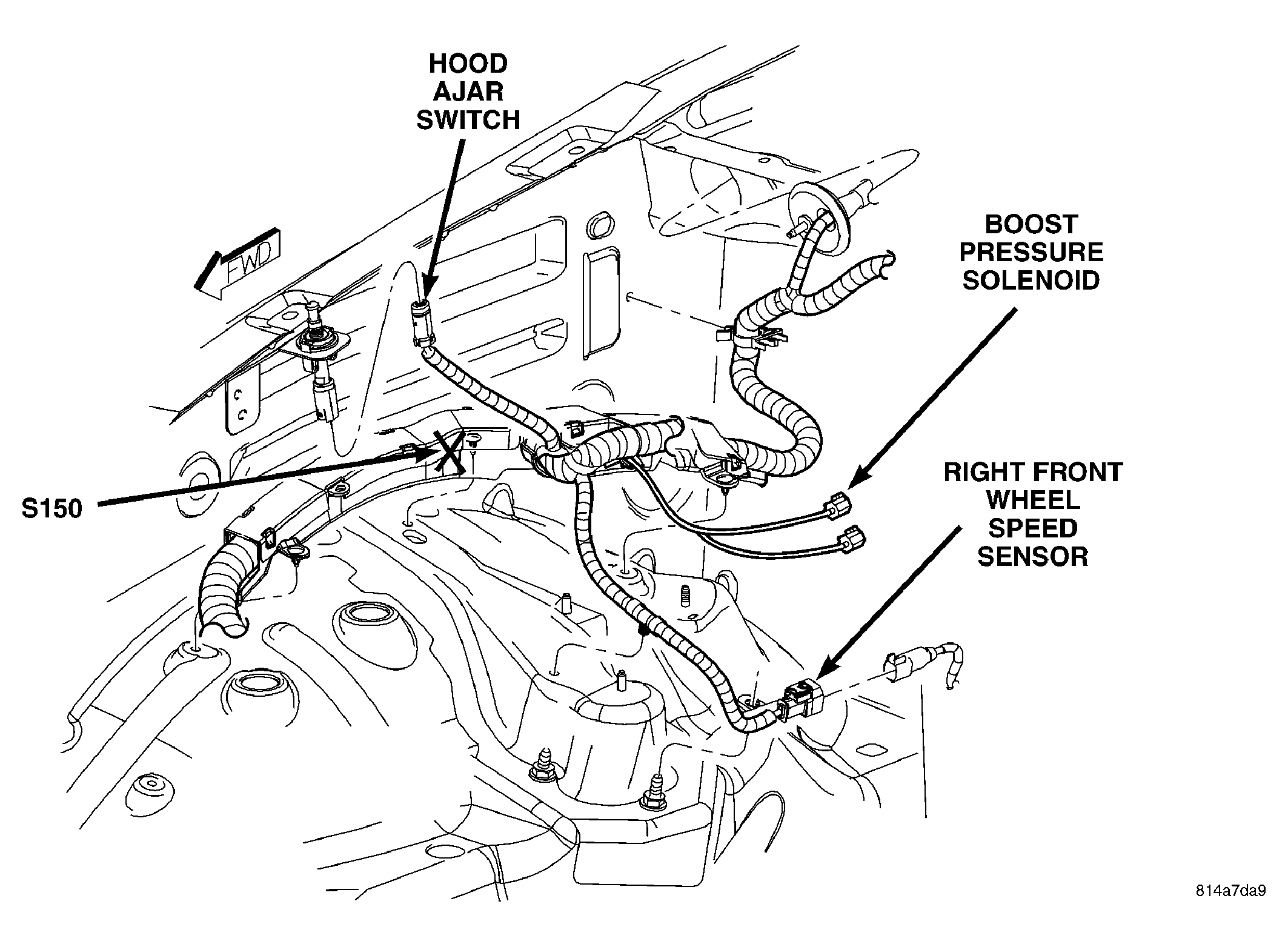

	Hood Ajar Switch	Right Side of Engine Compartment	Fig 27.
	Horn Switch	Steering Wheel	Fig 37.
Idle Air Control Motor	BK	On Throttle Body	Fig 1.
	Ignition Switch	At Steering Column	N/S

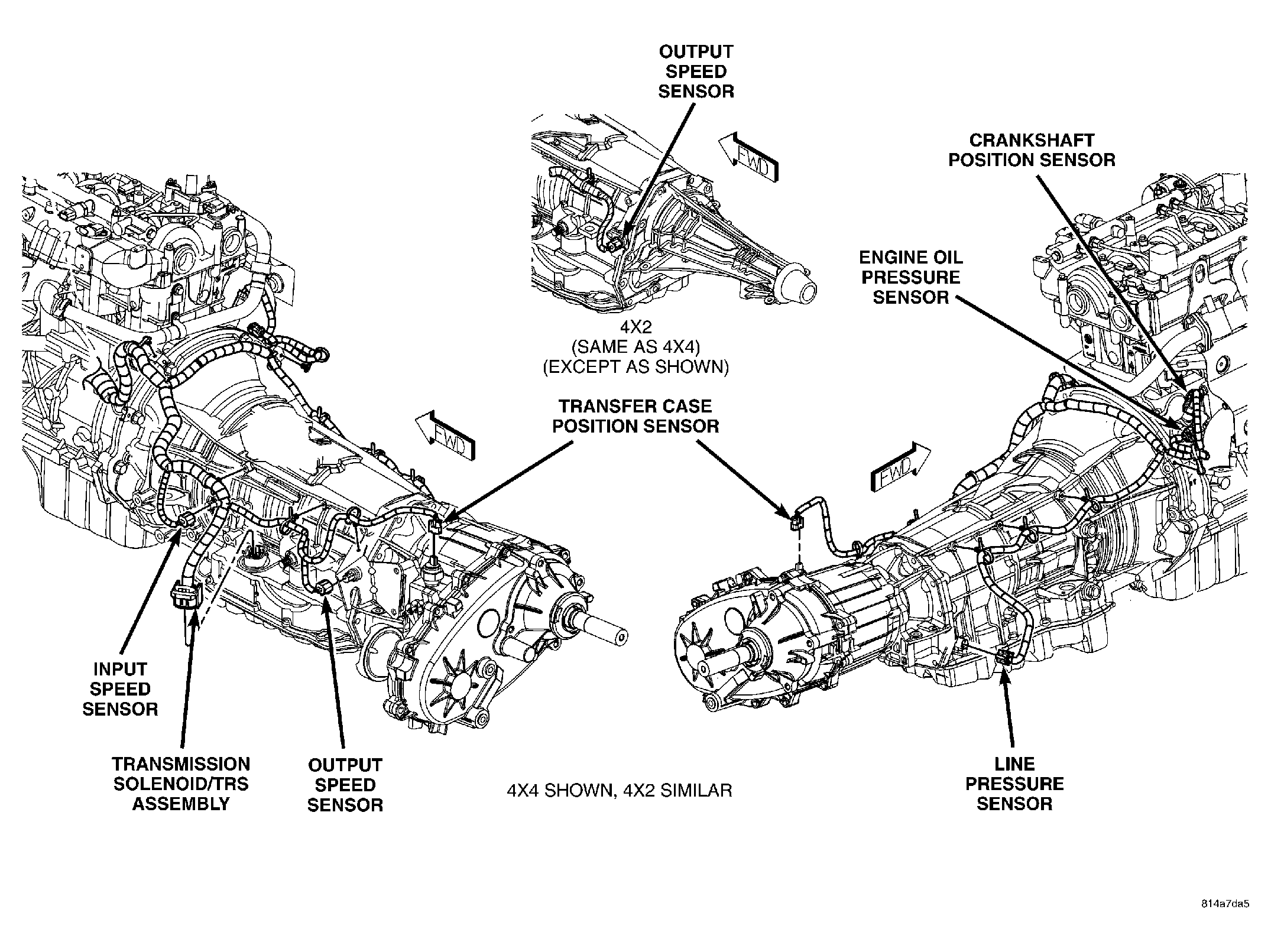

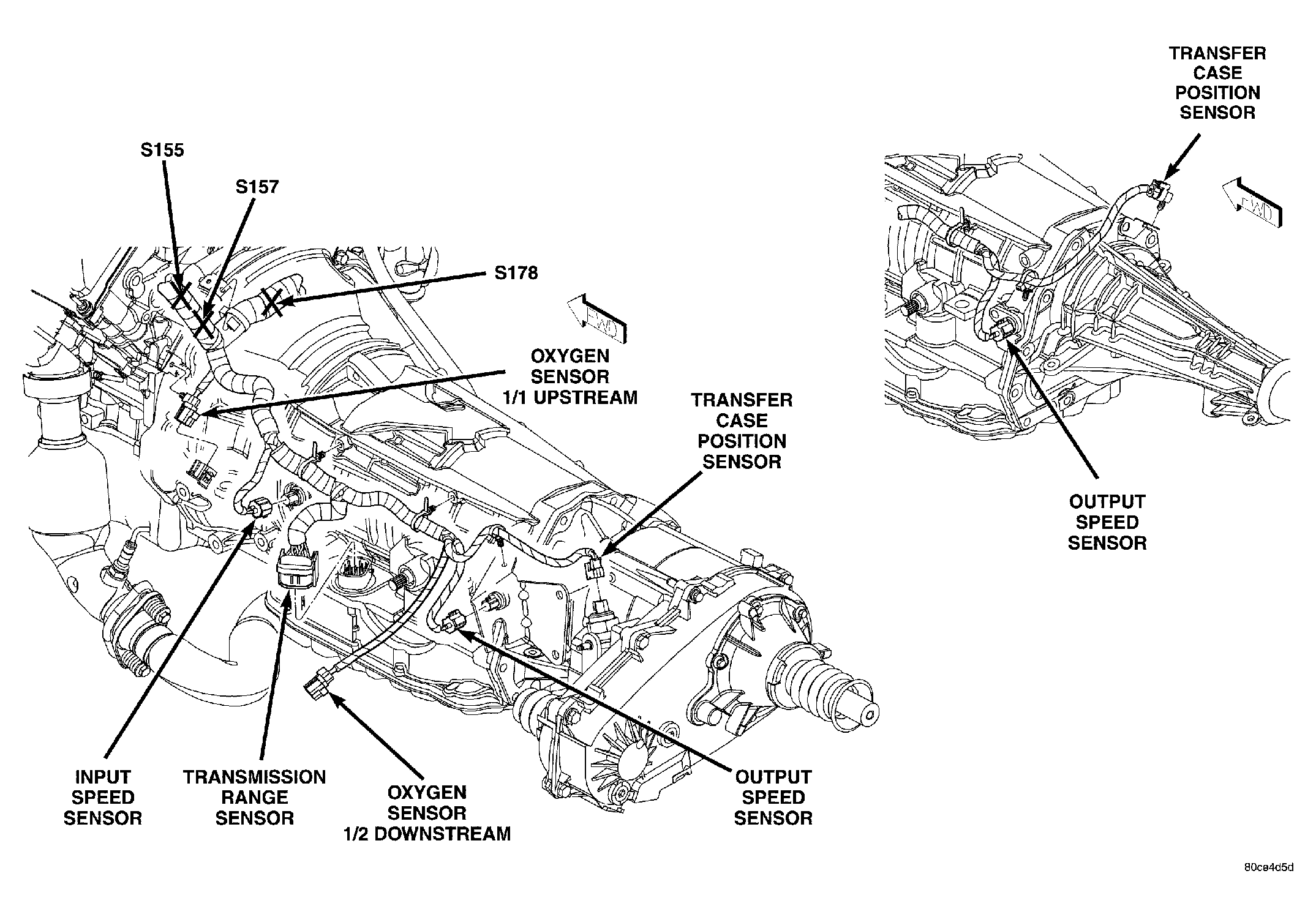

Input Speed Sensor	BK	Left Side of Transmission	Fig 5, Fig 24.
Instrument Cluster	BK	Rear of Cluster	N/S
Intake Air Temperature Sensor	GY	Left Side of Intake Manifold	Fig 1.
	Intake Pressure Sensor (Diesel) 3 Way	Left Rear Engine	Fig 22.
Intrusion Transceiver Module (Export)	BK	Overhead Console	N/S
	Junction Block Body Control Module - JB	Under Left Side of Instrument Panel	N/S
Junction Block C1	GY	Under Left Side of Instrument Panel	N/S
Junction Block C2	GN	Under Left Side of Instrument Panel	N/S
Junction Block C3	LB	Under Left Side of Instrument Panel	N/S
Knock Sensor (3.7L)	BK	Near Fuel Injector No.5	Fig 1.
Left Courtesy Lamp	BK	Left Side of Instrument Panel	N/S

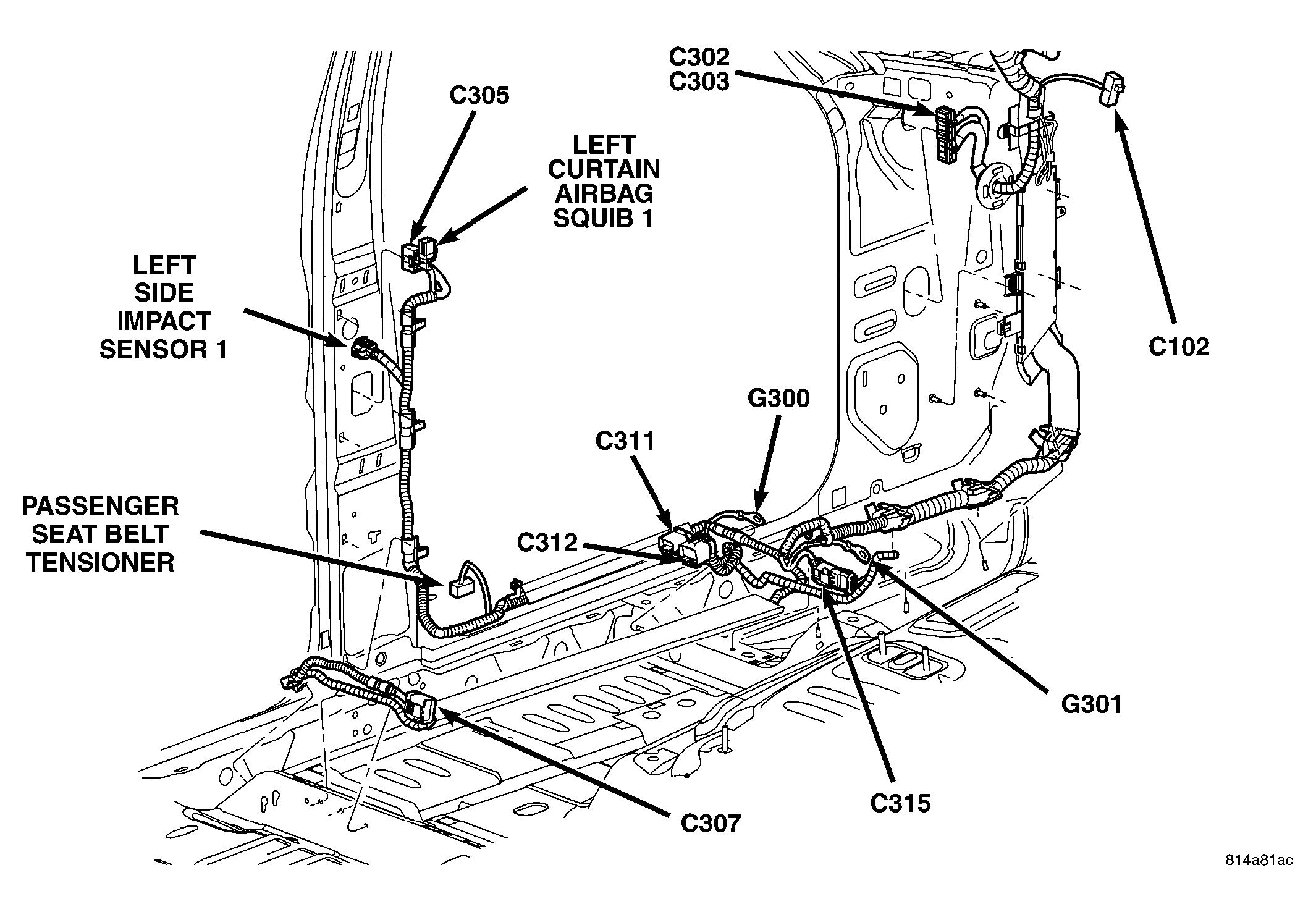

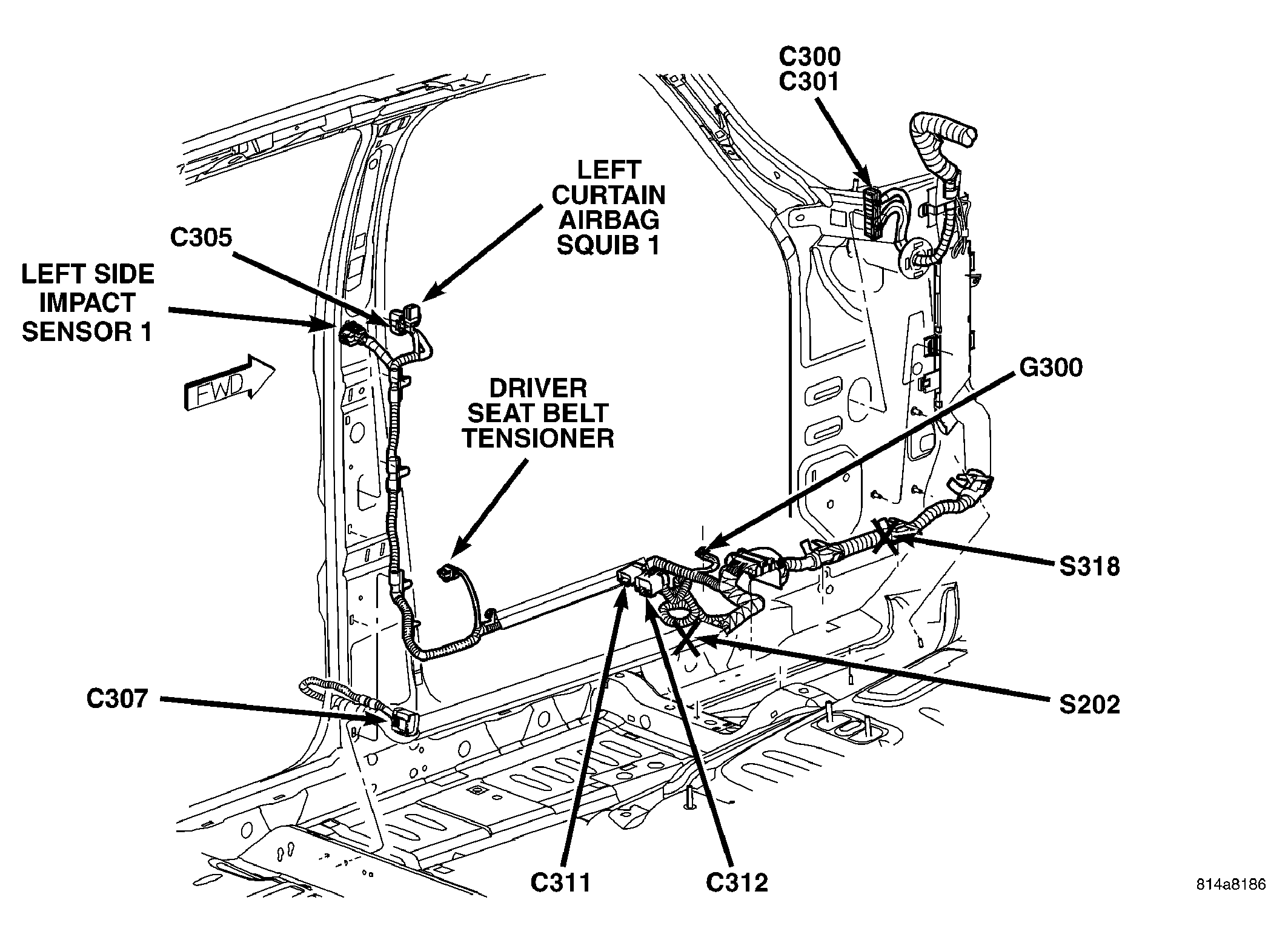

Left Curtain Airbag Squib 1	YL	Left Mid B-Pillar	Fig 41, Fig 44.
Left Cylinder Lock Switch	LG	In Left Front Door	Fig 47.
Left Door Lock Switch	BK	In Left Front Door	Fig 47.
Left Fog Lamp	BK	Left Side of Front Bumper	N/S
Left Front Door Speaker	BK	Behind Left Front Door Panel	Fig 47.
Left Front Impact Sensor	BK	Front Side of Engine Compartment	Fig 30, Fig 31.
Left Front Park/Turn Signal Lamp	BK	Behind Left Turn Signal Lamp	N/S
Left Front Power Window Motor	LG	In Left Front Door	Fig 47.
Left Front Wheel Speed Sensor	BK	Left Side of Engine Compartment	Fig 34.
Left Headlamp (Export)	-	Behind Left Headlamp	N/S
Left Headlamp (Except Export)	DB	Behind Left Headlamp	N/S
Left Heated Seat Assembly	LG	At Left Seat	N/S
Left Heated Seat Switch	BK	At Left Seat	N/S
Left Instrument Panel Speaker	BK	Left Side of Instrument Panel	Fig 39, Fig 43.
Left Leveling Motor (Export)	BK	At Left Headlamp	N/S
Left Position Lamp (Export)	BK	Left Front Side of Vehicle	N/S
Driver Power Mirror	WT	In Left Front Door	Fig 47.
Left Power Seat Motors	BK	At Left Seat	N/S
Left Power Seat Switch	GN	At Left Seat	N/S
Left Rear Door Lock Motor/Ajar Switch (Except Base)	BK	In Left Rear Door	Fig 48.
	Left Rear Door Speaker	In Left Rear Door	Fig 48.
Left Rear Power Window Motor	LG	In Left Rear Door	Fig 48.
Left Remote Radio Switch	BK	On Steering Wheel	N/S
Left Side Impact Sensor 1	YL	Left B-Pillar	Fig 41, Fig 44.
Left Side Marker Lamp	BK	Left Front Fender	N/S
Left Side Repeater Lamp (Export)	BK	Left Front Fender	N/S
Left Speed Control Switch	BK	On Steering Wheel	Fig 37.
Left Tail/Stop Lamp	BK	Left Rear Quarter Panel	Fig 53.
Left Visor/Vanity Lamp	WT	Left Front of Headliner	N/S
License Lamp (Export)	LG	In Tailgate	Fig 54.
License Lamp (Except Export)	LG	On Bumper	Fig 49.
	Lightbar Lamp No.1	Front of Roof in Light Bar Harness	Fig 57.
	Lightbar Lamp No.2	Front of Roof in Light Bar Harness	Fig 57.
	Lightbar Lamp No.3	Front of Roof in Light Bar Harness	Fig 57.
	Lightbar Lamp No. 4	Front of Roof in Light Bar Harness	Fig 57.
	Lightbar Switch	Near Instrument Cluster	N/S
Line Pressure Sensor (Diesel)	BK	Right Side of Transmission	Fig 24.
Low Note Horn	BK	Left Front Side of Engine Compartment	Fig 31.
Manifold Absolute Pressure Sensor	BK	Front Side of Engine	Fig 2.
	Mass Air Flow Sensor (Diesel)	Top of Engine	Fig 22.
Multi-Function Switch C1	GY	At Steering Column	N/S
Multi-Function Switch C2	GY	At Steering Column	N/S
Natural Vacuum Leak Detection Assembly	BK	Near Fuel Tank	N/S
Output Speed Sensor	BK	Left Side of Transmission	Fig 5, Fig 24.
Overhead Map/Courtesy Lamp	BK	Overhead Console	N/S
Oxygen Sensor 1/1 Upstream (2.4L)	BK	Right Side of Engine	Fig 12.
Oxygen Sensor 1/1 Upstream (3.7L)	BK	Lower Left Side of Engine	Fig 5, Fig 7.
Oxygen Sensor 1/2 Downstream (2.4L)	NAT	Right Side of Transmission	Fig 11, Fig 12.
Oxygen Sensor 1/2 Downstream (3.7L)	NAT	Left Side of Transmission	Fig 5.

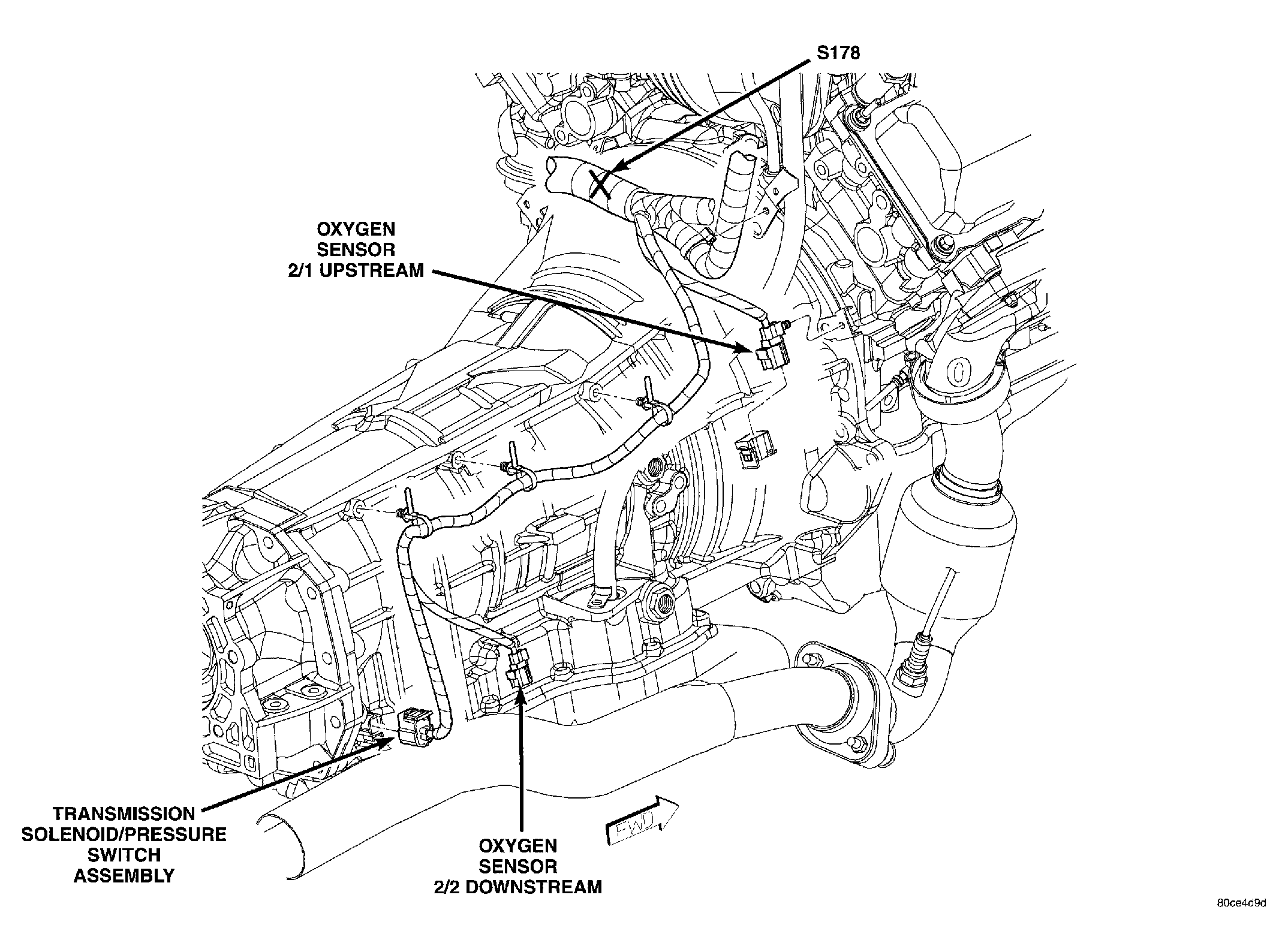

Oxygen Sensor 2/1 Upstream (3.7L)	BK	Lower Right Side of Engine	Fig 6.
Oxygen Sensor 2/2 Downstream (3.7L)	NAT	Right Side of Transmission	Fig 6.
Park Brake Switch	BK	Center Console	Fig 42, Fig 46.
Passenger Airbag Squib 1	YL	Passenger Side Instrument Panel	N/S
Passenger Airbag Squib 2	YL	Passenger Side Instrument Panel	N/S
	Passenger Airbag On/Off Indicator	Near Passenger Airbag	N/S
Passenger Door Lock Motor/Ajar Switch (Except Base)	BK	In Passenger Door	Fig 47.
Passenger Power Mirror	WT	Right Front Door	Fig 47.
Passenger Seat Belt Switch	LG	At Passenger Seat	N/S
	Passenger Seat Belt Tensioner	Base of Right B- Pillar	Fig 40.
	Power Distribution Center	Left Engine Compartment	Fig 31.
Power Mirror Switch	WT	In Left Front Door	Fig 47.
Power Steering Pressure Switch	BK	Left Front Side of Engine	Fig 3, Fig 15.
Power Window Master Switch	LG	Center Console	Fig 42, Fig 46.
Powertrain Control Module C1 (2.4L)	BK	At Powertrain Control Module	Fig 13, Fig 14.
Powertrain Control Module C1 (3.7L)	BK	At Powertrain Control Module	Fig 8, Fig 9.
Powertrain Control Module C2	WT	At Powertrain Control Module	Fig 8, Fig 9, Fig 13, Fig 14.
Powertrain Control Module C3	GY	At Powertrain Control Module	Fig 9, Fig 35.
Powertrain Control Module C4	GN	At Powertrain Control Module	Fig 8, Fig 9.
Radiator Fan Motor	BK	Right Front Side of Engine Compartment	Fig 30.
Radio C1	GY	Rear of Radio	N/S
Radio C2	-	Rear of Radio	N/S
	Radio C3	Rear of Radio	N/S
Radio Choke	GY	Center of Instrument Panel	N/S
Rear Map/Reading Lamp	BK	Overhead Console	N/S
Rear Power Outlet	RD	Right Rear Quarter Panel	Fig 53, Fig 56.
Rear Power Window Switch	WT	Center Console	Fig 42, Fig 46.
Rear Wheel Speed Sensor	BK	On Rear Axle	N/S
Rear Window Defogger	BK	At Rear Window	Fig 54.
Rear Wiper Motor	BK	In Tailgate	Fig 54.
Red Brake Warning Indicator Switch (LHD)	GY	Left Rear Side of Engine Compartment	Fig 35.
Red Brake Warning Indicator Switch (RHD)	GY	Right Rear Side of Engine Compartment	Fig 28.
Right Courtesy Lamp	BK	Right Side of Instrument Panel	N/S
Right Curtain Airbag Squib 1	YL	Right Mid B-Pillar	Fig 40, Fig 45.
Right Door Lock Switch (Except Base)	BK	In Right Front Door	Fig 47.
Right Fog Lamp	BK	Right Side of Bumper	N/S
Right Front Door Ajar Switch (Base)	BK	In Right Front Door	N/S
Right Front Door Speaker	BK	In Right Front Door	Fig 47.
Right Front Impact Sensor	BK	Right Front Side of Engine Compartment	Fig 30.
Right Front Park/Turn Signal Lamp	BK	At Lamp	N/S
Right Front Power Window Motor	LG	In Right Front Door	Fig 47.
Right Front Wheel Speed Sensor	BK	Right Rear Lower Side of Engine Compartment	Fig 27.
	Right Headlamp (Export)	Right Front Side of Engine Compartment	N/S
Right Headlamp (Except Export)	DB	Right Front Side of Engine Compartment	N/S
Right Heated Seat Assembly	LG	At Right Seat	N/S
Right Heated Seat Switch	BK	At Right Seat	N/S
Right Instrument Panel Speaker	WT	Right Side of Instrument Panel	Fig 39, Fig 43.
Right Leveling Motor (Export)	BK	At Right Headlamp	N/S
Right Position Lamp (Export)	BK	Right Front Corner of Vehicle	N/S
Right Power Seat Motors	BK	At Right Seat	N/S
Right Power Seat Switch	GN	At Right Seat	N/S
Right Rear Door Lock Motor/Ajar Switch (Except Base)	BK	In Right Rear Door	Fig 48.
	Right Rear Door Speaker	At Speaker	Fig 48.
Right Rear Power Window Motor	LG	In Right Rear Door	Fig 48.
Right Remote Radio Switch	BK	On Steering Wheel	N/S
Right Side Impact Sensor 1	YL	Right B-Pillar	Fig 40, Fig 45.
Right Side Marker Lamp	BK	Right Front Fender	N/S
Right Side Repeater Lamp (Export)	BK	Right Front Fender	N/S
Right Speed Control Switch	WT	On Steering Wheel	Fig 37.
Right Tail/Stop Lamp	BK	Right Rear Quarter Panel	Fig 53.
Right Visor/Vanity Lamp	WT	On Visor	N/S
	Satellite Antenna No.1	Center Rear Roof	Fig 52.
	Satellite Antenna No.2	Center Rear Roof	Fig 52.
	Satellite Receiver	Right Rear Side of Cargo Area	Fig 51.
	Satellite Receiver-Antenna No.1	Right Rear Cargo Area	Fig 51.
	Satellite Receiver-Antenna No.2	Right Rear Cargo Area	Fig 51.
Sentry Key Immobilizer Module	BK	Under Left Side of Instrument Panel	N/S
Shifter Assembly	WT	Center Console	Fig 42, Fig 46.
	Siren (Export)	Right Front Side of Engine Compartment	Fig 30.
Speed Control Servo	BK	Right Rear Side of Engine Compartment	Fig 29.
	Starter	Lower Left Rear Engine	Fig 32, Fig 33.
Sunroof Motor	LG	Overhead Console	N/S
Sunroof Switch	BK	Overhead Console	N/S
Tailgate Cylinder Lock Switch	LG	In Tailgate	Fig 54.
Tailgate Flip-Up Ajar Switch	GY	In Tailgate	Fig 54.
Tailgate Lock Motor/Ajar Switch	BK	In Tailgate	Fig 54.
Throttle Position Sensor	WT	On Throttle Body	Fig 1.
Trailer Tow Brake Lamp Relay	-	Right Quarter Panel	Fig 55.
Trailer Tow Circuit Breaker	-	Right Quarter Panel	N/S

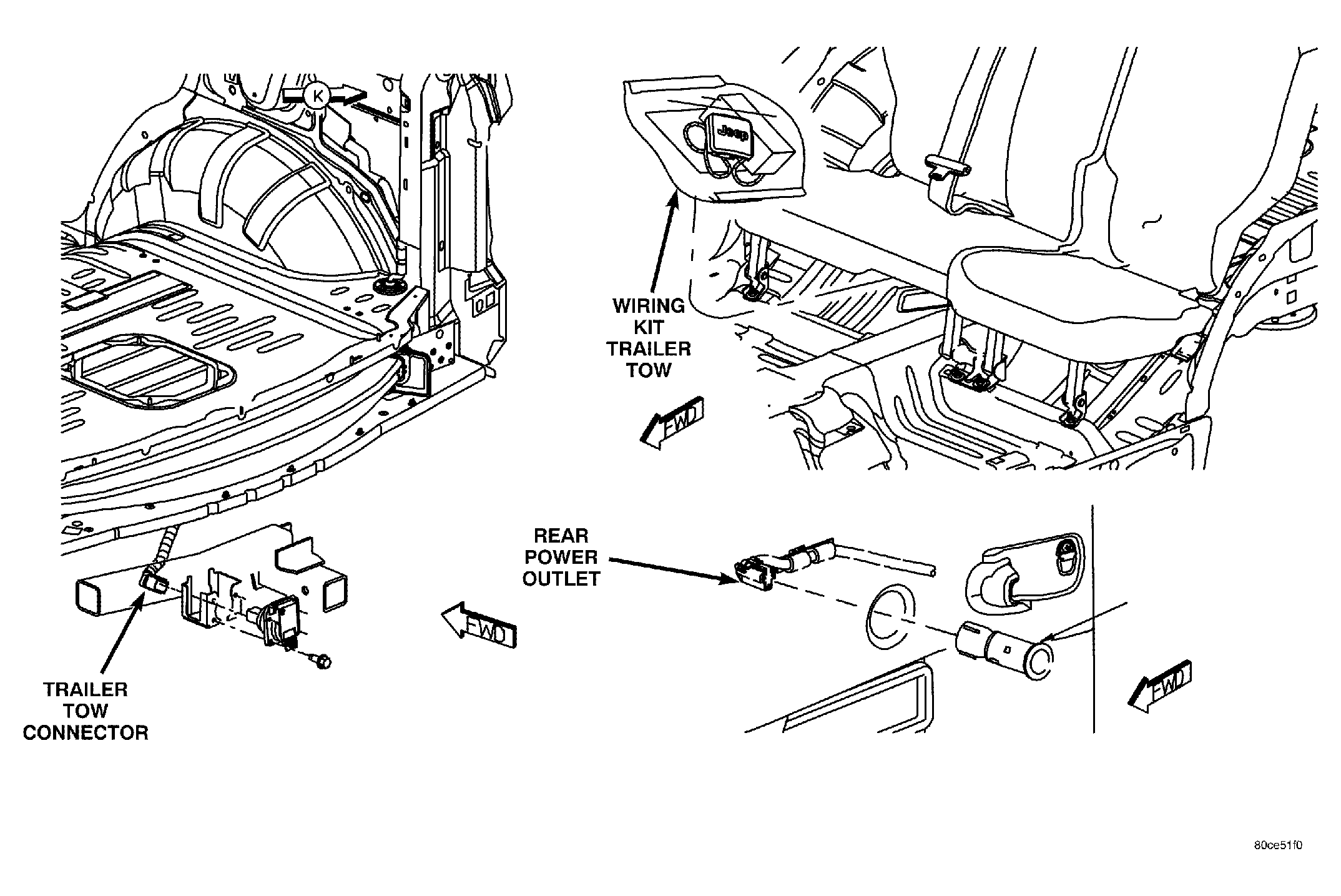

Trailer Tow Connector	BK	At Trailer Hitch	Fig 55, Fig 56.
	Trailer Tow Left Turn Relay	Right Quarter Panel	Fig 55.
	Trailer Tow Relay	Right Quarter Panel	Fig 55.
	Trailer Tow Right Turn Relay	Right Quarter Panel	Fig 55.
Transfer Case Position Sensor	BK	Rear Side of Transmission	Fig 5, Fig 7, Fig 11, Fig 12, Fig 23, Fig 24.
Transmission Control Module (Diesel) LHD	BK	Right Rear Side of Engine Compartment	Fig 19.
	Transmission Control Module (RHD)	Left Rear Engine Compartment	Fig 20.
	Transmission Range Sensor (42RLE)	Left Side Transmission	Fig 5.
	Transmission Solenoid/Pressure Switch Assembly	Right Side of Transmission	Fig 6.
Transmission Solenoid/TRS Assembly (Diesel)	GY	Left Side of Transmission	Fig 24.
	Transponder-Tire Pressure-Left Front (Except 2.5L)	Left Front Engine Compartment	Fig 31.
	Transponder-Tire Pressure-Right Front (Except 2.5L)	Right Front Engine Compartment	Fig 30.
	Transponder-Tire Pressure-Right Rear (Except 2.5L)	Right Rear Lower Body	Fig 53.
	Vacuum Reservoir Solenoid	Right Rear Engine Compartment	Fig 27.
Washer Fluid Level Switch	LG	At Washer Fluid Reservoir	Fig 30.
Washer Pump	BK	Right Front Side of Engine Compartment	Fig 30.
Water In Fuel Sensor (Diesel)	-	Left Rear Side of Engine Compartment	Fig 20.

GROUND NUMBER	LOCATION	FIG.
G100	Left Side of Engine Compartment	Fig 8, Fig 9, Fig 14, Fig 20.
G101 (2.4L)	Left Side of Engine Compartment	Fig 15.
G102 (A/T Gas)	Left Rear Side of Engine Compartment	Fig 8.
G102 (Diesel)	Left Rear Side of Engine Compartment	Fig 19.
G103 (3.7L)	Right Front Side of Engine	Fig 4.
G103 (Diesel)	Right Front Side of Engine	Fig 21.
G105	Left Side of Engine Compartment	Fig 32, Fig 33.
G106	Left Side of Engine Compartment	Fig 32, Fig 33.
G110	Left Side of Engine Compartment	Fig 34, Fig 35.
G112	Left Front Side of Engine Compartment	Fig 31.
G200	Near Body Control Module	N/S
G201	Under Center Console	Fig 39, Fig 43.
G202	Left Kick Panel (Black Connector)	N/S
G203	Under Center of Instrument Panel	N/S
G300	Left Front Corner of Driver Seat, Under Carpet	Fig 41, Fig 42. Fig 44.
G301	Under Carpet at Front Center of Driver Seat	Fig 42, Fig 44, Fig 46.
G302	Right Front Seat	Fig 40, Fig 45, Fig 49.
G303	Left Rear Quarter Panel	Fig 49.
G304	Right Rear Lower Quarter	N/S
G320	At Fuel Tank	N/S

SPLICE NUMBER	LOCATION	FIG.
S101	Near T/O to Power Distribution Center	Fig 34.
S102	In T/O for Power Distribution Center	Fig 31.
S103 (Diesel)	In T/O for C100	Fig 36.
S103 (Gas)	Left Rear Engine Compartment	Fig 35.
S104	Rear Engine Compartment	Fig 19.
S105	In T/O for C100	Fig 36.
S106	In T/O for C100	Fig 36.
S107 (Diesel)	In T/O for C100	Fig 36.
S108	Near T/O for C106	N/S
S109	In Trough Near T/O for High Note Horn	Fig 30.
S110	Near T/O for C106	Fig 30, Fig 31.
S111	In Trough Near T/O for High Note Horn	Fig 30.
S112	Near T/O to Power Distribution Center	Fig 31.
S113 (LHD)	In T/O for C100	Fig 36.
S114	Left Front Engine Compartment	Fig 31.
S115	Near T/O for Power Distribution Center	Fig 34.
S118	Left Front Engine Compartment	Fig 31.
S119	Right Front Lower Engine Compartment	Fig 30.
S121	Left Front Engine Compartment	Fig 31.
S122	Left Front Engine Compartment	Fig 31.
S123	In Trough, Front of Engine Compartment	N/S
S124	In T/O for Junction Block C3	Fig 36.
S125	In T/O for Junction Block C3	Fig 36.
S127	Near T/O for Power Distribution Center	Fig 34.
S128	Center Instrument Panel	Fig 43.
S129	Right Side Engine Compartment	Fig 30.
S130	Near T/O for Left Headlamp	N/S
S131	In T/O for Right Headlamp	N/S
S133	In T/O for Transmission Control Module	Fig 19, Fig 20.
S134	In T/O for Transmission Control Module	Fig 19, Fig 20.
S135 (LHD)	In T/O for Junction Block C3	Fig 36.
S135 (RHD)	In T/O for C100	Fig 36.
S136	Lower Front Engine Compartment	Fig 30.
S137	Lower Front Engine Compartment	Fig 30.
S140	Near T/O for Left Front Park/Turn Signal Lamp	N/S
S141	Near T/O for Left Fog Lamp	N/S
S142	Near T/O for Left Front Park/Turn Signal Lamp	N/S
S143	Near T/O for Right Front Park/Turn Signal Lamp	N/S
S144	Near T/O for Left Fog Lamp	N/S
S145	Near T/O for Right Front Park/Turn Signal Lamp	N/S
S146	Near T/O for Right Front Park/Turn Signal Lamp	N/S
S147	Front Lighting Harness	N/S
S148	Front Lighting Harness	N/S
S149	Front Lighting Harness	N/S
S150	Right Side Engine Compartment	Fig 27.
S151 (2.4L)	Near T/O for C110	Fig 11, Fig 12.
S151 (3.7L)	In Trough Near T/O for Fuel Injector No.3	Fig 8.
S151 (Diesel)	In Trough Near T/O for Accelerator Pedal Position Sensor	Fig 20.
S152	In Trough Near T/O for Fuel Injector No.4	Fig 2.
S153 (3.7L)	Near T/O for Idle Air Control Motor	Fig 1.
S153 (Diesel)	In Trough Near T/O for Generator	Fig 21, Fig 25.
S154	Near T/O for Engine Starter Motor	Fig 2, Fig 4, Fig 11, Fig 12, Fig 21.
S155	Near T/O for Knock Sensor	Fig 1, Fig 5.
S156 (2.4L)	In Trough Near T/O for C112	Fig 13, Fig 14.
S156 (3.7L)	Near T/O for Powertrain Control Module C1	N/S
S156 (Diesel)	Left Side Engine	Fig 21.
S157	Near T/O for Oxygen Sensor 1/1 Upstream	Fig 5.
S158	In Trough Near T/O for C112	N/S
S159	Near T/O for Knock Sensor	Fig 2.
S160 (2.4L)	In T/O for C104	N/S
S160 (3.7L)	In T/O for C104	Fig 10.
S160 (Diesel)	In T/O for Transmission Control Module	Fig 19.
S161 (LHD)	Right Rear Engine Compartment	Fig 19.
S161 (RHD)	In T/O for Transmission Control Module	Fig 20.
S163 (3.7L)	Left Rear Engine Compartment	Fig 8.
S164	In Trough on Right Rear Side of Engine Compartment	Fig 8, Fig 19.
S165	In Trough on Right Rear Side of Engine Compartment	N/S
S166	Near T/O for G100	Fig 8.
S167	Rear Engine Compartment	Fig 20.
S168 (2.4L)	Near T/O for Coil Rail	Fig 11, Fig 12.
S168 (3.7L)	Near T/O for Fuel Injector No.6	Fig 2.
S169 (2.4L)	Near T/O for C101	Fig 11.
S169 (3.7L)	Near T/O for Oxygen Sensor 1/1 Upstream	Fig 1, Fig 3.
S169 (Diesel)	Near T/O for Generator	Fig 21.
S175	In Trough on Top of Engine	Fig 23, Fig 25.
S177	In Trough Near T/O for G100	Fig 8, Fig 20.
S178	Near T/O for Oxygen Sensor 2/2 Downstream	Fig 5, Fig 6, Fig 7.
S181	In Trough Near T/O for G100	Fig 20.
S184	Near T/O for Powertrain Control Module C1	N/S
S185	Near T/O for Fuel Pressure Solenoid	Fig 21.
S194	In T/O for Junction Block C3	Fig 36.
S199	Neat T/O for Accelerator Pedal Position Sensor	Fig 20.
S200	Near T/O for C201	N/S
S201	Near T/O for Left Instrument Panel Lamp	N/S
S202	Left Side Body Near G301	Fig 41.
S204	Near T/O for Data Link Connector	N/S
S205	In T/O for C100	Fig 36.
S206	Near T/O for Multifunction Switch C2	N/S
S207	In T/O for C100	N/S
S208	Near T/O for G202	N/S
S210	Near T/O for Left Instrument Panel Lamp	N/S
S211	Fuel Tank Harness	N/S
S212	Near T/O for Diagnostic Junction Port	N/S
S213	Near T/O for Diagnostic Junction Port	N/S
S214	Near T/O for Airbag Control Module C1 (ORC C1)	N/S
S215	Near T/O for Multifunction Switch C2	N/S
S216	In T/O for Instrument Cluster	N/S
S217	Near T/O for Multifunction Switch C2	N/S
S218	Near T/O for Multifunction Switch C2	N/S
S219	In T/O for Junction Block C3	N/S
S220	In T/O for Junction Block C3	N/S
S221	Near T/O for Left Speed Control Switch	N/S
S222	Near T/O for Right Speed Control Switch	Fig 37.
S223	Near T/O for Left Remote Radio Switch	Fig 37.
S224	Near T/O for Right Remote Radio Switch	Fig 37.
S225	Near T/O for G203	N/S
S230	In T/O for A/C Heater Control C1	N/S
S231	Near T/O for Park Brake Switch	Fig 46.
S300 (LHD)	Near T/O for C309	Fig 49.
S300 (RHD)	Near T/O for C310	Fig 53.
S301	In T/O For Radio C1	N/S
S302	Near T/O for Rear Power Outlet	Fig 53.
S303 (LHD)	Near T/O for Shifter Assembly	Fig 42.
S303 (RHD)	Floor Near Right Front Door	Fig 45.
S304	Near T/O for License Lamp	Fig 53.
S306 (LHD)	Near T/O for Junction Block C2	Fig 39.
S306 (RHD)	In T/O for C319	Fig 53.
S308 (LHD)	In T/O for Rear Power Outlet	Fig 49.
S308 (RHD)	Near T/O for Rear Power Outlet	N/S
S310	Near T/O for C303	Fig 53.
S312	Near T/O for G330	Fig 53.
S313	In T/O for Trailer Tow Relays	Fig 55.
S314	In T/O for Trailer Tow Relays	Fig 55.
S315	Left Steering Wheel	Fig 37.
S317	Right Steering Wheel	Fig 37.
S318 (LHD)	Near T/O for Left Instrument Panel Speaker	N/S
S318 (RHD)	Floor Near Right Front Door	Fig 45.
S319 (LHD)	Near T/O for C201	Fig 39.
S319 (RHD)	Near T/O for Left Instrument Panel	Fig 43.
S322	Near T/O for Left Instrument Panel	Fig 39, Fig 43.
S323 (LHD)	Near T/O for Left Instrument Panel	Fig 39.
S323 (RHD)	Near T/O for Right Instrument Panel Speaker	Fig 43.
S324 (Premium)	Near T/O for Right Instrument Panel Speaker	Fig 39, Fig 43.
S326	Near T/O for Heated Seat Module	N/S
S327	Near T/O for Left Heated Seat Assembly	N/S
S328	In T/O for Heated Seat Module	N/S
S329	Near T/O for Right Heated Seat Switch	N/S
S331	Under Carpet Near Driver Seat Right Front Fastener	Fig 42, Fig 46.
S332	Under Carpet Near Driver Seat Right Front Fastener	Fig 46.
S333	Near G302	Fig 45.
S334	Near T/O for G302	N/S
S336 (LHD)	Near T/O for Left Instrument Panel	Fig 39.
S336 (RHD)	Near T/O for Right Instrument Panel Speaker	Fig 43.
S338	Near T/O for C201	Fig 39, Fig 43.
S340 (Base)	Near T/O for C201	Fig 39.
S341 (Base)	Near T/O for C201	Fig 39.
S342 (Base)	Near T/O for Right Instrument Panel Speaker	Fig 39.
S344 (Base)	Near T/O for Right Instrument Panel Speaker	Fig 39.
S345	Center Console	Fig 46.
S346	In T/O for Trailer Tow Relays	Fig 55.
S347	Near T/O for Right Tail/Stop Lamp	Fig 53.
S348	Near T/O for Right Tail/Stop Lamp	Fig 53.
S349	Near T/O for License Lamp	Fig 53.
S351	In T/O for Rear Window Defogger	Fig 54.
S352	In T/O for Rear Window Defogger	Fig 54.
S353	In T/O for Radio C2	N/S
S354	In T/O for CD Changer	Fig 50.
S354	In T/O for Satellite Receiver	Fig 51.
S355	In T/O for Radio C2	N/S
S356	Near T/O for Center High Mounted Stop Lamp	Fig 54.
S358	Center Instrument Panel	Fig 43.
S359	Left Side Engine Compartment	Fig 31.
S360	Near T/O for Left Power Mirror	Fig 47.
S361	Near T/O for Left Power Mirror	Fig 47.
S363	Left Side Lightbar	Fig 57.
S364	Near T/O for Left Front Door Speaker	N/S
S369	Left Side Lightbar	Fig 57.
S370	Near T/O for Right Power Mirror	Fig 47.
S371	Near T/O for Right Door Lock Switch	Fig 47.
S372	Lower Front Engine Compartment	Fig 30.
S373	Right Front Lower Engine Compartment	Fig 30.
S377 (RHD)	Near T/O for Right Door Lock Switch	Fig 47.
S378 (RHD)	Near T/O for Right Front Power Window Motor	Fig 47.
S379 (RHD)	In Rear Body Harness near T/O for C310	Fig 53.
S380	Near T/O for Rear Wiper Motor	Fig 54.
S381	Near T/O for Tailgate Cylinder Lock Switch	Fig 54.
S382	Near T/O for License Lamp	Fig 54.
S390	Near T/O for Intrusion Sensor	N/S
S391	Near T/O for Left Visor/Vanity Lamp	N/S
S392	Near T/O for Left Visor/Vanity Lamp	N/S
S393	Near T/O for Intrusion Sensor	N/S
S394	Near T/O for Rear Map/Reading Lamp	N/S
S395	Neat T/O for Rear Map/Reading Lamp	N/S
