Vehicle Identification Number: Description
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

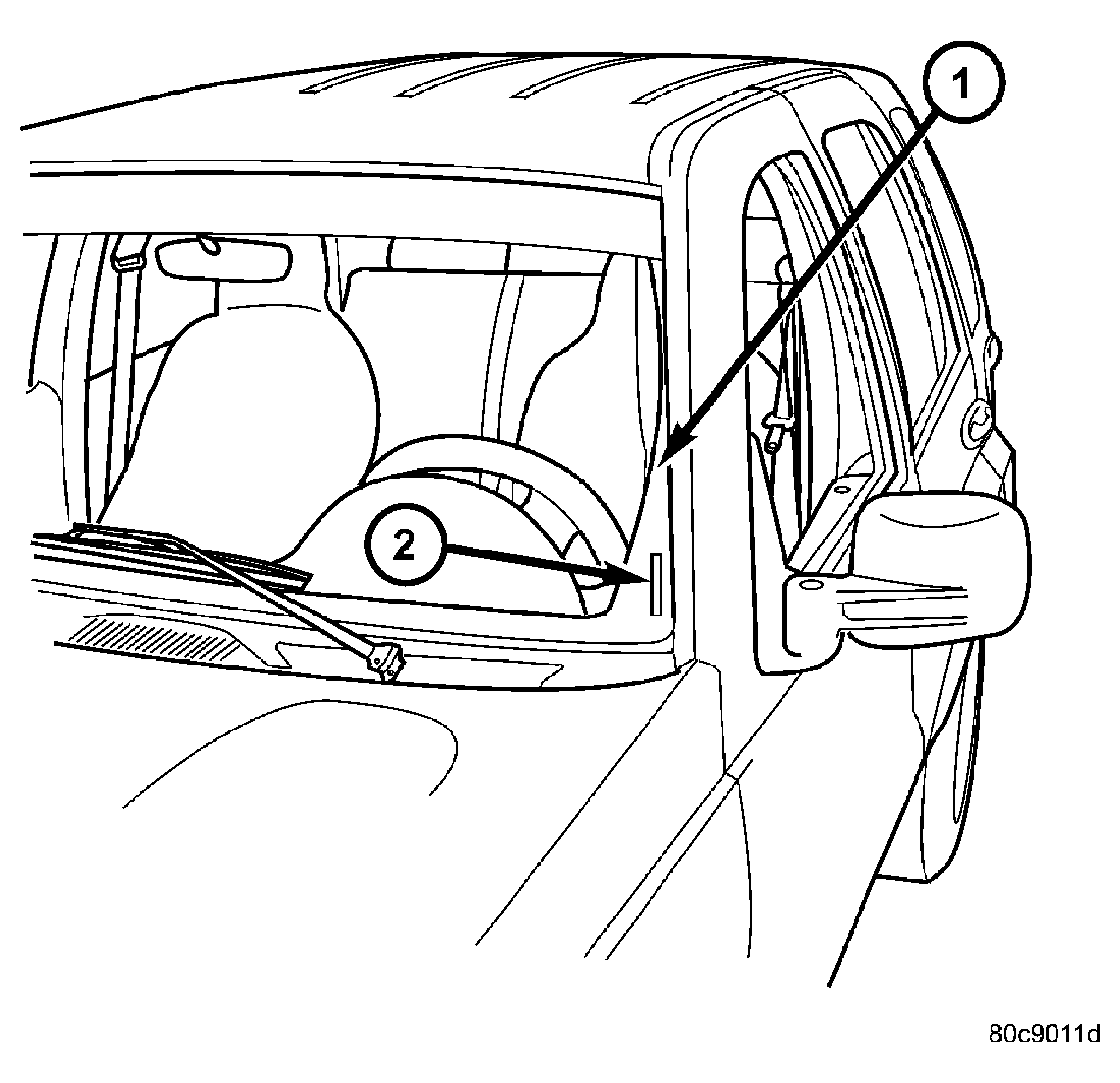

The Vehicle Identification Number (VIN) plate is located on the lower left A-pillar and is visible through the windshield. See Fig 1. The VIN contains 17 characters that provide data concerning the vehicle. Refer to VEHICLE IDENTIFICATION NUMBER DECODING CHART to determine the identification of a vehicle.
| 1 - A-PILLAR |
| 2 - VIN CODE PLATE |
The Vehicle Identification Number is also imprinted on the:
- Vehicle Safety Certification Label.
- Frame rail.
To protect the consumer from theft and possible fraud the manufacturer is required to include a Check Digit at the ninth position of the Vehicle Identification Number. The check digit is used by the manufacturer and government agencies to verify the authenticity of the vehicle and official documentation. The formula to use the check digit is not released to the general public.
VEHICLE IDENTIFICATION NUMBER DECODING CHART
| POSITION | INTERPRETATION | CODE = DESCRIPTION |
|---|---|---|
| 1 | Country of Origin | 1 = Manufactured by DaimlerChrysler Corporation |
| 2 | Make | J = Jeep |
| 3 | Vehicle Type | 4 = MPV W/O Side Airbags. 8 = MPV With Side Airbags. |
| 4 | Gross Vehicle Weight Rating | F = 4001 - 5000 lbs. G = 5001 - 6000 lbs. |
| 5 | Vehicle Line | K = Liberty 4X2 (LHD) L = Liberty 4X4 (LHD) without ABB M = Cherokee 4X4 (RHD) 6 = Cherokee (LHD) with ABB |
| 6 | Series | 3 = Liberty/Renegade 4 = Liberty Sport/Cherokee Sport 5 = Liberty Limited/Cherokee Limited |
| 7 | Body Style | 8 = Sport Utility - 4 Door |
| 8 | Engine | K = 3.7L 6 cyl MPI Gasoline 1 = 2.4L 4 cyl MPI Gasoline 5 = 2.8L 4 cyl Diesel |
| 9 | Check Digit | 0 through 9 or X |
| 10 | Model Year | 5=2005 |
| 11 | Assembly Plant | W = Toledo North Assembly Plant |
| 12 thru 17 | Vehicle Build Sequence | |
