Vehicle Emission Control Information (VECI) Label: Description
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
All models have a Vehicle Emission Control Information (VECI) Label. DaimlerChrysler permanently attaches the label in the engine compartment. See Fig 1. The label cannot be removed without defacing label information and destroying label.
The label contains the vehicle's emission specifications and vacuum hose routings. All hoses must be connected and routed according to the label.
The label also contains an engine vacuum schematic. There are unique labels for vehicles built for sale in the state of California and the country of Canada. Canadian labels are written in both the English and French languages.
The VECI label contains the following:
- Engine family and displacement
- Evaporative family
- Emission control system schematic
- Certification application
- Engine timing specifications (if adjustable)
- Idle speeds (if adjustable)
- Spark plug and gap

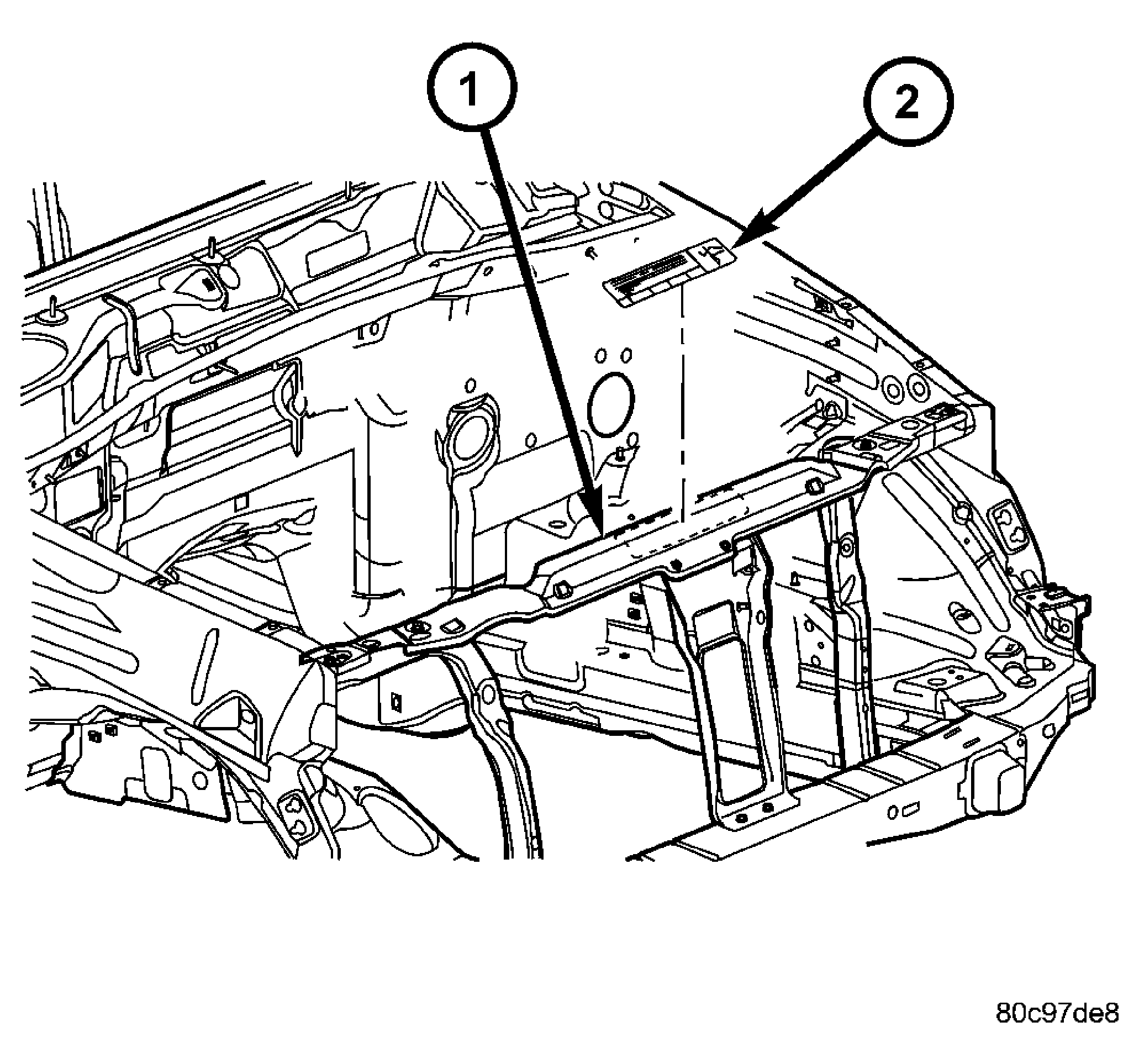

| 1 - RADIATOR SUPPORT |
| 2 - VECI LABEL |
