Cluster Bulb

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure applies to each of the incandescent cluster illumination lamp and bulb holder units.

Disconnect and isolate the battery negative cable.
Remove the instrument cluster from the instrument panel. (Refer to ELECTRICAL/INSTRUMENT CLUSTER - REMOVAL) .
Rotate the bulb holder counterclockwise about sixty degrees on the instrument cluster circuit board. See Fig 1.

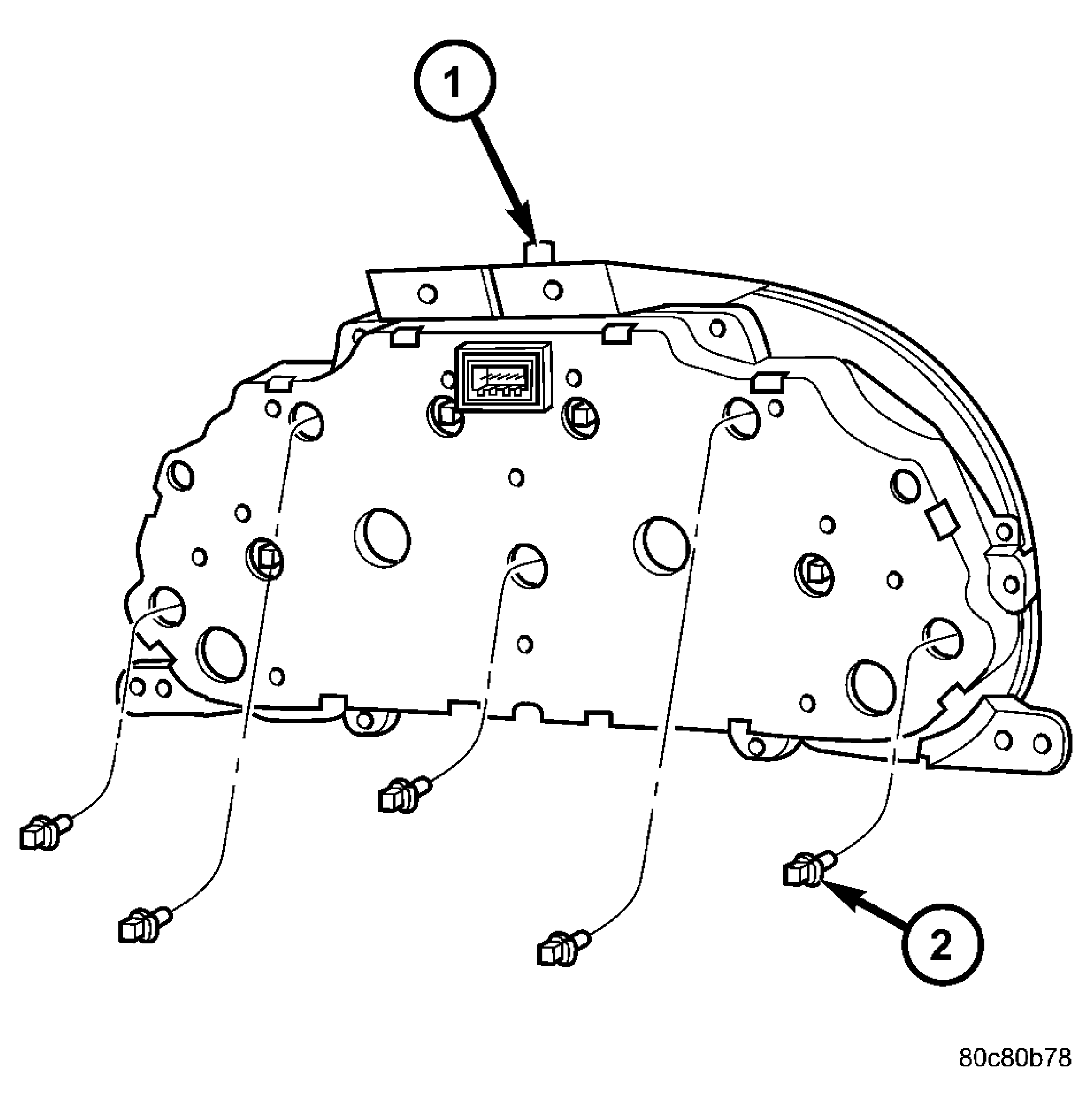

Fig 1: Cluster Bulb Remove/Install
Courtesy of DAIMLERCHRYSLER CORP.

1 - INSTRUMENT CLUSTER

2 - BULB & HOLDER (9)
Pull the bulb and bulb holder straight out of the circuit board.
