PDC Housing Lower Cover

REMOVAL

The Power Distribution Center (PDC) cover, the PDC housing lower cover, the PDC relay wedges, the PDC mini fuse wedge, the PDC relay cassettes and the PDC B(+) terminal stud module are available for service replacement. The PDC cover can be simply unlatched and removed from the PDC housing without the PDC being removed or disassembled. Service of the remaining PDC components requires that the PDC be removed from its mounting and disassembled. Refer to SYSTEM WIRING DIAGRAMS for the location of the wiring repair procedures.

1. Unlatch and remove the cover from the PDC.
2. Remove the two nuts that secure the two-holed eyelet of the battery wire harness PDC take out to the B(+) terminal studs near the inboard end of the PDC.
3. Remove the battery wire harness PDC take out eyelet from the two PDC B(+) terminal studs.
4. Disengage the latches on the PDC housing mounts from the tabs on the PDC mounting stanchions on the battery tray, and pull the PDC housing upward to disengage the mounts from the stanchions.
5. Where the headlamp and dash wire harness exits the PDC, remove the tape that secures the wire harness to the trough formation on the PDC housing lower cover.
6. Using a trim stick or another suitable wide flat-bladed tool, gently pry the latches on each side of the PDC housing that secure the housing lower cover to the PDC and remove the housing lower cover. See Fig 1.

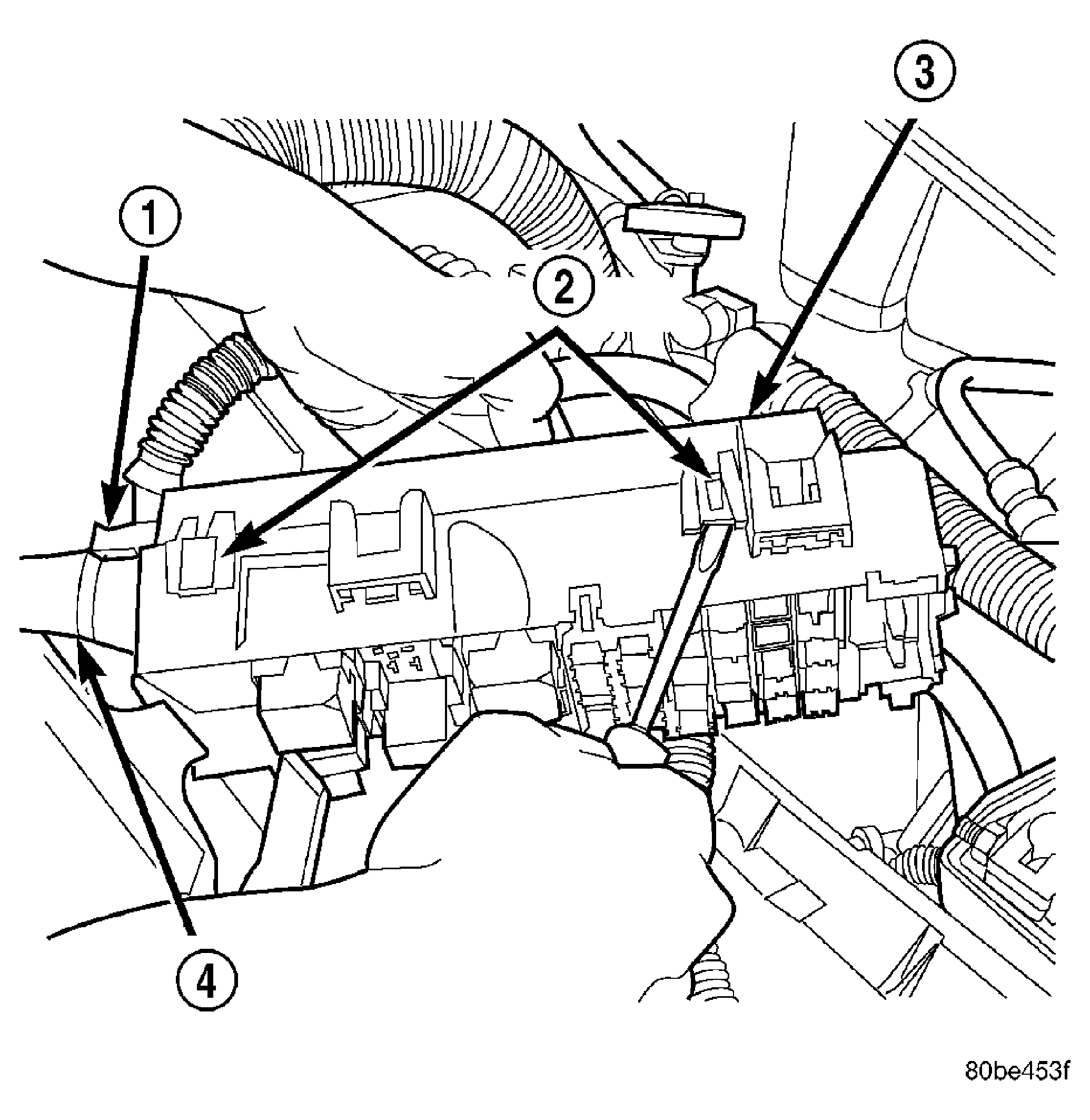

Fig 1: PDC Housing Lower Cover Remove/Install - Typical

Courtesy of DAIMLERCHRYSLER CORP.
