Battery Temperature Sensor: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

The battery temperature sensor is located under the vehicle battery and is attached to a mounting hole on battery tray. See Fig 1.

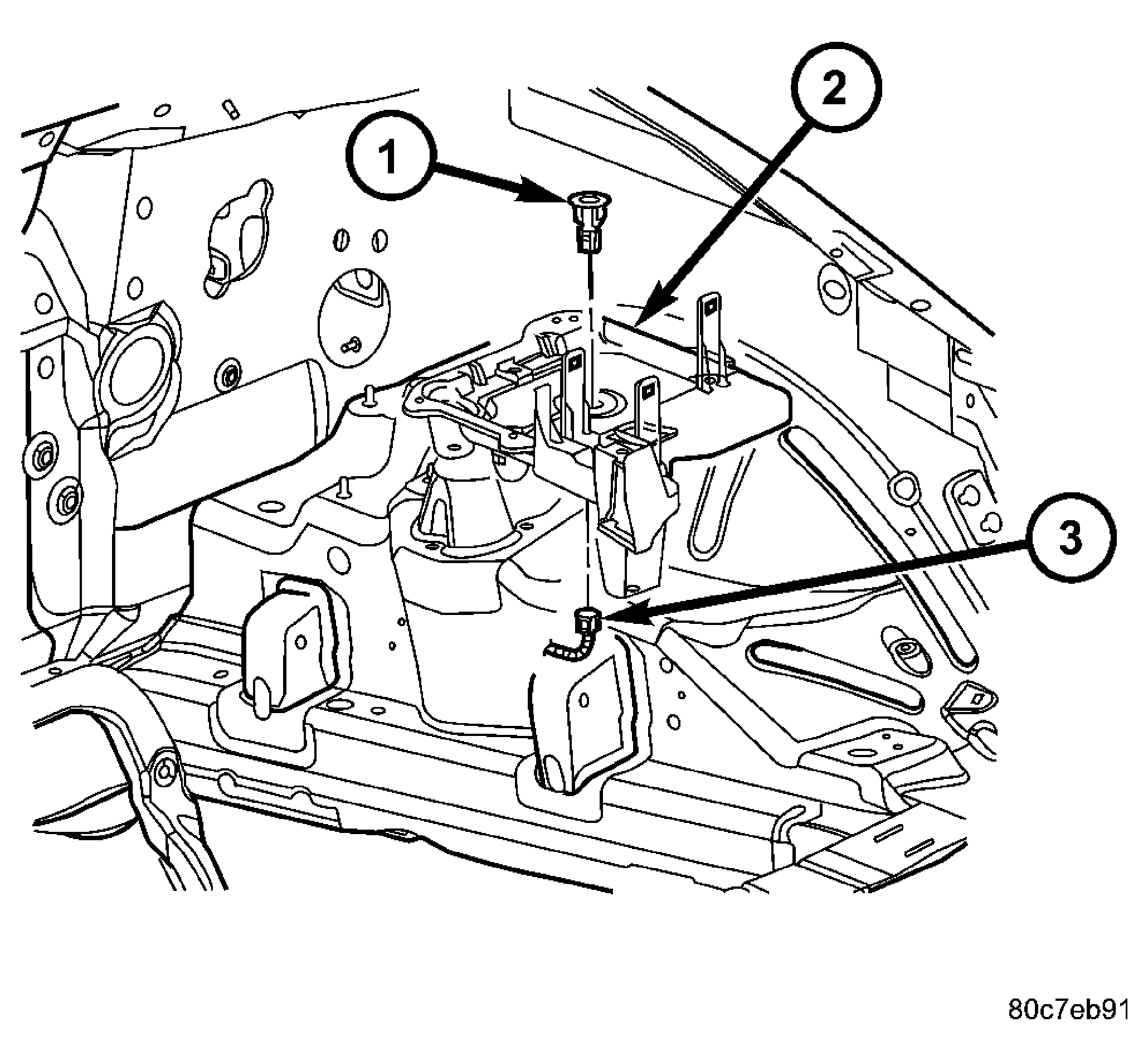

Fig 1: Battery Temperature Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1 - BATTERY TEMPERATURE SENSOR

2 - BATTERY TRAY

3 - ELECTRICAL CONNECTOR

Remove battery. Refer to BATTERY SYSTEM for procedures.
Disconnect sensor pigtail harness from engine wire harness electrical connector.
Pry sensor straight up from battery tray mounting hole.
