Ignition Coil: Removal: 2.4L
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect electrical connector at rear of coil.
- Remove all secondary cables from coil.

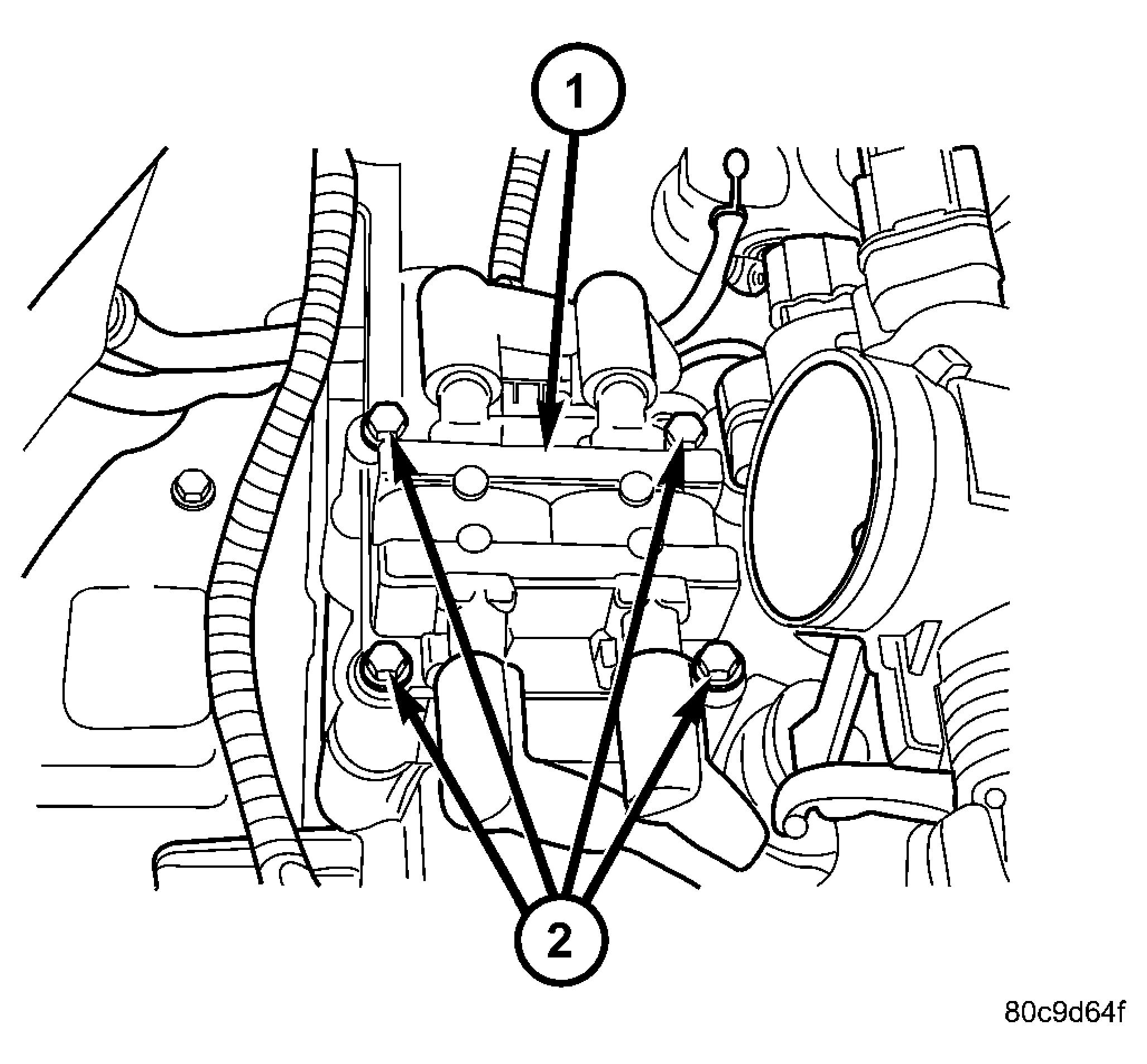

- Remove 4 coil mounting bolts. See Fig 1.
- Remove coil from vehicle.
| 1 - IGNITION COIL |
| 2 - MOUNTING BOLTS (4) |
