Gas Engines: 3.7L

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

The Camshaft Position Sensor (CMP) on the 3.7L V-6 engine is bolted to the front/top of the right cylinder head. See Fig 1.

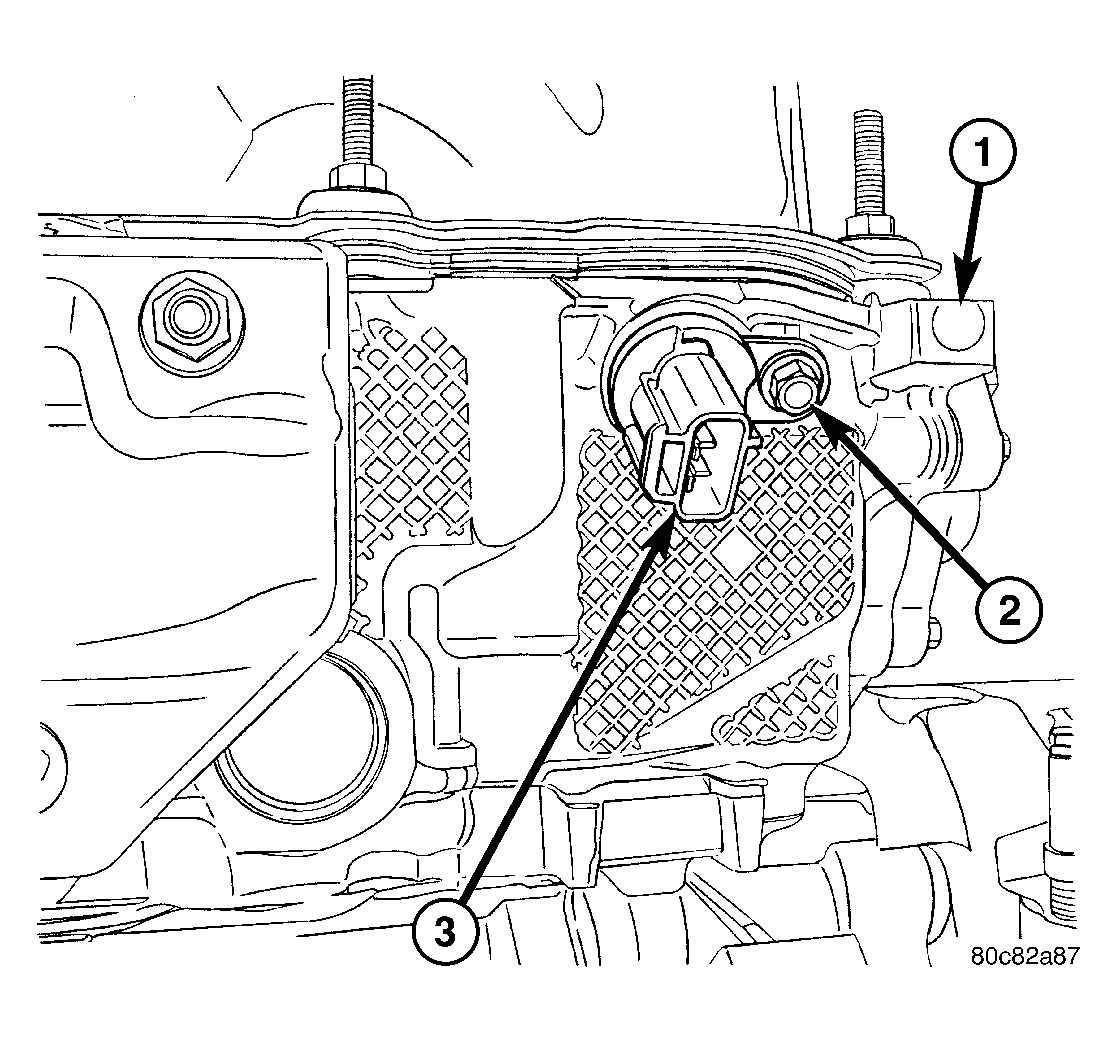

Fig 1: CMP Location - 3.7L

Courtesy of DAIMLERCHRYSLER CORP.

1 - RIGHT/FRONT OF RIGHT CYLINDER HEAD

2 - CMP MOUNTING BOLT

3 - CMP LOCATION

Disconnect electrical connector at CMP sensor.
Remove sensor mounting bolt. See Fig 1.
Carefully twist sensor from cylinder head.
Check condition of sensor o-ring.
