2.8L TURBODIESEL

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

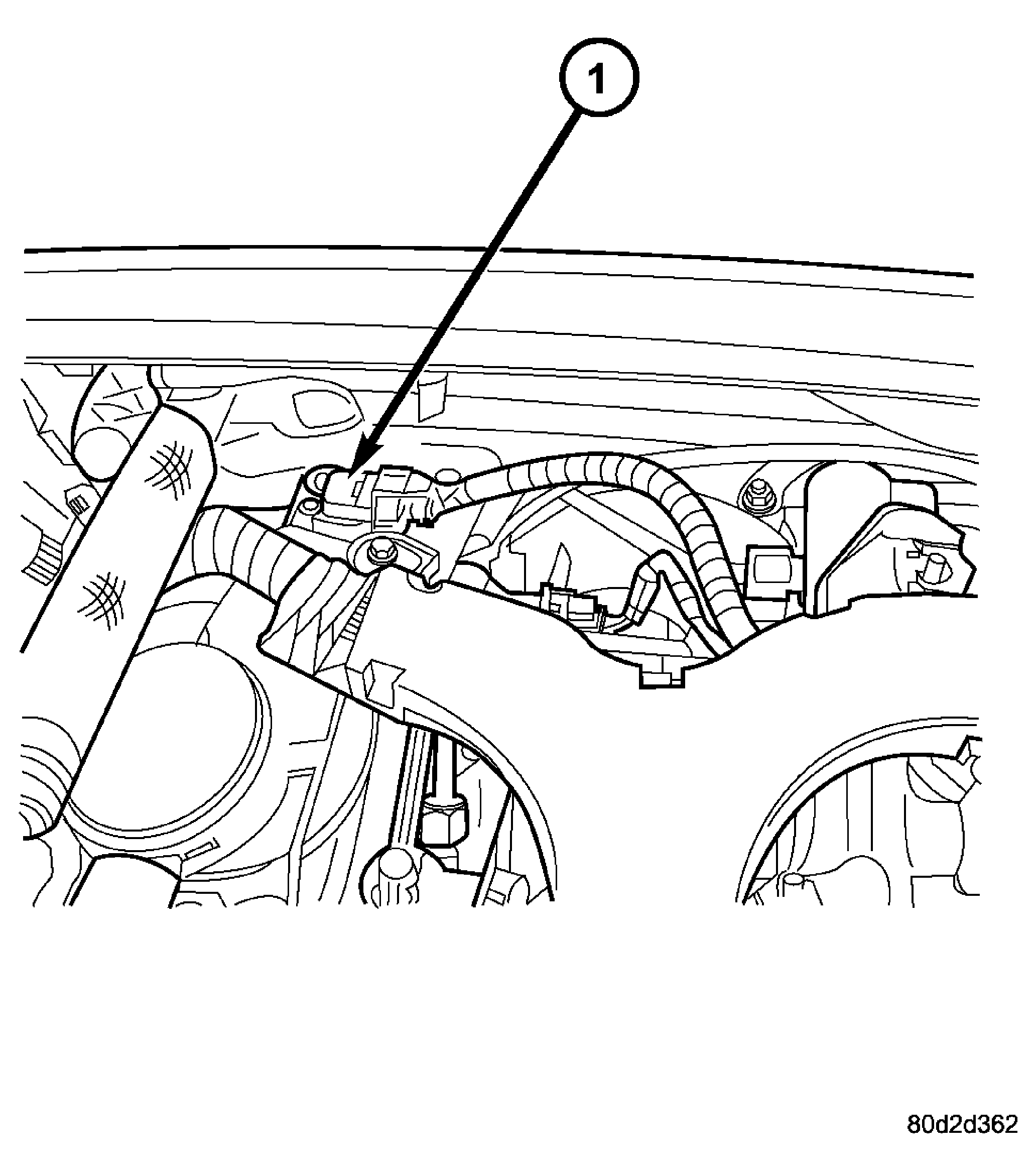

  1. Lubricate O-ring on new CMP sensor and install in cylinder head cover/intake manifold. See Figure.
  2. Install retaining bolts. Torque to 10.8N.m.
  3. Connect sensor electrical connector.
  4. Install engine cover (Refer to ENGINE COVER - INSTALLATION) .
  5. Connect negative battery cable.
