  1. Disconnect and isolate negative battery cable.
  2. Raise and support vehicle.
  3. Remove solenoid wire from solenoid terminal. See Figure.
  4. Remove battery cable from stud on starter solenoid. See Figure.
  5. Remove 2 starter mounting bolts and remove starter from vehicle. See Fig 1.

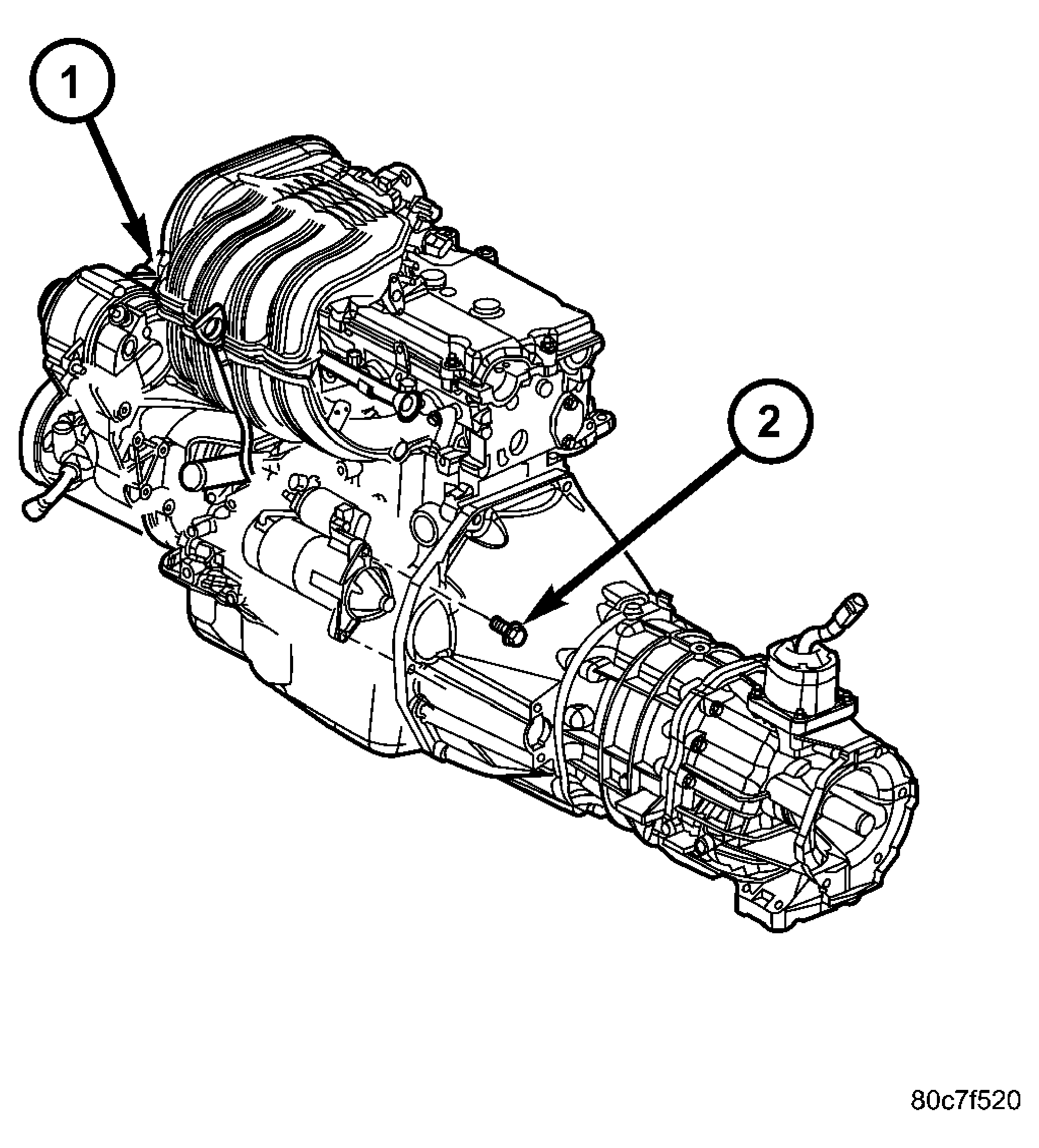

Fig 1: Starter - 2.4L
GC0026386Courtesy of DAIMLERCHRYSLER CORP.
1 - STARTER
2 - MOUNTING BOLTS (2)
